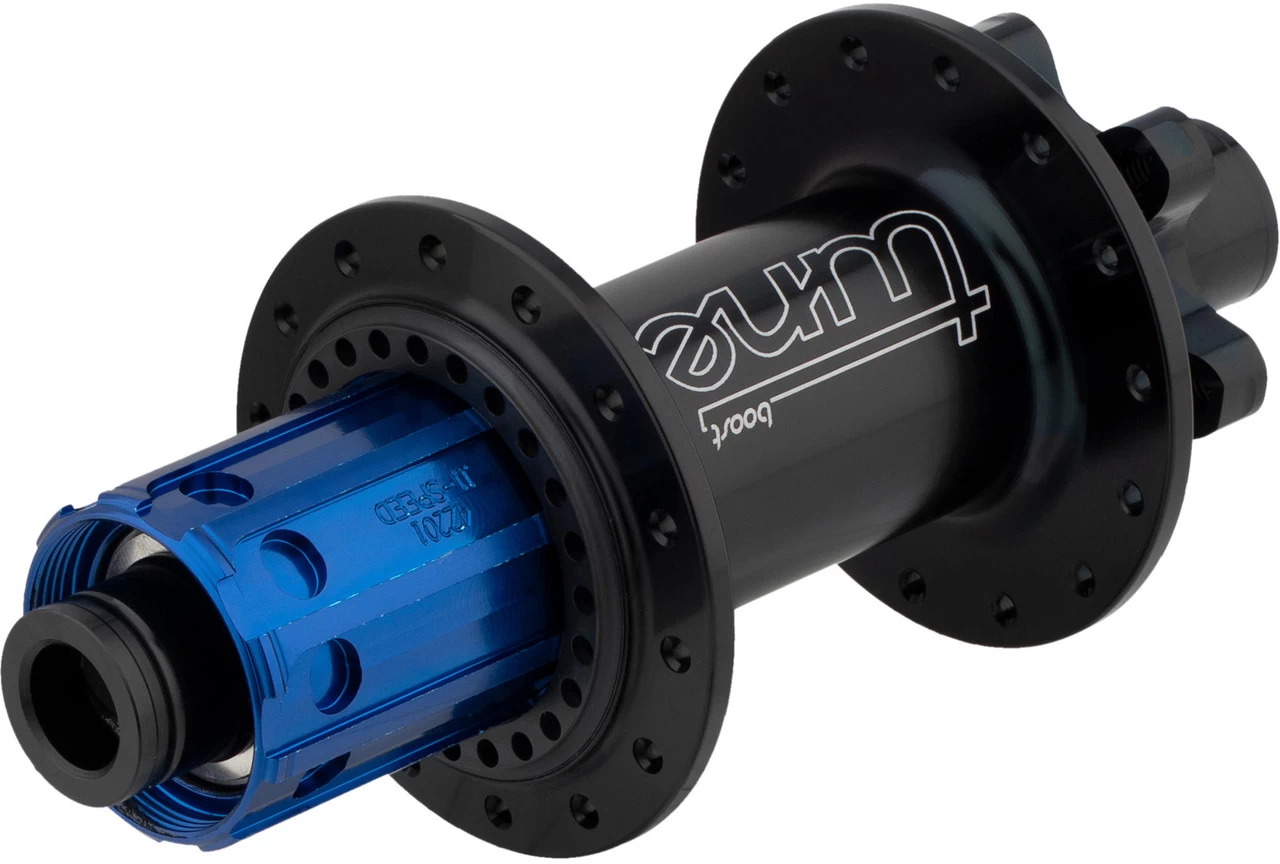

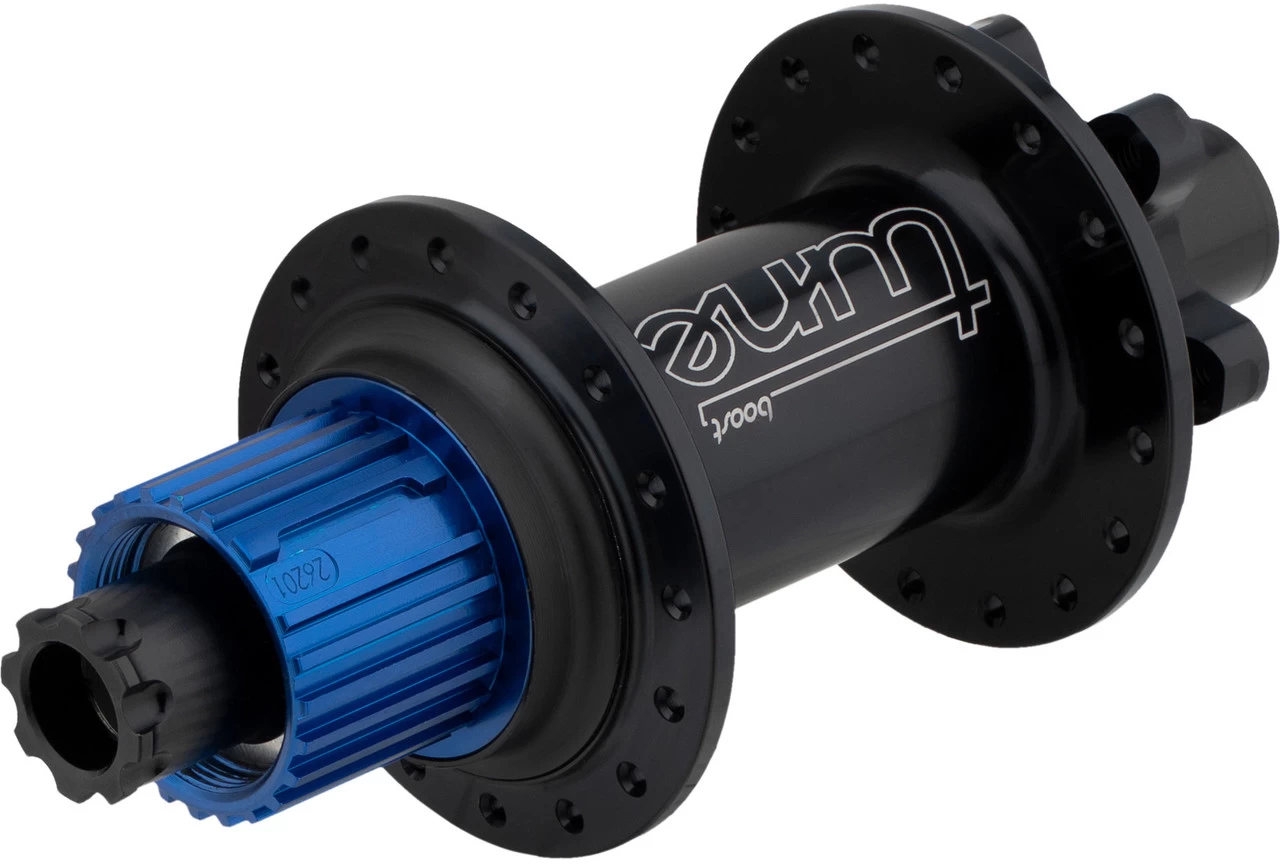

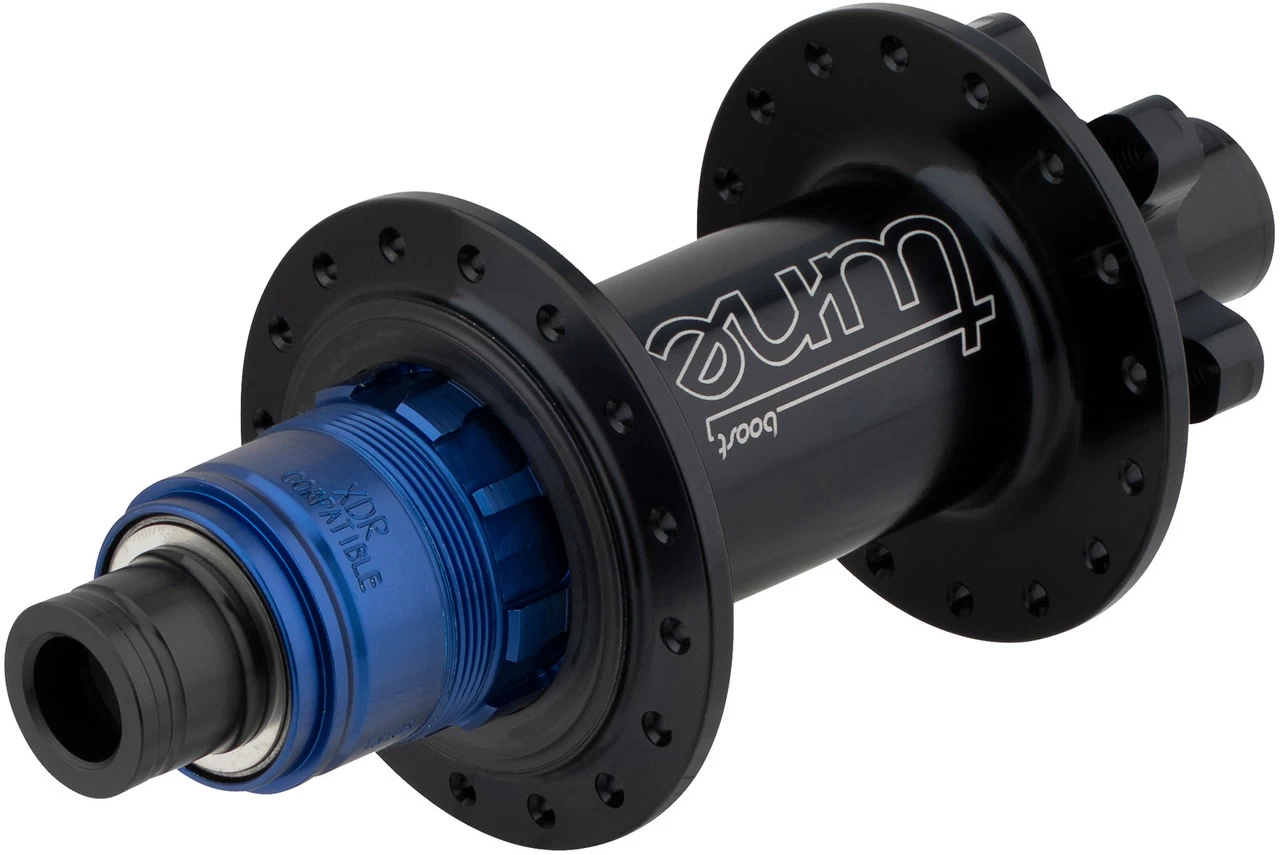

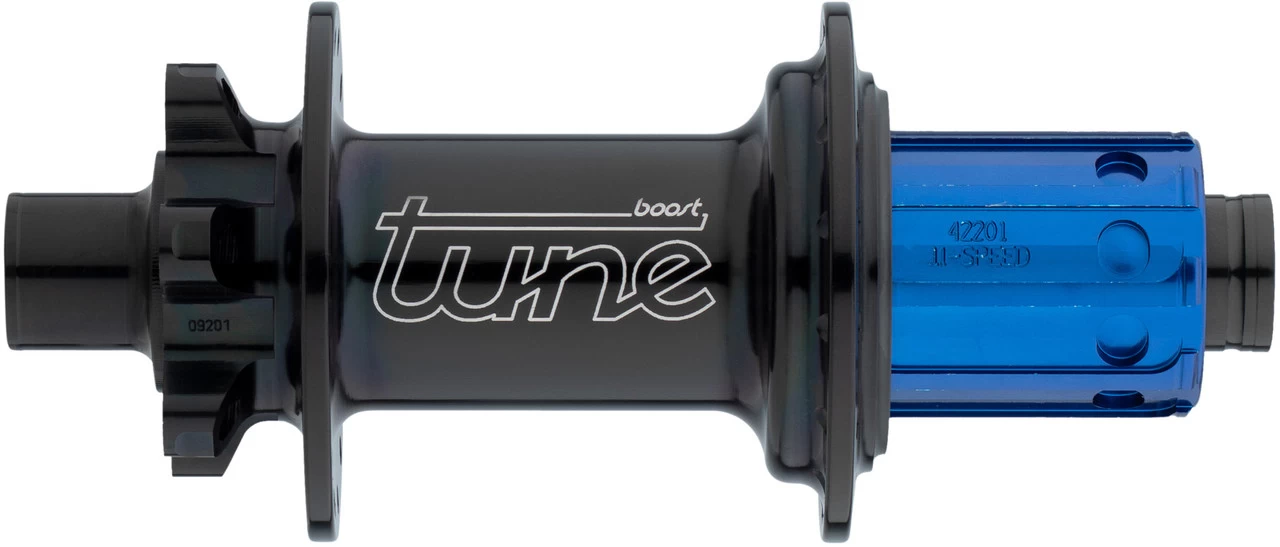

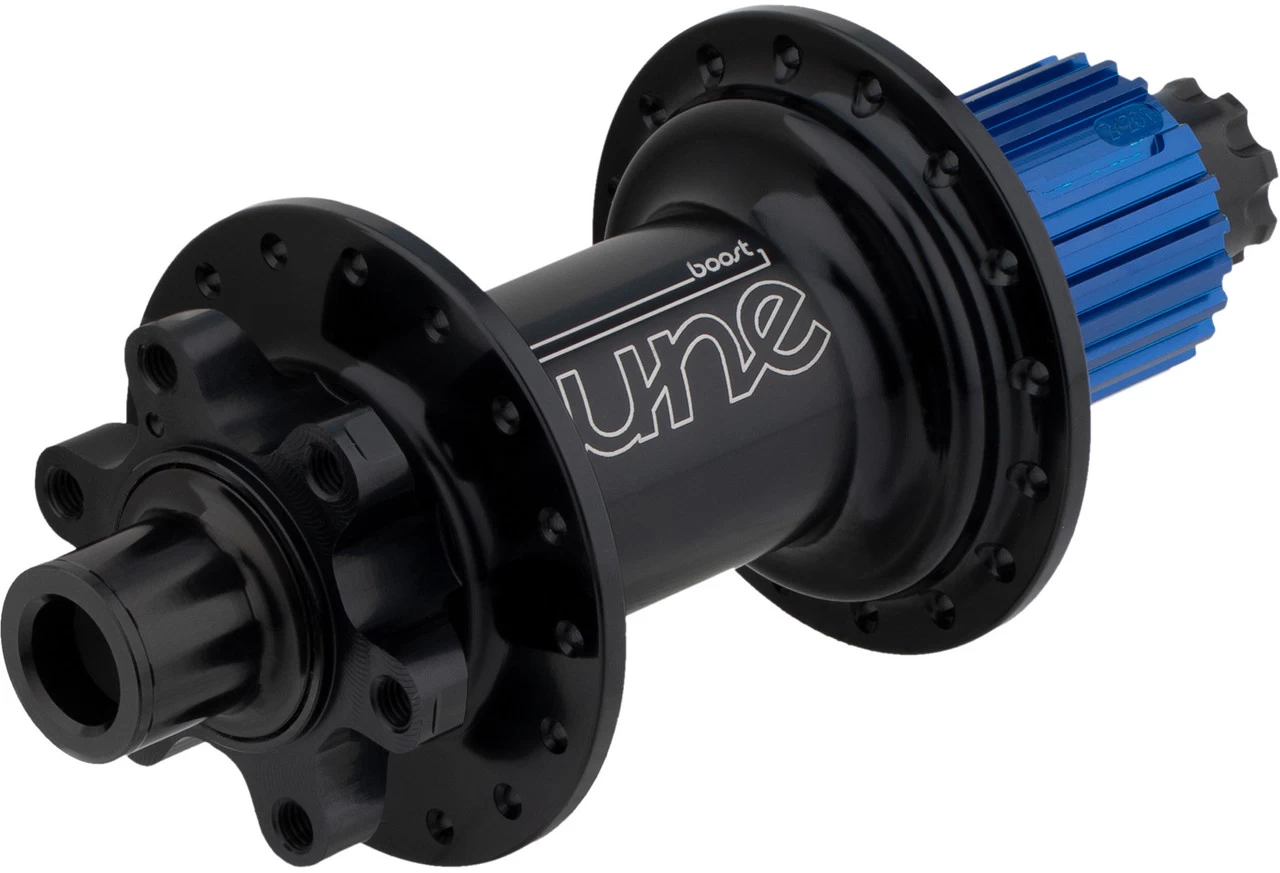

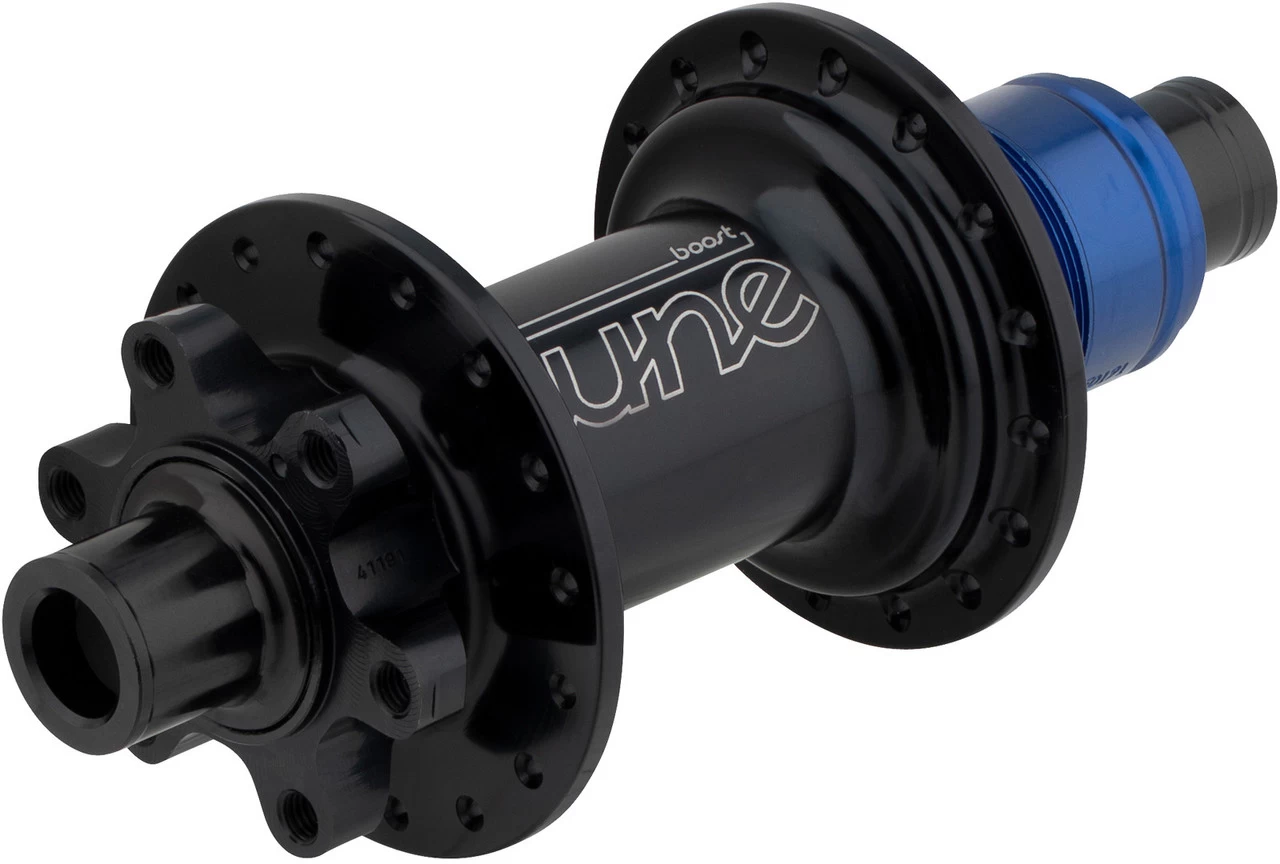

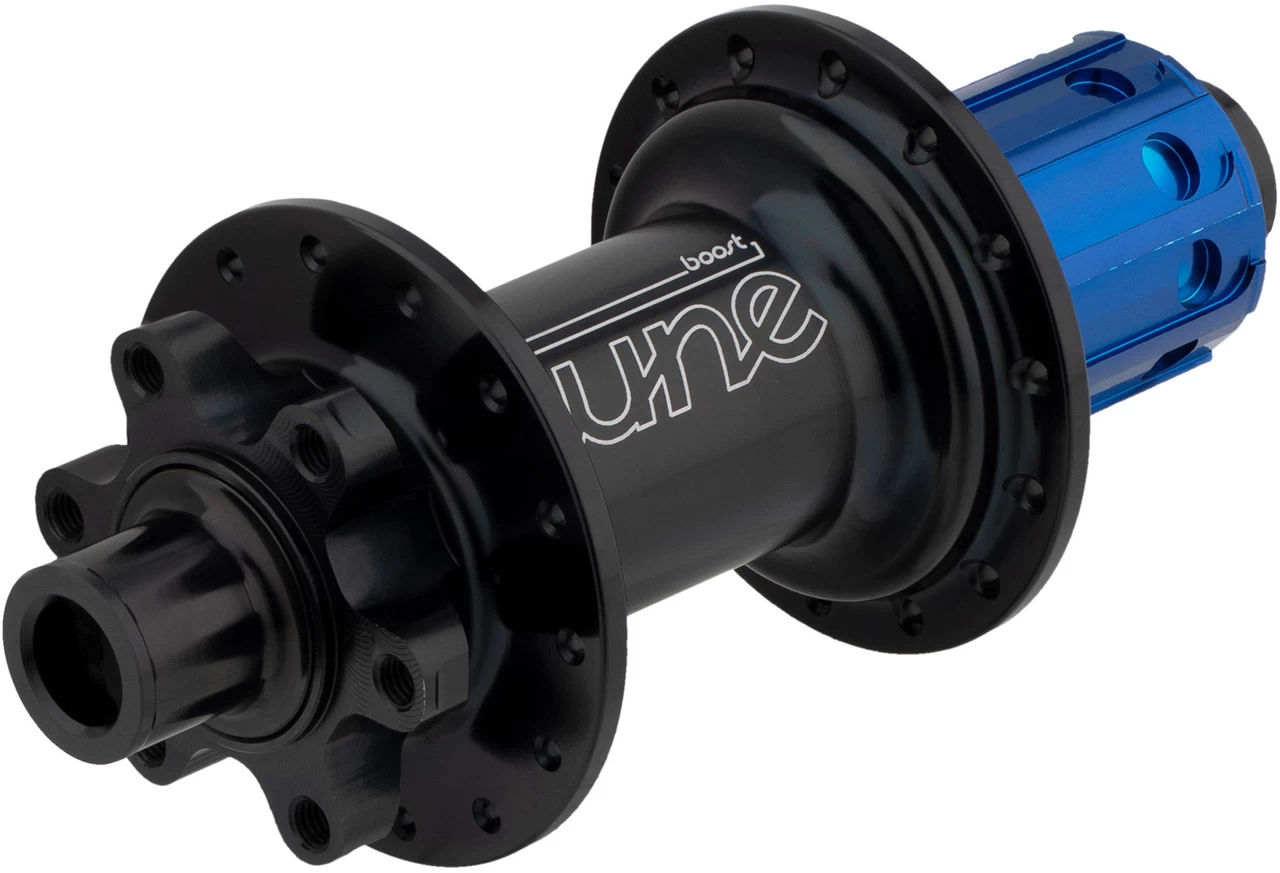

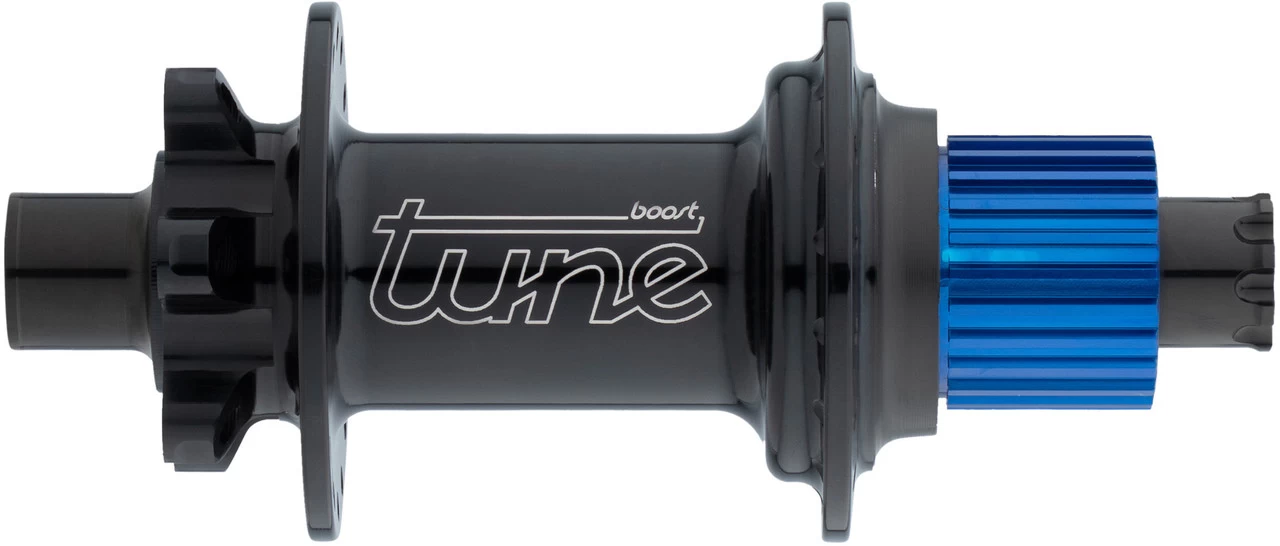

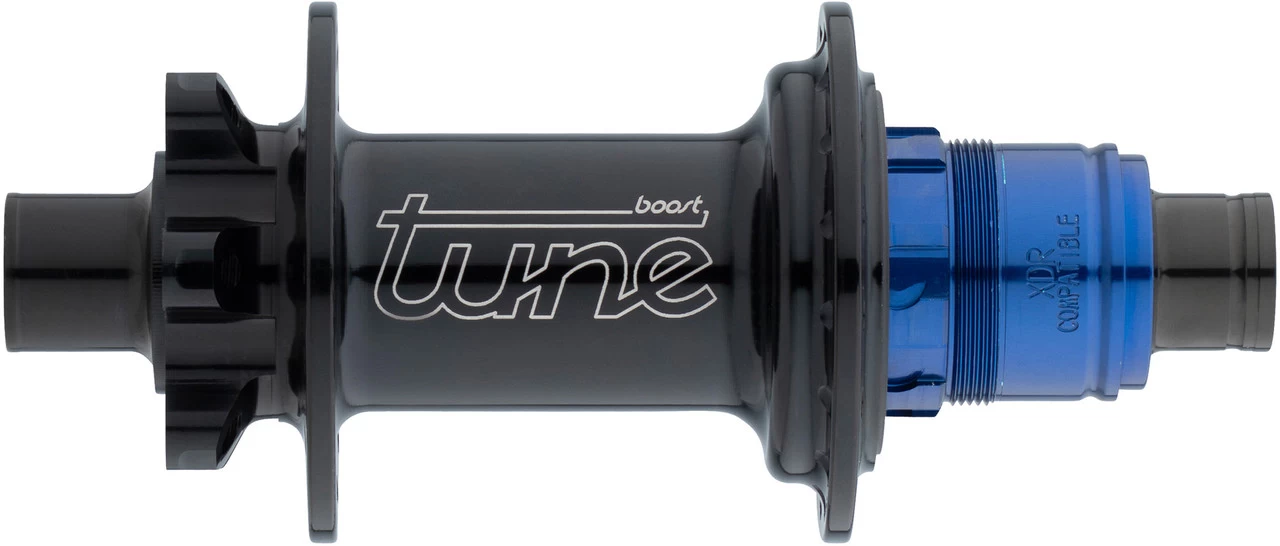

Tune ClimbHill Boost 6-bolt Disc Rear Hub

The lightweight tune ClimbHill rear hub has three pawls made of titanium and is so stable that you can even equip your Boost downhill bike with it. The hub comes with 148 mm over locknut dimension and a 6-bolt mount for the brake rotor.
Specifications:Application:All Mountain, Enduro, Cross Country, Downhill, Dirtjump & SlopestyleBrake Type:6-bolt discWheel Standard:BoostFreehub Body Type:3T Sky with 3 titanium pawlsTechnical Information:Body Material:aluminiumSpoke Hole Diameter:2.4 mmApproved For:Rider Weight Limit (max.):100 kgSystem Weight (max.):115 kgSpoke Tension (max.):1100 N
Manufacturer’s note: Before mounting the brake rotor, all screw locking residues must be removed from the threads. The brake rotor must be fixed with a calibrated torque wrench with a tightening torque of max. 5 Nm.
Features:CNC-milled, anodised aircraft aluminumassembled and adjusted by handModels:12 x 148 mm / 28 hole / Shimano:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):60.4 mm (36.8 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNF82IA2XAB0S3SSs
12 x 148 mm / 28 hole / Shimano Micro Spline:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano Micro SplineGearing:12-speedFlange Distance (L/R):60.4 mm (36.8 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNF82IA2SABMS3SSs
12 x 148 mm / 28 hole / SRAM XD:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:28 holeFreehub:SRAM XDGearing:11-/12-speedFlange Distance (L/R):60.4 mm (36.8 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNF82IA2XABXS3SSs
12 x 148 mm / 32 hole / Shimano:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:32 holeFreehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):60.4 mm (36.8 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNF22IA2XAB0S3SSs
12 x 148 mm / 32 hole / Shimano Micro Spline:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:32 holeFreehub:Shimano Micro SplineGearing:12-speedFlange Distance (L/R):60.4 mm (36.8 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNF22IA2SABMS3SSs
12 x 148 mm / 32 hole / SRAM XD:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:32 holeFreehub:SRAM XDGearing:11-/12-speedFlange Distance (L/R):60.4 mm (36.8 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNF22IA2XABXS3SSsContents:1 x tune ClimbHill Boost rear hub
