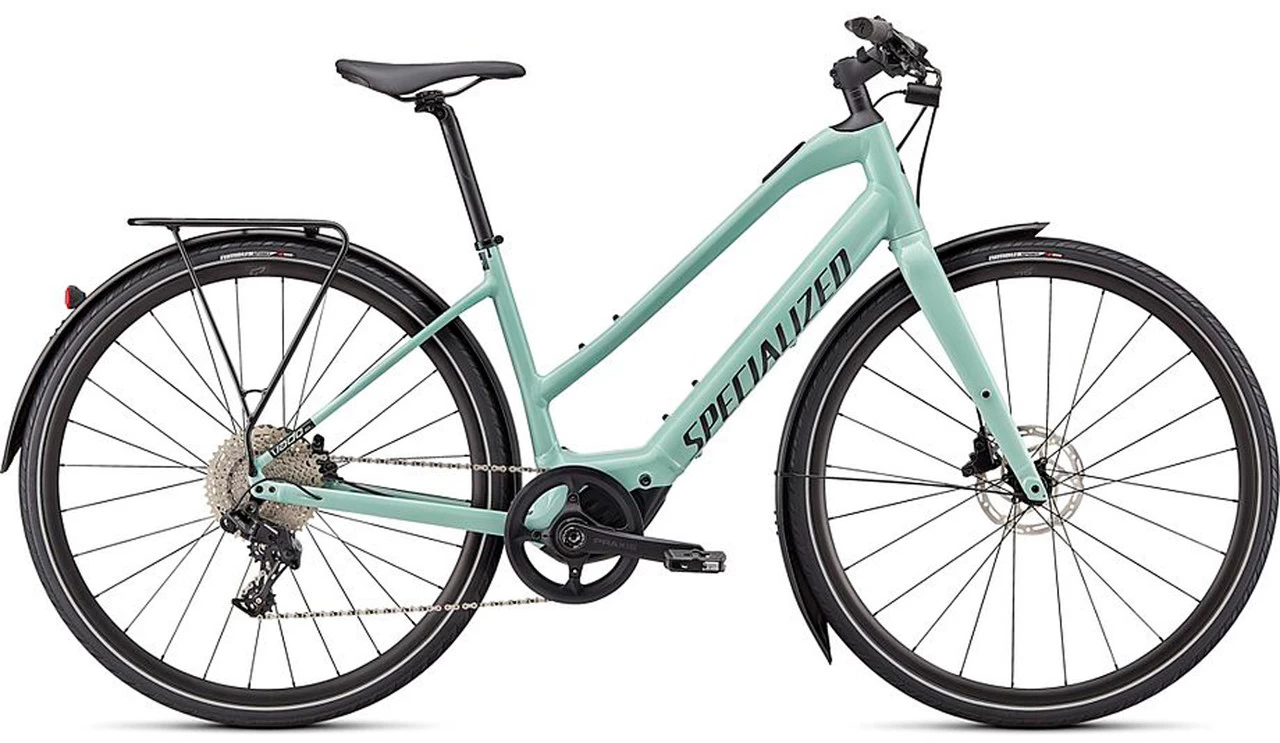

Specialized Turbo Vado SL 4.0 Step-Through EQ 28″ E-Touring Bike

Specialized Turbo Vado SL 4.0 Step-Through EQ 28″ – E-bike as an everyday hero
The Specialized Turbo Vado SL 4.0 Step-Through EQ is a fully equipped e-bike for commuters and urban riders that features a lowered top tube for easier climbing and descending. It was equipped with the super-light SL 1.1 engine and a 320 Wh battery, which provide a range of up to 130 kilometres. Front and rear lighting, pannier rack and fenders contribute to its suitability for everyday use, as do the robust 11-speed shifters from SRAM or the reliable Tektro disc brakes. With the Turbo Vado SL 4.0 you have a fast, efficient transfer and transport solution that also amazes with its low weight thanks to the lightweight frame and aluminium wheels. Tyres with extra puncture protection and reflective stripes round off the model.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:CityWheel Size:28″Sizes:S, M, L, XLFrame Material:aluminium (E5)Fork Material:aluminiumE-Motor:Type:mid-drive motorMotor Type:Specialized SL 1.1, 35 Nm (1.9 kg)Pedal Assist (max.):25 km/hPower:240 WBattery Type:Specialized SL1-320, fully integrated, 48 V*Capacity:320 WhDisplay:Specialized TCU, 10-LED battery status, 3-LED riding mode, ANT+ / Bluetooth, with handlebar remote
* The battery is located in the down tube and is charged directly there, which is why a bicycle parking space with an electrical socket is advantageous. Removal is possible, but requires tools or a workshop and possibly in-depth technical knowledge.
Components:Frame:Specialized Turbo Vado SL, 12 x 148 mmFork:Aluminium Disc rigid fork, 390 mm installation length, 50 mm Offset, 12 x 110 mmStem:Specialized Stealth Aluminium, 14°, 31.8 mm, integrated TCD mountHandlebars:Specialized aluminium, 9° backsweep, 15 mm rise, 31.8 mmHeadset:Specialized S202500002, 1 1/8″ top (45.8 x 36.8 x 6.5 mm x 45°), 1.5″ bottom (52 x 40 x 7 mm x 45°)Seatpost:Specialized, 27.2 mm, aluminium, 2-speed screw clamp, 25 mm setback, 350 mmSaddle:Specialized Bridge Sport, hollow steel railsCrank:Praxis Works M30 Custom Offset, forged aluminium, Praxis Works 44 T chainring, 110 BCDPedals:Specialized Commuter with grip tape and reflectorsBrakes/Brake Levers:Tektro HD-R290, hydraulic disc brake, 160 mm/160 mmShift Lever:SRAM NX, 11-speed, multi-shiftRear Derailleur:SRAM NX 11-speedCassette:SunRace CSMS7, 11-speed, 11-42 toothChain:KMC X11eT, 11-speedFenders:Specialized DryTech, aluminiumFront Light:Lezyne E-Bike Hecto STVZO E65, 210 lumen, 12 VRear Light:Lezyne E-Bike rear wheel mudguard STVZO, 11 lumen, 12 VBell:Simple BellKickstand:Specialized kickstand, 40 mm mountingRims:700C Disc, 21 mm jaw width, 22 mm rim depthSpokes:DT Swiss IndustryFront Hub:Specialized Aluminium Disc, sealed industrial bearings, Center Lock, 12 x 110 mm, 24 holesRear Hub:Specialized Aluminium Disc, sealed industrial bearings, Center Lock, 12 x 148 mm, 28 holesTyres:Nimbus II Sport Reflect, 700 x 38 mmApproved For:Weight Limit:136 kg (rider + gear)Chainrings:1xFeatures:step-through frame construction for easier mounting and dismountingdoubles your pedal power with up to 240 watts of assistancecapacity is expandable to 480 Wh with a Range Extender (not included in the delivery), for 190 km rangehigh-quality, lightweight E5 aluminium frameSpecialized Turbo SL rack, Racktime-compatible, 15 kg load capacityhigh-quality hydraulic disc brakes for maximum braking powerbright integrated front and rear lightingprotective plates against water and dirt splashes11-speed SRAM NX shifting for reliable performancedurable, lightweight aluminium wheels with fast-rolling, grippy Nimbus tyres with BlackBelt puncture protection and reflective stripsSpecialized Body Geometry Women’s Contour Handlebar Gripstubes with 40 mm SV/Presta valve, 700×32-50internal cable routingreflective detailsMission Control 2.0 App is available on the App Store or Google Play StoreTurbo Control Display (TCD) bicycle computer for mounting on the stem is available as an optional accessoryTechnology:E-Bikes by Specialized
Specialized e-bikes are designed in California and developed with Swiss technology. They take the ” It’s you, only faster” approach, which means that you have the impression of riding a ” normal” bike without motor assistance, but with at least twice as much power. Specialized e-bikes are characterised by a particularly quiet, smooth running electric drive. Due to two special freehub bodies, the crankset and motor shaft are decoupled from each other in such a way that no additional pedalling resistance occurs when the motor is s
