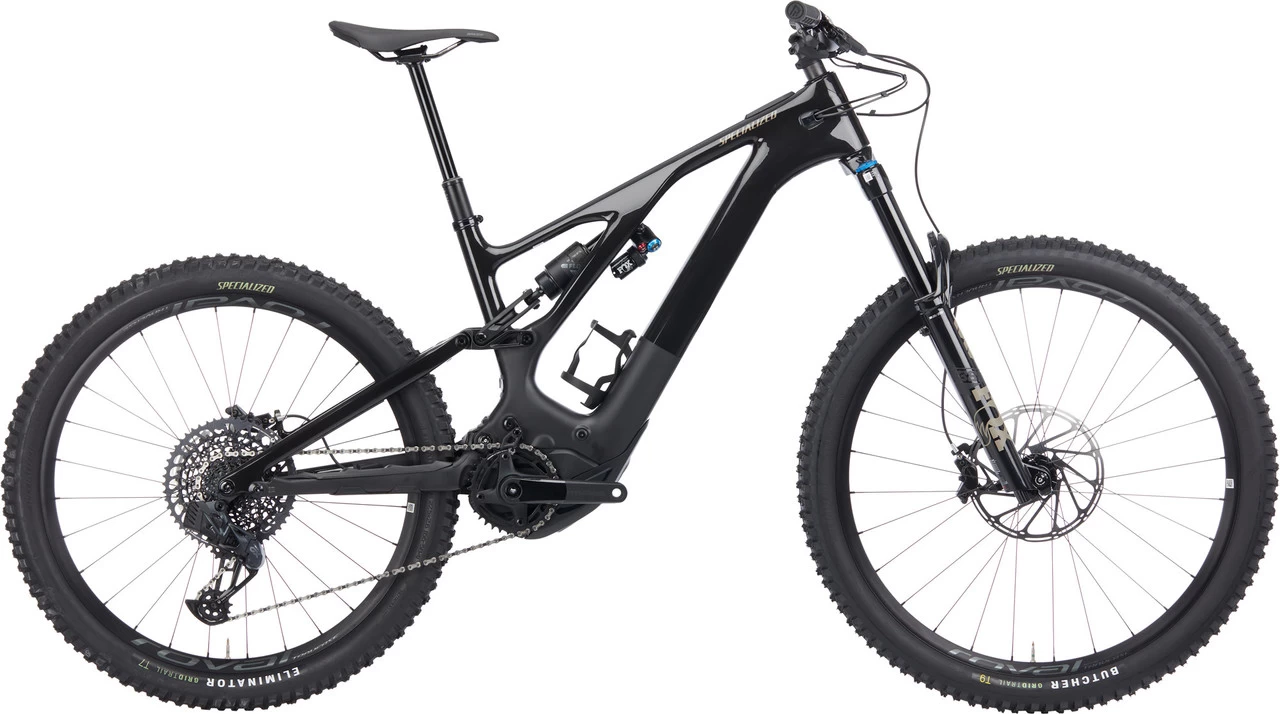

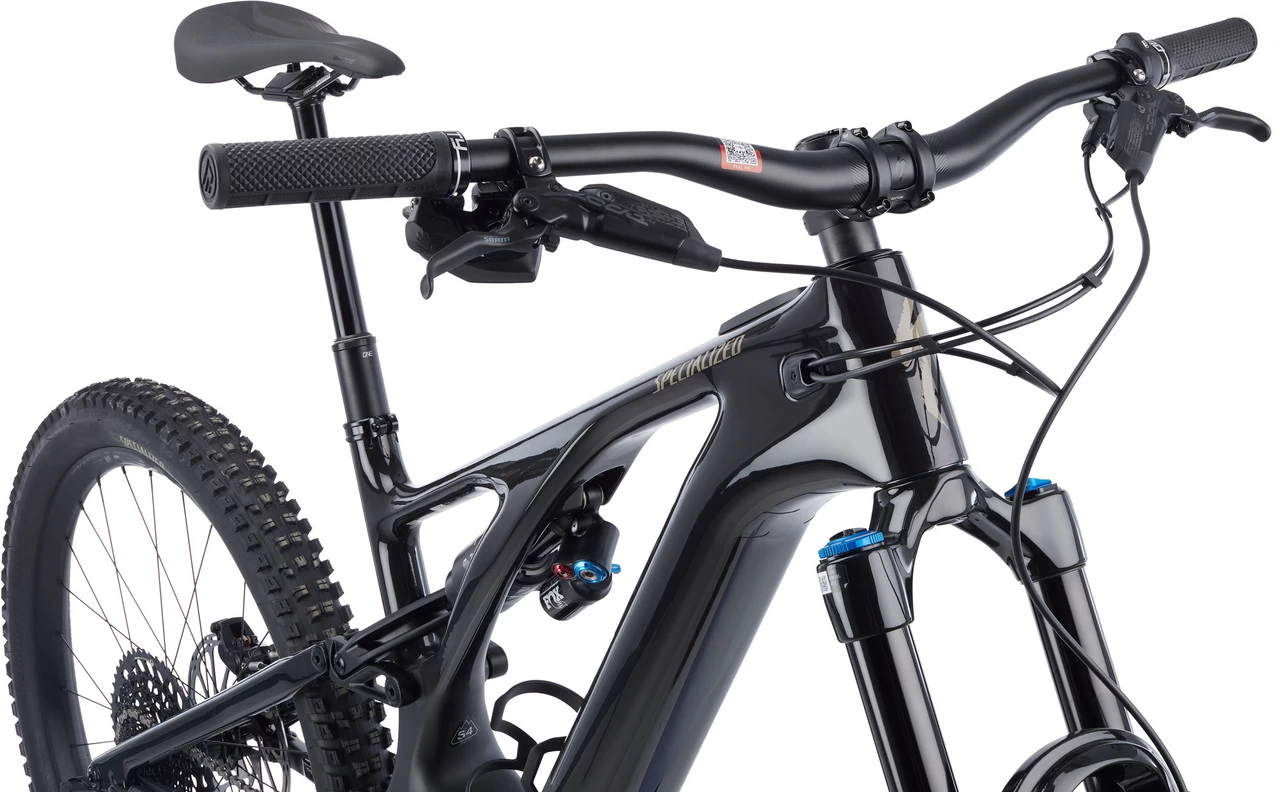

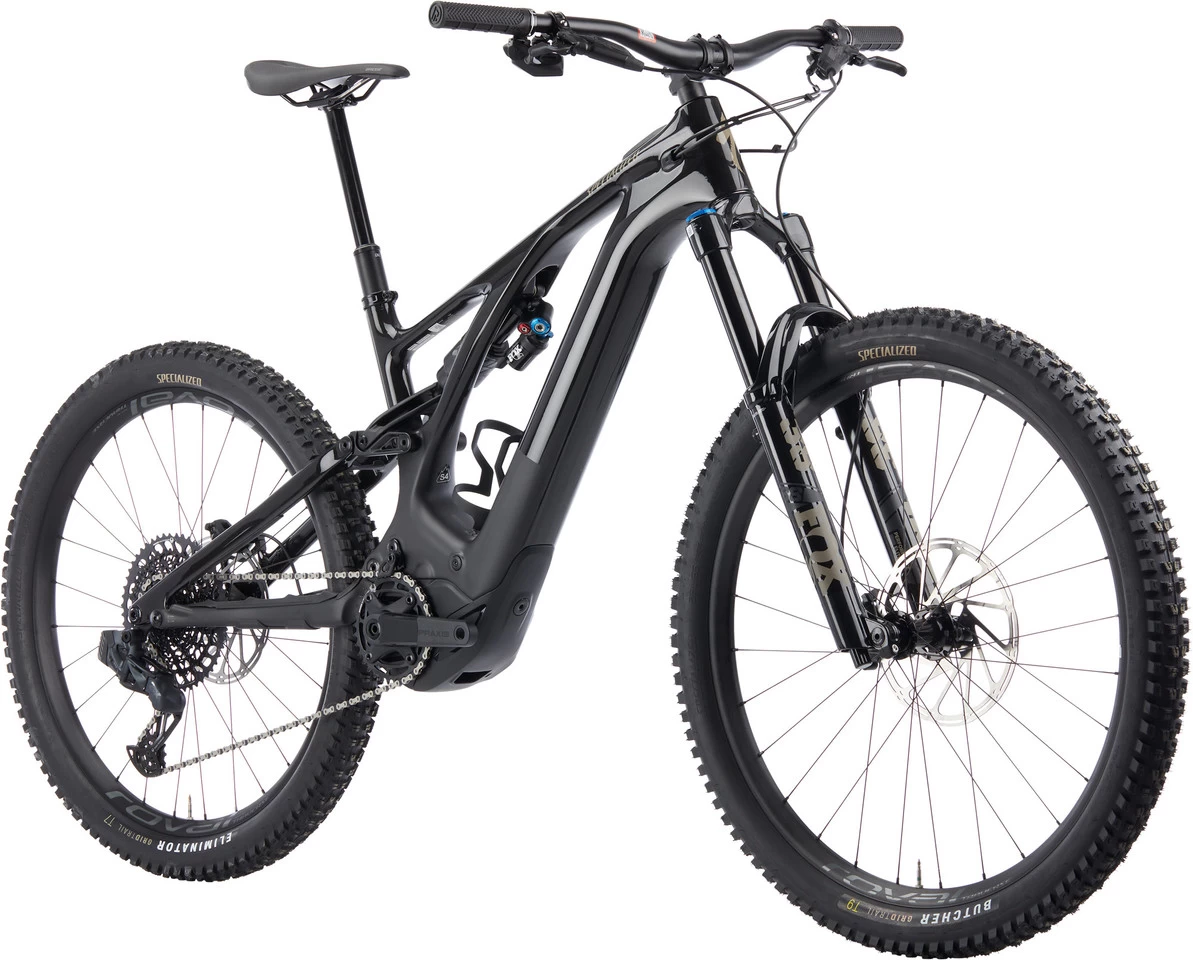

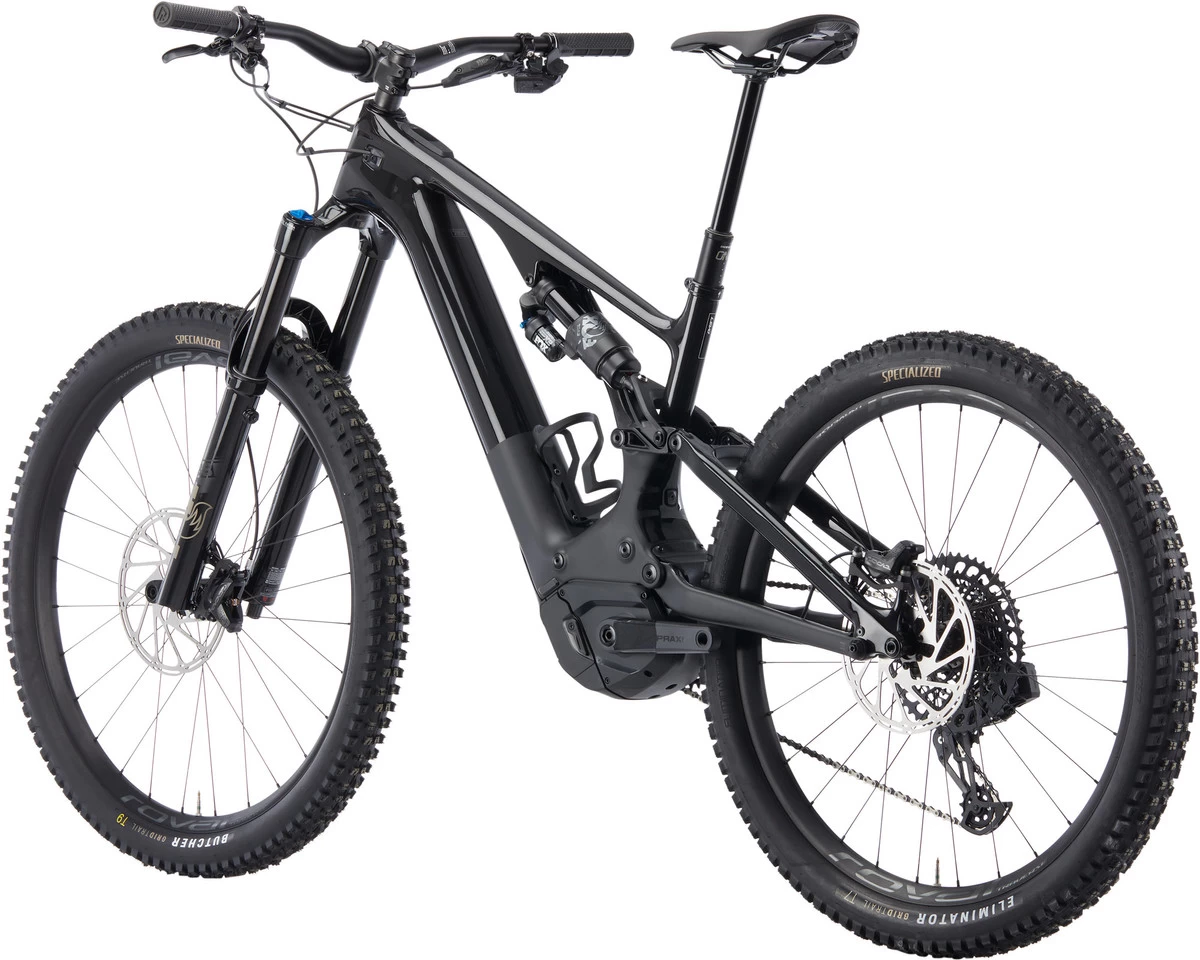

Specialized Turbo Levo Expert Carbon 29″ / 27.5″ E-Mountain Bike – 2023 Model

The Specialized Turbo Levo Expert Carbon E-Mountain Bike with quadruple reinforcement

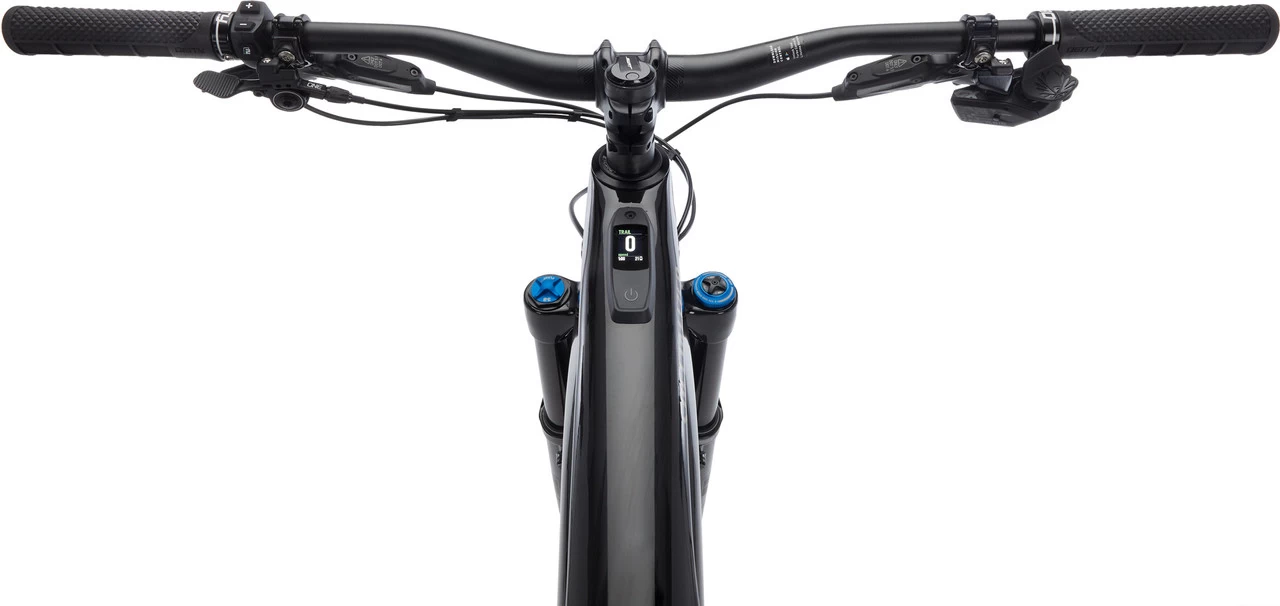

The versatile Specialized Turbo Levo Expert carbon e-trail bike is equipped with GX Eagle AXS electronic shifting and powerful Code RS four-piston brakes from SRAM, as well as Fox Performance Elite suspension fork and shock. It has a 29-inch wheel at the front and a 27.5-inch wheel at the rear, which makes it more agile than a pure 29-inch bike. The powerful motor and battery quadruple your own pedalling power while maintaining a natural riding feel. Six different geometry variants, based on three head tube angles and two bottom bracket heights as options, enable you to make precise adjustments. A highlight of the Levo is also the LCD display on the top tube, which keeps you informed of numerous important data points. The geometry is decidedly modern, with rather short chainstays, plenty of cockpit space and a rather little fork travel. The bottom bracket height can be adjusted via Flip Chip, and you can adjust the steering angle via headset cups, so that the right set-up can be found for every type of rider and every situation. In addition, the innovative Micro-Adjust function lets you tune the motor assistance in 10% increments. All said, this e-bike sets new standards in terms of adjustability.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

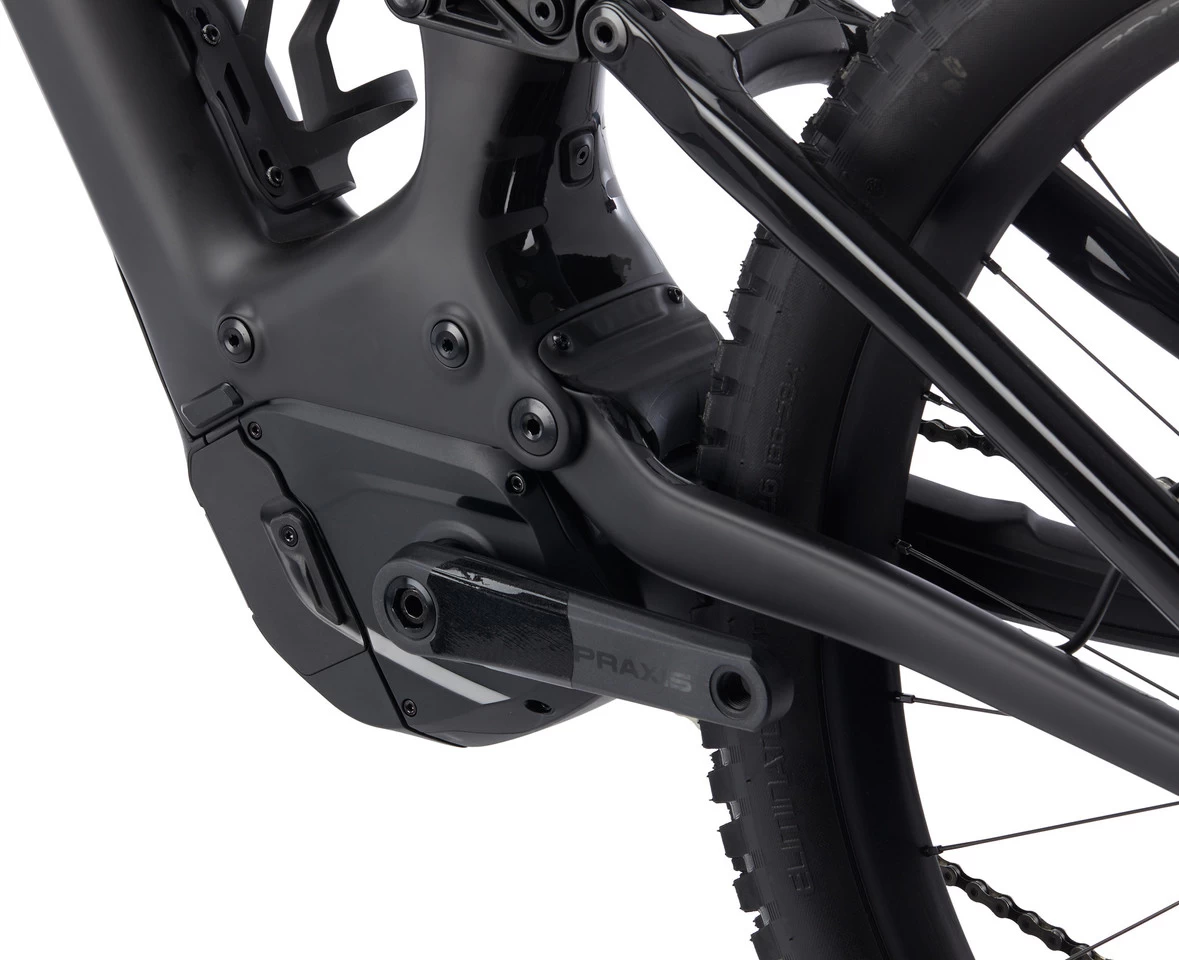

Specifications:Application:All MountainWheel Size:Scaled SizingFront Travel:160 mmRear Travel:150 mmSizes:S3, S4Front Triangle Material:carbon (11m)Rear Triangle Material:carbon (11m)E-Motor:Type:mid-drive motorMotor Type:Specialized 2.2 Custom Rx Trail TunedPedal Assist (max.):25 km/hPower:250 WBattery Type:Specialized M3-700, integrated*Capacity:700 WhDisplay:Specialized MasterMind TCU, battery status in percent, custom set-up, ANT+ / Bluetooth, with handlebar remote

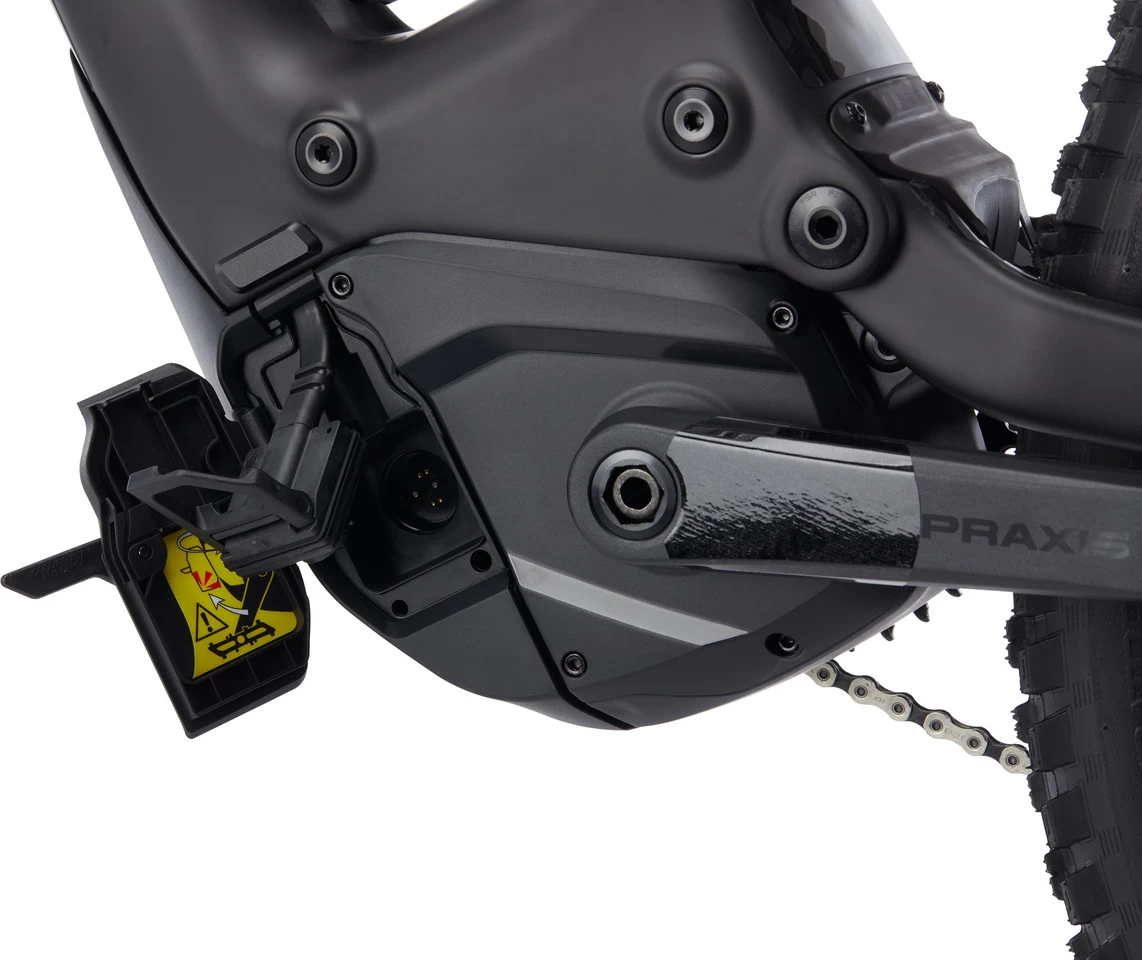

* The battery is located in the down tube and can either be charged directly there – in which case a bike parking spot with a socket is recommended – or removed with the aid of a 6 mm hex tool and then charged.

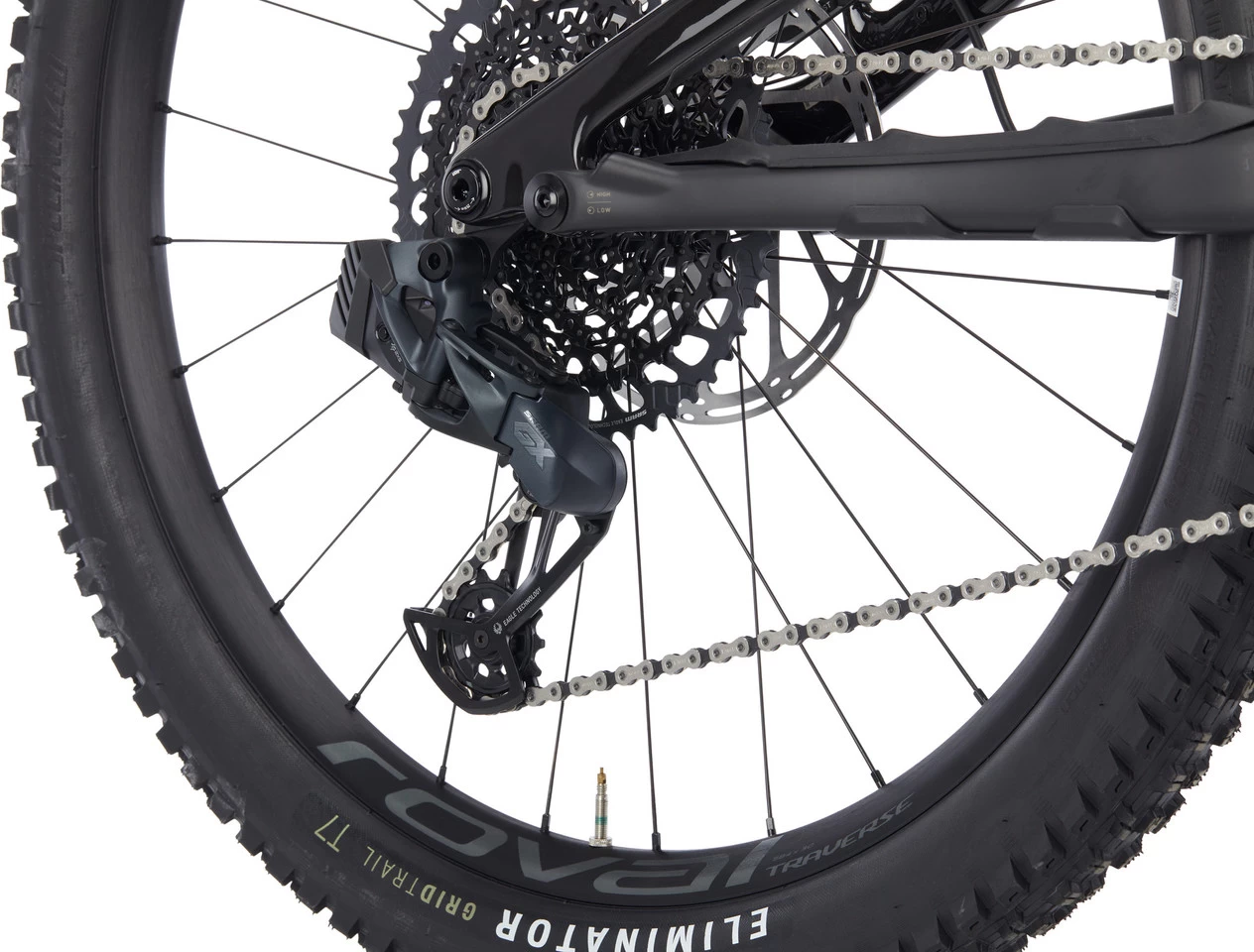

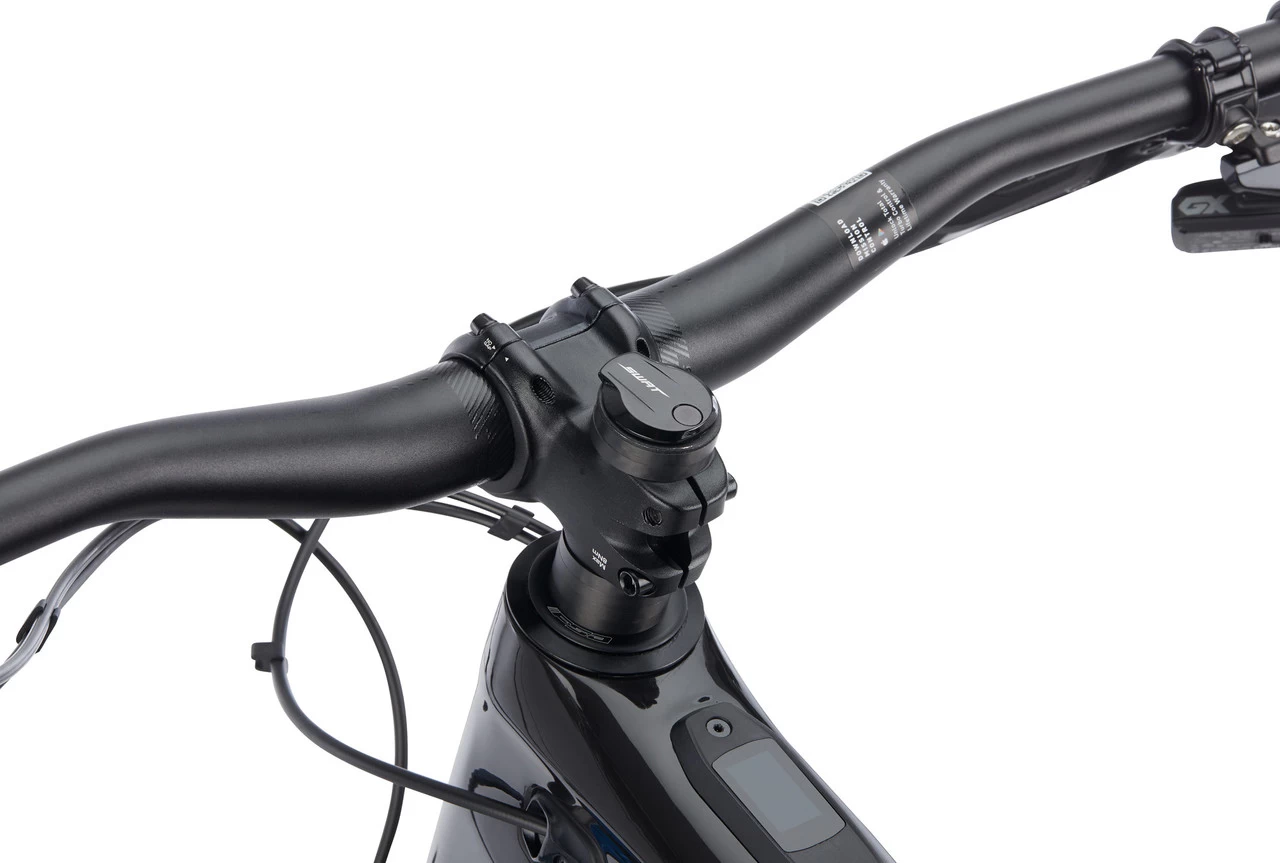

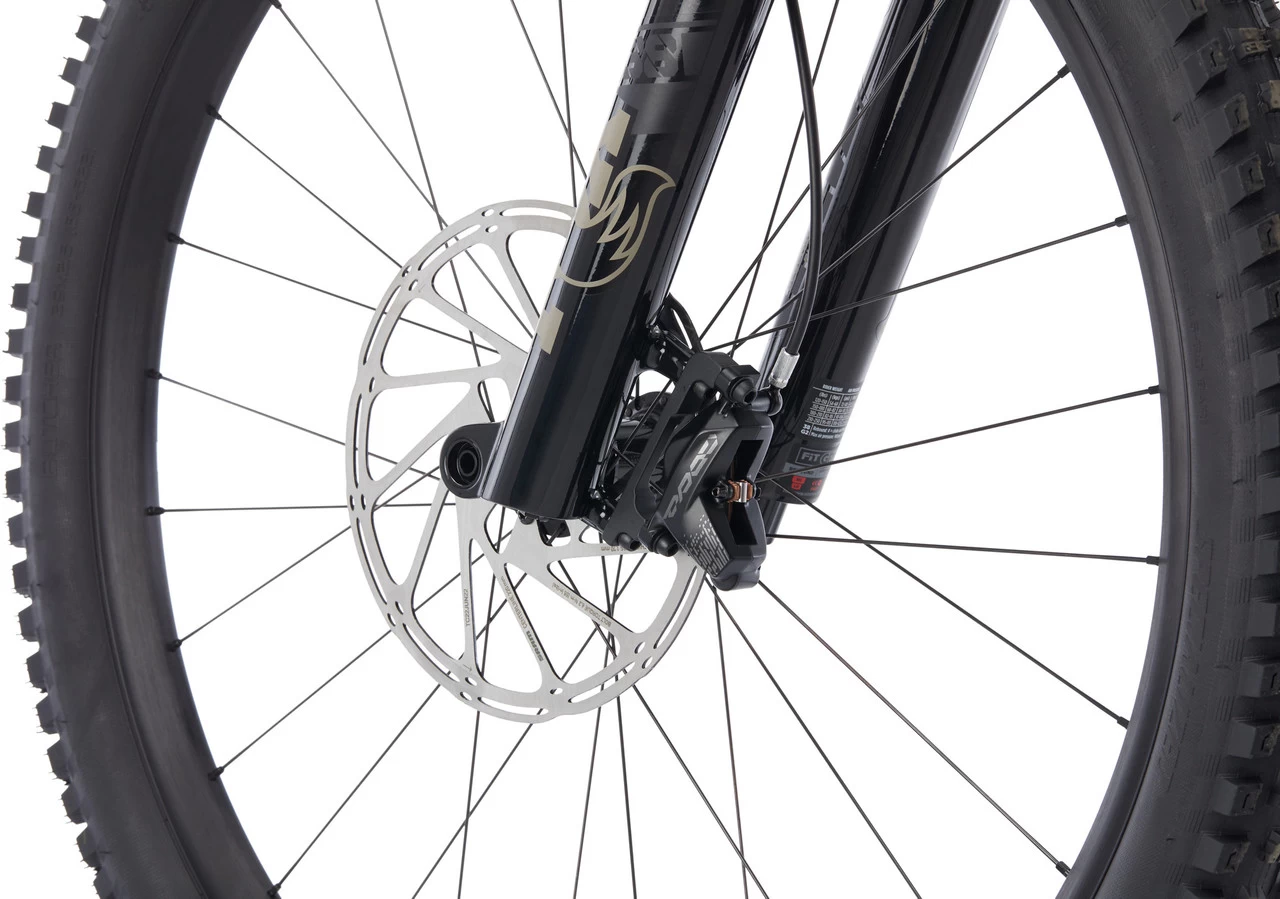

Components:Frame:Specialized Turbo Levo, FACT™ carbon, sealed cartridge bearings, 12 x 148 mmFork:Fox Racing Shox Float 38 Performance Elite, GRIP2 damping, HSC, LSC, HSR, LSR, 1.5″ tapered, 44 mm offset, 15 x 110 mmStem:Specialized Trail, aluminium, 35 mmHandlebars:Specialized Trail, aluminium (7050), 800 mm, 8° backsweep, 6° upsweep, 30 mm rise, 35 mm clampGrips:Deity Knuckleduster, blackRear Shock:Fox Racing Shox Float X2 Performance Elite, LSC, LSR, 2-position lever, 55 x 210 mmRemote System:noneHeadset:Specialized S182500005Seatpost:OneUp Components Dropper Post V2, MMX, 34.9 mm, stroke: 150 mm (S3) / 180 mm (S4)Saddle:Specialized Bridge Comp, hollow CrMo steel strutsCrank:Praxis Works M30, forged, custom offset, 160.0 mm, with SRAM X-Sync Eagle chainring, 104 BCD, 34 t, steelPedals:noneBrakes:SRAM Code RS, 4 piston, hydraulic disc brake, 200 mm (front, S3) / 220 mm (front, S4) / 200 mm (rear)Shift Lever:SRAM GX Eagle AXS ControllerRear Derailleur:SRAM GX Eagle AXS, with battery coverCassette:SRAM XG-1275, 12-speed, 10-52 teethChain:SRAM GX Eagle, 12-speedRims:Traverse 29″ (front) / Traverse 27.5″ (rear)Spokes:TraverseFront Hub:TraverseRear Hub:TraverseFront Tyre:Specialized Butcher, Grid Trail casing, GRIPTON® T9 rubber compound, 2Bliss Ready, 29 x 2.6″Rear Tyre:Specialized Eliminator, Grid Trail casing, GRIPTON® T7 rubber compound, 2Bliss Ready, 27.5 x 2.6″Approved For:Weight Limit:125 kg (rider + gear)Rotor Size (max.):220 mmTyre Size (max.):29 x 2.6″ (front), 27.5 x 2.6″ (rear)Chainrings:1xChainring Size (max.):1-speed 36 teeth (without chain guide), 1-speed 34 teeth (with chain guide)Features:powerful e-trail bike with adjustable geometrymullet construction with 29-inch front wheel and 27.5-inch rear wheel, thus smooth-running but more manoeuvrable than pure 29-inch bikesadjustable geometry: bottom bracket height high / low, steering angle steep / medium / flatboosts your performance fourfoldRxTune: sophisticated suspension tuning for responsive performanceexcellent performance over the entire suspension travelmodern, progressive geometryplenty of cockpit space, short chainstays, low bottom bracket, low fork offsetcolour display: the most important data and parameters at a glance while ridingmotor support configurable in 10% increments while ridinginternal cable routingSWAT™ CC steerer tube with integrated tool (chain riveter)standard tubes with SV / Presta valvesaluminium seat clamp, 38.6 mmTechnology:FACT™
FACT is an acronym for ” Functional Advance
