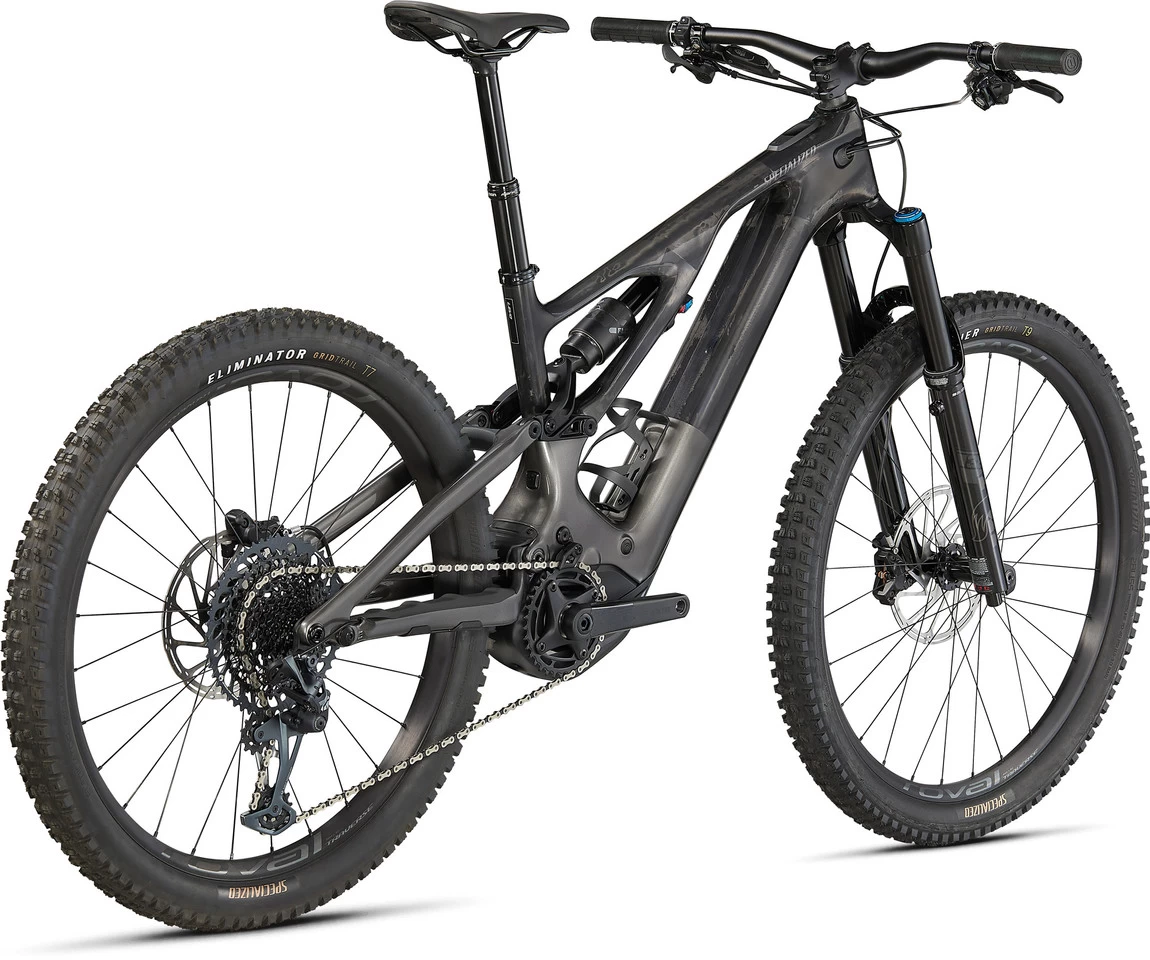

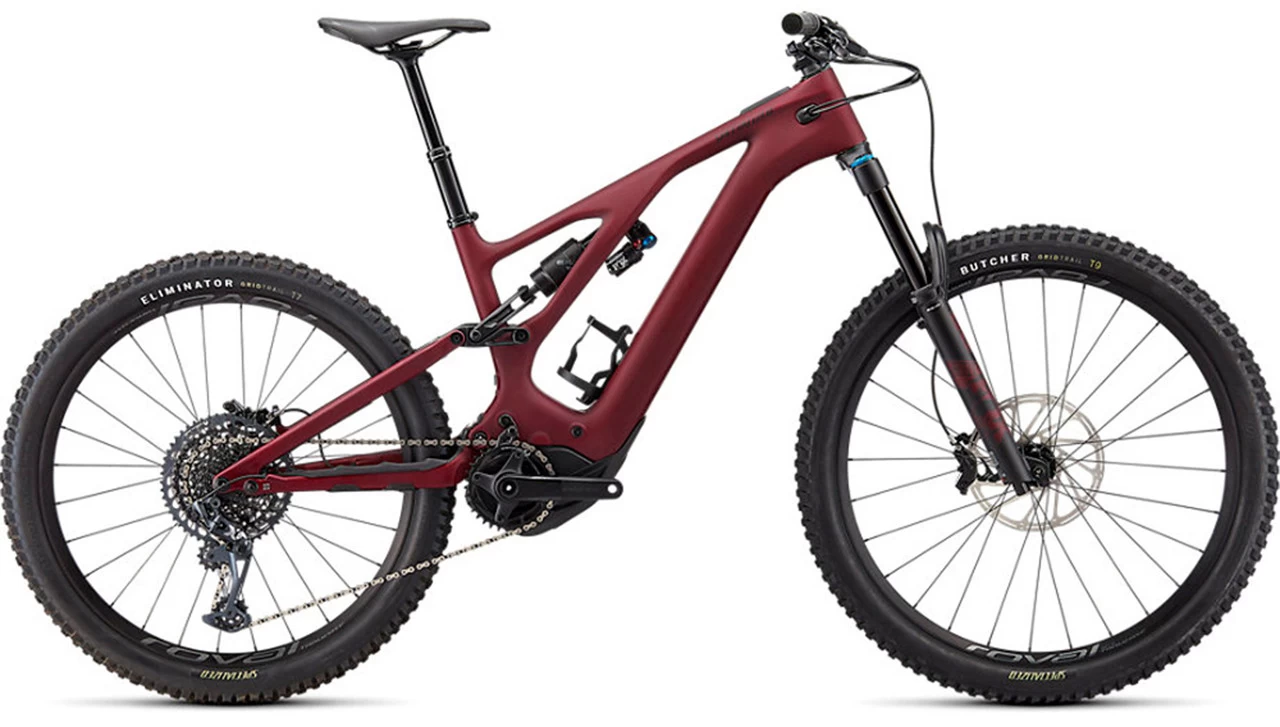

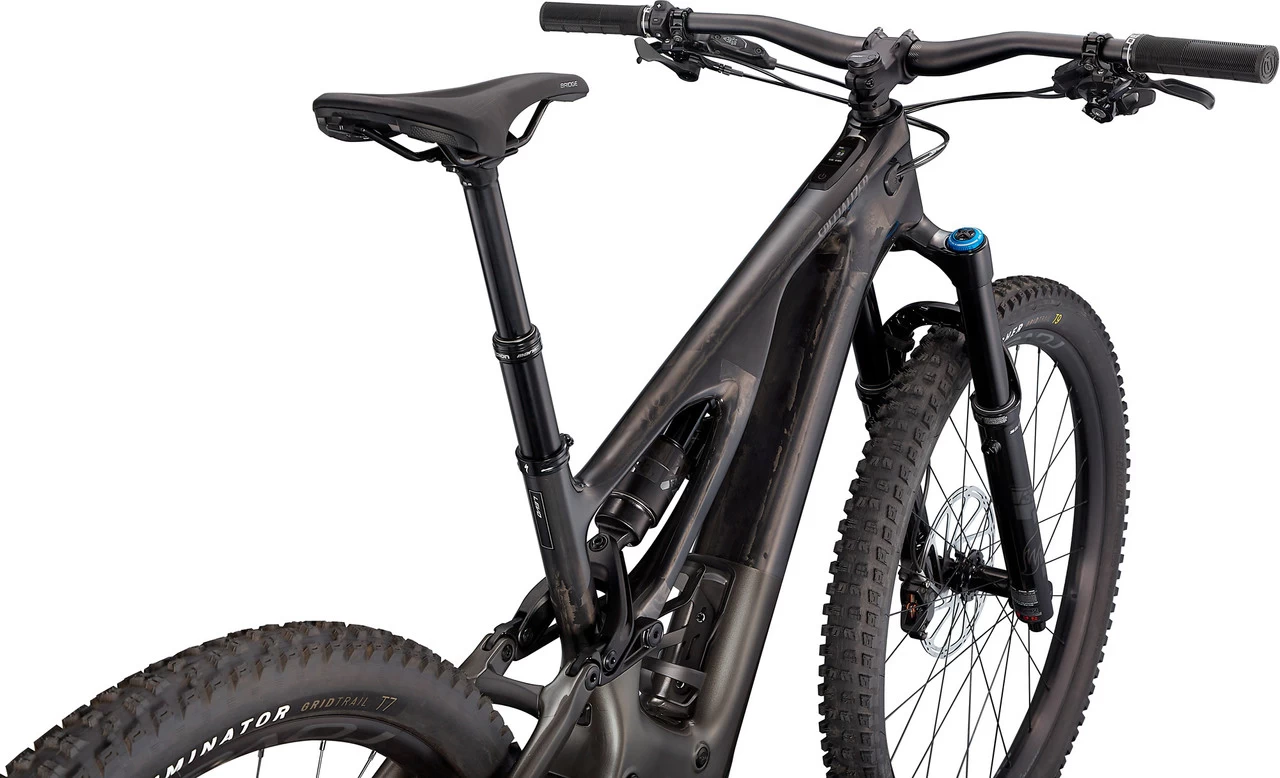

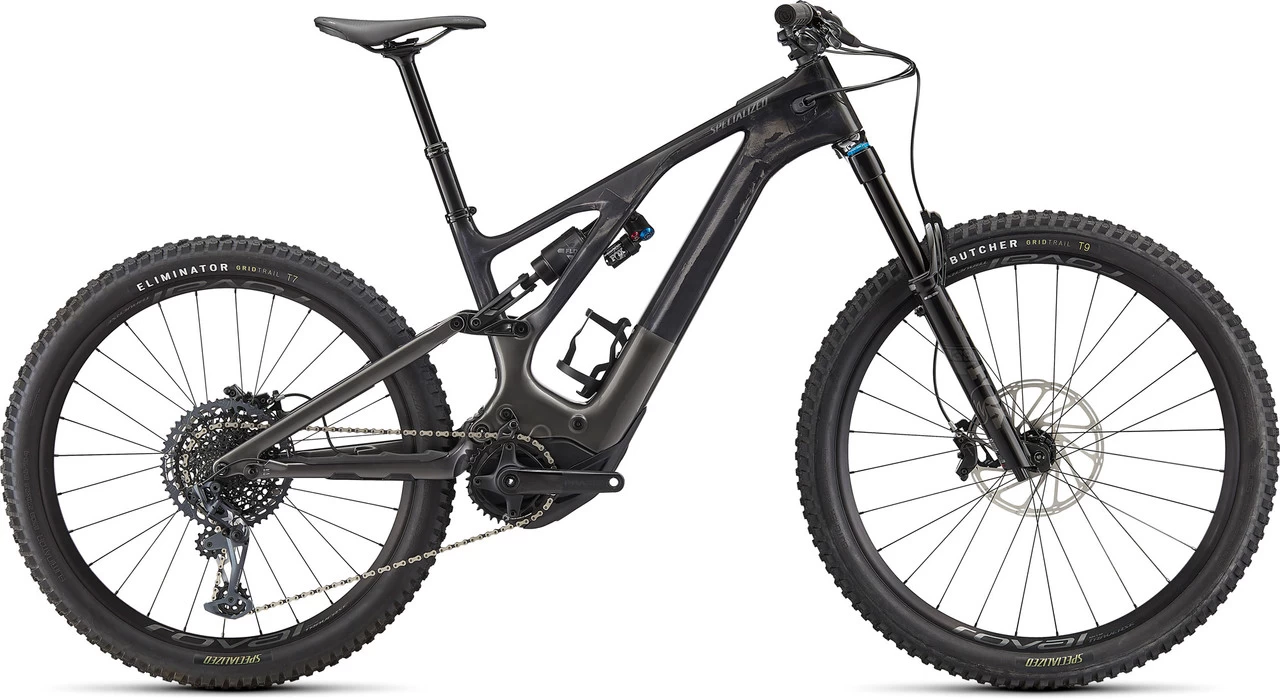

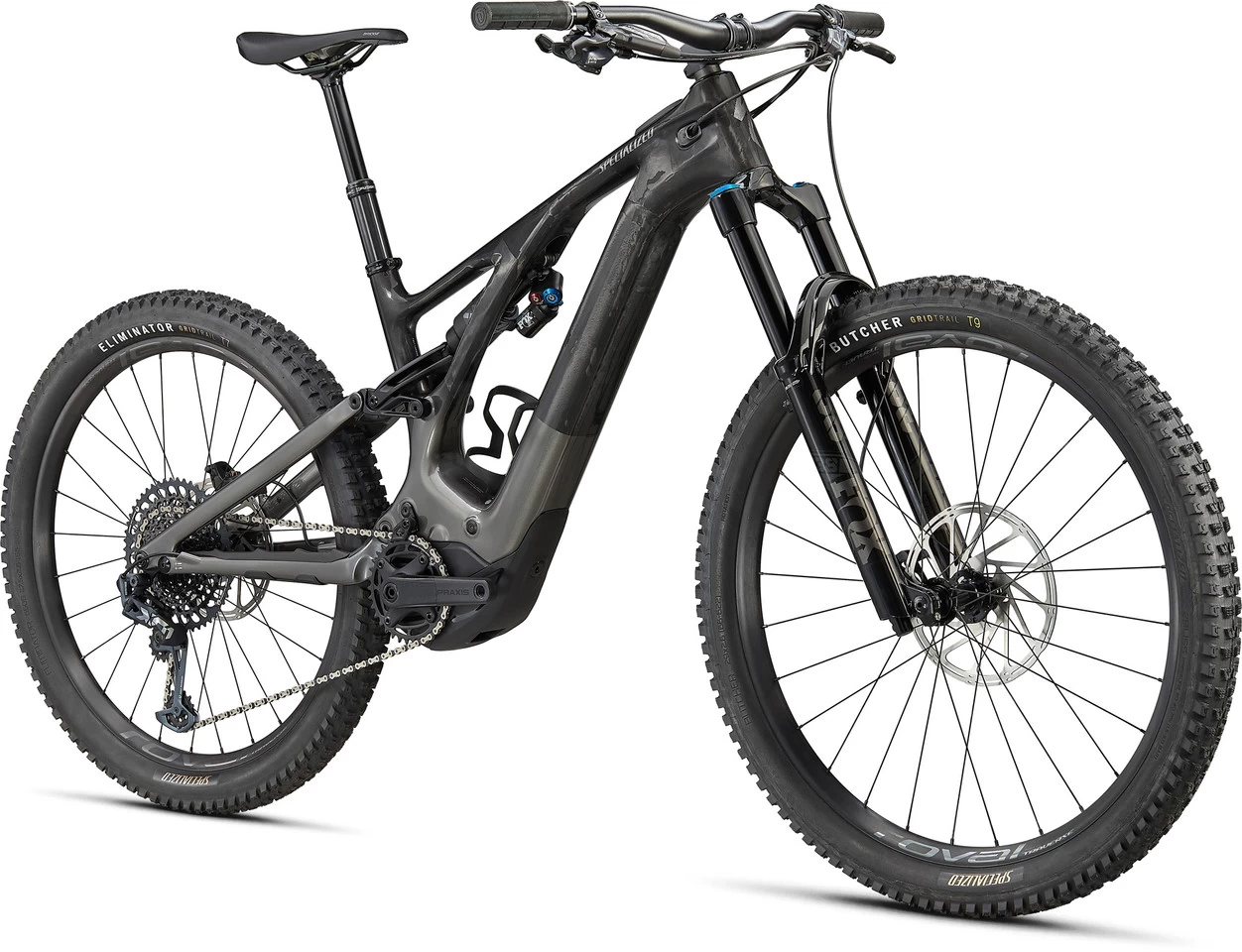

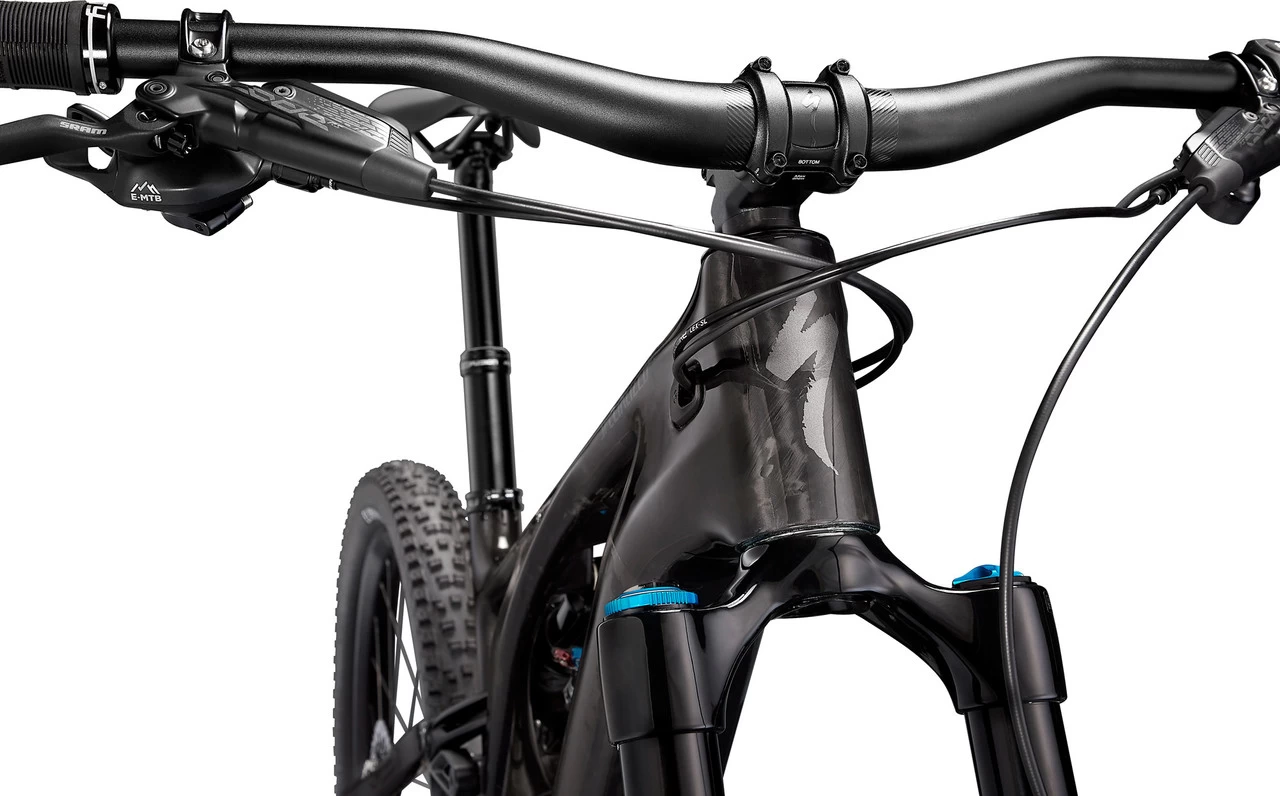

Specialized Turbo Levo Expert Carbon 29″ / 27.5″ E-Mountain Bike

The Specialized Turbo Levo Expert E-bike – 4 times more power on the trail

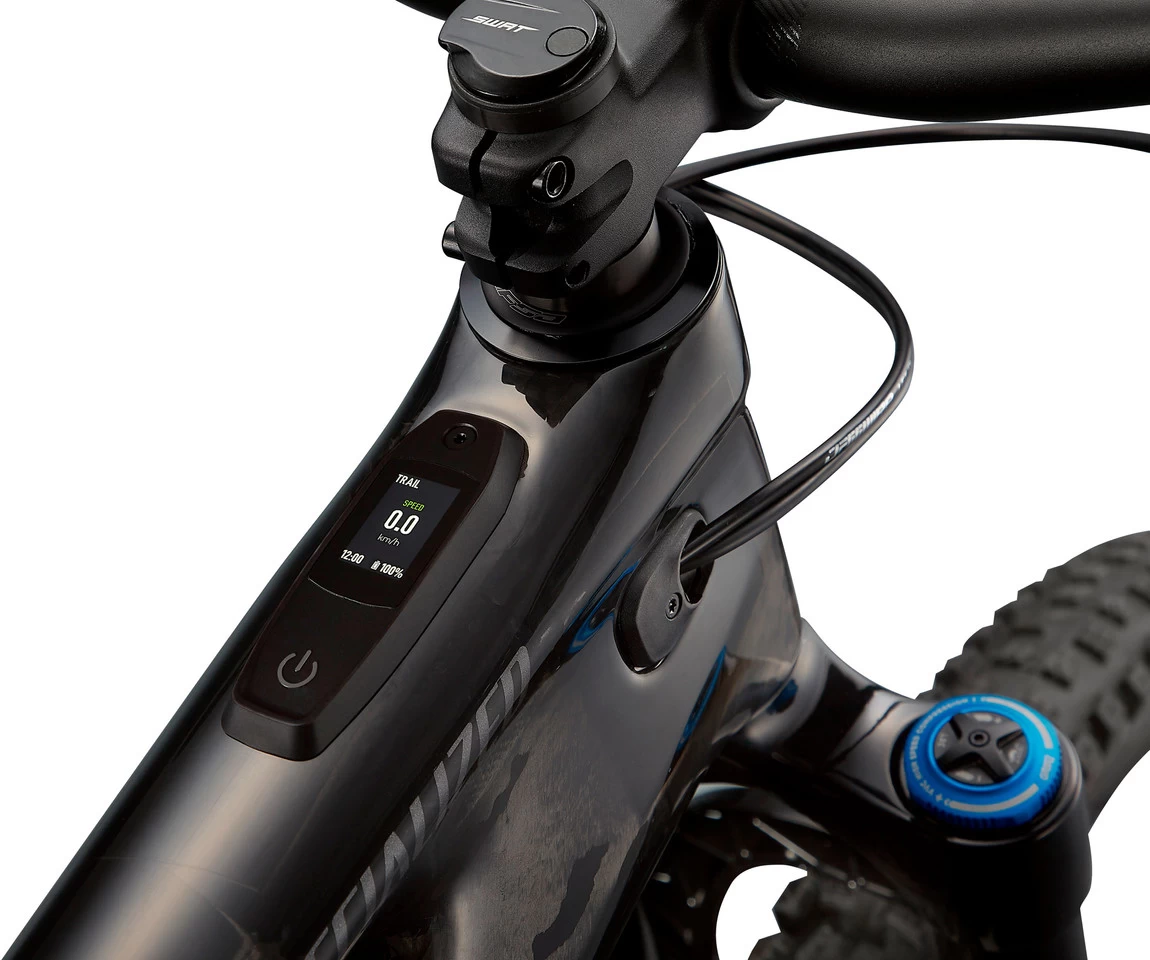

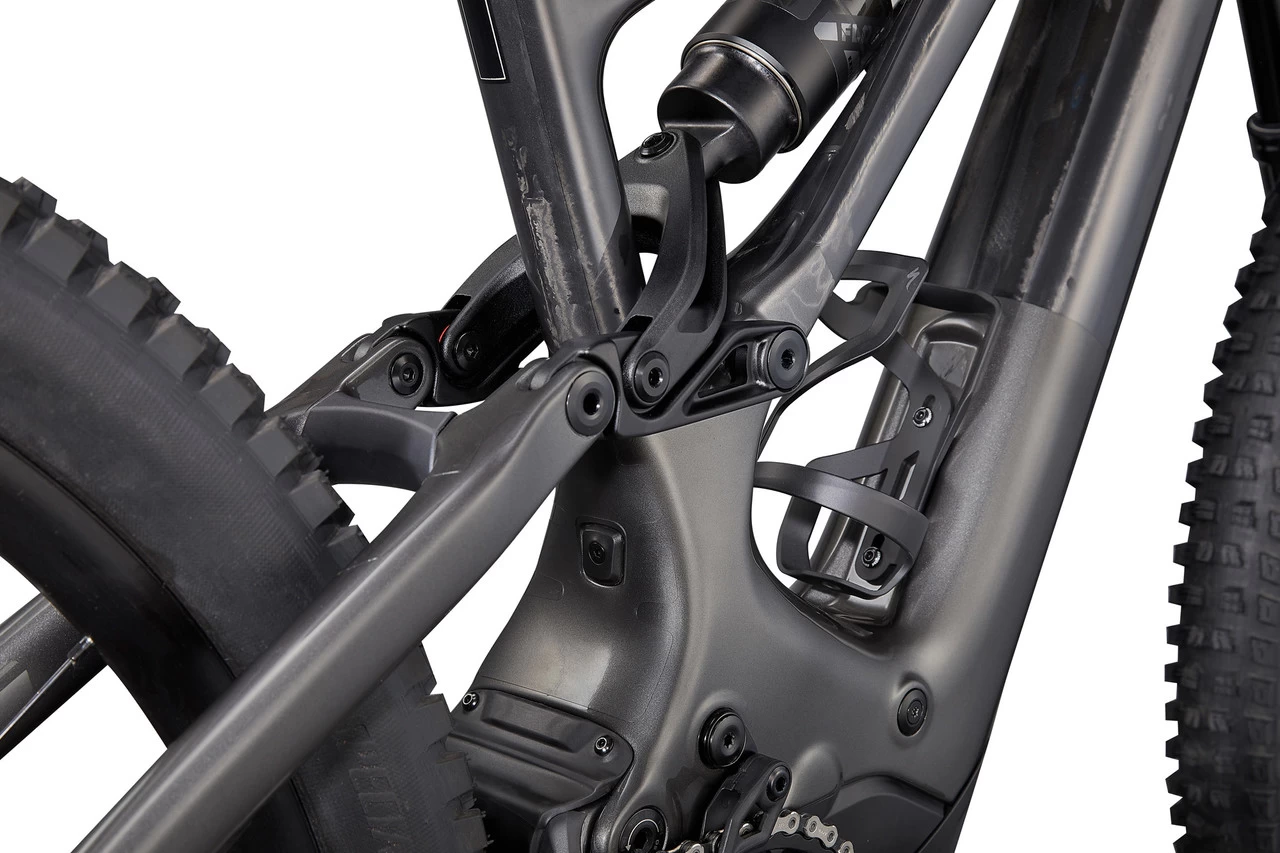

The extremely powerful Specialized Turbo Levo Expert carbon electric trail bike comes with SRAM X01 / GX Eagle mechanical shifting, Fox Performance Elite suspension fork and shock, X-Fusion seatpost, aluminium wheels and SRAM Code RS brakes. It has a 29″ wheel in the front and a 27.5″ wheel in the rear, which, together with the revised Sidearm linkage design, makes for perfect handling. Its 565-watt motor and 700-Wh battery provide you with incredible power that increases your own strength fourfold and considerably expands your scope as a mountain biker. A highlight of the third generation Levo is also the LCD display on the top tube, which keeps you up to speed on important data. The geometry is decidedly modern, with rather short chainstays, plenty of cockpit space and less fork travel. The bottom bracket height can be adjusted via Flip Chip, and you can adjust the steering angle via headset cups, so that the right set-up can be found for every type of rider and every situation. In addition, the innovative Micro-Adjust function lets you tune the motor assistance in 10% increments. All said, this e-bike sets new standards in terms of adjustability.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All MountainWheel Size:Scaled SizingFront Travel:160 mm (S1: 150 mm)Rear Travel:150 mmSizes:S1, S2, S3, S4, S5, S6Front Triangle Material:carbon (11m)Rear Triangle Material:carbon (11m)E-Motor:Type:mid-drive motorMotor Type:Specialized Turbo Full Power System 2.2, RX Trail Tune, 90 NmPedal Assist (max.):25 km/hPower:565 WBattery Type:Specialized M3-700, integrated, SBC-B22*Capacity:700 WhDisplay:Specialized TCU2, TFT screen, full custom set-up, ANT+, Bluetooth
* The battery is located in the down tube and is charged directly there, which is why a bicycle parking space with an electrical socket is advantageous. Removal is possible, but requires tools or a workshop and possibly in-depth technical knowledge.
Components:Frame:Specialized Turbo Levo, FACT™ carbon, sealed cartridge bearings, 12 x 148 mmFork:Fox Racing Shox Float 38 Performance Elite 29″ , GRIP2 damping, HSC, LSC, HSR, LSR, 1.5″ tapered, 15 x 110 mm, 44 mm offset, 130 mm trailStem:Specialized Trail, 6°, aluminium, 4 screws, 3D forgedHandlebars:Specialized Trail, aluminium (7050), 780 mm, 8° backsweep, 6° upsweep, 30 mm rise, 35 mm clampGrips:Deity Knuckleduster, blackRear Shock:Fox Racing Shox Float X2 Performance Elite, LSC, LSR, 2-position lever, 55 x 210 mmRemote System:noneHeadset:Specialized S182500005 (NO.42/ACB/S/F/N, 1 1/8″ – 1.5″ )Seatpost:X-Fusion Manic, infinitely adjustable, 2-bolt clamping, cable routing from below, remote SLR LE lever, 34.9 mmSaddle:Specialized Bridge Comp, hollow steel railsCrank:Praxis Works forged alloy M30, custom offset, 160.0 mm, SRAM X-Sync Eagle chainring, 104 BCD, 32 t, steelPedals:noneBrakes:SRAM Code RS, 4 piston, hydraulic disc brake, 200 mm rearShift Lever:SRAM X01 Eagle Trigger, 12-speed, Single ClickRear Derailleur:SRAM X01 Eagle, 12-speedCassette:SRAM XG-1275, 12-speed, 10-52 tChain:SRAM GX Eagle, 12-speedRims:Roval Traverse 29″ (front), Roval Traverse 27.5″ (rear)Spokes:DT SwissFront Hub:Roval, 15 x 110 mmRear Hub:Roval with DT Swiss 360 internal, SRAM XD freehub, 12 x 148 mmFront Tyre:Specialized Butcher, Grid Trail casing, GRIPTON® T9 rubber compound, 2Bliss Ready, 29 x 2.6″Rear Tyre:Specialized Eliminator, Grid Trail casing, GRIPTON T7 rubber compound, 2Bliss Ready, 27.5 x 2.6″Approved For:Weight Limit:125 kg (rider + gear)Rotor Size (max.):220 mmTyre Size (max.):2.6″Chainrings:1xChainring Size (max.):34 TFeatures:mullet body with 29″ front wheel and 27.5″ rear wheelagility thanks to modern geometry and revised linkage designplenty of cockpit space, short chainstays, low bottom bracket, less fork offsetcomplete internal cable routingsteering angle adjustable via headset cups: 63.5°, 64.5° or 65.5°bottom bracket height adjustable via Horst Link flip chip: 350 or 344 mm (for S1: 352 or 346 mm)boosts your performance fourfold with 565 W and 90 Nm of maximum powerTFT colour display: the most important data and parameters kept at-a-glance while ridingmotor support configurable in 10% increments while ridingreworked battery with triple dirt-protected charging socketup to 5 hours battery lifeSWAT™ CC steerer tube with integrated tool (chain riveter)standard tubes with SV / Presta valvesaluminium seat clamp, 38.6 mmMission Control App available for download in the App S
