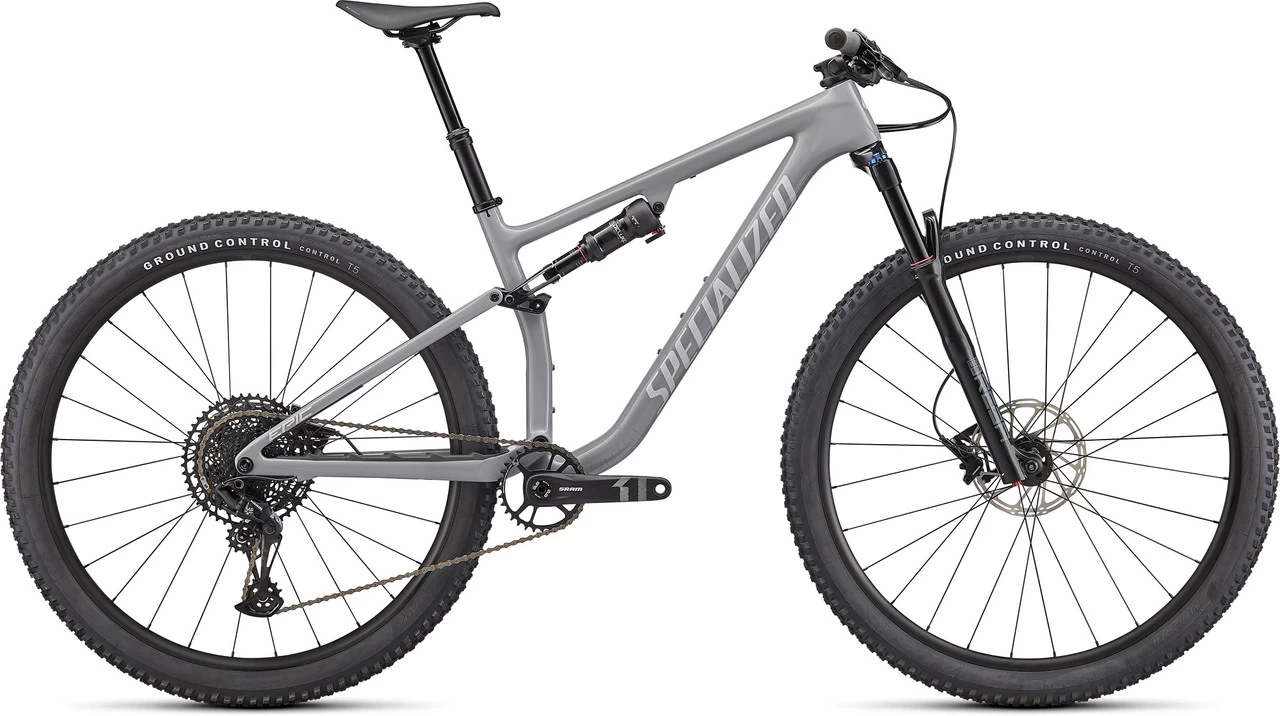

Specialized Epic EVO Carbon 29″ Mountain Bike

The Specialized Epic EVO 29″ Mountain Bike for fun without the pressures of competition
The Epic EVO from Specialized is a full-suspension carbon cross-country bike with SRAM NX Eagle 1×12-speed groupset, Level T 2-piston brake, TranzX dropper post and aluminium wheels. It stands for speed beyond competitive environments, and for fun without pressure to perform. A Flip Chip allows you to adjust the head tube angle by half a degree and raise the bottom bracket by six millimetres, which lets you better adapt the handling to your riding style. In addition, the RockShox suspension fork with Motion Control and SoloAir cartridge impresses with its ease of use. The built-in shifting is distinguished by its smooth gear changes and wide range of transmission ratios.
Specifications:Application:Cross CountryWheel Size:29″Front Travel:120 mmRear Travel:110 mmSizes:M, LFront Triangle Material:carbon (11m)Rear Triangle Material:CarbonComponents:Frame:FACT™ 11m carbon, progressive XC race geometry, 12 x 148 mm boostFork:RockShox Reba RL, Motion Control damping, Solo Air, 44 mm offset, 114 mm trail, 15 x 110 mm BoostStem:Specialized, 3D forged aluminium, 4 bolts, 7° RiseHandlebars:Specialized, aluminium, 20 mm rise, 31.8 mmGrips:Specialized TrailRear Shock:RockShox Deluxe Select+, RX XC Tune, Two Position, Rebound Adjust, 190 x 40 mmRemote System:noneHeadset:Specialized S142500005 (1 1/8″ top, 1.5″ bottom, IS)Seatpost:TranzX Dropper, 30.9 mmSaddle:Specialized Body Geometry Power Sport, steel strutsCrank:SRAM X1000 Eagle DUB, SRAM DUB BSA 73 mm bottom bracket, 32 t chainringPedals:noneBrakes:SRAM Level T, hydraulic disc brake, 2 pistonsShift Lever:SRAM NX Eagle, Trigger, 12-speedRear Derailleur:SRAM NX Eagle, 12-speedCassette:SRAM NX Eagle PG-1230, 12-speed, 11-50 tChain:SRAM SX Eagle, 12-speedRims:Specialized Alloy, Tubeless Ready, 29 mm jaw widthSpokes:Stainless steel, 14 GFront Hub:aluminium, sealed cartridge bearings, 15 x 110 mm thru-axle, 28 holesRear Hub:aluminium, sealed cartridge bearings, 12 x 148 mm thru-axle, 28 holesFront Tyre:Specialized Ground Control, Control carcass, 2Bliss Ready, 29 x 2.35″Rear Tyre:Specialized Ground Control, Control carcass, 2Bliss Ready, 29 x 2.35″Approved For:Weight Limit:125 kg (rider + gear)Chainrings:1xFeatures:ride characteristics adjustable via flip chip (steerer tube angle by 0.5°, bottom bracket by 6 mm)Reba RL fork with Motion Control dampingSoloAir cartridge with easy SAG adjustmentNX Eagle shifting from SRAM stands for crisp shifting and great gear developmentinternal cable routing34.9 mm aluminium seat clampstandard tubes (Presta)Technology:FACT™
FACT is an acronym for ” Functional Advanced Composite Technology” and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.

Rider-First Engineered™
Rider-First Engineered describes the design approach used by Specialized to precisely match each frame size to the target group. Simply put, smaller frames for smaller riders are built in a different way than larger frames for larger riders. This is done on the basis of performance parameters determined in practical tests, taking into account the forces acting on different areas of the bike when riders of different sizes ride it. Based on this analysis, the optimum tube dimensions and the appropriate carbon fibre covering for the respective frame size are determined. This way you can be sure that no matter what your height is, you will receive a bike that delivers optimal and controllable performance suited to your size.
Geometry:(based on a fork axle to crown length of 530 mm)
M:
Recommended Height:165 – 178 cmStack:597 mmReach:436 mmSeat Tube Length:430 mmTop Tube Length:602 mmHead Tube Length:100 mmChainstay Length:438 mmWheelbase:1164 mmBottom Bracket Height:336 mmBB Drop:36 mmSeat Tube Angle:74.5°Head Tube Angle:66.5°Standover Height:781 mmStem Length:60 mmHandlebar Width:760 mmCrank Arm Length:175.0 mmSaddle width:143 mmSeatpost adjustment travel:125 mm
L:
Recommended Height:178 – 185 cmStack:611 mmReach:460 mmSeat Tube Length:470 mmTop Tube Length:629 mmHead Tube Length:115 mmChainstay Length:438 mmWheelbase:1194 mmBottom Bracket Height:336 mmBB Drop:36 mmS
