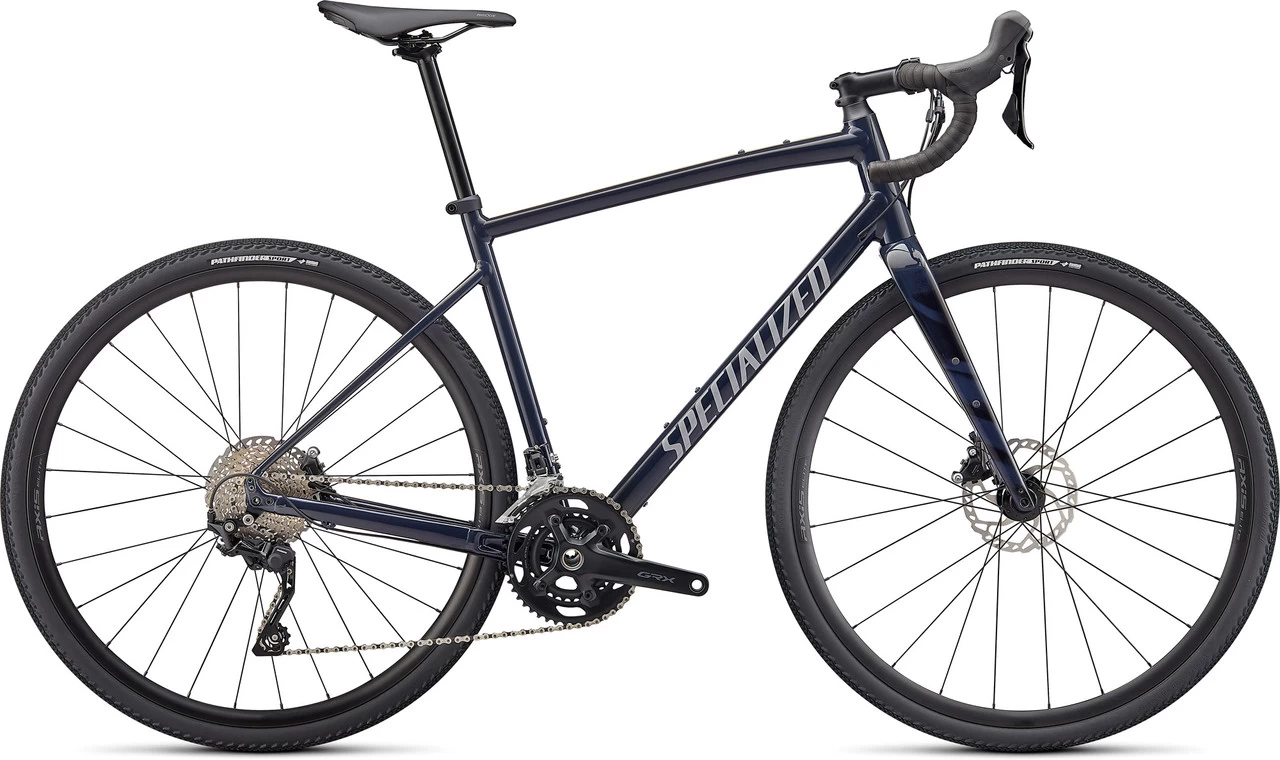

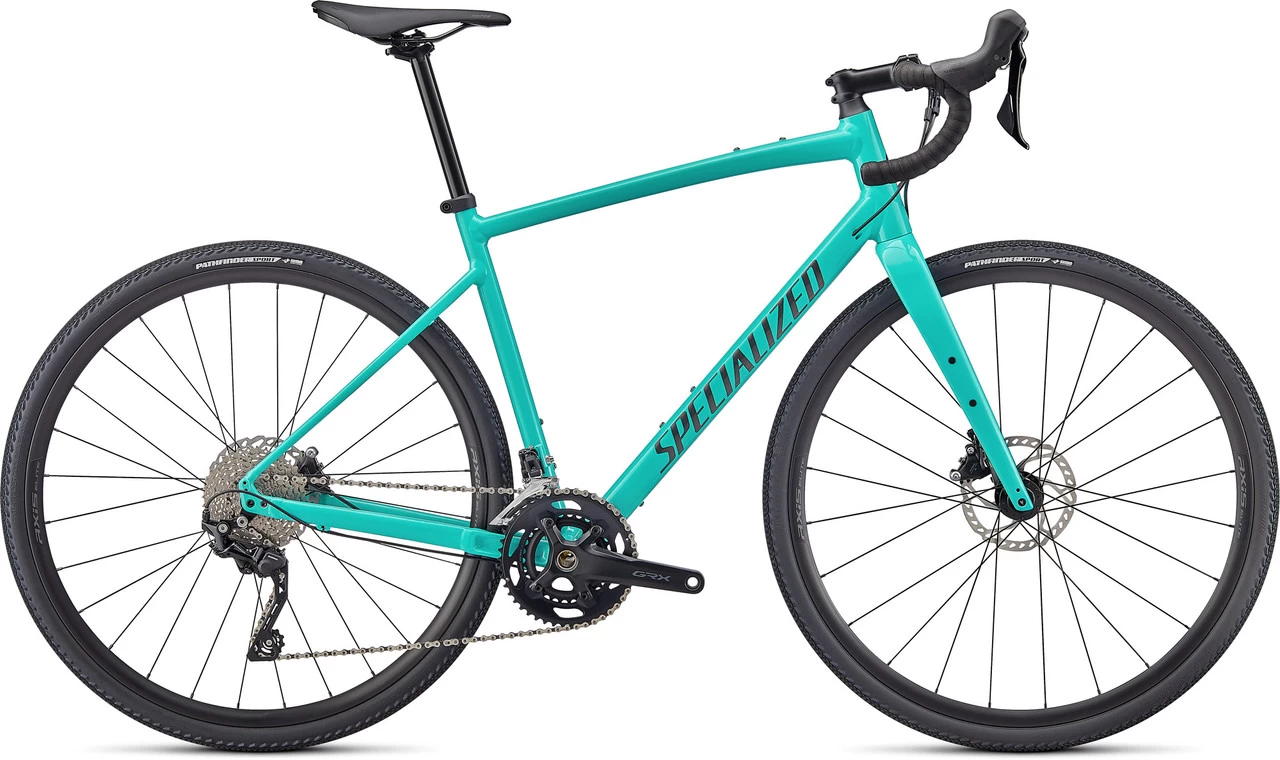

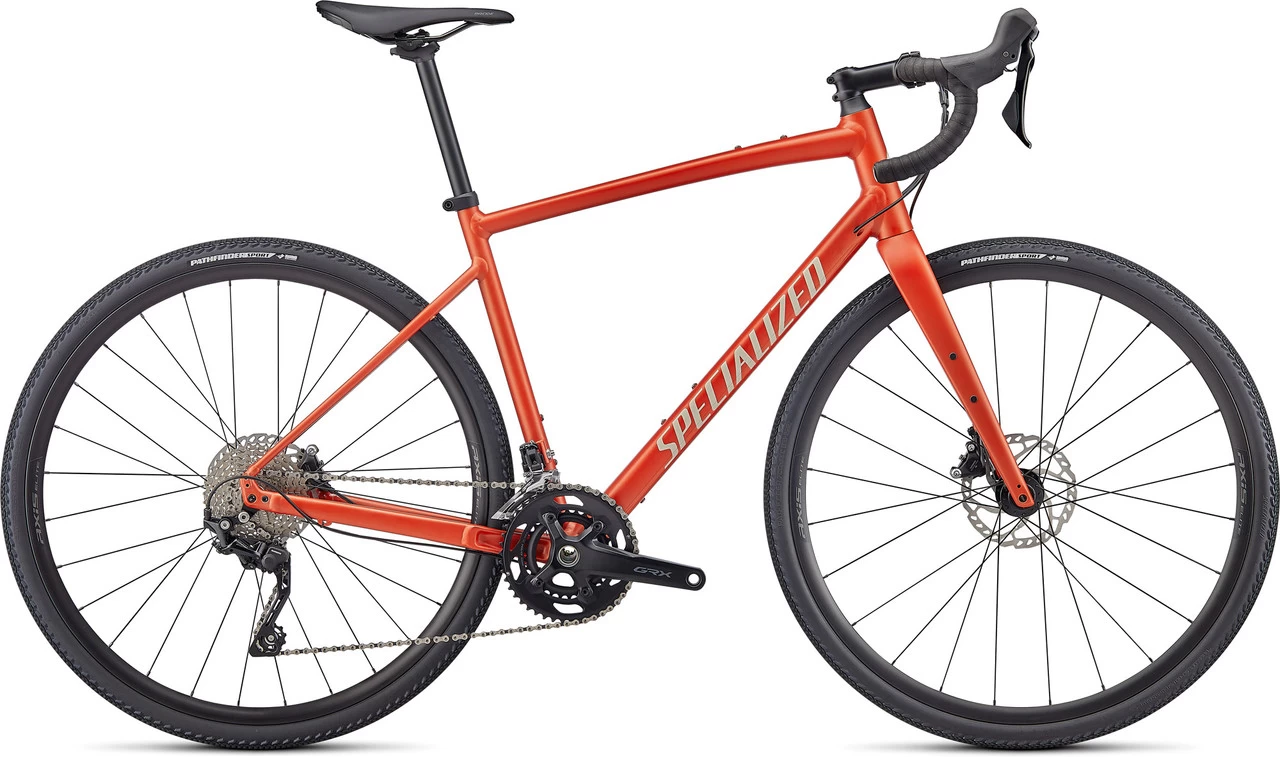

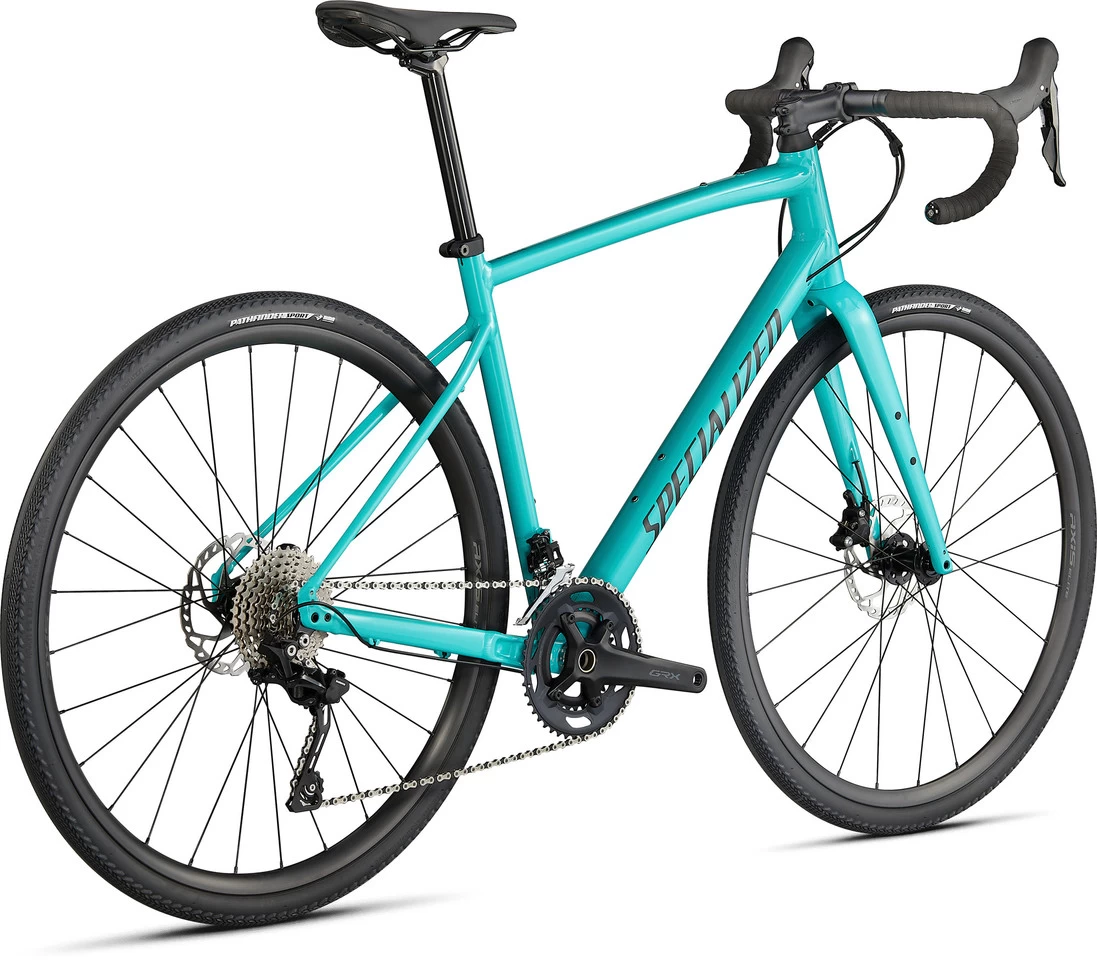

Specialized Diverge Elite E5 28″ Gravel Bike

The Specialized Diverge Elite E5 Gravel Bike – Optimised for off-road use

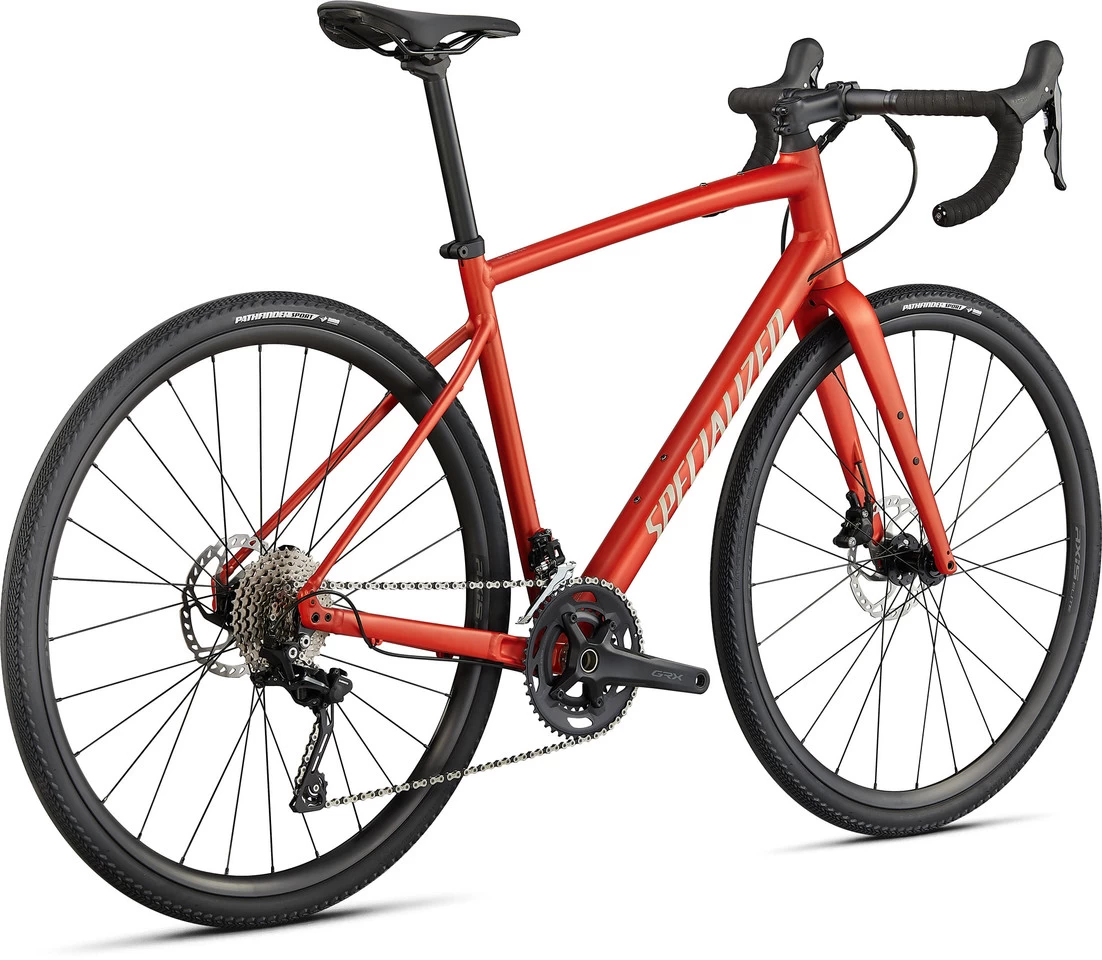

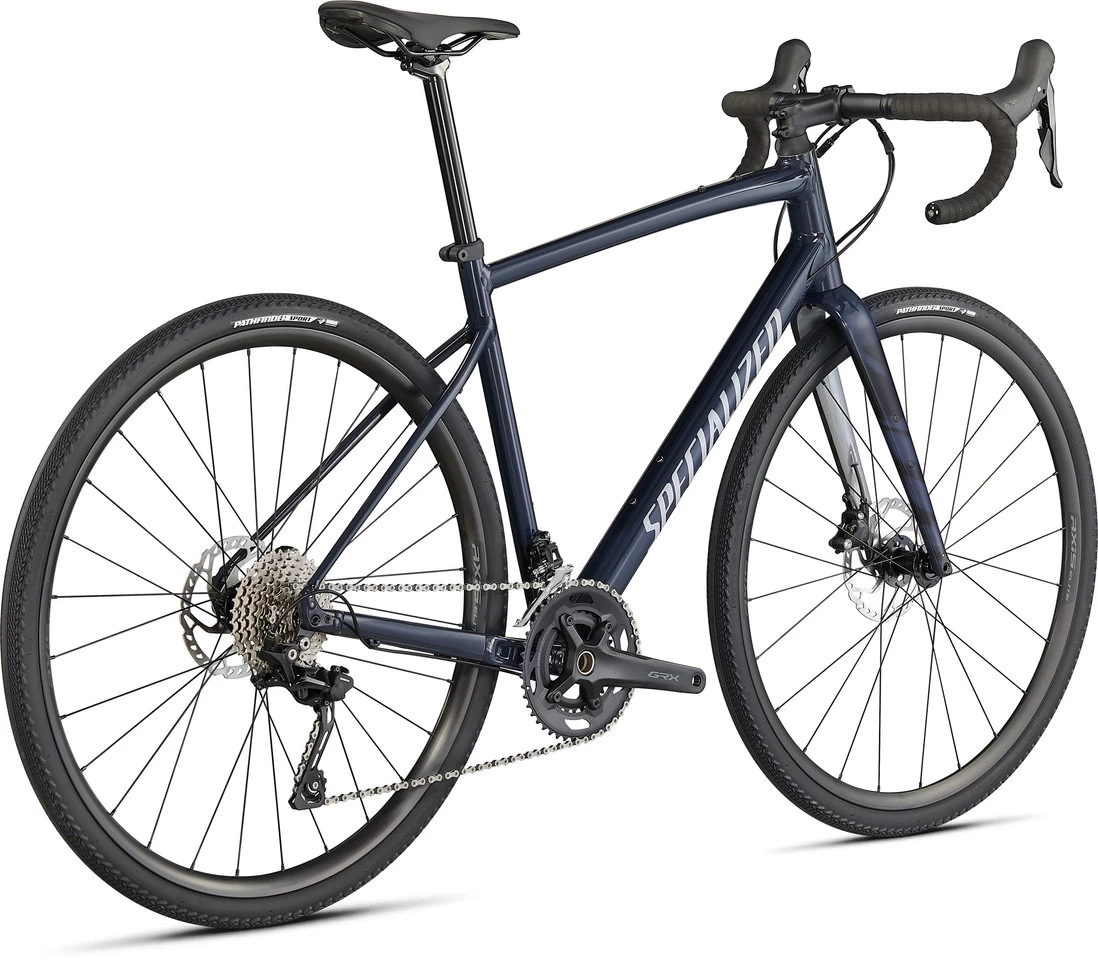

The Diverge Elite E5 from Specialized is a gravel bike with a lightweight aluminium frame, stiff carbon fork and Shimano GRX 2×10-speed groupset, GRX 810 brakes and 38 mm tyres. The geometry, with its longer reach, flat head tube angle and larger fork offset, has not only been optimised for off-road use: its modern construction ensures stability in all riding situations. Of course, even wider tyres and 650B wheels are no problem. You also benefit from numerous accessories. With the Diverge Elite E5 you climb faster, keep control riding downhill and have a lot of fun off-road.
Specifications:Application:GravelWheel Size:28″Sizes:49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cmFrame Material:aluminium (E5)Fork Material:CarbonComponents:Frame:Specialized Diverge E5 Premium Aluminium, Flat Mount Disc, 12 x 142 mmFork:FACT™ Carbon, Flat Mount Disc, 390 mm installation length, 55 mm offset, 12 x 100 mmStem:Specialized, 7° Rise, aluminium (3D forged), 4 boltsHandlebars:Specialized Shallow Drop, 31.8 mm, 70 x 125 mm, aluminium (6061)Seatpost:Specialized, aluminium, 27.2 mm, 12 mm setback, 2-speed clamping, anti-corrosion hardwareSaddle:Specialized Body Geometry Bridge, steel strutsCrank:Shimano GRX RX600, Shimano 68 mm bottom bracket, 30-46 tPedals:noneBrakes:Shimano GRX 810, hydraulic disc brakeShift/Brake lever:Shimano GRX RX400 mechanical 2×10-speed / hydraulicRear Derailleur:Shimano GRX RX400, 10-speedFront Derailleur:Shimano GRX RX400, braze-onCassette:Shimano CS-HG50-10, 10-speed, 11-36 tChain:KMC X10, 10-speed, with reusable missing linkWheels:AXIS Elite DiscTyres:Specialized Pathfinder Sport, 700 x 38CApproved For:Weight Limit:125 kg (rider + gear)Rotor Size (max.):160 mmTyre Size (max.):700 x 47C, 27.5″ x 2.1″Chainrings:2-speed, 1-speedFeatures:geometry optimised for gravelagile and versatile bikeSmooth Boat Design for a clean transition from the head tube to the stemconfidence and stability while riding in rough terraindynamic steering through the shorter stemmaximum tyre clearancecan be driven with 700C and 27.5″ (650B) wheelsnumerous mounting points for bottle cages and bagsinternal cable routingSpecialized S-Wrap handlebar tapealuminium seat clamp, 30.8 mm700 x 28-38 mm inner tubes, 48 mm Presta valveTechnology:FACT™
FACT is an acronym for ” Functional Advanced Composite Technology” and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.
Geometry:49 cm:
Recommended Height:152 – 163 cmStack:545 mmReach:365 mmSeat Tube Length:390 mmTop Tube Length:521 mmHead Tube Length:125 mmChainstay Length:432 mmWheelbase:1017 mmBottom Bracket Height:270 mmBB Drop:80 mmSeat Tube Angle:74°Head Tube Angle:70°Standover Height:703 mmStem Length:60 mmHandlebar Width:38 cmCrank Arm Length:165.0 mmSaddle width:155 mmSeatpost length:350 mm
52 cm:
Recommended Height:163 – 170 cmStack:577 mmReach:374 mmSeat Tube Length:430 mmTop Tube Length:542 mmHead Tube Length:104 mmChainstay Length:432 mmWheelbase:1033 mmBottom Bracket Height:270 mmBB Drop:80 mmSeat Tube Angle:73.75°Head Tube Angle:70.5°Standover Height:722 mmStem Length:70 mmHandlebar Width:40 cmCrank Arm Length:170.0 mmSaddle width:155 mmSeatpost length:350 mm
54 cm:
Recommended Height:170 – 178 cmStack:592 mmReach:383 mmSeat Tube Length:470 mmTop Tube Length:558 mmHead Tube Length:116 mmChainstay Length:432 mmWheelbase:1039 mmBottom Bracket Height:270 mmBB Drop:80 mmSeat Tube Angle:73.5°Head Tube Angle:71.25°Standover Height:738 mmStem Length:80 mmHandlebar Width:42 cmCrank Arm Length:172.5 mmSaddle width:143 mmSeatpost length:400 mm
56 cm:
Recommended Height:175 – 183 cmStack:610 mmReach:392 mmSeat Tube Length:500 mmTop Tube Length:573 mmHead Tube Length:133 mmChainstay Length:432 mmWheelbase:1049 mmBottom Bracket Height:270 mmBB Drop:80 mmSeat Tube Angle:73.5°Head Tube Angle:71.75°Standover Height:777 mmStem Length:90 mmHandlebar Width:42 cmCrank Arm Length:172.5 mmSaddle width:143 mmSeatpost length:400 mm
58 cm:
Recommended Height:180 – 188 cmStack:634 mmReach:401 mmSeat Tube Length:530 mmTop Tube Length:589 mmHead Tube Length:159 mmChainstay Length:432 mmWheelbase:1066 mmBottom Bracket
