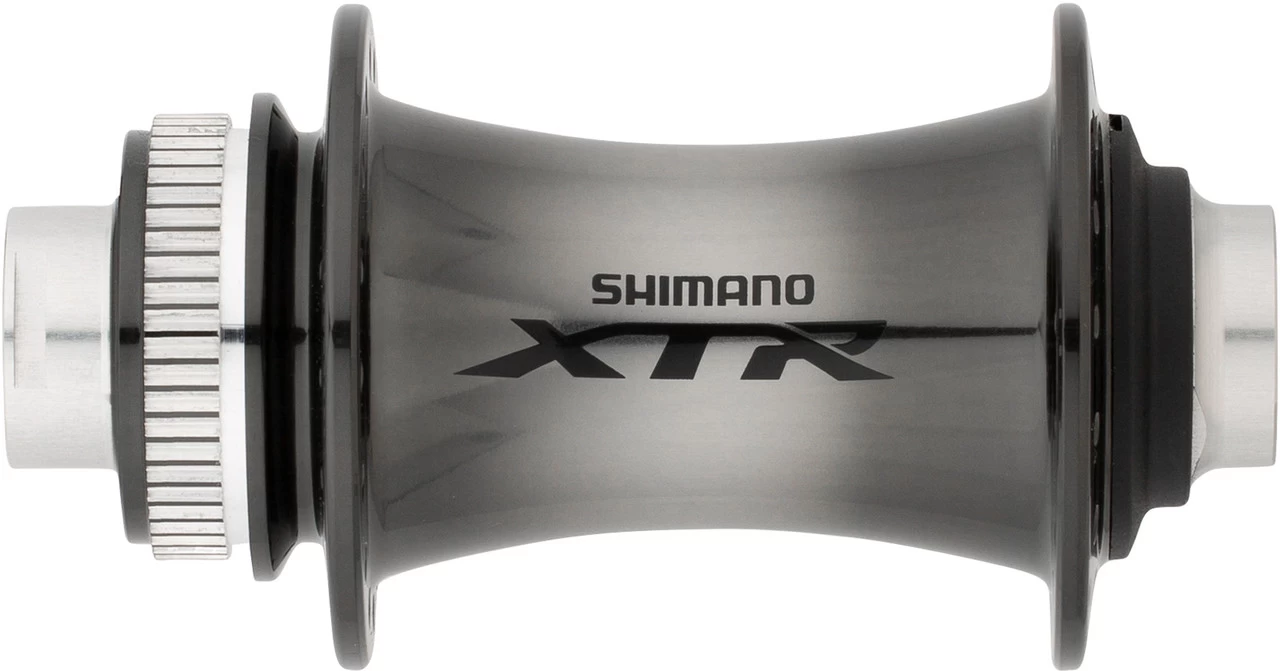

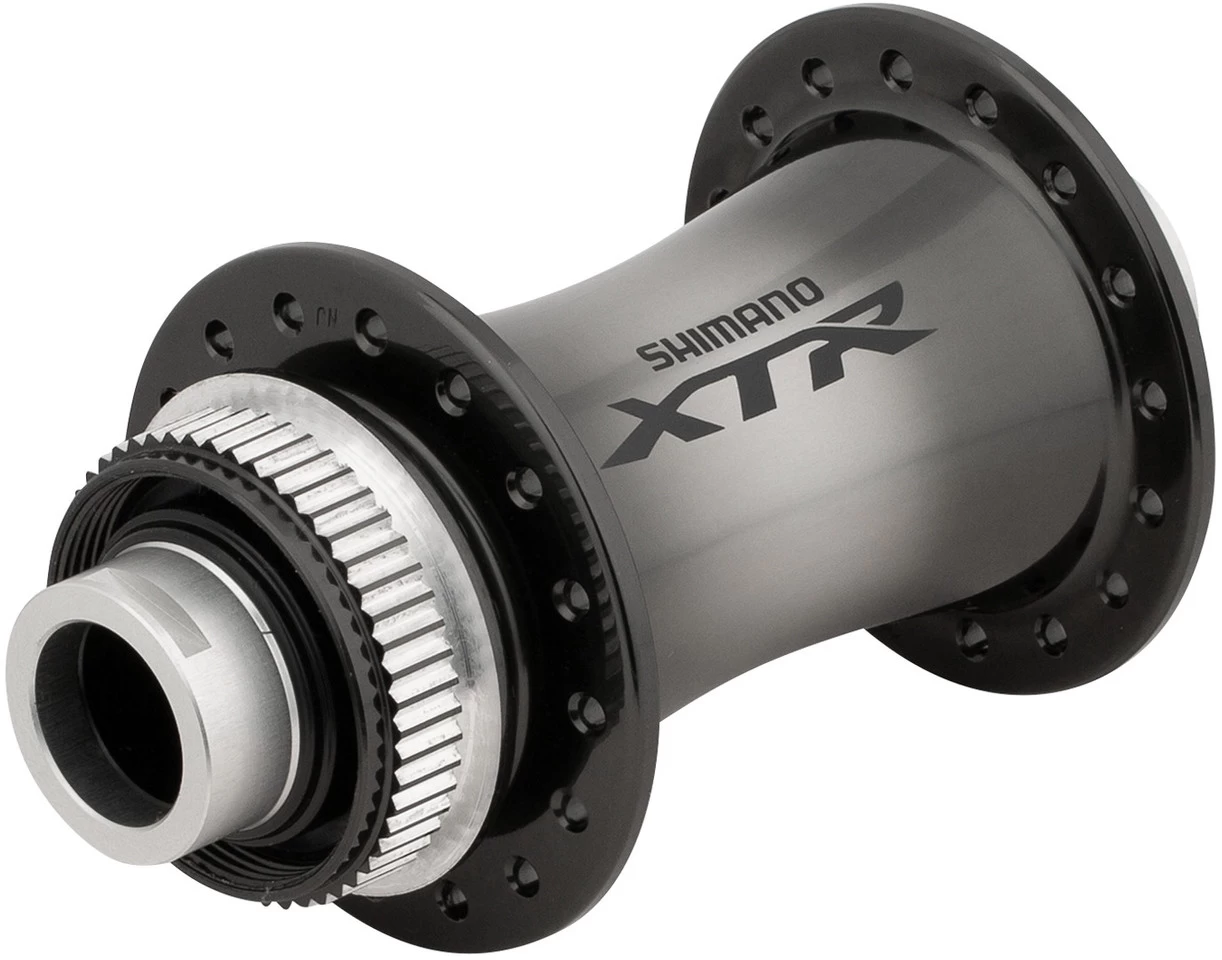

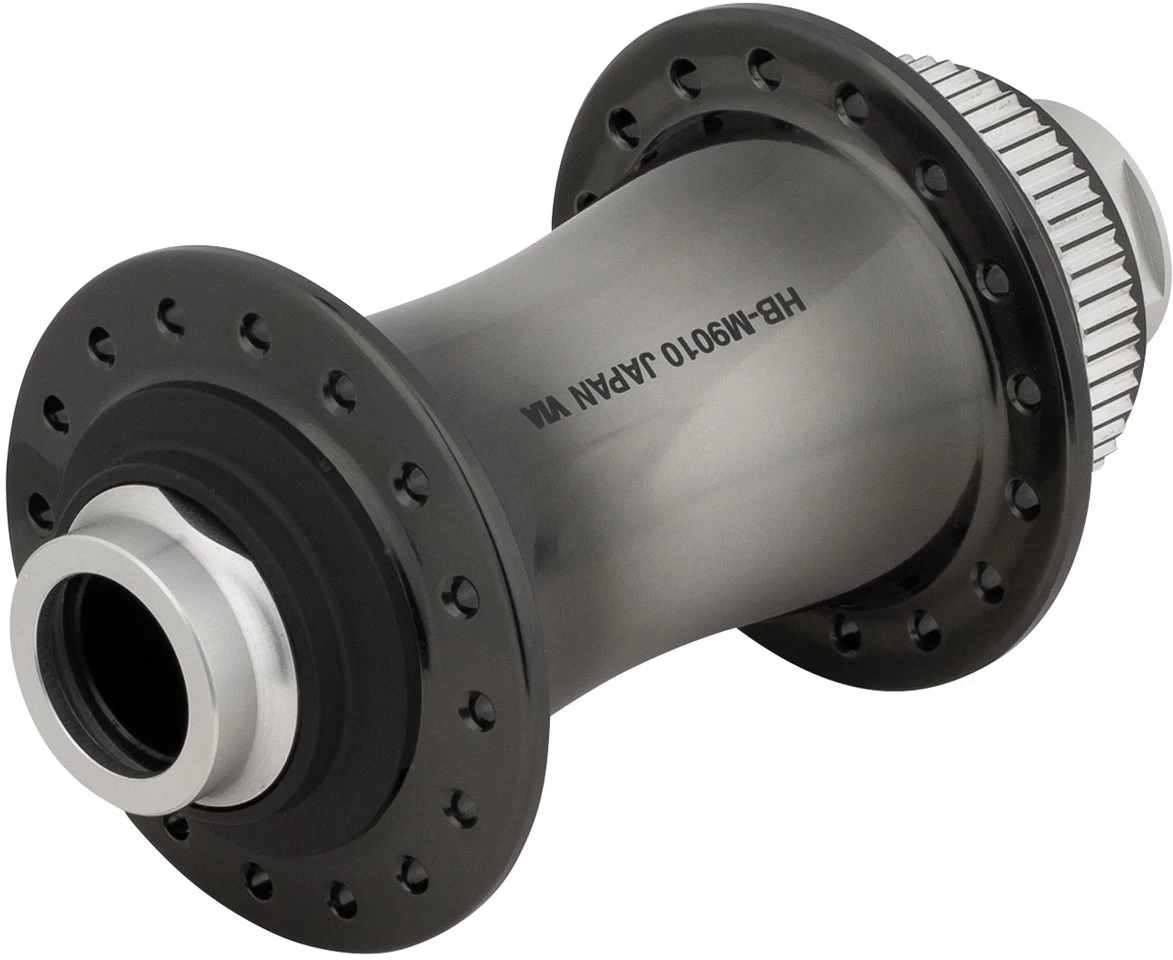

Shimano XTR HB-M9010-B Center Lock Disc Front Hub For 15 Mm Thru-Axles

The XTR front hub HB-M9010-B by Shimano – Lightweight with stainless steel ball bearings
The Shimano XTR HB-M9010-B front hub is compatible with front wheels that have dimensions of 15 x 110 mm. It has an anodised aluminium body and a lightweight aluminium axle. Stainless steel balls are used in the finely-machined, ground cone bearing.
Specifications:Series:XTR M9000Application:Cross Country, All Mountain, EnduroBrake Type:Center Lock DiscWheel Standard:BoostTechnical Information:Body Material:aluminiumBearings:cup & coneSeals:labyrinth + contactFeatures:110 mm axle length, 17.5 mm axle diameter52.8 mm flange diameter5.4 mm offsetstainless steel ball bearings, CBN precision machined/groundaluminium axlesanodised hub shellinternal grease sleeveTechnology:E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
Models:32 hole:

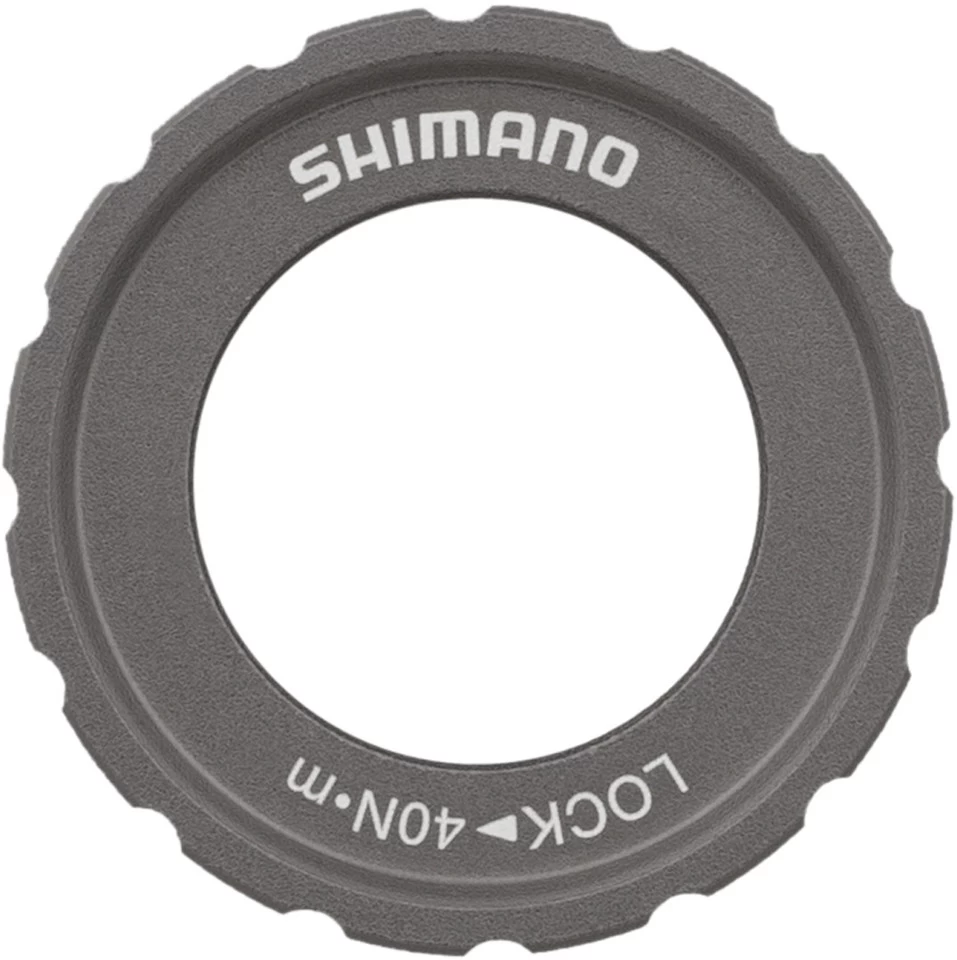

Over Locknut Dimension:15 x 110 mm thru-axleSpoke Hole Count:32 holeFlange Distance (L/R):70.2 mm (29.7 mm/40.5 mm)Partial Bolt Circle Diameter (L/R):44 mm/44 mmManufacturer Number:E-HBM9010BBContents:1 x Shimano XTR HB-M9010-B front hub1 x lockring
