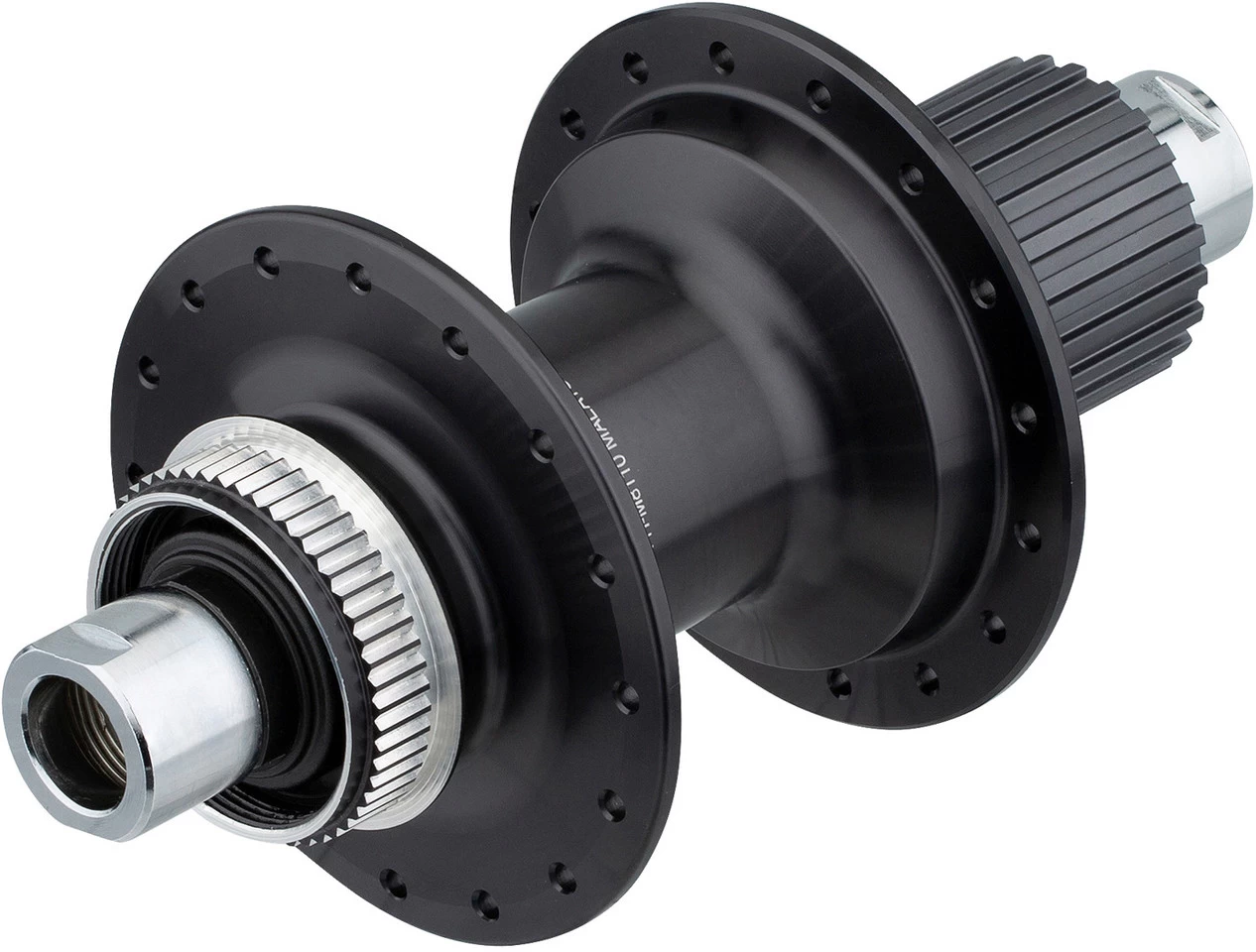

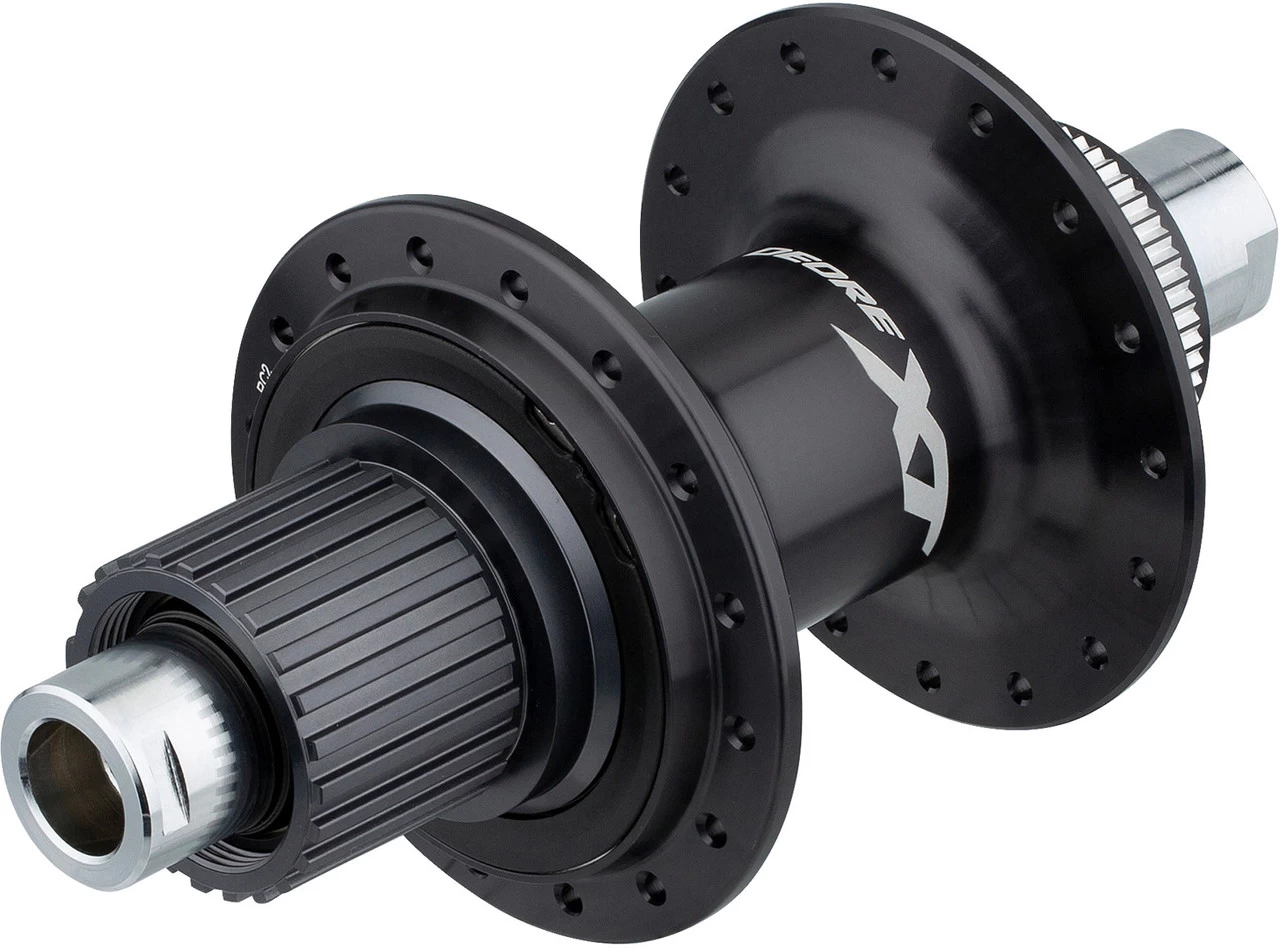

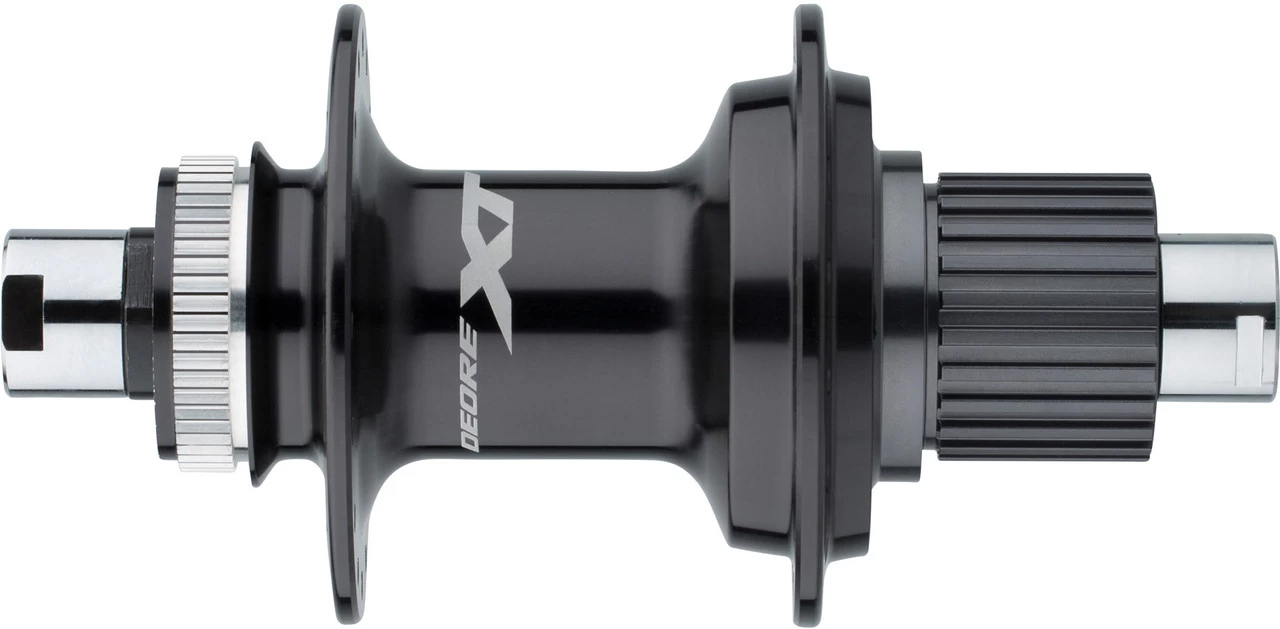

Shimano XT FH-M8110 Center Lock Disc 12 Mm Thru-Axle Rear Hub

The XT FH-M8110 rear hub by Shimano – scores in reliability
The Shimano XT FH-M8110 rear hub has a 142 mm over locknut dimension. It inspires with uncomplicated brake rotor mounting and reliable performance on the trail. At the heart of the FH-M8110 hubs is a lightweight aluminium freehub with Shimano Micro Spline technology for 10-tooth sprockets.
Specifications:Series:Deore XT M8100Application:Enduro, All Mountain, Cross CountryBrake Type:Center Lock DiscFreehub Body Type:Aluminium, Direct Engagement (Ratchet), Quick Engagement (max. 7°)Technical Information:Body Material:aluminiumBearings:cup & coneSeals:labyrinth + contactFeatures:faster acceleration for more riding pleasuresmaller diameter for 10 T sprocket (Micro Spline)lightweight aluminium freehub bodyeasy setup and reliable trail performancebrake rotor can be quickly mounted with spline mount and lockringflange diameter 69.8 mm left, 69.8 mm right6.72 mm offsetCBN precision machined bearings/polishedaluminium axlesanodised hub shellfreehub body has contact sealquick engagementTechnology:E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Micro Spline
Micro Spline is an innovative tooth profile on MTB freehub bodies from Shimano. All Shimano 12-speed MTB cassettes with a 10-speed sprocket are equipped with Micro Spline freehub toothing. The significantly higher and finer toothing enables a stiffer connection between the cassette and the hub body. The resulting increased contact area ensures reliable power transmission, minimises wear and prevents deformation of the freehub and sprocket.
Models:12 x 142 mm / 28 hole / Shimano Micro Spline:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano Micro SplineGearing:12-speedFlange Distance (L/R):55.17 mm (34.31 mm/20.86 mm)Partial Bolt Circle Diameter (L/R):61 mm/61 mmManufacturer Number:E-FHM8110C
12 x 142 mm / 32 hole / Shimano Micro Spline:
Over Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:32 holeFreehub:Shimano Micro SplineGearing:12-speedFlange Distance (L/R):55.17 mm (34.31 mm/20.86 mm)Partial Bolt Circle Diameter (L/R):61 mm/61 mmManufacturer Number:E-FHM8110BContents:1 x Shimano XT FH-M8110 rear hub
