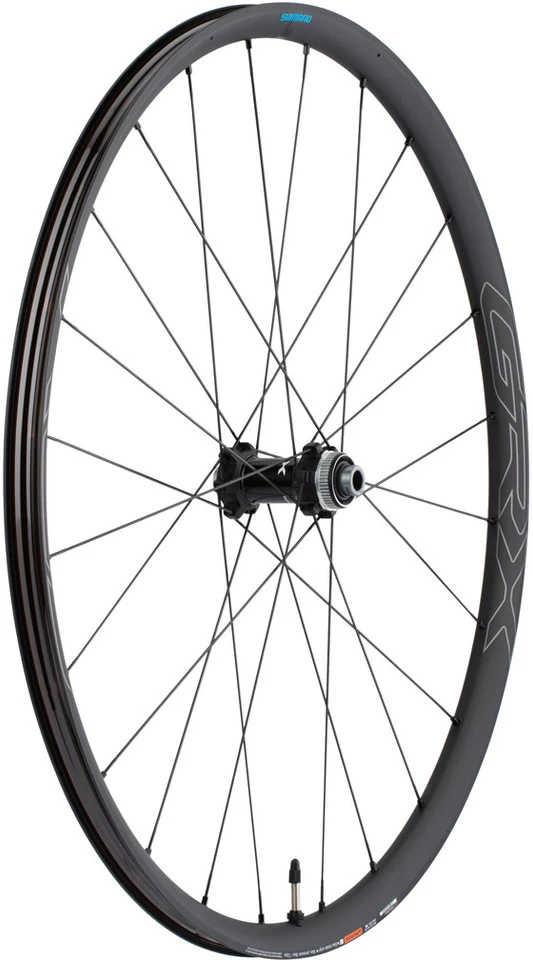

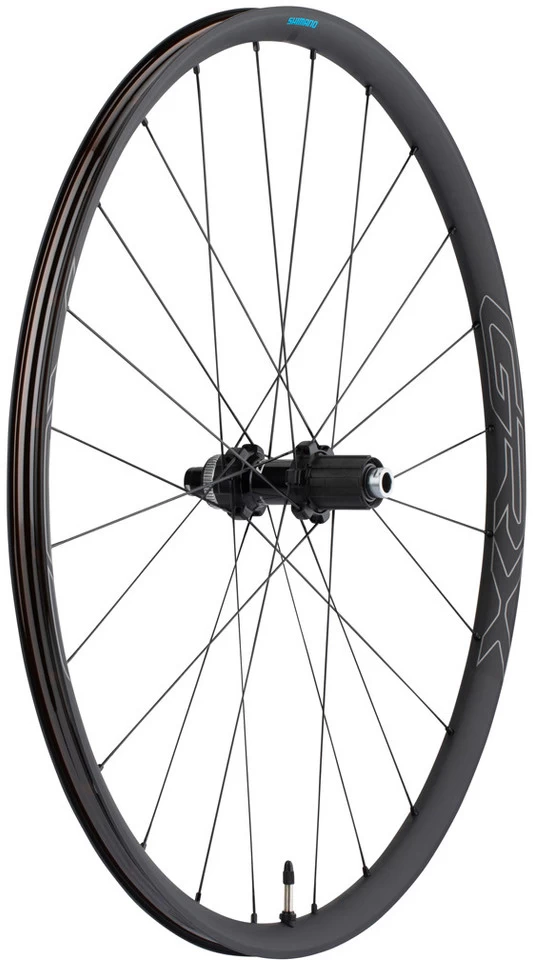

Shimano WH-RX570-TL GRX Center Lock Disc 27.5″ Wheelset

The Shimano GRX WH-RX570 27.5″ wheelset loves to play in the mud
Shimano designed the GRX WH-RX570-TL 650B wheelset specifically for gravel and off-road cycling. Compared to the 28″ version it is the more playful, agile version. Its wide tubeless rim limits the flex when you take a hard turn. The asymmetrical rim shape has been optimised for dirt repellence via an MTB-tested design. All in all, the WH-RX570 wheels stand for high stiffness and durability at a pleasingly low weight.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.
Specifications:Application:Gravel, Cyclocross, City & TouringWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:TL/USTTechnical Information – Rim:Type:Offset 2.5 mmRim Flange:with hookDimensions (ETRTO):21-584Inner Width:21.6 mmOuter Width:26 mmDepth:22 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Over Locknut Dimension:12 x 100 mm thru-axleBearings:cup & coneBody Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 142 mm thru-axleBearings:cup & coneBody Material:aluminiumFreehub Body Material:steelFreehub Body:pawlsTechnical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:bladed / straight pull /straightSpoke Size:277 mmSpoke Material:stainless steelNipple Size:2 mm (diameter)Nipple Material:aluminiumApproved For:Air Pressure (max.):5 barsRecommended Tyre Width:38-584 – 53-584Features:optimally designed for fast, reliable riding on mixed terrainwide tubeless rim limits flex when cornering aggressivelyhigh stiffness and durability without additional weightMTB-inspired, asymmetrical, dirt-repellent rim shapewelded rim jointCBN precision machined bearings, polished, with contact sealfreehub body has contact sealinternal grease sleeveanodised and painted rim, anodised hub bodyaluminium hub axlesuse tubeless rim tape (included)Technology:Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Number:E-WHRX570LFED65 + E-WHRX570LRED65Contents:1 x Shimano WH-RX570-TL-650B wheelset (front & rear)2 x rolls tubeless rim tape (applied)
