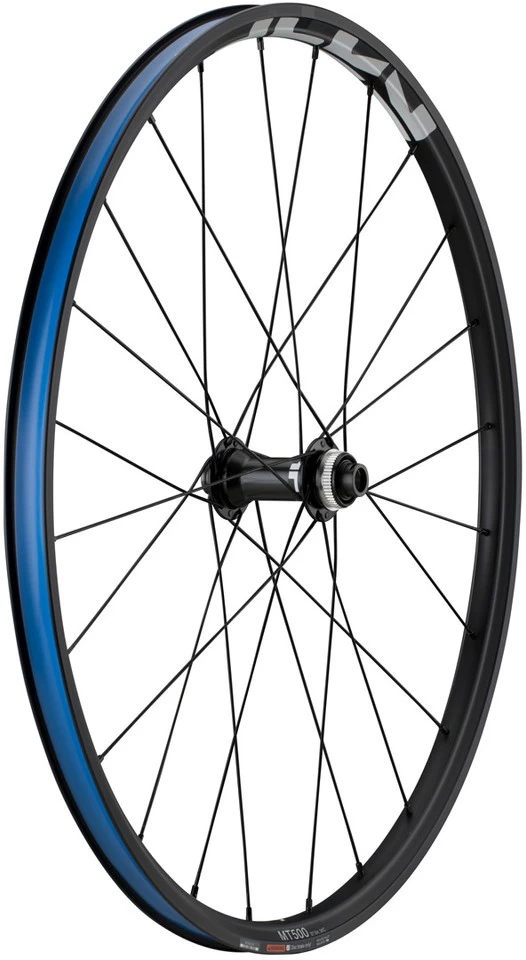

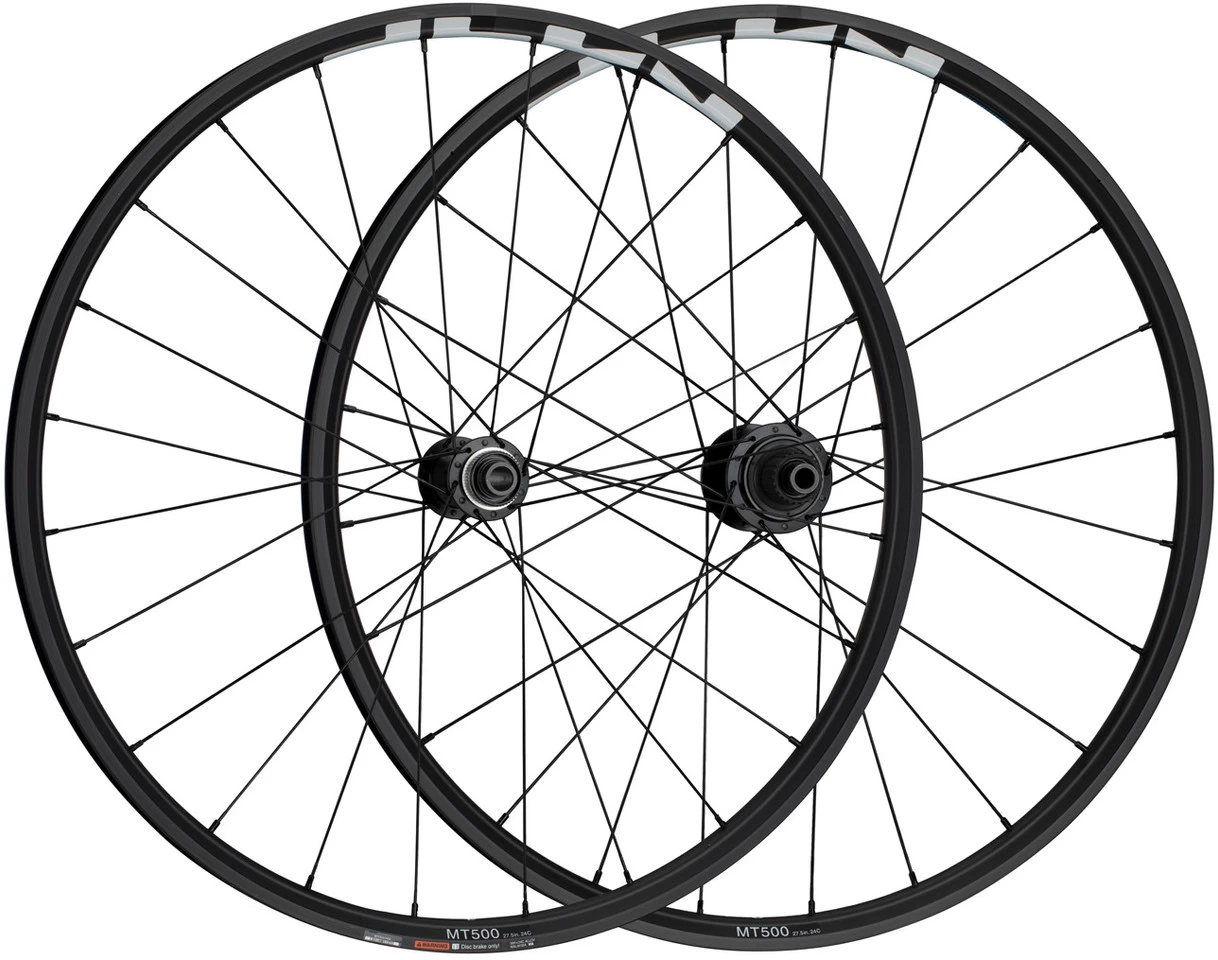

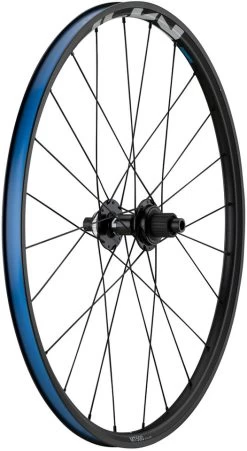

Shimano WH-MT500-CL-B / WH-MT501-CL-B Center Lock Disc 27.5″ Wheelset

The Shimano WH-MT500/MT501-CL-B 27,5″ Wheelset – Broader front and rear

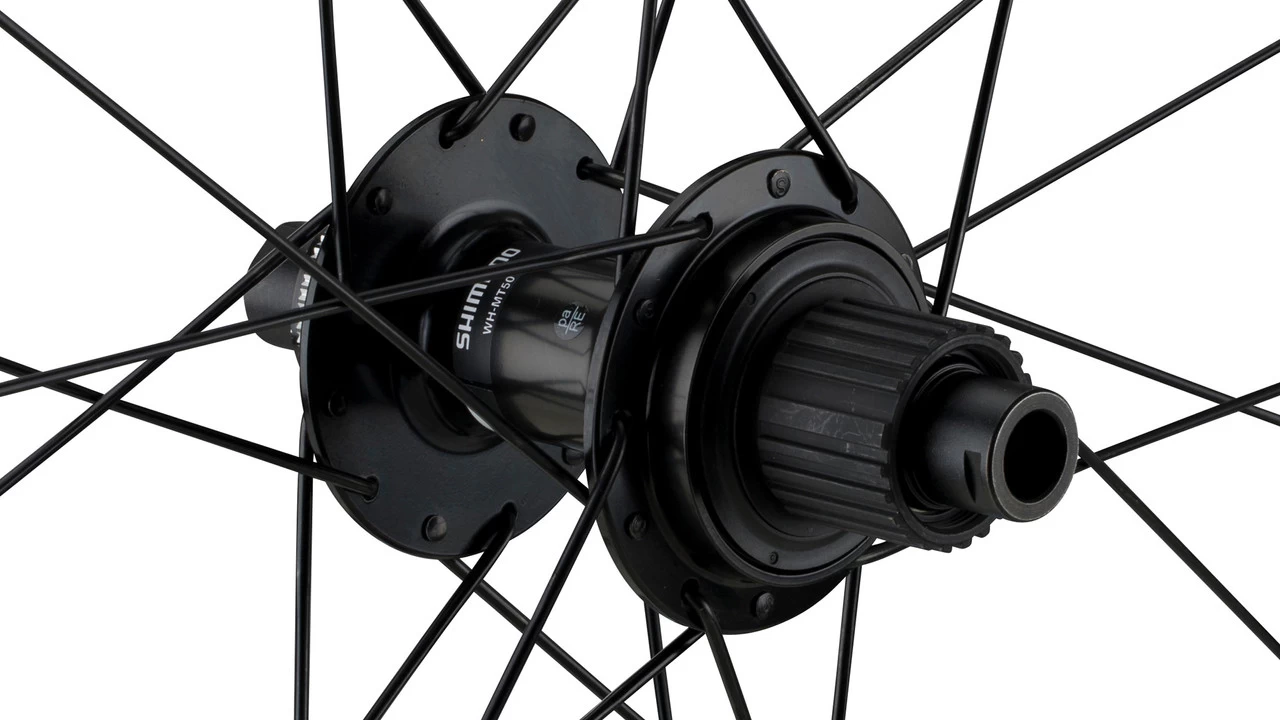

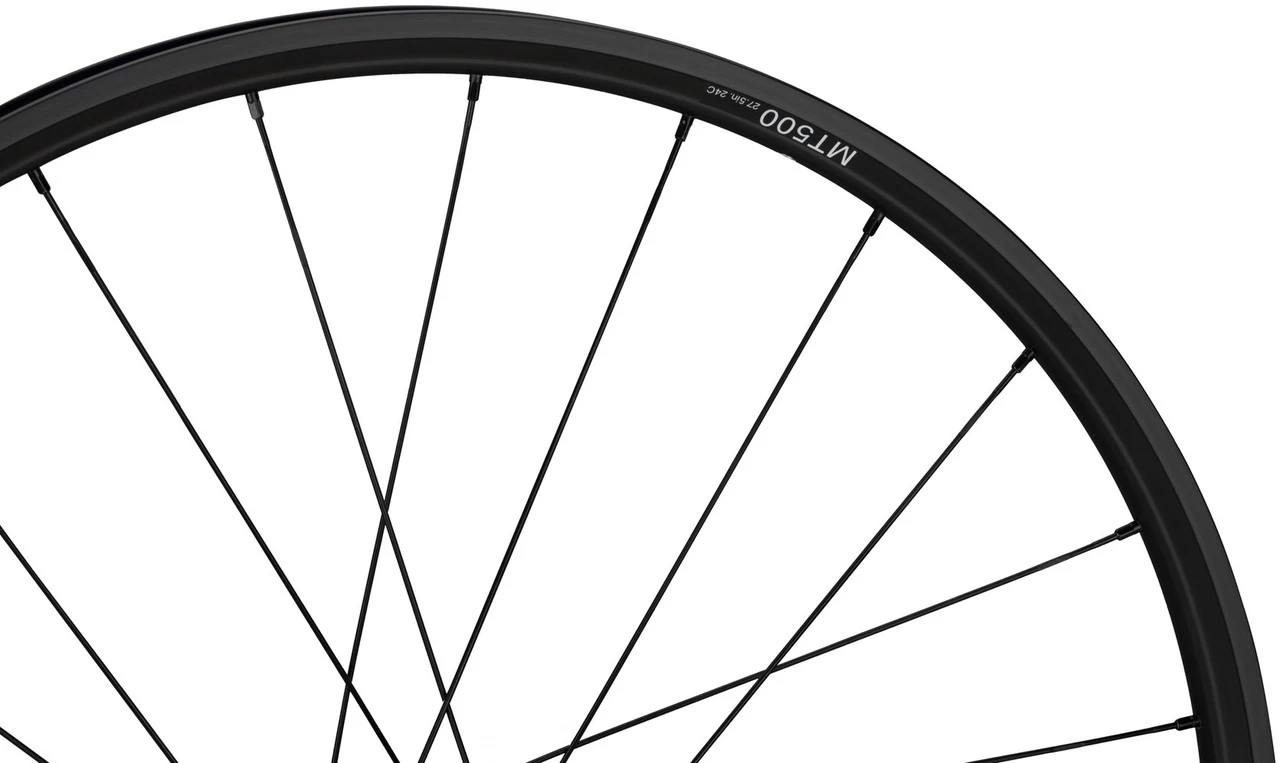

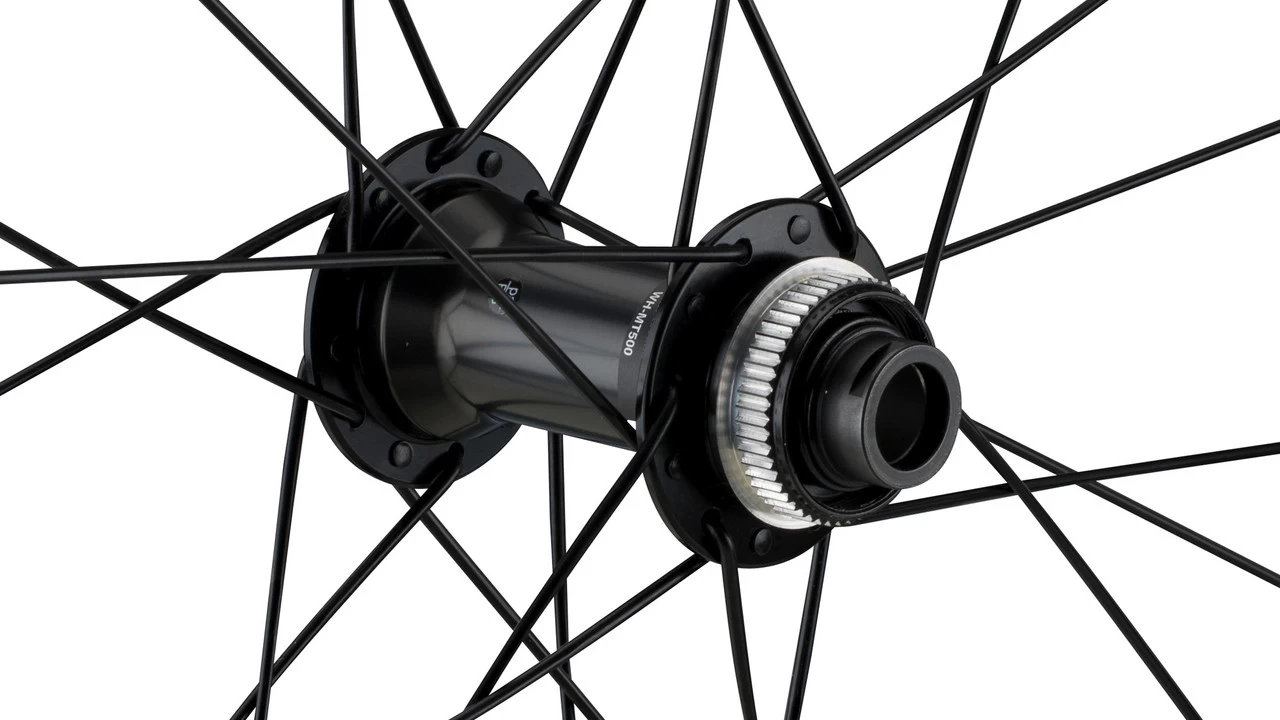

The Shimano WH-MT500-CL-B or WH-MT501-CL-B 27,5″ wheelset is characterised by larger over locknut dimensions: 110 mm at the front and 148 mm at the rear. Its aluminium rims with 24 mm inner width are each equipped with 24 doubled-butted stainless steel spokes. Sealed, greased cone bearings are used in the aluminium hubs, which are characterised by their resilience and smoothness. The tried-and-tested Shimano E-Thru thru axle system ensures torsional rigidity and strength under all conditions. A version with Micro-Spline freehub is now also available under the model designation WH-MT501. These wheels must be used with a tube.
Specifications:Application:All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock Disc (Boost)Wheel Standard:BoostTubeless System:noneTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):24-584Inner Width:24 mmOuter Width:29.6 mmDepth:21 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:AluminiumTechnical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:cup & coneBody Material:AluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:cup & coneBody Material:AluminiumFreehub Body Material:steelFreehub Body:pawlsTechnical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:J-Bend / double butted (2.3)Spoke Size:
Shimano: 272 mm (front), 272 mm/270 mm (rear l/r)Shimano Micro Spline: 272 mm (front), 269 mm/267,5 mm (rear l/r)Spoke Material:stainless steelNipple Material:brassApproved For:Recommended Tyre Width:2.0″ – 2.4″Features:anodised aluminium rim, sleevedpainted hubshub axles made of aluminium (front) or steel (rear)labyrinth and contact sealsinternal grease coatingplease use with rim tape (24-584, included)Models:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Number:E-WHMT500FEBD7X + E-WHMT500REBD7
27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:E-WHMT500FEBD7X + E-WHMT501REBD7Contents:1 x Shimano WH-MT500-CL-B wheelset or WH-MT501-CL-B wheelset (front wheel and rear wheel)2 x roll of rim tape
