Shimano WH-MT500-CL-B / WH-MT501-CL-B Center Lock Disc 27.5″ Wheel

The WH-MT500/MT501-CL-B 27.5″ wheel by Shimano – Micro-Spline at the rear

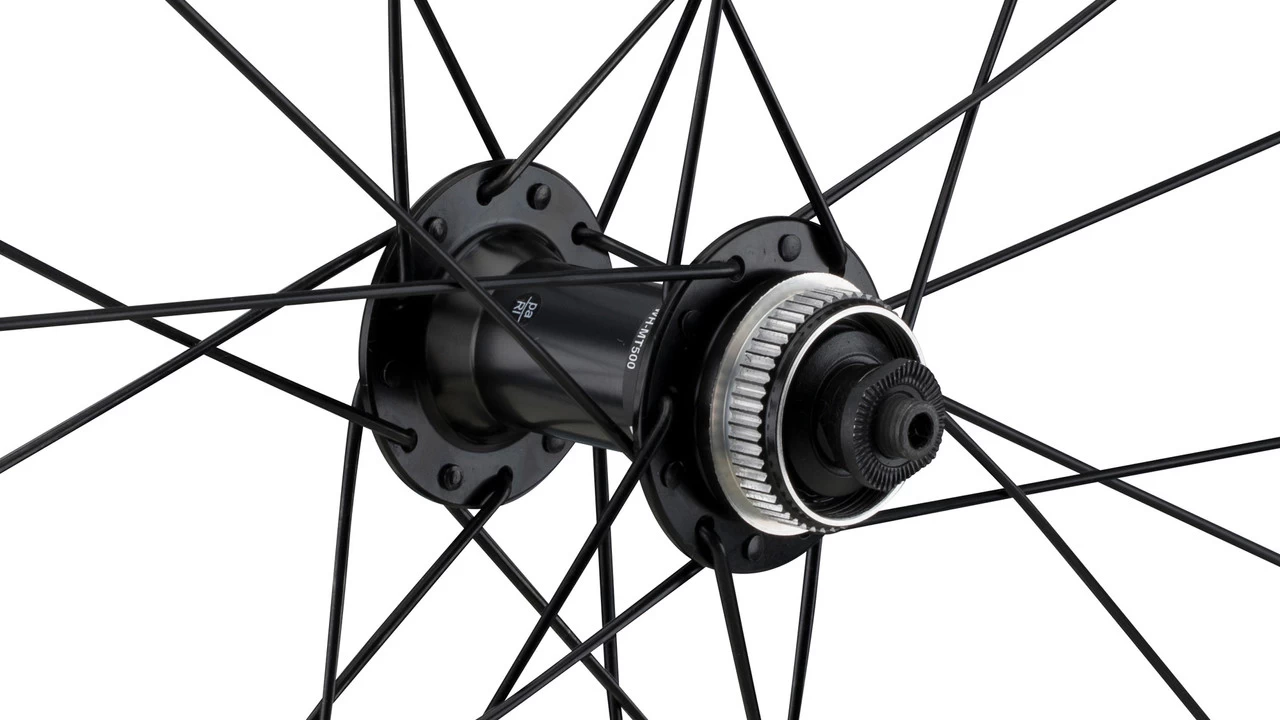

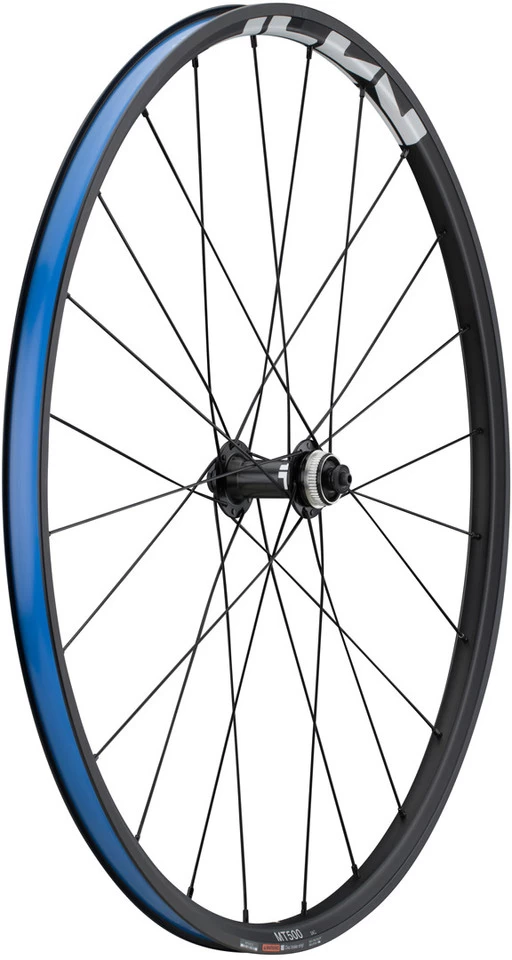

Shimano WH-MT500-CL-B and WH-MT501-CL-B are 27.5″ wheels are for All Mountain use with an over locknut dimension of 110 mm at the front and 148 mm at the rear. Unlike previous models, the rear wheel now comes with the new Micro-Spline freehub, which is why Shimano has given it the name WH-MT501. The aluminium rims are 24 mm wide on the inside and are each fitted with 24 double-butted stainless steel spokes. Sealed and greased cone bearings are used in the aluminium hubs, which are characterised by resilience and smooth running. The tried-and-tested Shimano E-Thru thru axle system ensures torsional rigidity and strength under all conditions. Please note that these wheels must be used with a tube.
Specifications:Application:All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock Disc (Boost)Wheel Standard:BoostTubeless System:noneTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):24-584Inner Width:24 mmOuter Width:29.6 mmDepth:21 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:AluminiumTechnical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:cup & coneBody Material:AluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:cup & coneBody Material:AluminiumFreehub Body Material:steelFreehub Body:pawlsTechnical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:J-Bend / double butted (2.3)Spoke Size:272 mm (front), 269 mm/267.5 mm (rear l/r)Spoke Material:stainless steelNipple Material:brassApproved For:Recommended Tyre Width:2.0″ – 2.4″Features:anodised aluminium rim, sleevedpainted hubshub axles made of aluminium (front) or steel (rear)labyrinth and contact sealsinternal grease coatingplease use with rim tape (24-584, included)Models:27.5″ front 15×110 Boost:
Model Designation:WH-MT500Manufacturer Number:E-WHMT500FEBD7X
27.5″ rear 12×148 Boost Shimano Micro Spline:
Model Designation:WH-MT501Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:E-WHMT501REBD7Contents:1 x Shimano WH-MT500-CL-B wheel or WH-MT501-CL-B (front or rear wheel)1 x roll of rim tape
