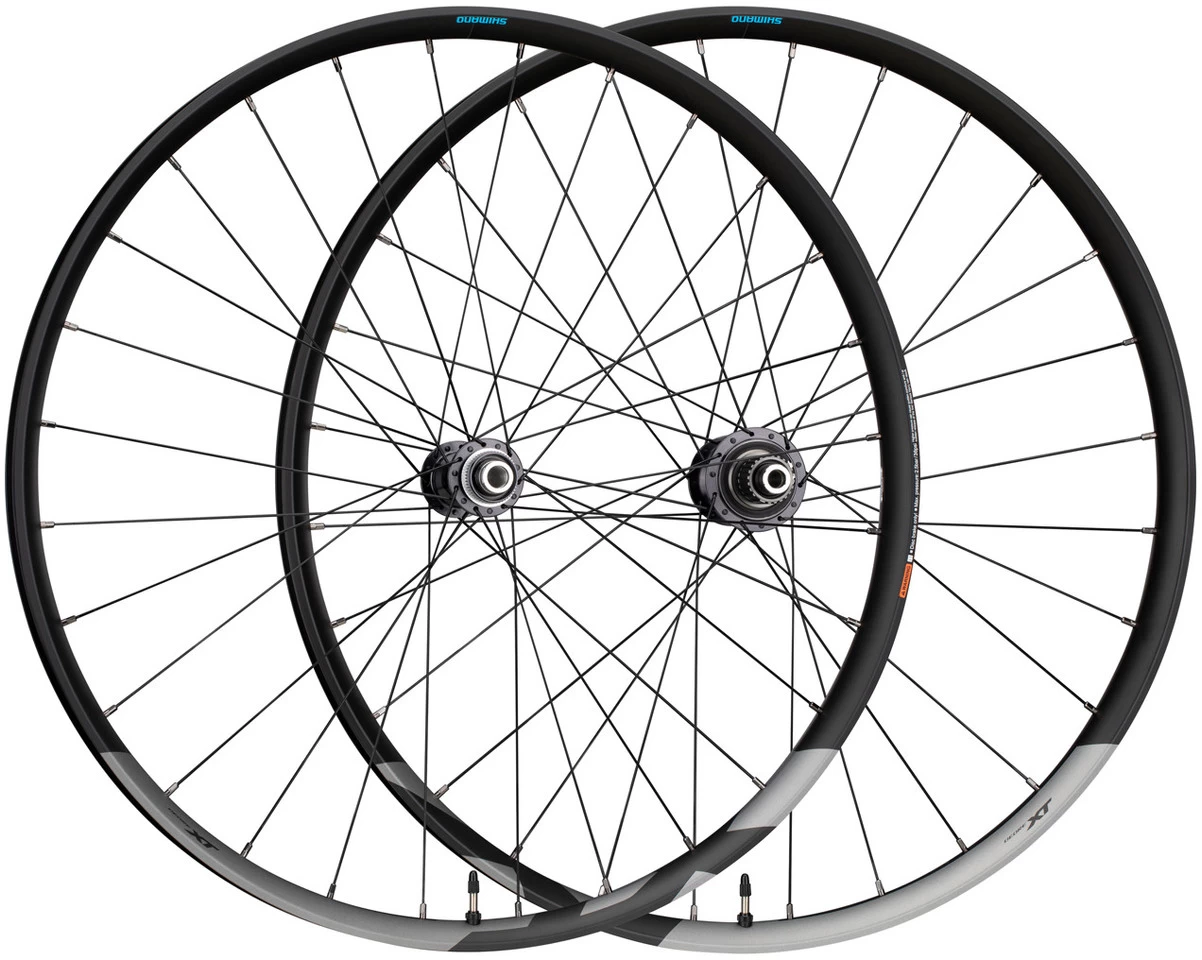

Shimano WH-M8120-TL-B XT Center Lock Disc 27.5″ Wheelset

The WH-M8120 XT wheelset by Shimano – meets the highest demands
The Shimano XT WH-M8120 27.5″ wheelset is specially designed for enduro and trail riding. It has a tubeless-compatible rim with a comfortable 30 mm inner width that will stand up to the toughest trails. The wheels are spoked with 28 J-bend spokes, which ensures robustness without increasing the weight too much.
Specifications:Application:Enduro, All MountainWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock Disc (Boost)Wheel Standard:BoostTubeless System:TL/USTTechnical Information – Rim:Type:offsetRim Flange:with hookDimensions (ETRTO):30-584Inner Width:30 mmOuter Width:34.7 mmDepth:19.8 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:AluminiumTechnical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:cup & coneBody Material:AluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:cup & coneBody Material:AluminiumFreehub Body Material:AluminiumFreehub Body:Direct Engagement (Ratchet), Quick Engagement (max. 9°)Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:J-bend / double butted (2.0-1.8-2.0)Spoke Size:274 mm (front), 269.5 mm/267 mm (rear l/r)Spoke Material:stainless steelNipple Material:AluminiumFeatures:series: Deore XT M8100reliable cornering thanks to 15 mm E-Thru at the front and 12 mm at the rear15 % more torsional stiffness and 25 % more transverse tensile strength than 9 mm quick releasesfaster acceleration for more riding pleasuresmaller spline diameter for 10 T sprocket: Micro Splineeasy setup and reliable trail performanceno dishwelded rim jointCBN precision machined bearings (front stainless steel ball bearings with grease cover, rear polished)labyrinth and contact sealsaluminium axlesanodised rim and hub bodyuse tubeless rim tape (included)Technology:E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Micro Spline
Micro Spline is an innovative tooth profile on MTB freehub bodies from Shimano. All Shimano 12-speed MTB cassettes with a 10-speed sprocket are equipped with Micro Spline freehub toothing. The significantly higher and finer toothing enables a stiffer connection between the cassette and the hub body. The resulting increased contact area ensures reliable power transmission, minimises wear and prevents deformation of the freehub and sprocket.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:E-WHM8120LFEBD7X + E-WHM8120LREBD7Contents:1 x Shimano XT WH-M8120 27.5″ wheelset (front & rear)2 x tubeless rim valves (installed)2 x rim tape rolls (applied)2 x valve core removers
