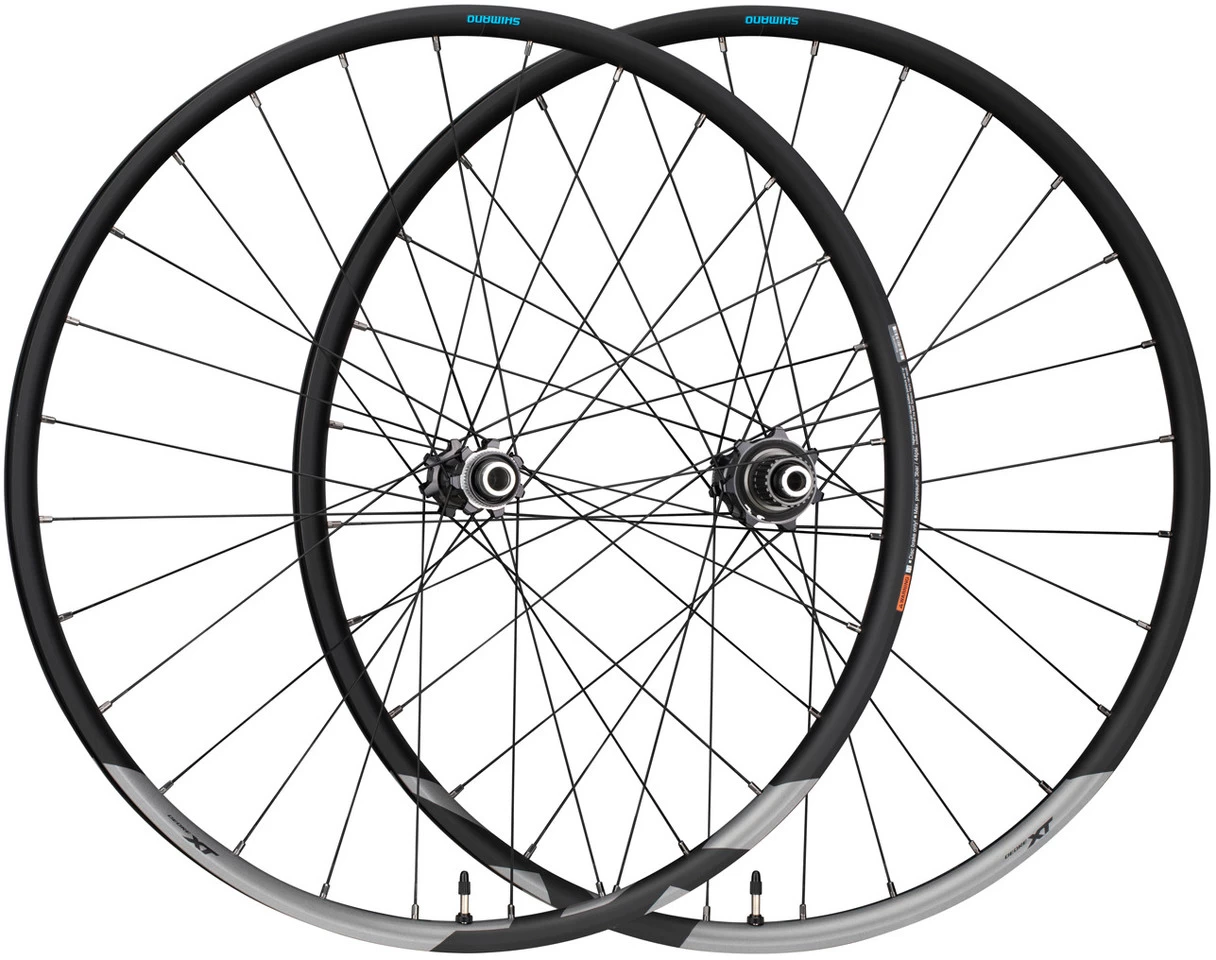

Shimano WH-M8100-TL-B XT Center Lock Disc 27.5″ Wheelset

Shimano WH-M8100 XT wheelset – reliable technology for more riding pleasure

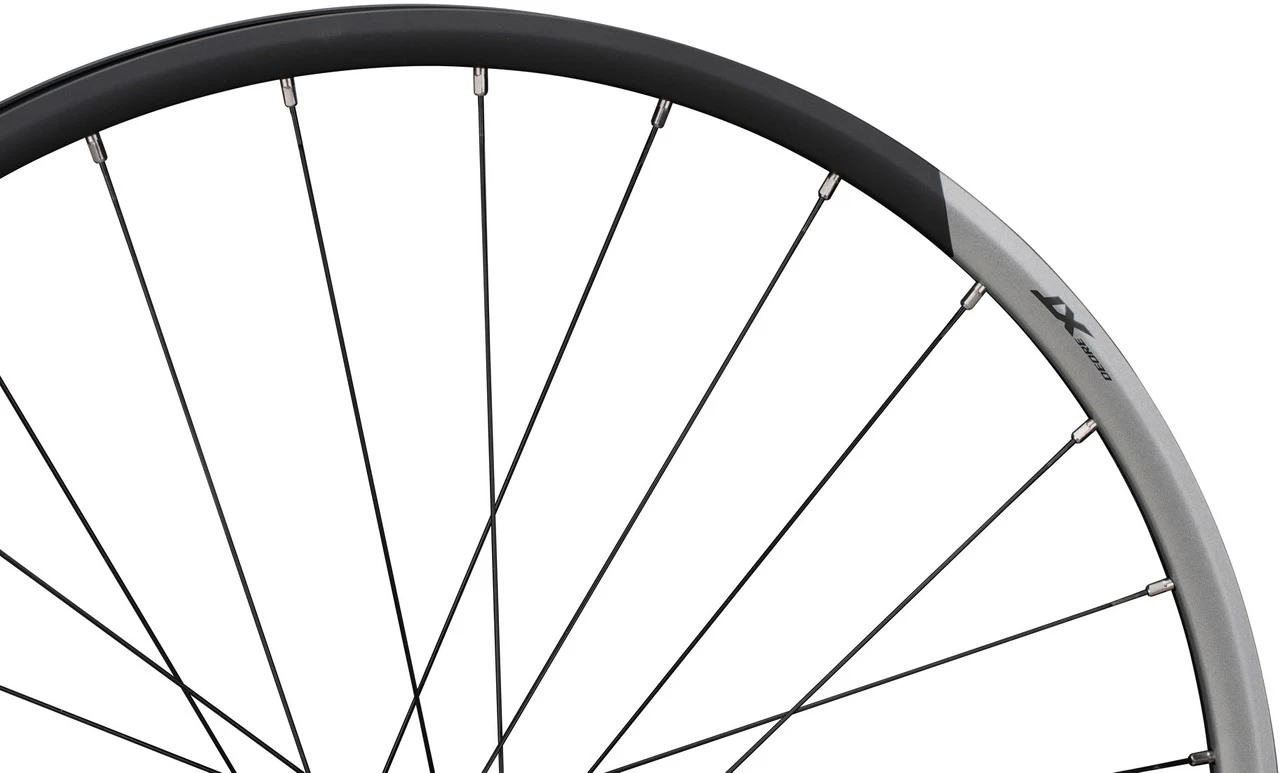

The Shimano XT WH-M8100 27.5″ wheelset for cross-country use has tubeless-compatible rims with a completely closed rim bed. The stiff and lightweight aluminium rim is 24 mm wide and comes with 28 double-butted straight pull spokes. These stand for a balanced ratio of weight to stiffness. The rear wheel freehub is of course based on the innovative Shimano Micro Spline system.
Specifications:Application:Cross CountryWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock Disc (Boost)Wheel Standard:BoostTubeless System:TL/USTTechnical Information – Rim:Type:offsetRim Flange:with hookDimensions (ETRTO):24-584Inner Width:23.8 mmOuter Width:27.9 mmDepth:18.8 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:AluminiumTechnical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:cup & coneBody Material:AluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:cup & coneBody Material:AluminiumFreehub Body Material:AluminiumFreehub Body:Direct Engagement (Ratchet), Quick Engagement (max. 9°)Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:straight pull / double butted (2.0-1.5-2.0)Spoke Size:283 mm (front), 283 mm/279 mm (rear l/r)Spoke Material:stainless steelNipple Material:AluminiumFeatures:series: Deore XT M8100reliable cornering thanks to 15 mm E-Thru at the front and 12 mm at the rear15 % more torsional stiffness and 25 % more transverse tensile strength than 9 mm quick releasesfaster acceleration for more riding pleasuresmaller spline diameter for 10 T sprocket: Micro Splineeasy setup and reliable trail performancewelded rim jointCBN precision machined bearings (front stainless steel ball bearings with grease cover, rear polished)labyrinth and contact sealsaluminium axlesanodised rim and hub bodyuse tubeless rim tape (included)Technology:E-Thru

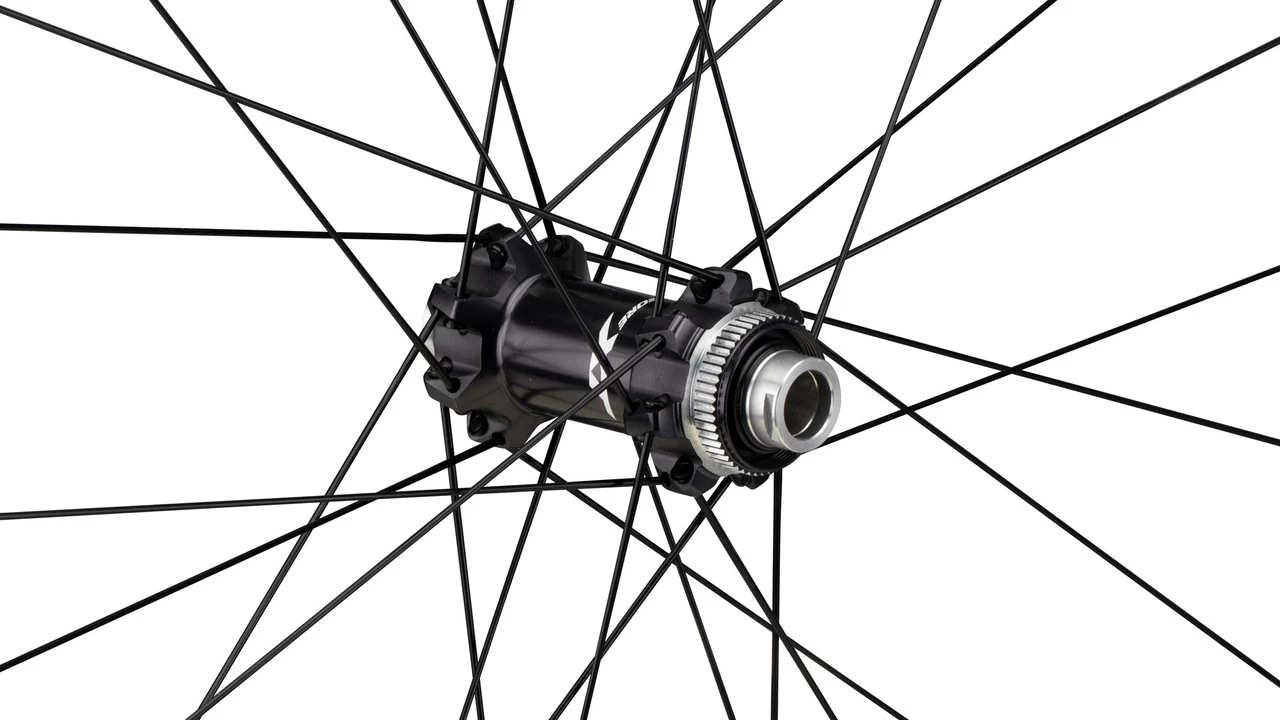

E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Micro Spline

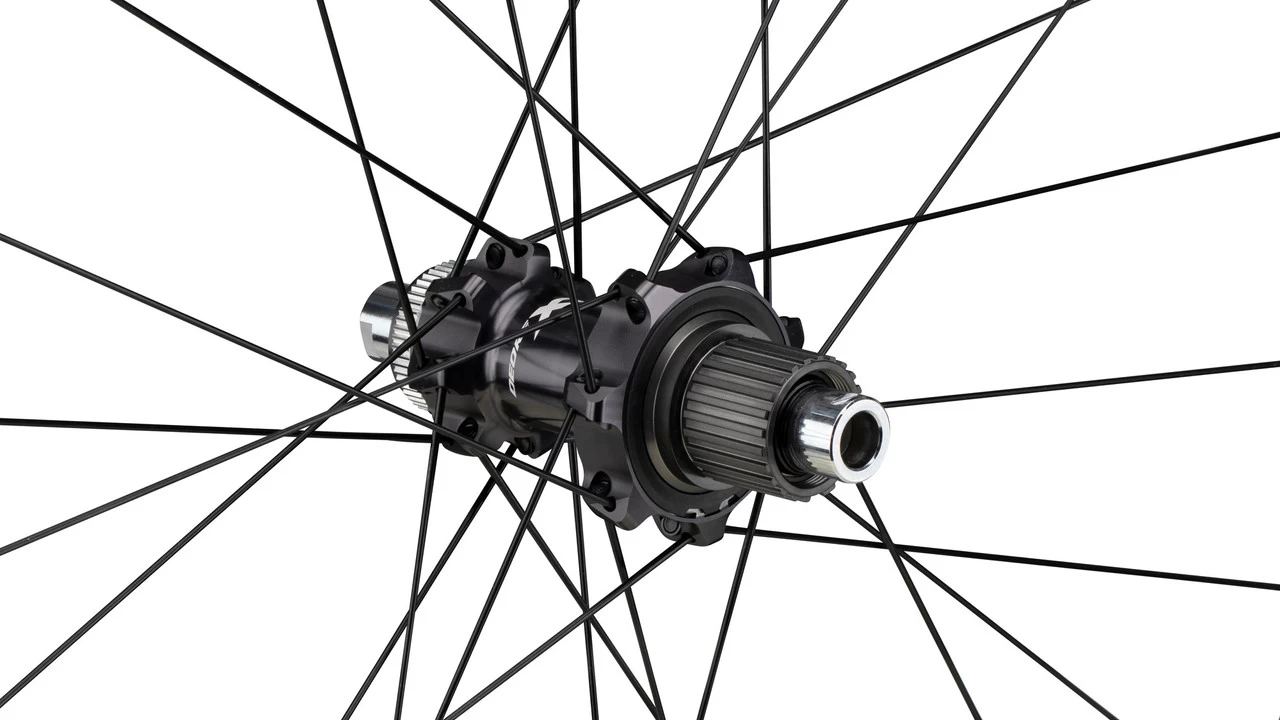

Micro Spline is an innovative tooth profile on MTB freehub bodies from Shimano. All Shimano 12-speed MTB cassettes with a 10-speed sprocket are equipped with Micro Spline freehub toothing. The significantly higher and finer toothing enables a stiffer connection between the cassette and the hub body. The resulting increased contact area ensures reliable power transmission, minimises wear and prevents deformation of the freehub and sprocket.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:

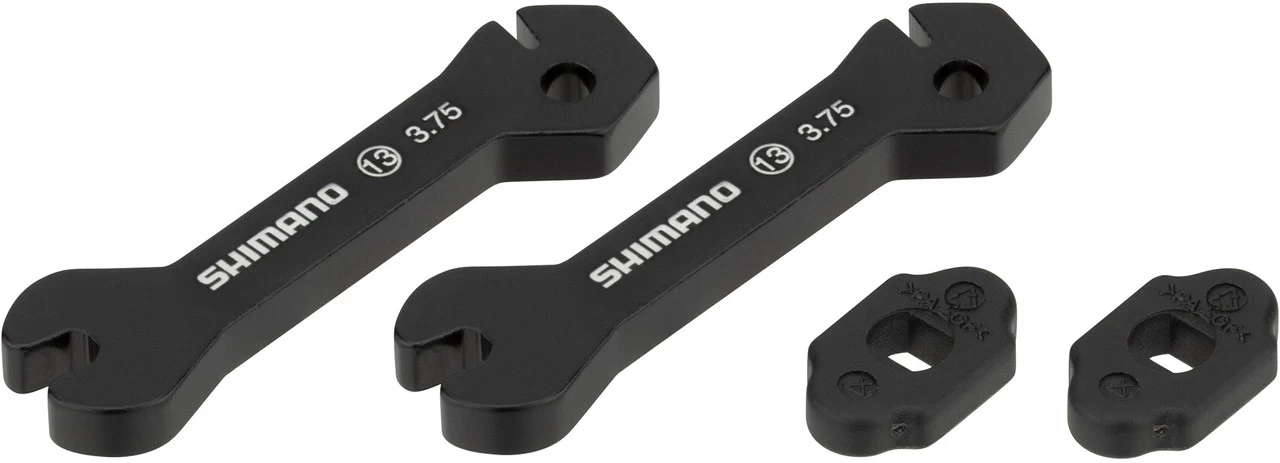

Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:E-WHM8100LFEBD7X + E-WHM8100LREBD7Contents:1 x Shimano XT WH-M8100-TL 27.5″ wheelset (front & rear)2 x tubeless rim valves (installed)2 x rim tape rolls (applied)2 x valve core removers
