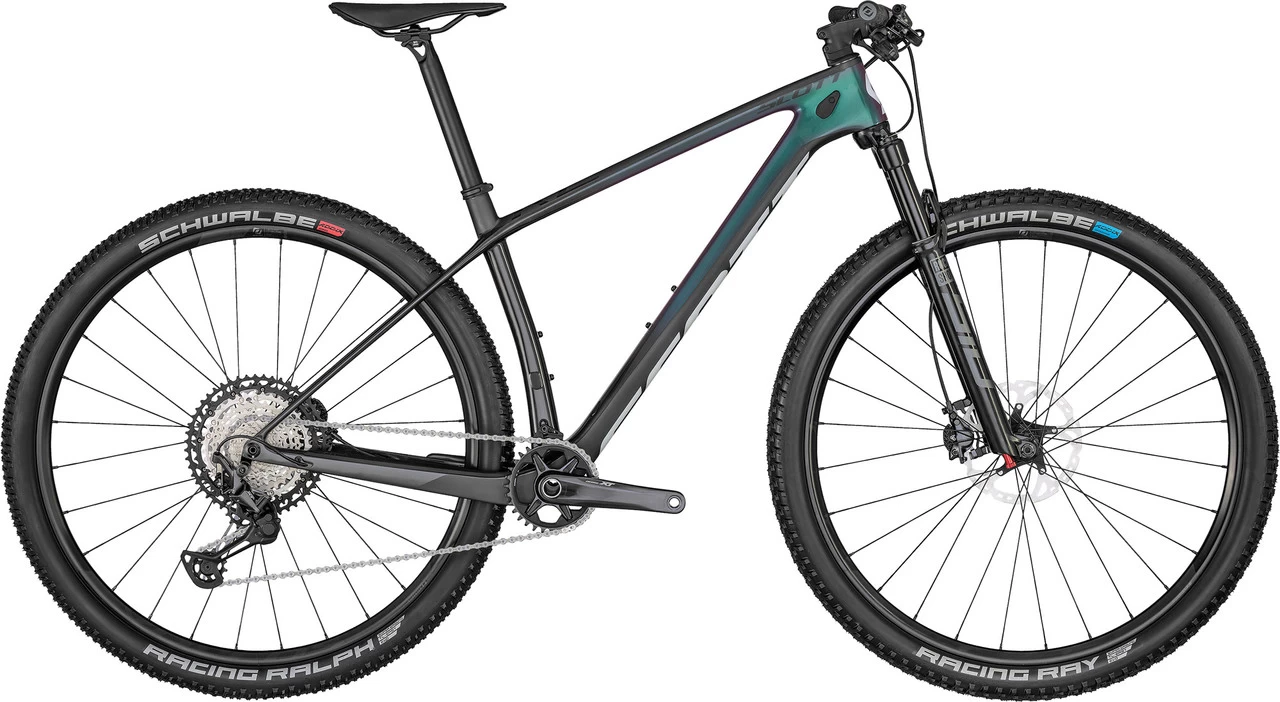

Scott Scale RC Team Carbon Mountain Bike

Specifications:Application:Cross CountryWheel Size:29″Travel:100 mmSizes:S, M, L, XLFrame Material:carbon (HMF)Components:Frame:Scott Scale RC Carbon (HMF), 12 x 148 mm BoostFork:RockShox SID SL RL Air, 44 mm advance, 15 x 110 mm BoostStem:Syncros XR1.5, -8°, 31.8 mm, 1 1/8″ , aluminium (2014)Handlebars:Syncros Fraser 1.5, 9° backsweep, 740 mm, aluminium (7050)Grips:Syncros Pro Lock-OnRemote System:Scott RideLoc, 2 stagesHeadset:Syncros Pro Drop in, 1.5″ – 1 1/8″ taperedSeatpost:Syncros Duncan 1.5, 10 mm setback, 31.6 mm, 400 mmSaddle:Syncros Belcarra Regular 2.0, CrMo saddle railsCrank:Shimano XT FC-M8100-1, Hollowtech II, 32 teethPedals:noneBrakes:Shimano XT M8100, 6-bolt disc, 180 mm (front), 160 mm (rear)Shift Lever:Shimano XT SL-M8100-IR, Rapidfire Plus, I-SpecRear Derailleur:Shimano XT RD-M8100 SGS, 12-speedCassette:Shimano XT CS-M8100-12, 10-51 teethChain:Shimano CN-M7100Rims:Syncros Silverton 2.0, Disc, 28 holeFront Hub:15 x 110 mm Boost, 6-bolt DiscRear Hub:15 x 148 mm Boost, 6-bolt Disc, Shimano Micro SplineFront Tyre:Schwalbe Racing Ray, Evo Super Ground, TLE, 29 x 2.25″ , Addix Speed GripRear Tyre:Schwalbe Racing Ralph, Super Ground, TLE, 29 x 2.25″ , Addix Speed GripApproved For:Weight Limit:128 kg (system weight)Features:cross-country bike with Boost axlessuspension fork with handlebar remoteinternal cable routingoptimised tube structures and layer alignment in the frame using computer-based Evo-Lap technologyGeometry:S:
Stack:599 mmReach:398.7 mmSeat Tube Length:390 mmEffective Top Tube Length:575 mmHead Tube Length:95 mmChainstay Length:425 mmWheelbase:1076.4 mmBottom Bracket Height:312 mmBB Drop:58 mmSeat Tube Angle:73.6°Head Tube Angle:69.5°Standover Height:743 mmStem Length:60 mmHandlebar Width:740 mm
M:
Stack:603.6 mmReach:422.3 mmSeat Tube Length:440 mmEffective Top Tube Length:600 mmHead Tube Length:100 mmChainstay Length:425 mmWheelbase:1101.8 mmBottom Bracket Height:312 mmBB Drop:58 mmSeat Tube Angle:73.6°Head Tube Angle:69.5°Standover Height:774 mmStem Length:70 mmHandlebar Width:740 mm
L:
Stack:617.7 mmReach:443.2 mmSeat Tube Length:480 mmEffective Top Tube Length:625 mmHead Tube Length:115 mmChainstay Length:425 mmWheelbase:1127.9 mmBottom Bracket Height:312 mmBB Drop:58 mmSeat Tube Angle:73.6°Head Tube Angle:69.5°Standover Height:800 mmStem Length:80 mmHandlebar Width:740 mm
XL:
Stack:627.1 mmReach:465.5 mmSeat Tube Length:530 mmEffective Top Tube Length:650 mmHead Tube Length:125 mmChainstay Length:425 mmWheelbase:1153.79 mmBottom Bracket Height:312 mmBB Drop:58 mmSeat Tube Angle:73.6°Head Tube Angle:69.5°Standover Height:835.1 mmStem Length:90 mmHandlebar Width:740 mmManufacturer Number:2863170
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Scott Scale RC Team Carbon Mountain Bike
