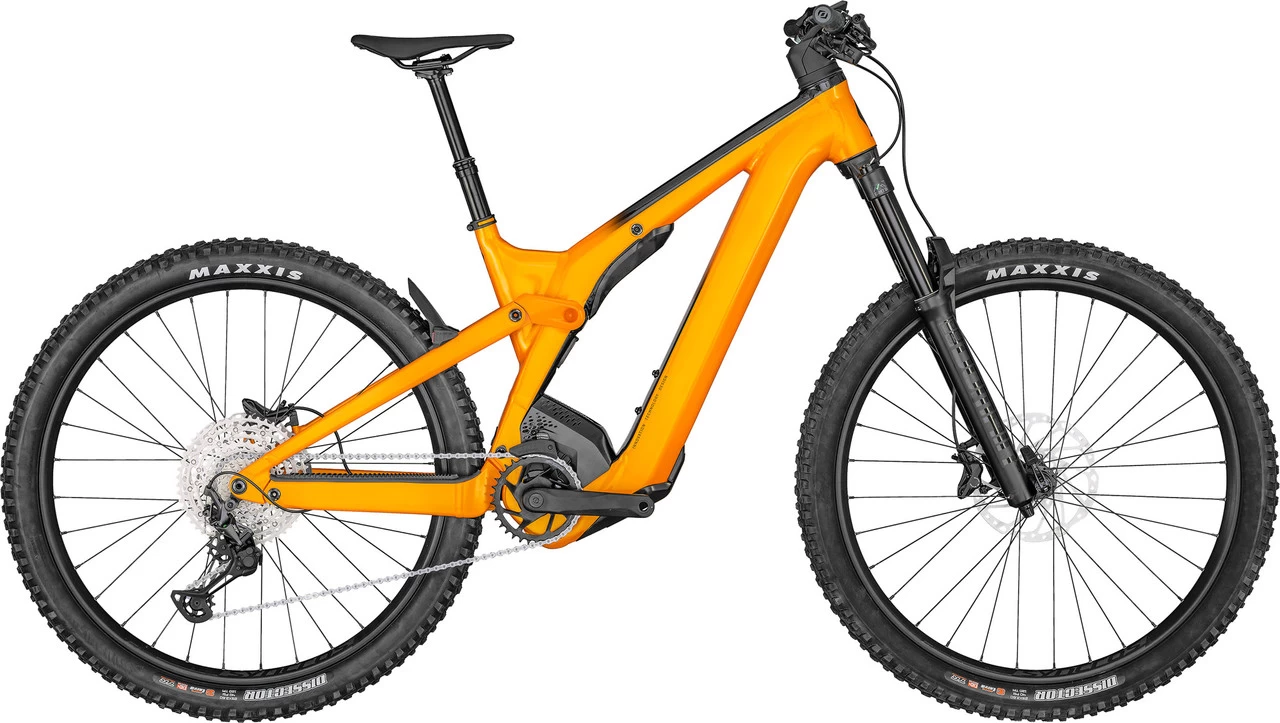

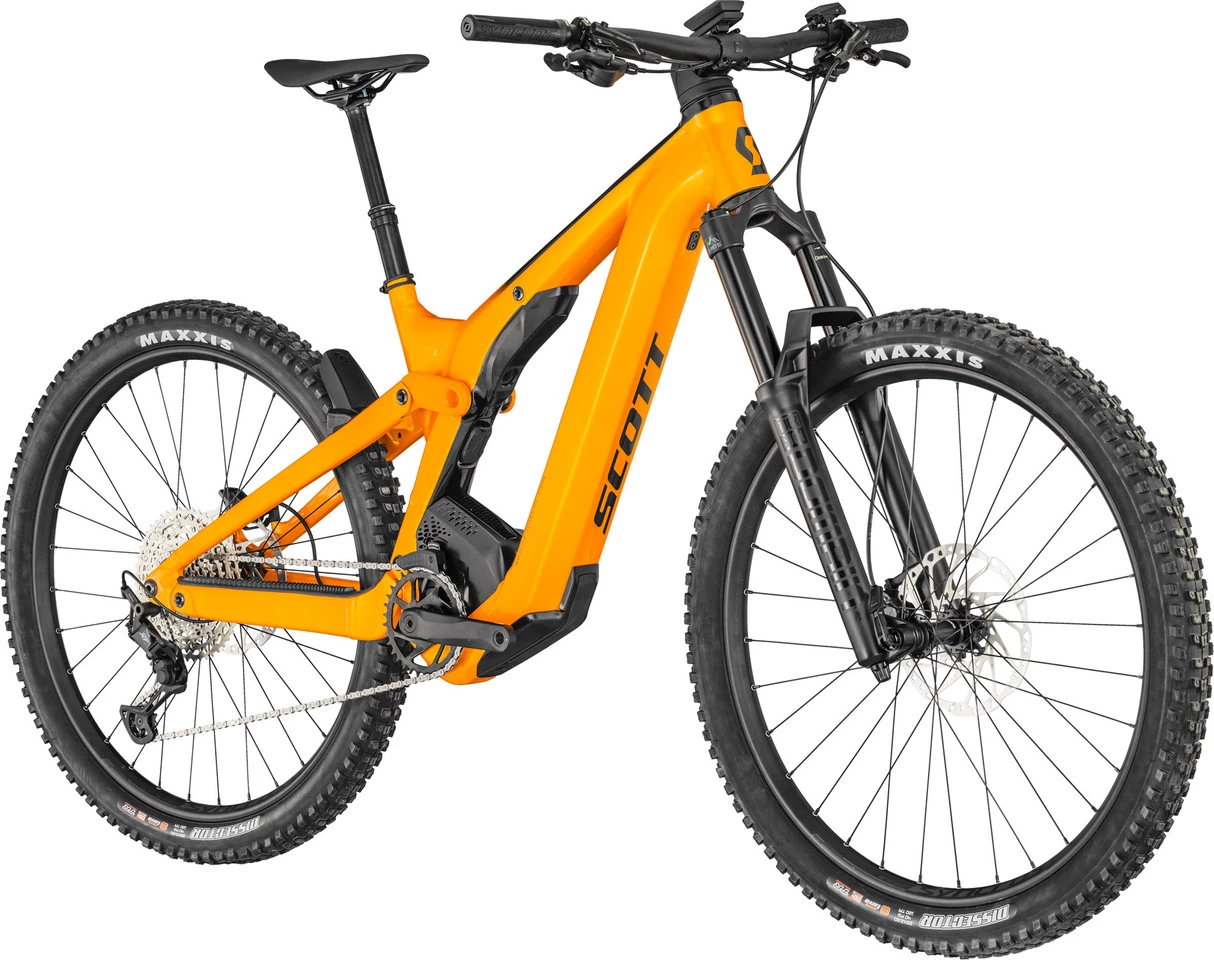

Scott Patron ERIDE 920 E-Mountain Bike

Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All MountainWheel Size:29″Front Travel:160 mmRear Travel:160 mmSizes:MFront Triangle Material:aluminiumRear Triangle Material:aluminiumE-Motor:Type:mid-drive motorMotor Type:Bosch Performance CXPedal Assist (max.):25 km/hBattery Type:Bosch PowerTubeCapacity:750 WhDisplay:Bosch LED Remote and Kiox 300Components:Frame:Scott Patron eRIDE aluminium, Virtual 4 Link linkage design, 12 x 148 mm Boost, 1.8″ head tubeFork:RockShox Domain Air e-bike, Rebound Adjust, 2 levels, Lockout, 15 x 110 mm Boost, tapered, thru-axle with quick releaseStem:Syncros AM 2.0, aluminium (6061), 31.8 mm, 4°, 1 1/8″Handlebars:Syncros Hixon 2.0, aluminium (6061), 12 mm rise, 9° backsweep, 780 mm widthGrips:Syncros Pro Lock-OnRear Shock:Fox Racing Shox Float DPS EVOL eRIDE Trunnion, Rebound Adjust, 3 levels: Lockout, Trail, Descend, 250 x 60 mmRemote System:Scott TwinLoc 2, Suspension & Dropper, 3 stagesHeadset:Acros ZS66/74, 1.8″ , internal cable routingSeatpost:Syncros Duncan Dropper Post 2.5, 31.8 mm, 150 mm strokeSaddle:Syncros Tofino 1.5 regular, titanium railsCrank:FSA CK-745, 165 mm length, with FSA WB604 Direct Mount 34-tooth steel chainringPedals:noneBrakes:Shimano BR-MT520, 4 pistons, with brake rotors SM-RT64 CL 203 mm (front) / RT-EM600 CL 203 mm (rear)Shift Lever:Shimano SL-M6100Rear Derailleur:Shimano XT, 12-speedCassette:Shimano CS-M6100, 12-speed, 10-51 teethChain:Shimano CN-M6100Rims:Syncros MD30, 32 holes, 30 mm, Pin Joint, tubeless readySpokes:Stainless steel, blackFront Hub:Formula CL-8100, 15 x 110 mm (Boost)Rear Hub:Formula ECT-1481, 12 x 148 mm (Boost)Front Tyre:Maxxis Dissector 3C MaxxTerra EXO+, TR tubeless ready, 29 x 2.6″ , 120 tpi, folding tyreRear Tyre:Maxxis Dissector 3C MaxxTerra EXO+, TR tubeless ready, 29 x 2.6″ , 120 tpi, folding tyreApproved For:Weight Limit:128 kg (system weight)Rotor Size (max.):203 mmTyre Size (max.):29 x 2.6″Chainrings:1xChainring Size (max.):1x 38-toothFeatures:electric full-suspension bike with RockShox suspension fork and Shimano XT brakes for all-mountain trail funvertically mounted motor for better protection from below and low centre of gravitybattery can be removed without toolsshock protected in the top tube allows for stiffer construction, larger bearings and thus better power transfereasy to remove cover for adjusting the shockstable, confidence-inspiring riding characteristicsclean cockpit thanks to clever internal cable routing through the headsetcentral mounting option for kickstandpre-installed Bosch cables for lightingwith Syncros eRIDE rear fender including integrated LED rear lightSRAM UDH universal derailleur hanger for easy replacement265 mm maximum insertion length for seatpostsBike Category 4: for technical terrain and jumps up to 120 cmGeometry:(based on a fork axle to crown length of 567.1 mm)
Stack:642.2 mmReach:445.8 mmEffective Top Tube Length:595 mmHead Tube Length:50 mmChainstay Length:454 mmWheelbase:1231.7 mmBottom Bracket Height:347 mmBB Drop:30 mmSeat Tube Angle:76.9°Head Tube Angle:65°Standover Height:766 mmHandlebar Width:780 mmCrank Arm Length:165 mmManufacturer Number:286517008
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Scott Patron eRIDE 920 e-mountain bike
