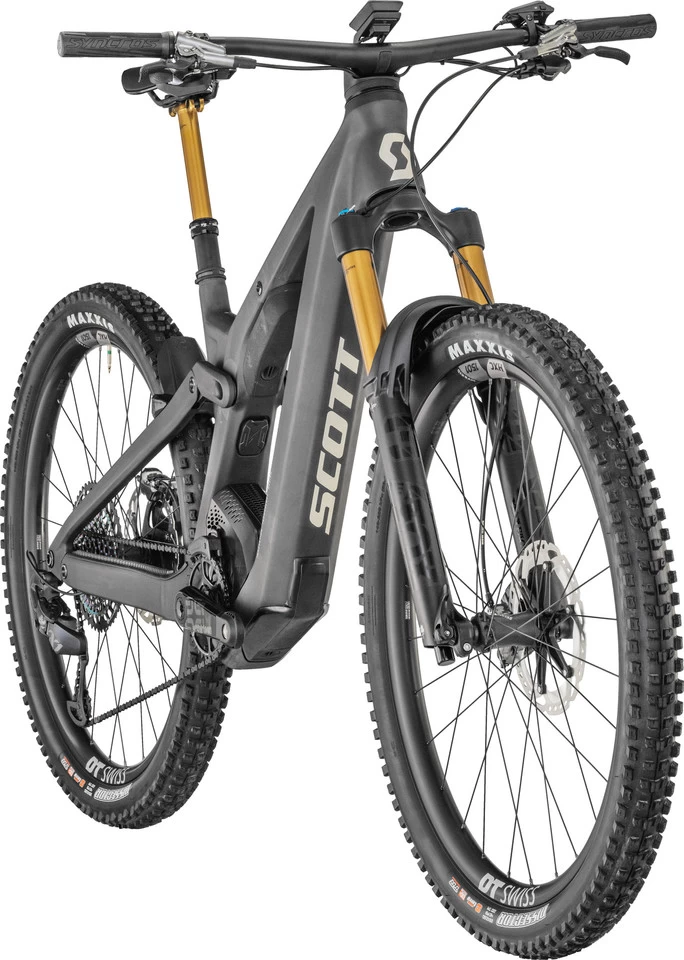

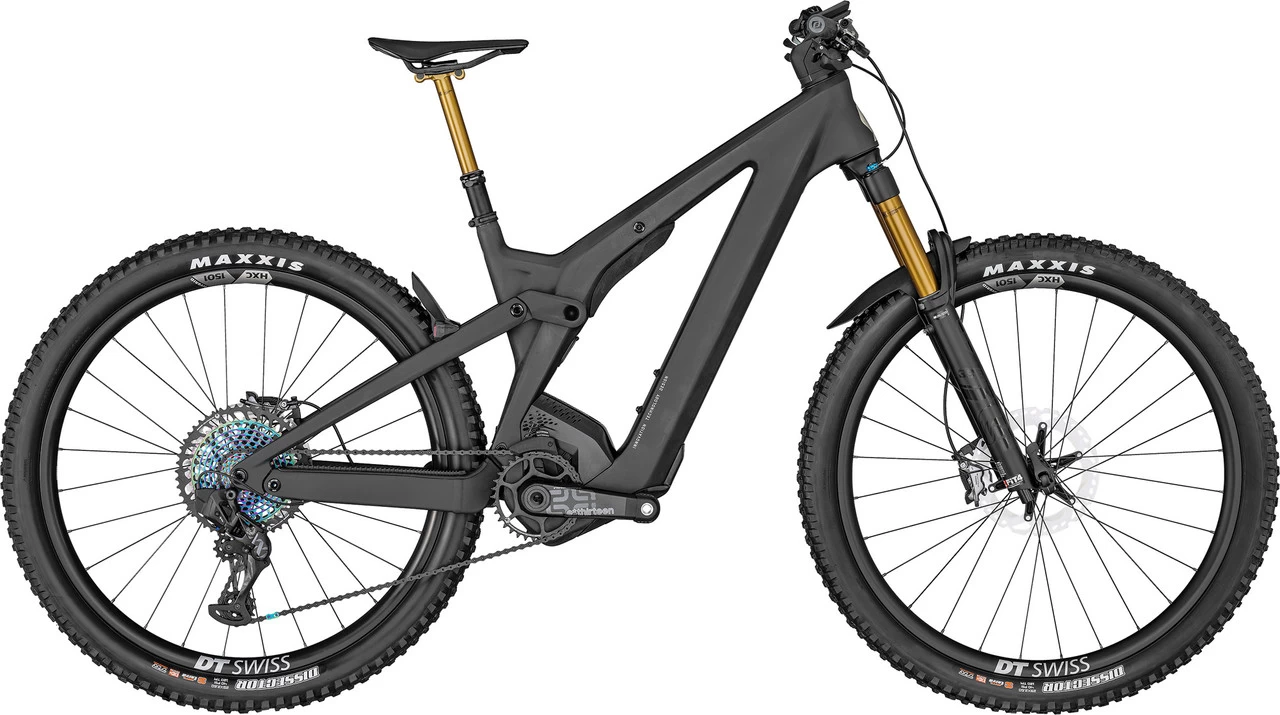

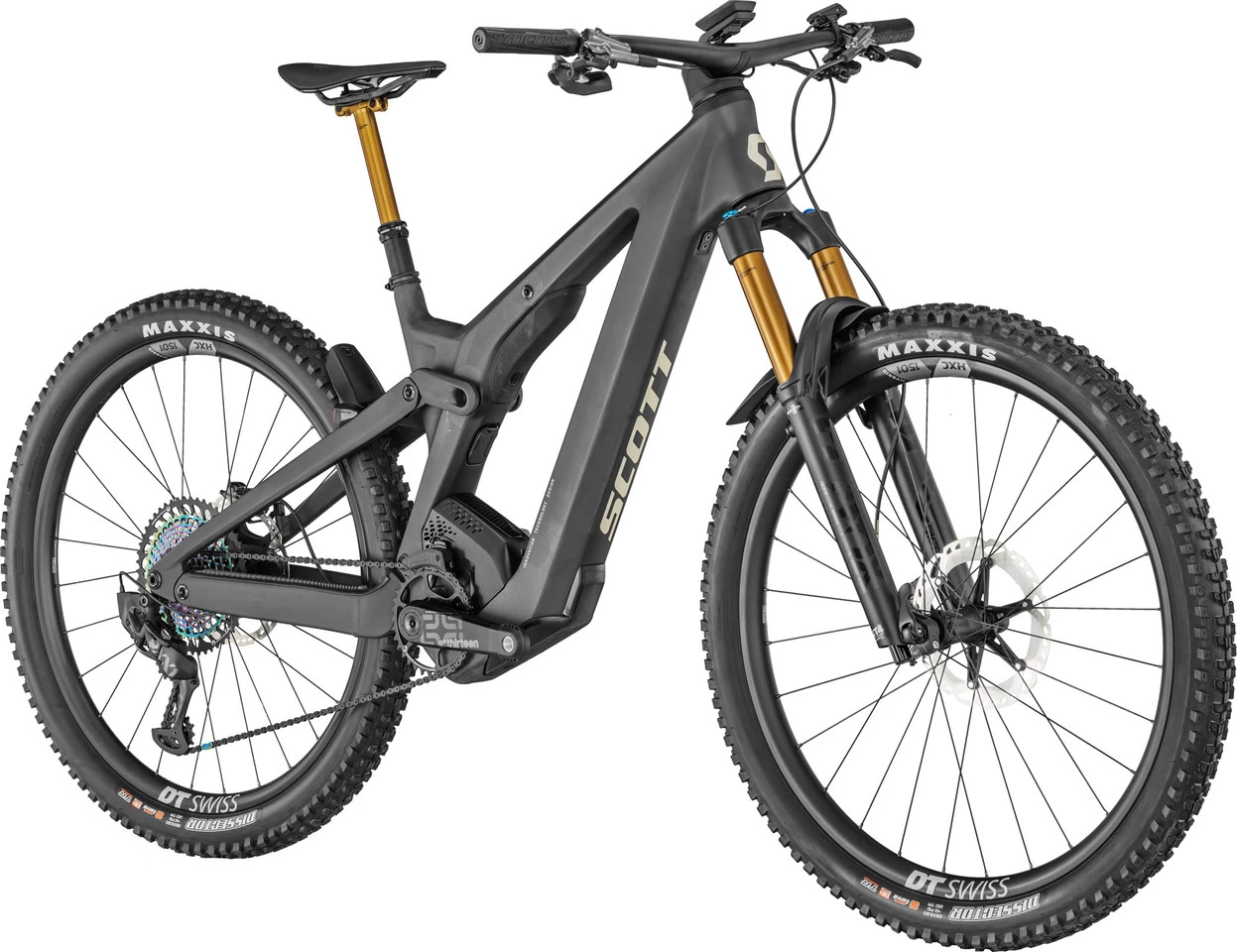

Scott Patron ERIDE 900 Ultimate Carbon E-Mountain Bike

Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All Mountain, EnduroWheel Size:29″Front Travel:160 mmRear Travel:160 mmSizes:S, M, L, XLFront Triangle Material:CarbonRear Triangle Material:aluminiumE-Motor:Type:mid-drive motorMotor Type:Bosch Performance CXPedal Assist (max.):25 km/hBattery Type:Bosch Performance CXCapacity:750 WhDisplay:Bosch LED Remote & Kiox 300Components:Frame:carbon, aluminium rear triangle, Virtual 4 Link linkage design, 12 x 148 mm Boost, 1.8″ head tubeFork:Fox Racing Shox38 Float Factory Air, eMTB+, Fit4, tapered, Rebound Adjust, 3 stages, quick release, 15 x 110 mm Boost, 44 mm offset, 160 mm travelStem:Syncros Hixon iC SL, 50 mm 5° (S, M), 60 mm 4° (L, XL), 31.8 mm, 1 1/8″Handlebars:Syncros Hixon iC SL, 15 mm Rise, 7° Backsweep, 6° UpsweepGrips:Syncros Pro Lock-OnRear Shock:Fox Racing ShoxNude T eRIDE EVOL Kashima Trunnion, 3 stages, Rebound Adjust, 160 mm travel, 60 mm strokeRemote System:Scott TwinLoc 2, Suspension & Dropper, 3 stagesHeadset:Acros ZS66/74, 1.8″Seatpost:Fox Racing ShoxTransfer Factory Dropper Post Kashima, 31.6 mm, 150 mmSaddle:Syncros Tofino Regular 1.0, carbon saddle railsCrank:FSA CK-745, 165.0 mm, steel chainring, 34 teethPedals:noneBrakes:Shimano XTR / M9120, 4 piston, centre lock disc, 203 mmShift Lever:SRAM Eagle AXS Rocker ControllerRear Derailleur:SRAM XX1 Eagle AXS, electronic, 12-speedCassette:SRAM XG-1299, 10-52 teethChain:SRAM XX1 EagleFenders:Syncros Trail 2 36/38, Syncros eRide light integratedRims:DT Swiss HXC 1501, carbon, 30 mm internal width, 28 holes, tubeless readySpokes:DT Swiss Hybrid 2Front Hub:DT Swiss 240 straight pull, Center Lock Disc, 15 x 110 mm BoostRear Hub:DT Swiss 240 straight pull, Center Lock Disc, 12 x 148 mm BoostFront Tyre:Maxxis Dissector, 29 x 2.6″ , 120 tpi, Tubeless Ready, Exo+, 3C Maxx TerraRear Tyre:Maxxis Dissector, 29 x 2.6″ , 120 tpi, Tubeless Ready, Exo+, 3C Maxx TerraApproved For:Weight Limit:128 kg (system weight)Features:performance carbon fully suspension e-bike for bike park ridesmounting option for centre kickstandsfender with integrated rear lightremovable batterylow centreBoost Standardhandlebar stem unitinternal cable routingGeometry:(based on a fork axle to crown length of 567.1 mm)
S:
Stack:634.8 mmReach:432.7 mmSeat Tube Length:510.5 mmEffective Top Tube Length:579.4 mmHead Tube Length:120 mmChainstay Length:454 mmWheelbase:1221.7 mmBottom Bracket Height:347 mmBB Drop:30 mmSeat Tube Angle:77°Head Tube Angle:64.5°Standover Height:766 mmStem Length:50 mmCrank Arm Length:165.0 mm
M:
Stack:642.2 mmReach:445.8 mmSeat Tube Length:440.5 mmEffective Top Tube Length:595 mmHead Tube Length:125 mmChainstay Length:454 mmWheelbase:1231.7 mmBottom Bracket Height:347 mmBB Drop:30 mmSeat Tube Angle:76.9°Head Tube Angle:65°Standover Height:766 mmStem Length:50 mmHandlebar Width:780 mmCrank Arm Length:165.0 mm
L:
Stack:651.3 mmReach:473.6 mmSeat Tube Length:470.4 mmEffective Top Tube Length:625.6 mmHead Tube Length:135 mmChainstay Length:454 mmWheelbase:1263.7 mmBottom Bracket Height:347 mmBB Drop:30 mmSeat Tube Angle:76.9°Head Tube Angle:65°Standover Height:766 mmStem Length:60 mmHandlebar Width:780 mmCrank Arm Length:165.0 mm
XL:
Stack:660.4 mmReach:501.2 mmSeat Tube Length:500.4 mmEffective Top Tube Length:656.4 mmHead Tube Length:145 mmChainstay Length:454 mmWheelbase:1295.4 mmBottom Bracket Height:347 mmBB Drop:30 mmSeat Tube Angle:76.8°Head Tube Angle:65°Standover Height:766 mmStem Length:60 mmCrank Arm Length:165.0 mmManufacturer Number:2865120
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Scott Patron eRIDE 900 Ultimate Carbon E-Mountain Bike
