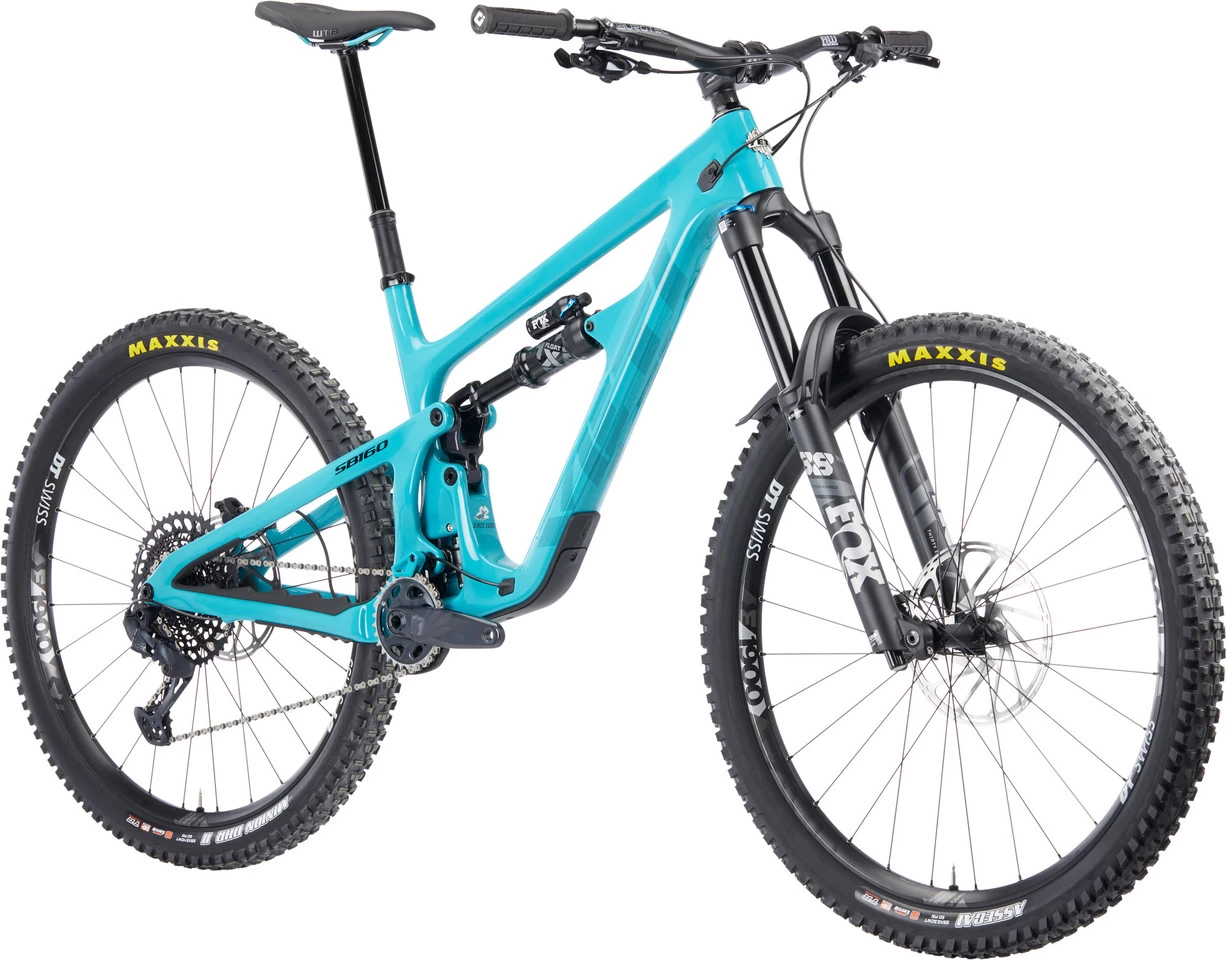

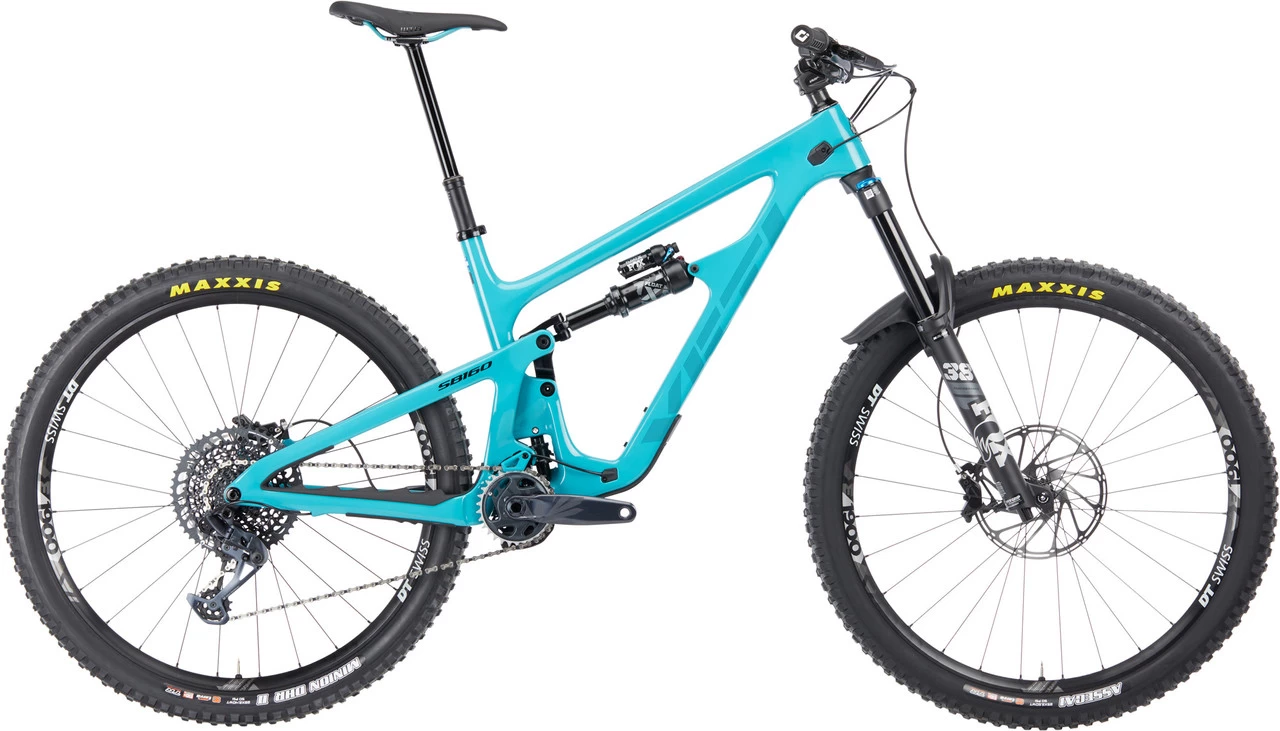

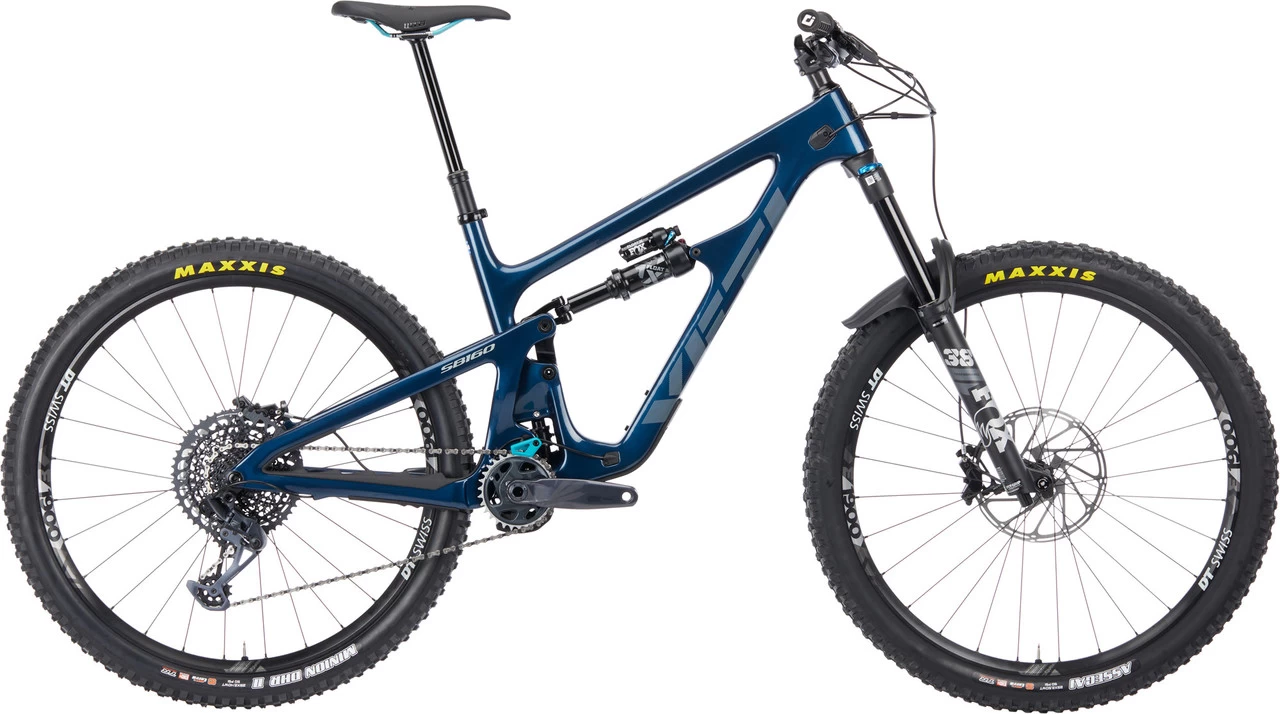

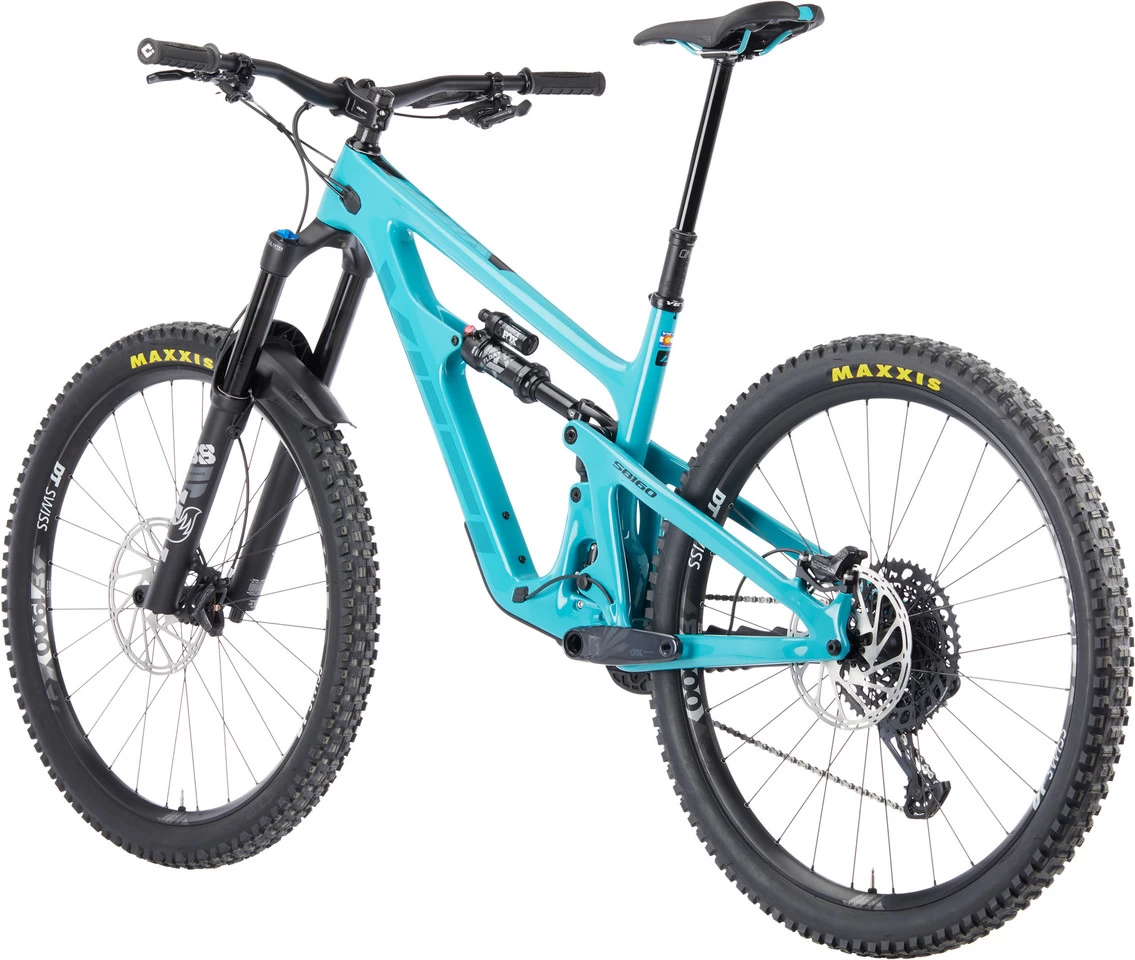

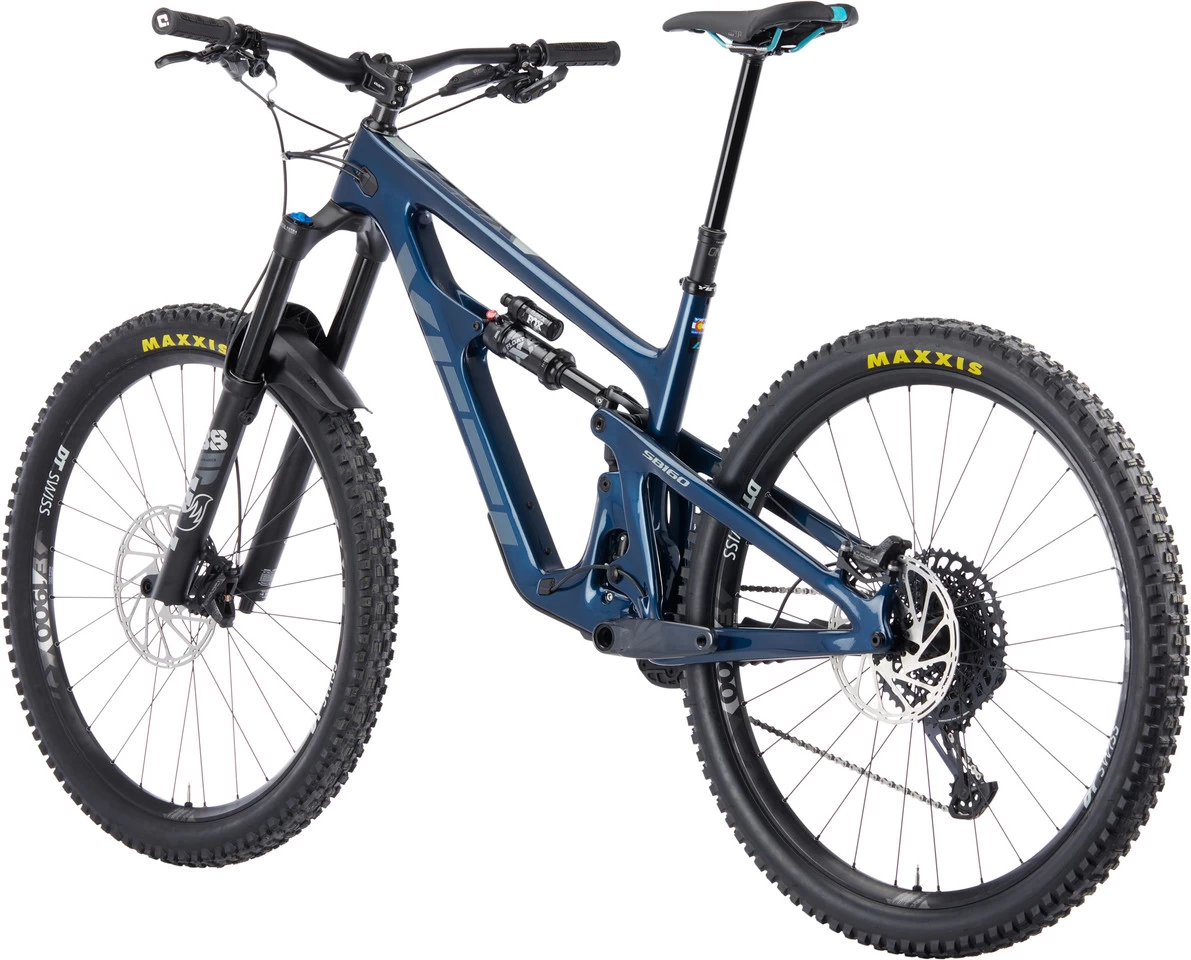

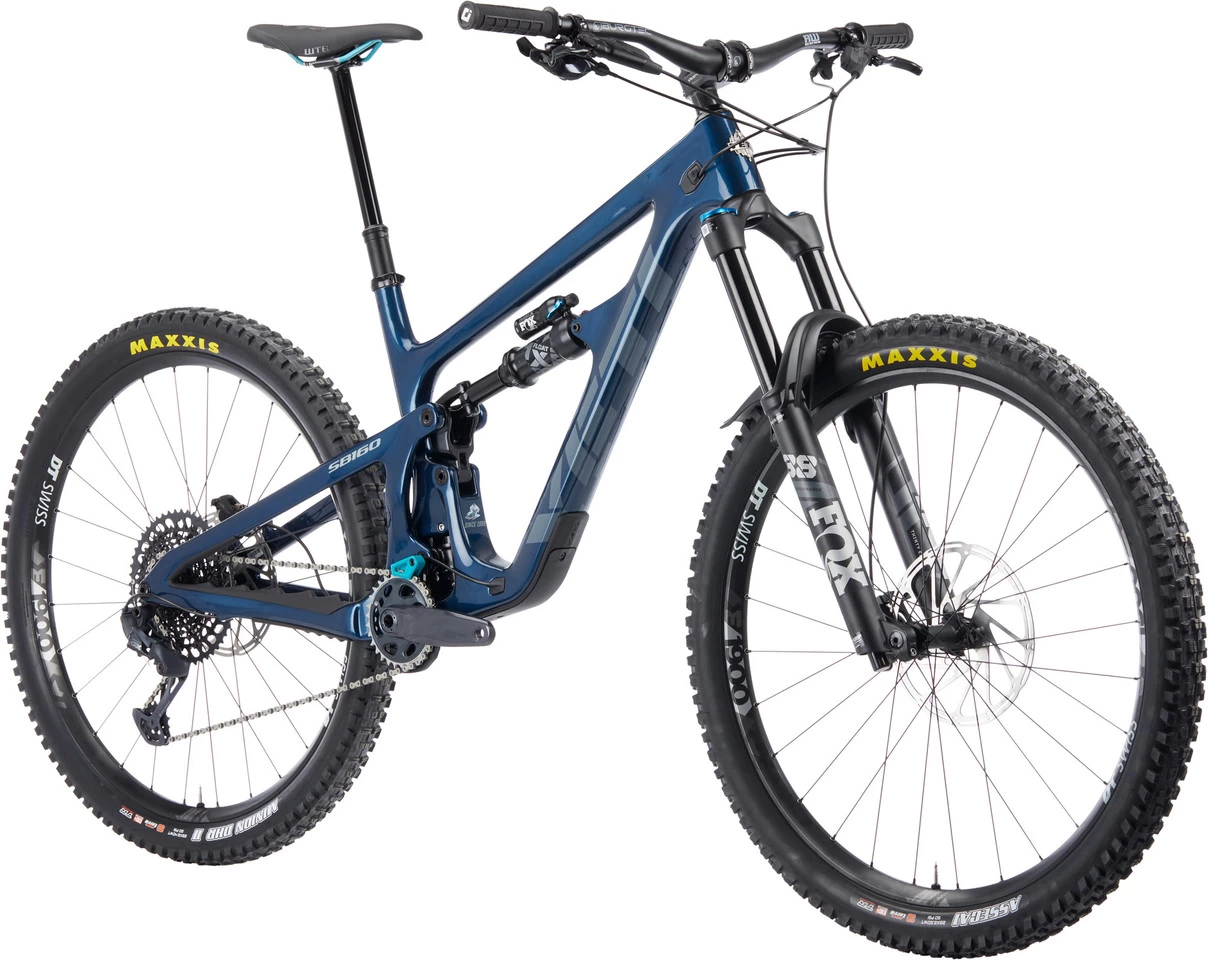

SB160 C2 C/Series Carbon 29″ Mountain Bike

The Yeti Cycles SB160 C2 29″ mountain bike made from C/Series carbon for enduro races
The SB160 29-inch mountain bike from Yeti Cycles in C2 equipment and made from stiff C/Series carbon provides you with a full 160 mm of suspension travel for the next enduro stages. Fox Performance suspension, a SRAM GX Eagle drivetrain with wide cassette gradation and Code R brakes form the strong component base frame. Compared to the SB150, the ground clearance at the downtube of the SB160 is significantly increased, the seat tube is shorter for seatposts with longer stroke lengths and the longer reach results in more traction. The speed-tuned geometry is, by the way, just like the carbon layup, adapted to every frame size and lets you efficiently push the envelope. A bolted bottom bracket, cartridge bearings in standard sizes and the use of the SRAM UDH universal derailleur hanger underline the ease of maintenance.

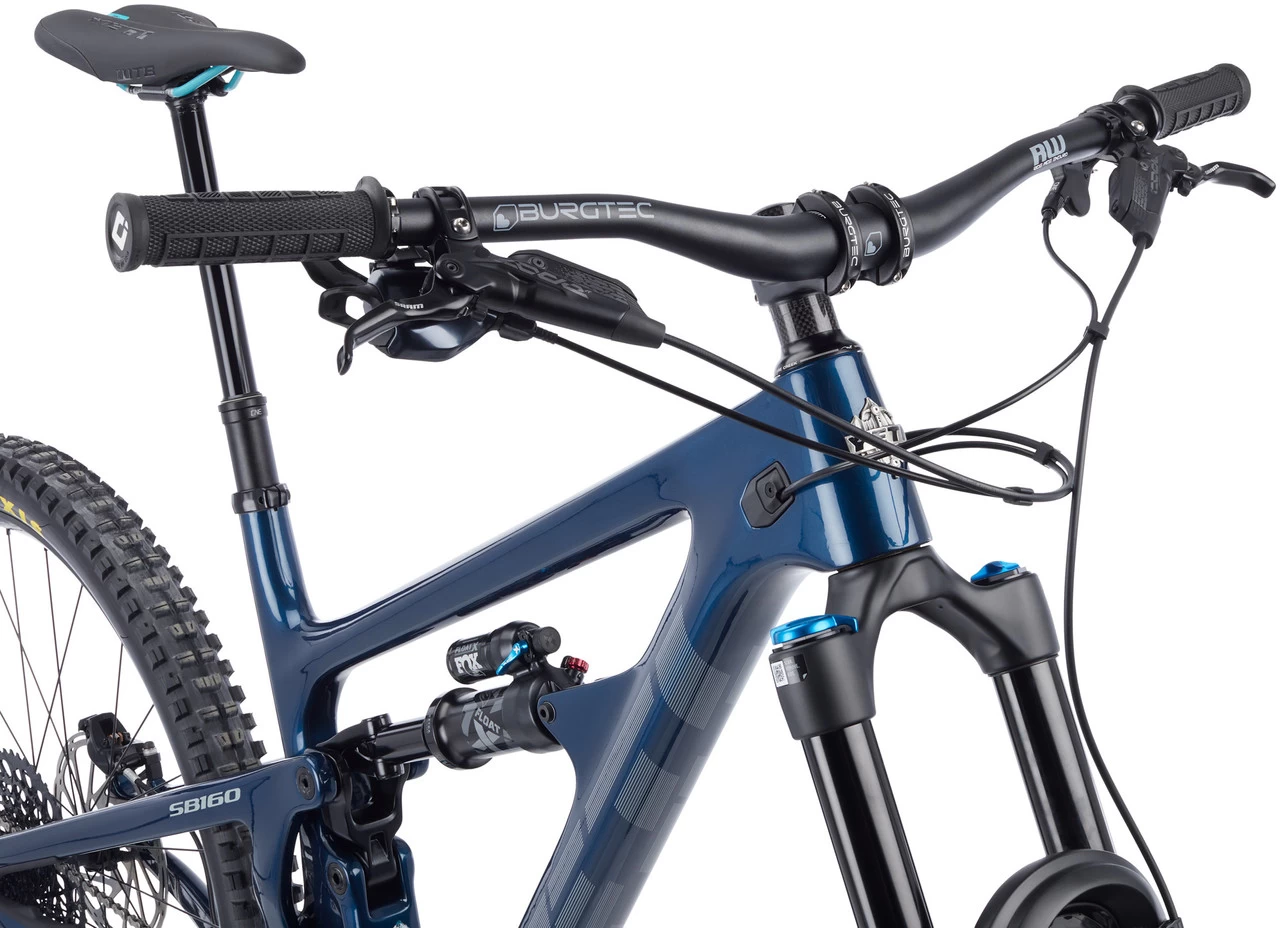

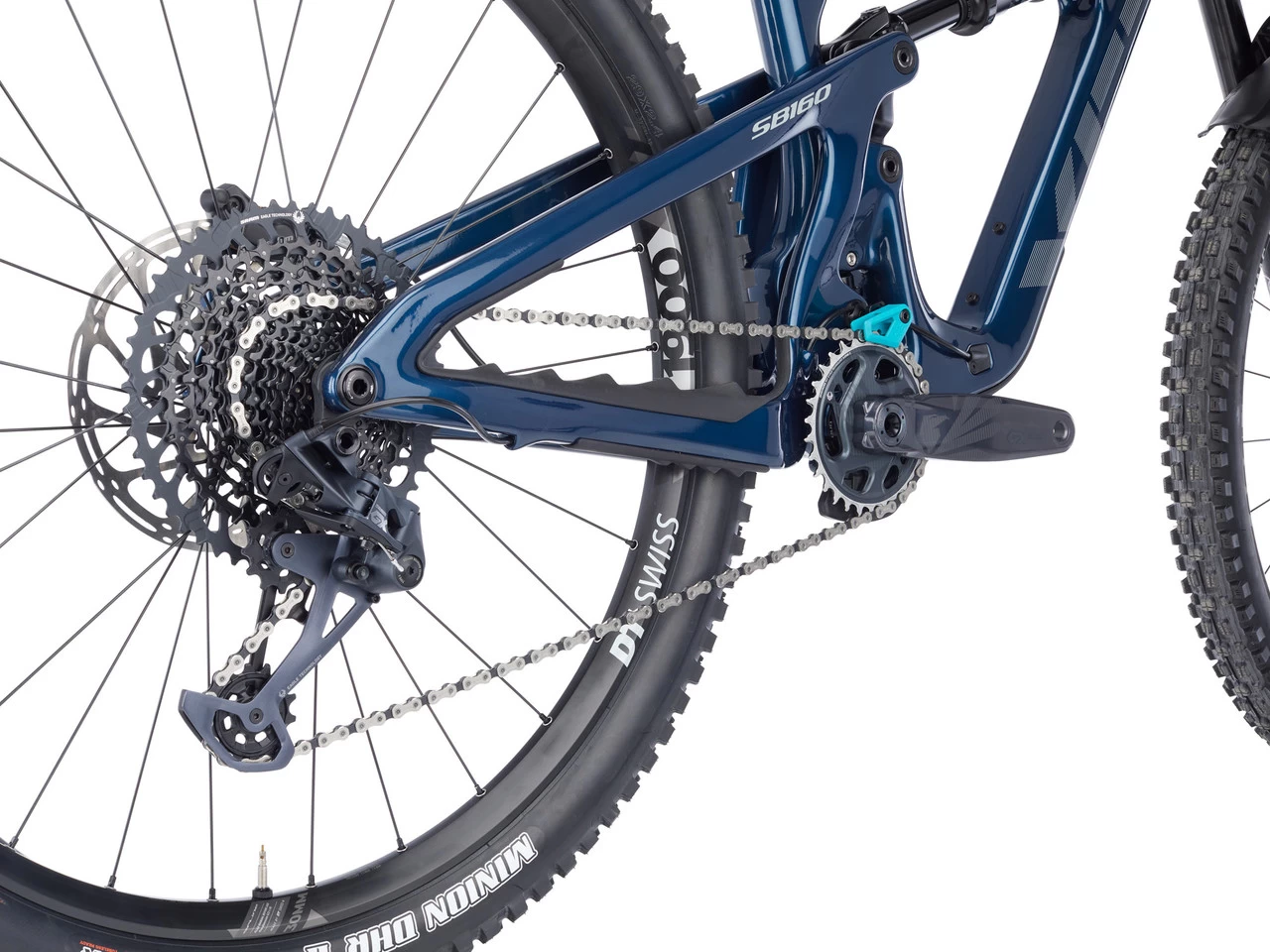

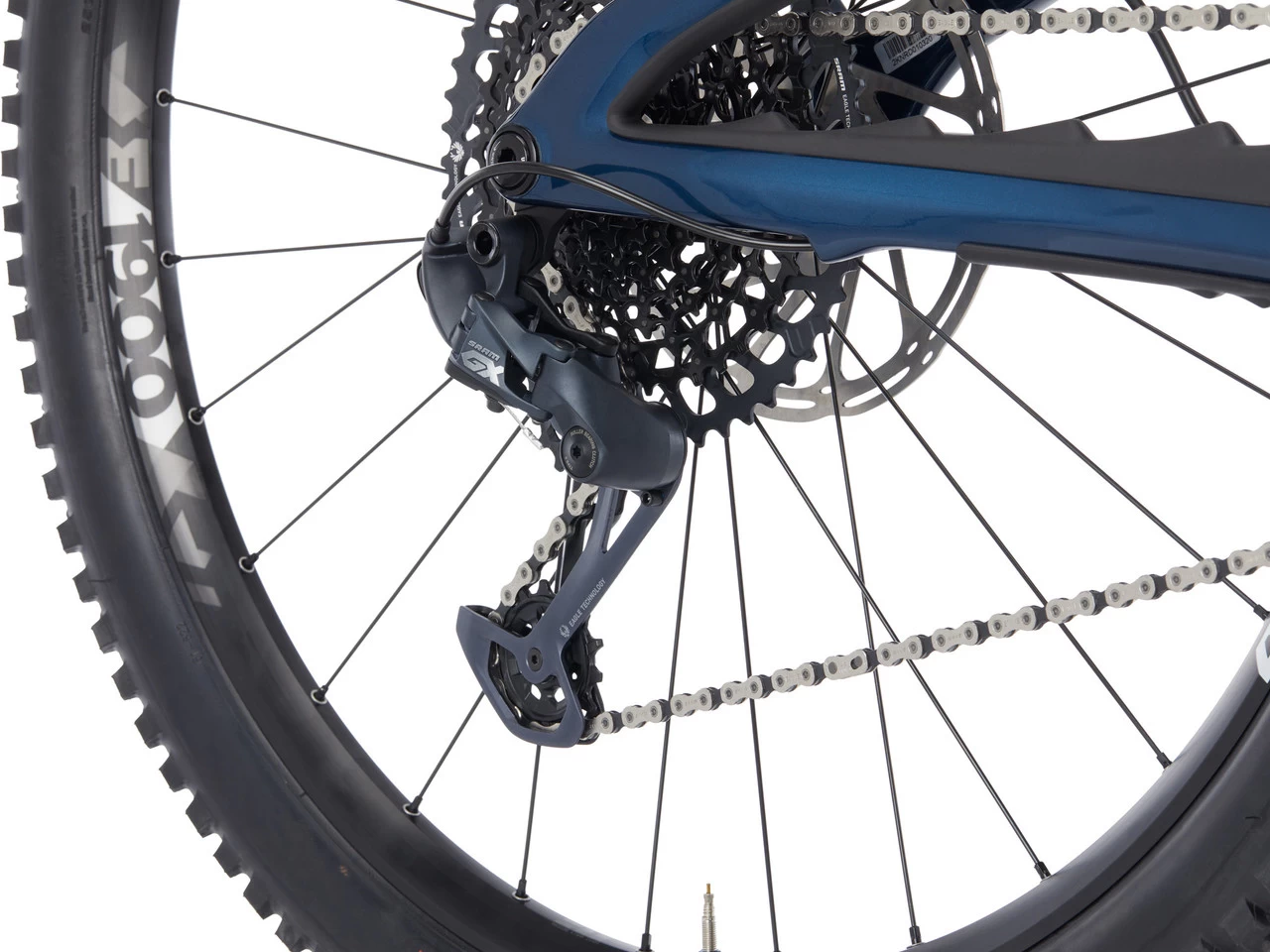

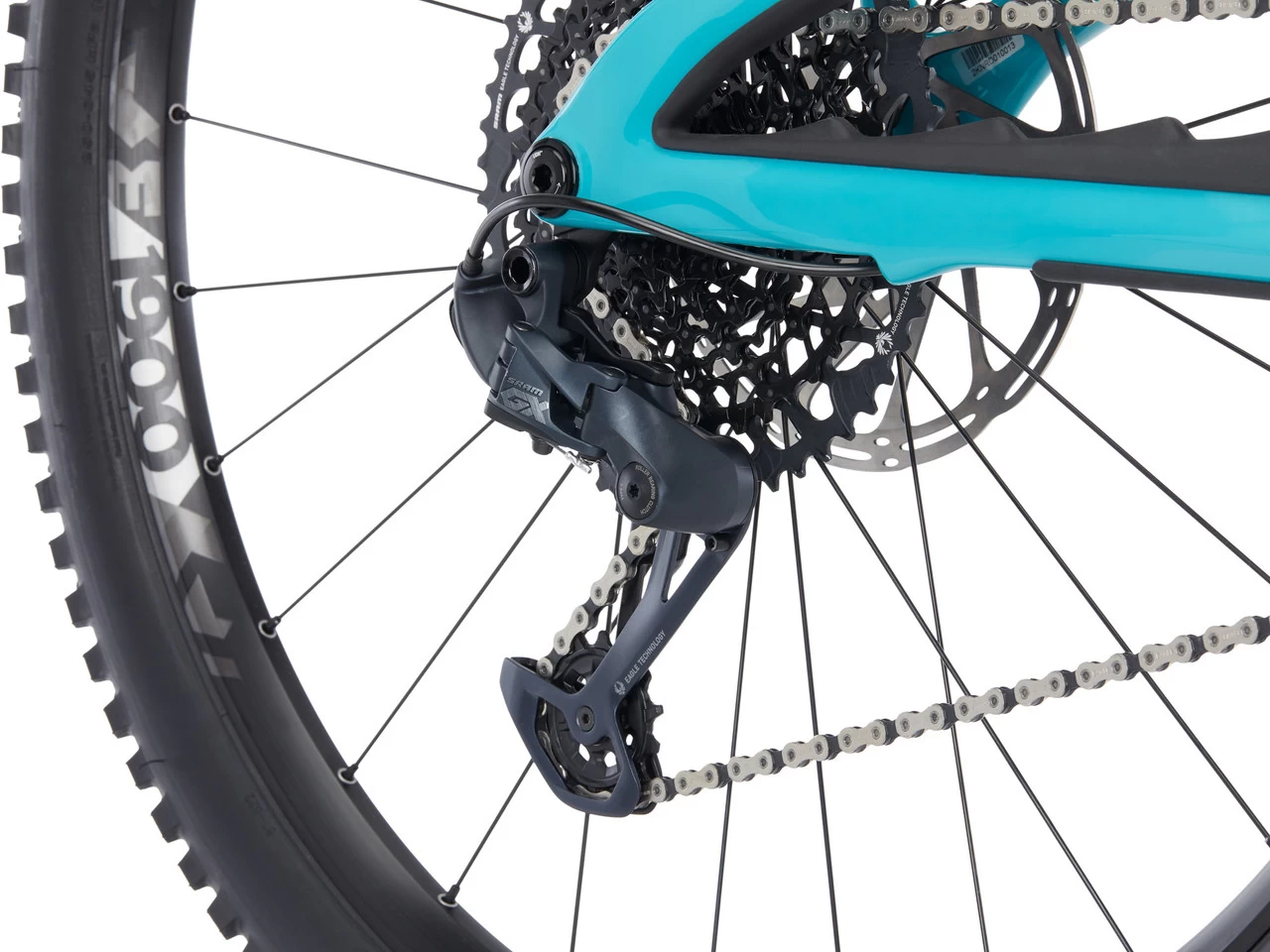

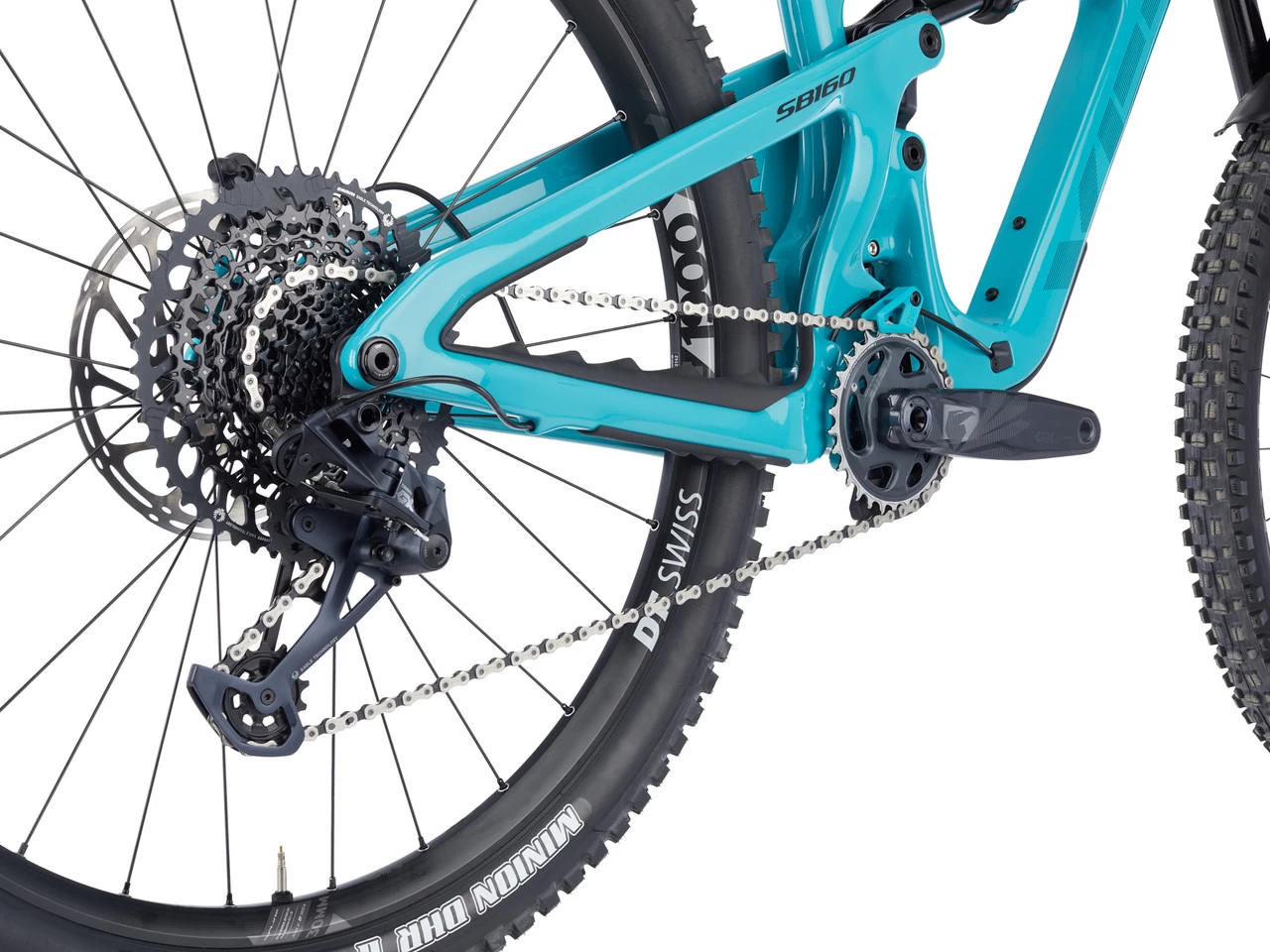

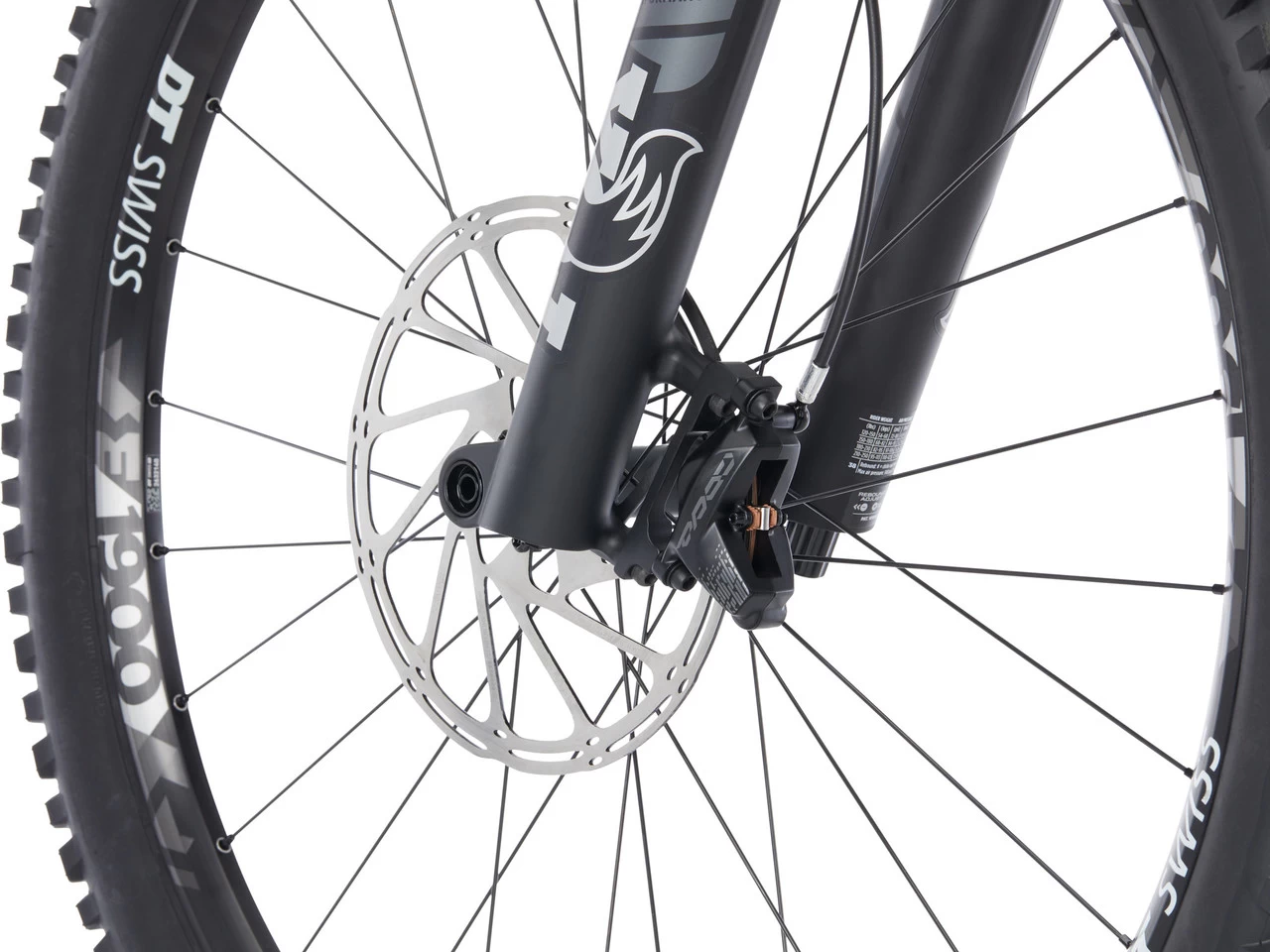

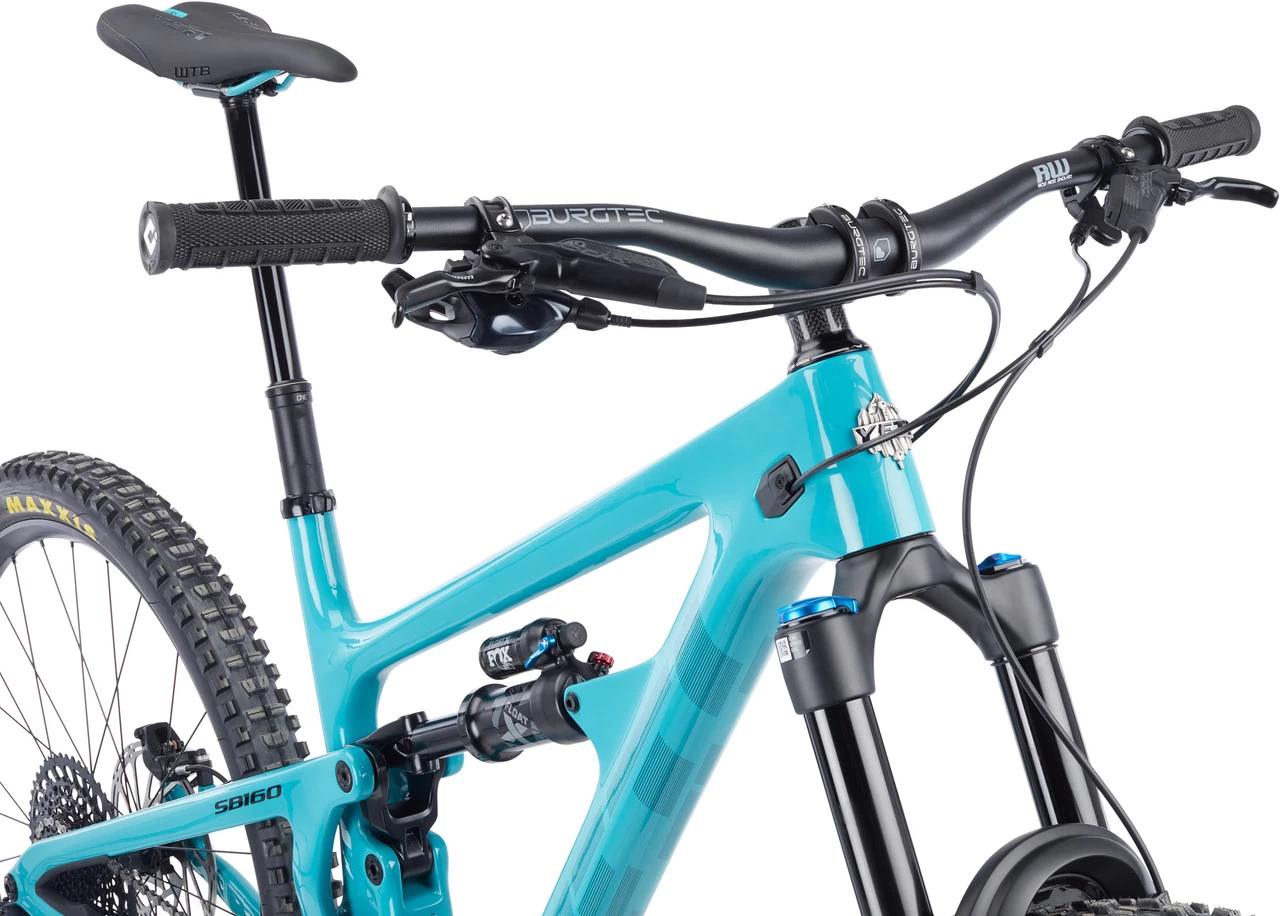

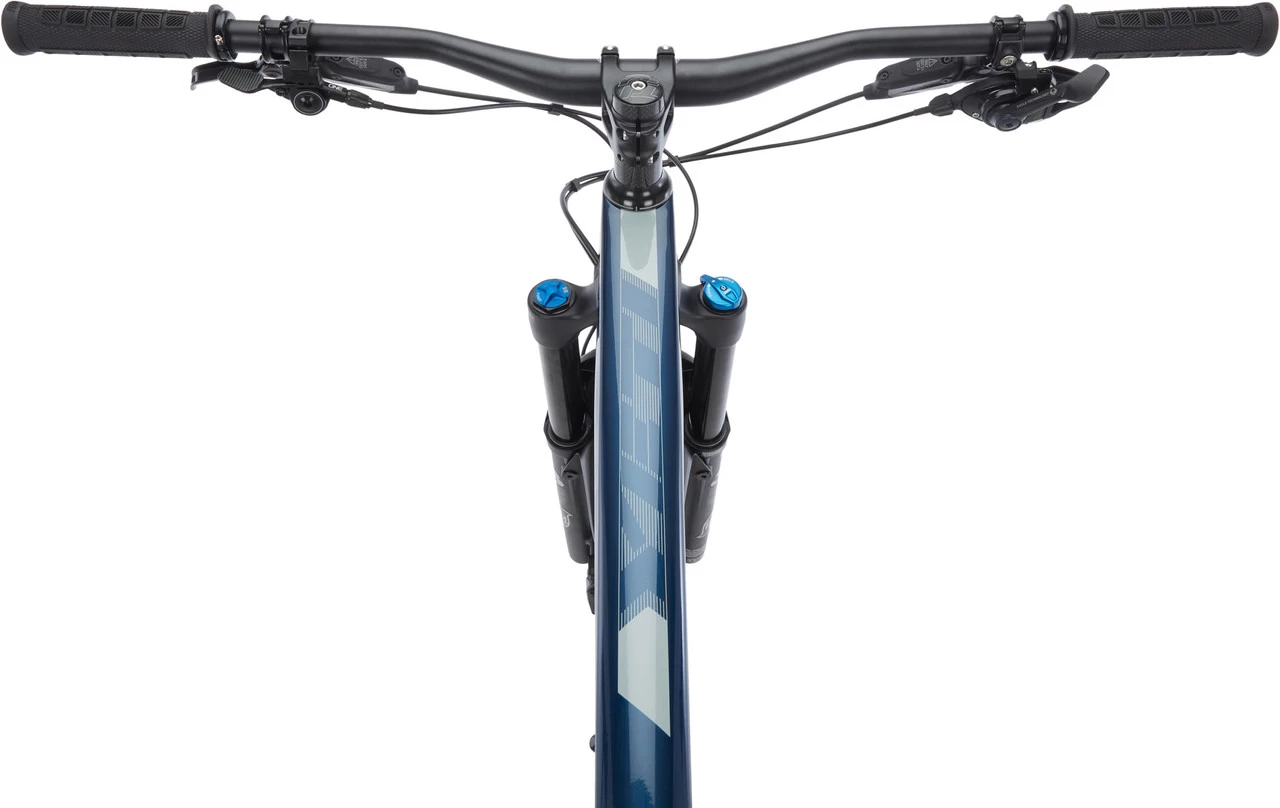

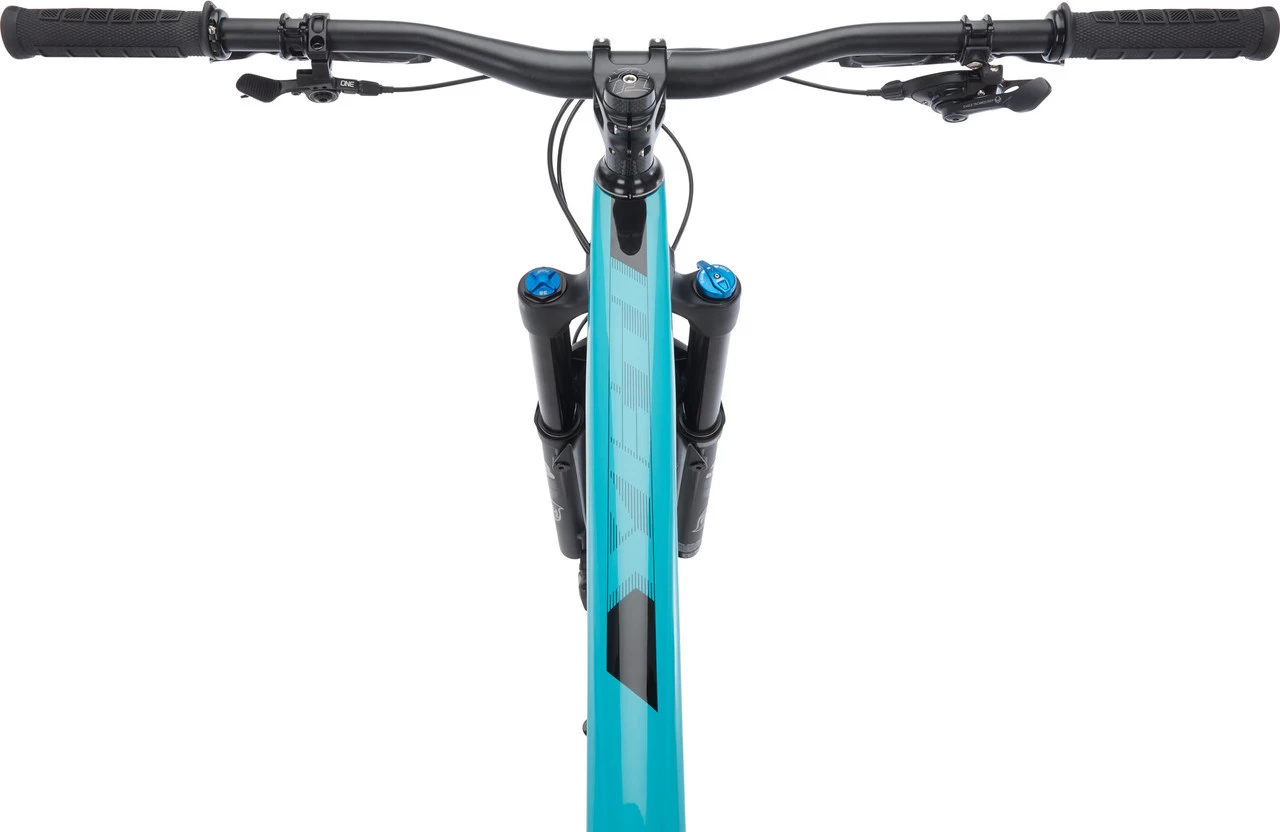

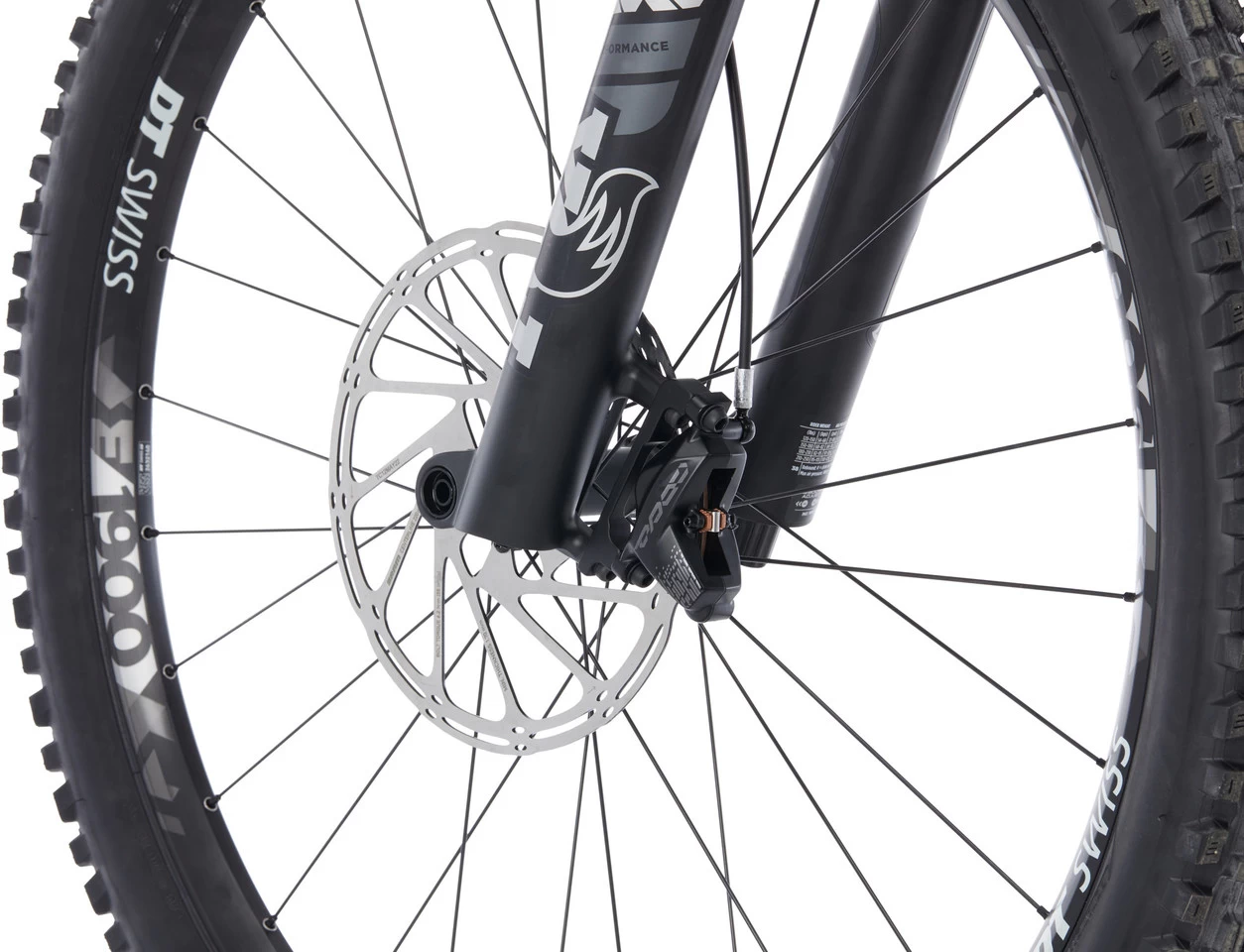

Specifications:Application:EnduroWheel Size:29″Front Travel:170 mmRear Travel:160 mmSizes:M, L, XLFront Triangle Material:Carbon (C/Series)Rear Triangle Material:Carbon (C/Series)Components:Frame:Yeti Cycles SB160, 12 x 148 mm (Boost)Fork:Fox Racing Shox 38 Performance, 44 mm offsetStem:Burgtec Enduro MK3, 35 mm clamp, 50 mm lengthHandlebars:Burgtec Ride Wide Alloy Enduro, 35 mm clamp, 35 mm rise, 800 mm lengthGrips:ODI Elite ProRear Shock:Fox Racing Shox Float X Performance, 230 x 65 mmRemote System:noneHeadset:Cane Creek 40 integratedSeatpost:OneUp Components, 31.6 mm, 180 mm stroke (M), 210 mm stroke (L, XL)Saddle:WTB Silverado CustomCrank:SRAM GX Eagle, 170.0 mm, with 30 T chainring and SRAM DUB BSA73 bottom bracketPedals:noneBrakes:SRAM Code R, 4 pistons, with SRAM Centerline brake rotors 220 mm (front) / 200 mm (rear)Shift Lever:SRAM GX Eagle, 12-speedRear Derailleur:SRAM GX Eagle, 12-speedCassette:SRAM GX Eagle XG-1275, 12-speed 10-52 teethChain:SRAM GX Eagle, 12-speedRims:DT Swiss E 1900, 30 mmSpokes:DT SwissFront Hub:DT SwissRear Hub:DT SwissFront Tyre:Maxxis Assegai EXO+, 29 x 2.5″Rear Tyre:Maxxis Minion DHR II EXO+, 29 x 2.4″Approved For:Rotor Size (max.):203 mm (rear)Tyre Size (max.):29 x 2.6″Chainrings:1xChainring Size (max.):for SRAM/Shimano Boost cranks with 55 mm chainline: 1-speed 34 teeth (round), 1-speed 32 teeth (oval)Fork Axle to Crown Size (max.):607 mmFeatures:carbon enduro bike with Fox Performance suspension and SRAM GX Eagle rear derailleurstrong, stiff C/Series carboncompletely internal cable routing without rattling and chafing with secure cable exitsbolted bottom bracket with ISCG-05 mount for a chain guideSRAM UDH universal derailleur hanger for easy replacementtwo-piece Wishbone Shock Extender allows easy handling of the shock and positions it further forwardpatented Switch Infinity Link technologysealed Enduro Max pivot bearings in standard sizesrather linear progression curve for predictable behaviourrace-oriented geometry for fast, smooth descentssize-specific geometry and carbon compositionbased on the EWS-proven SB15025 mm more ground clearance on the downtube than on the SB150rather short seat tube for high freedom of movement, allows long-stroke seatpostscentral seat positionrather long reach for increased tractionwith chainstay and downtube protectionspace for a bottle in the frame trianglecarbon layup meets downhill standardsTechnology:Switch Infinity Link

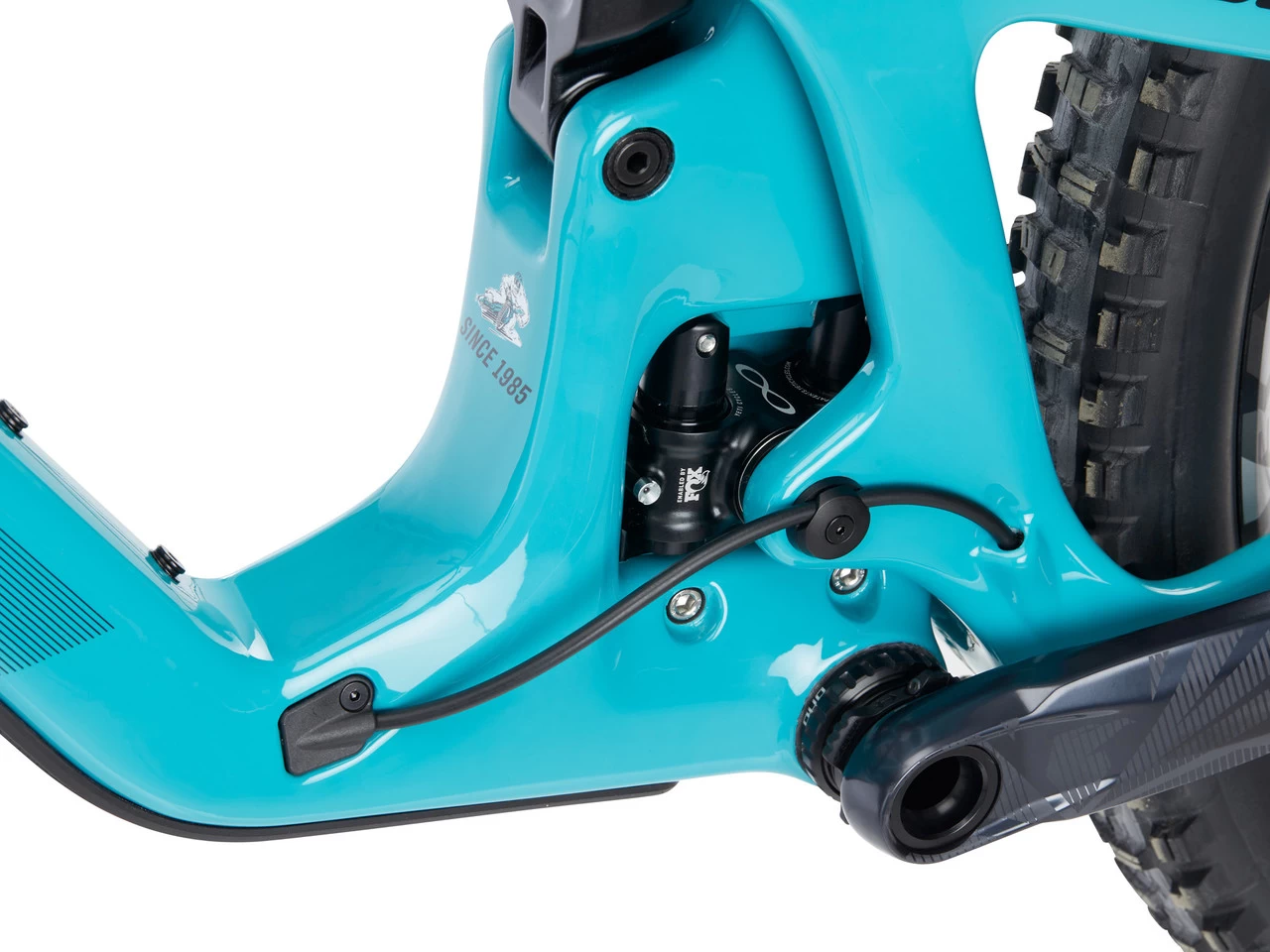

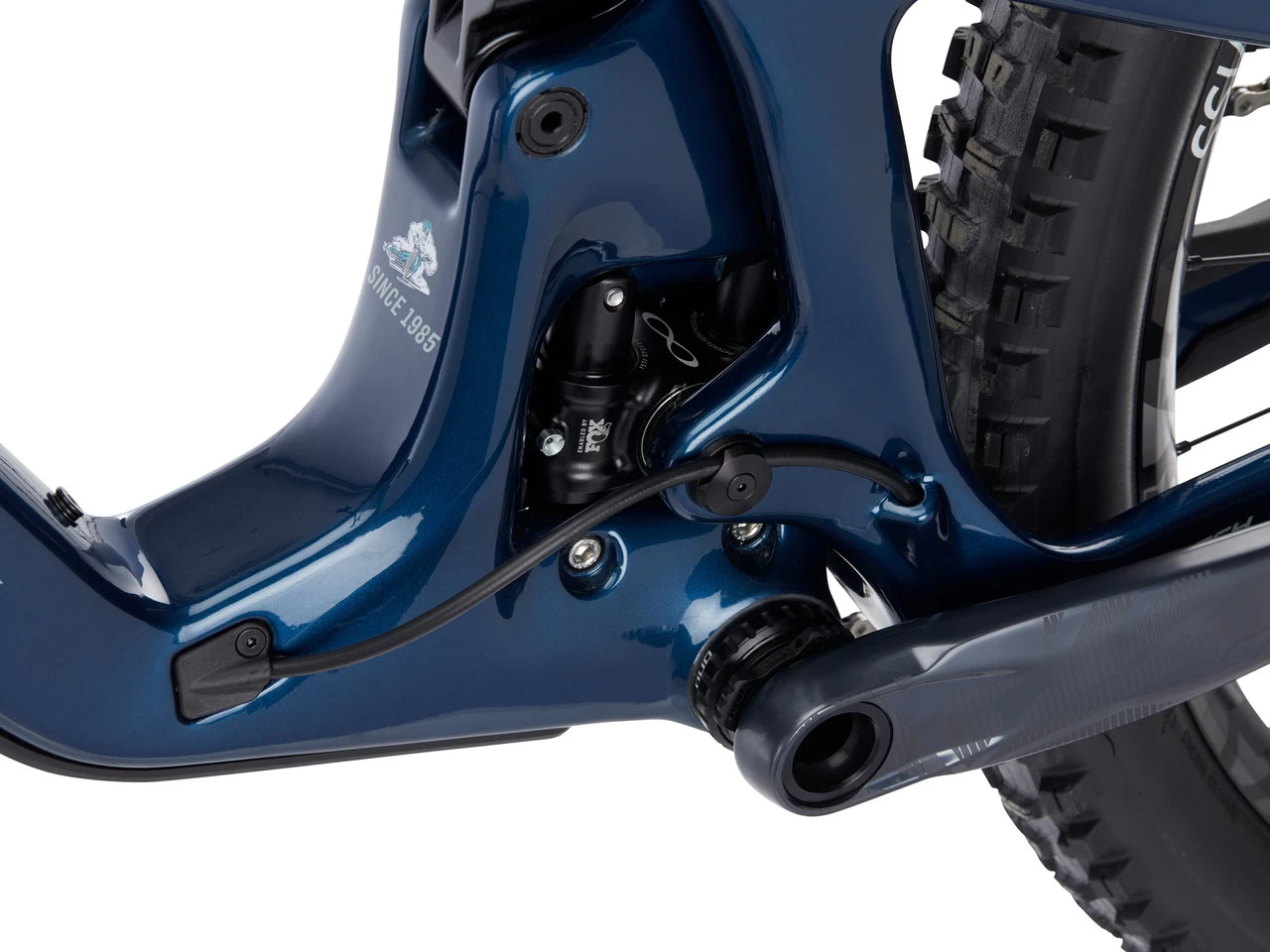

The patented Switch Infinity design is characterised by the eye-catching link element at the main pivot point, which enables both radial and axial movement. At the beginning of the suspension travel, the pivot point moves upwards so that the rear triangle can avoid even the roughest obstacles on the trail. This position counteracts the effects of the drivetrain and lets your bike literally fly up the slope. However, when the bike is further down the suspension travel, the Switch Infinity Link lowers again and gives you a feeling of endless travel that makes you want to conquer every trail.
Geometry:M:
Recommended Height:165 – 180 cmStack:620 mmReach:465 mmSeat Tube Length:400 mmEffective Top Tube Length:602 mmHead Tube Length:101 mmChainstay Length:439 mmWheelbase:1246 mmBottom Bracket Height:353 mmSeat Angle (real):72.6°Seat Tube Angle (effective):77.5°Head Tube Angle:64°Standover Height:744 mm
L:
Recommended Height:178 – 191 cmStack:625 mmReach:485 mmSeat Tube Length:440 mmEffective Top Tube Length:624 mmHead Tube Length:107 mmChainstay Length:441 mmWheelbase:1270 mmBottom Bracket Height:353 mmSeat Angle (real):72.7°Seat Tube Angle (effective):77.5°Head Tube Angle:64°Standover Height:750 mm
XL:
Recommended Height:185 – 201 cmStack:635 mmReach:510 mmSeat Tube Length:470 mmEffective Top Tube Length:651 mmHead Tube Length:118 mmChainstay Length:443 mmWheelbase:1302 mmBottom Bracket Height:353 mmSeat Angle (real):73.1°Seat Tube Angle (effective):77.5°Head Tube Angle:64°Standover Height:756 mmManufacturer Numbers:turquoise / M:YCB23160CMDPTUPXC028700turquoise / L:YCB23160CLGPTUPXC028700turquoise / XL:YCB23160CXLPTUPXC02
