SB120 T1 TURQ Carbon 29″ Mountain Bike

The SB120 T1 29″ mountain bike from Yeti Cycles in TURQ carbon for cross-country

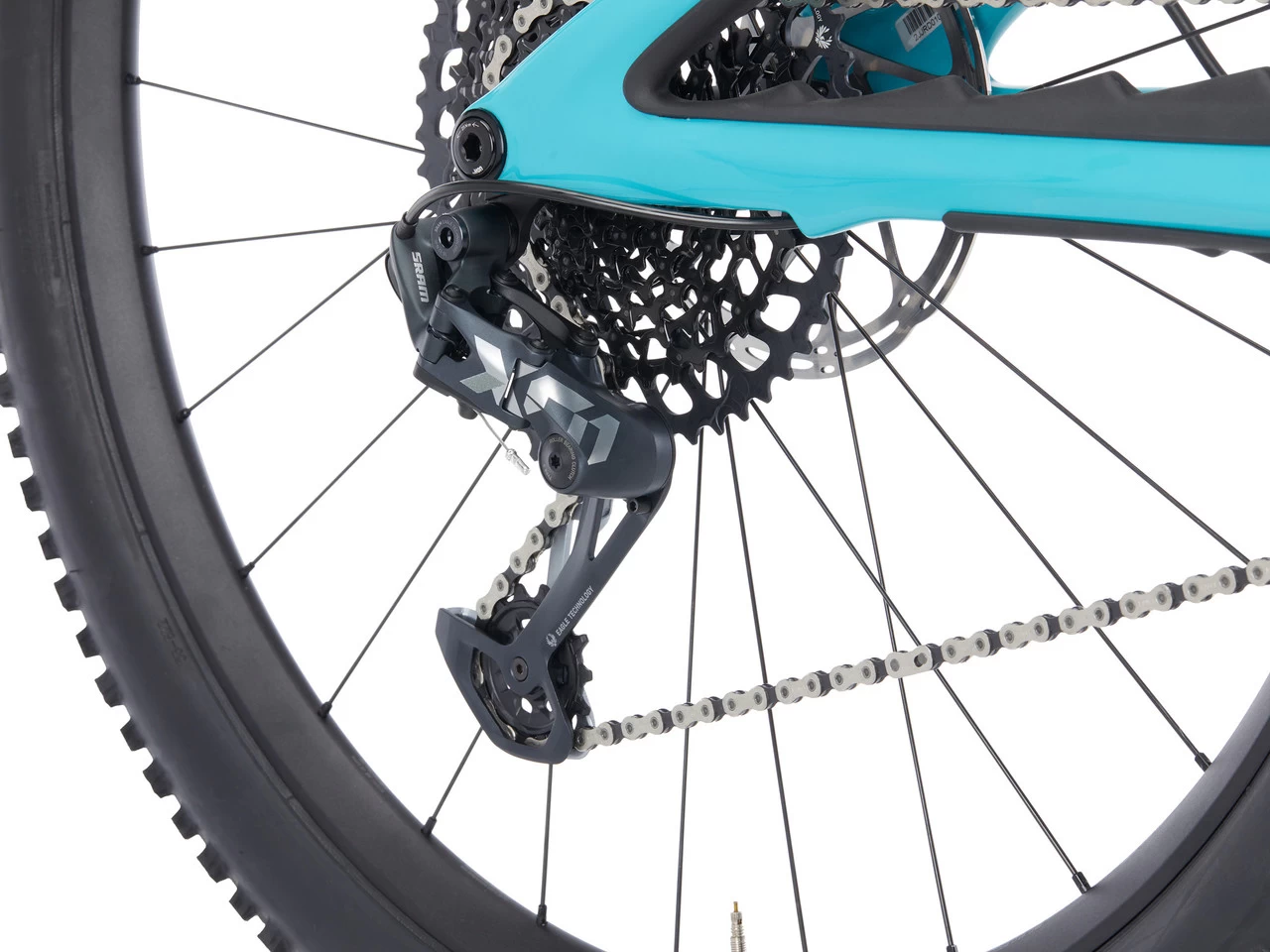

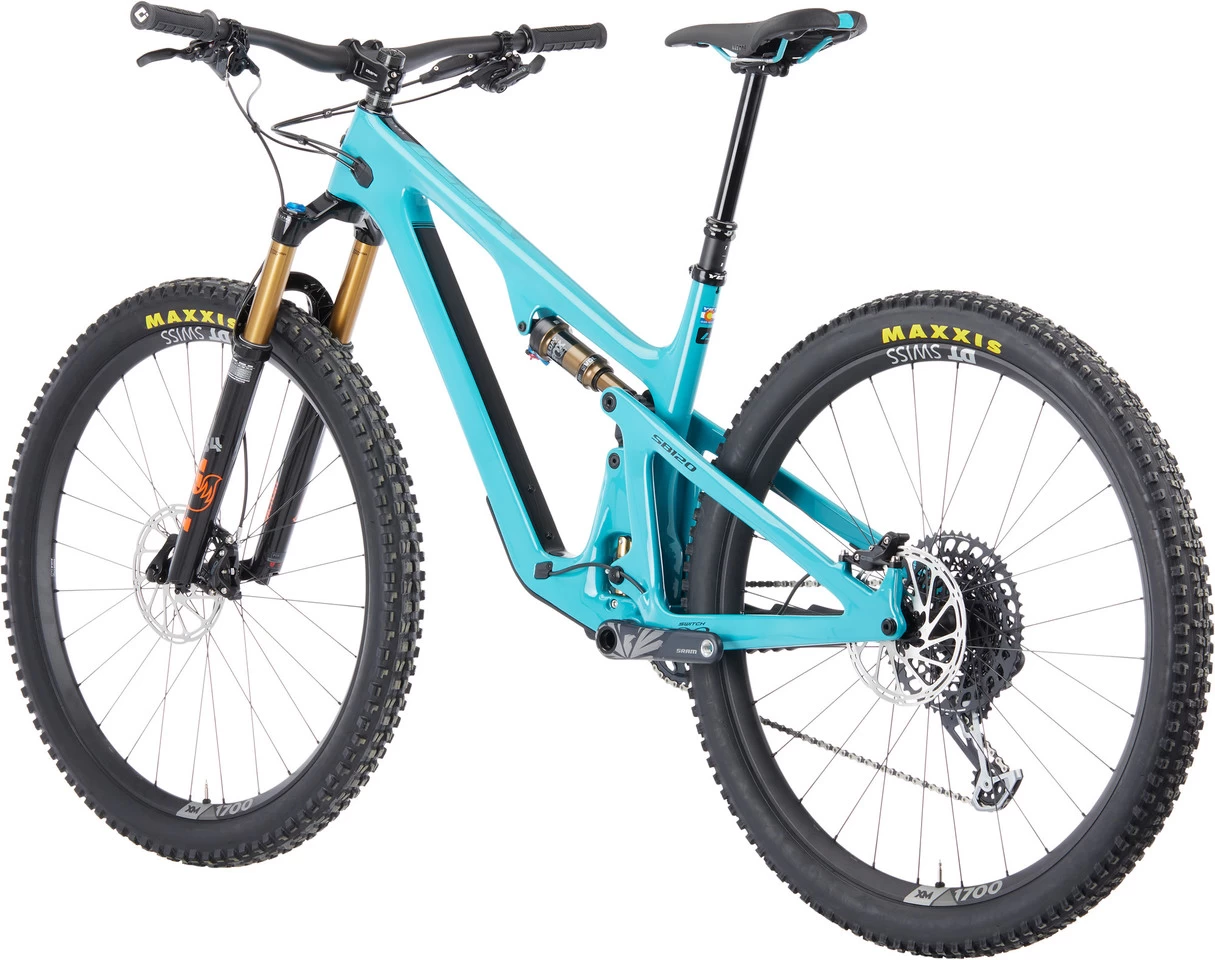

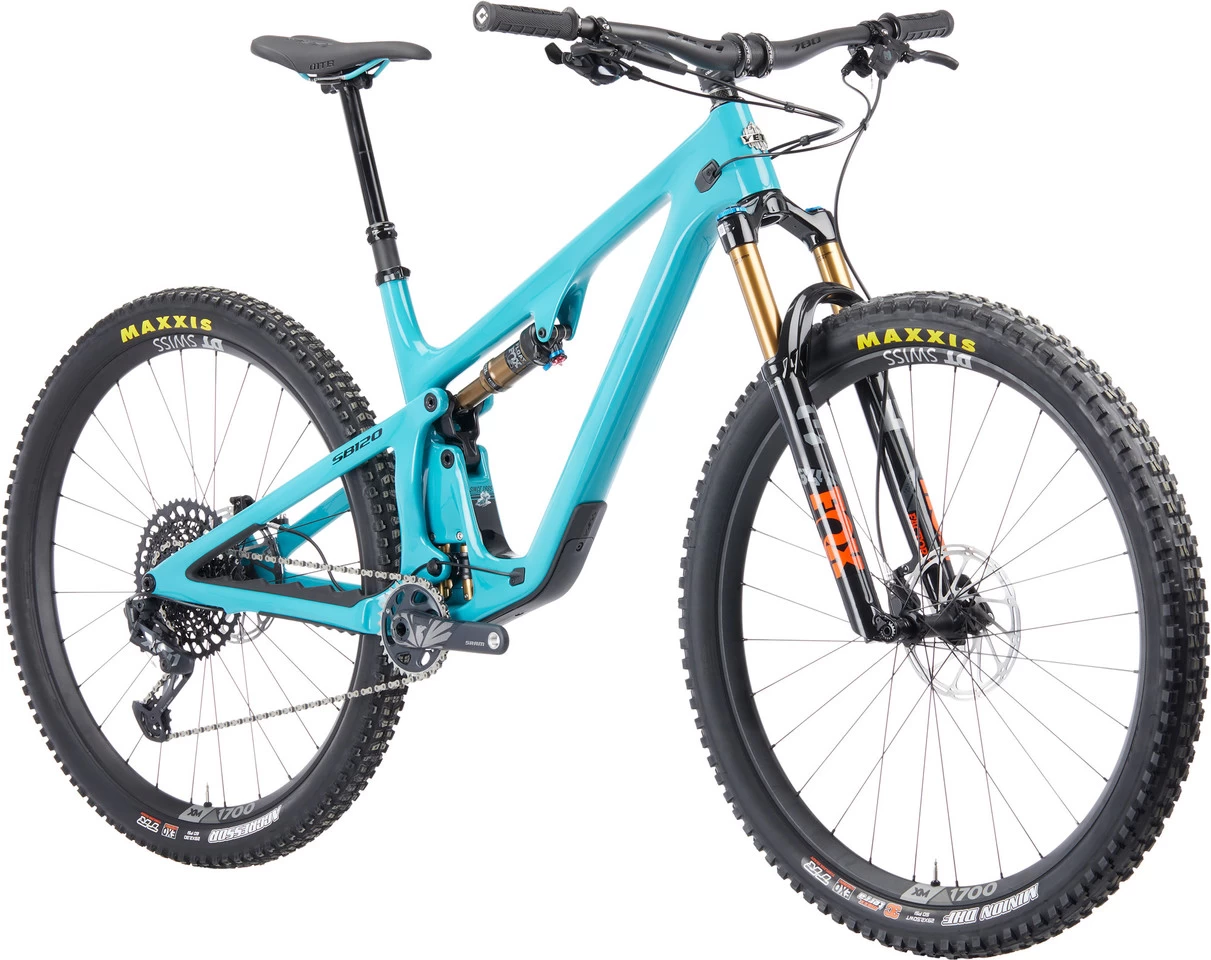

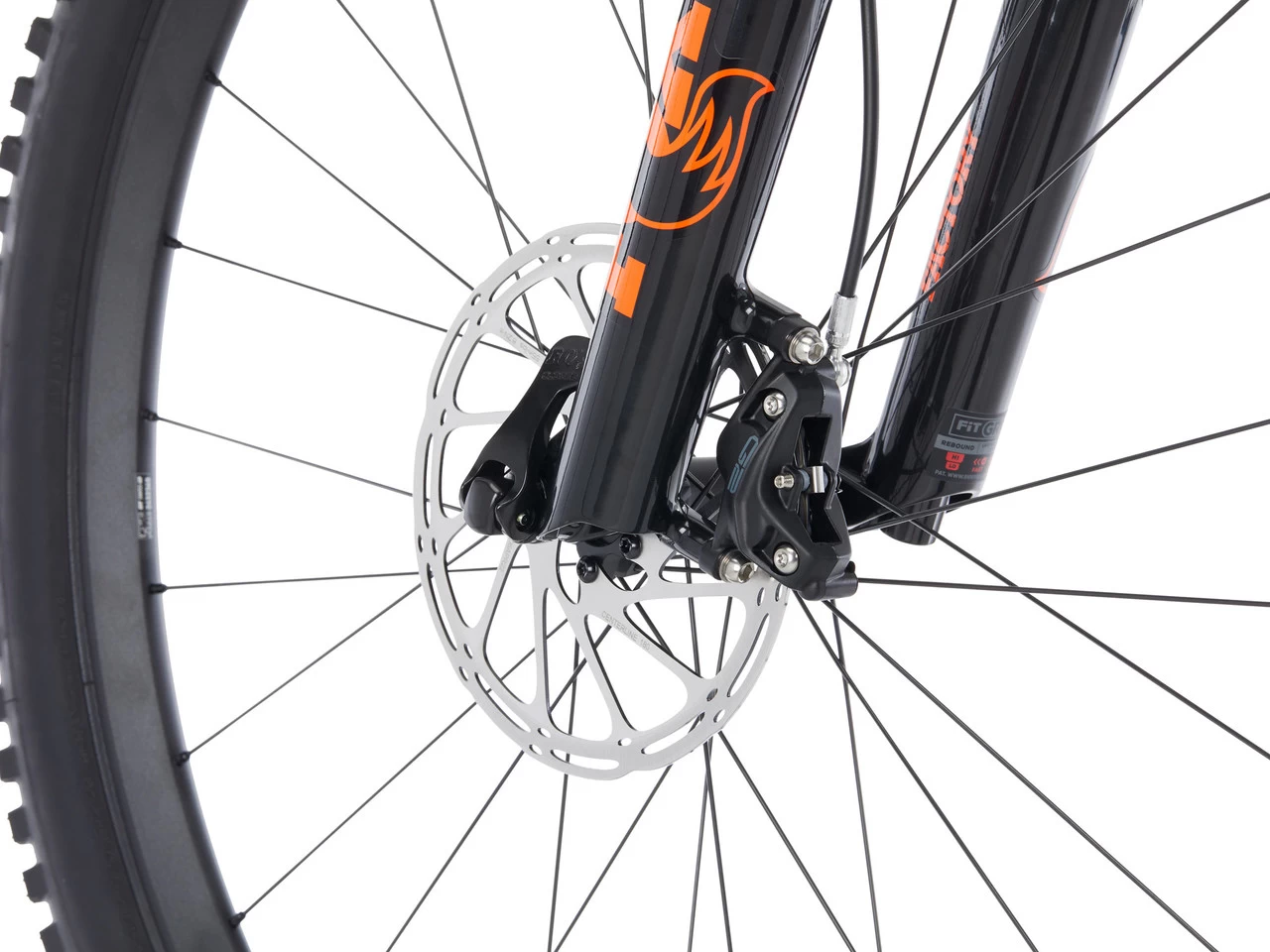

The Yeti Cycles SB120 29-inch mountain bike made of high-quality TURQ carbon is a cross-country full suspension bike with 120 mm travel at the rear and 130 mm at the front. In the T1 version, the Fox Factory suspension, SRAM X01/GX Eagle gears and four-piston G2 RSC brakes are inspiring. The proven Switch Infinity linkage design has been revised in details that improve function and durability and simplify service. Compared to the SB115, the ground clearance at the downtube of the SB120 is significantly increased and the seat tube is shorter to allow for seatposts with a longer stroke. The geometry is, by the way, just like the carbon layup, adapted to every frame size and ensures agile handling. A bolted bottom bracket, cartridge bearings in standard sizes and the use of the SRAM UDH universal derailleur hanger underline the ease of maintenance.
Specifications:Application:Cross CountryWheel Size:29″Front Travel:130 mmRear Travel:120 mmSizes:M, LFront Triangle Material:Carbon (TURQ Series)Rear Triangle Material:Carbon (TURQ Series)Components:Frame:Yeti Cycles SB120, 12 x 148 mm (Boost)Fork:Fox Racing Shox 34 Factory, 44 mm offsetStem:Burgtec Enduro MK3, 35 mm clamp, 50 mm lengthHandlebars:Yeti Cycles Carbon, 35 mm clamp, 780 mm lengthGrips:ODI Elite ProRear Shock:Fox Racing Shox Float DPS Factory, 190 x 45 mmRemote System:noneHeadset:Cane Creek 40 integratedSeatpost:Fox Racing Shox Transfer, 31.6 mm, 175 mm stroke (M), 200 mm stroke (L, XL)Saddle:WTB Silverado CustomCrank:SRAM X1 Eagle, 170.0 mm, with 30-tooth chainring and SRAM DUB BSA73 bottom bracketPedals:noneBrakes:SRAM G2 RSC, 4 pistons, with SRAM Centerline brake rotors 180 mm (front) / 180 mm (rear)Shift Lever:SRAM GX Eagle, 12-speedRear Derailleur:SRAM X01 Eagle, 12-speedCassette:SRAM GX Eagle XG-1275, 12-speed 10-52 teethChain:SRAM GX Eagle, 12-speedRims:DT Swiss XM 1700, 30 mmSpokes:DT SwissFront Hub:DT SwissRear Hub:DT SwissFront Tyre:Maxxis Minion DHF EXO, 29 x 2.5″Rear Tyre:Maxxis Aggressor EXO, 29 x 2,3″Approved For:Rotor Size (max.):203 mm (rear)Tyre Size (max.):29 x 2.6″Chainrings:1xChainring Size (max.):for SRAM/Shimano Boost cranks with 55 mm chainline: 1-speed 34 teeth (round), 1-speed 32 teeth (oval)Fork Axle to Crown Size (max.):564 mmFeatures:cross-country bike made from particularly high-quality carbon with Fox Factory suspension and SRAM X01 Eagle rear derailleurrevised Switch Infinity Link V2 design with floating axle for increased stiffness and longer durabilityhigh-quality, extremely light and durable TURQ carbon with a balanced ratio of stiffness and compliancecompletely internal cable routing without rattling and chafing with secure cable exitsbolted bottom bracket with ISCG-05 mount for a chain guideSRAM UDH universal derailleur hanger for easy replacementcompact one-piece Wishbone Shock Extender allows easy handling of the shock and positions it further forwardpatented Switch Infinity Link technologysealed Enduro Max pivot bearings in standard sizesrather linear progression curve for predictable behavioursize-specific geometry and carbon composition25 mm more ground clearance on the down tube than on the SB115rather short seat tube for high freedom of movement, allows long-stroke seatpostsneutral seat positionagile handlingwith chainstay and downtube protectionspace for a bottle in the frame triangleTechnology:Switch Infinity Link V2

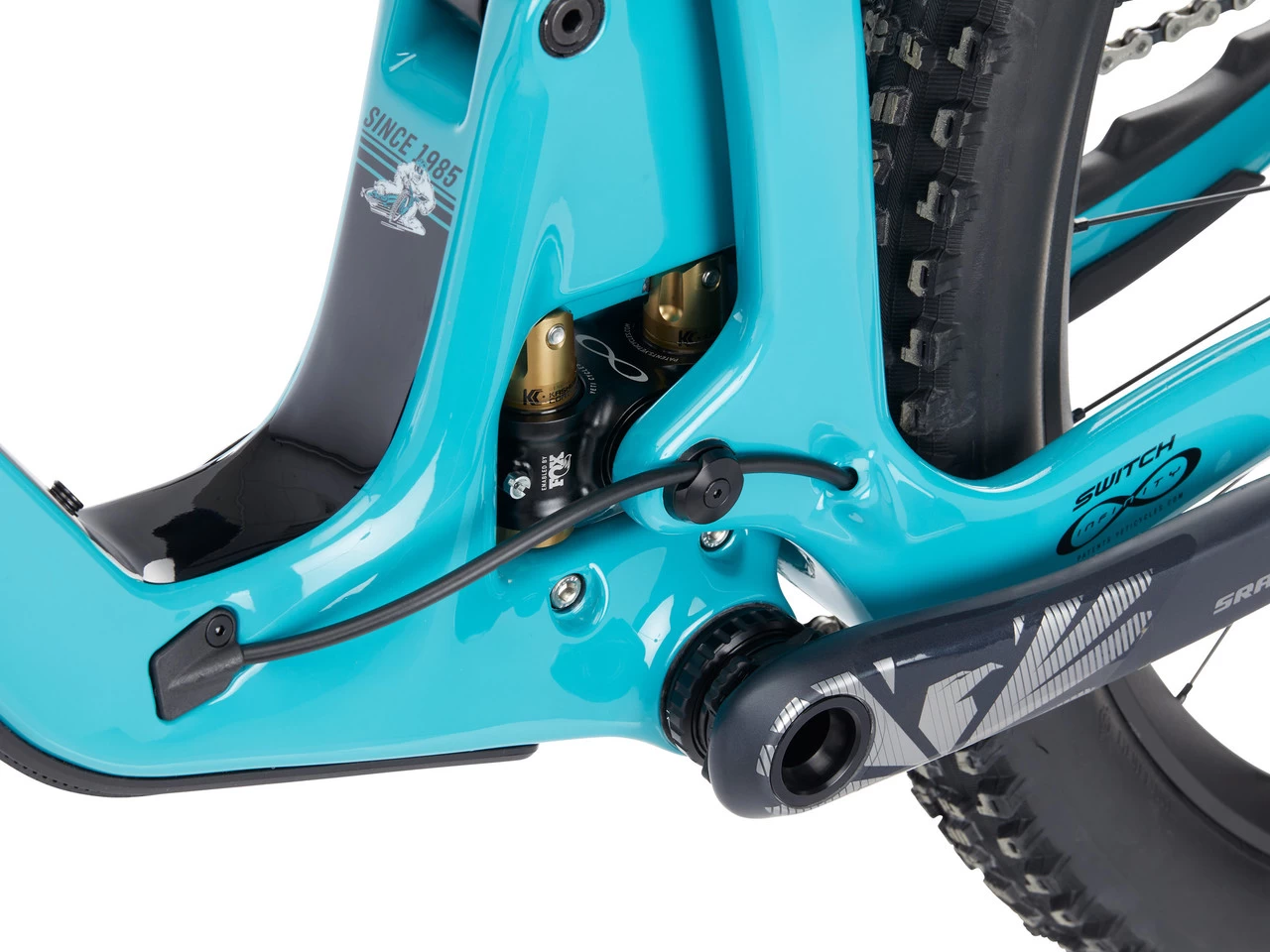

The patented Switch Infinity design is characterised by the eye-catching link element at the main pivot point, which enables both radial and axial movement. At the beginning of the suspension travel, the pivot point moves upwards so that the rear triangle can avoid even the roughest obstacles on the trail. This position counteracts the effects of the drivetrain and lets your bike literally fly up the slope. However, when the bike is further down the suspension travel, the Switch Infinity Link lowers again and gives you a feeling of endless travel that makes you want to conquer every trail. The revised V2 variant scores with increased durability and easier maintenance. A floating axle secures the oxide-coated, particularly corrosion-resistant bearings on the Switch Infinity Link precisely and without play. Machine-made aluminium bearing caps keep dirt away from the bearings. The slide bushings, which provide the axial up and down movement, are provided with a wear-resistant and extremely low-friction coating and can be easily lubricated by grease nipples.
Geometry:M:
Recommended Height:165 – 180 cmStack:615 mmReach:455 mmSeat Tube Length:400 mmEffective Top Tube Length:603 mmHead Tube Length:104 mmChainstay Length:437 mmWheelbase:1191 mmBottom Bracket Height:335 mmSeat Angle (real):71.9°Seat Tube Angle (effective):76.5°Head Tube Angle:66.5°Standover Height:714 mm
L:
Recommended Height:178 – 191 cmStack:625 mmReach:475 mmSeat Tube Length:440 mmEffective Top Tube Length:625 mmHead Tube Length:115 mmChainstay Length:439
