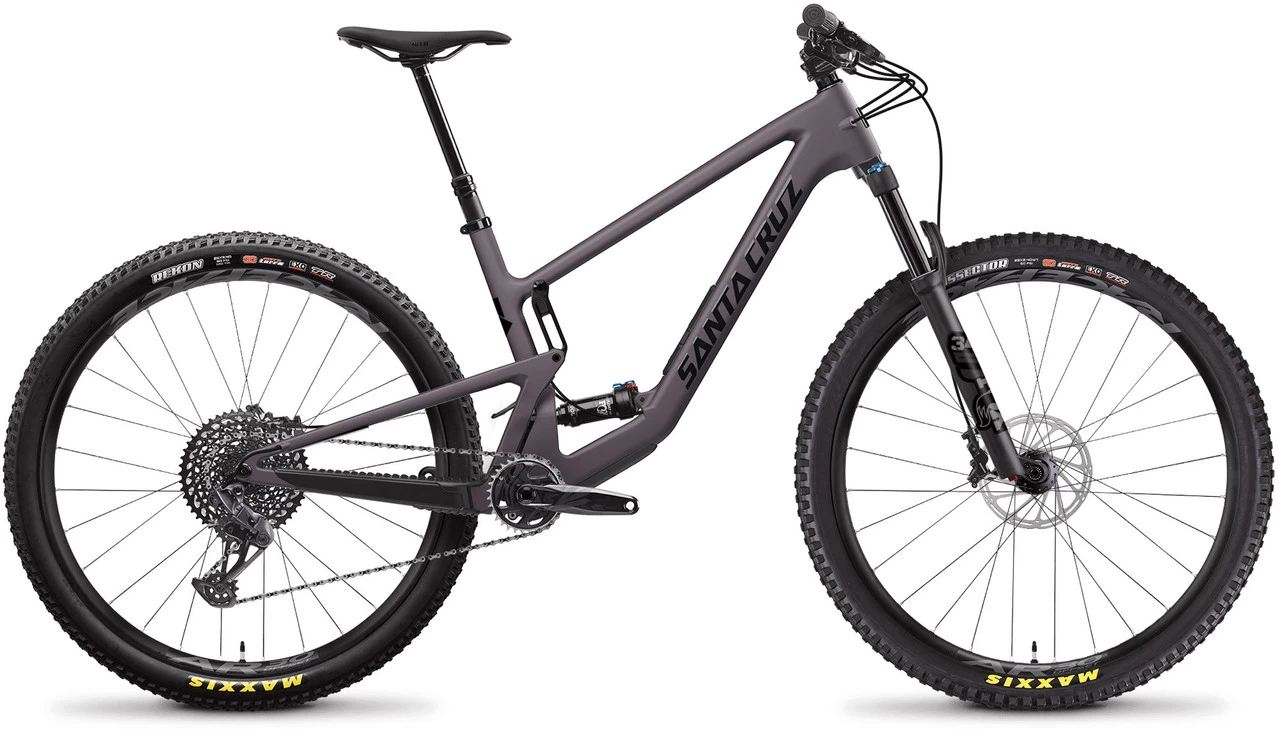

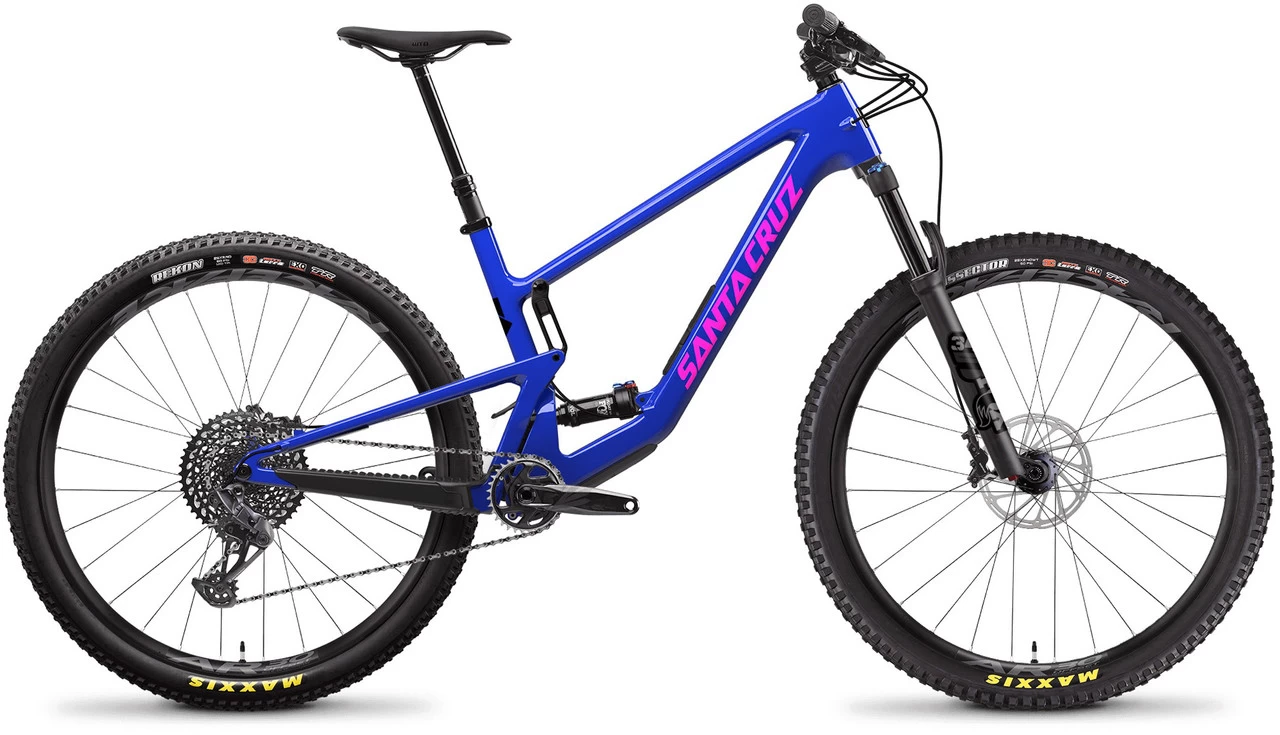

Santa Cruz Tallboy 5 C S 29″ Mountain Bike

The Santa Cruz Tallboy 5 29″ C carbon mountain bike with S-equipment for fast trails
The Santa Cruz Tallboy 5 29-inch C carbon bike in the S version comes with SRAM GX Eagle gears and Fox suspension elements. The mountain bike combines cross-country and downhill elements for fast rides uphill and downhill. The suspension with 34 Float Performance fork and Float Performance Elite DPS rear shock from Fox generates 120 mm travel at the rear and 130 mm at the front. The tried-and-tested SRAM GX Eagle 12-speed drivetrain shifts gears quickly and reliably, while G2 R brakes bring you safely to a halt. The geometry enables efficient climbing uphill and a central riding position downhill, allowing you to master any trail. You have the choice between two geometry settings, which you can switch between with a flip chip on the bottom bracket. ” High” is recommended for flatter flow trails, while ” low” comes into its own especially on steep descents. The Glovebox under the bottle cage on the down tube gives you storage space in the frame for the most important items such as tools, a mini-pump or spare tubes. At the same time, it is uncomplicated to open and remains securely closed during the ride. Included with the bike are two rattle-free bags to hold your utensils, both of which can be stored in the Glovebox.
Specifications:Application:Cross Country, All MountainWheel Size:29″Front Travel:130 mmRear Travel:120 mmSizes:M, LFront Triangle Material:carbon (C)Rear Triangle Material:carbon (C)Components:Frame:Santa Cruz Tallboy 5, C Carbon, 12 x 148 mm (Boost)Fork:Fox Racing Shox 34 Float Performance, 44 mm Offset, 15 x 110 mm (Boost)Stem:Burgtec Enduro MK3, 42 mmHandlebars:BurgTec RideWide, AluminiumGrips:Santa Cruz HouseRear Shock:Fox Racing Shox Float Performance Elite DPS, 190 x 45 mmRemote System:noneHeadset:Cane Creek 40 IS Integrated HeadsetSeatpost:RockShox Reverb Stealth, 31,6 mm diameterSaddle:WTB Silverado Medium, CrMo steel railsCrank:SRAM GX Eagle DUB, with a 32-tooth chainringPedals:noneBrakes:SRAM G2 R, with SRAM Centerline brake rotors, 180 mm / 180 mmShift Lever:SRAM GX Eagle, 12-speedRear Derailleur:SRAM GX Eagle, 12-speedCassette:SRAM Eagle XG-1275, 12-speed, 10-50 tChain:SRAM GX Eagle, 12-speedRims:Race Face AR Offset 30Spokes:Sapim RaceFront Hub:DT Swiss 370, 15 x 110 mm (Boost), 28 holesRear Hub:DT Swiss 370, 12 x 148 mm (Boost), SRAM XD, 28 holesFront Tyre:Maxxis Dissector 3C MaxxTerra EXO TR, 29 x 2,4″ WTRear Tyre:Maxxis Rekon 3C MaxxTerra EXO TR, 29 x 2,4″ WTApproved For:Rotor Size (max.):220 mm (rear)Tyre Size (max.):29 x 2.5″ (rear)Chainrings:1xChainring Size (max.):1x 36-toothFeatures:progressive trail bike for long climbs and descents alikelower maximum anti-squat than the predecessor, thus improved responsivenesstubeless setup with Reserve Tubeless Sealantflip chip for adjusting the bottom bracket height in two positions: high for agile handling on flow trails, low for increased safety on steeper terrainGlovebox: storage space in the down tube accessible under a hatchTube Purse and Tool Wallet: two bags that store tools, spare tubes, a pump and more rattle-free in the Gloveboxsmall mudguard over the shock towards the tyreintegrated ISCG-05 mountcompatible with the SRAM UDH universal derailleur hangergeometry and frame stiffness adjusted to size1 bottle cageinternal cable routingVPP system with one-piece rear trianglethreaded bottom bracketBoost chainlineGeometry:M:
Recommended Height:165 – 175 cmStack:619 mm (high), 621 mm (low)Reach:455 mm (high), 453 mm (low)Seat Tube Length:405 mmEffective Top Tube Length:602 mm (high), 603 mm (low)Head Tube Length:115 mmChainstay Length:433 mm (high), 434 mm (low)Wheelbase:1199 mmBottom Bracket Height:335 mm (high), 332 mm (low)BB Drop:38 mm (high), 41 mm (low)Seat Tube Angle:76.7° (high), 76.4° (low)Head Tube Angle:65.7° (high), 65.5° (low)Standover Height:696 mm (high), 693 mm (low)Handlebar Width:800 mm
L:
Recommended Height:175 – 185 cmStack:628 mm (high), 630 mm (low)Reach:475 mm (high), 473 mm (low)Seat Tube Length:430 mmEffective Top Tube Length:622 mm (high), 623 mm (low)Head Tube Length:125 mmChainstay Length:437 mm (high), 438 mm (low)Wheelbase:1227 mmBottom Bracket Height:335 mm (high), 332 mm (low)BB Drop:38 mm (high), 41 mm (low)Seat Tube Angle:76.8° (high), 76.6° (low)Head Tube Angle:65.7° (high), 65.5° (low)Standover Height:698 mm (high), 695 mm (low)Handlebar Width:800 mmTechnology:Virtual Pivot Point (VPP™) rear suspension system
The Virtual Pivot Point rear triangle system is the tried-and-true kinematics of Santa Cruz full suspension MTB frames. While short bellcranks allow for a compact, clean design, the thick axles combined with angular contact ball bearings provide reliable, precise vibration damping and fine-tuned response. The VPP is optimised for each bike to achieve a balance between efficient propulsion and outstanding rear triangle performance. In addition, the VPP is designed to work in harmony with long-term and
