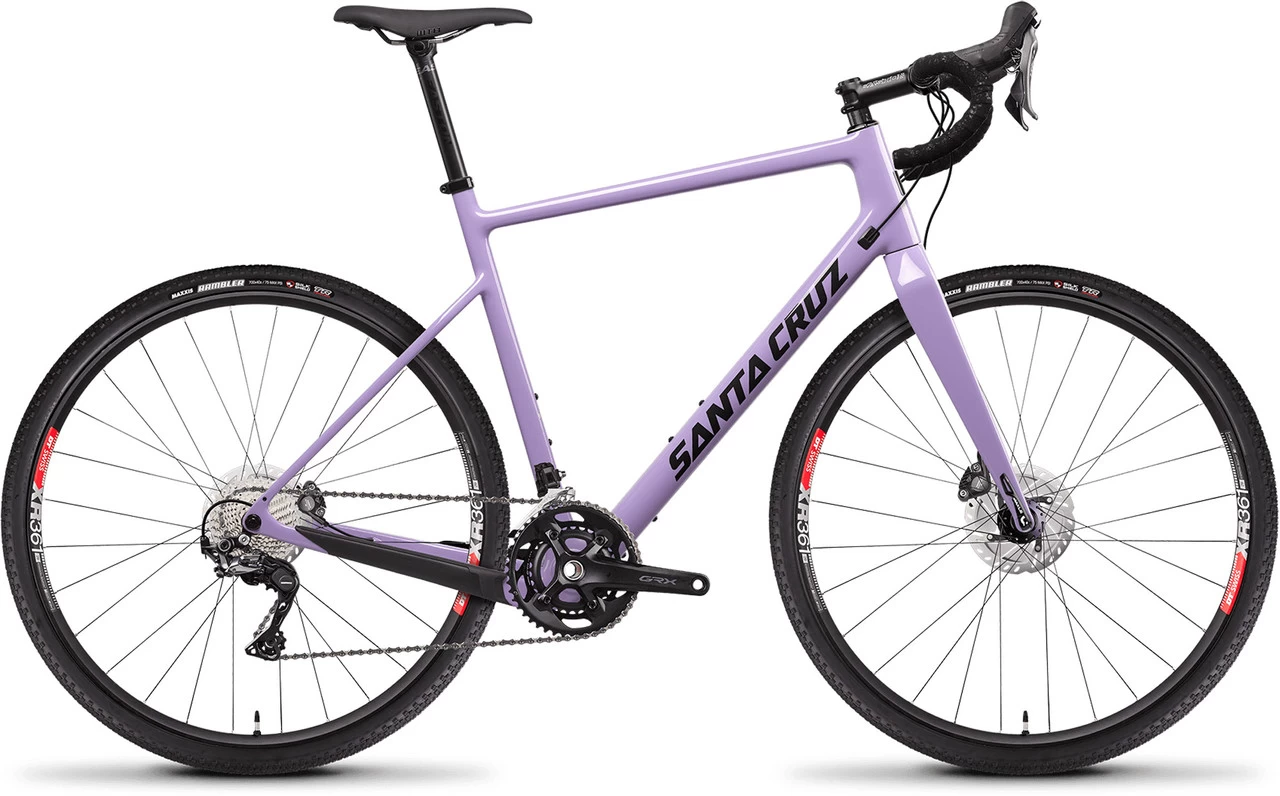

Santa Cruz Stigmata 3.0 CC GRX 28″ Gravel Bike

The Stigmata 3.0 GRX 28″ Gravel Bike by Santa Cruz made of CC carbon is a reliable companion on cyclocross and gravel trails
The Santa Cruz Stigmata 3.0 gravel bike is made with lightweight CC carbon and features 28″ tyres and a 2×11-speed Shimano GRX groupset, which makes it ideal for cyclocross and gravel rides. With three bottle cage mounts (two in the frame triangle, one under the down tube), you still have room for a drink bottle while bikepacking, even with a frame-filling bag.
Specifications:Application:Gravel, CyclocrossWheel Size:28″Sizes:54 cm, 56 cm, 58 cm, 60 cmFrame Material:carbon (CC)Fork Material:carbon (CC)Components:Frame:Santa Cruz Stigmata CC, 12 x 142 mmFork:Santa Cruz Stigmata CC, 12 x 100 mmStem:Easton EA90Handlebars:Easton EA70 AX, 31.8 mmHeadset:Cane Creek 40 IS Integrated HeadsetSeatpost:Easton EC70, Zero OffsetSaddle:WTB Silverado Team 142 mmCrank:Shimano GRX, 31-48 toothPedals:noneBrakes:Shimano GRX 810, Shimano RT80 CL Ice Tech brake rotors, 160 mm / 160 mmShift Lever:Shimano GRX ST-RX810, 11-speedRear Derailleur:Shimano GRX RX810, 11-speedCassette:Shimano Ultegra HG800, 11-34 toothChain:Shimano HG601, 11-speedRims:DT Swiss XR 361 Asym, 29″ , 28 holesSpokes:Sapim RaceFront Hub:Industry Nine 1/1, 12 x 100 mm, CL, 28 holesRear Hub:Industry Nine 1/1, 12 x 142 mm, HG11, CL, 28 holesFront Tyre:Maxxis Rambler, 700 x 40cRear Tyre:Maxxis Rambler, 700 x 40cApproved For:Rotor Size (max.):160 mmTyre Size (max.):27.5 x 2.1″ / 700 x 45 mm / 700 x 42 mm (with SRAM AXS 2-speed)Chainrings:1x, 2xChainring Size (max.):1x 42 teeth, 2x 36-50 teethCompatibility:electronic front derailleurswired Shimano 7000/8000/9000 series front derailleursFeatures:race-tested3 bottle cage mountssuitable for dropper posts with 27.2 mm diameterfender installation possiblehigh tyre clearancesuited for 27.5″ or 28″ wheelsespecially light thanks to CC carbonthreaded bottom bracketGeometry:54 cm:
Recommended Height:168 – 175 cmStack:576 mmReach:380 mmSeat Tube Length:520 mmEffective Top Tube Length:545 mmHead Tube Length:150 mmChainstay Length:425 mmWheelbase:1015 mmBottom Bracket Height:282 mmBB Drop:72 mmSeat Tube Angle:74.0°Head Tube Angle:71.5°Standover Height:776 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:172.5 mm
56 cm:
Recommended Height:175 – 183 cmStack:596 mmReach:388 mmSeat Tube Length:545 mmEffective Top Tube Length:565 mmHead Tube Length:170 mmChainstay Length:425 mmWheelbase:1025 mmBottom Bracket Height:282 mm (28″ )BB Drop:72 mmSeat Tube Angle:73.5°Head Tube Angle:72.0°Standover Height:797 mmStem Length:100 mmHandlebar Width:44 cmCrank Arm Length:172.5 mm
58 cm:
Recommended Height:183 – 188 cmStack:609 mmReach:392 mmSeat Tube Length:565 mmEffective Top Tube Length:572 mmHead Tube Length:185 mmChainstay Length:425 mmWheelbase:1034 mmBottom Bracket Height:284 mmBB Drop:70 mmSeat Tube Angle:73.5°Head Tube Angle:72.0°Standover Height:816 mmStem Length:100 mmHandlebar Width:46 cmCrank Arm Length:175 mm
60 cm:
Recommended Height:188 – 196 cmStack:628 mmReach:405 mmSeat Tube Length:590 mmEffective Top Tube Length:591 mmHead Tube Length:205 mmChainstay Length:425 mmWheelbase:1053 mmBottom Bracket Height:284 mmBB Drop:70 mmSeat Tube Angle:73.5°Head Tube Angle:72.0°Standover Height:834 mmStem Length:110 mmHandlebar Width:46 cmCrank Arm Length:175 mmManufacturer Numbers:gloss lavender-gloss carbon / 54 cm:58-22210-127-3-736-000001gloss lavender-gloss carbon / 56 cm:58-22210-127-4-736-000001gloss lavender-gloss carbon / 58 cm:58-22210-127-5-736-000001gloss lavender-gloss carbon / 60 cm:58-22210-127-6-736-000001Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Santa Cruz Stigmata 3.0 CC GRX 28″ Gravel Bike
