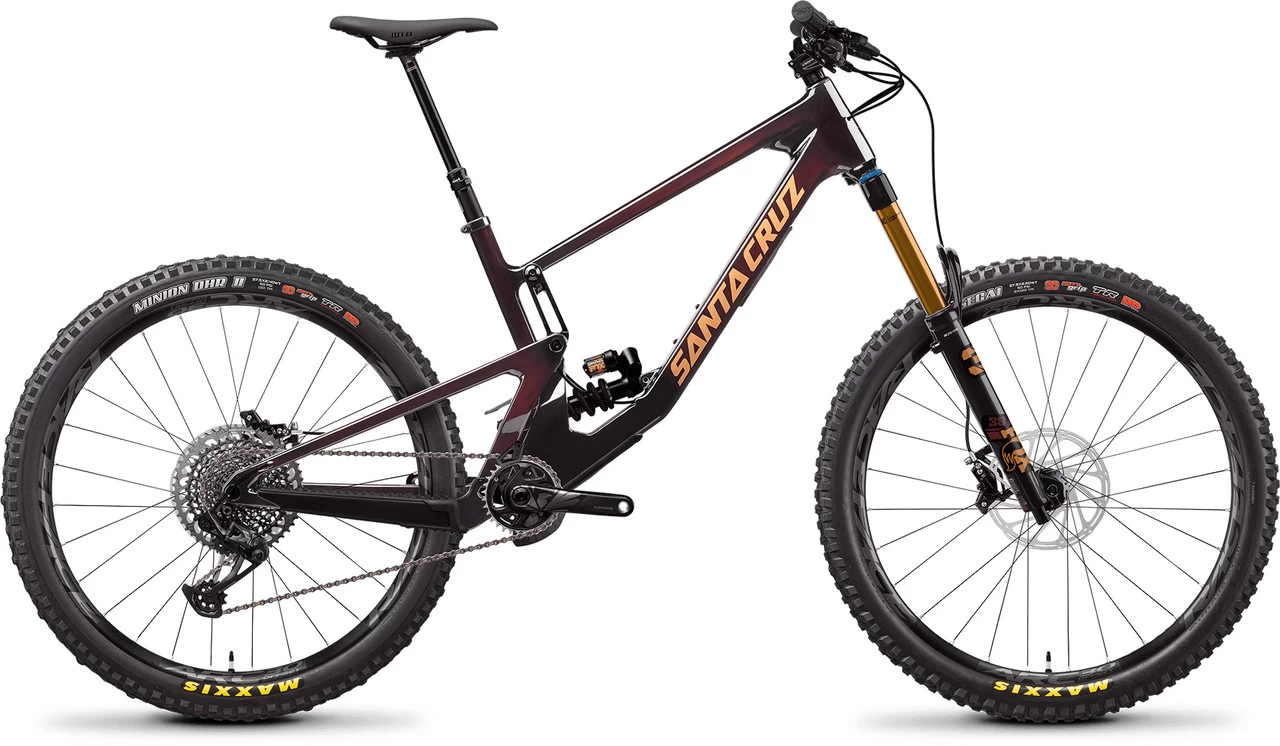

Santa Cruz Nomad 5.0 CC X01 Coil 27.5″ Mountain Bike

Made from CC carbon, the Nomad 5.0 X01 Coil 27.5″ Mountain Bike by Santa Cruz is a strong enduro rig
The Santa Cruz Nomad 5.0 mountain bike with 27.5″ wheels is made of particularly lightweight CC carbon and comes here with a Fox steel coil shock, a SRAM X01 Eagle drivetrain and a Fox 38 Factory fork for ultimate enduro fun. A whopping 170 mm of travel at the front and rear gives you the freedom to ride the line you want. The flip chip allows you to adjust the geometry to your preferences in two settings (high and low).
Specifications:Application:EnduroWheel Size:27.5″ (650B)Front Travel:170 mmRear Travel:170 mmSizes:M, L, XLFront Triangle Material:carbon (CC)Rear Triangle Material:carbon (CC)Components:Frame:Santa Cruz Nomad CC, 12 x 148 mm (Boost)Fork:Fox Racing Shox 38 Float Factory 170 mm, 15 x 110 mm (Boost)Stem:Burgtec Enduro MK3, 42.5 mmHandlebars:Santa Cruz Carbon, 35 mm, 800 mm, 35 mm RiseGrips:Santa Cruz HouseRear Shock:Fox Racing Shox DHX2 Factory Coil, 2-Position Remote, 450 lbs (M), 500 lbs (L, XL)Remote System:Fox Racing Shox 2-Position Remote (shock)Headset:Cane Creek 40 IS Integrated HeadsetSeatpost:RockShox Reverb Stealth, 31.6 mmSaddle:WTB Silverado Team 142 mmCrank:SRAM X1 Eagle DUB, 170 mm, 32-toothPedals:noneBrakes:SRAM Code RSC, SRAM HS2 6-bolt brake rotors, 200 mm / 200 mmShift Lever:SRAM X01 Eagle, 12-speedRear Derailleur:SRAM X01 Eagle, 12-speedCassette:SRAM Eagle XG-1295, 10-50 toothChain:SRAM X01 Eagle, 12-speedRims:Race Face ARC Offset 30, 27.5″ , 28 holesSpokes:Sapim RaceFront Hub:Industry Nine 1/1, 15 x 110 mm (Boost), 6-bolt, 28 holesRear Hub:Industry Nine 1/1, 12 x 148 mm (Boost), XD, 6-bolt, 28 holesFront Tyre:Maxxis Assegai 3C MaxxGrip Double Down TR, 27.5 x 2.5″Rear Tyre:Maxxis Minion DHR II 3C MaxxGrip Double Down TR, 27.5 x 2.4″Approved For:Rotor Size (max.):203 mm (rear)Tyre Size (max.):27.5 x 2.6″ (rear)Chainrings:1xChainring Size (max.):1x 36-toothFeatures:VPP linkage designintegrated ISCG 05 adapter for mounting a chain guide1 bottle cageflip chip for adjusting the bottom bracket height in two positionslonger chainstays for larger framesespecially light thanks to CC carbonthreaded bottom bracketBoost chainlineGeometry:M:
Recommended Height:165 – 175 cmStack:614.5 mm (high), 617 mm (low)Reach:450 mm (high), 447 mm (low)Seat Tube Length:405 mmEffective Top Tube Length:581 mm (high), 582 mm (low)Head Tube Length:130 mmChainstay Length:430 mmWheelbase:1222 mm (high), 1223 mm (low)Bottom Bracket Height:344 mm (high), 340 mm (low)BB Drop:10 mm (high), 14 mm (low)Seat Tube Angle:78° (high), 77.7° (low)Head Tube Angle:64° (high), 63.7° (low)Standover Height:732 mm (high), 727 mm (low)
L:
Recommended Height:175 – 185 cmStack:623.4 mm (high), 626 mm (low)Reach:475 mm (high), 472 mm (low)Seat Tube Length:430 mmEffective Top Tube Length:609 mm (high), 610 mm (low)Head Tube Length:140 mmChainstay Length:435 mmWheelbase:1256 mm (high), 1257 mm (low)Bottom Bracket Height:344 mm (high), 340 mm (low)BB Drop:10 mm (high), 14 mm (low)Seat Tube Angle:77.9° (high), 77.5° (low)Head Tube Angle:64° (high), 63.7° (low)Standover Height:733 mm (high), 728 mm (low)
XL:
Recommended Height:185 – 193 cmStack:645.9 mm (high), 648 mm (low)Reach:500 mm (high), 497 mm (low)Seat Tube Length:460 mmEffective Top Tube Length:643 mm (high), 644 mm (low)Head Tube Length:165 mmChainstay Length:440 mmWheelbase:1297 mm (high), 1298 mm (low)Bottom Bracket Height:344 mm (high), 340 mm (low)BB Drop:10 mm (high), 14 mm (low)Seat Tube Angle:77.6° (high), 77.2° (low)Head Tube Angle:64° (high), 63.7° (low)Standover Height:732 mm (high), 727 mm (low)Technology:Virtual Pivot Point (VPP™) rear suspension system
The Virtual Pivot Point rear triangle system is the tried-and-true kinematics of Santa Cruz full suspension MTB frames. While short bellcranks allow for a compact, clean design, the thick axles combined with angular contact ball bearings provide reliable, precise vibration damping and fine-tuned response. The VPP is optimised for each bike to achieve a balance between efficient propulsion and outstanding rear triangle performance. In addition, the VPP is designed to work in harmony with long-term and regularly available shocks and components.
Manufacturer Numbers:oxblood-tan / M:58-22222-113-3-684-367701oxblood-tan / L:58-22222-113-4-684-367701oxblood-tan / XL:58-22222-113-5-684-367701Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Santa Cruz Nomad 5.0 CC X01 Coil 27.5″ Mountain Bike
