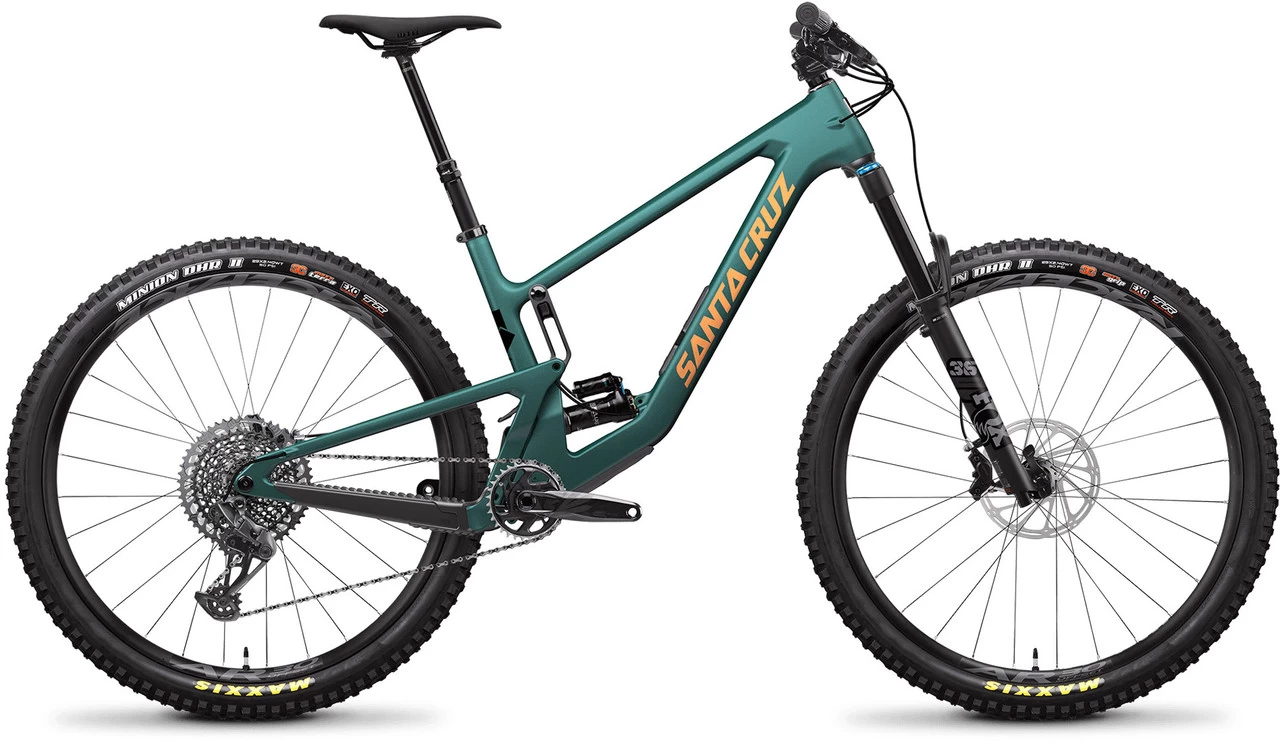

Santa Cruz Hightower 3.0 C S-Kit 29″ Mountain Bike

The Hightower 3.0 S-Kit 29″ Mountain Bike by Santa Cruz in C Carbon with storage space in the down tube
The Santa Cruz Hightower 3.0 mountain bike made of C Carbon with 29-inch wheels for all-mountain trails now comes with a Glovebox in the down tube and is equipped with a Fox 36 Performance fork and a RockShox Super Deluxe Select+ shock in the S-Kit. The SRAM GX Eagle 1×12-speed drivetrain and the powerful Code R brakes bring you forward and to a stop. The Glovebox under the bottle cage on the down tube gives you storage space in the frame for the most important items such as tools, a mini-pump or spare tubes. It’s easy to open and remains securely closed while you’re in motion. Included with the bike are two rattle-free bags to hold your utensils, both of which can be stored in the Glovebox. 150 mm travel at the front and 145 mm at the rear make this bike equipped for versatile trail use. The flip chip on the bottom bracket lets you switch between ” high” and ” low” geometry settings. The former is recommended for flatter flow trails, while the latter comes into its own on steep descents.
Specifications:Application:All MountainWheel Size:29″Front Travel:150 mmRear Travel:145 mmSizes:MFront Triangle Material:carbon (C)Rear Triangle Material:carbon (C)Components:Frame:Santa Cruz Hightower C, 12 x 148 mm (Boost)Fork:Fox Racing Shox 36 Float Performance, 44 mm offset, 15 x 110 mm (Boost)Stem:Burgtec Enduro MK3, 42 mmHandlebars:Burgtec RideWide aluminium, 35 mm, 800 mmGrips:Santa Cruz HouseRear Shock:RockShox Super Deluxe Select+, 210 x 55 mmRemote System:noneHeadset:Cane Creek 40 IS Integrated HeadsetSeatpost:RockShox Reverb Stealth, 31.6 mmSaddle:WTB Silverado Medium, CrMoCrank:SRAM GX Eagle DUB, 30-tooth chainringPedals:noneBrakes:SRAM Code R, Avid Centerline brake rotors, 180 mm / 180 mmShift Lever:SRAM GX Eagle, 12-speedRear Derailleur:SRAM GX Eagle, 12-speedCassette:SRAM Eagle XG-1275, 10-50 toothChain:SRAM GX Eagle, 12-speedRims:Race Face AR Offset 30Spokes:Sapim RaceFront Hub:DT Swiss 370, 15 x 110 mm, 28 holeRear Hub:DT Swiss 370, 12 x 148 mm, XD, 28 holeFront Tyre:Maxxis Minion DHR II 3C MaxxGrip EXO TR, 29 x 2.4″Rear Tyre:Maxxis Minion DHR II 3C MaxxTerra EXO TR, 29 x 2.4″Approved For:Rotor Size (max.):203 mm (rear)Tyre Size (max.):29 x 2.5″ (rear wheel)Chainrings:1xChainring Size (max.):1x 34-toothFeatures:optimised Lower Link with robust axles to counteract lateral flexbetter response due to lower Anti-Squat compared to the predecessor modelflip chip for adjusting the bottom bracket height in two positions: high for agile handling on flow trails, low for increased safety on steeper terrainGlovebox: storage space in the down tube accessible under a hatchTube Purse and Tool Wallet: two bags that store tools, spare tubes, a pump and more rattle-free in the GloveboxVPP system with one-piece rear trianglerelatively linear spring characteristic with slight progression towards the end of the travelsmall mudguard over the shock towards the tyrerecess in the frame allows view of the SAG area of the damper, promotes easier adjustmentdeflection lever with high-quality, sealed Enduro MAX ball bearingsintegrated ISCG-05 mount for fitting a chain guide1 bottle cageinternal cable routingthreaded bottom bracketBoost chainlineGeometry:M:
Recommended Height:165 – 175 cmStack:625 mm (high), 627 mm (low)Reach:455 mm (high), 452 mm (low)Seat Tube Length:405 mmEffective Top Tube Length:599 mm (high), 600 mm (low)Head Tube Length:115 mmChainstay Length:435 mm (high), 435 mm (low)Wheelbase:1217 mm (high), 1218 mm (low)Bottom Bracket Height:342 mm (high), 338 mm (low)BB Drop:31 mm (high), 34 mm (low)Seat Tube Angle:77.0° (high), 76.7° (low)Head Tube Angle:64.8° (high), 64.5° (low)Standover Height:708 mm (high), 703 mm (low)Technology:Virtual Pivot Point (VPP™) rear suspension system
The Virtual Pivot Point rear triangle system is the tried-and-true kinematics of Santa Cruz full suspension MTB frames. While short bellcranks allow for a compact, clean design, the thick axles combined with angular contact ball bearings provide reliable, precise vibration damping and fine-tuned response. The VPP is optimised for each bike to achieve a balance between efficient propulsion and outstanding rear triangle performance. In addition, the VPP is designed to work in harmony with long-term and regularly available shocks and components.
Manufacturer Number:58-23268-109-3-763-812101
Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Santa Cruz Hightower 3.0 C S-Kit 29″ Mountain Bike1 x Santa Cruz Tool Wallet1 x Santa Cruz Tube Purse
