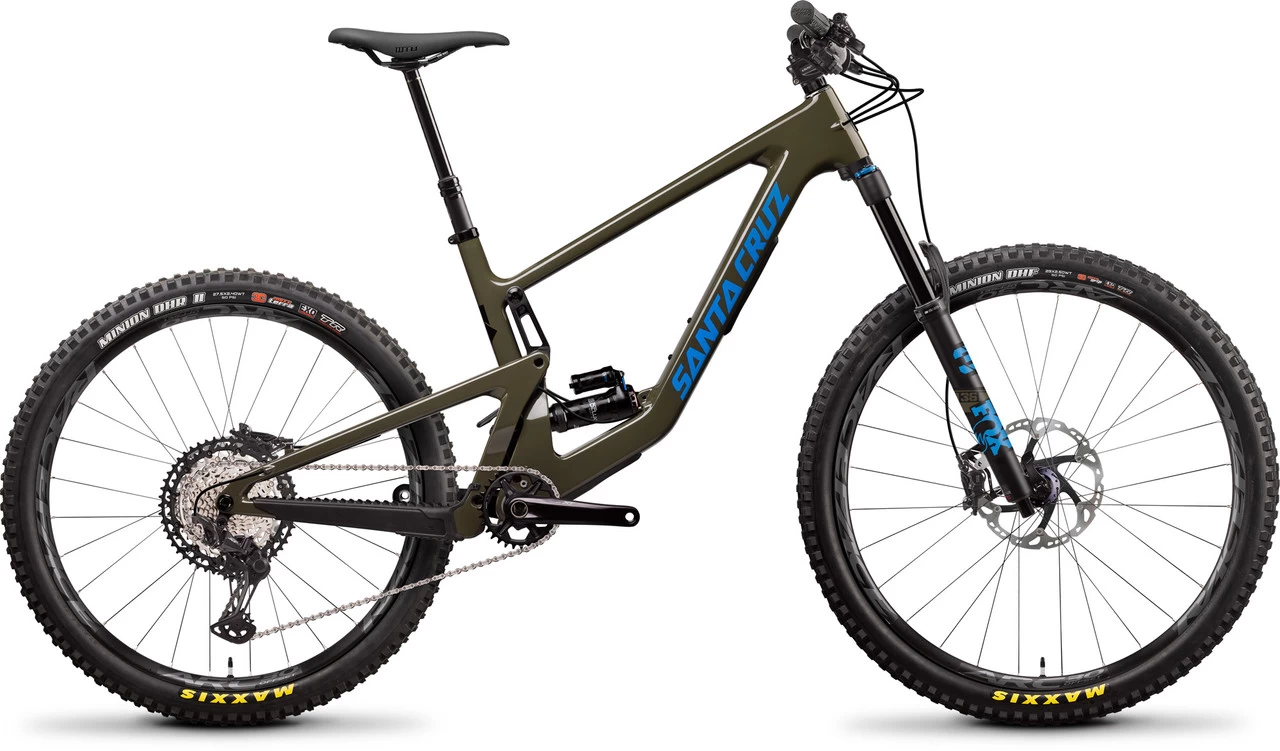

Santa Cruz Bronson 4.0 C XT Mixed Mountain Bike

Made of C Carbon, the Bronson 4.0 XT Mixed Mountain Bike by Santa Cruz is ready for trail fun
The Santa Cruz Bronson 4.0 Mixed Mountain Bike made of C Carbon and with 29″ /27.5″ set-up is equipped with a Shimano XT 1×12-speed groupset and offers you the best conditions for fun on all-mountain and enduro trails with 160 mm front travel and 150 mm rear travel. The combination of different wheel sizes allows for high speed with agile as well as controllable behaviour. A flip chip on the chassis allows you to adjust the bottom bracket height in two positions and thus adapt the geometry.
Specifications:Application:All Mountain, EnduroWheel Size:Scaled SizingFront Travel:160 mmRear Travel:150 mmSizes:S, M, L, XLFront Triangle Material:carbon (C)Rear Triangle Material:carbon (C)Components:Frame:Santa Cruz Bronson C, 12 x 148 mm (Boost)Fork:Fox Racing Shox 36 Float Performance Elite 160 mm, 15 x 110 mm (Boost)Stem:Burgtec Enduro MK3, 42.5 mmHandlebars:Santa Cruz Carbon, 35 mm, 20 mm Rise (S), 35 mm Rise (M-XL)Grips:Santa Cruz HouseRear Shock:RockShox Super Deluxe Select+Remote System:noneHeadset:Cane Creek 40 IS Integrated HeadsetSeatpost:RockShox Reverb Stealth, 31.6 mmSaddle:WTB Silverado Fusion Medium CrMo SLCrank:Shimano XT M8120, 170 mm, 32-toothPedals:noneBrakes:Shimano XT M8120, Shimano XT RT86 6-bolt Ice Tech brake rotors, 203 mm / 180 mmShift Lever:Shimano XT M8100, 12-speedRear Derailleur:Shimano XT M8100, 12-speedCassette:Shimano XT M8100, 10-51 toothChain:Shimano XT M8100, 12-speedRims:Race Face ARC Offset 30, 29″ (front) / 27.5″ (rear), 28 holesSpokes:Sapim RaceFront Hub:Industry Nine 1/1, 15 x 110 mm (Boost), 6-bolt, 28 holesRear Hub:Industry Nine 1/1, 12 x 148 mm (Boost), Micro Spline, 6-bolt, 28 holesFront Tyre:Maxxis Minion DHF 3C EXO MaxxGrip TR, 29 x 2.5″Rear Tyre:Maxxis Minion DHR II 3C EXO TR, 27.5 x 2.4″Approved For:Rotor Size (max.):223 mm (rear)Tyre Size (max.):27.5 x 2.6″ (rear)Chainrings:1xChainring Size (max.):1x 36-toothFeatures:VPP linkage designthreaded bottom bracketBoost chainline1 bottle cagelonger chainstays for larger framesflip chip for adjusting the bottom bracket height in two positionsGeometry:S:
Recommended Height:155 – 165 cmStack:617 mm (high), 619 mm (low)Reach:430 mm (high), 427 mm (low)Seat Tube Length:380 mmEffective Top Tube Length:570 mm (high), 575 mm (low)Head Tube Length:100 mmChainstay Length:431 mm (high), 432 mm (low)Wheelbase:1188 mm (high), 1189 (low)Bottom Bracket Height:344 mm (high), 341 mm (low)BB Drop:10 mm (high), 13 mm (low)Seat Tube Angle:77.2° (high), 76.7° (low)Head Tube Angle:64.7° (high), 64.5° (low)Standover Height:709 mm (high), 706 mm (low)Handlebar Width:760 mm
M:
Recommended Height:165 – 175 cmStack:626 mm (high), 628 mm (low)Reach:455 mm (high), 452 mm (low)Seat Tube Length:405 mmEffective Top Tube Length:599 mm (high), 604 mm (low)Head Tube Length:110 mmChainstay Length:435 mm (high), 436 mm (low)Wheelbase:1221 mm (high), 1222 mm (low)Bottom Bracket Height:344 mm (high), 341 mm (low)BB Drop:10 mm (high), 13 mm (low)Seat Tube Angle:77.1° (high), 76.6° (low)Head Tube Angle:64.7° (high), 64.5° (low)Standover Height:731 mm (high), 727 mm (low)Handlebar Width:800 mm
L:
Recommended Height:175 – 185 cmStack:635 mm (high), 637 mm (low)Reach:475 mm (high), 472 mm (low)Seat Tube Length:430 mmEffective Top Tube Length:623 mm (high), 627 mm (low)Head Tube Length:120 mmChainstay Length:438 mm (high), 439 mm (low)Wheelbase:1249 mmBottom Bracket Height:344 mm (high), 341 mm (low)BB Drop:10 mm (high), 13 mm (low)Seat Tube Angle:76.9° (high), 76.5° (low)Head Tube Angle:64.7° (high), 64.5° (low)Standover Height:729 mm (high), 726 mm (low)Handlebar Width:800 mm
XL:
Recommended Height:185 – 196 cmStack:649 mm (high), 651 mm (low)Reach:500 mm (high), 497 mm (low)Seat Tube Length:460 mmEffective Top Tube Length:653 mm (high), 657 (low)Head Tube Length:135 mmChainstay Length:442 mm (high), 443 mm (low)Wheelbase:1284 mm (high), 1285 (low)Bottom Bracket Height:344 mm (high), 341 mm (low)BB Drop:10 mm (high), 13 mm (low)Seat Tube Angle:76.7° (high), 76.4° (low)Head Tube Angle:64.7° (high), 64.5° (low)Standover Height:728 mm (high), 725 mm (low)Handlebar Width:800 mmTechnology:Virtual Pivot Point (VPP™) rear suspension system
The Virtual Pivot Point rear triangle system is the tried-and-true kinematics of Santa Cruz full suspension MTB frames. While short bellcranks allow for a compact, clean design, the thick axles combined with angular contact ball bearings provide reliable, precise vibration damping and fine-tuned response. The VPP is optimised for each bike to achieve a balance between efficient propulsion and outstanding rear triangle performance. In addition, the VPP is designed to work in harmony with long-term and regularly available shocks and components.
Manufacturer Numbers:gloss moss-blue / M:58-22239-149-3-732-656501gloss moss-blue / L:58-22239-149-4-732-656501paydirt gold-grey / S:58-22239-149-2-733-656501paydirt gold-grey / M:58-22239-149-3-73
