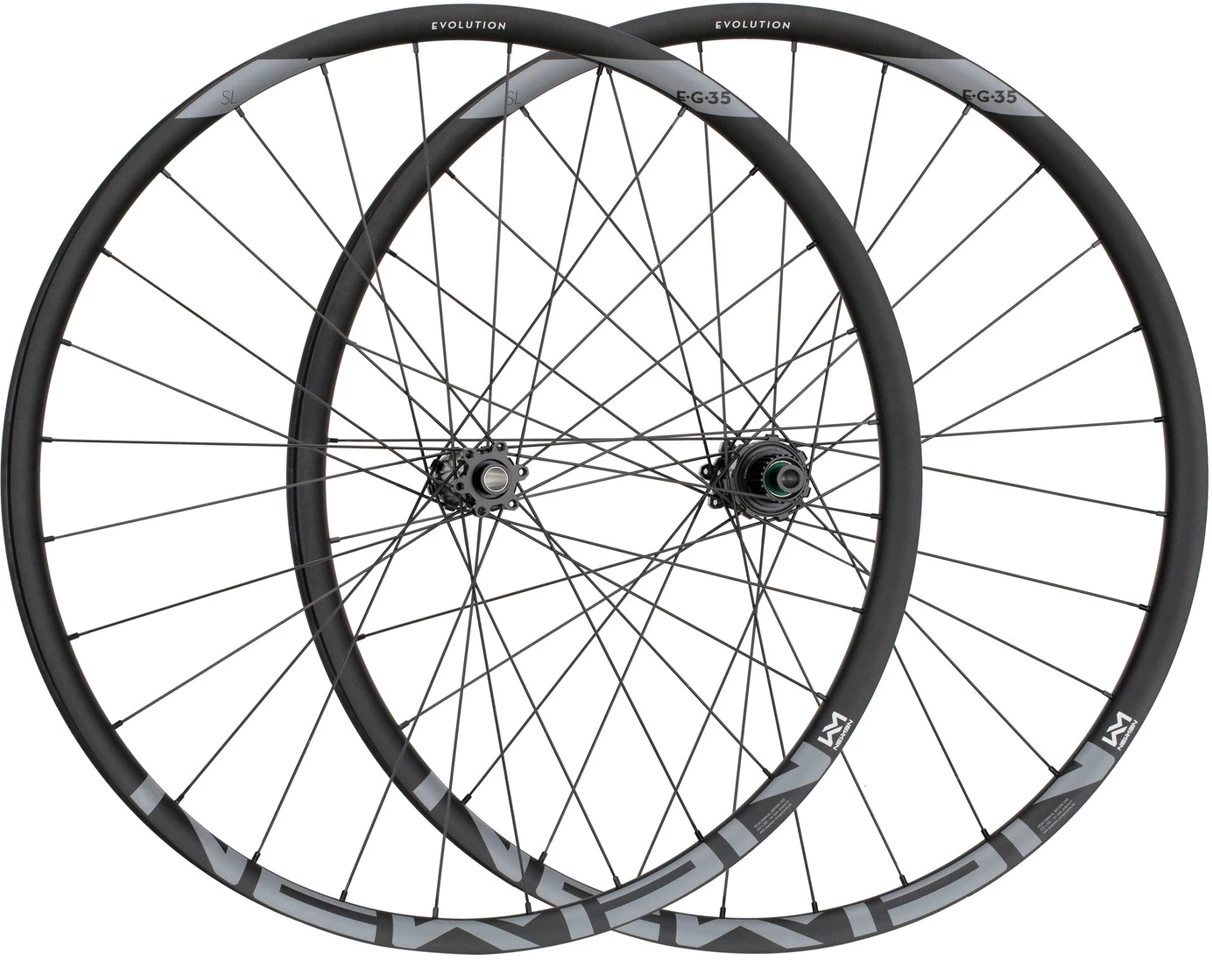

Newmen Evolution SL E.G.35 Fade Boost Disc 6-bolt 27.5″ Wheelset

The Evolution SL E.G. 27.5″ wheelset by NEWMEN is compatible with enduro and downhill E-MTBs and allows for particularly wide tyres and low air pressure thanks to the 35 mm jaw width. The combination of a FADE Boost hub, straight pull spokes and a rim with a reinforced rim wall make it particularly durable, which is why the stronger forces from e-bikes are not a problem.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:Enduro, DownhillWheel Size:27.5″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:6-bolt discWheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Type:Evolution SL E.G.30Rim Flange:without hookDimensions (ETRTO):35-622Inner Width:35 mmDepth:22.5 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:AluminiumTechnical Information – Front Hub:Type:NEWMEN FADE StraightpullOver Locknut Dimension:15 x 110 mm thru-axleBearings:2 deep groove ball bearings, double sealedBody Material:AluminiumTechnical Information – Rear Hub:Type:NEWMEN FADE StraightpullOver Locknut Dimension:12 x 148 mm thru-axleBearings:4 deep groove ball bearings, double sealedBody Material:AluminiumFreehub Body:3 pawls, 36 tooth pitchTechnical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:Sapim Race / straight pullSpoke Material:stainless steelNipple Material:AluminiumApproved For:Weight Limit:150 kg (system weight)Air Pressure (max.):2.1 barsRecommended Tyre Width:2.5 – 2.8″Features:high-end All Mountain aluminium wheelsethand-assembled in Germanyhigh-strength aluminium alloytubeless compatible hookless design38 mm rim tape requiredTechnology:MG-Washer:
The weak point of aluminium or carbon rims, the nipple holes in the rim, is reinforced with an MG washer at NEWMEN. This is the solution with the least amount of material used, so that there is practically no effect on weight. The MG-Washer is concave on both sides. This means that it can be installed in both directions, and the contact surface on the rim side moves away from the nipple hole of the rim, thus providing additional relief. Another advantage is the even friction between nipple and washer, which prevents the nipple from ” eating” .

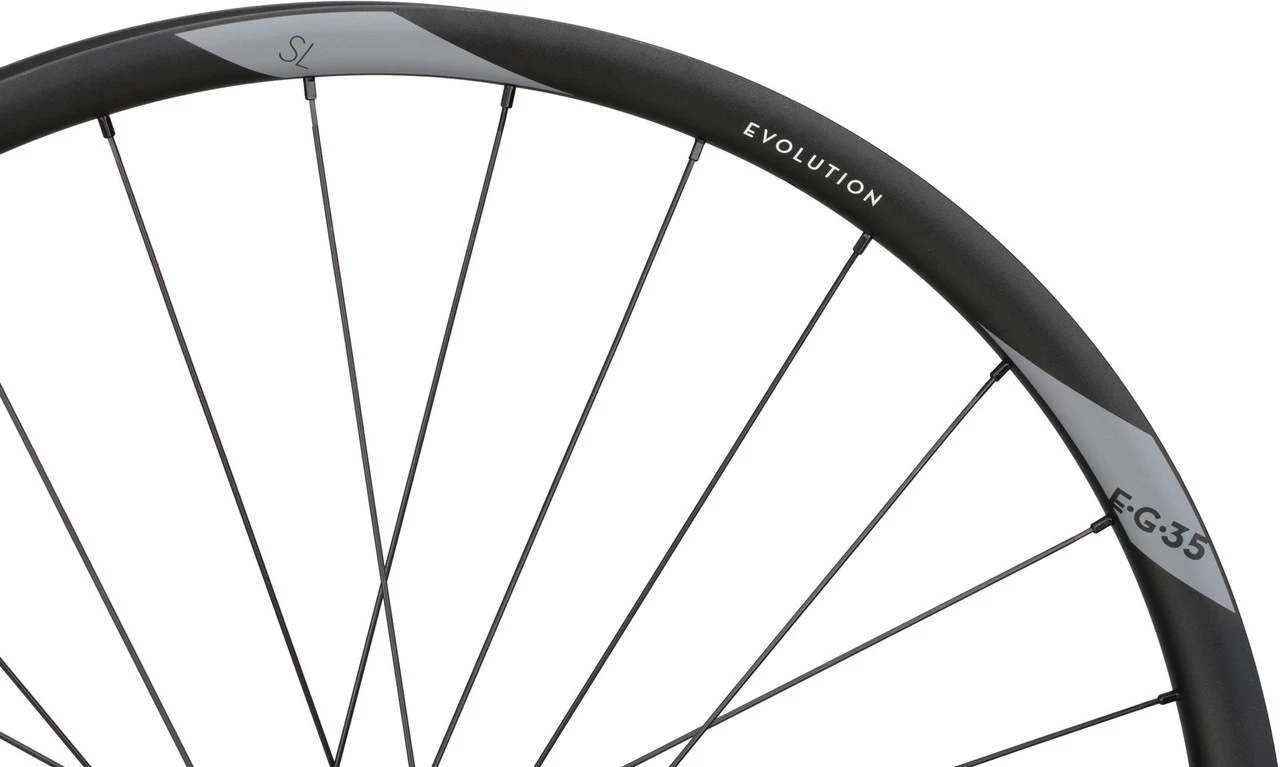

Rounded Rim Profile:
The rounded rim profile has flared rim flanges with optimised flange height and wall thickness. The wall thickness on the rim flange has been increased, in the side area reduced.
The flared rim flanges shorten the distance between left and right rim flange, which saves material and weight. The tyre can also take on a rounder shape, improving comfort and cornering grip.
Colour Index:black-black:
Rim: black w/ grey decalsHub: black w/ grey decalsSpokes: blackNipples: blackModels:27.5″ set (front 15×110 + rear 12×148) SRAM XD:
Freehub:SRAM XDGearing:11-/12-speedManufacturer Number:90657 + 90658
27.5″ set (front 15×110 + rear 12×148) Shimano Micro Spline:
Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:90657 + 90659
27.5″ set (front 15×110 + rear 12×148) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Number:90657 + 90660Contents:1 x NEWMEN Evolution SL E.G.35 wheelset (front and rear wheel)
