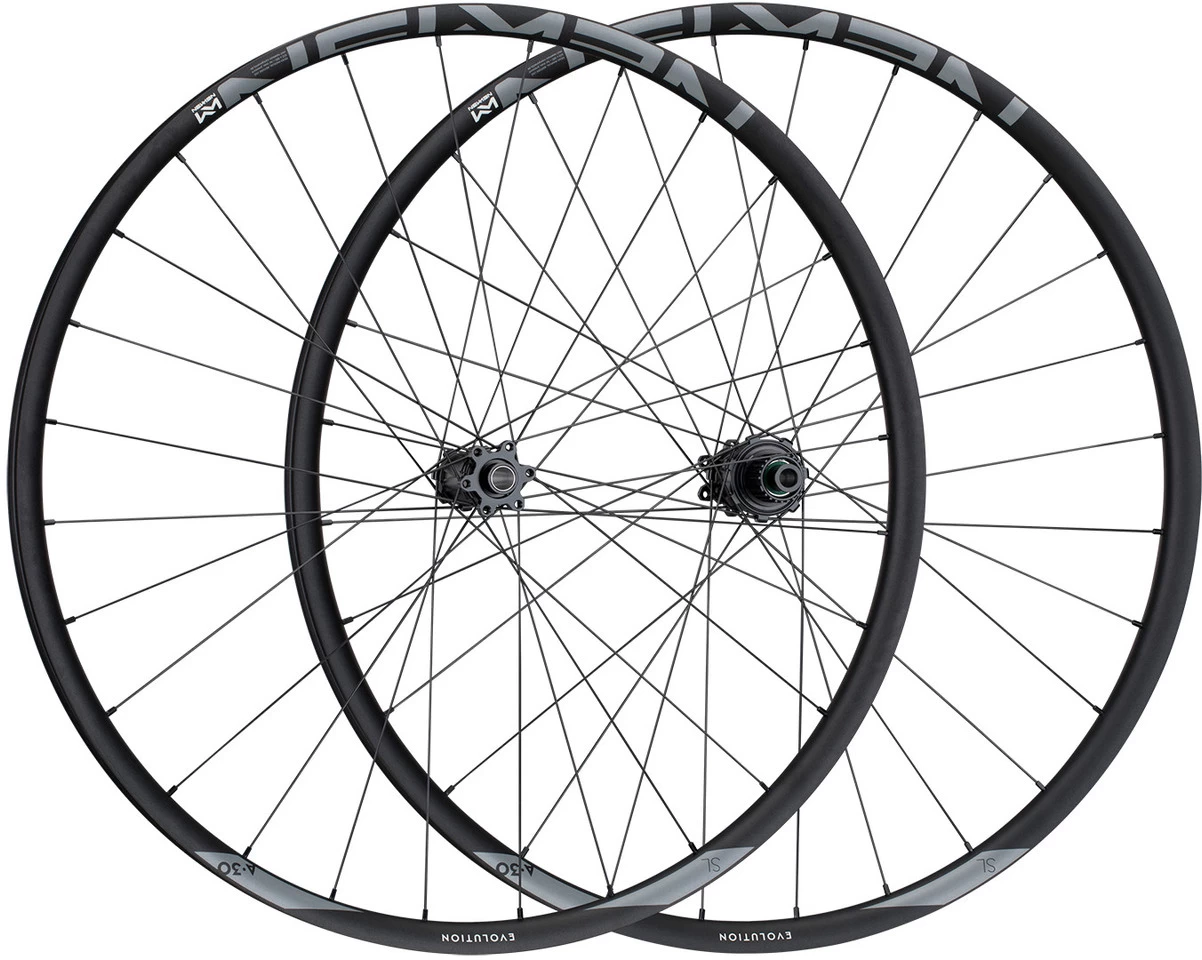

Newmen Evolution SL A.30 Fade Boost Disc 6-bolt 29″ Wheelset

The NEWMEN Evolution SL A. high-end aluminium wheelset with 30 mm inner width allows you to ride with low air pressure. The new FADE hub technology now works with three pawls instead of the previous two ratchets, which makes the wheelset extremely quiet and provides a completely new riding experience.
Specifications:Application:All Mountain, EnduroWheel Size:29″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:6-bolt discWheel Standard:BoostTubeless System:Tubeless ReadyTechnical Information – Rim:Type:Evolution SL A.30Dimensions (ETRTO):30-622Inner Width:30 mmDepth:20 mmERD:622 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:NEWMEN FADE StraightpullOver Locknut Dimension:15 x 110 mm thru-axleBearings:2 deep groove ball bearingsBody Material:aluminiumTechnical Information – Rear Hub:Type:NEWMEN FADE StraightpullOver Locknut Dimension:12 x 148 mm thru-axleBearings:4 deep groove ball bearingsBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:3 pawls, 36 tooth pitchTechnical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:Sapim D-Light / straight pull / straight / double buttedSpoke Material:stainless steelApproved For:Weight Limit:125 kg (system weight)Air Pressure (max.):2.4 barRecommended Tyre Width:2.3 – 2.5″Features:high-end All Mountain aluminium wheelsethand-assembled in Germanyhigh-strength aluminium alloytubeless compatible hookless designrequired rim tape 30 – 34 mmTechnology:MG-Washer:
The weak point of aluminium or carbon rims, the nipple holes in the rim, is reinforced with an MG washer at NEWMEN. This is the solution with the least amount of material used, so that there is practically no effect on weight. The MG-Washer is concave on both sides. This means that it can be installed in both directions, and the contact surface on the rim side moves away from the nipple hole of the rim, thus providing additional relief. Another advantage is the even friction between nipple and washer, which prevents the nipple from ” eating” .

Rounded Rim Profile:
The rounded rim profile has flared rim flanges with optimised flange height and wall thickness. The wall thickness on the rim flange has been increased, in the side area reduced.
The flared rim flanges shorten the distance between left and right rim flange, which saves material and weight. The tyre can also take on a rounder shape, improving comfort and cornering grip.
Colour Index:black-black:
Rim: black w/ grey decalsHub: blackSpokes: blackNipples: blackModels:29″ set (front 15×110 + rear 12×148) SRAM XD:
Freehub: SRAM XDGearing: 11-/12-speedManufacturer Number: 90433 + 90434
29″ set (front 15×110 + rear 12×148) Shimano Micro Spline:
Freehub: Shimano Micro SplineGearing: 12-speedManufacturer Number: 90433 + 90435
29″ set (front 15×110 + rear 12×148) Shimano:
Freehub: Shimano MTBGearing: 8-/9-/10-/11-speedManufacturer Number: 90433 + 90436Contents:1 x NEWMEN Evolution SL A.30 Fade wheelset (front and rear wheel)Order Together:30 mm rim tapetubeless valves
