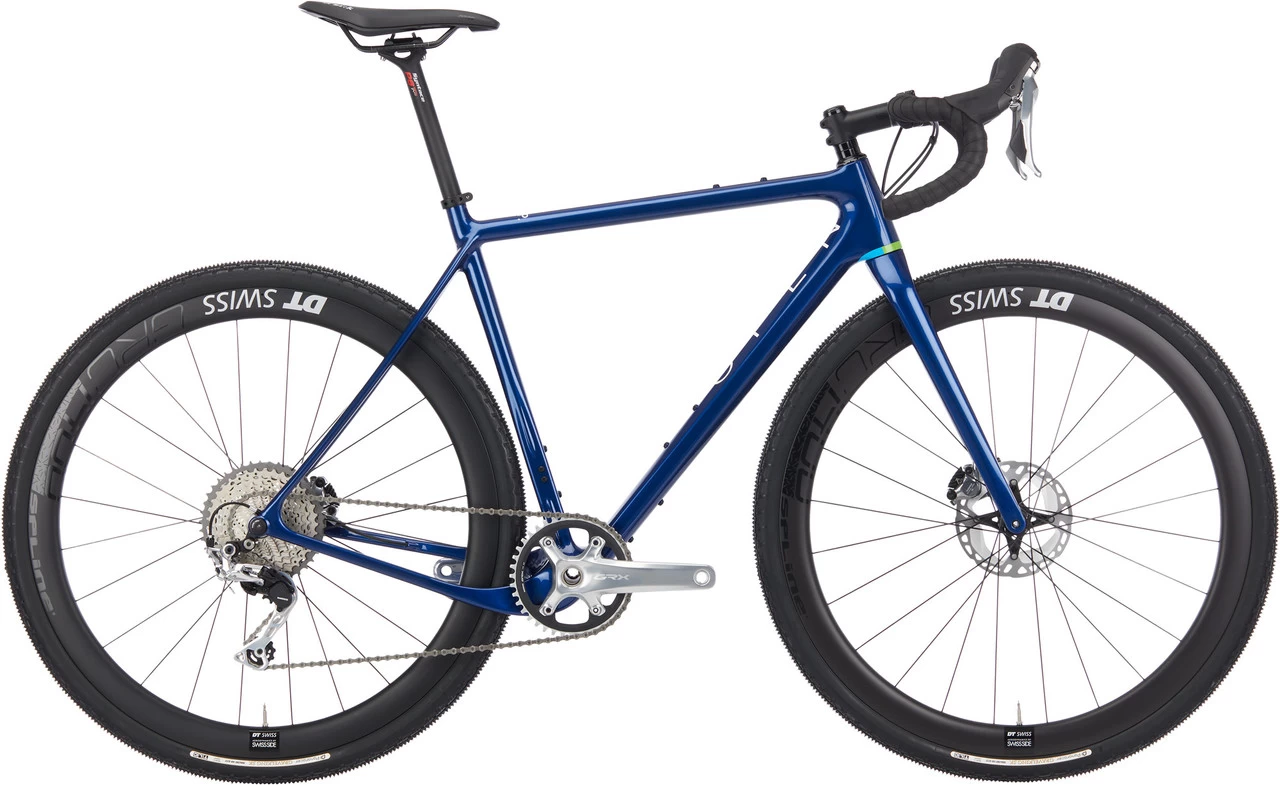

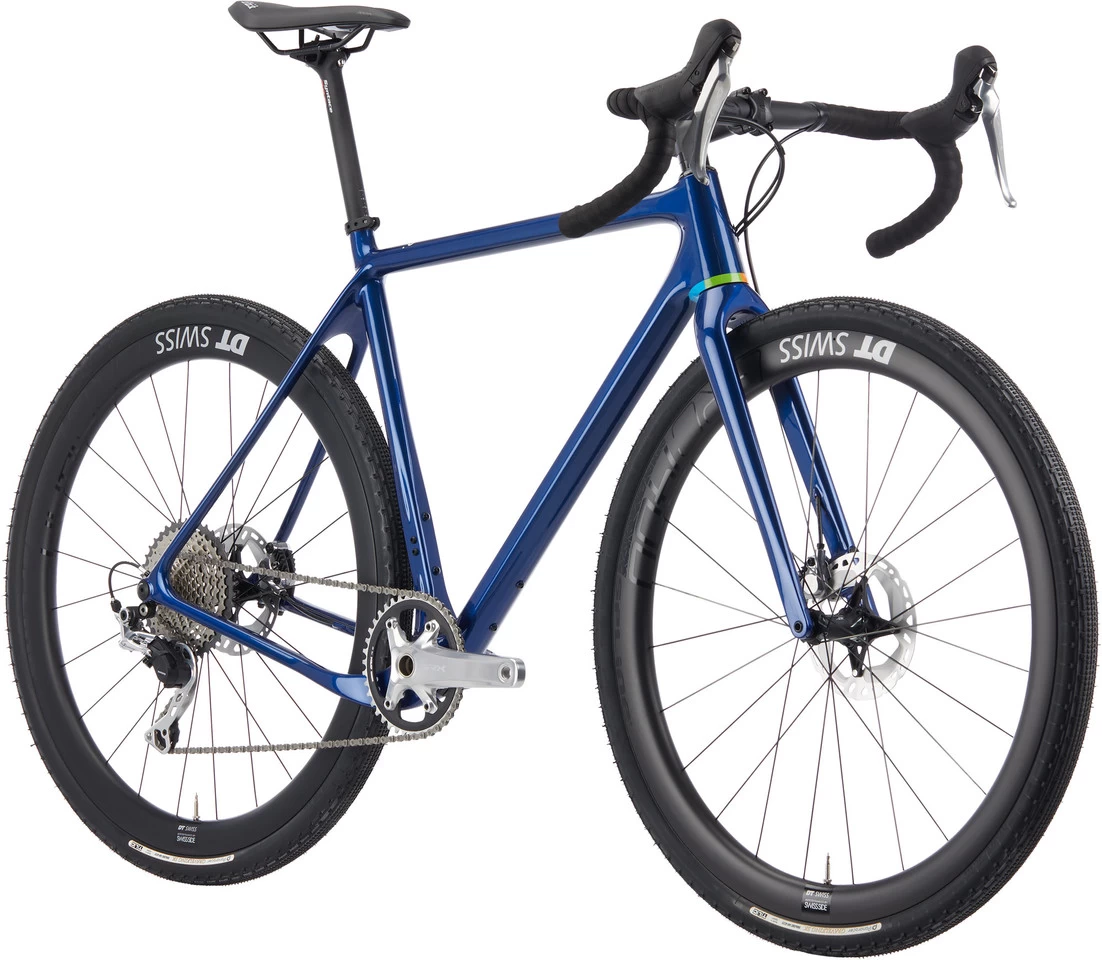

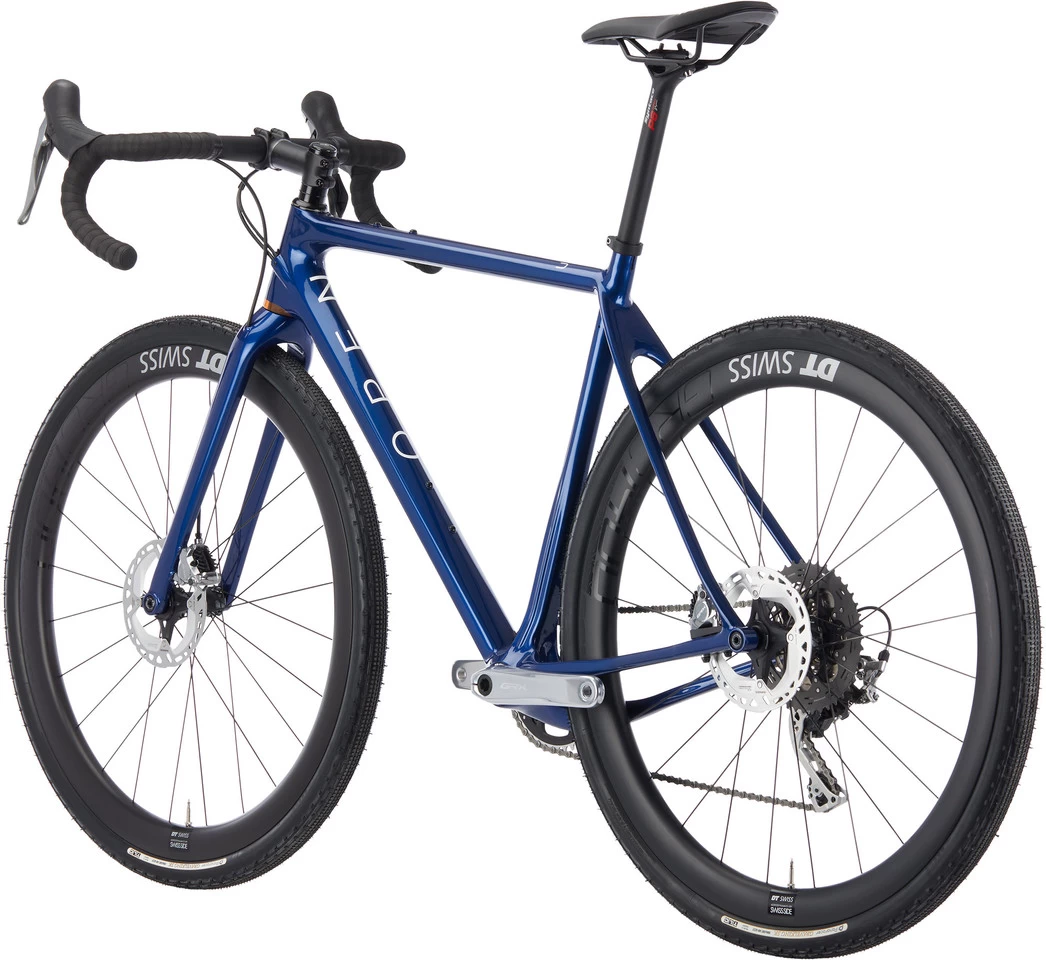

NEW U.P. GRX Limited Edition Gravel Bike

The NEW U.P. GRX Limited Edition gravel bike by OPEN with a classic look for big adventures

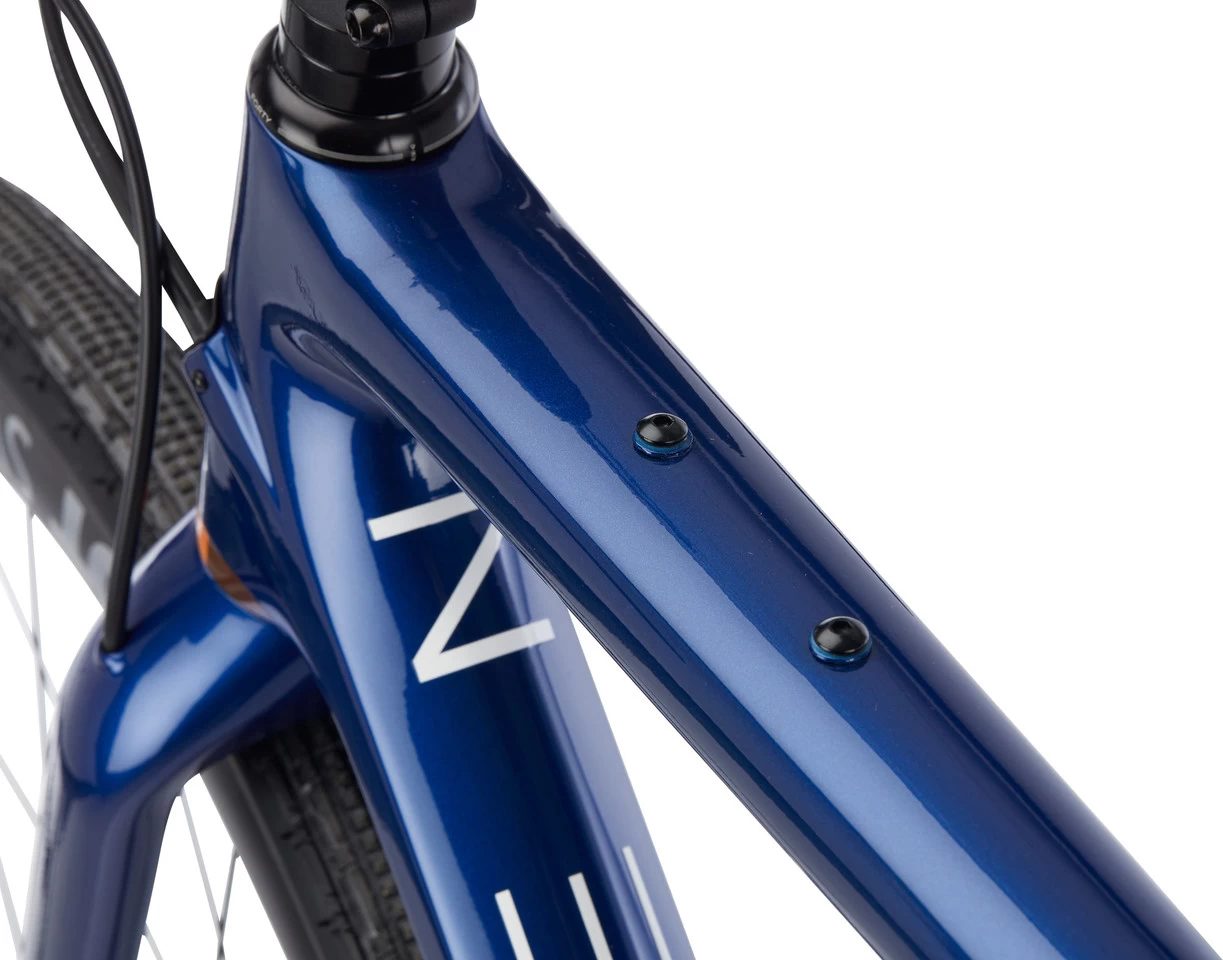

The NEW U.P. GRX Limited Edition gravel bike is equipped with the limited edition silver Shimano GRX drivetrain. Together with the exclusively blue-painted carbon frameset, the Japanese cycling giant Shimano is given the honour it deserves.

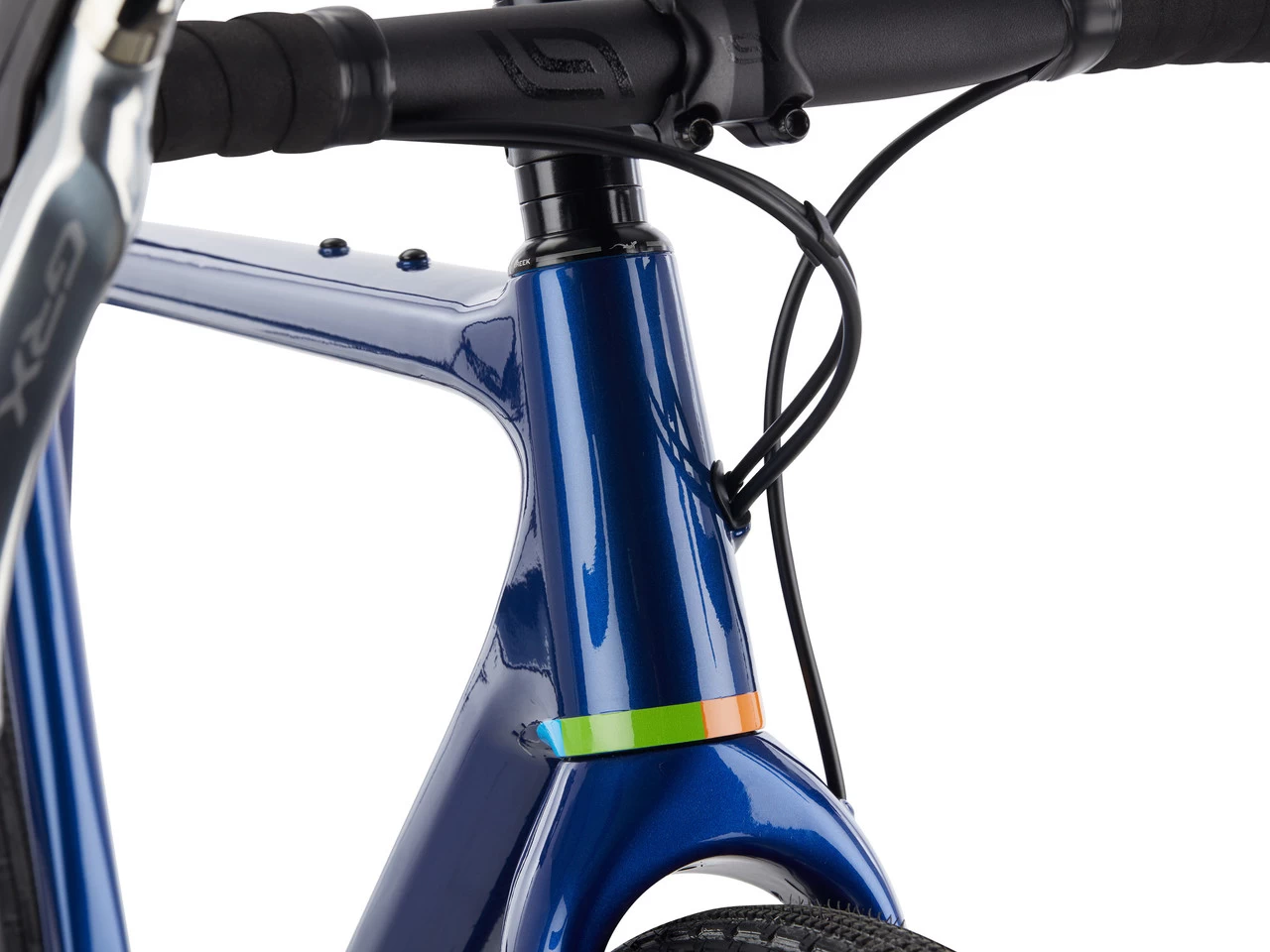

The silver edition of the Shimano GRX-800 series is in no way inferior to the black version in terms of performance and stability, but also gives your bike a classic look reminiscent of old steel bikes. At the same time, the bike impresses with its streamlined look thanks to internal cable routing.

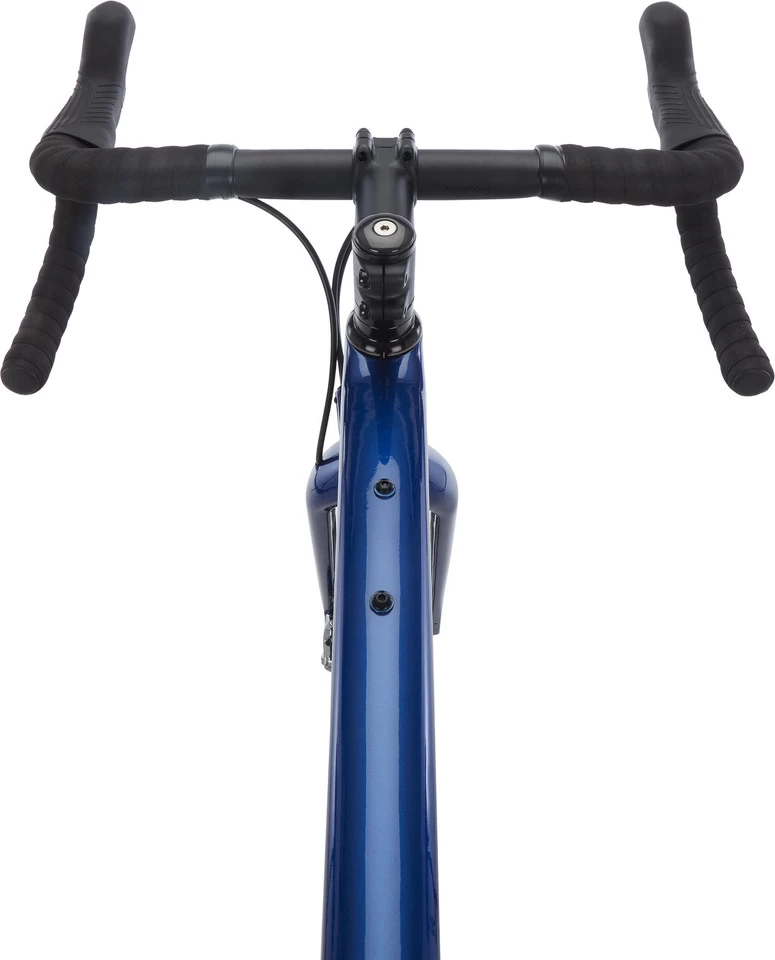

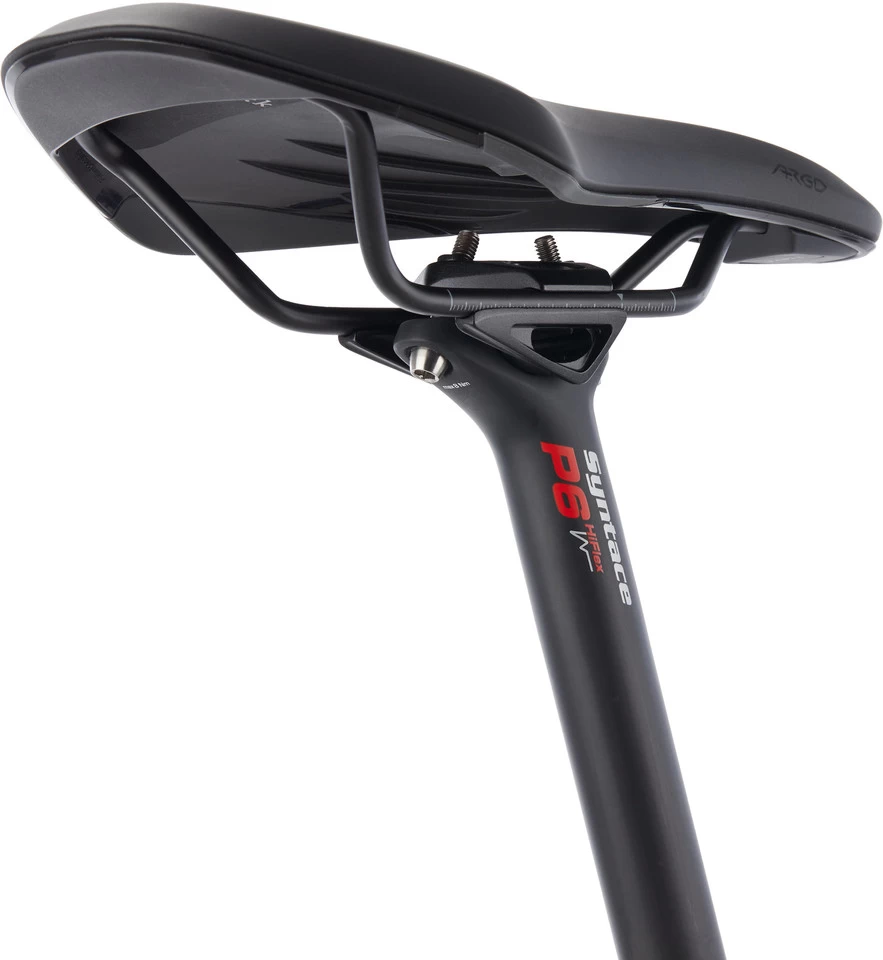

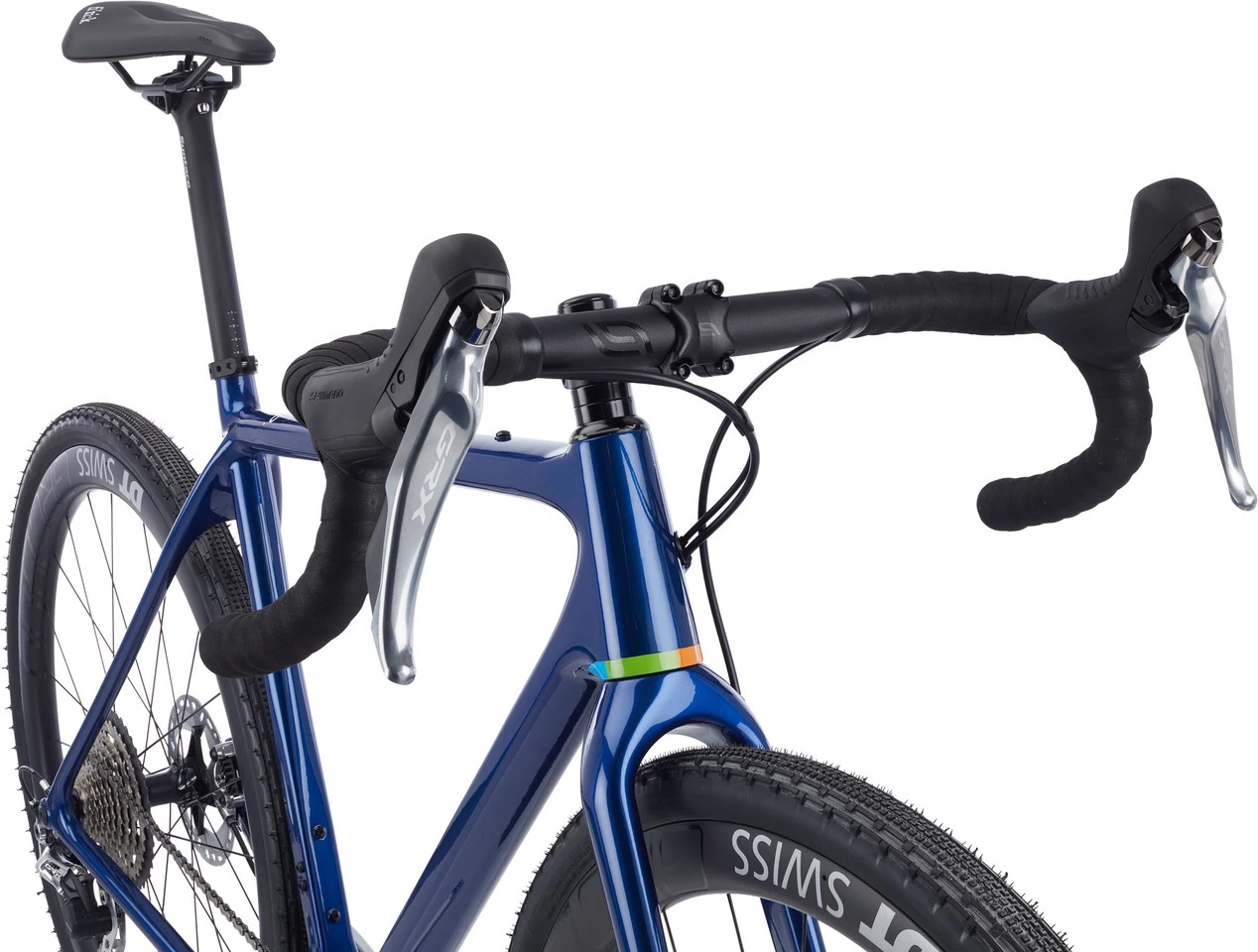

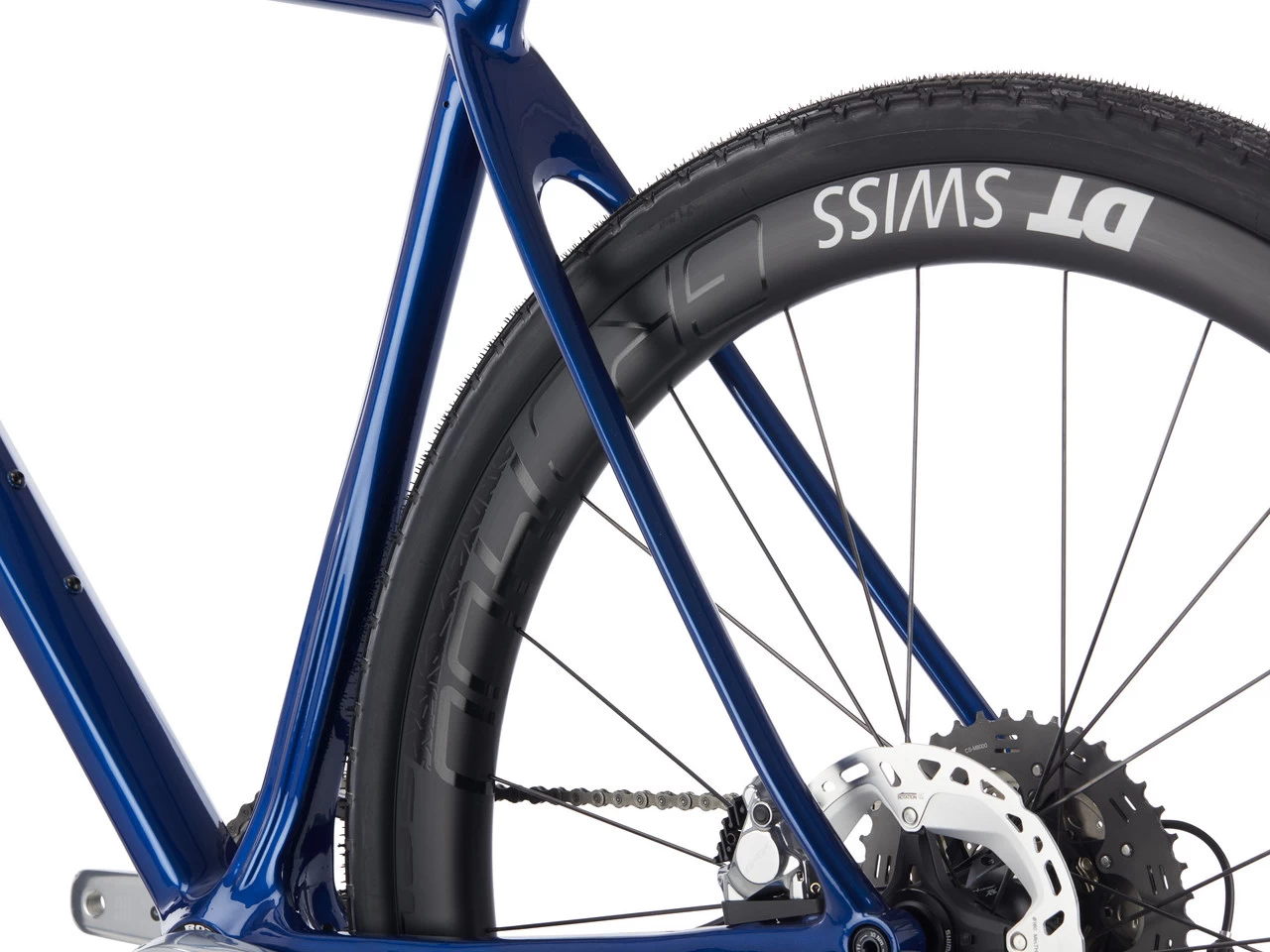

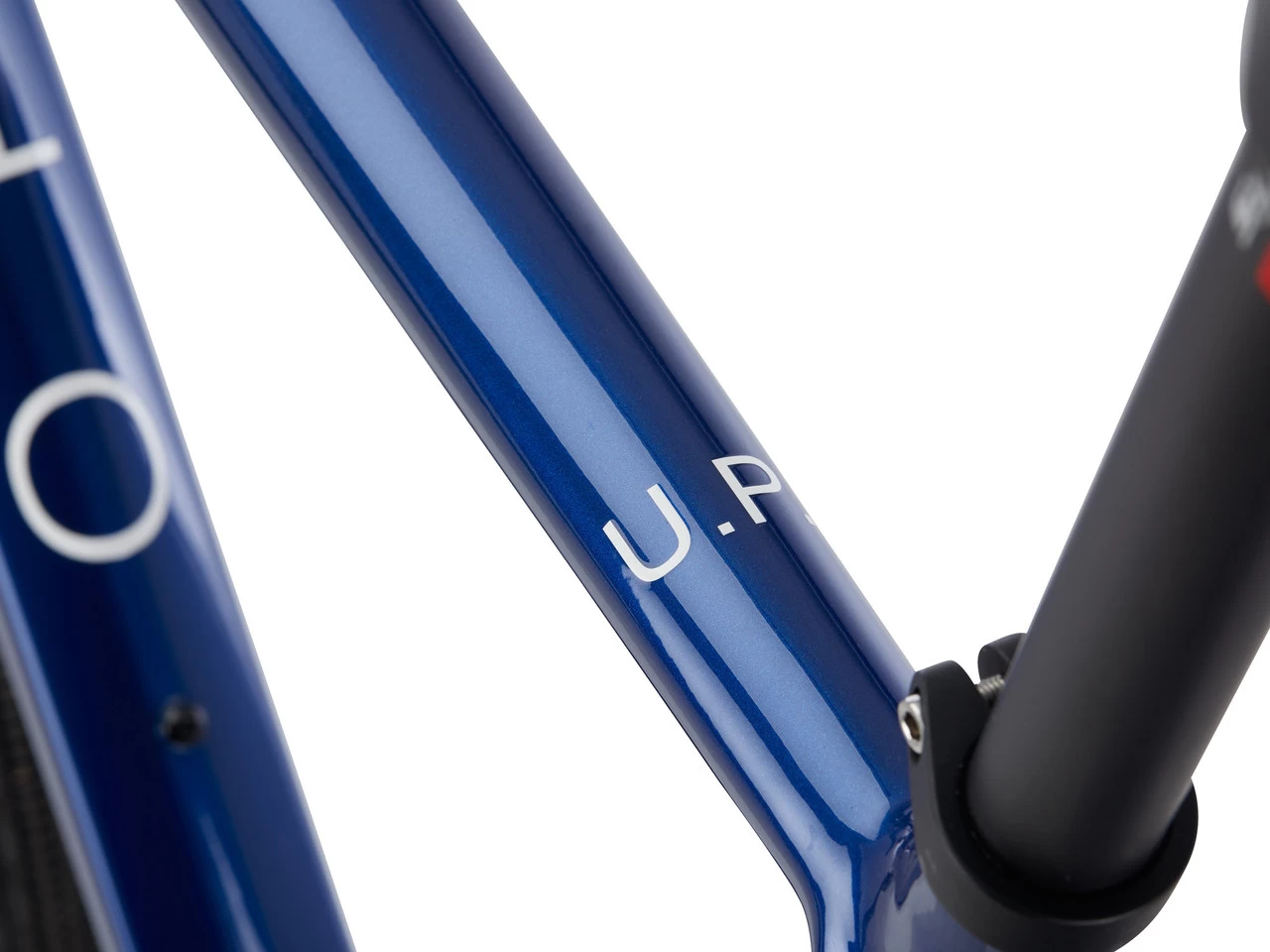

With GRC1400 carbon wheels from DT Swiss and the proven Panaracer GravelKing SK TLC folding tyres, the bike has a high-performance chassis for gravel trails of all kinds, which you can use both with tubes and tubeless. The Syntace P6 seatpost dampens vibrations while you continue to convert your power into propulsion from the Fizik Terra Argo X5 gravel saddle. The gravel-oriented cockpit by LEVELNINE is particularly impressive thanks to the handlebar with a full 16° flare, which allows you to keep control of your bike even on rough sections.

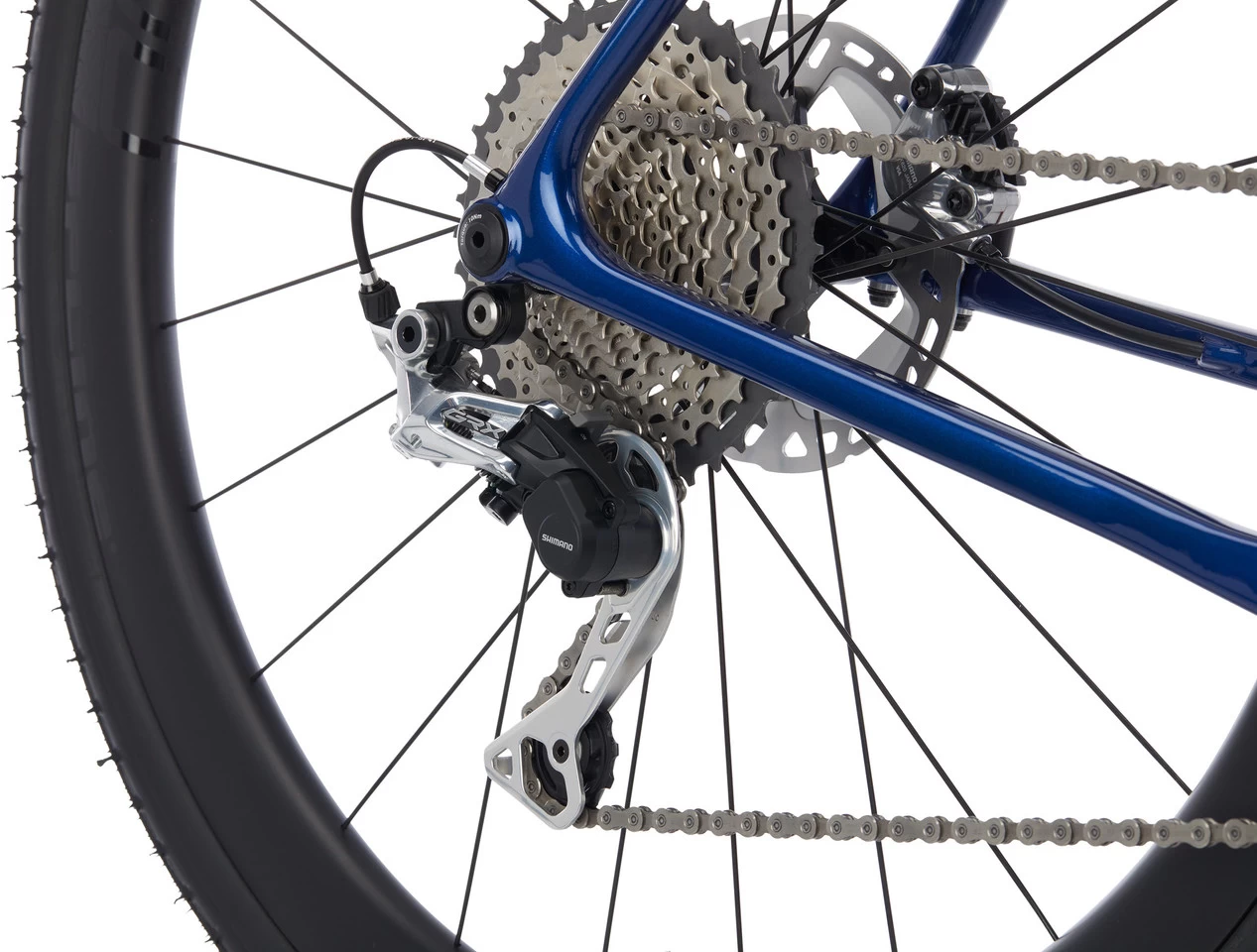

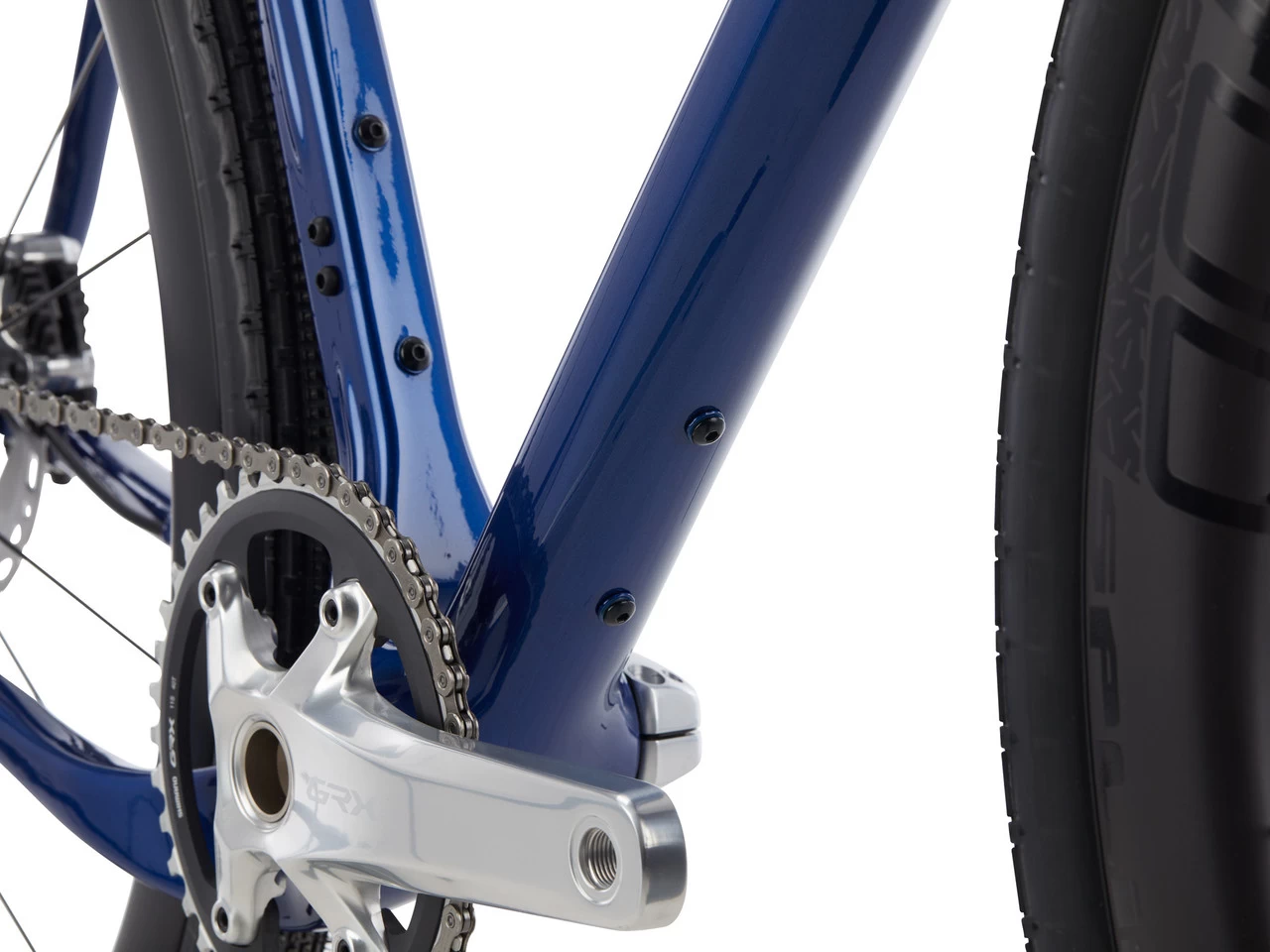

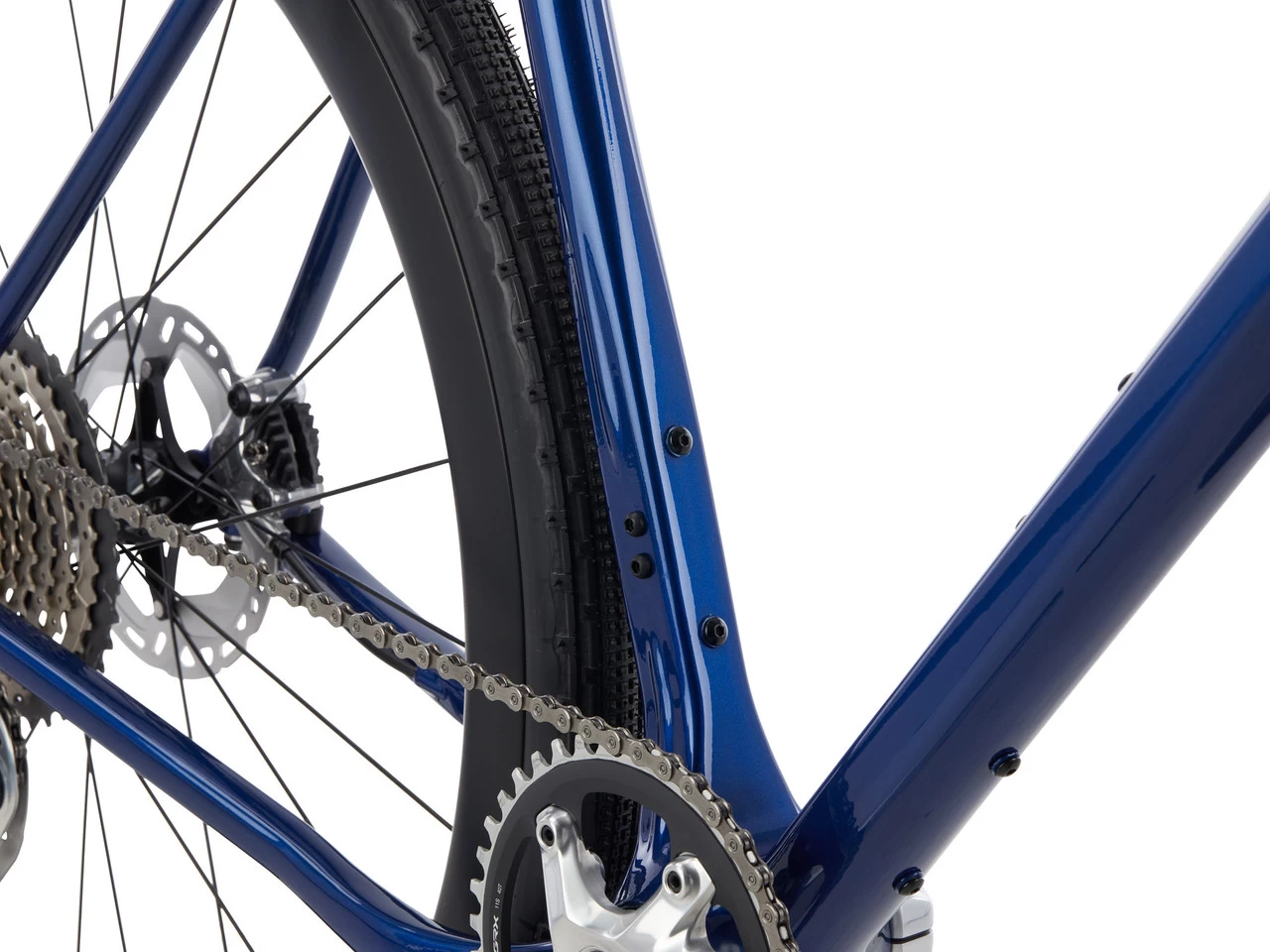

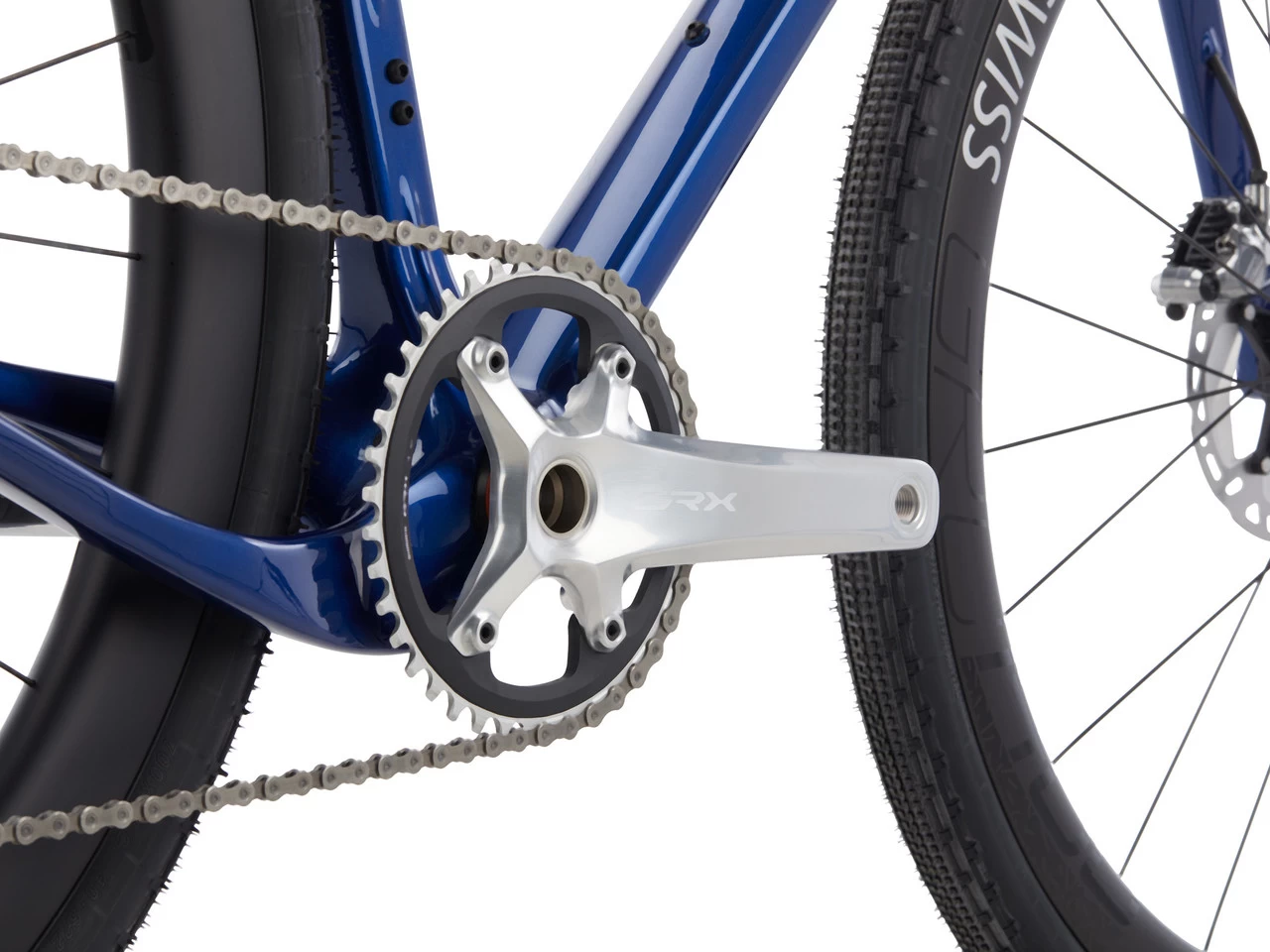

The heart of the drivetrain is the particularly light Shimano Hollowtech crank. With 40 teeth on the chainring and a 11-42 cassette, you can reach high speeds on straight stretches, but you also won’t have any issues on steeper inclines or longer climbs.
Are you looking for style and speed on the world’s gravel paths? Then don’t pass up the chance to own a bike from this limited special series!

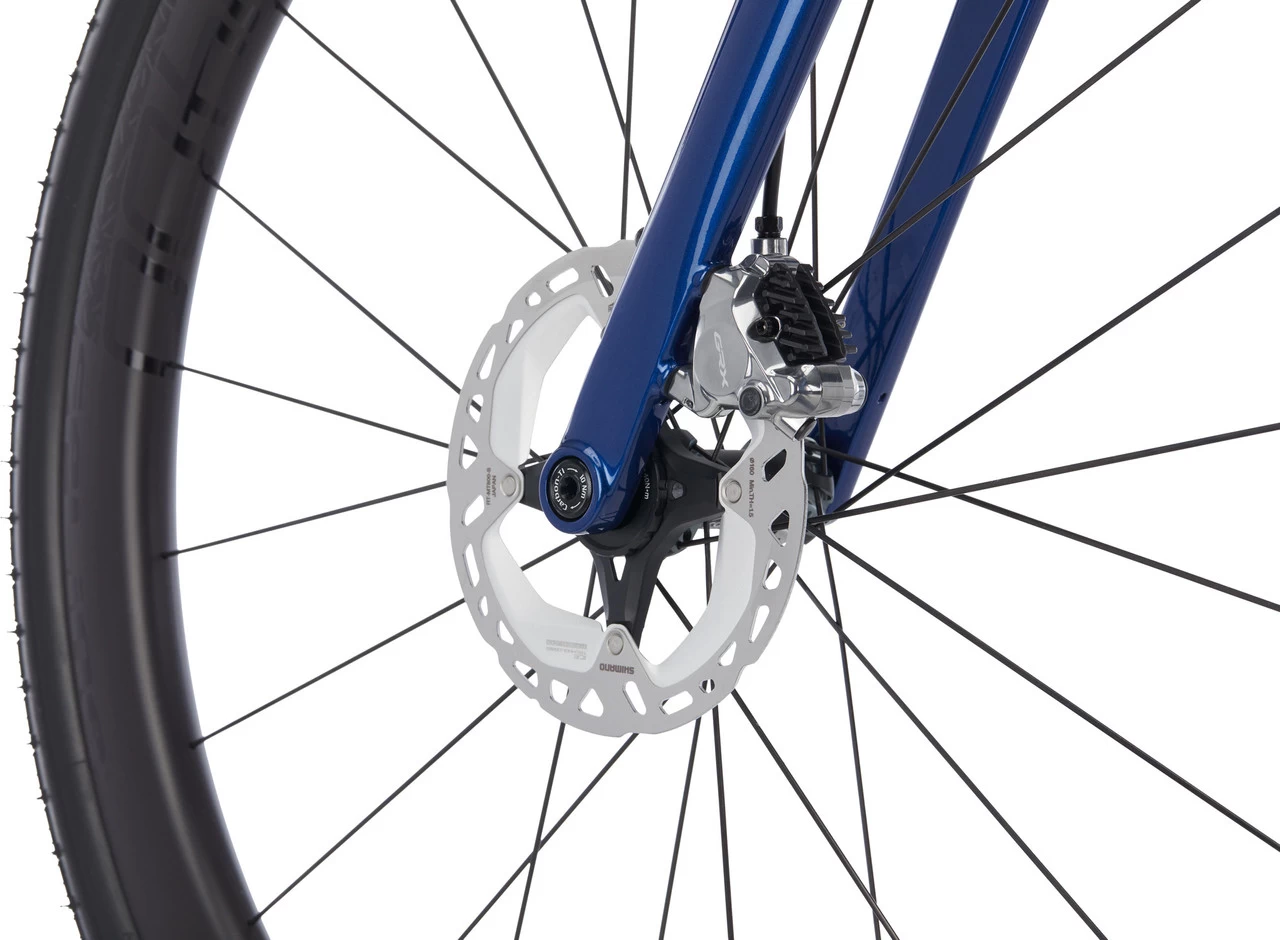

Specifications:Application:GravelWheel Size:28″Sizes:S, M, L, XLFrame Material:carbon (HFX)Fork Material:carbon (HFX)Components:Frame:OPEN NEW U.P.Fork:OPEN U-TurnStem:LEVELNINE Universal 31.8Handlebars:LEVELNINE Gravel Di2 31.8Headset:Cane Creek, IS42/28.6 – IS52/40 (top to bottom)Seatpost:Syntace P6 Carbon HiFlex, 400 mm length, 27.2 mm diameter, 0 mm setbackSaddle:Fizik Terra Argo X5, 150 mmCrank:Shimano GRX FC-RX810-1 Hollowtech II LTD, silver, 40 teethPedals:noneBrakes:Shimano GRX BR-RX810 LTDShift/Brake lever:Shimano GRX ST-RX810 LTD / BL-RX810 LTDRear Derailleur:Shimano GRX RD-RX812 LTD, 11-speed, silver, longCassette:Shimano XT CS-M8000, 11-speed, silver, 11-42Chain:Shimano CN-HG701-11, silverWheels:DT Swiss GRC 1400 Spline 28″ Center Lock Disc, black, front 12×100 + rear 12×142, ShimanoTyres:Panaracer GravelKing SK TLC, black, 40 mm, Continental Cross 32-47 SV / Presta 60 mmApproved For:Rotor Size (max.):160 mm (front wheel only 160 mm, for Shimano/SRAM: use caliper without adapter with 30 mm screws, for Campagnolo: use 140 mm caliper with 30 mm screws; rear wheel also 140 mm)Tyre Size (max.):27.5 x 2.1″ , 40-622 (700x40c)Chainrings:1-speed, 2-speedChainring Size (max.):1x 50 T, 1x 46 T (SRAM), 2x 50-36 TFeatures:gravel bike with limited edition Shimano GRX drivetrain in silvercompletely internal cable routinggravel wheelset from DT Swiss, tubeless readyP6 carbon seatpostLEVELNINE gravel handlebars with 16° flare, 122 mm drop and 78 mm reachGeometry:S:
Recommended Height:157 cm – 170 cmStack:522 mmReach:365 mmTop Tube Length:528 mmSeat Tube Length:520 mmHead tube angle:69.5°Seat tube angle:72.5°Chainstay Length:420 mmBB Drop:70 mmHead Tube Length:105 mmWheelbase:1002 mmStandover Height:743 mmStem Length:75 mmHandlebar Width:42 cmCrank Arm Length:170.0 mm
M:
Recommended Height:168 cm – 180 cmStack:551 mmReach:376 mmTop Tube Length:549 mmSeat Tube Length:520 mmHead tube angle:71.0°Seat tube angle:72.5°Chainstay Length:420 mmBB Drop:70 mmHead Tube Length:130 mmWheelbase:1008 mmStandover Height:767 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:172.5 mm
L:
Recommended Height:178 cm – 191 cmStack:580 mmReach:387 mmTop Tube Length:570 mmSeat Tube Length:560 mmHead tube angle:72.5°Seat tube angle:72.5°Chainstay Length:420 mmBB Drop:70 mmHead Tube Length:155 mmWheelbase:1014 mmStandover Height:791 mmStem Length:100 mmHandlebar Width:46 cmCrank Arm Length:172.5 mm
XL:
Recommended Height:188 cm – 201 cmStack:604 mmReach:401 mmTop Tube Length:591 mmSeat Tube Length:580 mmHead tube angle:72.5°Seat tube angle:72.5°Chainstay Length:420 mmBB Drop:70 mmHead Tube Length:180 mmWheelbase:1032 mmStandover Height:815 mmStem Length:110 mmHandlebar Width:48 cmCrank Arm Length:175.0 mmManufacturer Numbers:S:OPENltdShimano_SM:OPENltdShimano_ML:OPENltdShimano_LXL:OPENltdShimano_XLShipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x OPEN NEW U.P. GRX Ltd. Edition gravel bike
