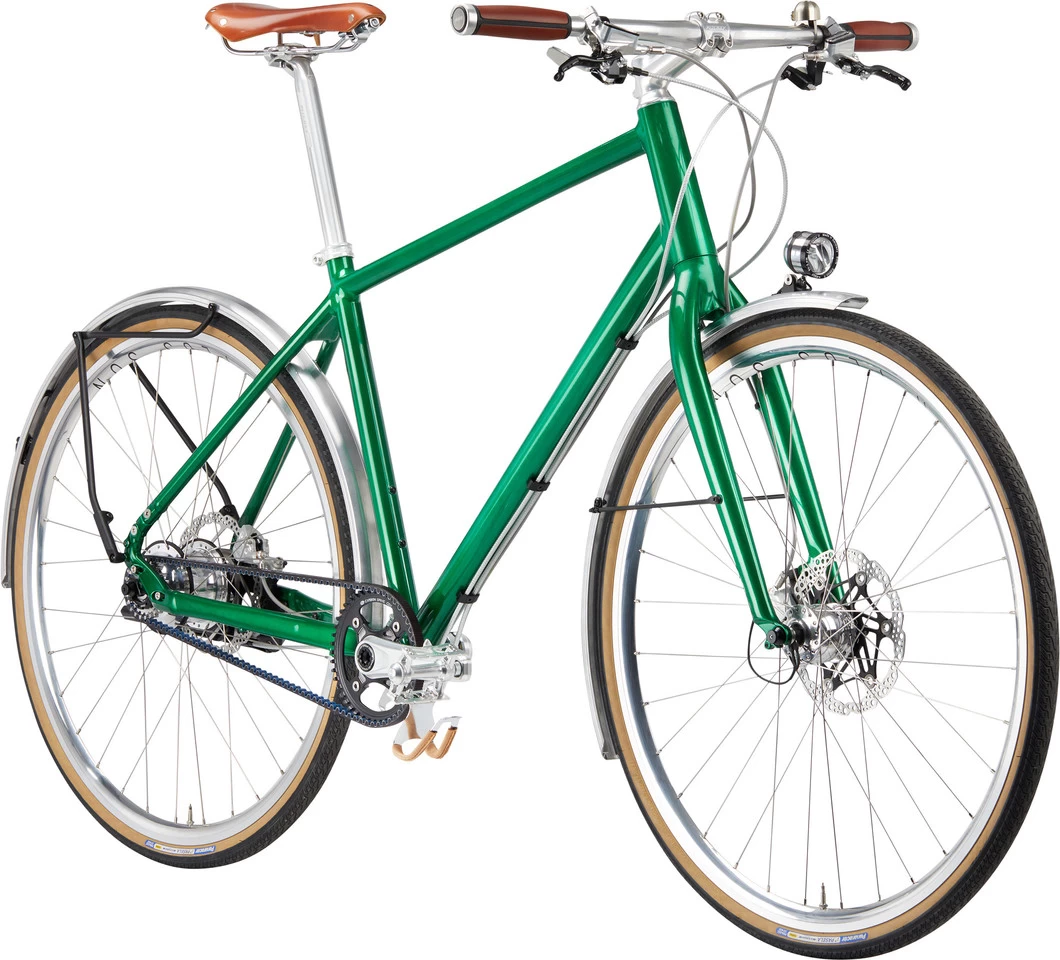

Modell 1 Special Edition Men’s Bike

The Modell 1 Commuter Bike by Vortrieb in a limited special edition
The Vortrieb Modell 1 Special Edition men’s bike is the ultimate bike for commuting, city rides and everyday use. This is a limited edition of the first complete in-house development under our Vortrieb brand.
The high-quality components are impressive: a Rohloff 14-speed internally geared hub with Gates belt drive, brakes by Hope, lighting by SON and Supernova, a cockpit by Ritchey and contact points by Brooks and Ergon.
Durability, low-maintenance and sportiness are the hallmarks of Vortrieb’s urban bikes. The Special Edition pushes the already outstanding features of the Model 1 to the peak. The frame is stiff and effectively converts every pedal revolution into pure power. The rigid fork and wide handlebars ensure reactive handling. The brakes work phenomenally. The seating position is sporty and central. Here we remain true to ourselves as well as the brand’s name – and that is simply consistent.
Vortrieb is part of the DNA of bike-components, as this brand has been under our roof for over 10 years. However, like everything with lasting value, it has to move forward with the times. This is why we have decided to focus on the increasingly relevant topic of local mobility and leisure activities. The Special Edition commemorates five years of the Model 1.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.

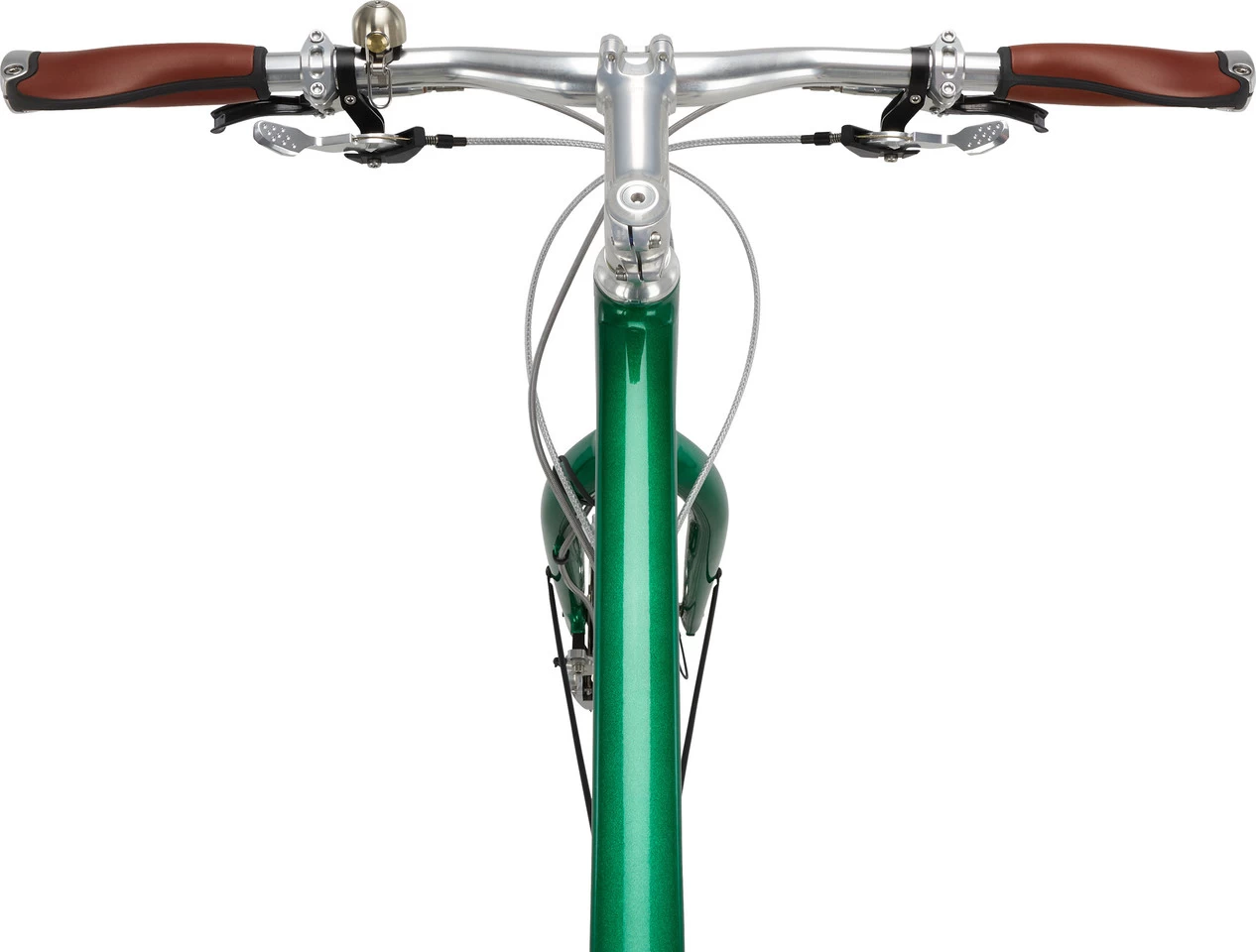

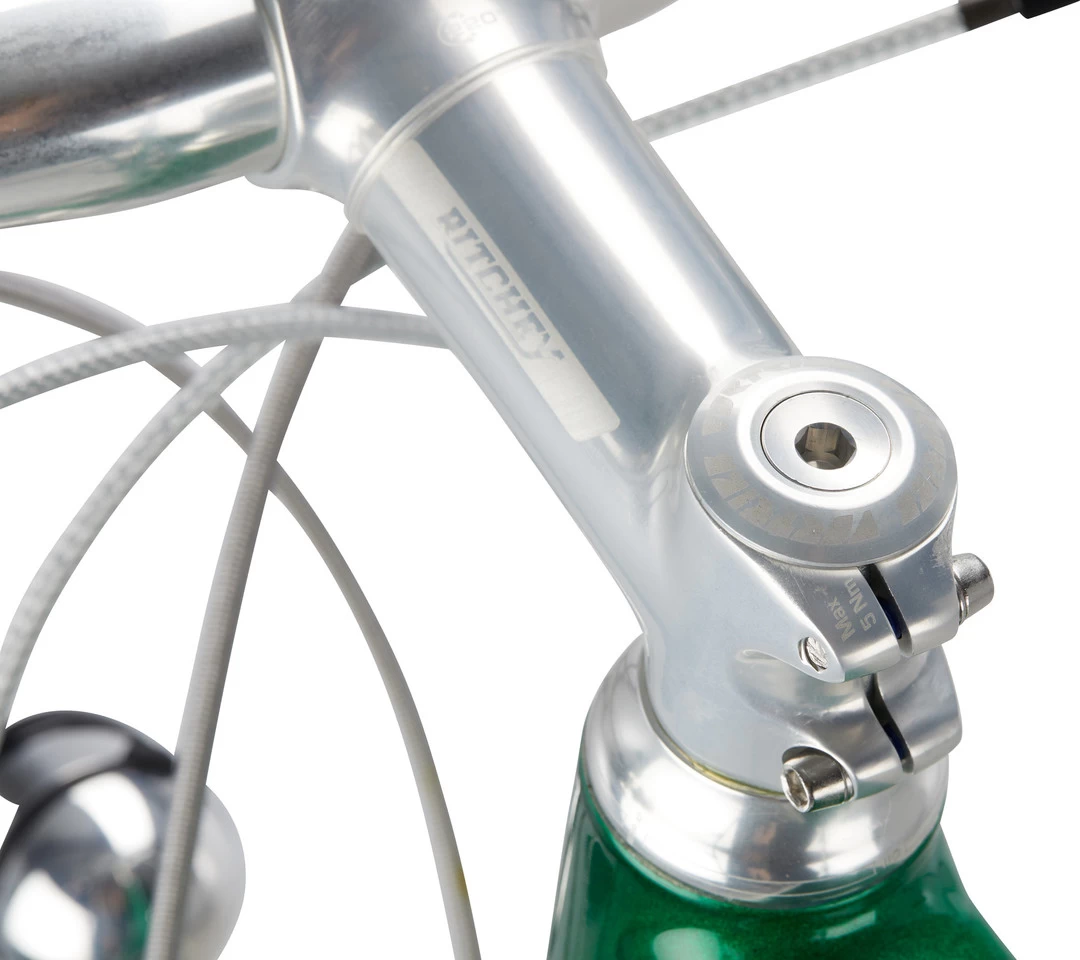

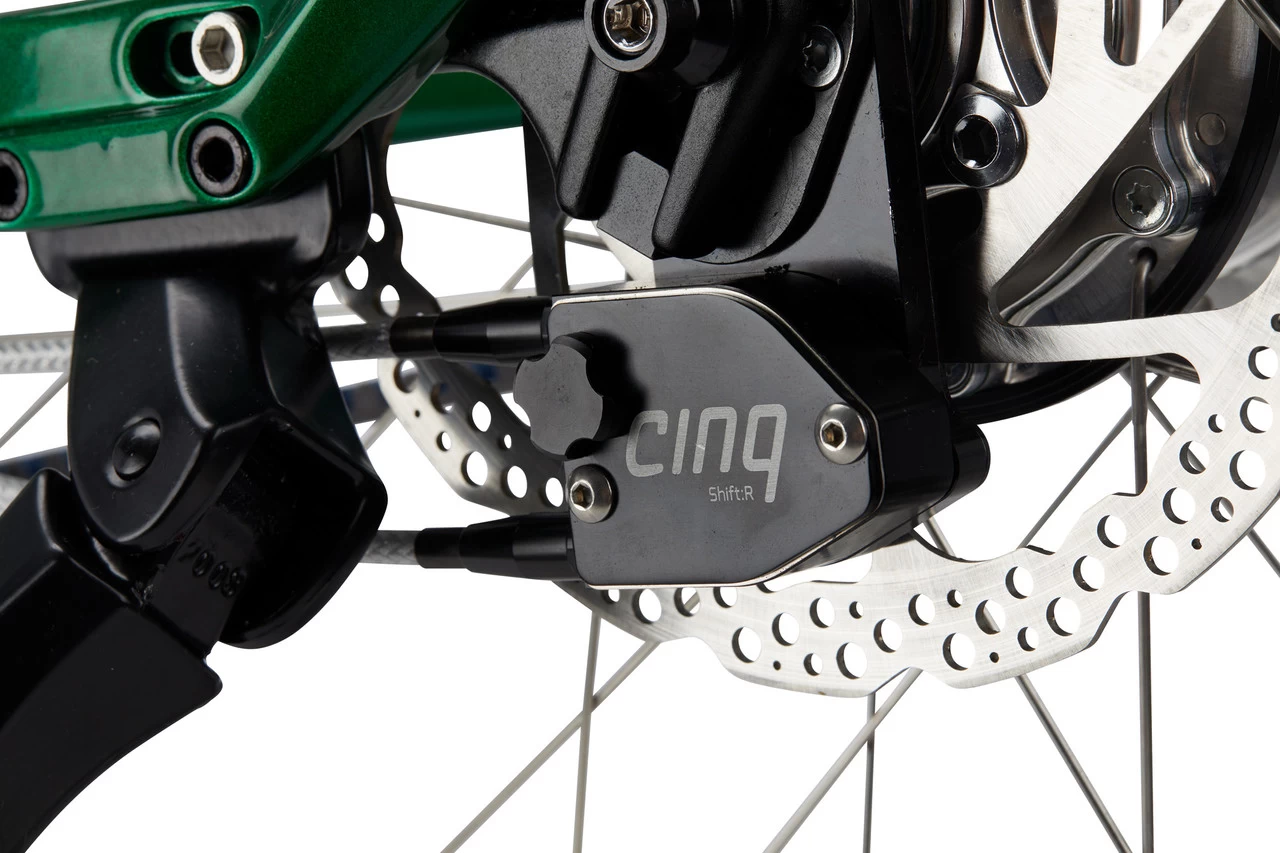

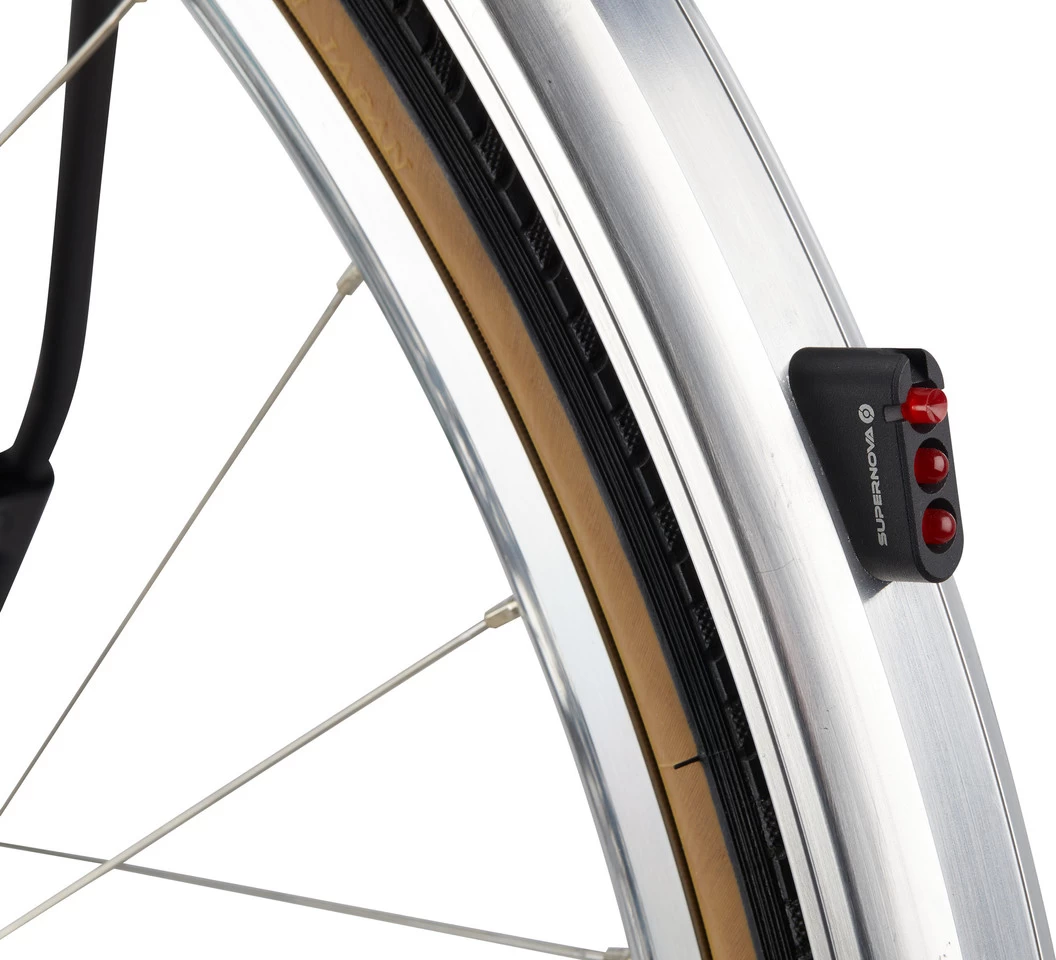

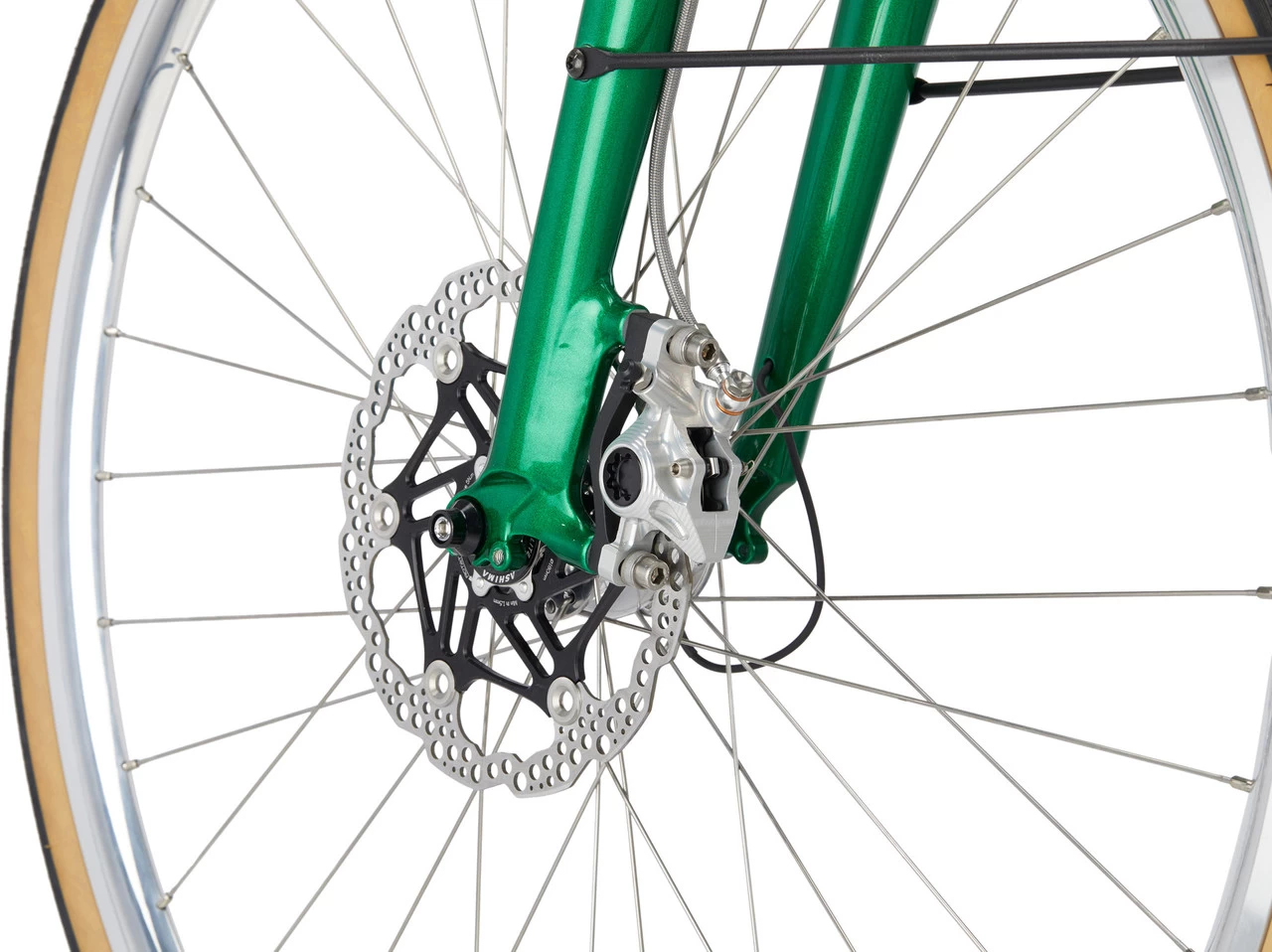

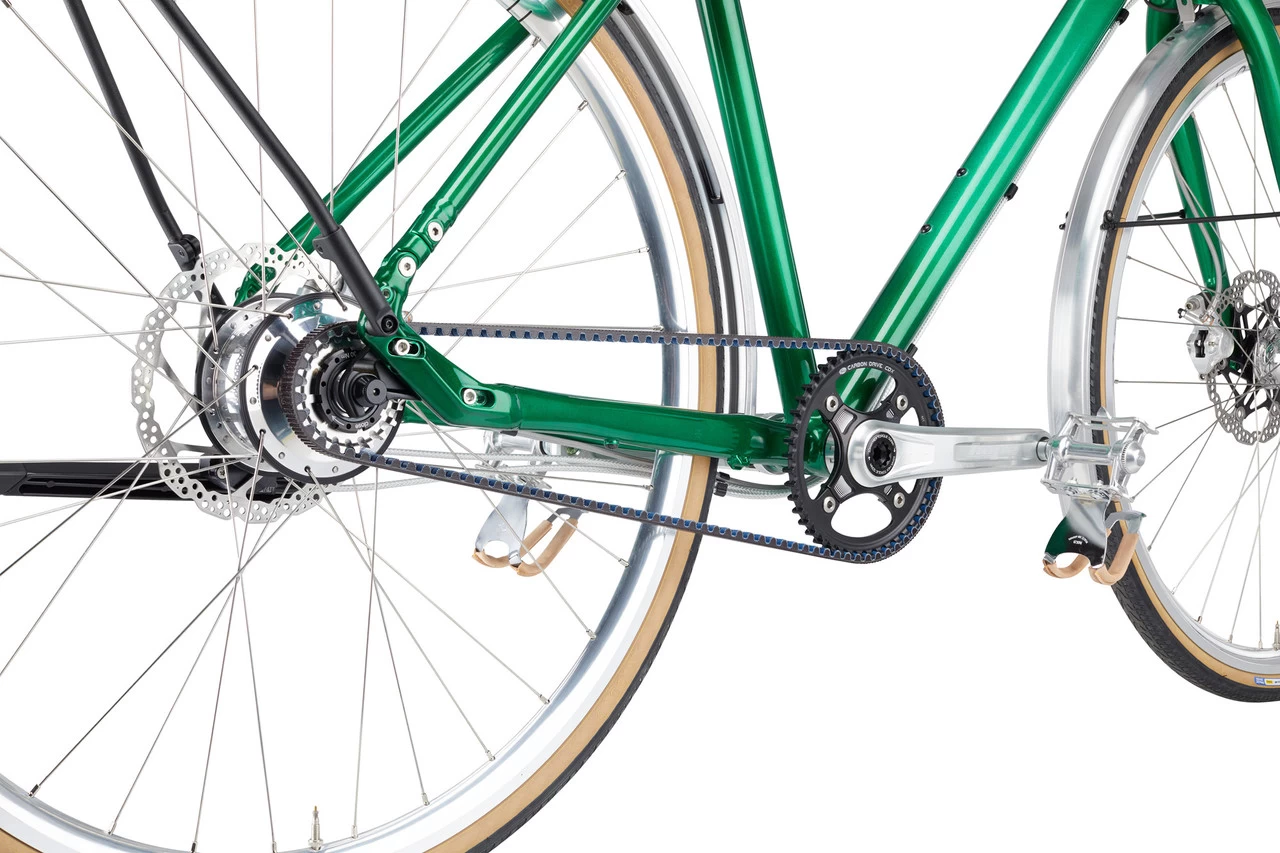

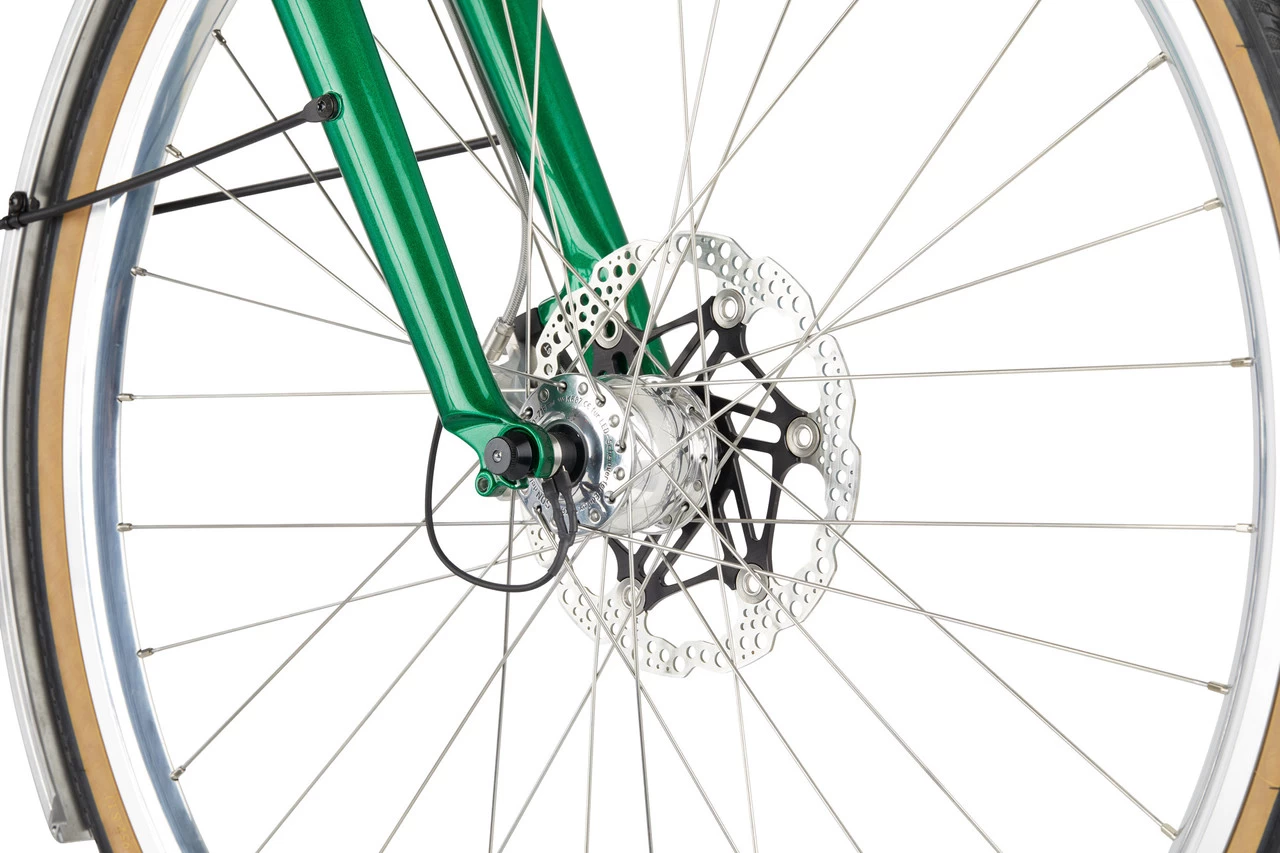

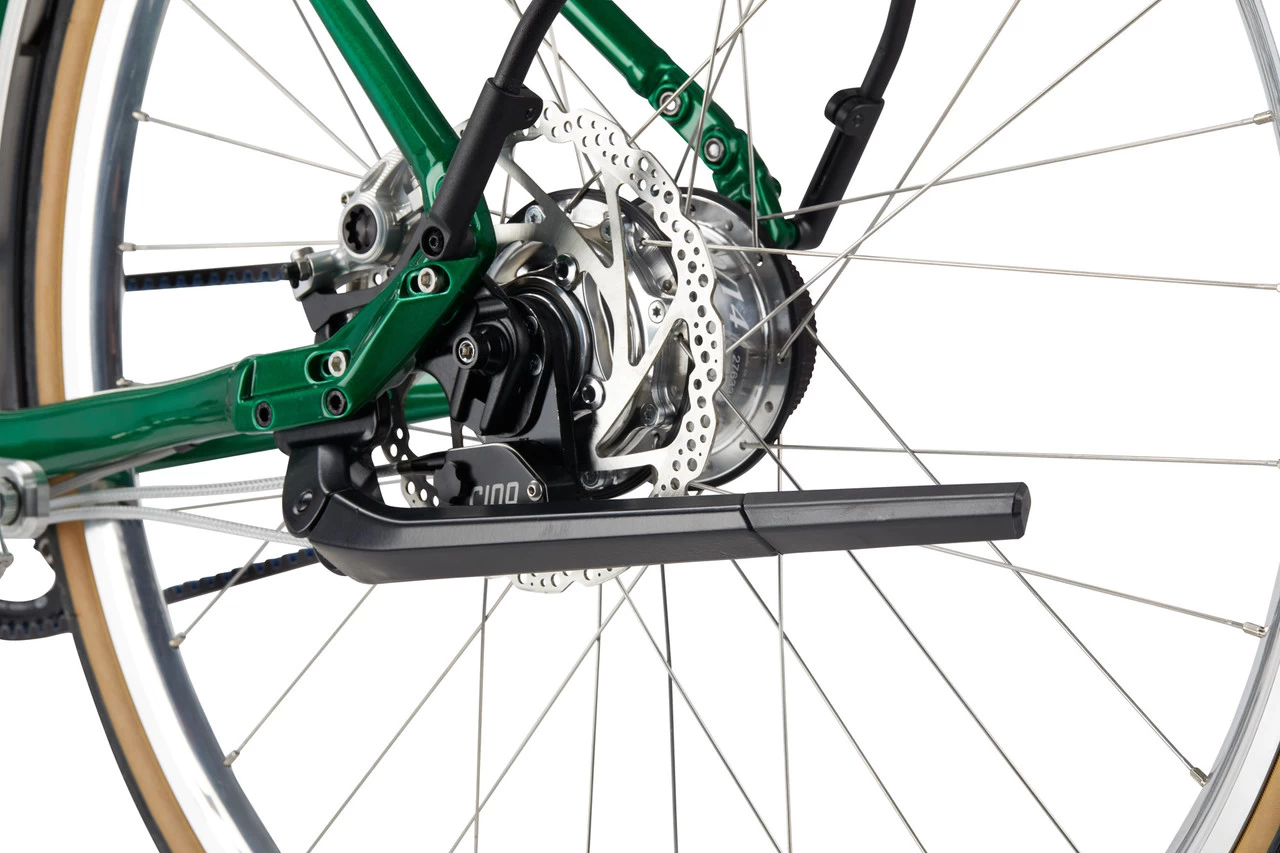

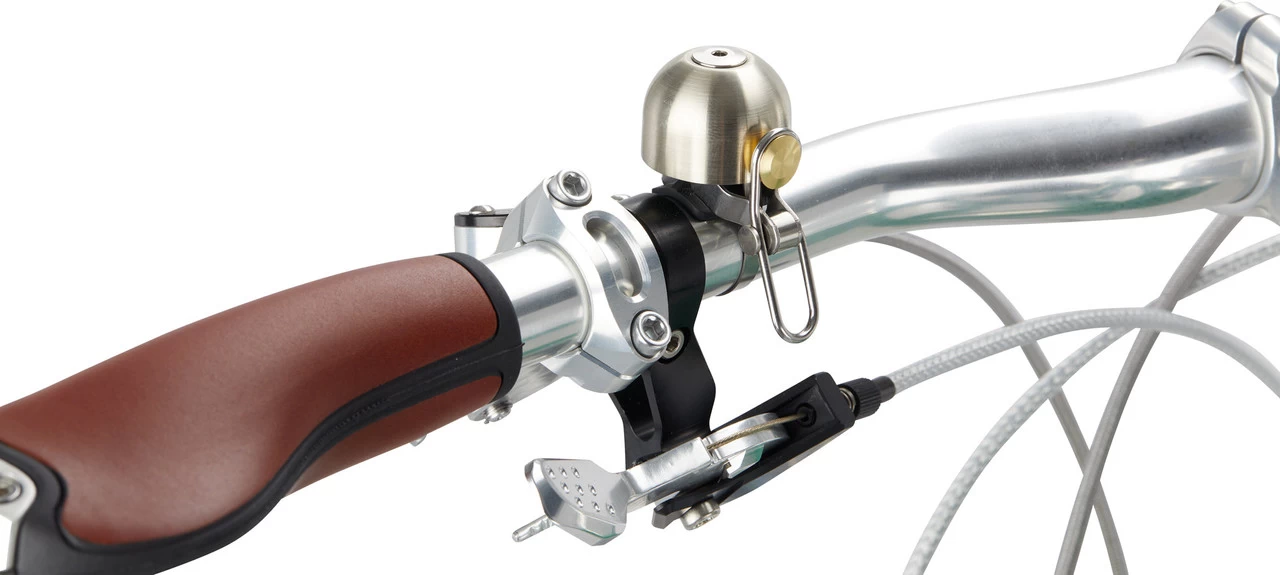

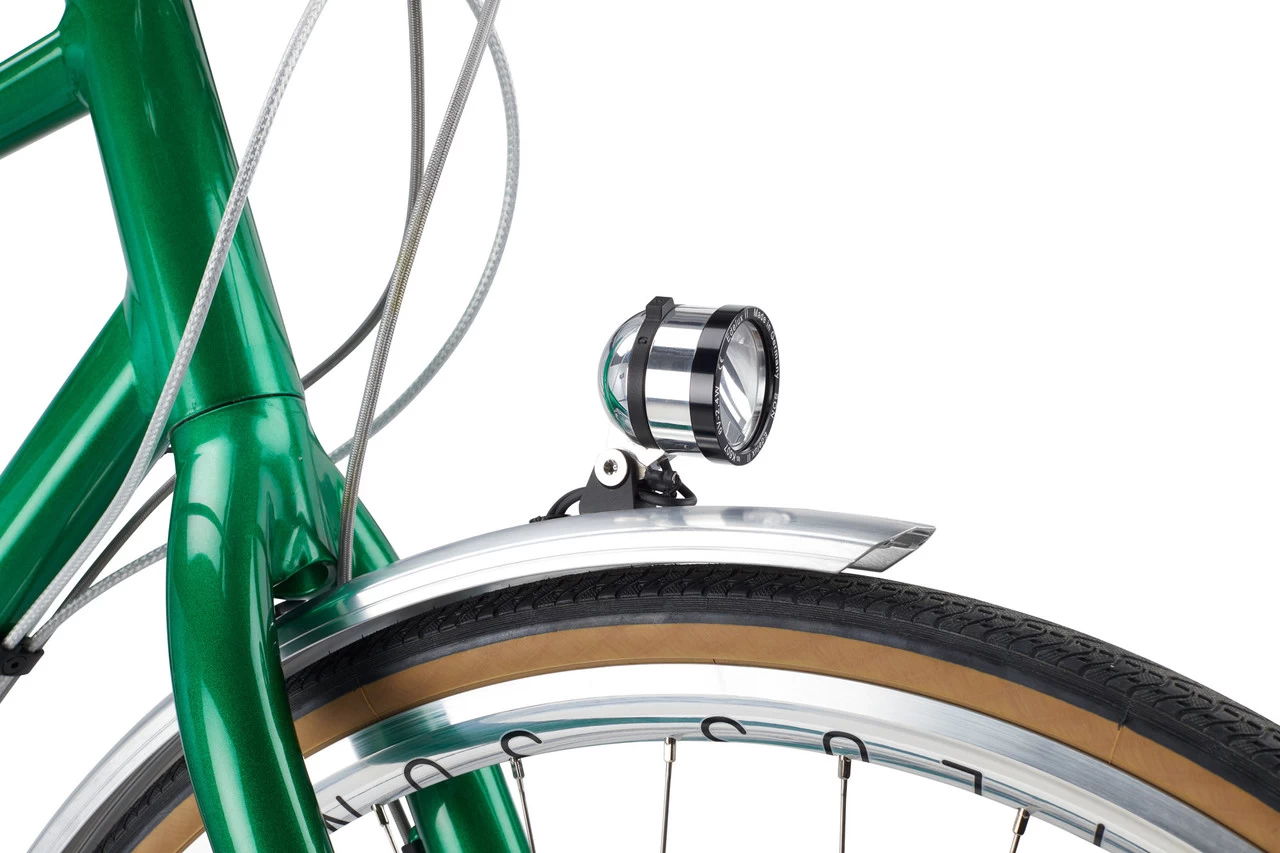

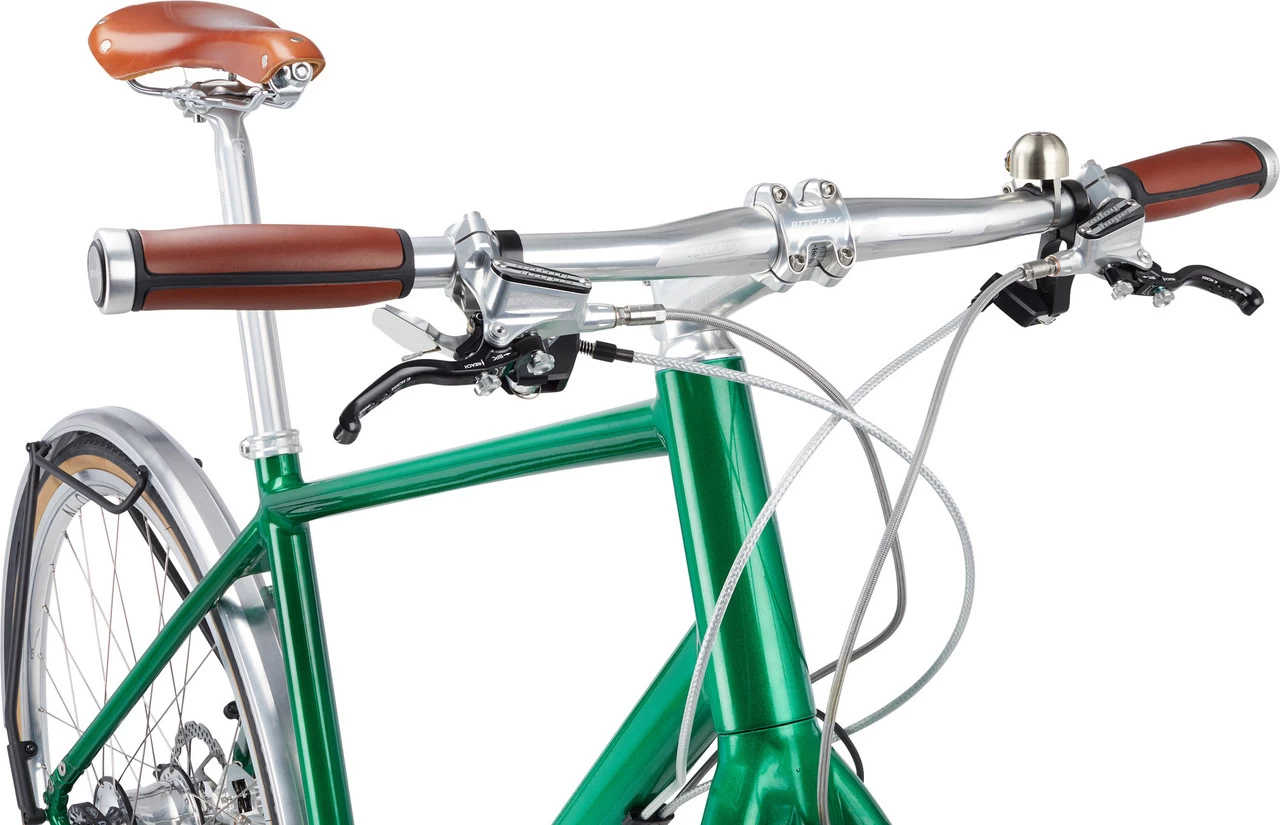

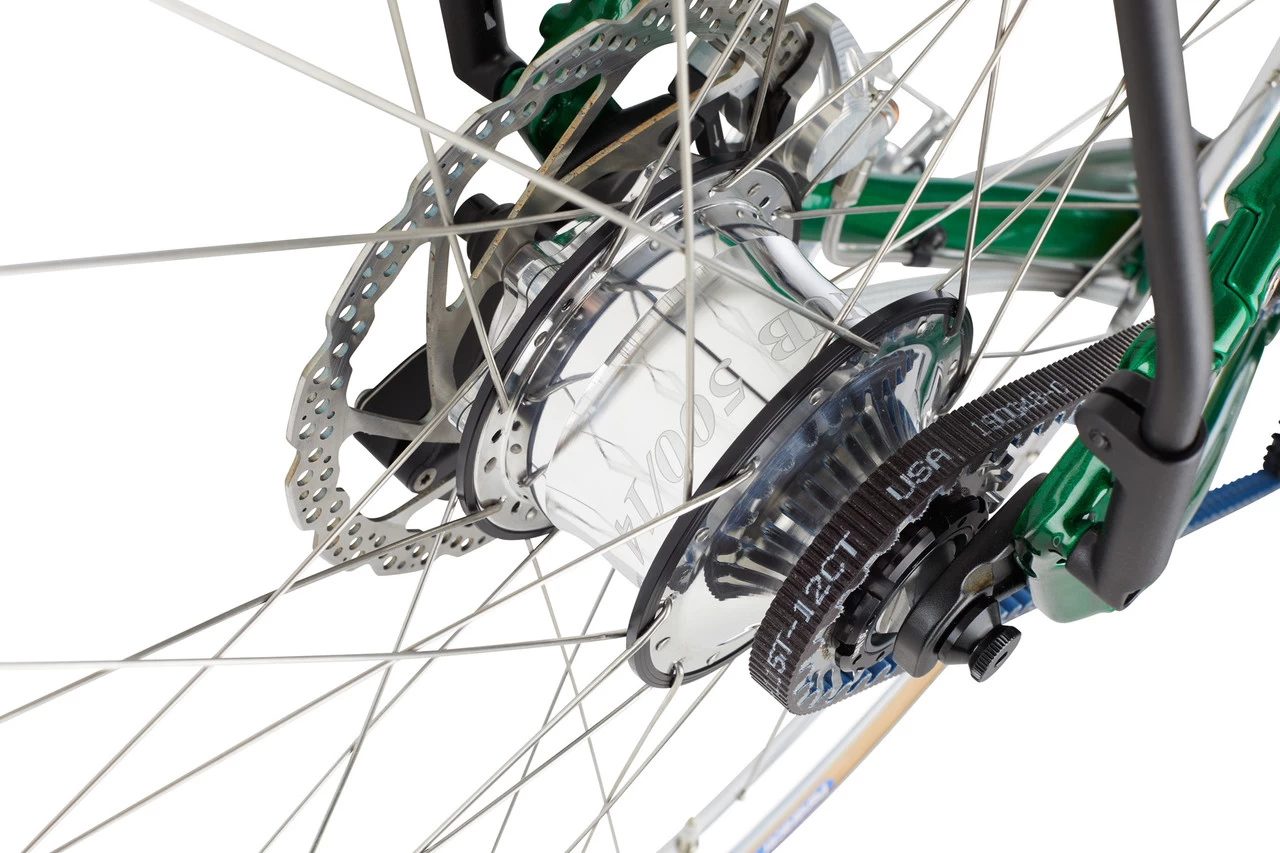

Specifications:Application:City & TouringWheel Size:28″Sizes:S, M, L, XLFrame Material:aluminium (6061)Fork Material:aluminium (6061)Components:Frame:Vortrieb Modell 1 Men’sFork:Vortrieb Modell 1 Straight rigid forkStem:Ritchey Classic C220Handlebars:Ritchey Classic Flat 660 mm x 10°Grips:Ergon GP1 Leather Handlebar GripsHeadset:Cane Creek 110 IS TallSeatpost:Ritchey Classic 27.2 x 350 mmSaddle:Brooks B15 Swallow Chrome SaddleCrank:Hope crank with Single Ring 1-speed Spider 104 mm and stainless steel bottom bracket for 30 mm axlePedals:MKS SYLVAN TOURING platform pedals with Half Clip Leather pedal hooksBrakes/Brake Levers:Hope Tech 2 X2 Disc Brake Steel FlexShift Lever:cinq Shift:R Rohloff gear lever set for flat barsDrivetrain:Gates CDX belt drive with front 46 T/rear 22 T belt drive sprocketsFenders:Racktime Wingee Aluminium w/ pannier railsFront Light:SON Edelux II LED front light with StVZO approvalRear Light:Supernova E3 Tail Light 2 for Wingee rear fenderKickstand:Vortrieb Special EditionRims:H+SON Archetype 28″ rimsSpokes:VortriebFront Hub:SON Delux Disc Centre Lock dynamo hubRear Hub:Rohloff Speedhub 500/14 CC DB PM 14-speedTyres:Panaracer Pasela ProTite 28″ folding tyreApproved For:Weight Limit:130 kg total weightRotor Size (max.):180 mm rear, 180 mm frontTyre Size (max.):32-622Features:high-quality frame finish: ground weld seams for clean, timeless design; environmentally friendly, robust powder coating for a high-end finishmaximum reliability and first-class: Rohloff Speedhub 14-speed internally geared hubs with belt drive are low-maintenance and quiettop-of-the-line equipment: SON and Supernova lighting, Ritchey, Ergon and Brooks attachments, Hope disc brakessporty riding characteristics: stiff and manoeuvrabledesign combined with practical value: Wingee fender/rack system can hold 8 kg per side, thus allowing for shopping or day tripsGeometry:S:
Recommended Height:160 – 172 cmSeat Tube Length:463 mmEffective Top Tube Length:570 mmHead Tube Length:170 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:75 mm
M:
Recommended Height:170 – 181 cmSeat Tube Length:477 mmEffective Top Tube Length:585 mmHead Tube Length:180 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:90 mm
L:
Recommended Height:179 – 190 cmSeat Tube Length:490 mmEffective Top Tube Length:605 mmHead Tube Length:180 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:100 mm
XL:
Recommended Height:from 188 cmSeat Tube Length:506 mmEffective Top Tube Length:620 mmHead Tube Length:200 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:110 mmShipping Notice:The shipment is sent pre-assembled by a forwarding agent. The delivery time is extended by 2-5 days, depending on the overall volume of orders. For individual consultation, please contact our customer service team.
Contents:1 x Vortrieb Modell 1 Special Edition Men’s Bike
