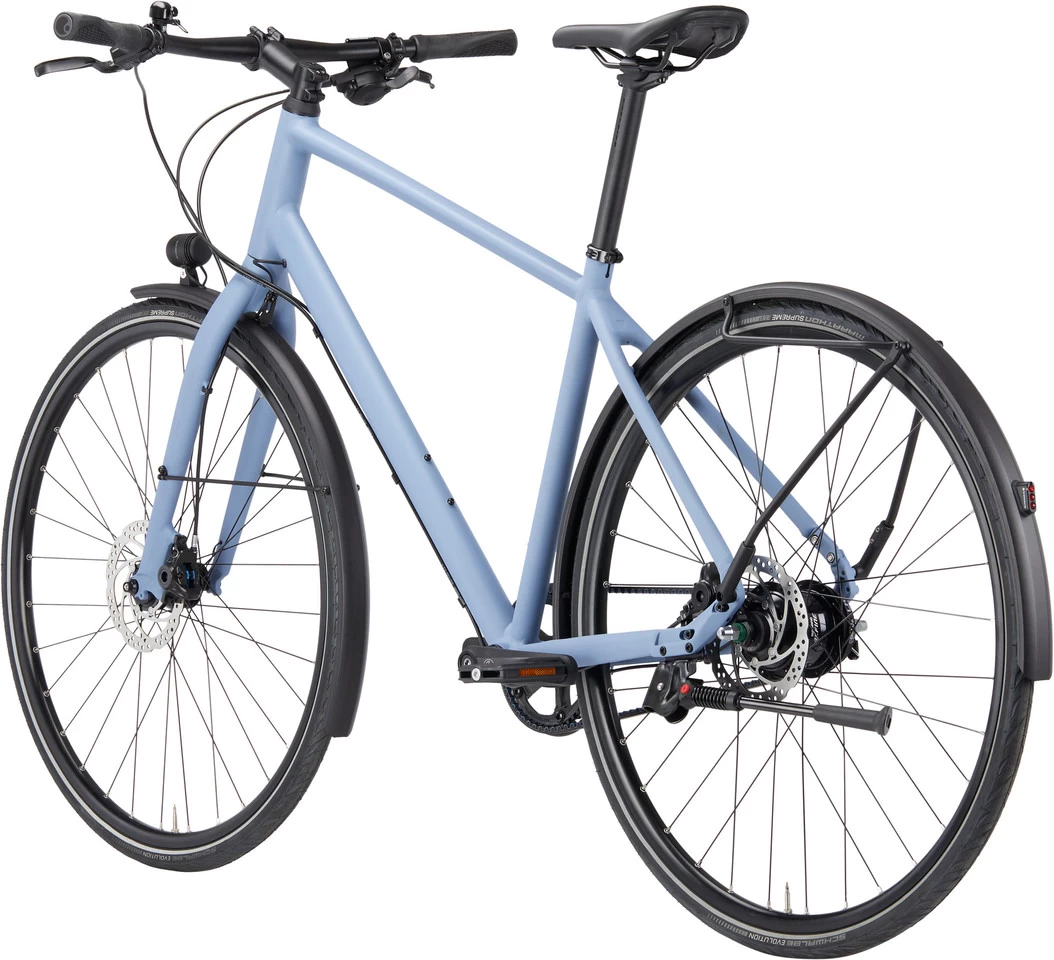

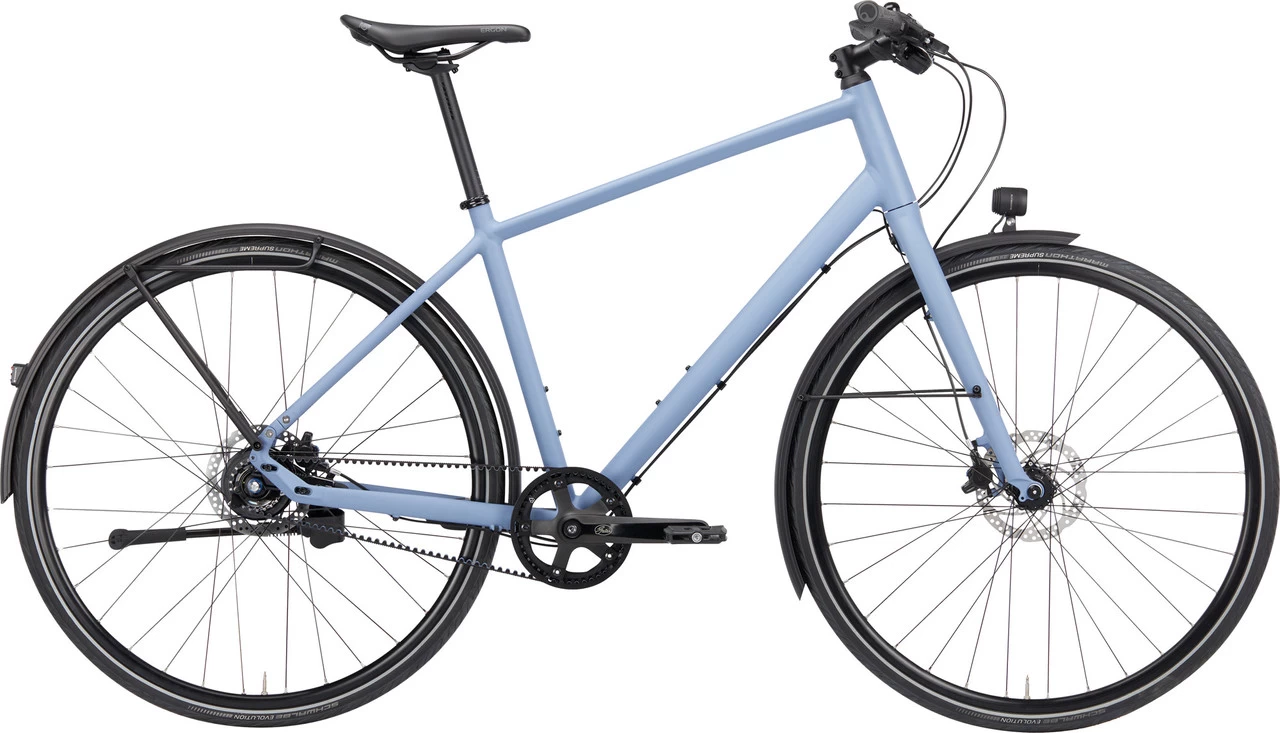

Modell 1 Men’s Bike

The Modell 1 Bike by Vortrieb – Future-oriented and at the same time suitable for everyday use

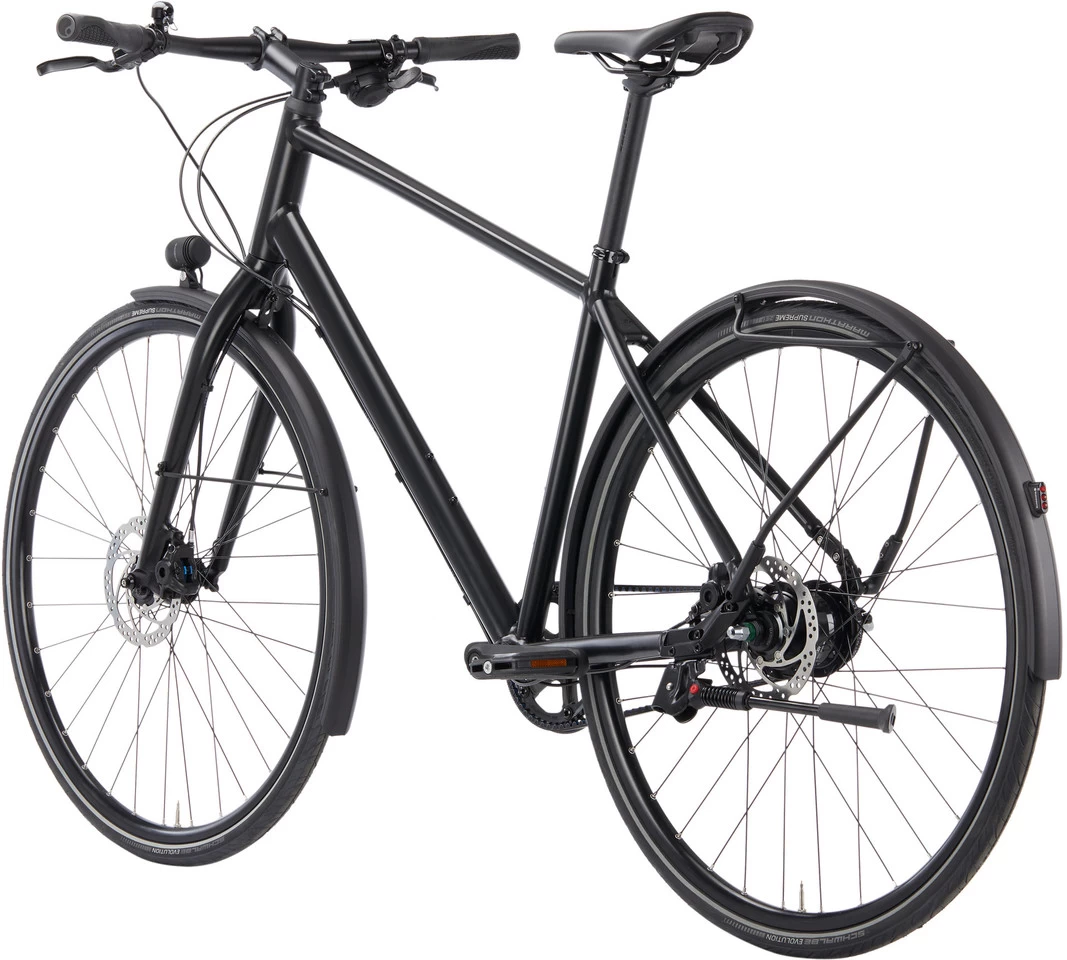

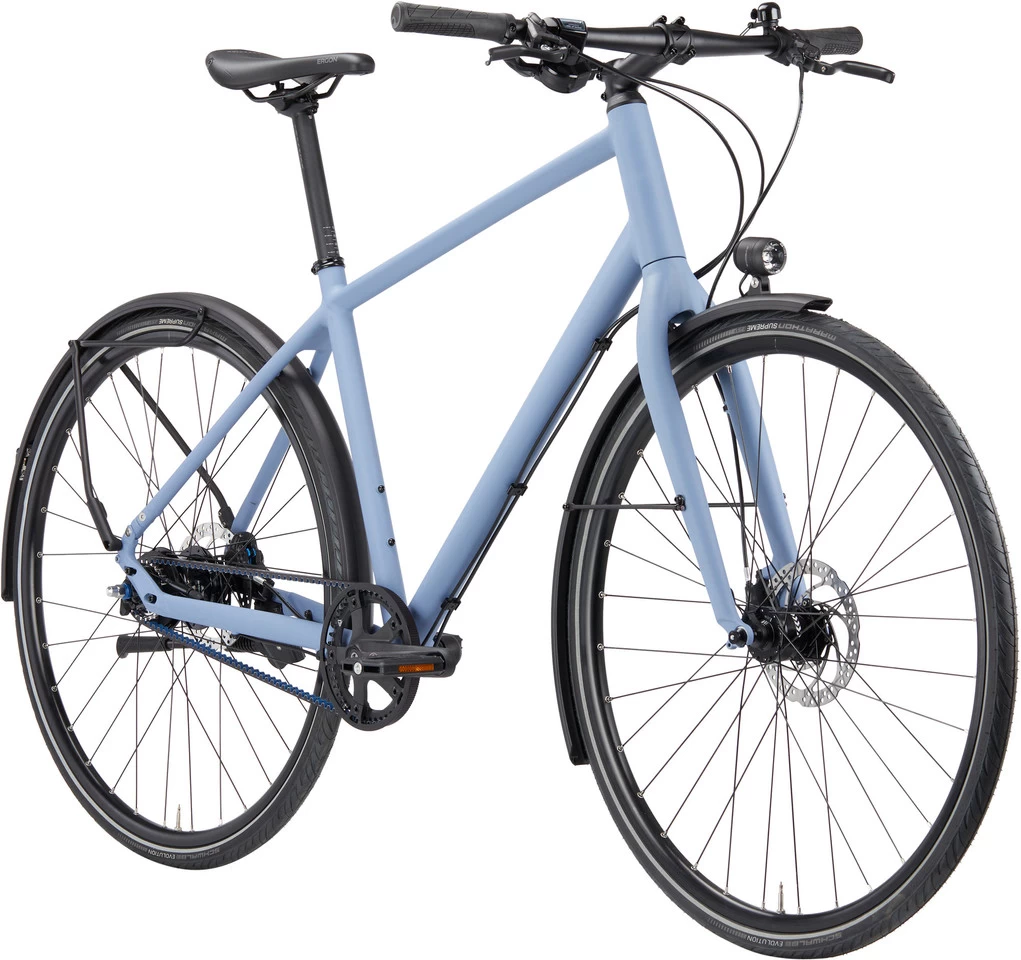

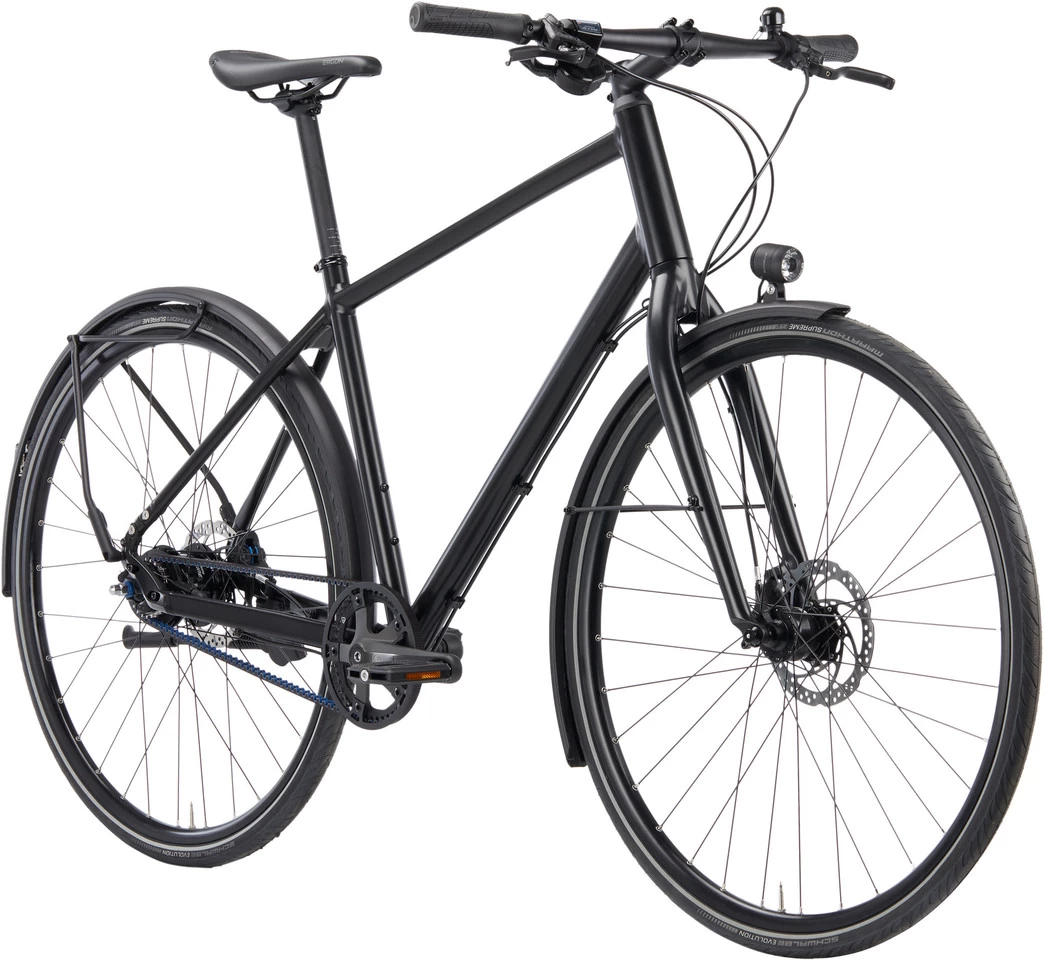

The Vortrieb Modell 1 men’s bike represents the first complete in-house development under our Vortrieb brand. A key element is Racktime’s revolutionary Wingee fender rack system, combined with durable, extremely high quality components: an Alfine 11-speed internally geared hub with Gates belt drive, Supernova lighting and Ergon contact points. All of this is the finest and 100% our thing. The Modell 1 does justice to the German word Vortrieb, which translates to ” propulsion” : the frame is stiff and effectively converts every pedal stroke into forward motion. The rigid fork and wide handlebars ensure reactive handling. The brakes work phenomenally. The seating position is sporty and central. Here we remain true to ourselves as well as the brand’s name – and that is simply consistent.

Vortrieb is part of the DNA of bike-components, as this brand has been under our roof for over 10 years. However, like everything with lasting value, it has to move forward with the times. This is why we have decided to focus on the increasingly relevant topic of local mobility and leisure activities.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.

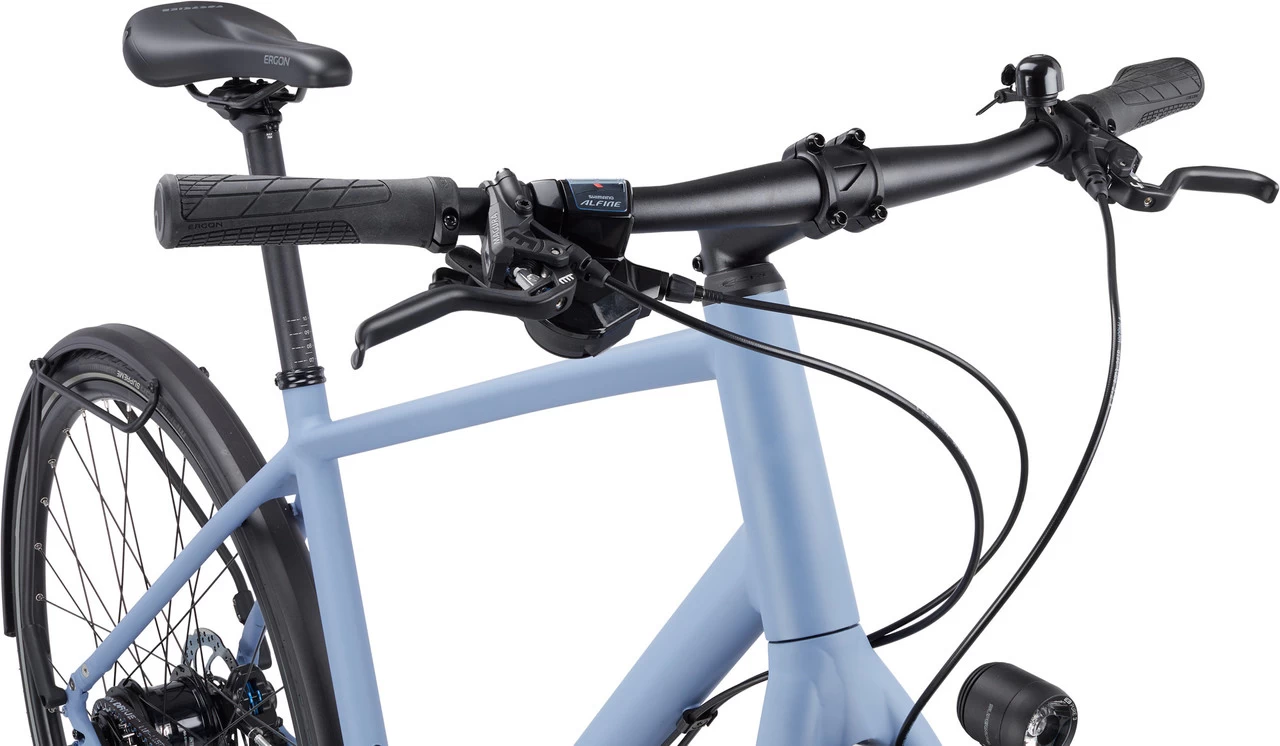

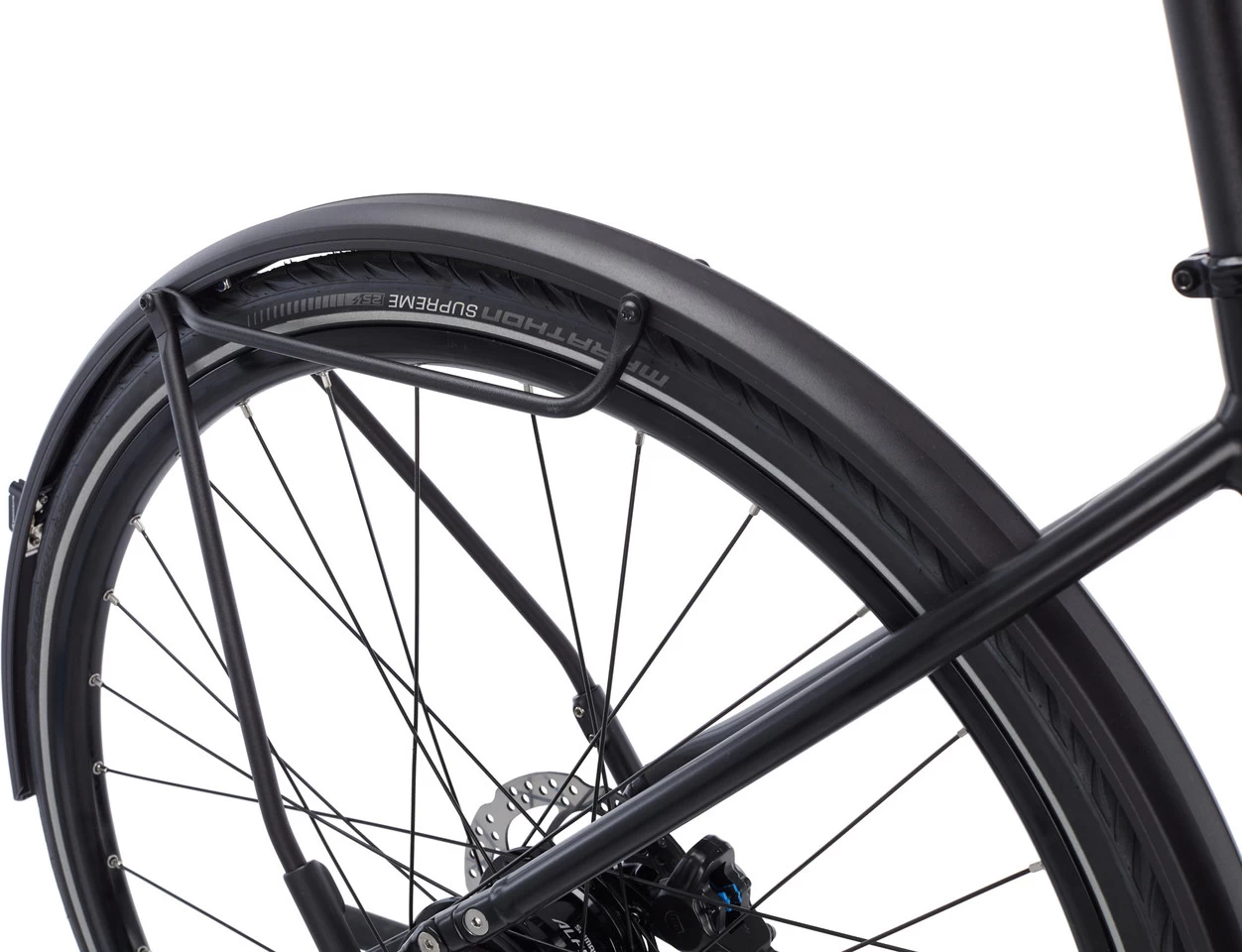

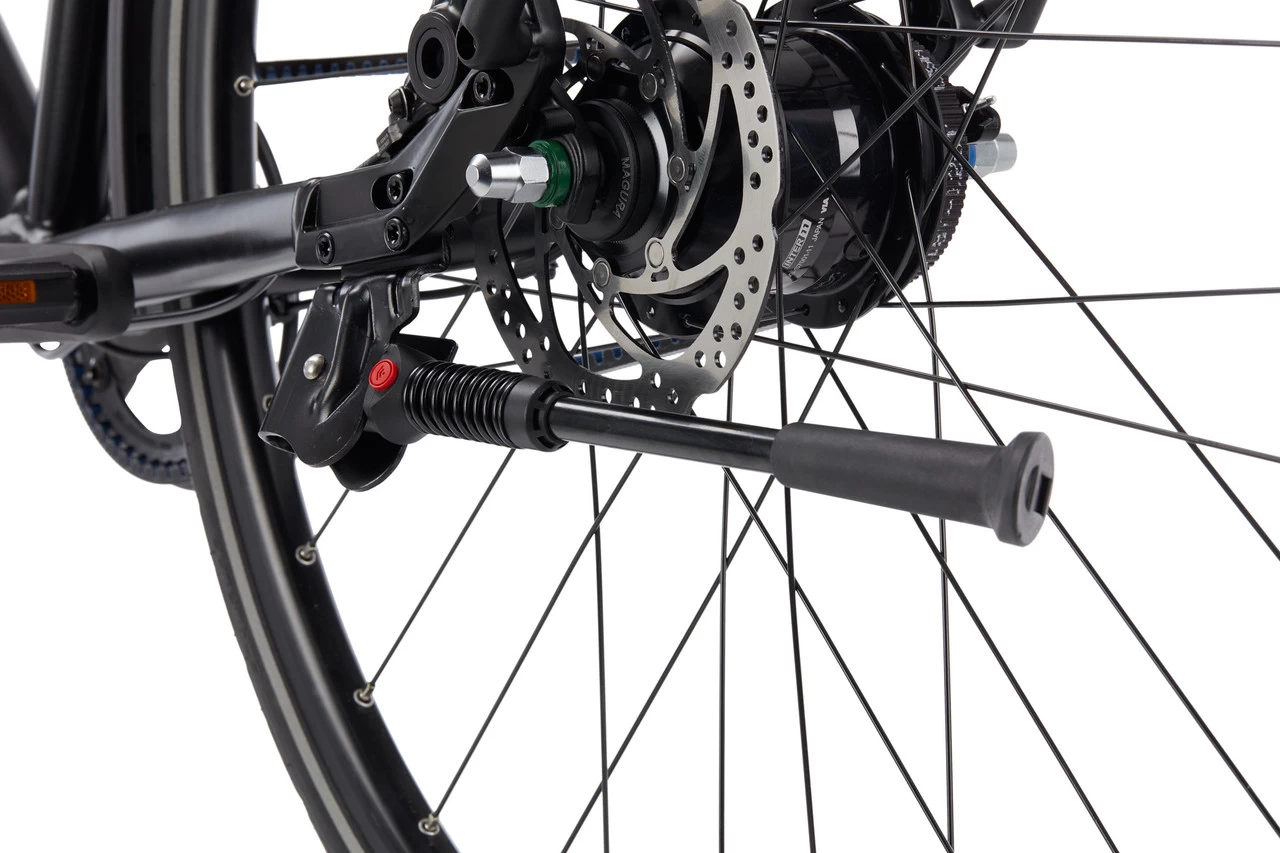

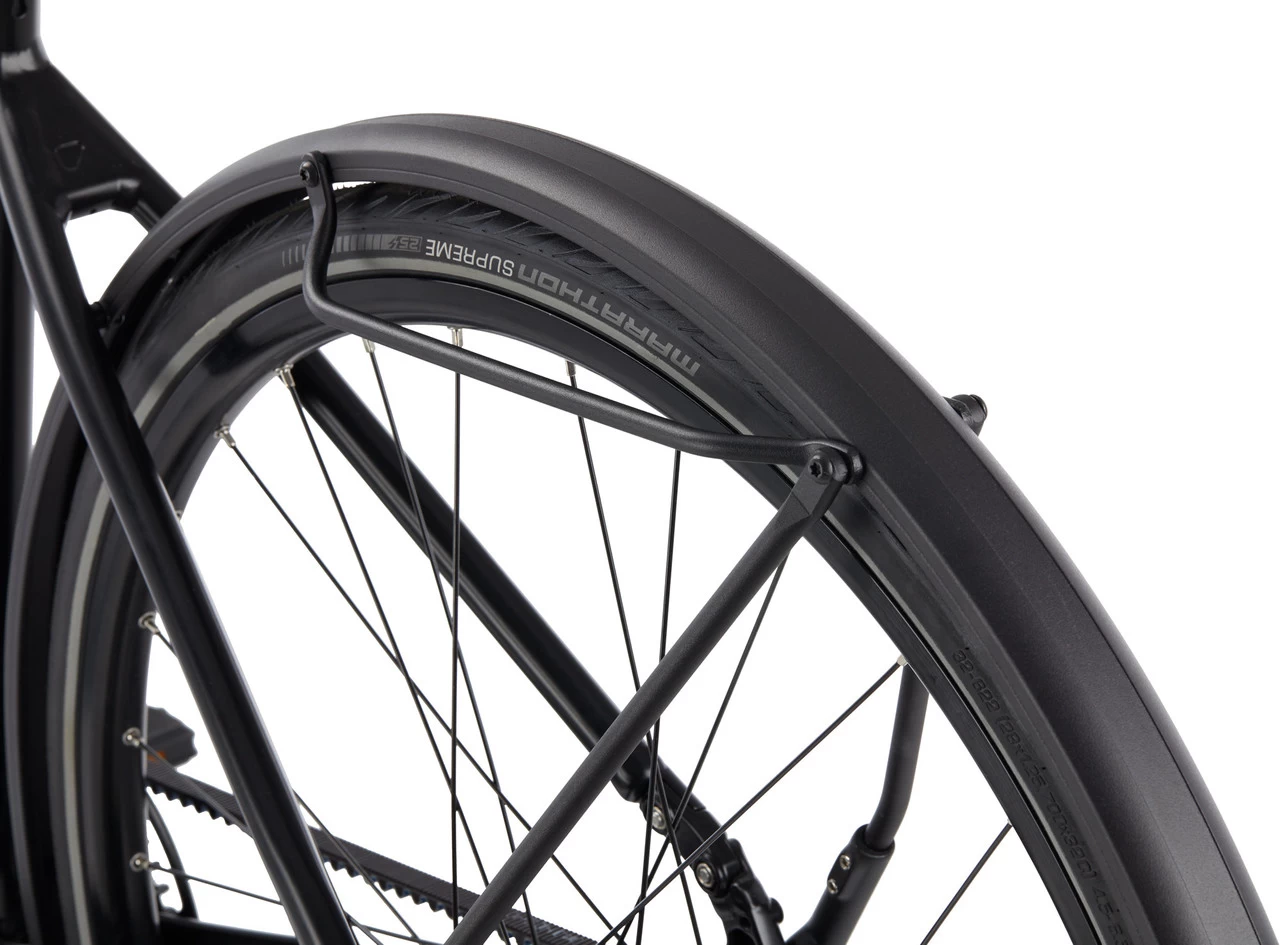

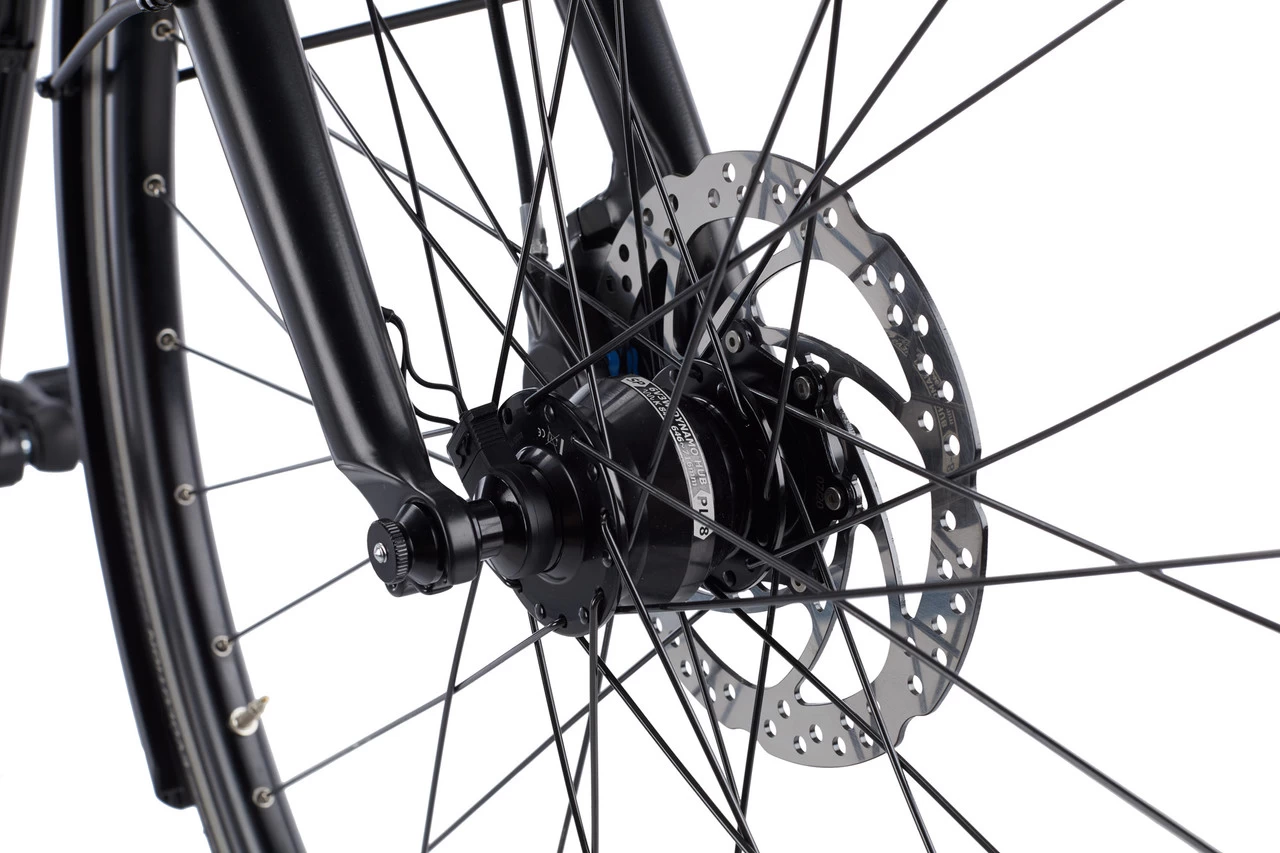

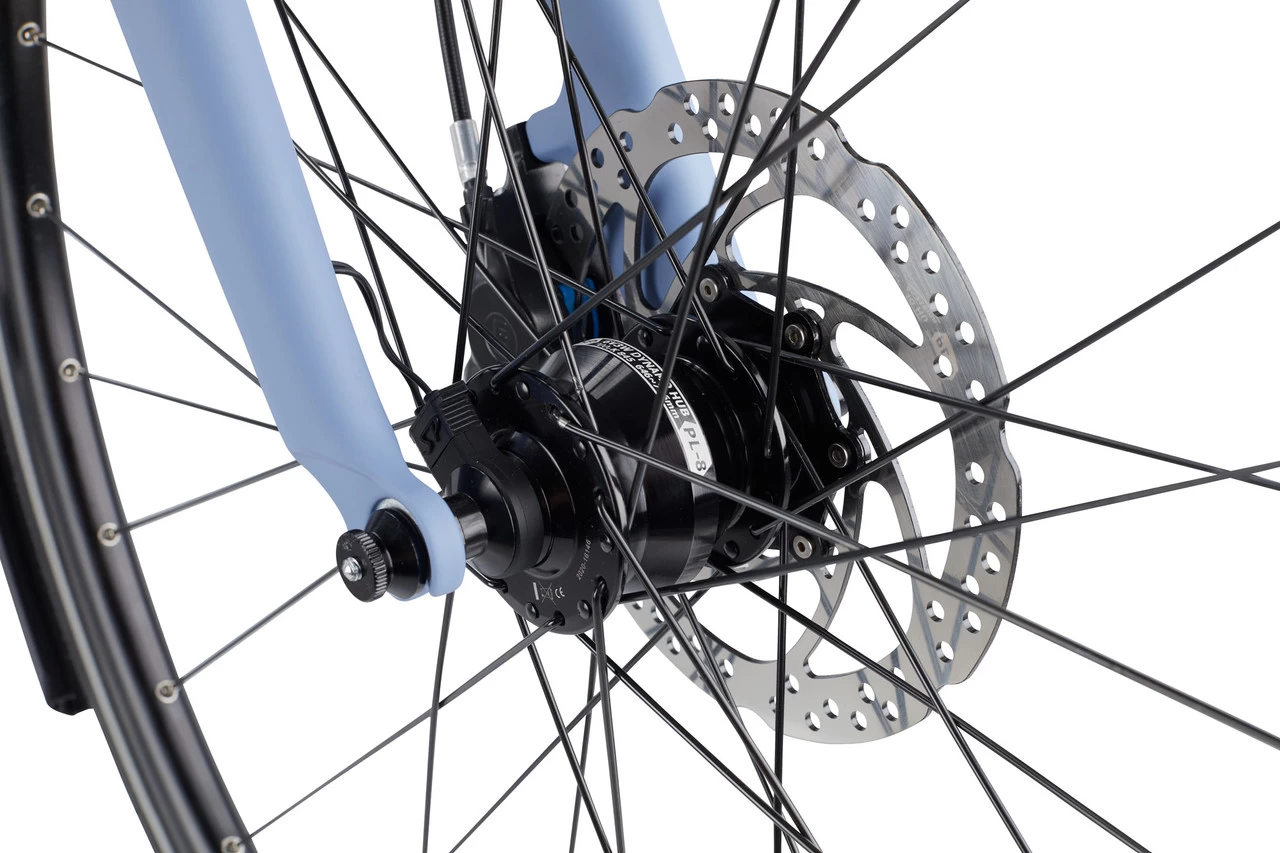

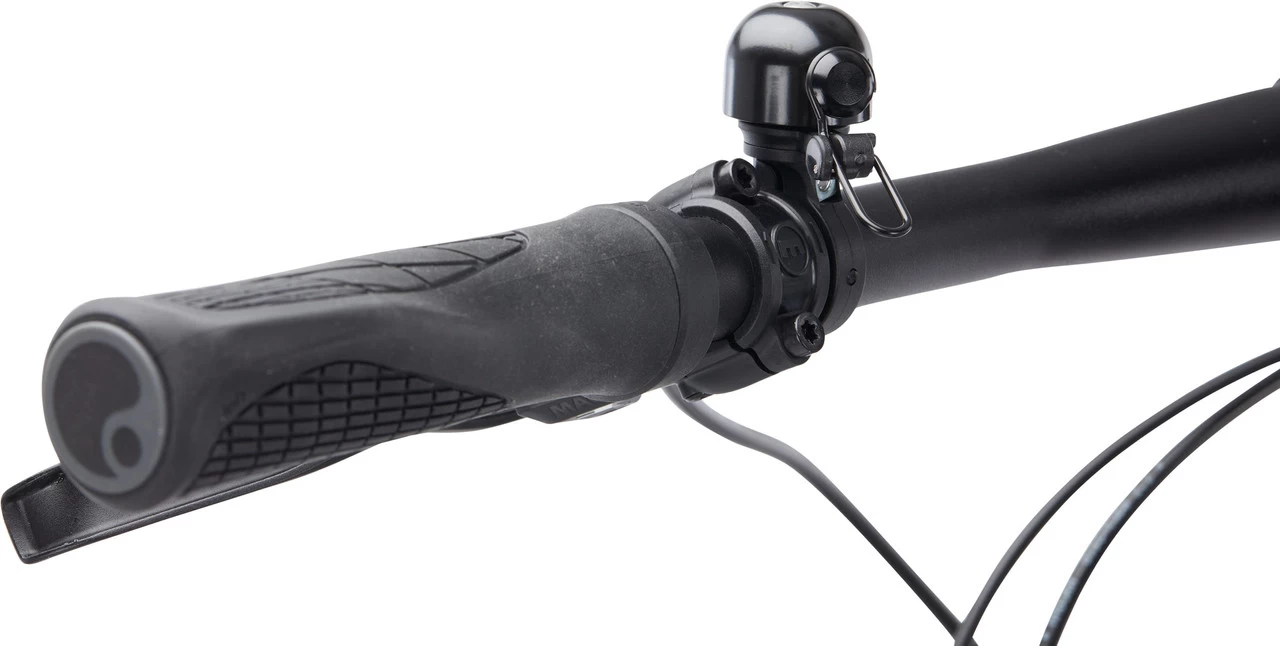

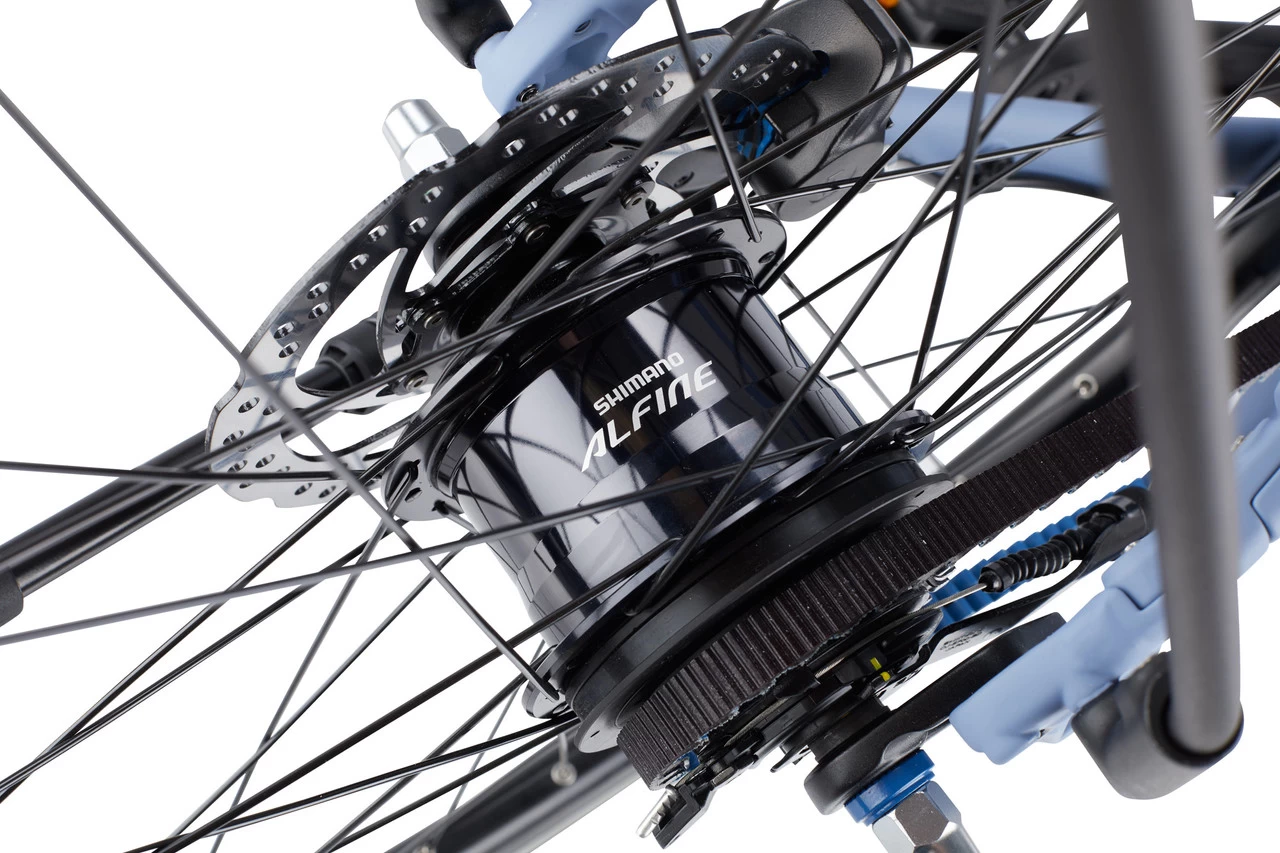

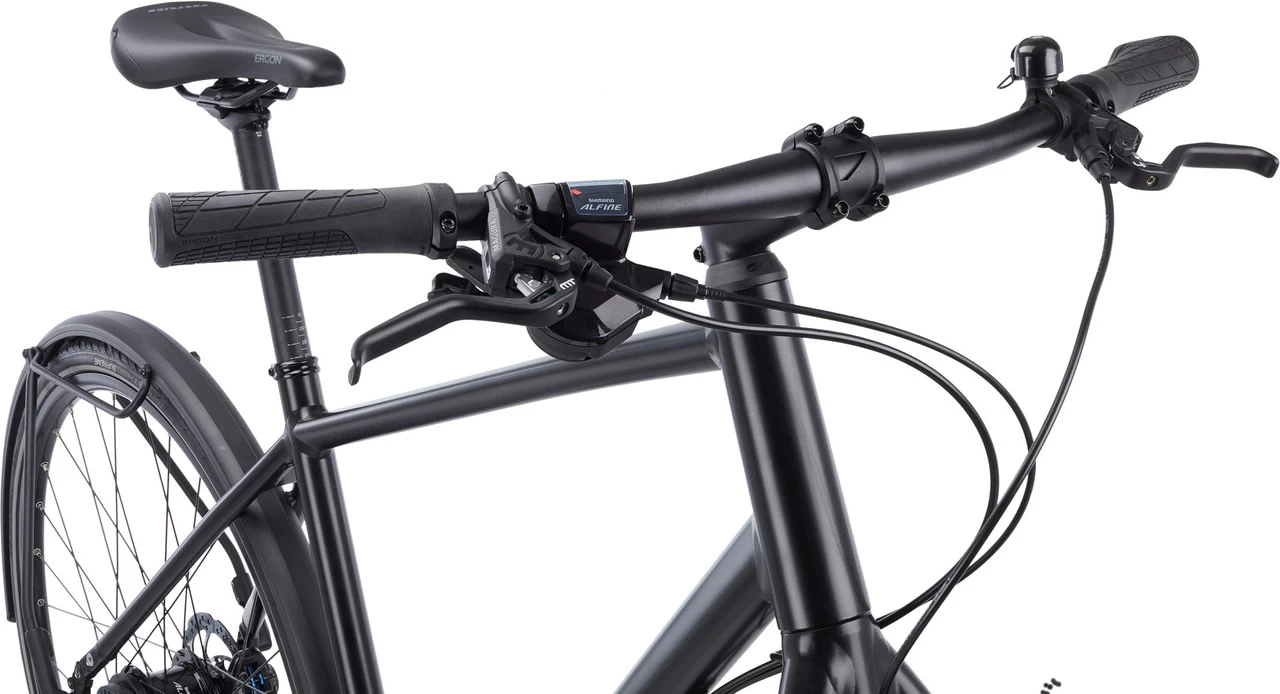

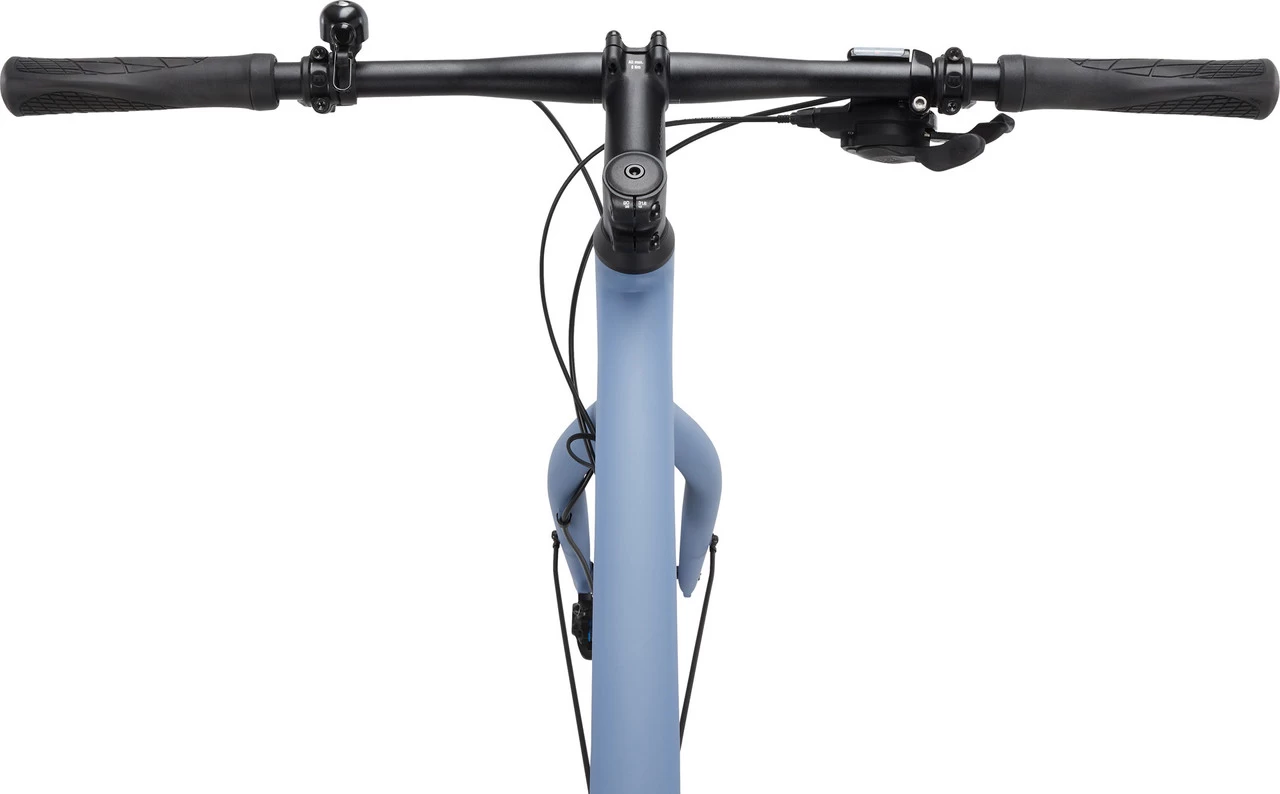

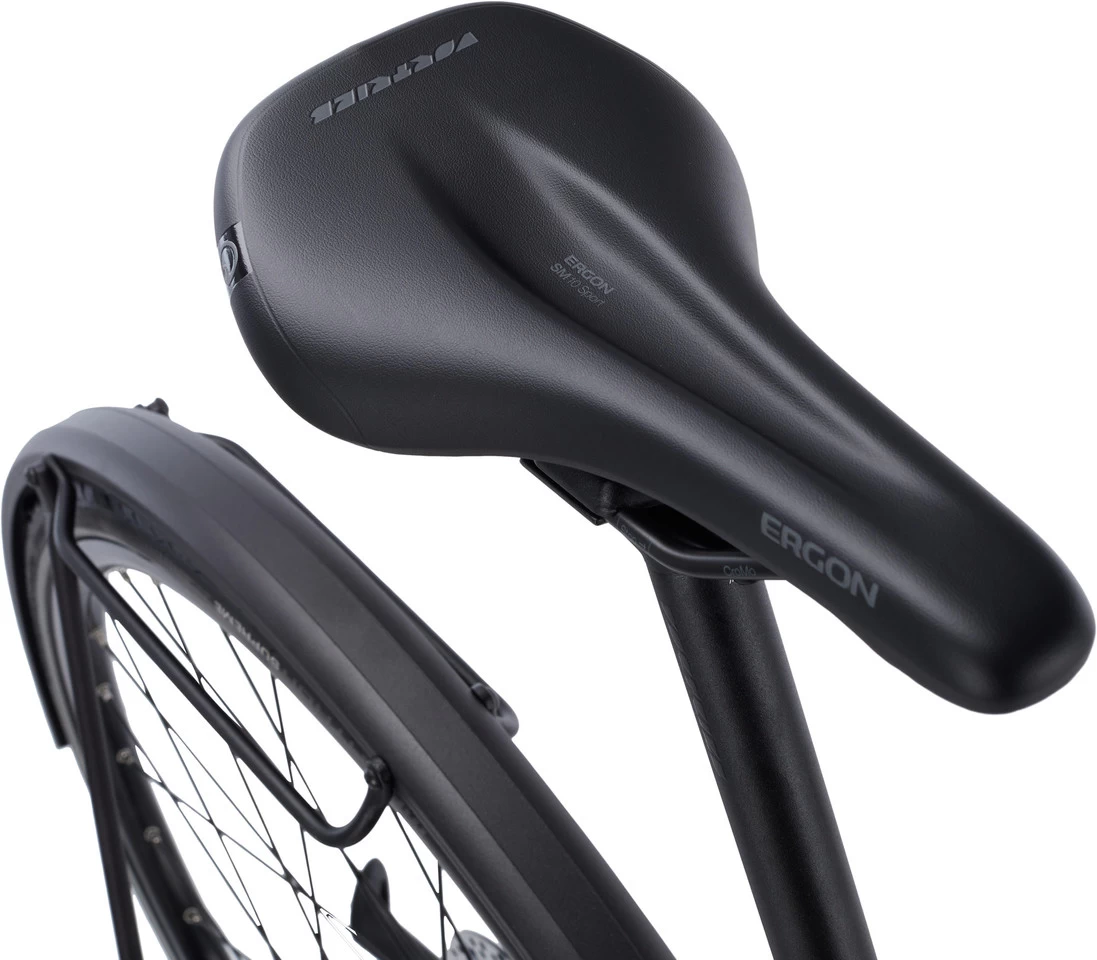

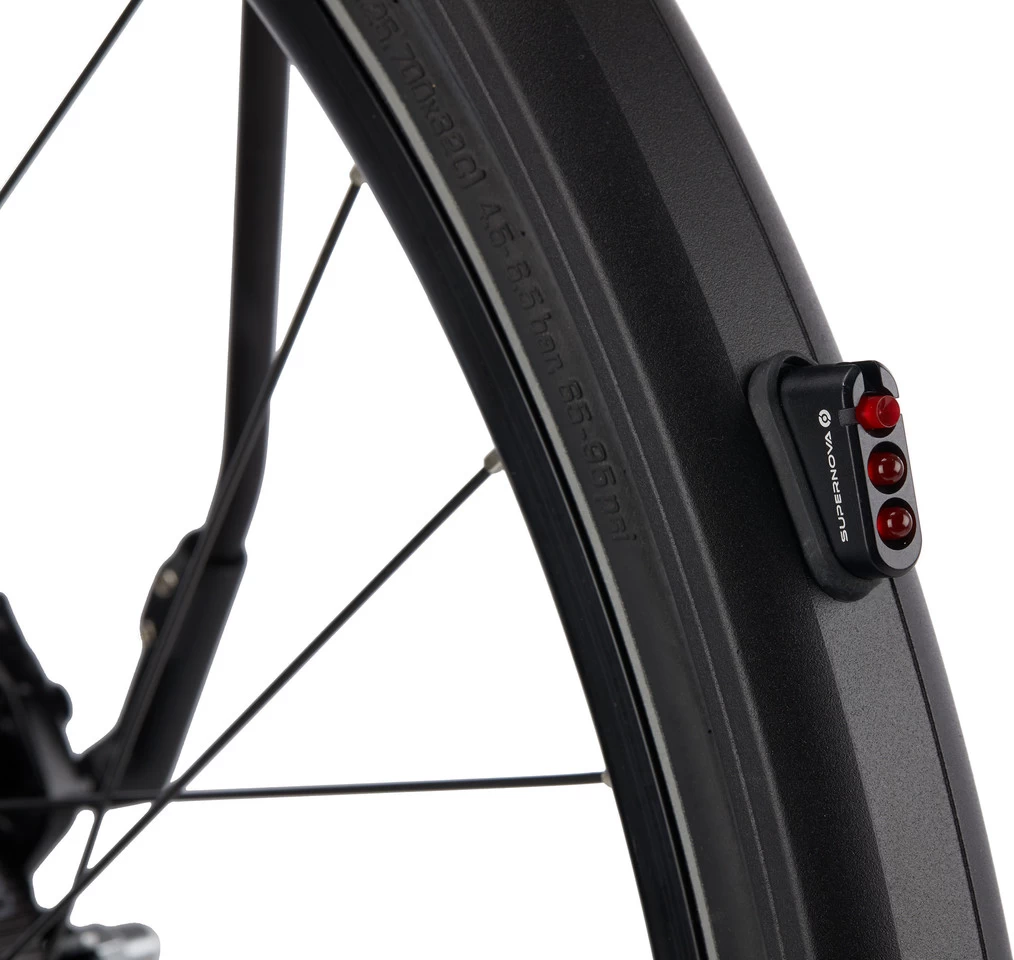

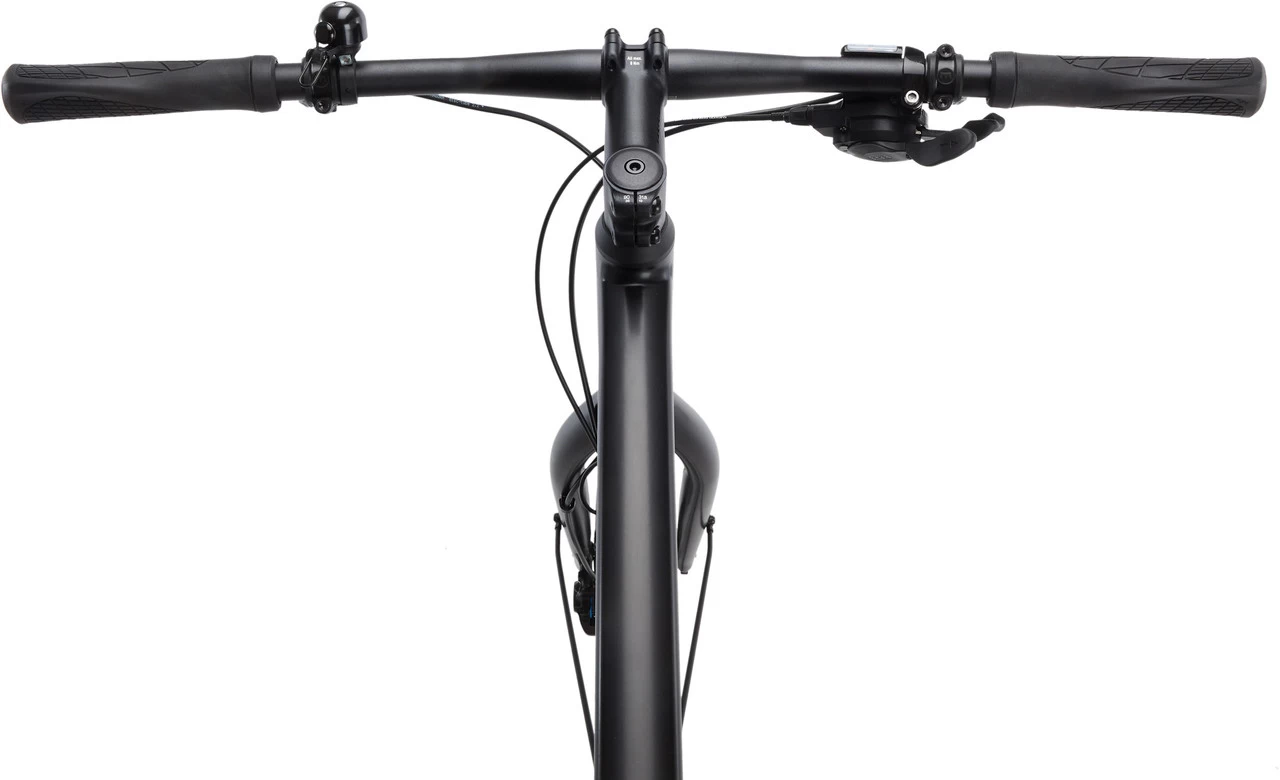

Specifications:Application:City & TouringWheel Size:28″Sizes:S, M, L, XLFrame Material:aluminium (6061)Fork Material:aluminium (6061)Components:Frame:Vortrieb Modell 1 Men’sFork:Vortrieb Modell 1 Straight rigid forkStem:Vortrieb Modell 1 31.8 x 6°Handlebars:Vortrieb Modell 1 Flat 660 mm x 16°Grips:Ergon GA30 Stealth Vortrieb CustomHeadset:Acros AiX-330 Fiber, IS41/28.6-IS41/30Seatpost:Vortrieb Modell 1 27.2 x 400 mmSaddle:Ergon SM10 Stealth Vortrieb CustomCrank:Gates CDN S250 cranks w/ Thun Zumba BSA bottom bracketPedals:Vortrieb Urban Grip w/ grip tapeBrakes/Brake Levers:Magura MT4N Carbotecture disc brakes, 2-piston, 4-finger, with Storm HC rotors, 160 mmShift Lever:Shimano Alfine SG-S7001 11-speedDrivetrain:Gates CDX belt drive with front 46 T/rear 22 T belt drive sprocketsFenders:Racktime Wingee Aluminium w/ pannier railsFront Light:Supernova E3 Pure 3s LEDRear Light:Supernova E3 Tail Light 2 for Wingee rear fenderKickstand:Hebie 661 for KSA40 rear mountRims:Vortrieb Urban TourSpokes:VortriebFront Hub:Shutter Precision PL-8 dynamo hubRear Hub:Shimano Alfine SG-S7001 11-speedTyres:Schwalbe Marathon Supreme Evolution V-Guard 32-622 reflective, foldingApproved For:Weight Limit:130 kg total weightRotor Size (max.):160 mm rear, 180 mm frontTyre Size (max.):32-622Features:high quality frame processing: ground welds for clean, timeless design; environmentally friendly, robust powder coating for a high-end finishmaximum reliability: Alfine 11-speed internally geared hub with belt drive is low-maintenance and quietfinest accessories: Supernova lighting, Ergon components, Magura disc brakeseven hidden details like the Acros bearings come from the high-end shelfsporty riding characteristics: stiff and manoeuvrabledesign combined with practical value: Wingee fender/rack system can hold 8 kg per side, thus allowing for shopping or day tripsGeometry:S:
Recommended Height:160 – 172 cmSeat Tube Length:463 mmTop tube length (horizontal):570 mmHead Tube Length:170 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:75 mm
M:
Recommended Height:170 – 181 cmSeat Tube Length:477 mmTop tube length (horizontal):585 mmHead Tube Length:180 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:90 mm
L:
Recommended Height:179 – 190 cmSeat Tube Length:490 mmTop tube length (horizontal):605 mmHead Tube Length:180 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:100 mm
XL:
Recommended Height:from 188 cmSeat Tube Length:506 mmTop tube length (horizontal):620 mmHead Tube Length:200 mmChainstay Length:435 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:70.0°Stem Length:110 mmShipping Notice:The shipment is sent pre-assembled by a forwarding agent. The delivery time is extended by 2-5 days, depending on the overall volume of orders. For individual consultation, please contact our customer service team.
Contents:1 x Vortrieb Modell 1 Men’s Bike
