Modell 1 Campus Edition Women’s Bike

The Modell 1 Campus Edition Women’s Bike by Vortrieb – With chain drive

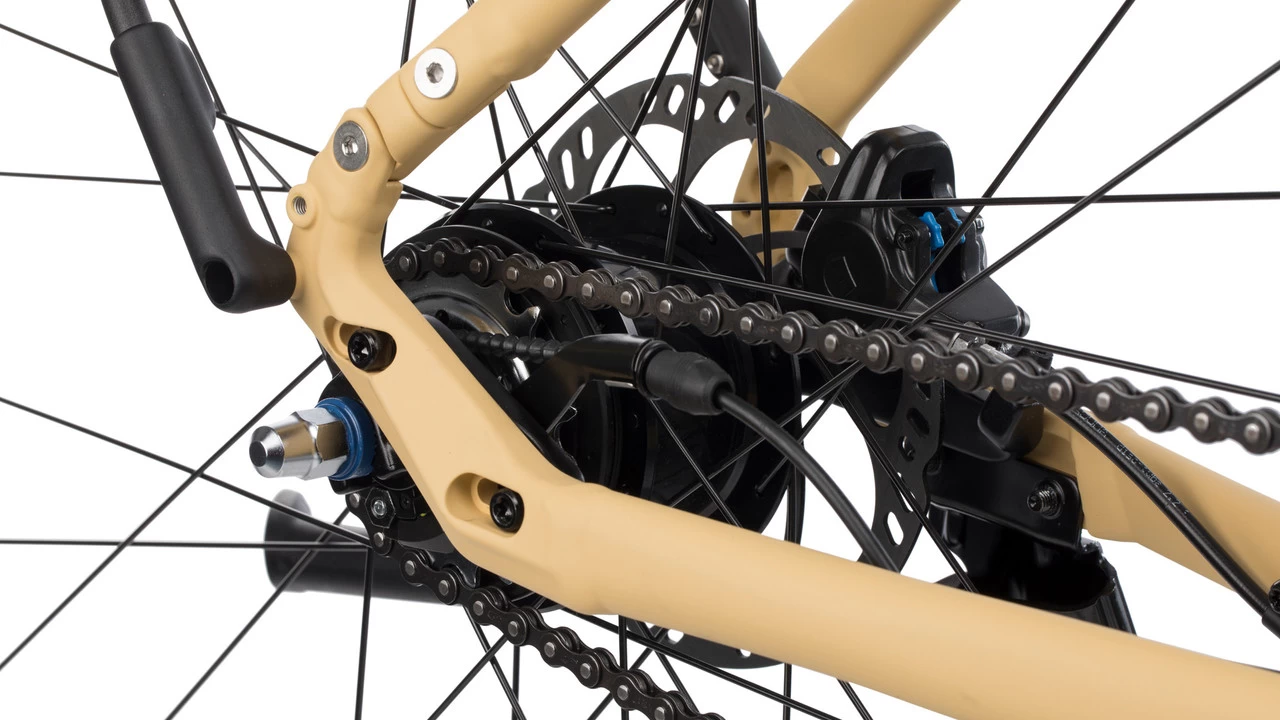

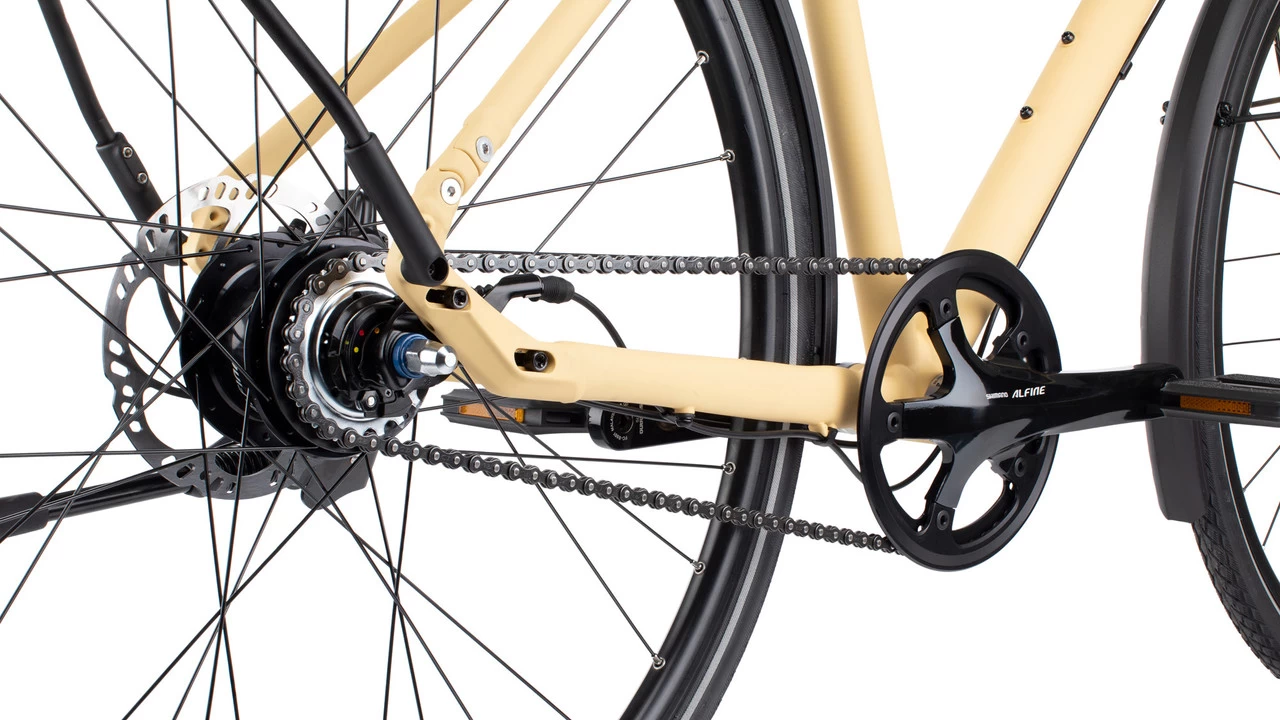

The Vortrieb Modell 1 Campus Edition bike for women is practically the ” little sister” of our popular Modell 1, which has similar genes, just not quite as pronounced. The Campus Edition comes with a durable and high-quality Alfine 8-speed internally geared hub with a chain. The lighting comes from busch+müller and Herrmans. Already known from its siblings are the revolutionary Racktime Wingee fender rack system, the sloped top tube geometry and the contact points developed in-house.

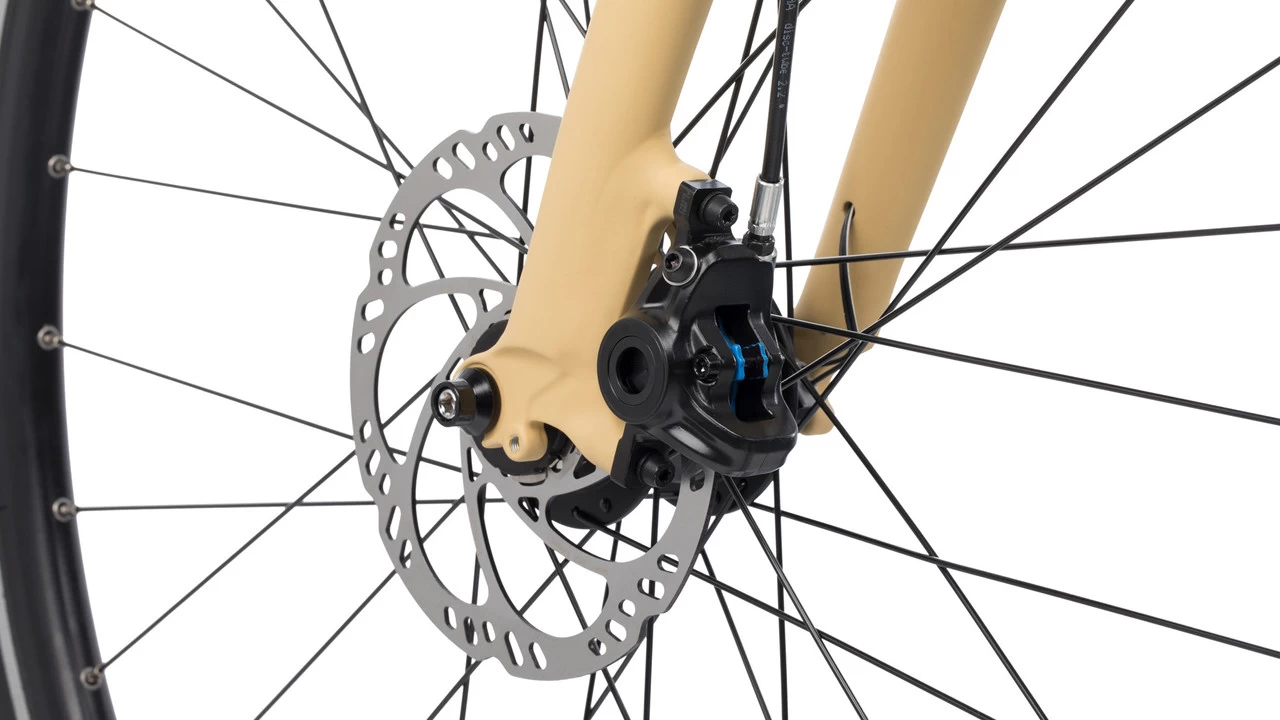

Of course, Modell 1 Campus for women also lives up to the name Vortrieb, which translates to propulsion: the frame is stiff and effectively converts every pedal stroke into forward motion. The rigid fork and wide handlebars ensure reactive handling. The brakes work phenomenally. The seating position is sporty and central. Here we remain true to ourselves as well as the brand’s name – and that is simply consistent.

Vortrieb is part of the DNA of bike-components, as this brand has been under our roof for over 10 years. However, like everything with lasting value, it has to move forward with the times. This is why we have decided to focus on the increasingly relevant topic of local mobility and leisure activities.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Application:City & TouringWheel Size:28″Sizes:XS, SFrame Material:aluminium (6061)Fork Material:aluminium (6061)Components:Frame:Vortrieb Modell 1 Women’sFork:Vortrieb Modell 1 Straight rigid forkStem:Vortrieb Modell 1 31.8 x 6°Handlebars:Vortrieb Modell 1 Flat 660 mm x 16°Grips:Vortrieb CampusHeadset:Acros AiX-330 Fiber, IS41/28.6-IS41/30Seatpost:Vortrieb Modell 1 27.2 x 400 mmSaddle:Vortrieb CampusCrank:Shimano Alfine FC-S501 (42 T)Pedals:Vortrieb Urban Grip w/ grip tapeBrakes/Brake Levers:Magura MT4N Carbotecture disc brakes, 2-piston, 4-finger, with Storm HC rotors, 160 mmShift Lever:Shimano Alfine SL-503 8-speedDrivetrain:Drive Campus (20 T)Fenders:Hebie Wingee Aluminium w/ pannier railsFront Light:busch+müller Lumotec IQ2 Eyc NRear Light:Herrmans H-Trace miniKickstand:Hebie 661 for KSA40 rear mountRims:Vortrieb Urban TourSpokes:VortriebFront Hub:Shimano H-T4050-1D dynamo hubRear Hub:Shimano Alfine SG-S7001 8-speedTyres:Schwalbe Marathon Performance GreenGuardApproved For:Weight Limit:130 kg total weightRotor Size (max.):160 mm rear, 180 mm frontTyre Size (max.):32-622Features:high quality frame processing: ground welds for clean, timeless design; environmentally friendly, robust powder coating for a high-end finishreliable: Alfine 8-speed internally geared hub is proven and quietfinest accessories: lighting by busch+müller, disc brakes by Maguraeven hidden details like the Acros bearings come from the top of the linesporty riding characteristics: stiff and manoeuvrabledesign combined with practical value: Wingee fender/rack system can hold 8 kg per side, thus allowing for shopping or day tripsGeometry:XS:
Recommended Height: 150-160 cmSeat Tube Length: 433 mmTop Tube Length (horiz.): 545 mmHead Tube Length: 150 mmChainstay Length: 435 mmBB Drop: 55 mmSeat Tube Angle: 73.0°Head Tube Angle: 70.0°Stem Length: 60 mm
S:
Recommended Height: 160-172 cmSeat Tube Length: 463 mmTop Tube Length (horiz.): 570 mmHead Tube Length: 170 mmChainstay Length: 435 mmBB Drop: 55 mmSeat Tube Angle: 73.0°Head Tube Angle: 70.0°Stem Length: 75 mmShipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Vortrieb Modell 1 Campus Edition Women’s Bike
