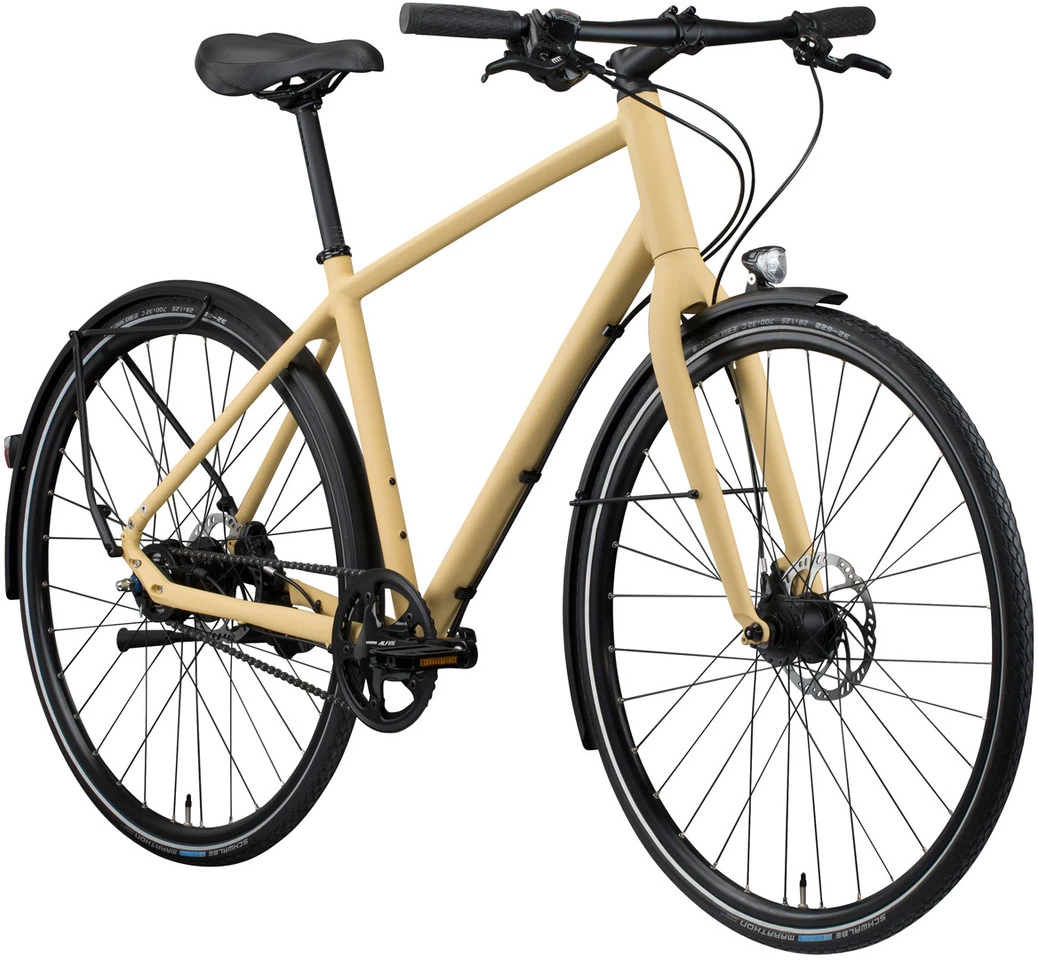

Modell 1 Campus Edition Men’s Bike

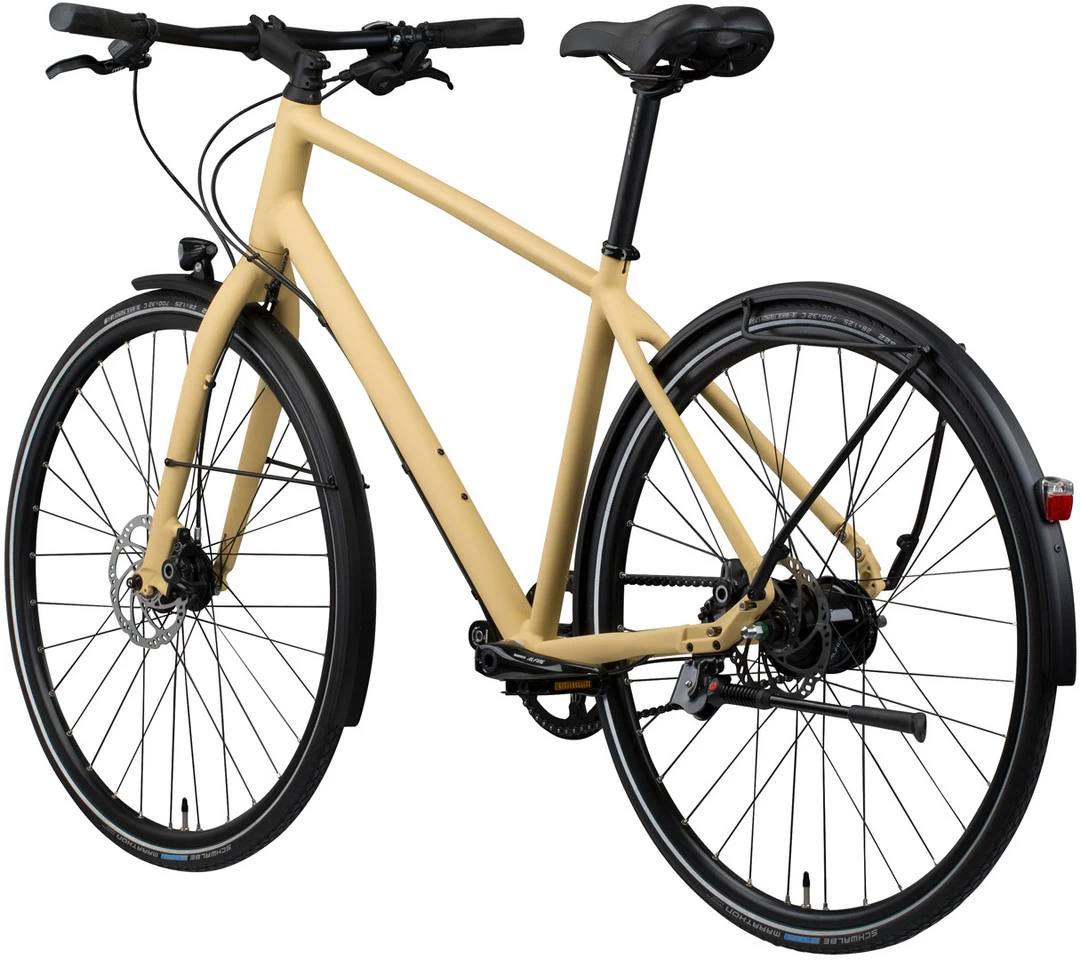

The Modell 1 Campus Edition Bike by Vortrieb – With 8-speed hub gears

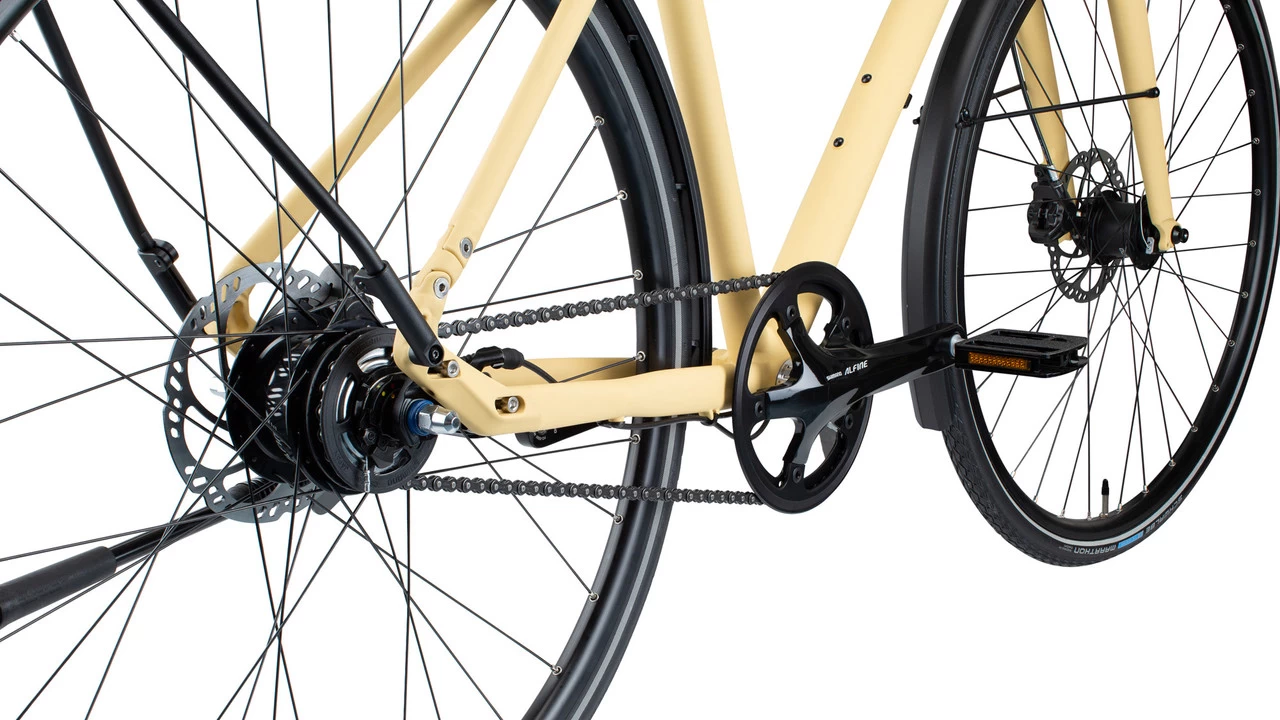

With the Vortrieb Model 1 Campus Edition men’s bike, we are providing our popular Modell 1 with a ” little brother” – very similar genes, just not quite as pronounced. The Campus Edition features a high-quality and durable Shimano Alfine 8-speed internally geared with a chain. The lighting comes from busch+müller and Herrmans. Already known from its siblings are the revolutionary Racktime Wingee fender rack system, the geometry and the contact points developed in-house.
Of course, Modell 1 Campus also lives up to the name Vortrieb, which translates to propulsion: the frame is stiff and effectively converts every pedal stroke into forward motion. The rigid fork and wide handlebars ensure reactive handling. The brakes work phenomenally. The seating position is sporty and central. Here we remain true to ourselves as well as the brand’s name – and that is simply consistent.

Vortrieb is part of the DNA of bike-components, as this brand has been under our roof for over 10 years. However, like everything with lasting value, it has to move forward with the times. This is why we have decided to focus on the increasingly relevant topic of local mobility and leisure activities.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.

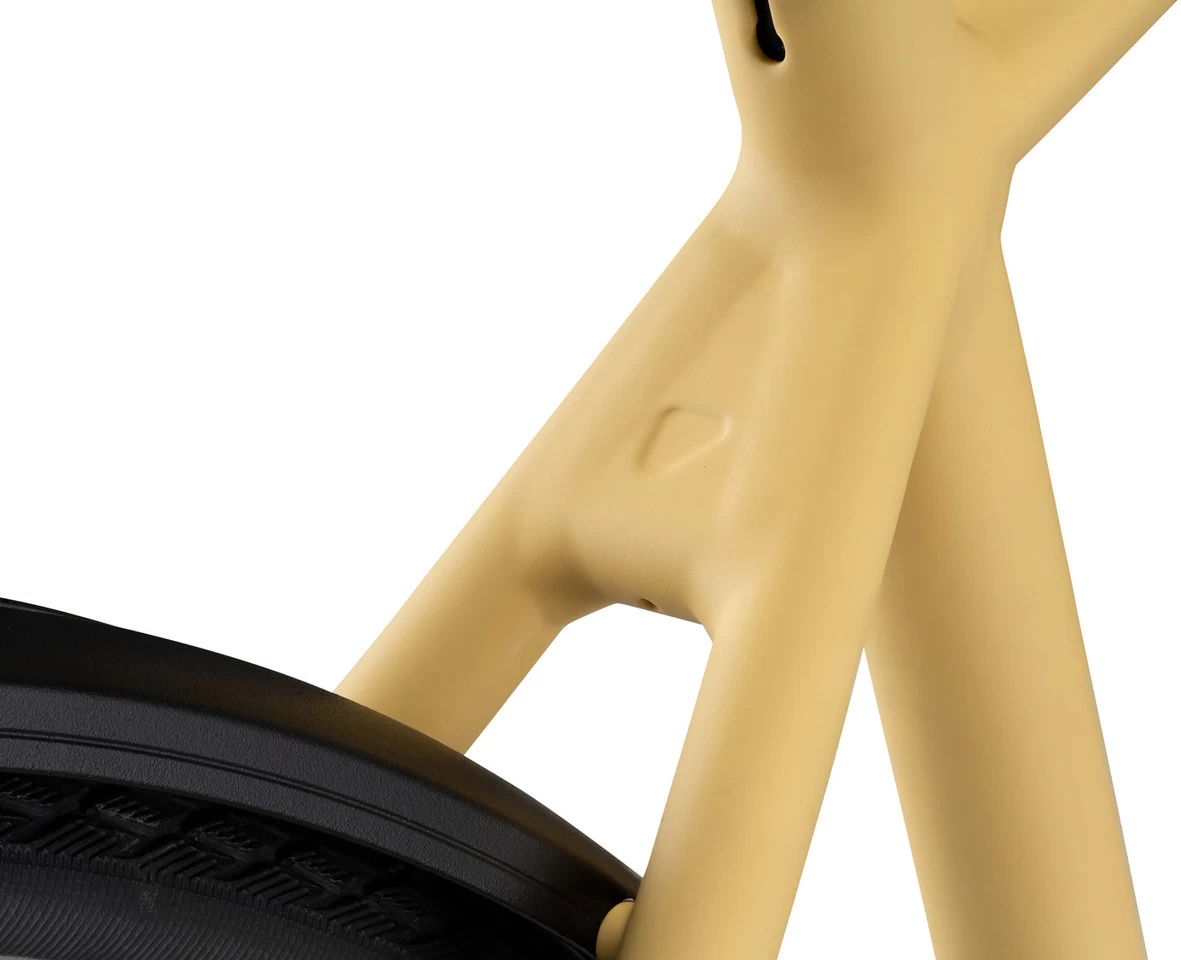

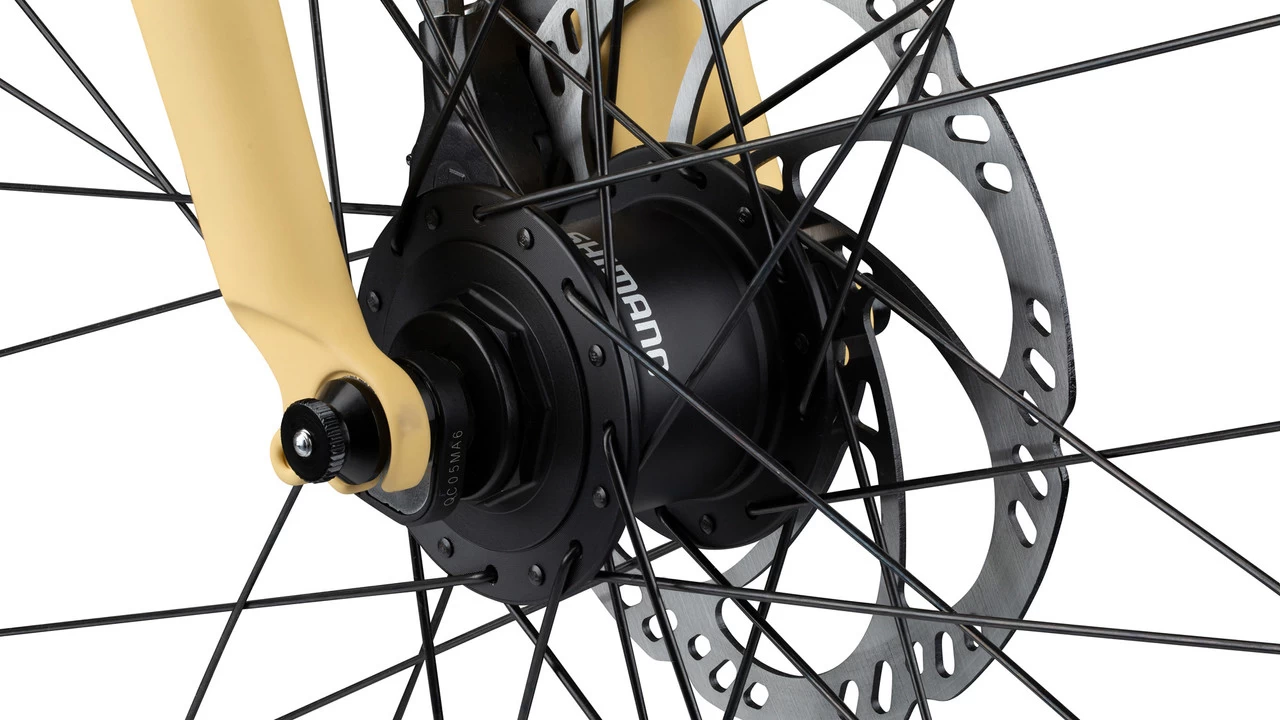

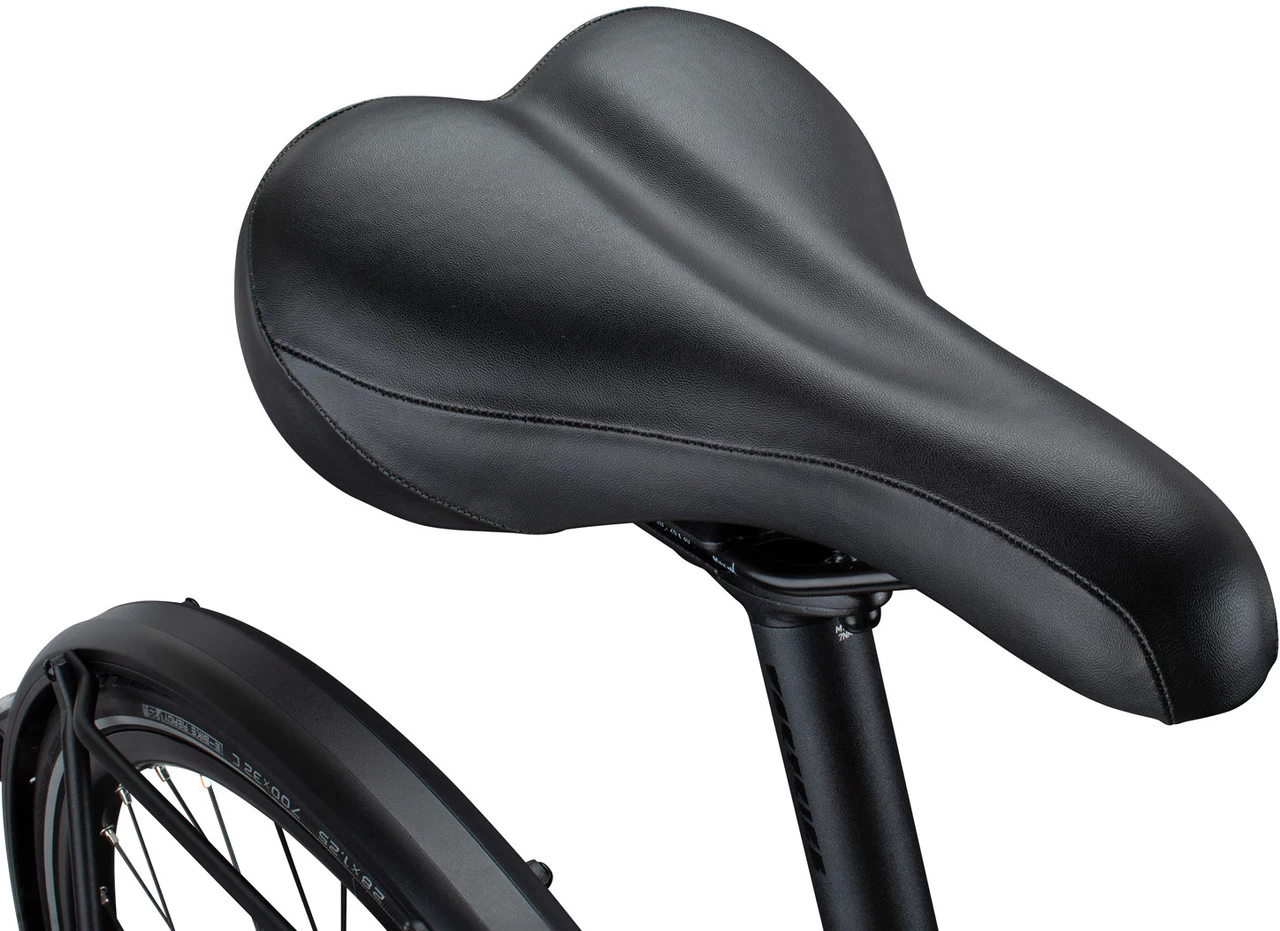

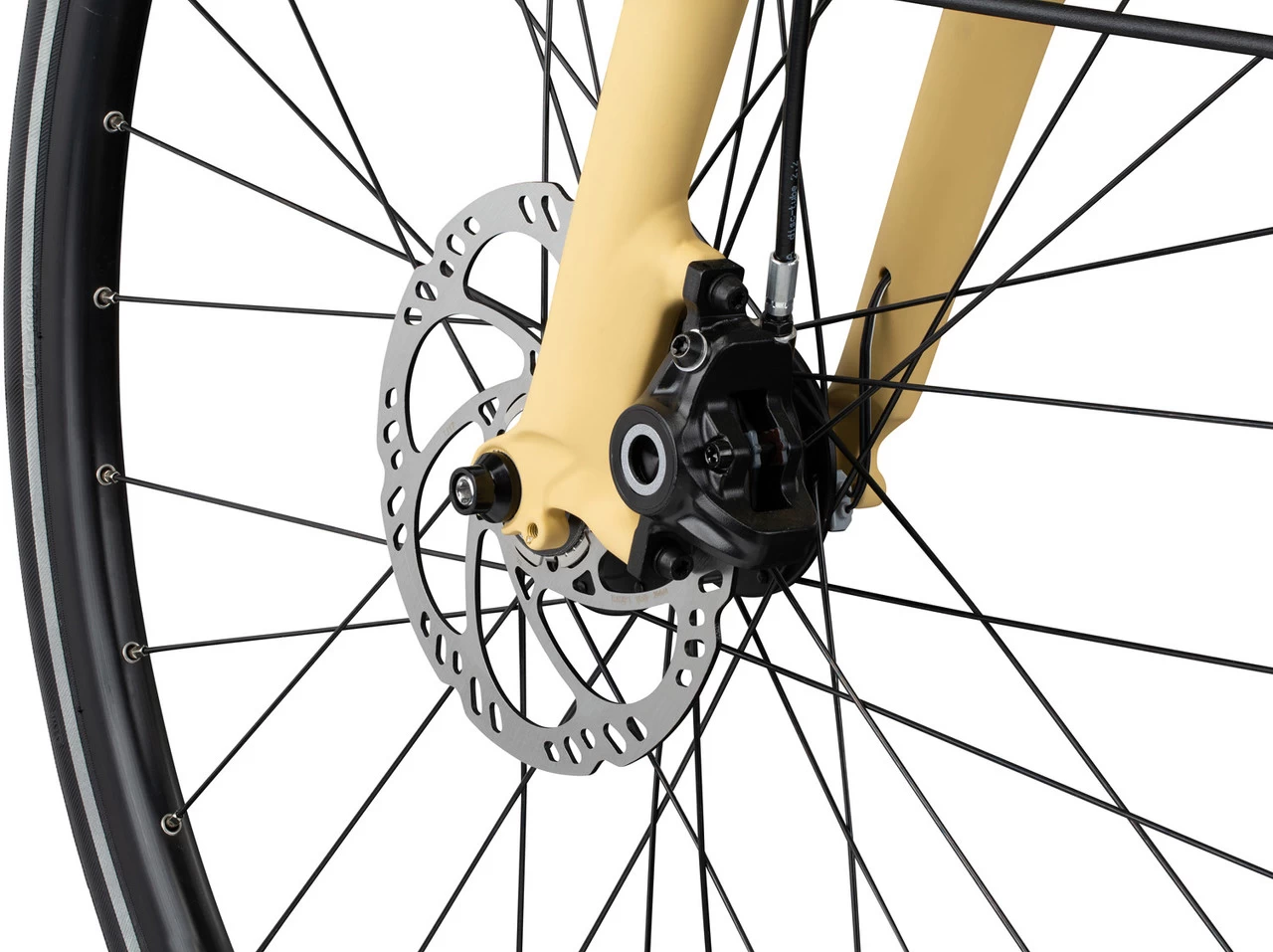

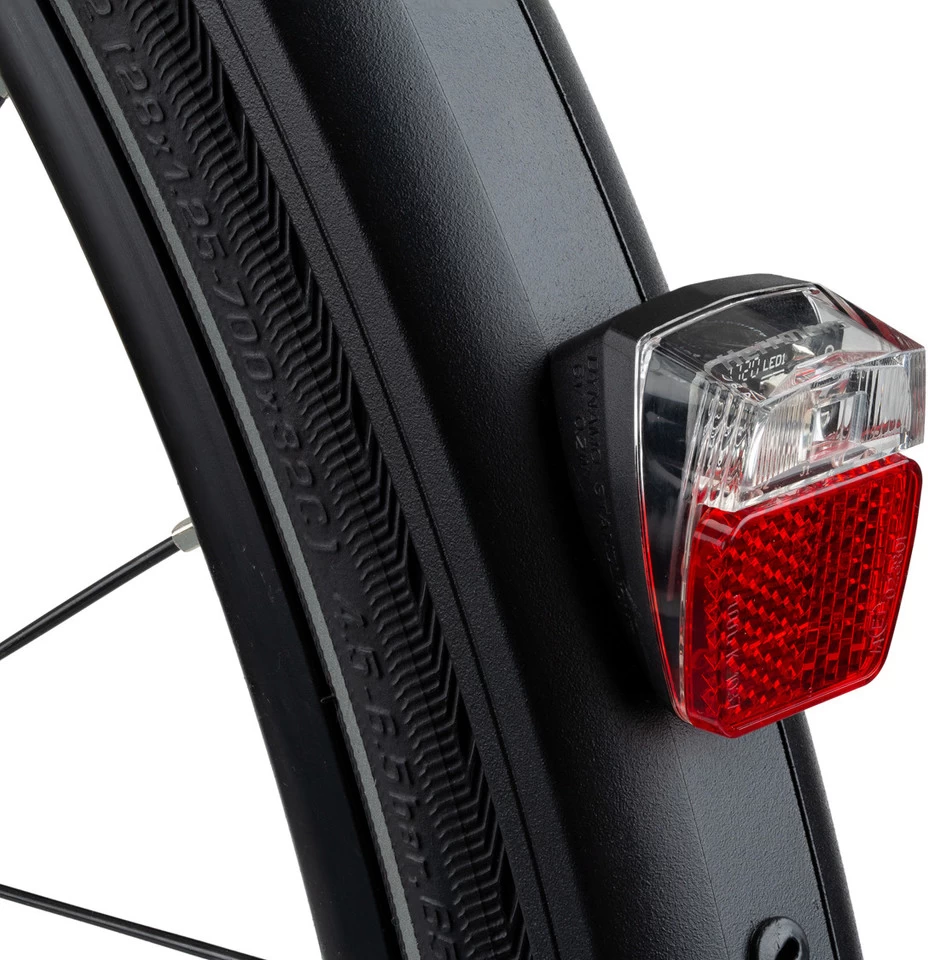

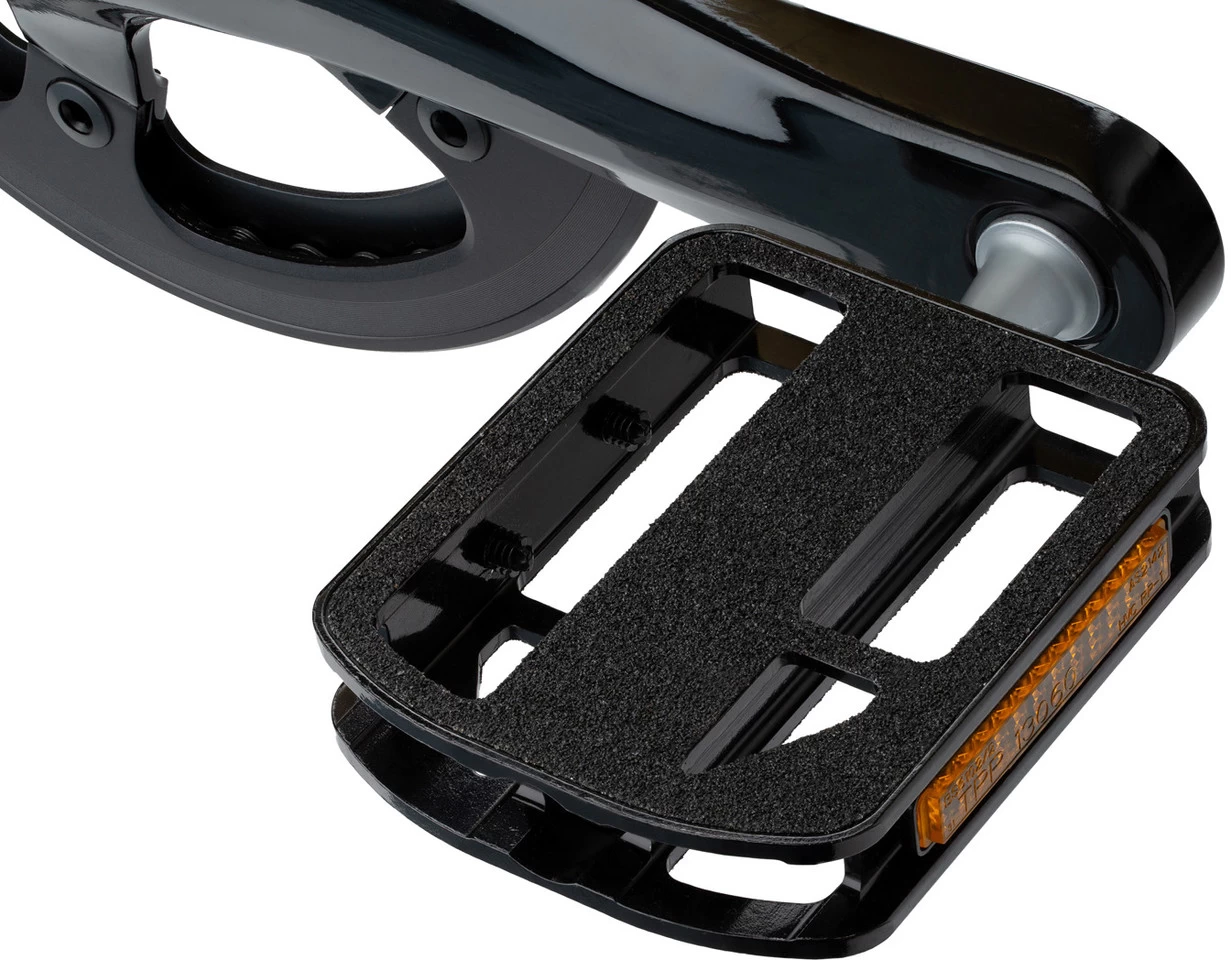

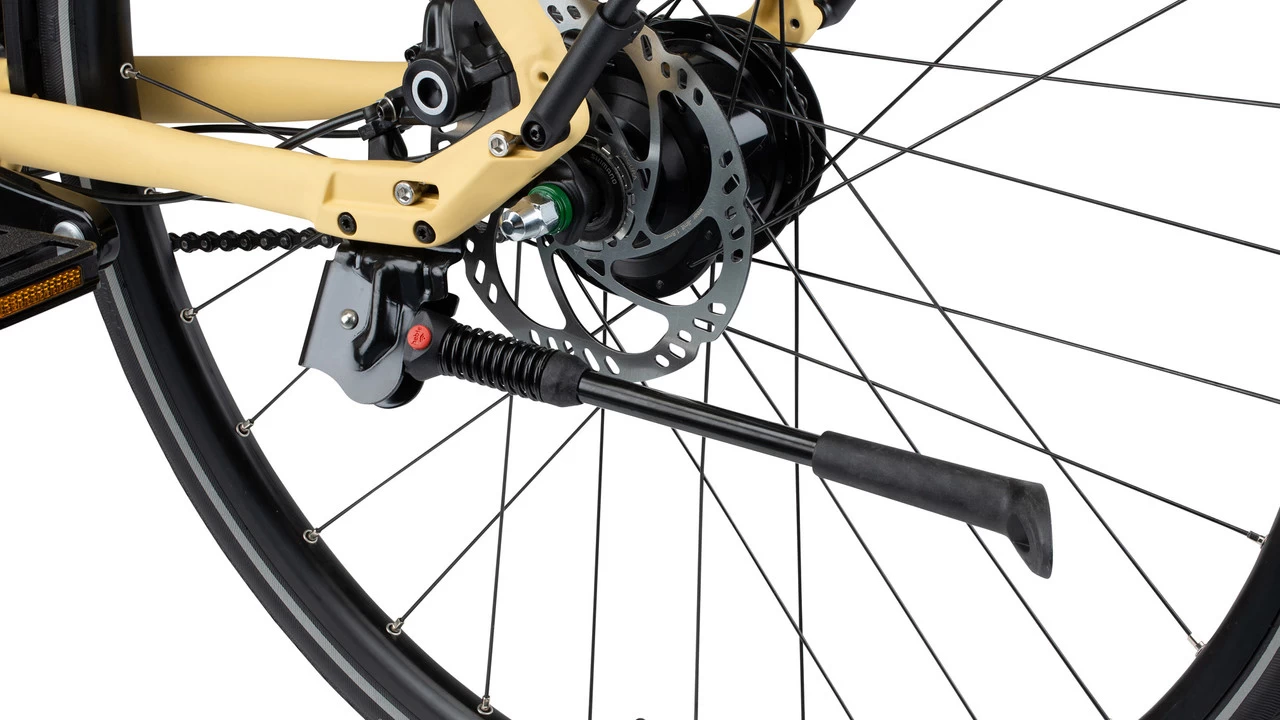

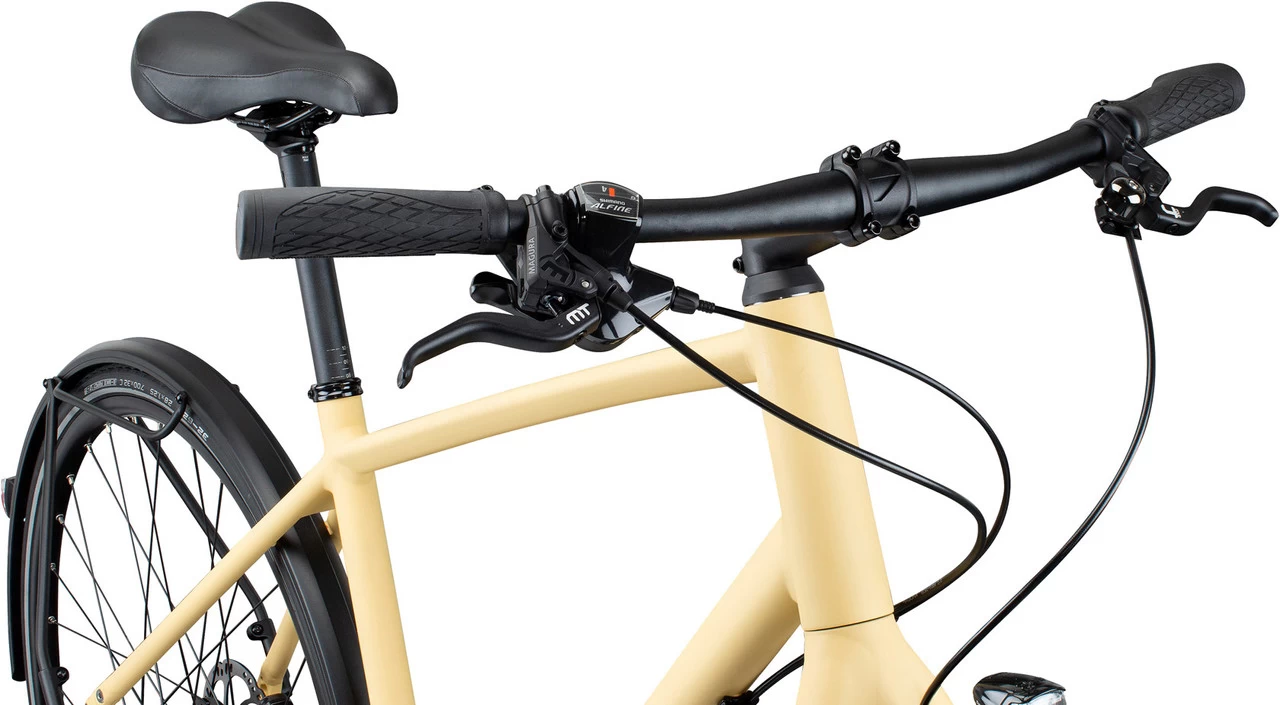

Specifications:Application:City & TouringWheel Size:28″Sizes:S, M, L, XLFrame Material:aluminium (6061)Fork Material:aluminium (6061)Components:Frame:Vortrieb Modell 1 Men’sFork:Vortrieb Modell 1 Straight rigid forkStem:Vortrieb Modell 1 31.8 x 6°Handlebars:Vortrieb Modell 1 Flat 660 mm x 16°Grips:Vortrieb CampusHeadset:Acros AiX-330 Fiber, IS41/28.6-IS41/30Seatpost:Vortrieb Modell 1 27.2 x 400 mmSaddle:Vortrieb CampusCrank:Shimano Alfine FC-S501 (42 T)Pedals:Vortrieb Urban Grip w/ grip tapeBrakes/Brake Levers:Magura MT4N Carbotecture disc brakes, 2-piston, 4-finger, with Storm HC rotors, 160 mmShift Lever:Shimano Alfine SL-503 8-speedDrivetrain:Drive Campus (20 T)Fenders:Hebie Wingee Aluminium w/ pannier railsFront Light:busch+müller Lumotec IQ2 Eyc NRear Light:Herrmans H-Trace miniKickstand:Hebie 661 for KSA40 rear mountRims:Vortrieb Urban TourSpokes:VortriebFront Hub:Shimano H-T4050-1D dynamo hubRear Hub:Shimano Alfine SG-S7001 8-speedTyres:Schwalbe Marathon Performance GreenGuardApproved For:Weight Limit:130 kg total weightRotor Size (max.):160 mm rear, 180 mm frontTyre Size (max.):32-622Features:high quality frame processing: ground welds for clean, timeless design; environmentally friendly, robust powder coating for a high-end finishreliable: Alfine 8-speed internally geared hub is proven and quietfinest accessories: lighting by busch+müller, disc brakes by Maguraeven hidden details like the Acros bearings come from the top of the linesporty riding characteristics: stiff and manoeuvrabledesign combined with practical value: Wingee fender/rack system can hold 8 kg per side, thus allowing for shopping or day tripsGeometry:S:
Recommended Height: 160-172 cmSeat Tube Length: 463 mmTop Tube Length (horiz.): 570 mmHead Tube Length: 170 mmChainstay Length: 435 mmBB Drop: 55 mmSeat Tube Angle: 73.0°Head Tube Angle: 70.0°Stem Length: 75 mm
M:
Recommended Height: 170-181 cmSeat Tube Length: 477 mmTop Tube Length (horiz.): 585 mmHead Tube Length: 180 mmChainstay Length: 435 mmBB Drop: 55 mmSeat Tube Angle: 73.0°Head Tube Angle: 70.0°Stem Length: 90 mm
L:
Recommended Height: 179-190 cmSeat Tube Length: 490 mmTop Tube Length (horiz.): 605 mmHead Tube Length: 180 mmChainstay Length: 435 mmBB Drop: 55 mmSeat Tube Angle: 73.0°Head Tube Angle: 70.0°Stem Length: 100 mm
XL:
Recommended Height: from 188 cmSeat Tube Length: 506 mmTop Tube Length (horiz.): 620 mmHead Tube Length: 200 mmChainstay Length: 435 mmBB Drop: 55 mmSeat Tube Angle: 73.0°Head Tube Angle: 70.0°Stem Length: 110 mmShipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Vortrieb Modell 1 Campus Edition Men’s Bike
