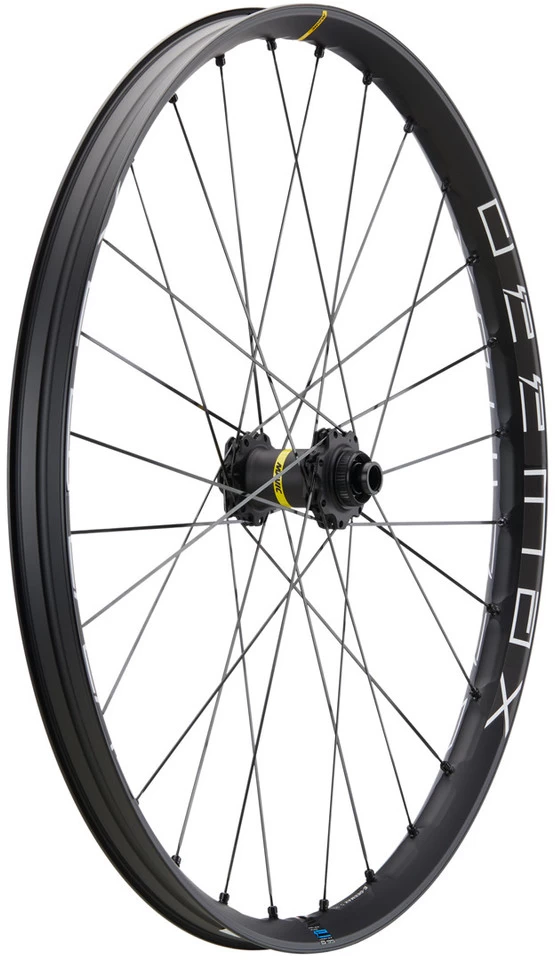

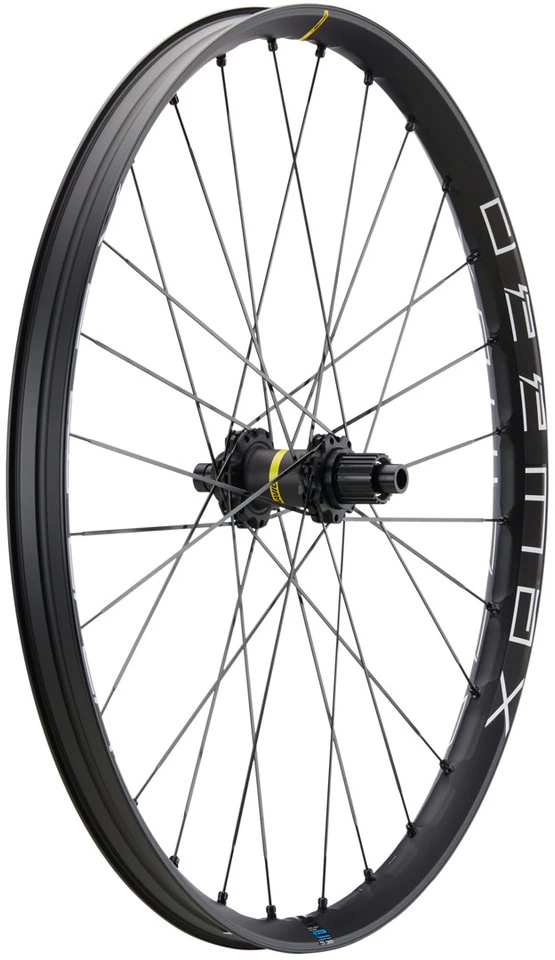

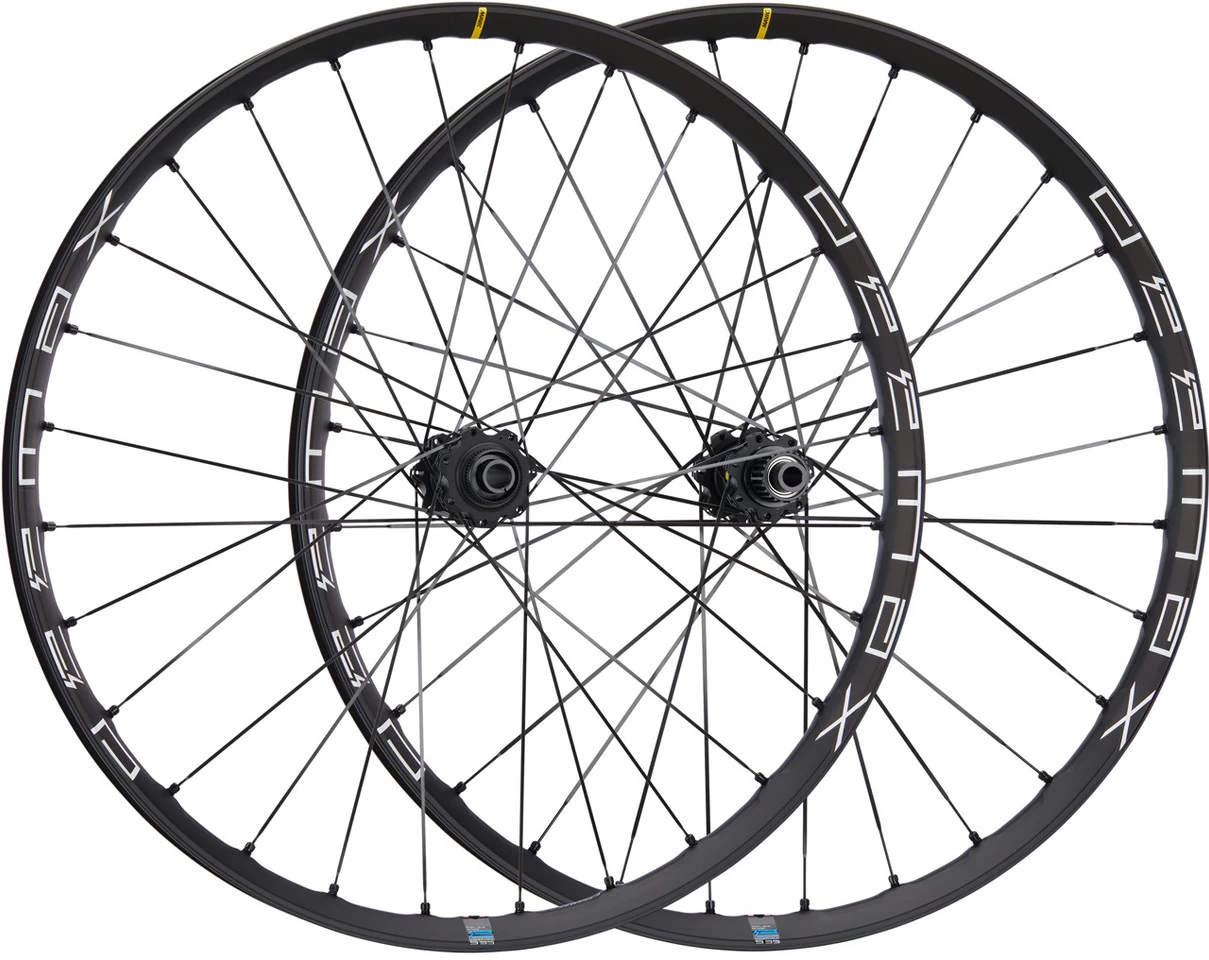

Mavic E-Deemax S35 Center Lock Disc 27.5″ Boost Wheelset

The Mavic E-Deemax S35 Disc Center Lock Wheelset – Specially designed for enduro bikes with a motor
The E-Deemax S35 is a wheelset designed by Mavic specifically for 27.5″ electric enduro bikes with center lock disc brakes, featuring 35 mm wide, weight-optimised aluminium rims. These are characterised by durability and contribute to a puncture-free ride thanks to their design. Innovative rim bed technology eliminates the need for tubeless rim tape. The wheels rotate around Boost hubs with self-aligning bearings and were each laced with 28 double butted straight pull spokes. The E-Deemax lets you increase performance and have even more fun when you are motorized on trails.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:EnduroWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscWheel Standard:BoostTubeless System:UST Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):35-584Inner Width:35 mmOuter Width:41 mmDepth:19 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:Aluminium (S6000, Maxtal)Technical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:self-aligning sealed cartridge bearingsBody Material:AluminiumFreehub Body Material:AluminiumFreehub Body:Instant Drive 360Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:straight pull / double-buttedSpoke Size:287 mm (front), 285 mm/287 mm (rear l/r)Spoke Material:steelNipple Type:Fore, integratedNipple Material:AluminiumApproved For:Weight Limit:150 kg total weight* (rider, gear & bike)Recommended Tyre Width:2.5 – 3.2″ (65 – 81 mm)
* recommended for increased durability
Features:specifically developed for off-road E-Bikeslower risk of punctures on rough surfaces thanks to special rim flangesmore control and stabilityuser-friendly tubeless system, no rim tape requiredspecial rim treatment for more durabilityasymmetric rim designweight reducing milling processrim joint welded (SUP)front convertible to 20 x 110 mm thru-axle (Boost) with optionally available adaptersTorque Caps optionally availableno rim tape required thanks to Fore technologyASTM category 5: for extreme terrainTechnology:Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

Black Shield Treatment
This innovative surface treatment of MTB rims makes them twice more resistant to stone impacts and scratches.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

ISM

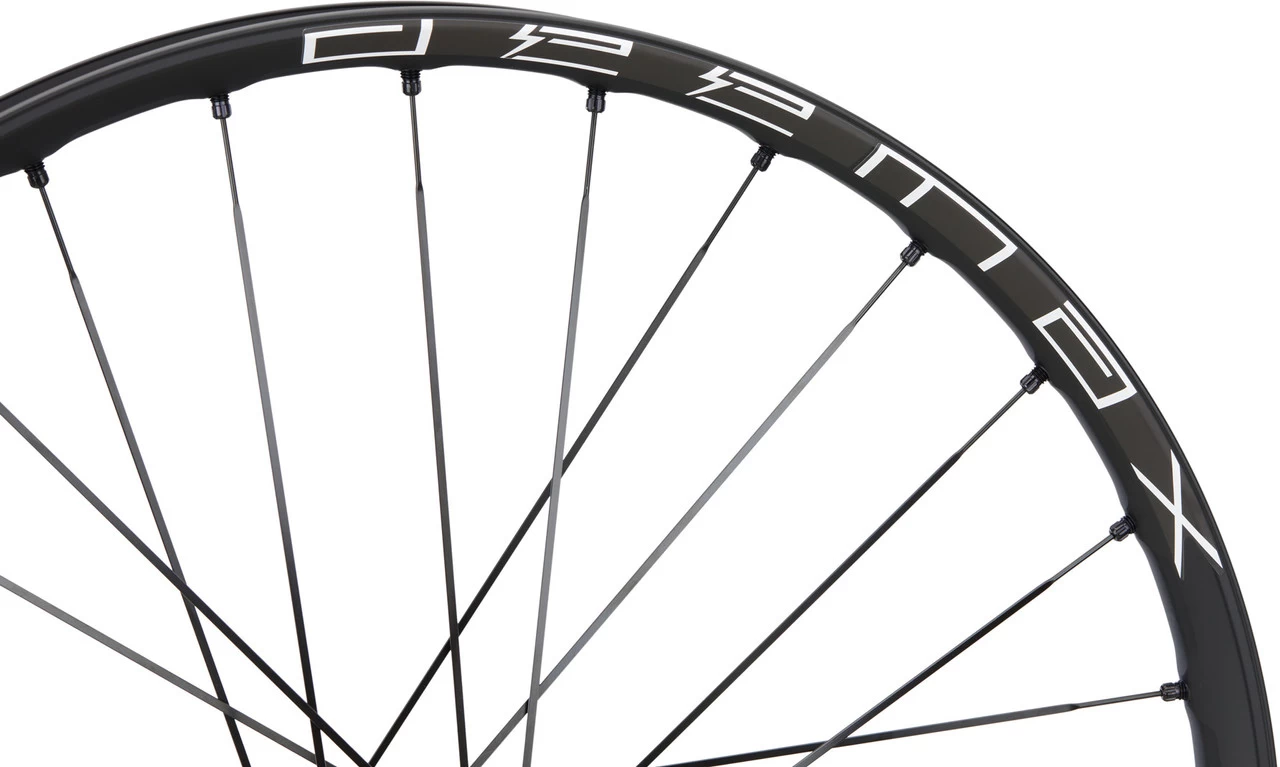

ISM stands for Inter Spoke Milling. This milling process results in a lighter rim with no loss of stiffness, which is ideal for significantly improving acceleration and climbing characteristics simultaneously.

Pinch Flat Protection
Rims with PFP technology have a larger contact area at the top of the sidewall, which reduces the risk of tyre punctures and blowouts by about 20%. It is an innovation used exclusively on e-bike wheels.

QRM Auto

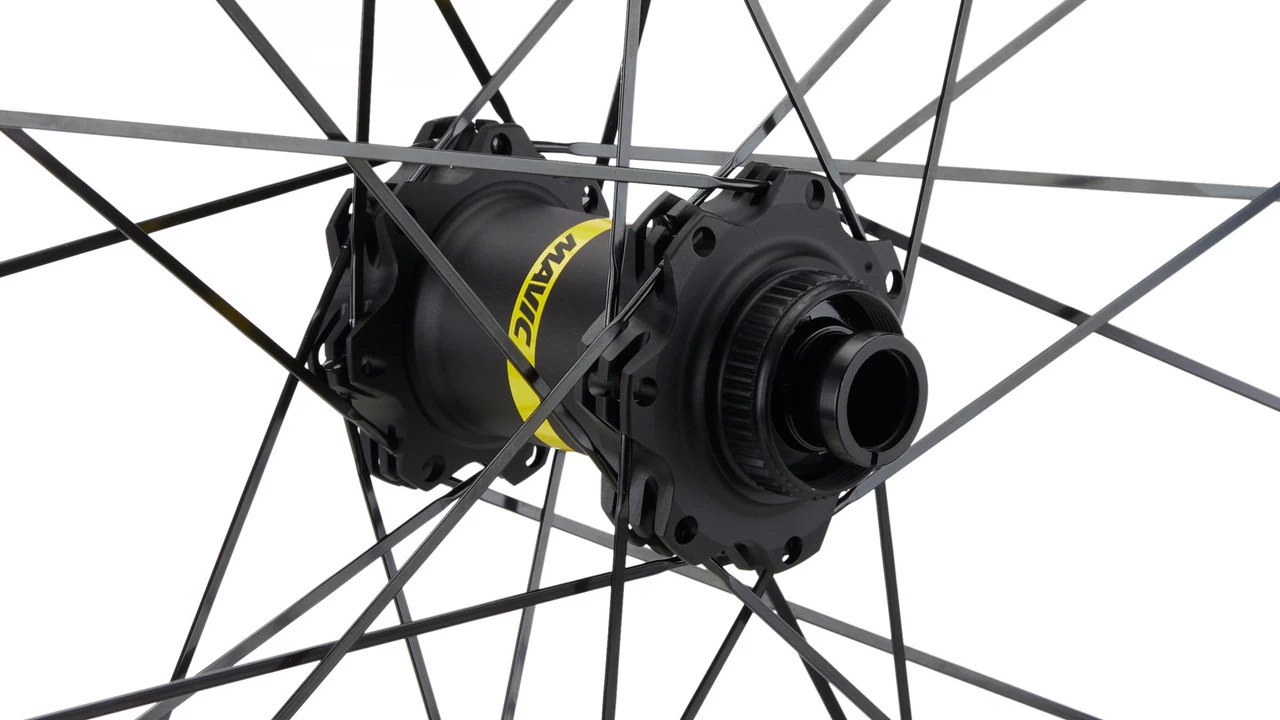

QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

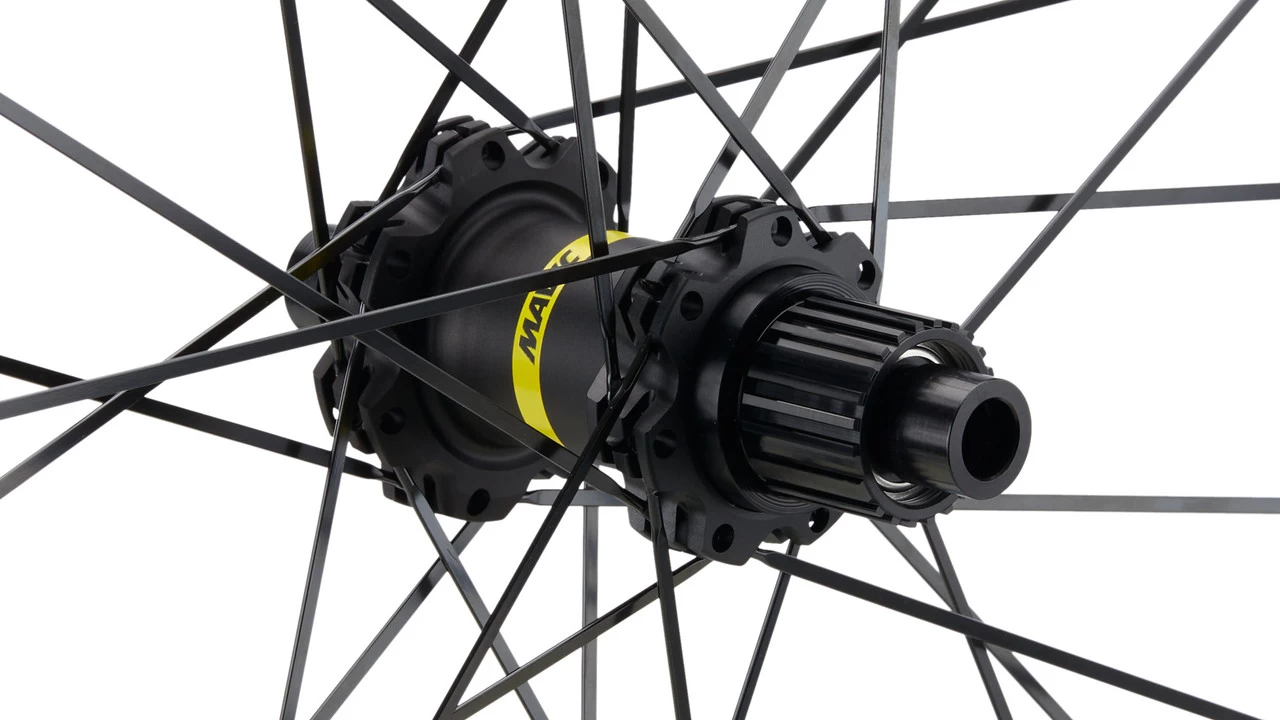

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures fast power transfer with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.
Models:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Micro Spline:

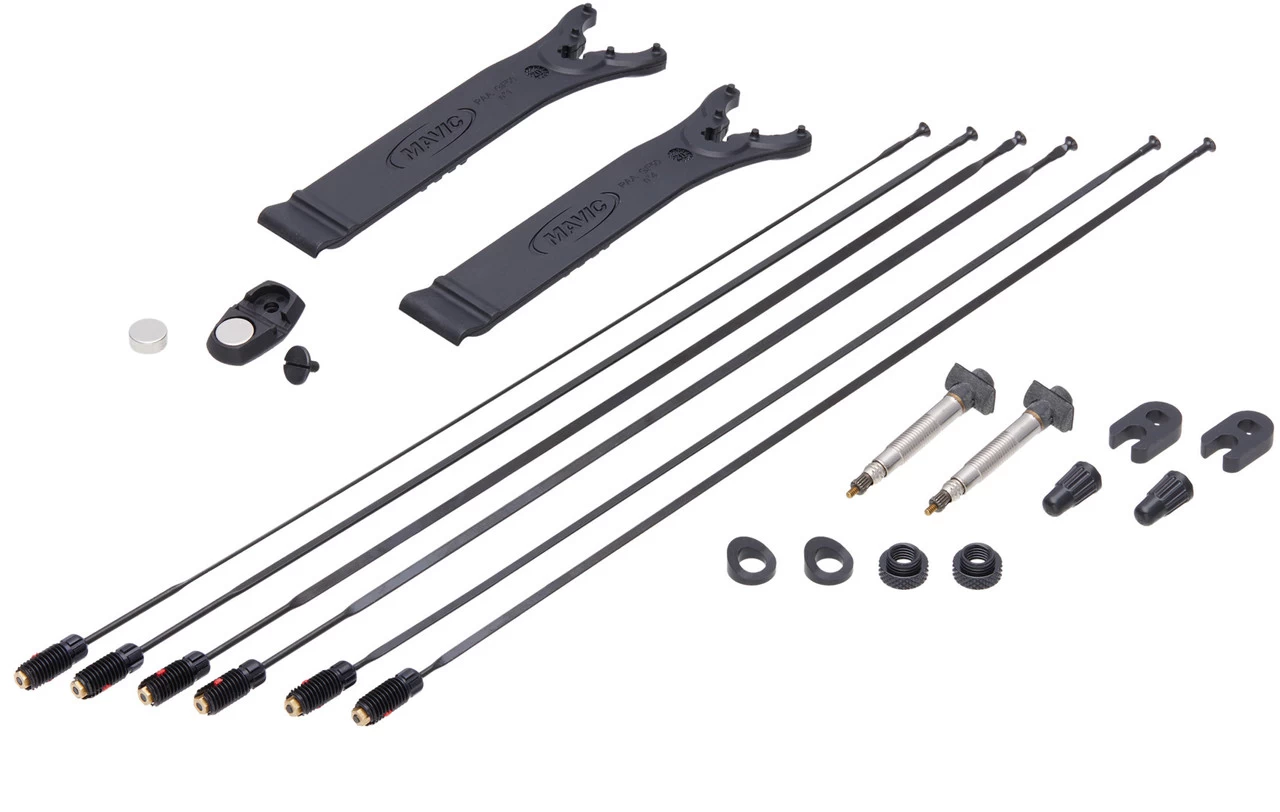

Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:P1629115Conversion Options:To convert to Shimano MTB, a Shimano freehub body is required. To convert to SRAM XD, a XD freehub body is required.Contents:1 x Mavic E-Deemax S35 Center Lock Disc 27.5″ Boost wheelset (front wheel and rear wheel)2 x UST valves with accessories2 x tool6 x spare spokes1 x E-Bike spoke magnet
