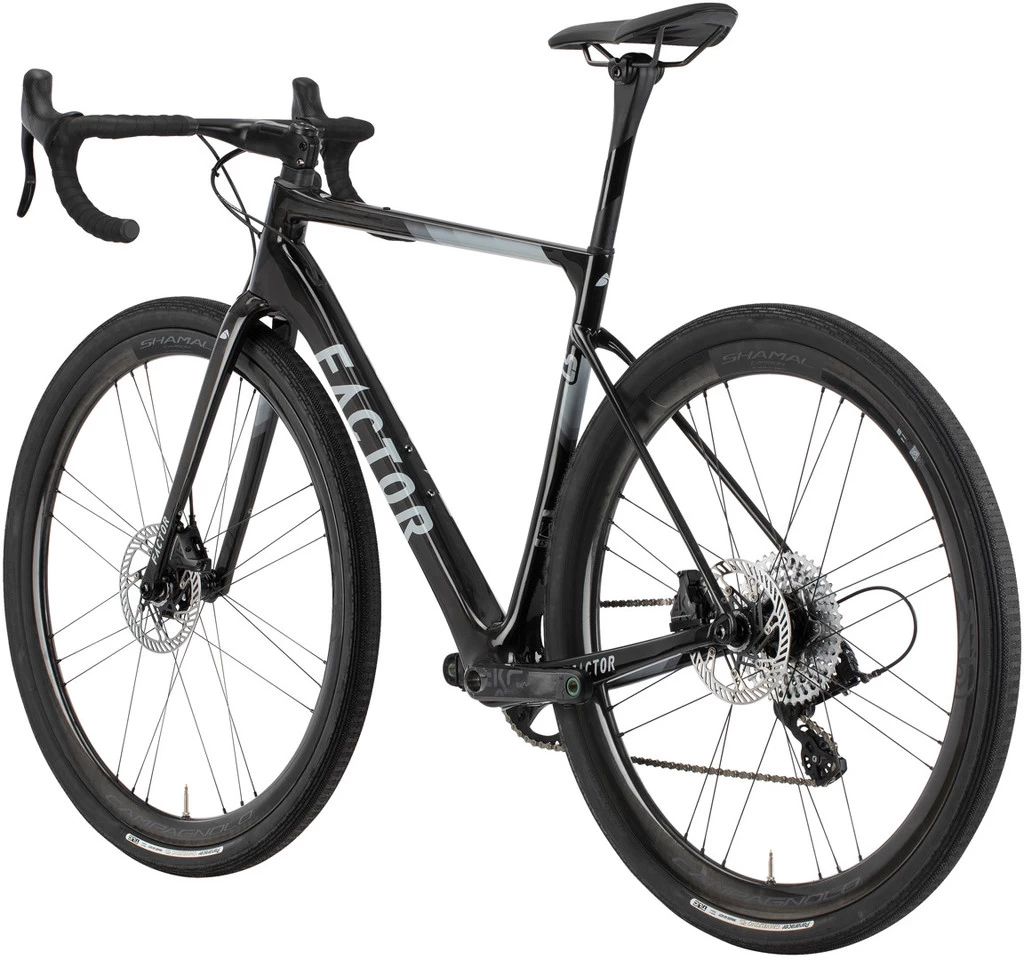

LS Carbon 28″ Gravel Bike – Ekar Bc Edition

The LS Carbon 28″ Gravel Bike by Factor in the Ekar bc Edition – A British gravel racing machine with an Italian drivetrain
The LS Gravel Bike from Factor is outfitted in the exclusive bc edition with a Campagnolo Ekar groupset, Shamal carbon wheels and Black Inc add-on parts.
The 950 g lightweight carbon frame forms the basis for a competition-oriented gravel bike. The aggressive geometry of the bike and optimal stiffness values impress with effortless handling that lets you adapt quickly to changing surfaces, gravel roads and potholes. The relatively small wheelbase maintains manoeuvrability off-road. The larger outer diameter of the 700C gravel tyres is compensated by the lowered bottom bracket, which gives it an optimal position. The defined seat tube angle and the linearity of the stack-reach ratio give riders of all body sizes a perfect fit.

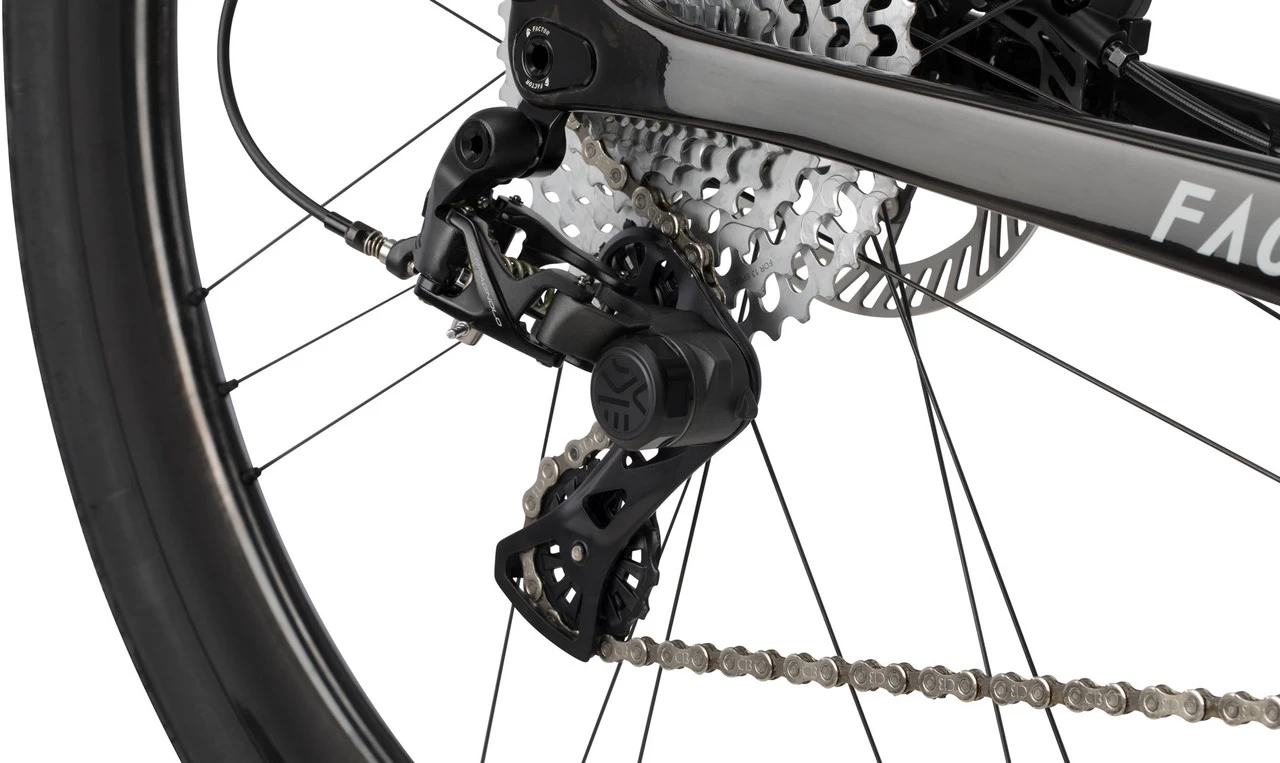

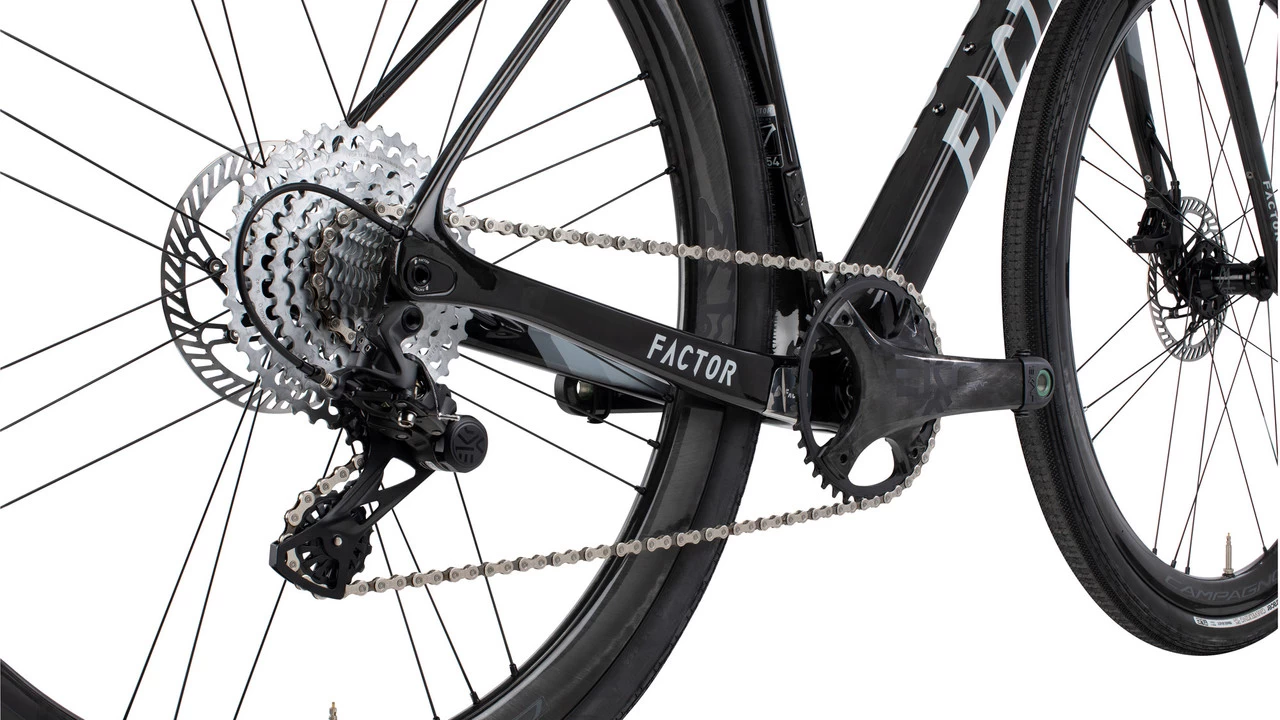

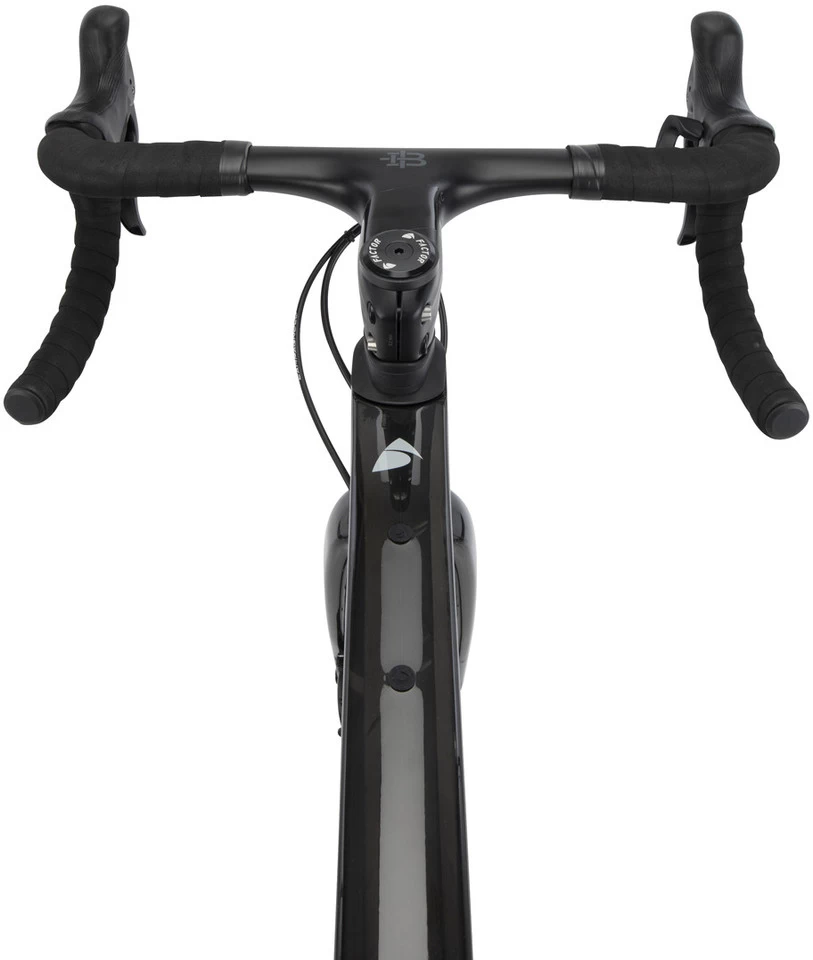

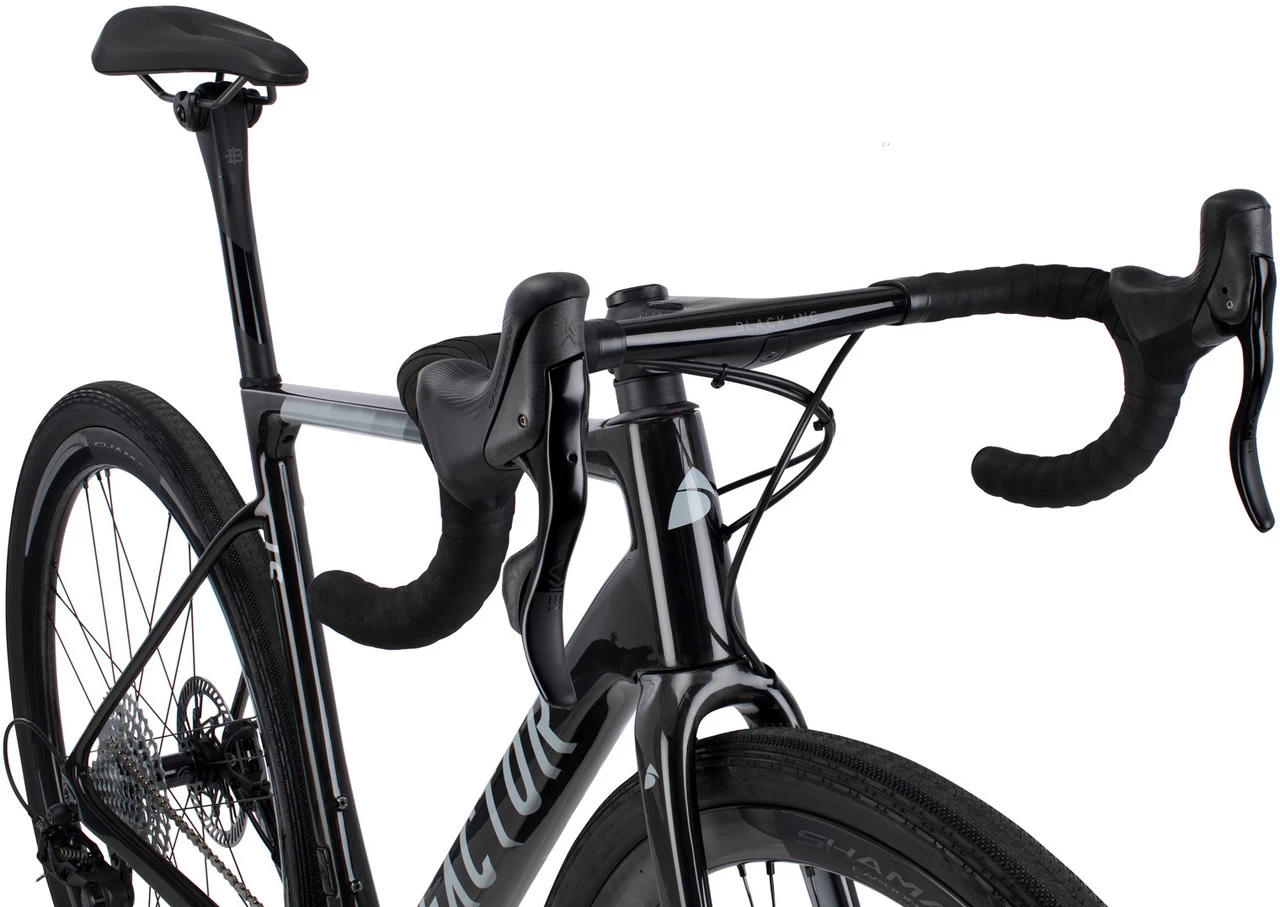

The 13 gears in the Italian 1-speed derailleur offer a fine gradation in mountain gears. On flat surfaces, you have enough gear range to go full throttle. The slightly raised rims on the Shamal wheels are streamlined and have a low weight. Climbing or hot target sprints will not be a problem. Black Inc’s aerodynamic handlebar stem unit and seatpost also contribute to the strong performance of this gravel bike.
The LS bike lets you race over all gravel tracks, where high speed is the motto!

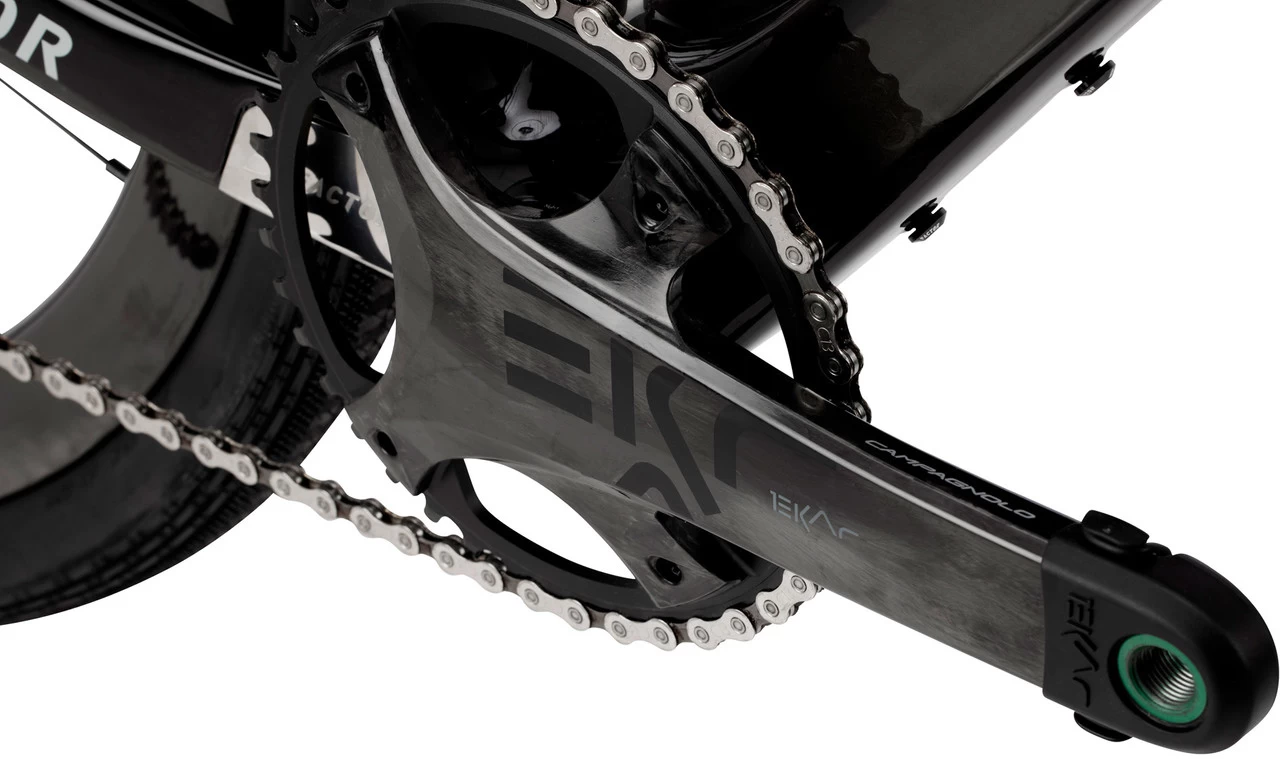

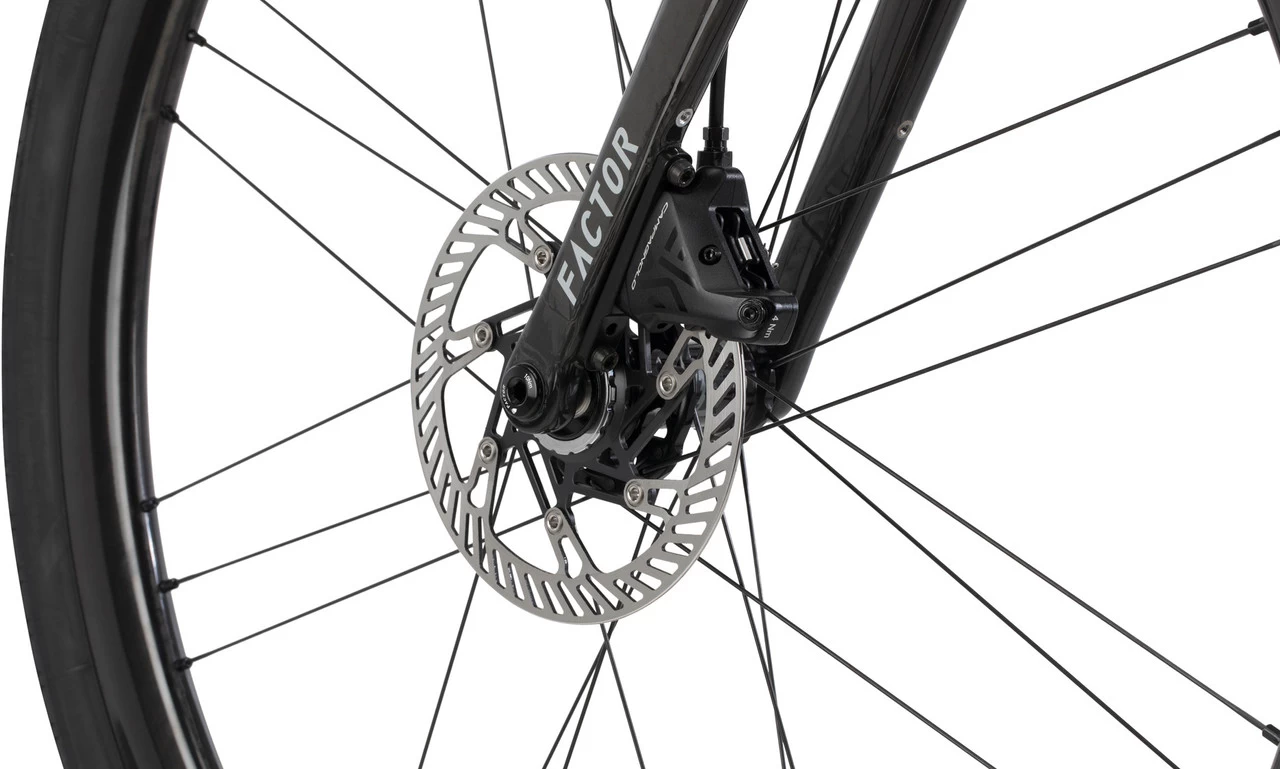

Specifications:Application:GravelWheel Size:28″Sizes:49 cm, 52 cm, 54 cm, 56 cm, 58 cmFrame Material:CarbonFork Material:CarbonComponents:Frame:Factor LSFork:Factor LSStem:Black Inc Integrated Handlebar StemHandlebars:Black Inc handlebar stem unit, drop 125 mm, reach 80 mmHeadset:IS41/28.6 – IS49/37 (top to bottom)Seatpost:Black Inc Carbon seatpost, 27.2 mm, 350 mm, SB 0 mmSaddle:Fizik Terra Argo X3 saddleCrank:Campagnolo Ekar Ultra Torque Carbon 13-speed crankset, 40 TPedals:noneBrakes:Campagnolo Ekar, AFS Center Lock brake rotor, 160 mmShift/Brake lever:Campagnolo EkarRear Derailleur:Campagnolo EkarCassette:Campganolo Ekar 13-speed, 9-42 toothChain:Campagnolo Ekar 13-speedWheels:Campagnolo Shamal Carbon Center Lock Disc 28″ , front 12 x 100 mm, rear 12 x 142 mm, Campa N3WTyres:Panaracer Gavelking Semi Slick TLC, 40-622 (700x40C)Approved For:Rotor Size (max.):160 mmTyre Size (max.):40-622 (700x40c)Chainrings:1x, 2xFeatures:performance-oriented frame for Gravel mass start races13-speed driverigid design and aggressive geometryaerodynamic integrated handlebar stemlow bottom bracket, optimal wheelbaseeyelets for bottle holder and triathlon bagsuitable for racing in winter and for trainingasymmetrical bottom bracket connection for maximum stiffnessseatstays with kink and curved seat tube for increased comfortintegrated mudguard holdersremovable front derailleur mount and cover platechainstay protectionpainted UD carbonGeometry:49 cm:
Stack:530 mmReach:372 mmSeat Tube Length:455 mmEffective Top Tube Length:519 mmHead Tube Length:104 mmChainstay Length:420 mmWheelbase:990 mmBB Drop:76 mmSeat Tube Angle:74.5°Head Tube Angle:71.5°Standover Height:748 mmCrank Arm Length:170 mmHandlebar Width:40 cmStem Length:90 mm
52 cm:
Stack:547 mmReach:378 mmSeat Tube Length:481 mmEffective Top Tube Length:535 mmHead Tube Length:120 mmChainstay Length:420 mmWheelbase:998 mmBB Drop:76 mmSeat Tube Angle:74°Head Tube Angle:71.9°Standover Height:772 mmCrank Arm Length:170 mmHandlebar Width:400 mmStem Length:100 mm
54 cm:
Stack:566 mmReach:383 mmSeat Tube Length:507 mmEffective Top Tube Length:550 mmHead Tube Length:137.5 mmChainstay Length:420 mmWheelbase:1005 mmBB Drop:76 mmSeat Tube Angle:73.5°Head Tube Angle:72.3°Standover Height:789 mmCrank Arm Length:172.5 mmHandlebar Width:420 mmStem Length:110 mm
56 cm:
Stack:585 mmReach:392 mmSeat Tube Length:527 mmEffective Top Tube Length:566 mmHead Tube Length:158.5 mmChainstay Length:420 mmWheelbase:1020 mmBB Drop:76 mmSeat Tube Angle:73.5°Head Tube Angle:72.3°Standover Height:809 mmCrank Arm Length:172.5 mmHandlebar Width:420 mmStem Length:110 mm
58 cm:
Stack:605 mmReach:401 mmSeat Tube Length:552 mmEffective Top Tube Length:580 mmHead Tube Length:179.5 mmChainstay Length:420 mmWheelbase:1035 mmBB Drop:76 mmSeat Tube Angle:73.5°Head Tube Angle:72.3°Standover Height:831 mmCrank Arm Length:175 mmHandlebar Width:440 mmStem Length:120 mmManufacturer Numbers:49 cm:bcLSEKAR4952 cm:bcLSEKAR5254 cm:bcLSEKAR5456 cm:bcLSEKAR5658 cm:bcLSEKAR58Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x Factor LS Gravel Bike – Ekar bc Edition
