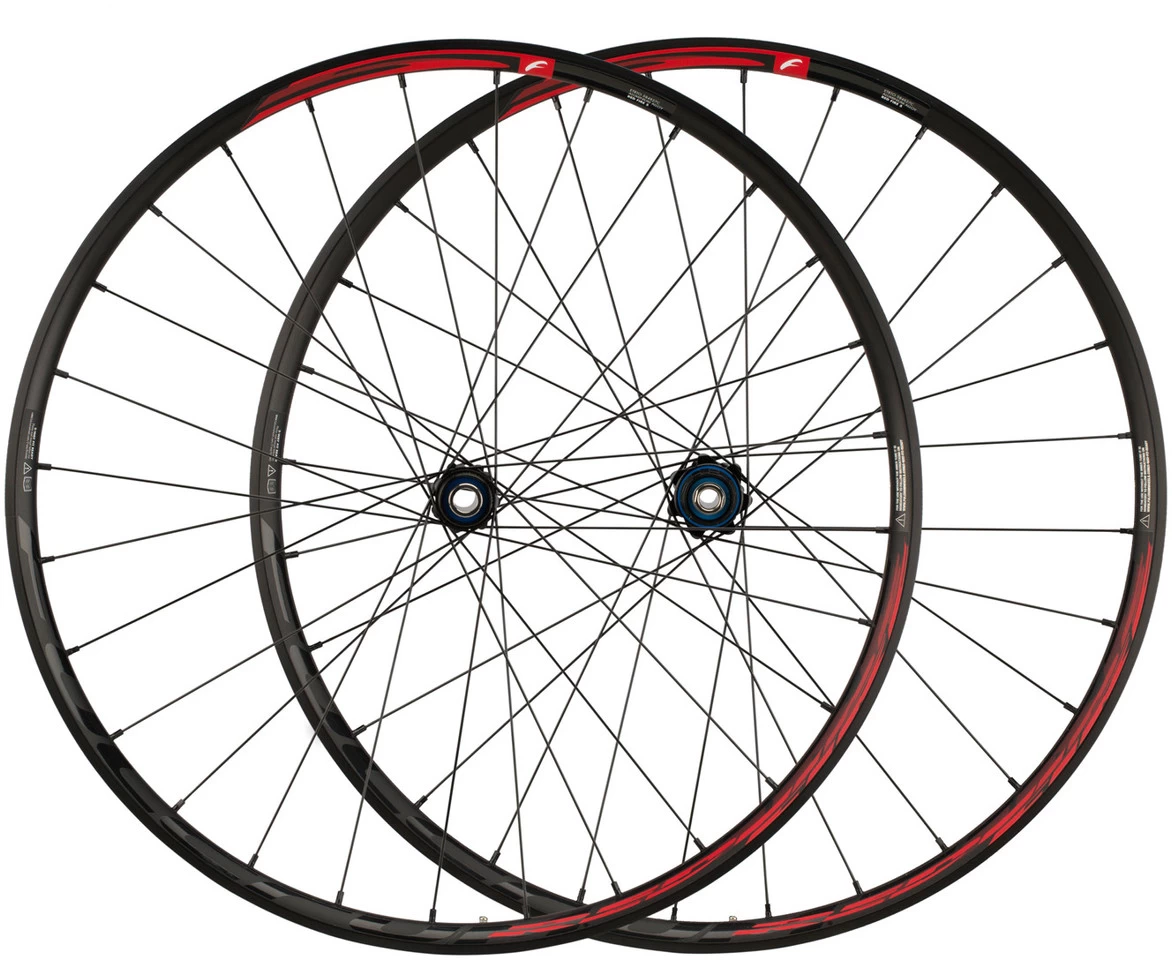

Fulcrum Red Fire 5 Disc Center Lock Boost 27.5″ Wheelset

Specifications:Application:Trail, EnduroWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock Disc (AFS Axle System™)Wheel Standard:BoostTubeless System:2-Way Fit™ ReadyTechnical Information – Rim:Dimensions (ETRTO):27-584Inner Width:27 mmOuter Width:32 mmDepth:20 mmValve Hole Diameter:SV / Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:cartridgeBody Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:cartridgeBody Material:aluminiumTechnical Information – Lacing:Spoke Type:straight pull / roundSpoke Material:stainless steelNipple Material:aluminiumApproved For:Weight Limit:109 kg total weight*Recommended Tyre Width:2.0″ -2.5″2-Way Fit Ready:
The conversion can only be done with the following components:
30 mm Fulcrum rim tape for 29″ Red Zone Series / 35 mm Fulcrum rim tape for 27.5″ Red Fire 500Tubeless valves, Factor Number: M1-035Effetto Mariposa Caffelatex tyre sealant
* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.
Features:ASTM category 4: for off-road use with jumps up to 122 cm in heightaluminium hub body with aluminium flanksaluminium axlesTechnology:2-Way Fit™ Ready
If the necessary accessories (valve, rim tape and tyre sealant) are used, the wheelset is tubeless compatible. This makes it particularly versatile and perfectly suited for every situation. An Abrupt loss of air is prevented with this system – which is a clear plus in terms of safety. There is also less snake bite danger, as there is no tube that can be damaged.
What about a flat tyre? Don’t worry! One of the advantages of the Fulcrum 2-Way Fit Ready system is the possibility of removing the tubeless valve and inserting a normal tube to get you home.

AFS Axle System™
The Axial Fixing System is the solution developed by Fulcrum to mount the disc rotor to the hub. The connection provided by the stop surface of the mount is greater than that of the already known standards, allowing greater structural rigidity and therefore more precise and efficient braking.
Colour Index:Rims: black w/ red accentsHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:
Freehub: Shimano MTBGearing: 8-/9-/10-/11-speedManufacturer Number: RF5-18DFR5B2A
27.5″ set (front 15×110 Boost + rear 12×148 Boost) SRAM XD:
Freehub: SRAM XDGearing: 11-/12-speedManufacturer Number: RF5-18DFR52BAXD
27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub: Shimano Micro SplineGearing: 12-speedManufacturer Number: RF5-20DFR5B2AMContents:1 x Fulcrum Red Fire 5 wheelset (front and rear wheel)
