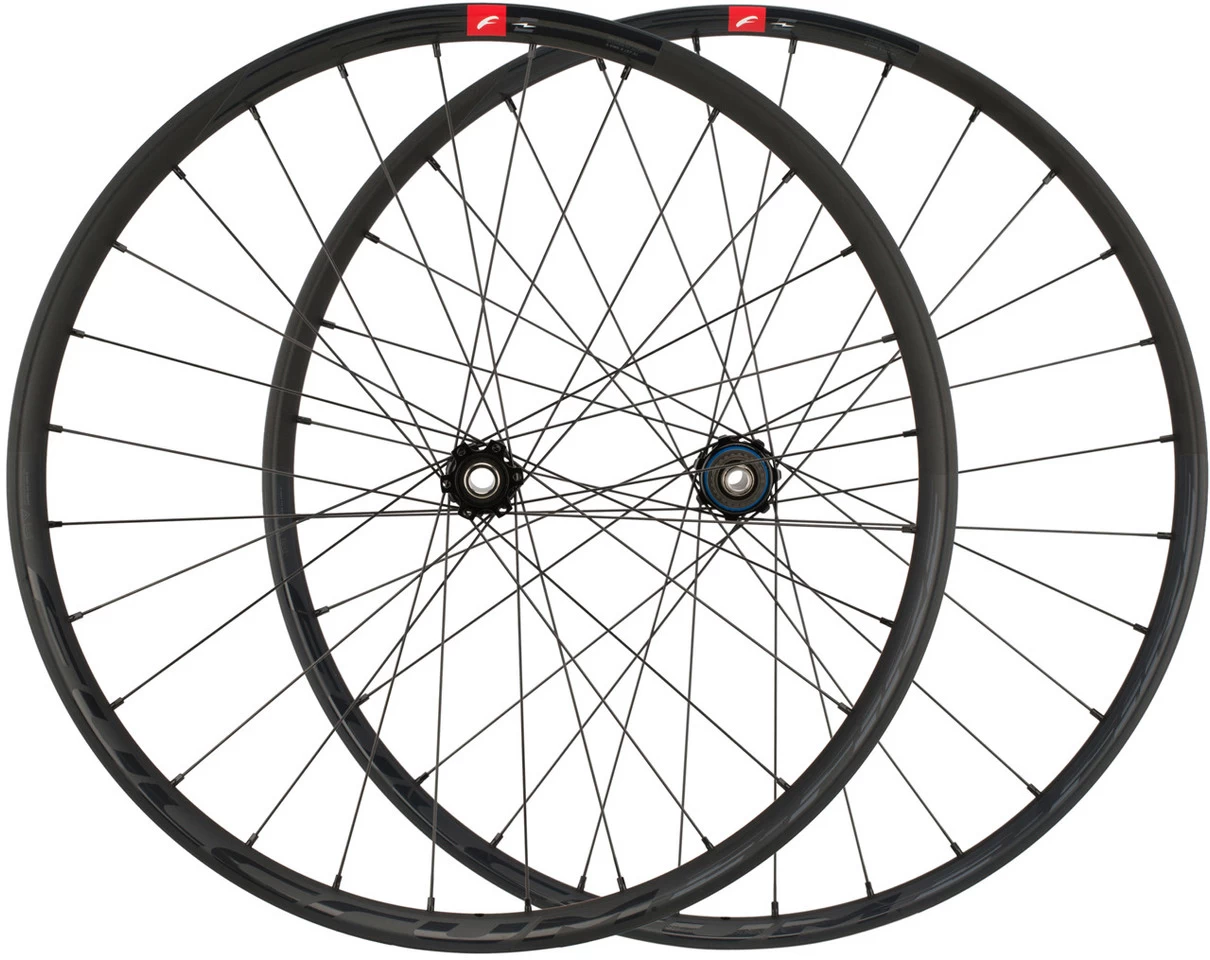

Fulcrum E-Fire 3 Disc 6-bolt Boost 27.5″ Wheelset – 2019

E-Fire 3 Disc 6-bolt Boost 27.5″ wheelset by Fulcrum – smooth and precise
The Fulcrum E-Fire 3 Boost in 27.5″ is the perfect wheelset for your E-MTB. It has been specially designed for the requirements of motorized trail riding. On an MTB, the front and rear wheels perform different yet complementary functions. Thus the front wheel has a greater influence on the steering and absorbs lateral forces, whereas the rear wheel carries most of the weight, which is even more pronounced on an E-MTB with motor. In addition, greater forces also act on the wheel due to the drive. The solution: Fulcrum developed the E-Fire 3 with asymmetrical rim depth. The front profile was raised and the rear profile lowered to better distribute the ground impacts. This asymmetry makes it possible to use the angle and length of the spokes to optimise the forces coming from the cassette and disc brake.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:E-Bike, All Mountain, EnduroWheel Size:27.5″ (650B)Tyre Type:clincher tyreNumber of Spokes:28Brake Type:6-bolt discWheel Standard:BoostTubeless System:2-Way Fit™ ReadyTechnical Information – Rim:Dimensions (ETRTO):35-584Inner Width:35 mmOuter Width:40 mmDepth:23 mm (front), 18 mm (rear)Valve Hole Diameter:SV / Presta (6.5 mm)Rim Material:AluminiumTechnical Information – Front Hub:Over Locknut Dimension:15 x 110 mm thru-axleBearings:adjustable cartridge, sealedBody Material:AluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 148 mm thru-axleBearings:adjustable cartridge, sealedBody Material:AluminiumTechnical Information – Lacing:Spoke Type:straight pull / round / reinforced headSpoke Material:stainless steel, blackNipple Material:AluminiumApproved For:Weight Limit:150 kg (system weight)2-Way Fit Ready:
The conversion can only be done with the following components:

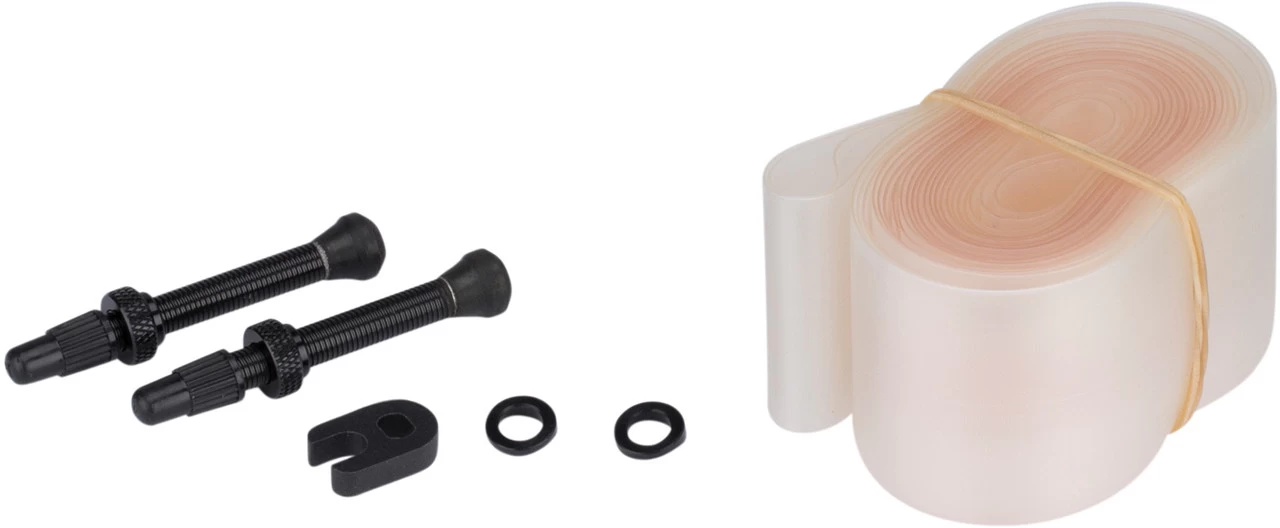

30 mm Fulcrum rim tape for 29″ Red Zone Series / 35 mm Fulcrum rim tape for 27.5″ Red Fire 500Tubeless valves, Factor Number: M1-035Effetto Mariposa Caffelatex tyre sealant
* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.
Features:ASTM category 3: for off-road use with jumps up to 61 cm in height- ASTM category 4 (130 kg weight limit): for off-road use with jumps up to a height of 122 cmself-locking nipplesreinforced specific disc brake flangedifferentiated rim depthwelded rimTechnology:2-Way Fit™ Ready
If the necessary accessories (valve, rim tape and tyre sealant) are used, the wheelset is tubeless compatible. This makes it particularly versatile and perfectly suited for every situation. An Abrupt loss of air is prevented with this system – which is a clear plus in terms of safety. There is also less snake bite danger, as there is no tube that can be damaged.
What about a flat tyre? Don’t worry! One of the advantages of the Fulcrum 2-Way Fit Ready system is the possibility of removing the tubeless valve and inserting a normal tube to get you home.

Asymmetric Rim
Rim asymmetry is designed to improve the tension of the rim while balancing the forces coming from the brakes and cassette.

Anti-Rotation System™

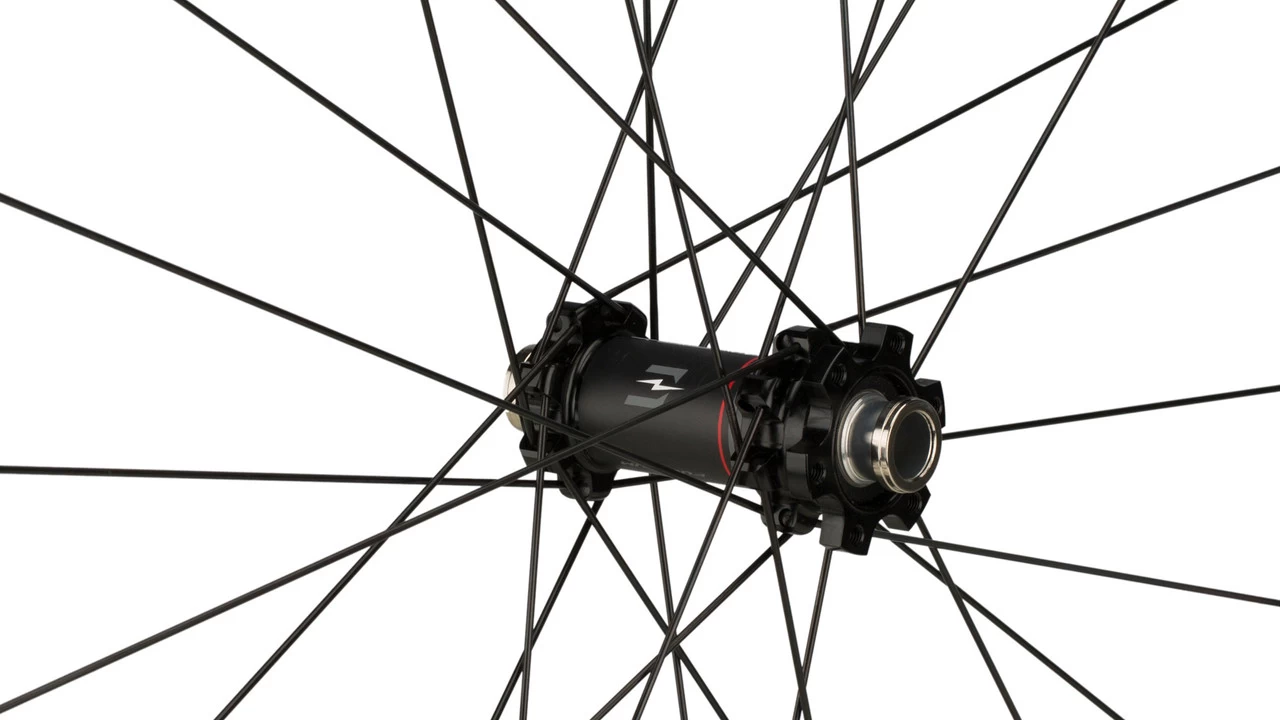

Fulcrum’s technicians have redesigned the spokes and hub shells to create a strong and solid unit. In this way, the spokes never lose their initial tension, keeping the wheel perfectly reactive and centred, and the wheel remains in the position developed in the wind tunnel to ensure the best possible aerodynamics.

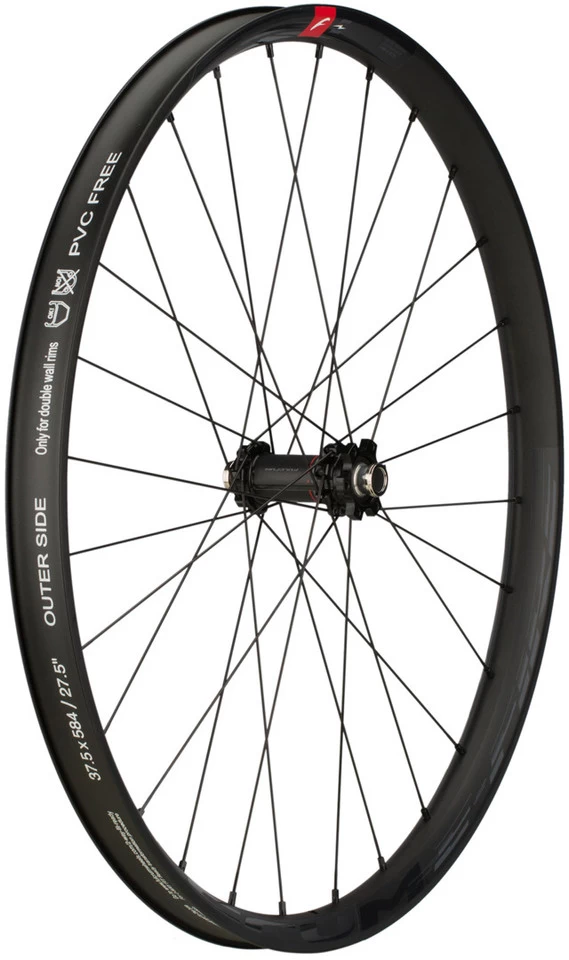

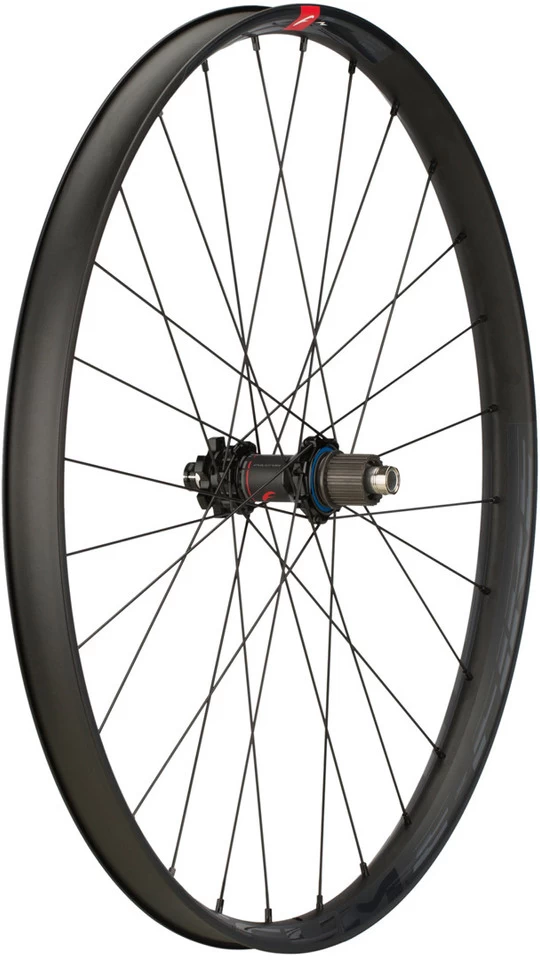

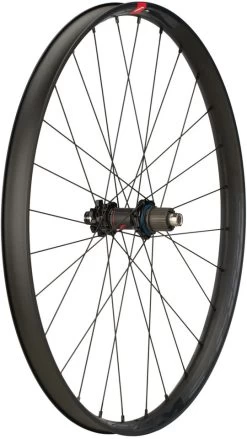

Colour Index:Rims: black with black decalsHubs: blackSpokes: blackNipples: blackModels:27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano:

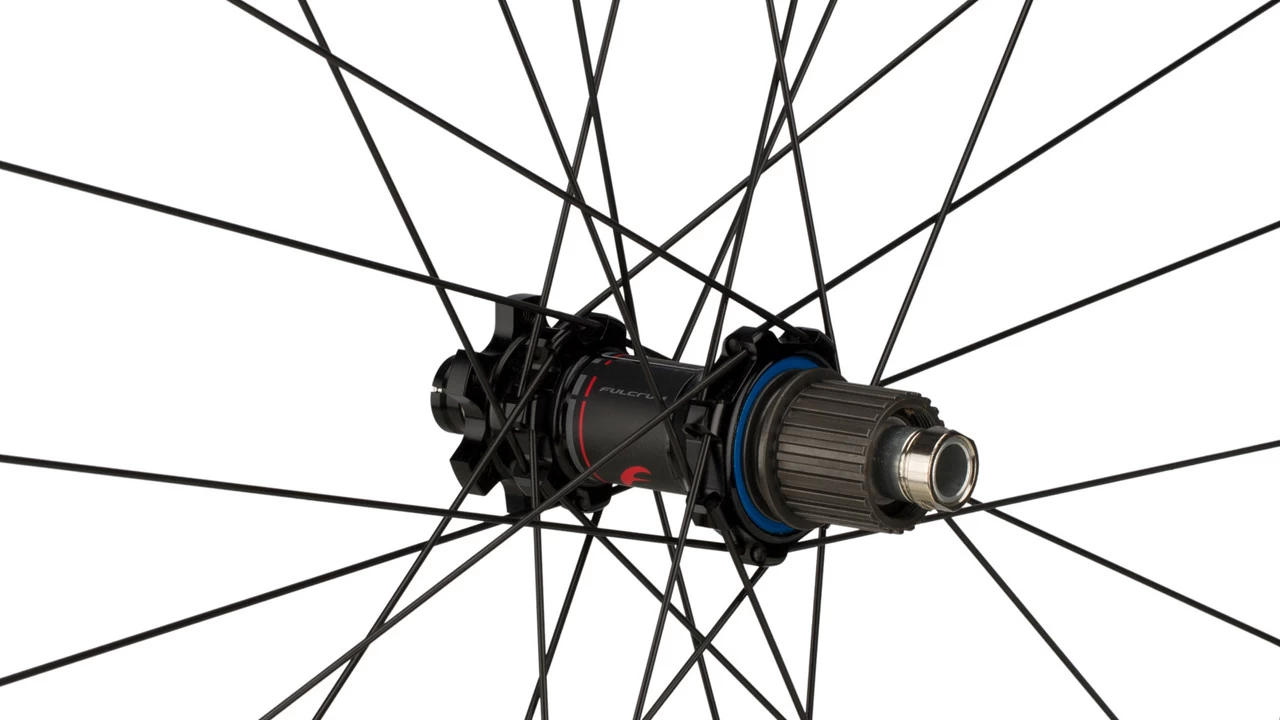

Freehub: Shimano MTBGearing: 8-/9-/10-/11-speedManufacturer Number: EF3-19DFR752B
27.5″ set (front 15×110 Boost + rear 12×148 Boost) Shimano Micro Spline:
Freehub: Shimano Micro SplineGearing: 12-speedManufacturer Number: EF3-19DFR752BMContents:1 x Fulcrum E-Fire 3 wheelset (front and rear wheel)
