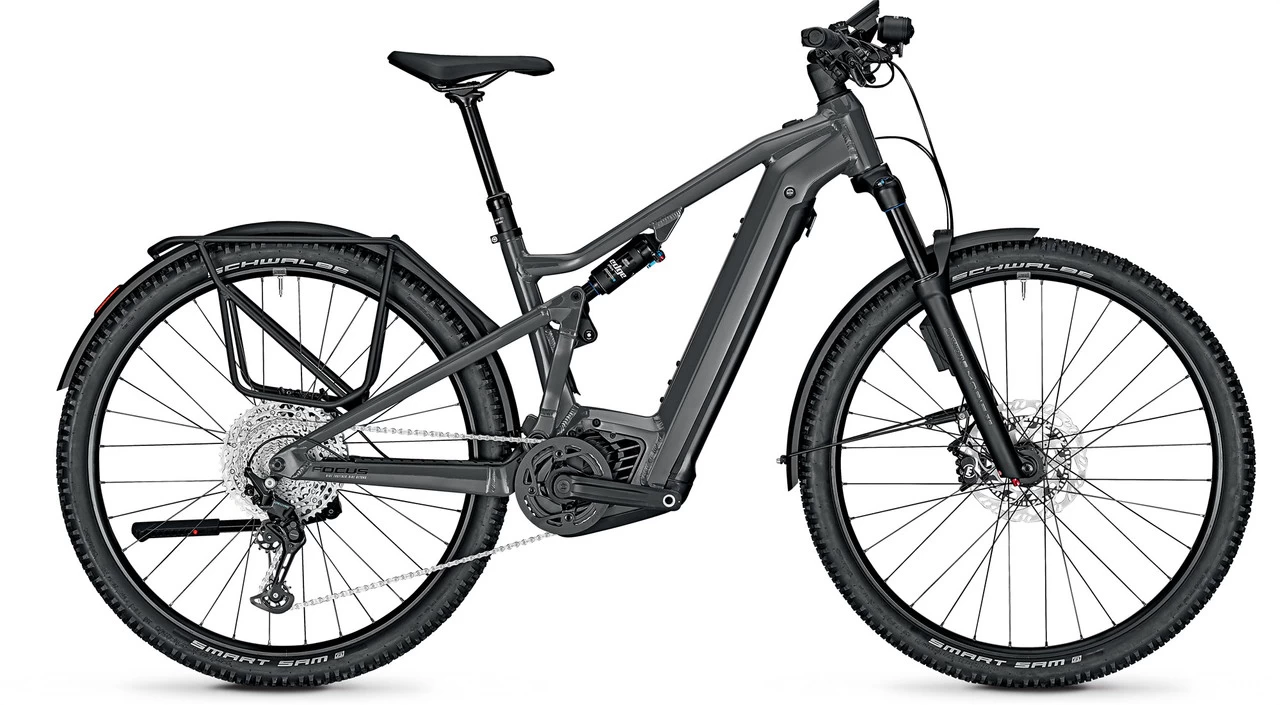

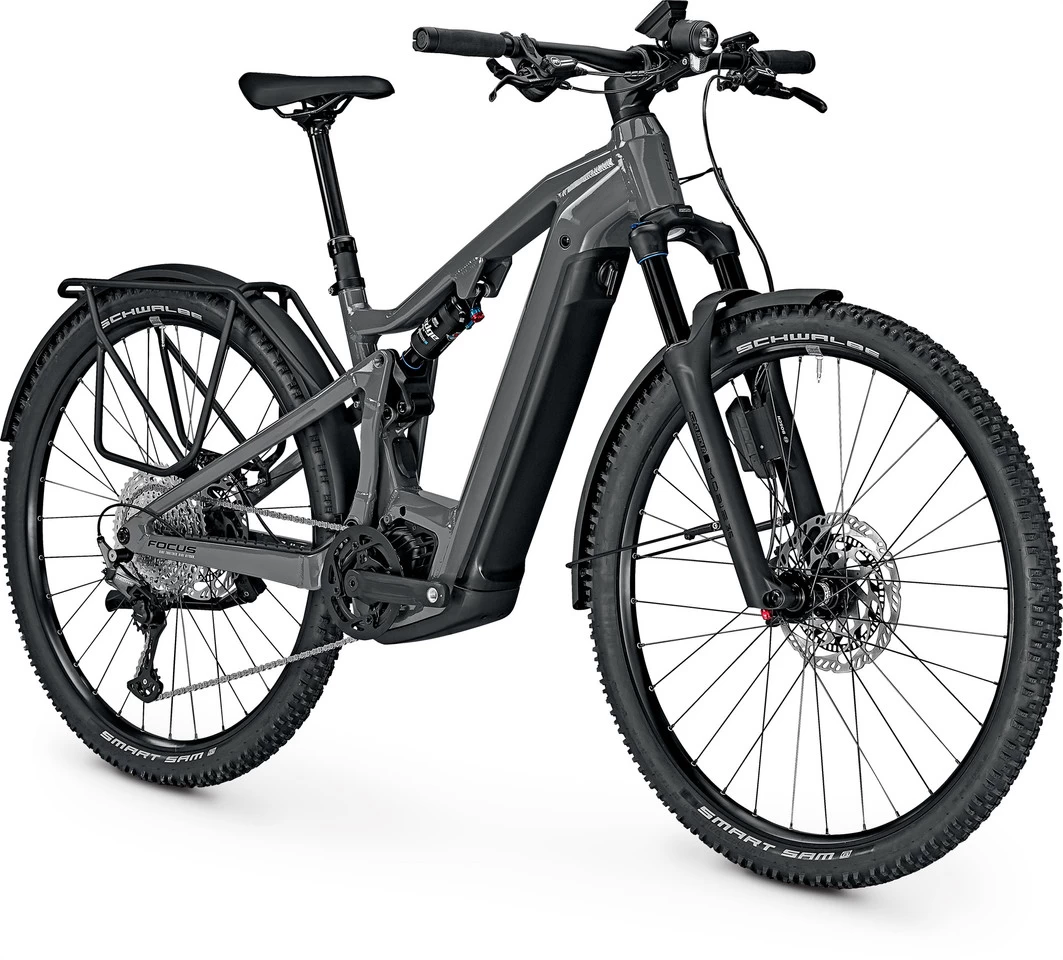

Focus THRON² 6.9 EQP ABS 29″ E-Mountain Bike

FOCUS THRON² 6.9 EQP E-Mountain Bike – Ideally equipped for off-road and touring
The FOCUS THRON² 6.9 EQP is a 29″ E-bike with Shimano Deore 12-speed gears and suspension parts from Suntour that is suitable for everyday use on trails and tours. It offers you 130 mm of travel at the front and rear and, thanks to the Bosch Performance CX motor with 750-Wh battery, reliably supports you when riding uphill. Magura ABS brakes also ensure controlled deceleration and increased safety. A pannier rack, fenders, a lighting system and a rear kickstand are included in the EQP version of the THRON² 6.9. Charge your smartphone or navigation device while riding via the integrated USB-C port.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All Mountain, Touring, CityWheel Size:29″Front Travel:130 mmRear Travel:130 mmSizes:M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)E-Motor:Type:mid-drive motorMotor Type:Bosch Performance CX Smart, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:Bosch Powertube, 36 V, removable, lockableCapacity:750 Wh (20.8 Ah)Display:Bosch LED Remote + Kiox 300Components:Frame:FOCUS THRON², hydroformed aluminium, 3D forged, 130 mm F.O.L.D. GEN2 linkage design, USB-C port, post mount 180 mm, 12 x 148 mm thru-axle (Boost)Fork:SR Suntour MOBIE 35, ABS, 540 mm axle to crown length, 44 mm offset, 15 x 110 mm thru-axle (Boost)Stem:FOCUS C.I.S. integrated, 60 mm 30°, 35 mm handlebar clamp, aluminiumHandlebars:FOCUS, aluminium, 760 mm, flat bar, 9° backsweep, 35 mmGrips:FOCUSRear Shock:SR Suntour Edge, 210 x 50 mm, hardware: 25.0 x 8.0 mm, no bushingRemote System:noneHeadset:Acros ZS56/ZS56 (ICR), FOCUS C.I.S. integratedSeatpost:Post Modern Dropper Post PM-214, 34.9 mmSaddle:Selle Royal VivoCrank:FSA CK-320, aluminium, 170.0 mm, 34 T, bottom bracket integrated in motor unitPedals:MTB, with reflectorsBrakes:Magura CT-ABS, 4 pistons, hydraulic ABS disc brakeShift Lever:Shimano Deore M6100, 12-speedRear Derailleur:Shimano Deore M6100, 12-speedCassette:Shimano Deore CS-M6100, 12-speed, 10-51 TChain:Shimano 12-speedRims:RODI TRYP25, 25-622Spokes:Steel, galvanised, blackFront Hub:Novatec D041, 15 x 110 mmRear Hub:Novatec D462, 12 x 148 mmFront Tyre:Schwalbe Smart Sam, 29 x 2.25″ , 57-622Rear Tyre:Schwalbe Smart Sam, 29 x 2.25″ , 57-622Approved For:Weight Limit:150 kg (system weight)Rotor Size (max.):203 mm (rear)Tyre Size (max.):58-622Chainrings:1xChainring Size (max.):36 TFeatures:touring bike with Bosch Performance CX-E drivetrain and 750-Wh battery for trail riding, bikepacking and commutingEQP version: fully equipped for everyday usealuminium frame with 130 mm travel and revised F.O.L.D. linkage design (Gen2)Suntour MOBIE 130 mm suspension fork and Edge damperadditional safety with Bosch / Magura ABS brake assist, brake lights and high beamsmore controlled, stable braking and improved ride feelfender set from Büchel, aluminium, 60 mm, powder-coatedMassload pannier rack, 3 struts, 25 kg load capacityUrsus rear kickstand, adjustable, 40 mm mountLitemove AE130 front light (high-beam, 130 lux) and Trelock LS421 rear lighttidy cockpit with C.I.S. integrationUSB-C port for charging the smartphone or navigation systemEN classification 2: Bicycle / pedelec for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel paths of moderate difficulty, drops of no more than 15 cm, average speed 15 to 25 km/hTechnology:F.O.L.D. Upgrade / F.O.L.D. Gen2
The second generation FOCUS Optimised Linkage Design kinematics are more progressive than the previous F.O.L.D. linkage design, so that the puncture protection at the end of the suspension travel is even stronger- for more stability in demanding terrain. This is made possible by a change to the guide and Mainlink lever. However, you will still experience the chassis as sensitive. Another advantage is the lower standover height of the frame made possible by the F.O.L.D. upgrade.

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 540 mm)
M:
Frame Size:42 cmStack:623 mmReach:440 mmSeat Tube Length:420 mmEffective Top Tube Length:605 mmHead Tube Length:120 mmChainstay Length:455 mmWheelbase:1206 mmBB Drop:30 mmSeat Tube Angle:75°Head Tube Angle:66°Standover Height:807 mmSeatpost length:440 mmSeatpost Insertion Depth (max.):230 mm
L:
Frame Size:45 cmStack:637 mmReac
