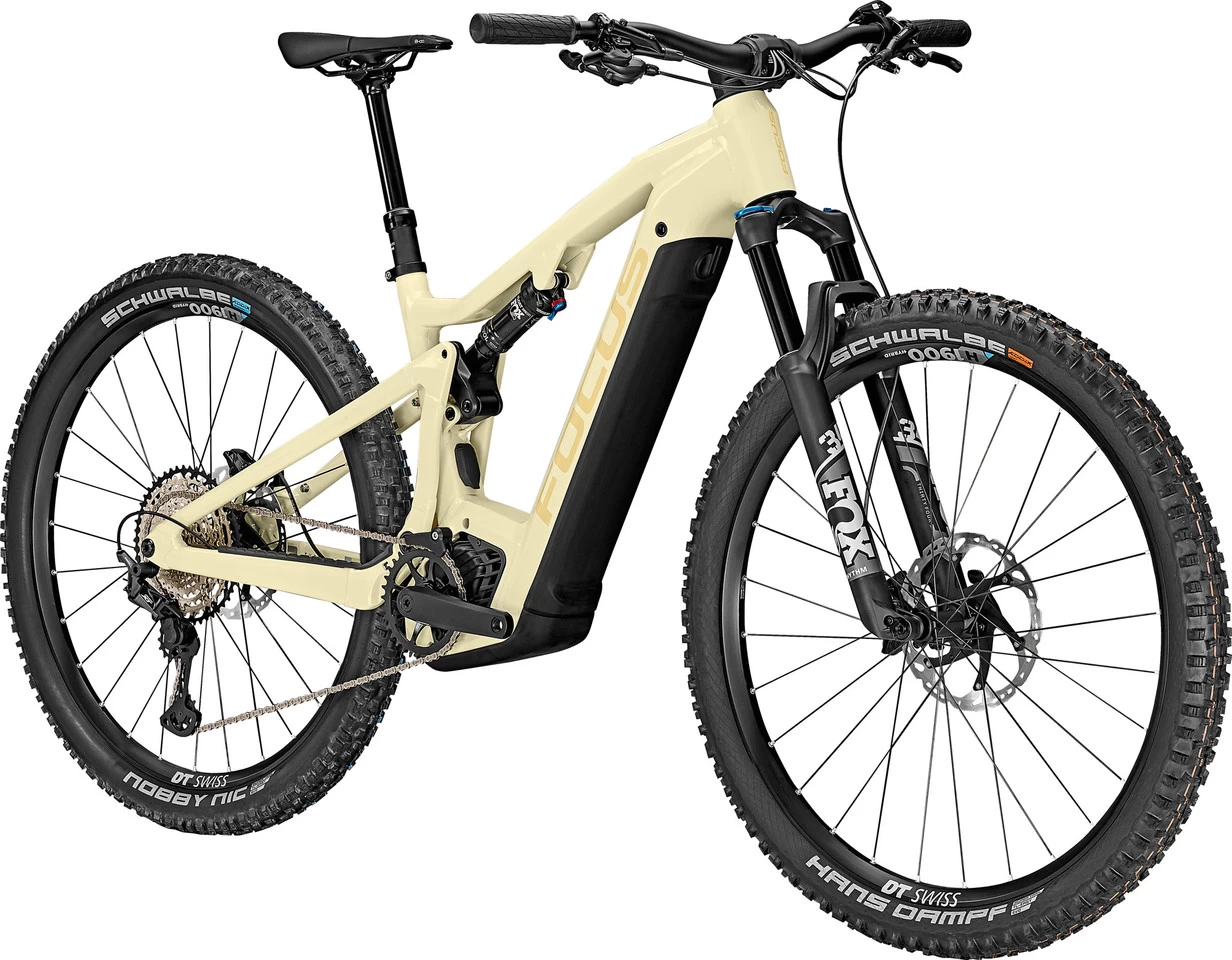

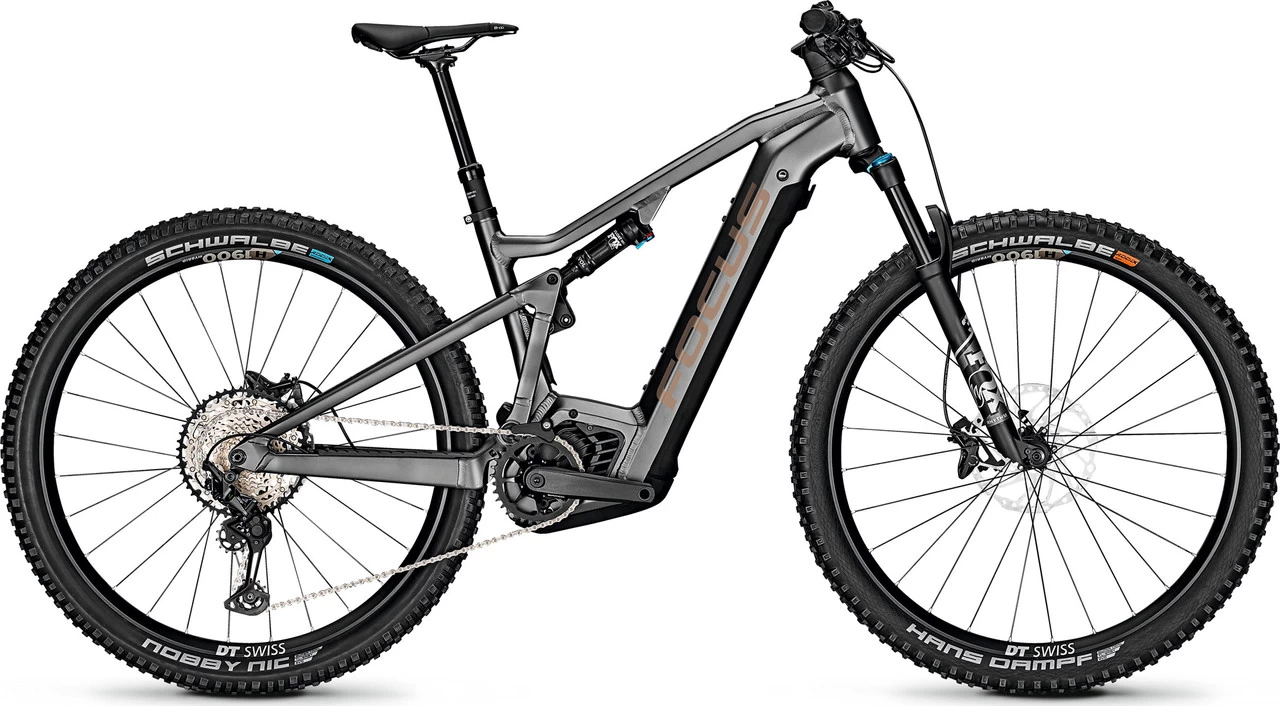

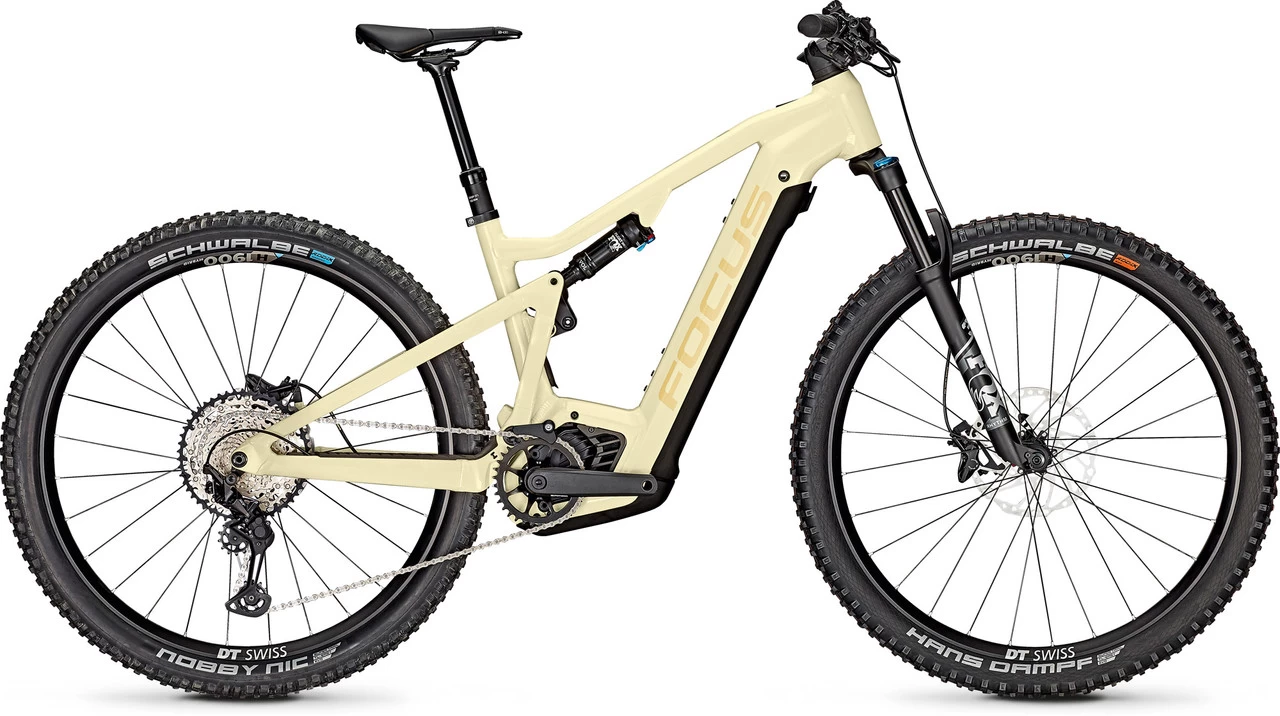

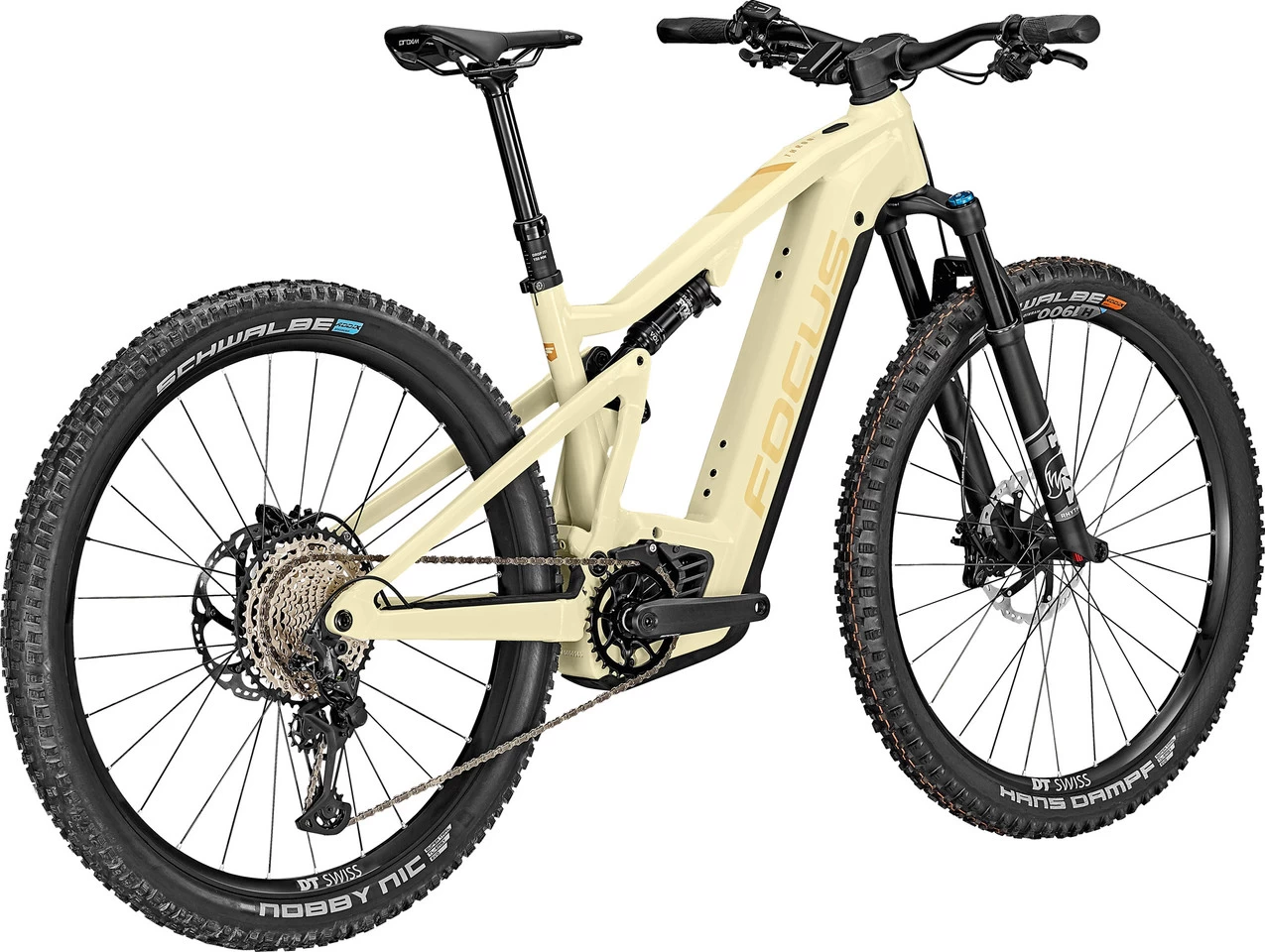

Focus THRON² 6.9 29″ E-Mountain Bike

The THRON² 6.9 29″ by FOCUS with Shimano XT 1×12-speed groupset, Fox 34 Float Rhythm suspension fork and DT Swiss wheels is a versatile e-mountain bike for MTB, touring and everyday use. Its Bosch Performance CX Smart motor and 750 Wh battery support you up to 25 km/h in the forest, on the road or wherever you make your rounds. The bike has 130 mm travel at the front and rear, and the linkage design is very progressively tuned. It has numerous accessory mounts that allow you to retrofit pannier racks, fenders or kickstands.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All Mountain, Touring, CityWheel Size:29″Front Travel:130 mmRear Travel:130 mmSizes:M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)E-Motor:Type:mid-drive motorMotor Type:Bosch Performance CX Smart, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:Bosch Powertube, 36 V, removable, lockableCapacity:750 Wh (20.8 Ah)Display:Bosch LED Remote + Kiox 300Components:Frame:FOCUS THRON², hydroformed aluminium, 3D forged, F.O.L.D. GEN2 linkage design, internal cable routing, C.I.S. technology, USB-C, Postmount 180 mm, 12 x 148 mm thru-axle (Boost)Fork:Fox Racing Shox 34 Float Rhythm 29 E-Bike, Grip Remote, 44 mm offset, 15 x 110 mm (Boost)Stem:FOCUS C.I.S. integrated, aluminium, 0°, 35 mm clampHandlebars:FOCUS, 35 mm rise, 9° backsweepGrips:FOCUSRear Shock:Fox Racing Shox Float DPS, 210 x 50 mm, hardware: 25.0 x 8 mmRemote System:noneHeadset:Acros ZS56/ZS56, FOCUS C.I.S. integratedSeatpost:Post Modern Dropper Post PM-214, 34.9 mm, insertion depth min. 100 mmSaddle:ProximCrank:Samox EC40 ISIS, bottom bracket integrated in motor unit, 34 T chainringPedals:MTB, with reflectorsBrakes:Shimano MT520, hydraulic disc brake, 4 pistons, 203 mm/203 mmShift Lever:Shimano Deore XT SL-M8100, 12-speedRear Derailleur:Shimano Deore XT M8100, 12-speedCassette:Shimano SLX CS-M7100, 12-speed, 10-51 TChain:Shimano SLX CN-M7100, 12-speedRims:DT Swiss H 1900, 30-622Spokes:DT SwissFront Hub:DT Swiss H 1900, 15 x 110 mmRear Hub:DT Swiss H 1900, 12 x 148 mmFront Tyre:Schwalbe Hans Dampf EVO 2.6″ , SuperGround Soft, Tubeless ReadyRear Tyre:Schwalbe Nobby Nic 2.6″ , SuperTrail SpeedGrip, Tubeless ReadyApproved For:Weight Limit:150 kgRotor Size (max.):203 mm (rear)Tyre Size (max.):29 x 2.6″ , with fender: 29 x 2.3″ , 27.5 x 2.75″ (rear wheel)Chainrings:1xChainring Size (max.):1-speed 34 T with 52 mm chainline, 1-speed 36 T with 55 mm chainlineFeatures:versatile pedelec for trails, touring, bikepacking and commutingvery progressively tuned F.O.L.D. linkage design (F.O.L.D. Upgrade)Bosch CX Smart System E-drive and 750 Wh battery for maximum range, removable for charginglarge, easy-to-read Kiox 300 display with ergonomic LED control elementUSB-C connection on the top tube, allowing navigation with smartphone and charging at the same timemore modern geometry than predecessor, revised interior design and external coveringwider inner diameter of 34.9 mm for dropper postsfully integrated cable routing for a tidy cockpit130 mm Fox 34 fork and Float DPS shockShimano XT 1×12-speed drivetrainapproved for bicycle trailers (provided that 150 kg system weight is not exceeded)retrofit options for pannier rack, fenders, kickstand and lightready for operation for Bosch eBike ABSEN classification 3: Bicycle / pedelec for sport and competition rides on trails with moderate technical demands, for impassable trails, uneven unpaved roads as well as undeveloped trails, for jumps and drops up to a maximum of 60 cm, riding skills and practice necessaryTechnology:F.O.L.D. Upgrade / F.O.L.D. Gen2
The second generation FOCUS Optimised Linkage Design kinematics are more progressive than the previous F.O.L.D. linkage design, so that the puncture protection at the end of the suspension travel is even stronger- for more stability in demanding terrain. This is made possible by a change to the guide and Mainlink lever. However, you will still experience the chassis as sensitive. Another advantage is the lower standover height of the frame made possible by the F.O.L.D. upgrade.

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 540 mm)
M:
Recommended Height:171 – 180 cmStack:623 mmReach:440 mmSeat Tube Length:420 mmEffective Top Tube Length:605 mmHead Tube Length:120 mmChainstay Length:455 mmWheelbase:1206 mmBB Drop:30 m
