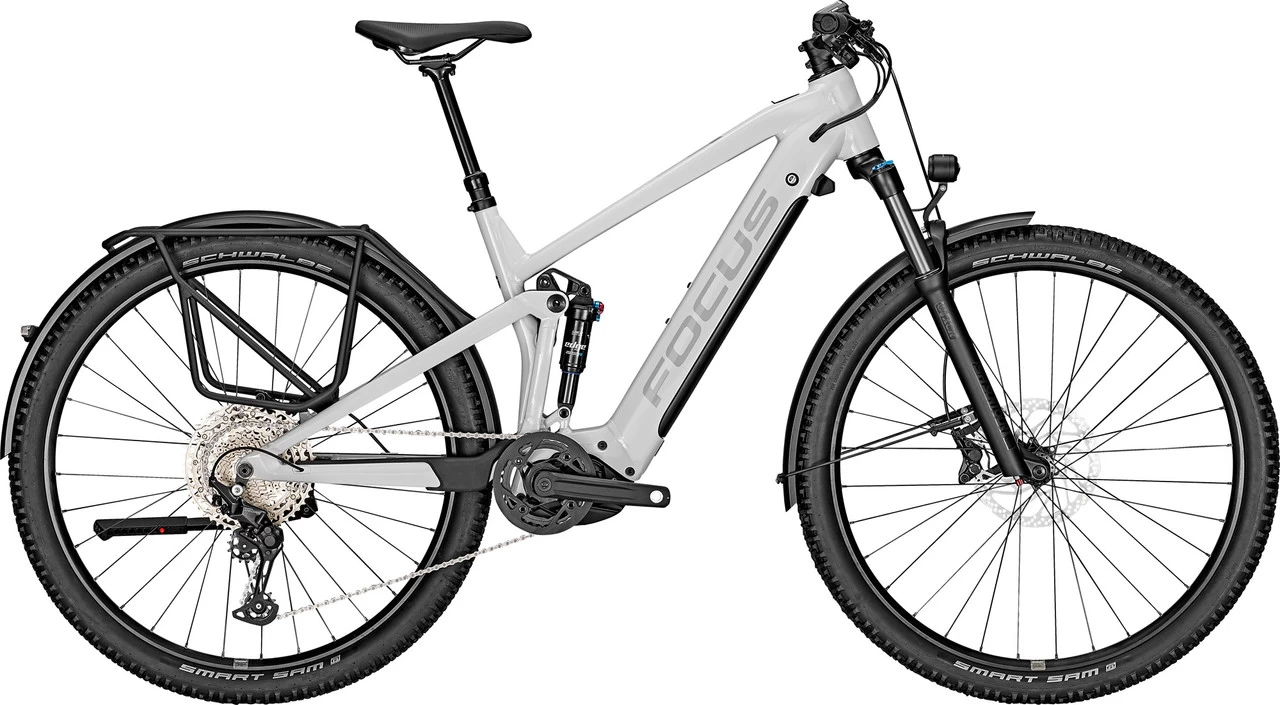

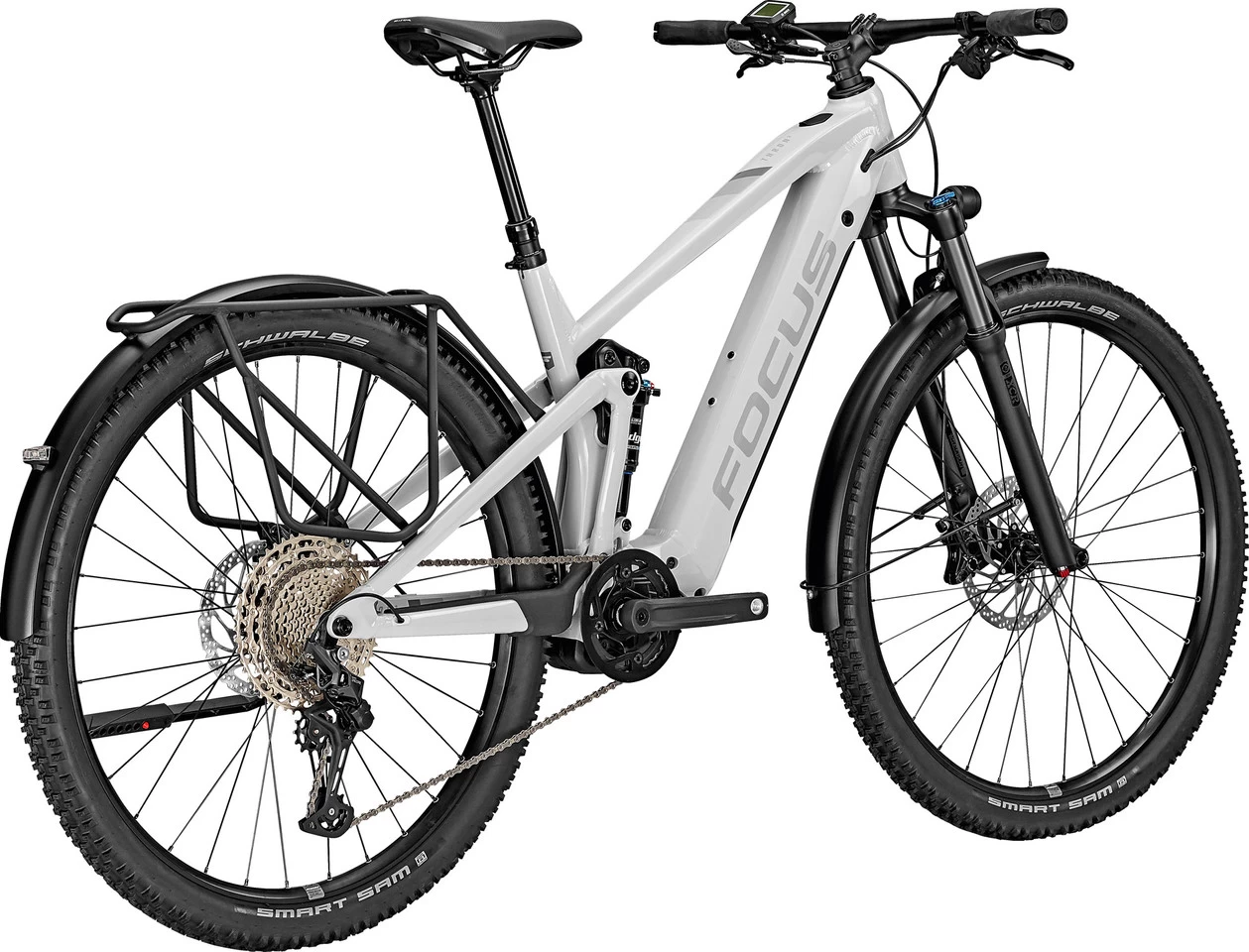

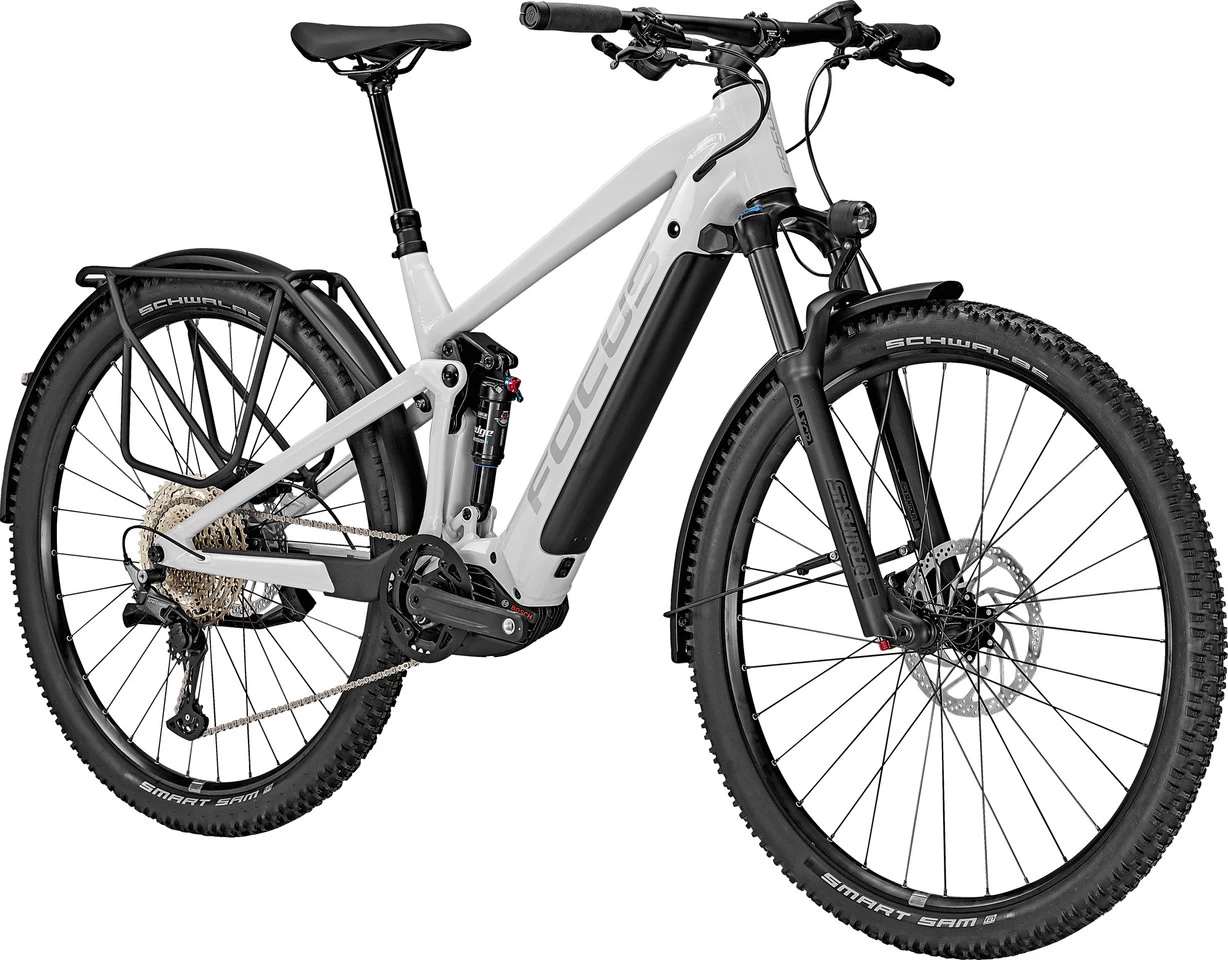

Focus THRON² 6.7 EQP 29″ E-Mountain Bike

The THRON² 6.7 EQP 29″ by FOCUS with Shimano Deore 1×11-speed groupset is a versatile e-mountain bike for MTB, touring and everyday use. It comes fully equipped with pannier rack, fenders, lighting system and kickstand. Its Bosch Performance CX motor and 625 Wh battery support you up to 25 km/h in the forest, on the road or wherever you make your rounds. The bike has 130 mm of two-stage suspension travel at the rear and an SR Suntour fork with 120 mm travel at the front.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All Mountain, Touring, CityWheel Size:29″Front Travel:120 mmRear Travel:130 mmSizes:M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)E-Motor:Type:mid-drive motorMotor Type:Bosch Performance CX Gen4, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:Bosch Powertube, 36 V, removable, lockableCapacity:625 Wh (16.7 Ah)Display:Bosch PurionComponents:Frame:FOCUS THRON², hydroformed aluminium, 3D forged, F.O.L.D. linkage design, internal cable routing, Postmount 180 mm, 12 x 148 mm thru-axle (Boost)Fork:SR Suntour XCR 34 Air, LOR, 51 mm offset, 15 x 110 mm (Boost)Stem:FOCUS, aluminium, 17°, 31.8 mmHandlebars:FOCUS, Flat, 9° backsweep, 31.8 mmGrips:FOCUSRear Shock:Suntour Edge LOR, 190 x 45 mm, hardware: 25.0 x 8 mmRemote System:noneHeadset:VP Components ZS56/28.6-ZS56/40Seatpost:Post Modern Dropper Post PM-214, 31.6 mm, insertion depth min. 100 mmSaddle:Selle Royal VivoCrank:FSA CK-320, aluminium, bottom bracket integrated in motor unit, 34 T chainringPedals:MTB, with reflectorsBrakes:Shimano MT420, hydraulic disc brake, 4 pistons, 203 mm/180 mmShift Lever:Shimano Deore M5100, 11-speedRear Derailleur:Shimano Deore RD-M5100Cassette:Shimano Deore CS-M5100, 11-speed, 11-51 TChain:Shimano CN-HG601, 11-speedRims:RODI TRYP25, eyeleted, 25-622Spokes:Niro, blackFront Hub:Shimano Alivio MT400, 15 x 110 mmRear Hub:Shimano Alivio MT400, 12 x 148 mmFront Tyre:Schwalbe Smart Sam 2.25″ , 57-622Rear Tyre:Schwalbe Smart Sam 2.25″ , 57-622Approved For:Weight Limit:135 kgRotor Size (max.):203 mm (rear)Tyre Size (max.):29 x 2.3″Chainrings:1xChainring Size (max.):1x, 36 TFeatures:versatile pedelec with 130 mm F.O.L.D. linkage design for trails, touring, bikepacking and commutingEQP version: fully equipped for everyday useBosch CX E-Drive and 625 Wh battery, removable for charging120 mm SR Suntour suspension forkfender set from Büchel, aluminium, 60 mm, powder-coatedMassload pannier rack, 3 struts, 25 kg load capacityUrsus rear kickstand, adjustable, 40 mm mountLitemove SE70 front light, 70 luxHerrmans H-Trace Mini rear lightOption for integrated cable routing in the cockpit (C.I.S.)EN classification 2: Bicycle / pedelec for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel paths of moderate difficulty, drops of no more than 15 cm, average speed 15 to 25 km/hTechnology:FOCUS Optimized Linkage Design (F.O.L.D.)
F.O.L.D. linkage design is a rear frame system that works in two phases. The first phase has a degressive characteristic curve, which means that the suspension works very sensitively and absorbs even the smallest impacts. This results in noticeably more traction. In the second phase, the characteristic curve is progressive so that there is no breakdown even in the case of strong impacts. Control is thus maintained at all times, and the suspension travel is optimally utilised.
Geometry:(based on a fork axle to crown length of 540 mm)
M:
Recommended Height:171 – 180 cmFrame Size:44 cmStack:623 mmReach:430 mmSeat Tube Length:440 mmEffective Top Tube Length:603 mmHead Tube Length:130 mmChainstay Length:455 mmWheelbase:1196 mmBB Drop:25 mmSeat Tube Angle:74.5°Head Tube Angle:66.8°Standover Height:797 mmStem Length:60 mmHandlebar Width:720 mmCrank Arm Length:170.0 mmSeatpost adjustment travel:150 mmSeatpost Insertion Depth (max.):260 mm
L:
Recommended Height:181 – 190 cmFrame Size:47 cmStack:639 mmReach:450 mmSeat Tube Length:470 mmEffective Top Tube Length:627 mmHead Tube Length:147 mmChainstay Length:455 mmWheelbase:1223 mmBB Drop:25 mmSeat Tube Angle:74.5°Head Tube Angle:66.8°Standover Height:811 mmStem Length:60 mmHandlebar Width:720 mmCrank Arm Length:170.0 mmSeatpost adjustment travel:170 mmSeatpost Insertion Depth (max.):290 mm
XL:
Recommended Height:191 – 199 cmFrame Size:50 cmStack:653 mmReach:470 mmSeat Tube Length:500 mmEffective Top Tube Length:651 mmHead Tube Length:163 mmChainstay Length:455 mmWheelbase:1249 mmBB Drop:25 mmSeat Tube Angle:74.5°Head Tube Angle:66.8°Standover Height:82
