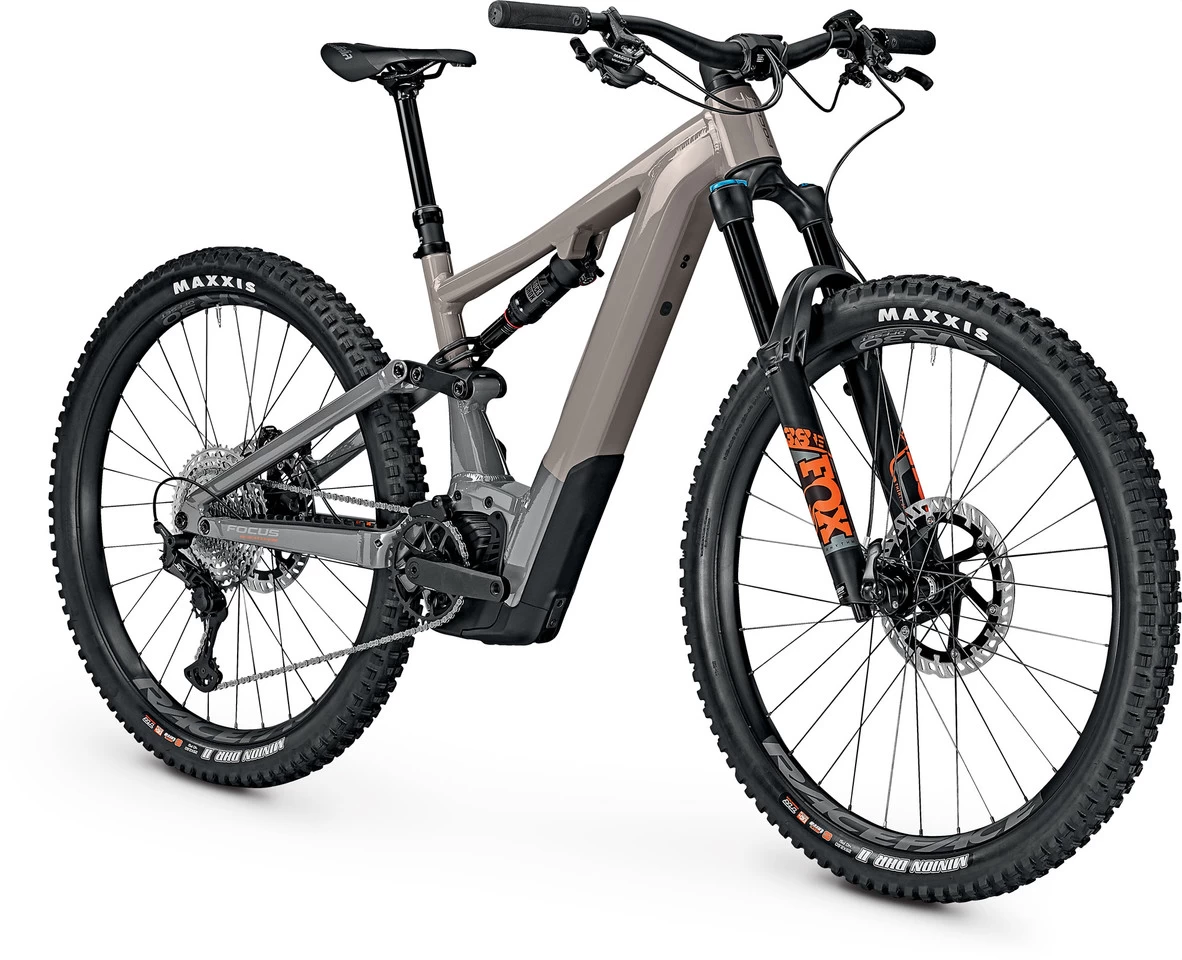

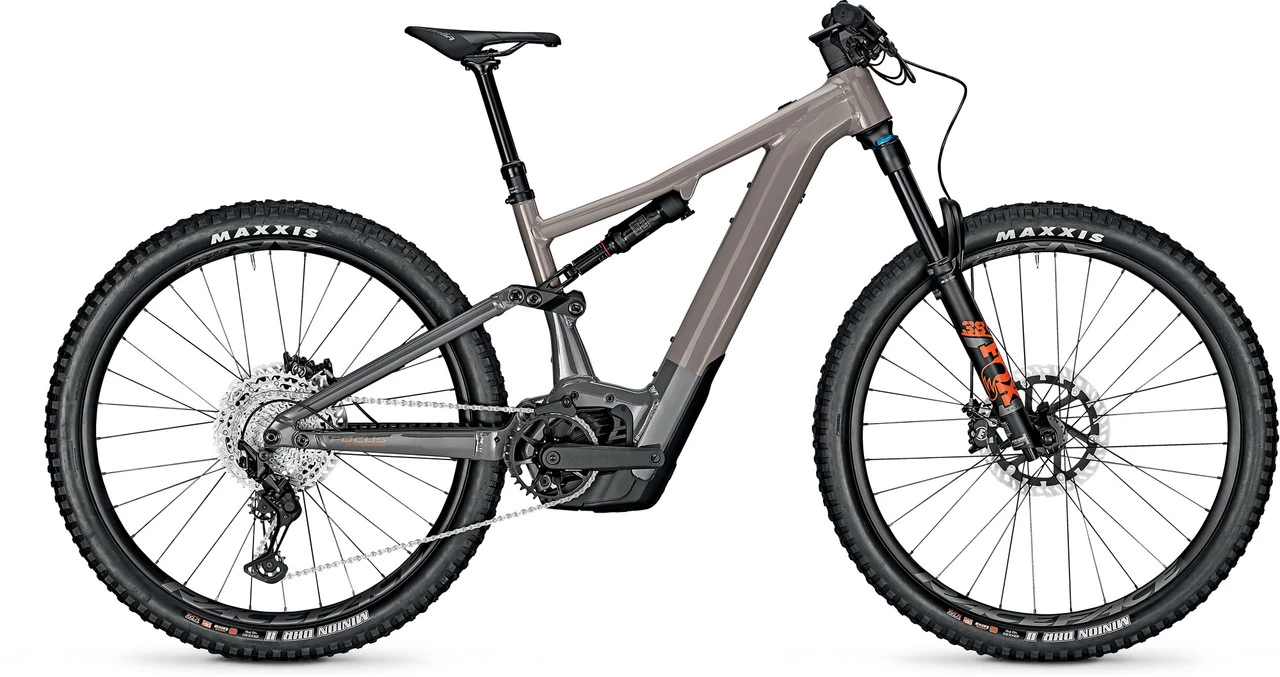

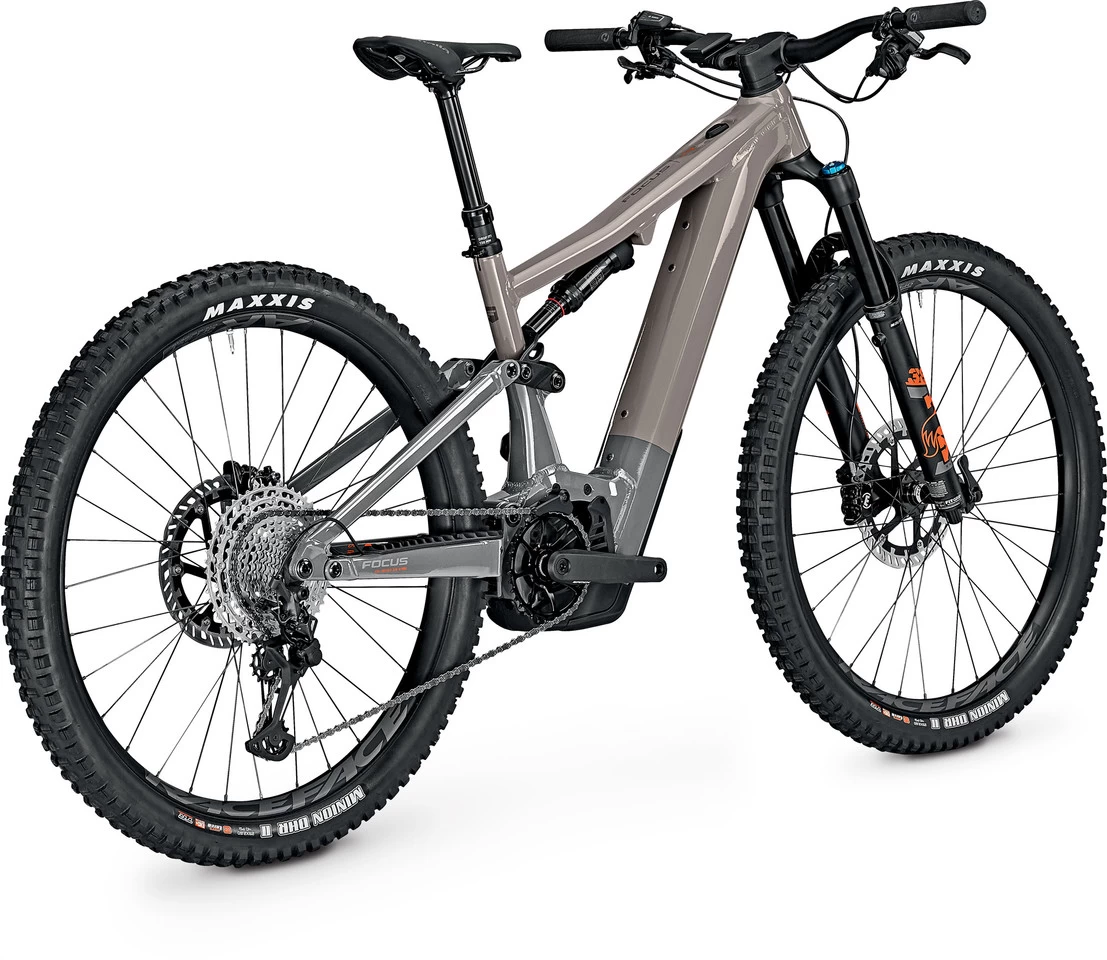

Focus SAM² 6.8 29″ E-Mountain Bike – 2023 Model

FOCUS SAM² 6.8 29″ E-Mountain Bike – Powerful enduro bike for downhill fun
The SAM² 6.8 29″ electric enduro bike from FOCUS comes with Shimano XT 12-speed gears and MT5 disc brakes from Magura as well as a Fox 38 Rhythm suspension fork and a Super Deluxe Coil shock from RockShox. It has a full 180 mm of travel at the front and 170 mm at the rear, which, combined with the downhill-oriented geometry and the revised linkage design, stand for pure downhill fun. The Bosch Performance CX motor with 750 Wh battery supports you on uphill passages. The head tube angle can be adjusted so that you can adapt the SAM² individually to your riding style and the respective situation.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:EnduroWheel Size:29″Front Travel:180 mmRear Travel:170 mmSizes:S, M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)E-Motor:Type:mid-drive motorMotor Type:Bosch Performance CX Smart, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:Bosch Powertube, 36 V, removable, lockableCapacity:750 Wh (20.8 Ah)Display:Bosch LED Remote + Kiox 300Components:Frame:FOCUS SAM², hydroformed aluminium, 3D forged, 170 mm F.O.L.D. GEN3 linkage design, internal cable routing, post mount 203 mm, 12 x 148 mm thru-axle (Boost)Fork:Fox Racing Shox 38 Float Rhythm 29, GRIP, e-bike optimised, 591 mm axle to crown length, 44 mm offset, 15 x 110 mm thru-axle (Boost)Stem:FOCUS C.I.S. integrated, 50 mm 0°, 35 mm handlebar clamp, aluminiumHandlebars:FOCUS, aluminium, 800 mm, 30 mm Rise, 9° BacksweepGrips:FOCUSRear Shock:RockShox Super Deluxe Coil Select, 230 x 65 mm, hardware: 25.0 x 8.0 mm, no bushingRemote System:noneHeadset:Acros ZS56/ZS56 (ICR), FOCUS C.I.S. integrated, 1.5/1.8″ angular contact headsetSeatpost:Post Modern Dropper Post PM-214, 34.9 mmSaddle:Selle Italia X3Crank:Samox EC40 ISIS, 165.0 mm, 36 T, bottom bracket integrated in motor unitPedals:MTB, with reflectorsBrakes:Magura MT5, hydraulic disc brake, 220 mm/220 mmShift Lever:Shimano Deore XT M8100, 12-speedRear Derailleur:Shimano Deore XT M8100, 12-speedCassette:Shimano Deore CS-M6100, 12-speed, 10-51 TChain:Shimano Deore CN-M6100, 12-speedRims:Race Face AR30 OffsetSpokes:Niro, blackFront Hub:Novatec D041, 15 x 110 mmRear Hub:Novatec D462, 12 x 148 mmFront Tyre:Maxxis Minion II, 29 x 2.6″ , 66-622Rear Tyre:Maxxis Minion II, 29 x 2.6″ , 66-622Approved For:Weight Limit:150 kg (system weight)Rotor Size (max.):220 mm (rear)Tyre Size (max.):66-622Chainrings:1xChainring Size (max.):36 TFeatures:electric enduro bike with aluminium frame, revised F.O.L.D. linkage designrevised modern geometry, designed for aggressive descents180 mm suspension fork from Fox with 38 mm stanchions170 mm rear travel, steel coil shock fittedShimano XT 12-speed gears and fast 29″ wheelsBosch Performance CX e-drivetrian with 750-Wh battery for fun uphill ridestidy cockpit with C.I.S. integrationhead tube angle can be adjusted to be flatter or steeper by turning the headset cupsEN classification 5: Bicycle / pedelec for extreme sports, for extreme jumps (> 120 cm) and/or descents on unpaved paths at speeds of more than 40 km/h, extreme riding skills, practice and riding control requiredTechnology:F.O.L.D. GEN3
The third-generation FOCUS Optimised Linkage Design make do with fewer articulated parts and present themselves more like a classic four-bar linkage. This saves a lot of weight, reduces the impact of braking and ensures that you remain in control of the bike in every situation.

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 591 mm)
S:
Frame Size:39 cmStack:623 mmReach:440 mmSeat Tube Length:390 mmEffective Top Tube Length:578 mmHead Tube Length:100 mmChainstay Length:450 mmWheelbase:1229 mmBB Drop:20 mmSeat Tube Angle:77.5°Head Tube Angle:63.5° (flat), 64.5° (steep)Standover Height:803 mmSeatpost length:390 mmSeatpost Insertion Depth (max.):220 mm
M:
Frame Size:42 cmStack:623 mmReach:470 mmSeat Tube Length:420 mmEffective Top Tube Length:608 mmHead Tube Length:100 mmChainstay Length:450 mmWheelbase:1259 mmBB Drop:20 mmSeat Tube Angle:77.5°Head Tube Angle:63.5° (flat), 64.5° (steep)Standover Height:799 mmSeatpost length:440 mmSeatpost Insertion Depth (max.):250 mm
L:
Frame Size:44 cmStack:641 mmReach:495 mmSeat Tube Length:440 mmEffective Top Tube Length:637 mmHead Tube Length:120 mmChainstay
