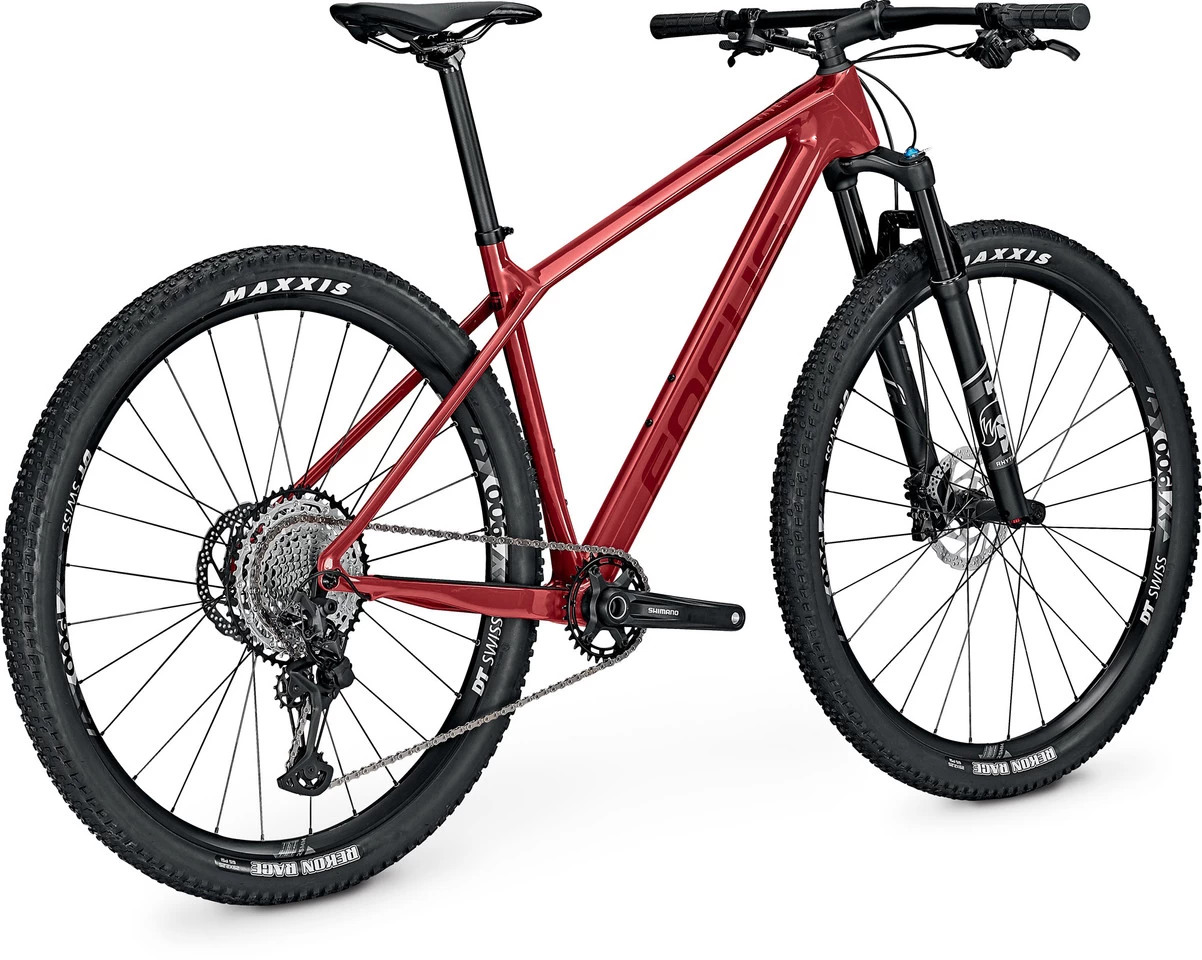

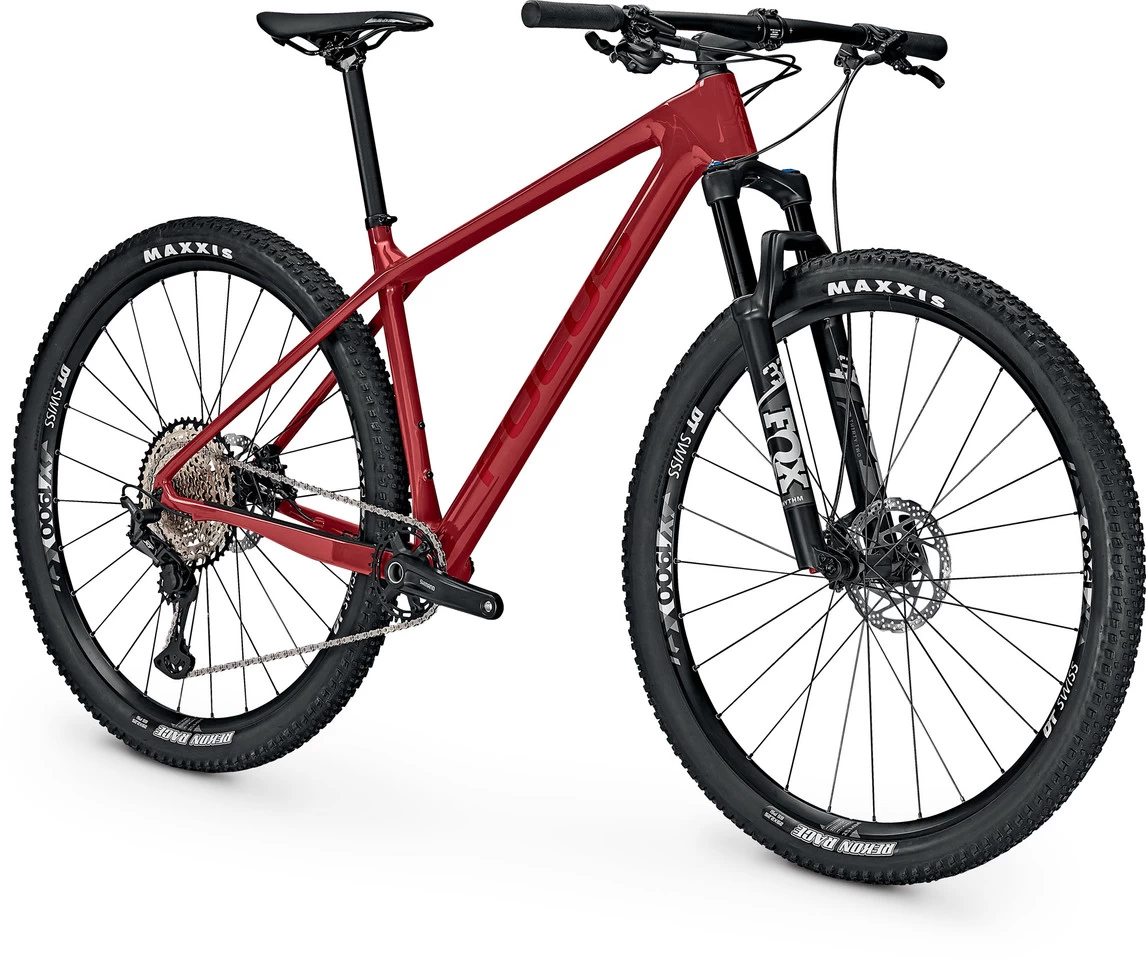

Focus Raven 8.7 Carbon 29″ Mountain Bike

The Raven 8.7 mountain bike by FOCUS is an acceleration-strong carbon hardtail for cross-country use, which has been equipped with a 100 mm suspension fork by Fox and Shimano XT 1×12-speed groupset. It features Race geometry, high stiffness values and low weight. The special shock-absorbing construction of the frame provides a higher level of comfort.
Specifications:Application:Cross CountryWheel Size:29″Travel:100 mmSizes:S, M, L, XLFrame Material:CarbonComponents:Frame:FOCUS Raven, carbon, internal cable routing, post mount 160 mm, 12 x 148 mm (Boost)Fork:Fox Racing Shox 32 Float Rhythm 29, Grip Remote, 44 mm offset, 15 x 110 mm (Boost)Stem:FOCUS, aluminium, 31.8 mmHandlebars:FOCUS, Flat, 9° backsweep, 31.8 mmGrips:FOCUS Locker SLRemote System:Grip RemoteHeadset:Acros Aix-322, tapered, IS42/28.6-IS52/40Seatpost:BBB Deluxe, aluminium, 27.2 mm, 350 mm, insertion depth min. 100 mmSaddle:FOCUS Race SLCrank:Shimano MT510, PF30 press fit bottom bracket, 32 T chainringPedals:noneBrakes:Shimano SLX M7100, 160 mm/160 mmShift Lever:Shimano Deore XT M8100, 12-speedRear Derailleur:Shimano Deore XT M8100, 12-speedCassette:Shimano SLX M7100, 12-speed, 10-51 TChain:Shimano Deore CN-M6100, 12-speedRims:DT Swiss X 1900, 25-622Spokes:DT SwissFront Hub:DT Swiss X 1900, 15 x 110 mmRear Hub:DT Swiss X 1900, 12 x 148 mmFront Tyre:Maxxis Recon Race 2.25″ , 2CRear Tyre:Maxxis Recon Race 2.25″ , 2CApproved For:Weight Limit:110 kgRotor Size (max.):180 mm (rear)Tyre Size (max.):29 x 2.1″ (rear wheel)Chainrings:1xChainring Size (max.):1x, 38 TFeatures:high-acceleration carbon hardtail with race geometrylight, stiff and comfortable thanks to C.I.A. technologytested in the XC World Cup under the toughest conditions100 mm Fox Float 32 Rhythm forkShimano XT 1×12-speed shifters29″ wheels from DT Swiss, R.A.T. thru-axlesEN classification 3: Bicycle for sport and competition rides with moderate technical demands on trails, for impassable trails, uneven unpaved roads as well as undeveloped trails, for jumps and drops up to a maximum of 60 cm, riding skills and practice requiredTechnology:C.I.A.
C.I.A. stands for Comfort Improving Areas on endurance bikes for long-distance use. Flat and elliptical tube cross-sections as well as concave braced seat and chainstays are specifically used so that impacts are optimally absorbed even on uneven ground. It’s the bike that has to withstand these forces, which relieves stress on the body. You save energy and grow tired less quickly.

S.S.P.S.
The Stable Stiffness per Size (S.S.P.S.) process means that each frame size receives a specially-tuned carbon lay-up and is individually constructed. This is the only way to ensure an optimal stiffness-to-weight ratio and equal riding characteristics for each size.

R.A.T.
FOCUS has developed its own patented Rapid Axle Technology (R.A.T.) for Mountain bikes, Road bikes and Cyclocross bikes. When developing the R.A.T. thru-axle, the focus was clearly on quick and easy operation when changing the wheel. As a result of the development, Rapid Axle Technology combines the stability and rigidity of a thru-axle with the advantages of quick releases.
Geometry:(based on a fork axle to crown length of 501 mm)
S:
Frame Size:42 cmRecommended Height:166 – 175 cmStack:620 mmReach:420 mmSeat Tube Length:420 mmEffective Top Tube Length:592 mmHead Tube Length:104 mmChainstay Length:435 mmWheelbase:1100 mmBB Drop:68 mmSeat Tube Angle:74.5°Head Tube Angle:69.8°Standover Height:770 mmStem Length:90 mmHandlebar Width:760 mmCrank Arm Length:170.0 mmSeatpost Insertion Depth (max.):230 mm
M:
Frame Size:46 cmRecommended Height:176 – 180 cmStack:623 mmReach:435 mmSeat Tube Length:460 mmEffective Top Tube Length:608 mmHead Tube Length:107 mmChainstay Length:435 mmWheelbase:1116 mmBB Drop:68 mmSeat Tube Angle:74.5°Head Tube Angle:69.8°Standover Height:791 mmStem Length:90 mmHandlebar Width:760 mmCrank Arm Length:175.0 mmSeatpost Insertion Depth (max.):270 mm
L:
Frame Size:50 cmRecommended Height:181 – 190 cmStack:644 mmReach:450 mmSeat Tube Length:500 mmEffective Top Tube Length:629 mmHead Tube Length:130 mmChainstay Length:435 mmWheelbase:1139 mmBB Drop:68 mmSeat Tube Angle:74.5°Head Tube Angle:69.8°Standover Height:814 mmStem Length:90 mmHandlebar Width:760 mmCrank Arm Length:175.0 mmSeatpost Insertion Depth (max.):310 mm
XL:
Frame Size:54 cmRecommended Height:191 – 199 cmStack:663 mmReach:465 mmSeat Tube Length:540 mmEffective Top Tube Length:649 mmHead Tube Length:150 mmChainstay Length:435 mmWheelbase:1160 mmBB Drop:68 mmSeat Tube Angle:74.5°Head Tube Angle:69.8°Standover Height:843 mmStem Length:90 mmHandlebar Width:760 mmCrank Arm Length:175.0 mmSeatpost Insertion Depth (max.):350 mmManufacturer Numbers:carbon raw silk matt / S:644019010carbon raw silk matt / M:644019011carbon raw silk matt / L:644019012carbon raw silk matt / XL:644019013rust red / S:644019005rust red / M:644019006rust red / L:644019007rust red / XL:644019008Shipping Notice:The shipment is sent pre-assembled by a f
