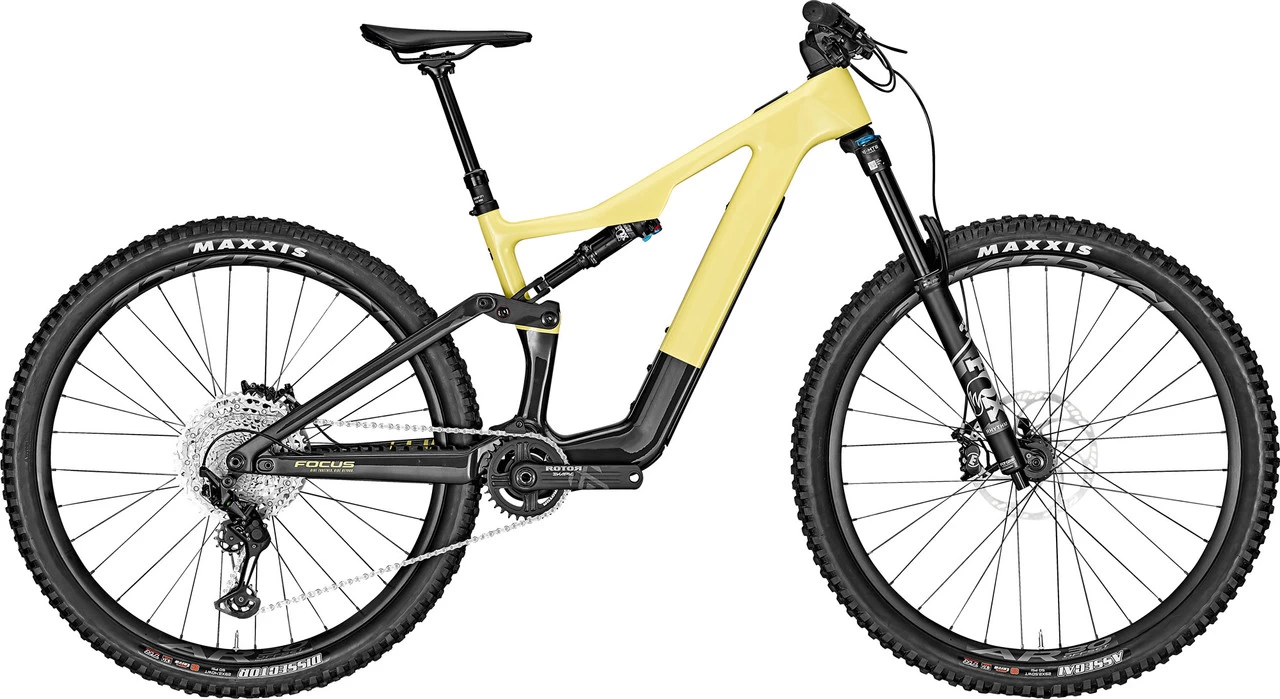

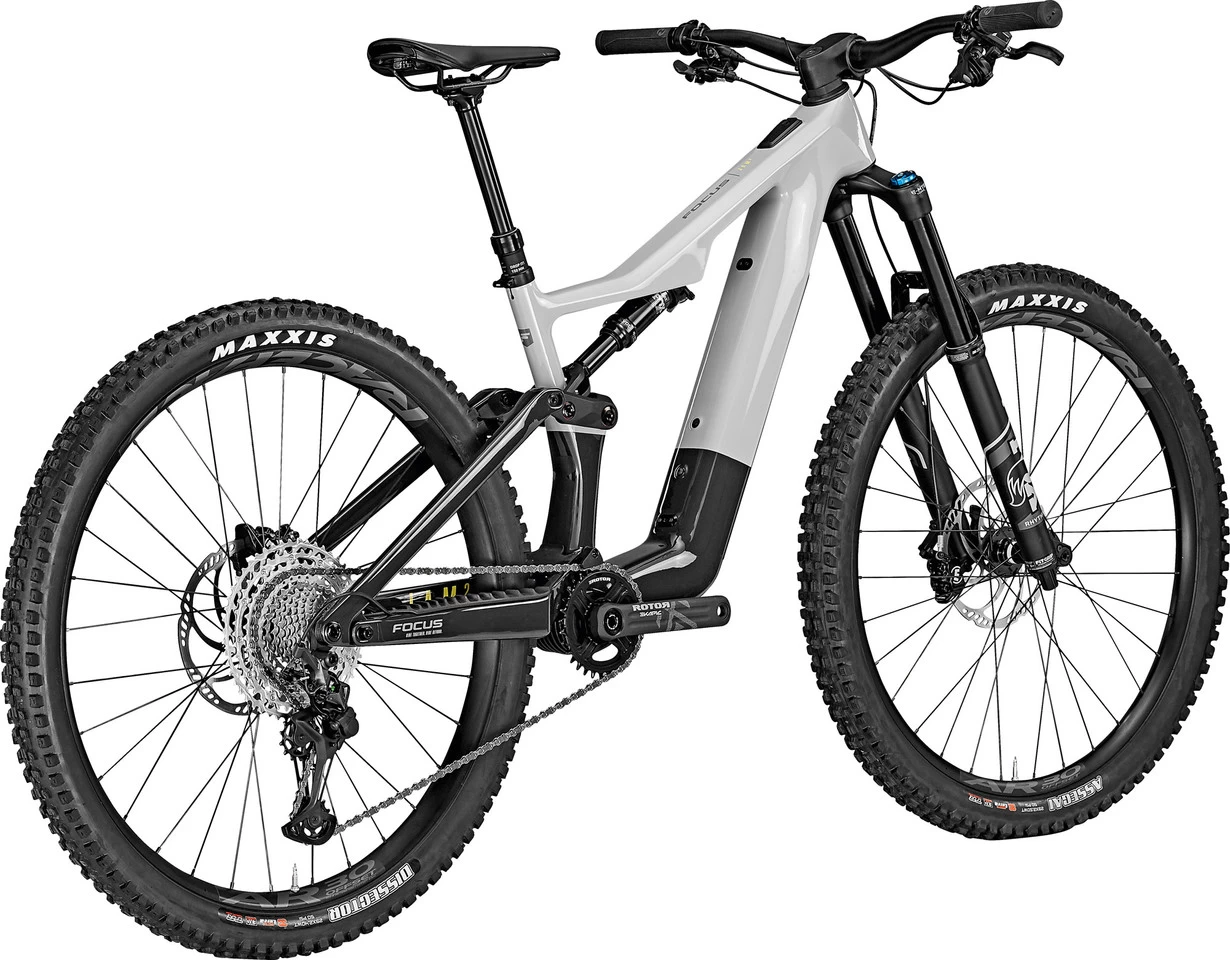

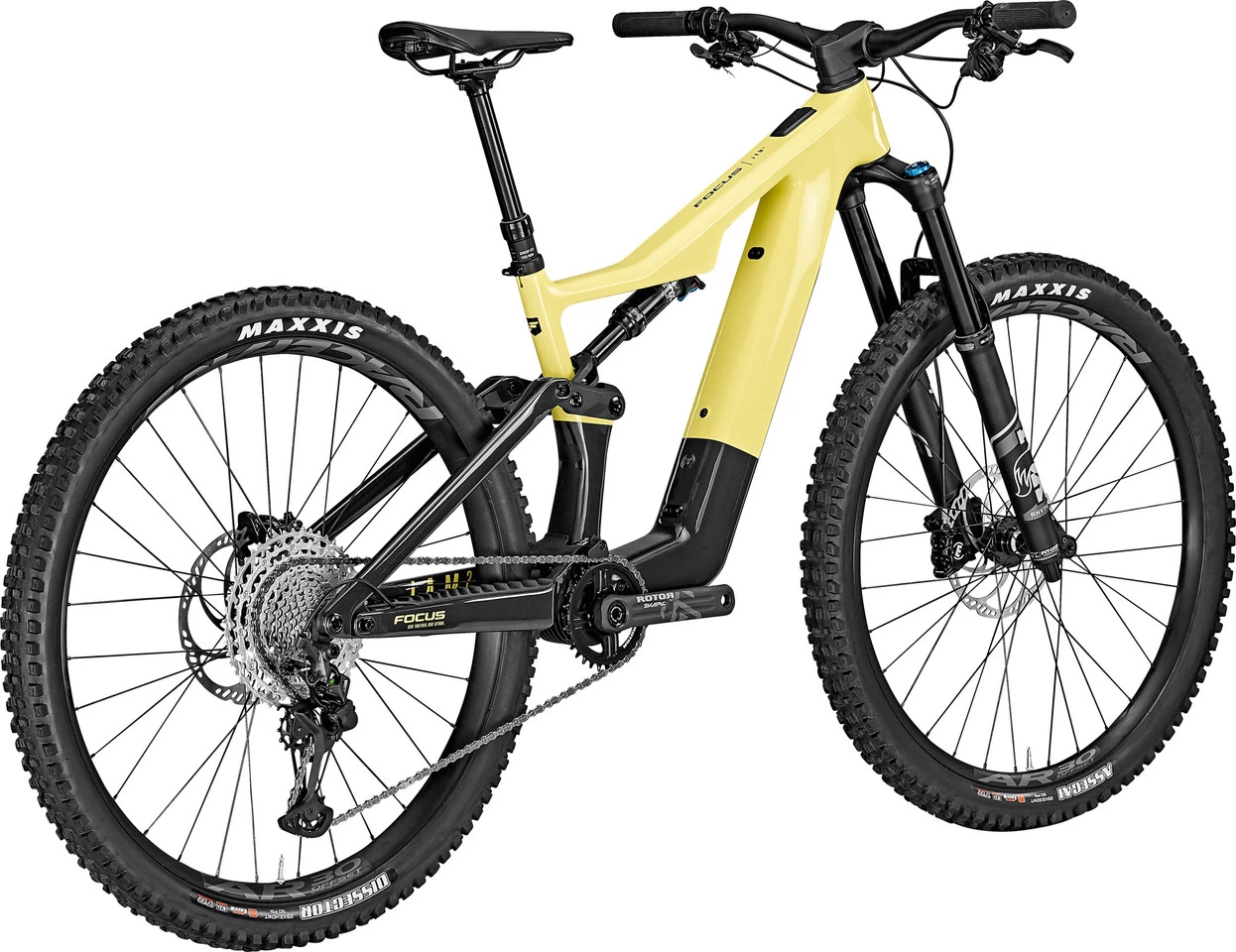

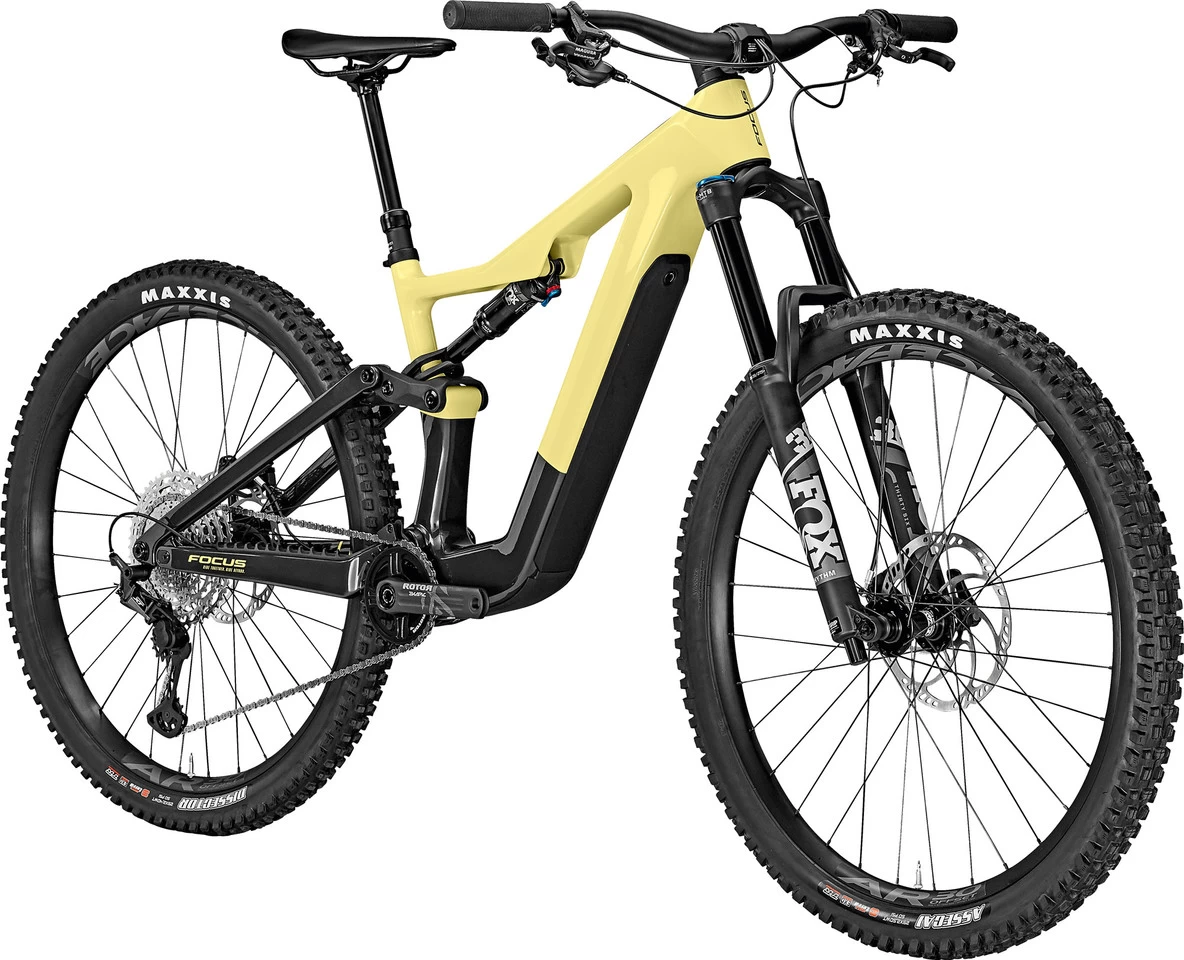

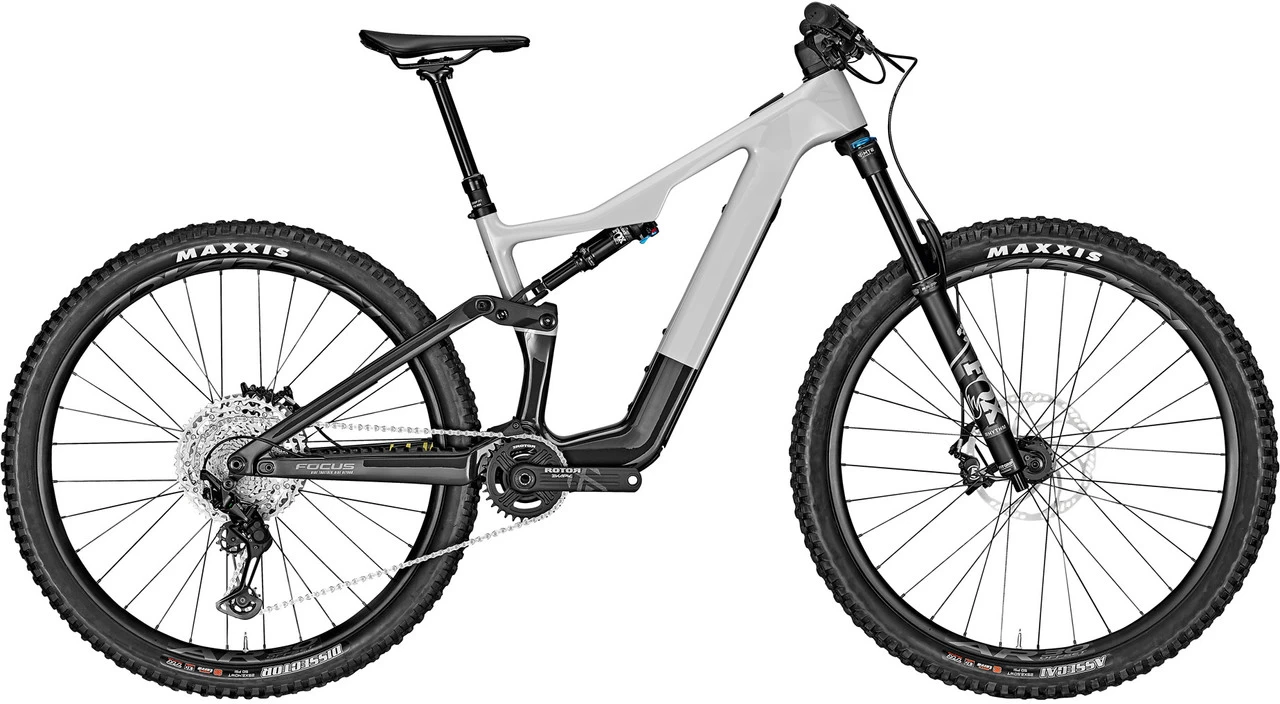

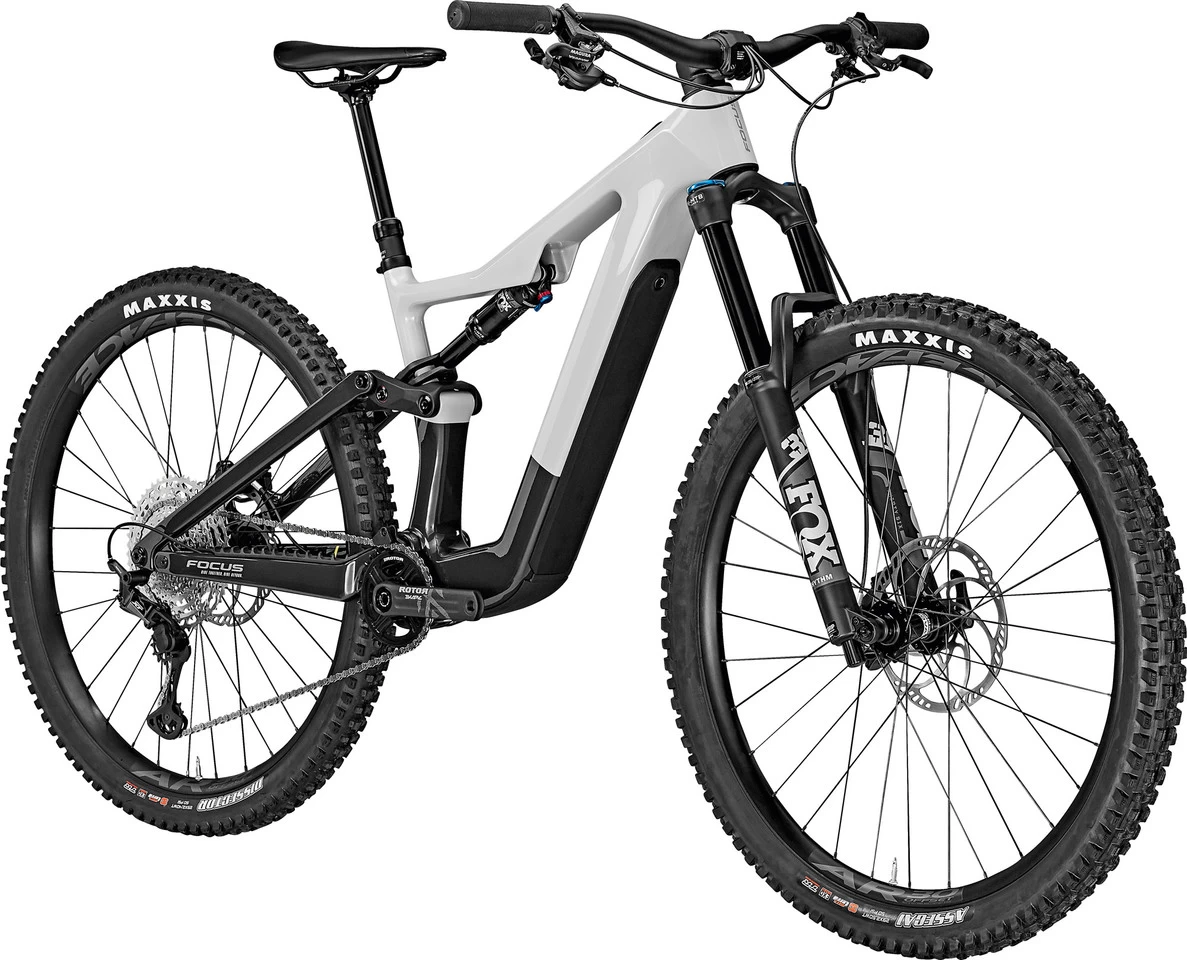

Focus JAM² SL 8.8 Carbon 29″ E-Mountain Bike

FOCUS JAM² SL 8.8 E-Mountain Bike – For trail adventures uphill and downhill
The JAM² SL 8.8 is a super-light 29″ electric trail bike made entirely of carbon, equipped with FOCUS with Shimano XT 12-speed gears, Magura MT5 disc brakes, a Fox 36 Rhythm suspension fork and Fox DPS shock. From the geometry to the linkage design to the assist from the Fazua motor with 430-Wh battery, everything is designed for agility and maximum riding fun. With 160 mm of travel at the front and 150 mm at the rear, you’re equipped for boundless bike adventures downhill and uphill. Both the head tube angle and the chainstay length can be adjusted so that you can tailor the JAM² SL to your riding style as well as the cycling environment.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All MountainWheel Size:29″Front Travel:160 mmRear Travel:150 mmSizes:S, M, L, XLFront Triangle Material:CarbonRear Triangle Material:CarbonE-Motor:Type:mid-drive motorMotor Type:Fazua Ride 60, 60 NmPedal Assist (max.):25 km/hPower:450 WBattery Type:Fazua Ride 60 Energy 430, removable, 43 VCapacity:430 Wh (10 Ah)Display:Fazua LED Hub + Ring ControlComponents:Frame:FOCUS JAM² SL, Carbon Technology Frame, 150 mm F.O.L.D. GEN3 linkage design, post mount 180 mm, internal cable routing, 12 x 148 mm thru-axle (Boost)Fork:Fox Racing Shox 36 Float Rhythm 29 E-bike, GRIP, 571 mm installation length, 44 mm offset, 15 x 110 mm thru-axle (Boost)Stem:FOCUS C.I.S. integrated, 50 mm 0°, 35 mm handlebar clamp, aluminiumHandlebars:FOCUS, aluminium, 800 mm, 30 mm Rise, 9° BacksweepGrips:FOCUSRear Shock:Fox Racing Shox Float DPS, 210 x 55 mm, hardware: 25,0 x 8,0 mm, no bushingRemote System:noneHeadset:Acros ZS56/ZS56 (ICR), FOCUS C.I.S. integrated, 1.5/1.5″ angular contact headsetSeatpost:Post Modern Dropper Post PM-MT171, 31.6 mmSaddle:Fizik TaigaCrank:Rotor eKAPIC RF Link 29, 165.0 mm, 32 T, bottom bracket integrated in motor unitPedals:MTB, with reflectorsBrakes:Magura MT5, hydraulic disc brake, 203 mm/203 mmShift Lever:Shimano Deore XT M8100, 12-speedRear Derailleur:Shimano Deore XT M8100, 12-speedCassette:Shimano Deore CS-M6100, 12-speed, 10-51 TChain:Shimano Deore CN-M6100 12-speedRims:Race Face AR30 OffsetSpokes:Niro, blackFront Hub:Novatec D041, 15 x 110 mmRear Hub:Novatec D462, 12 x 148 mmFront Tyre:Maxxis Assegai 29 x 2.5″ , 3C MaxxTerra EXO TR, 63-622Rear Tyre:Maxxis Dissector 29 x 2.4″ , WT 3C MaxxTerra EXO TR, 61-622Approved For:Weight Limit:135 kg (system weight)Rotor Size (max.):203 mm (rear)Tyre Size (max.):66-622Chainrings:1xChainring Size (max.):34 TFeatures:super-lightweight full-suspension E-MTB with carbon frame160 mm front and 150 mm rear suspension travel, revised F.O.L.D. linkage designagile geometry designed for fun rides with consistent stabilityCarbon Layup with high-strength and high-tenacity fibres for perfect force distribution and stiffnessShimano XT 1×12-speed gears, suspension by Fox Racing ShoxFazua Ride 60 E-drive with 430 Wh battery packoptimal mix of e-assist and the riding characteristics of a bike without a motorlow engine noise for full concentration on the trailoptimised top tube design with partial integration of the shock with full user-friendlinessmotor and battery completely integrated in the frame for a streamlined lookkbattery can be removed from the underside of the down tube, a hex tool for opening the cover is integrated in the thru-axletidy cockpit with C.I.S. integrationhead tube angle can be adjusted flat or steep by turning the headset cups: more mountain-oriented or more agility, depending on usechainstay length adjustable by setting the flip chip to long or short position: more stability or more agility, depending on usethree different riding modes, further customisable via the Fazua appsealed frame bearings for longer service lifespecial frame protectors on down tube and chainstaysEN classification 4: Bicycle for sport and competition riding with moderate technical demands of the trails, for jumps up to a maximum of 120 cm and/or descents on unpaved trails at speeds of less than 40 km/h, riding skills, practice and good riding control requiredTechnology:F.O.L.D. GEN3
The third-generation FOCUS Optimised Linkage Design make do with fewer articulated parts and present themselves more like a classic four-bar linkage. This saves a lot of weight, reduces the impact of braking and ensures that you remain in control of the bike in every situation.

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset dir
