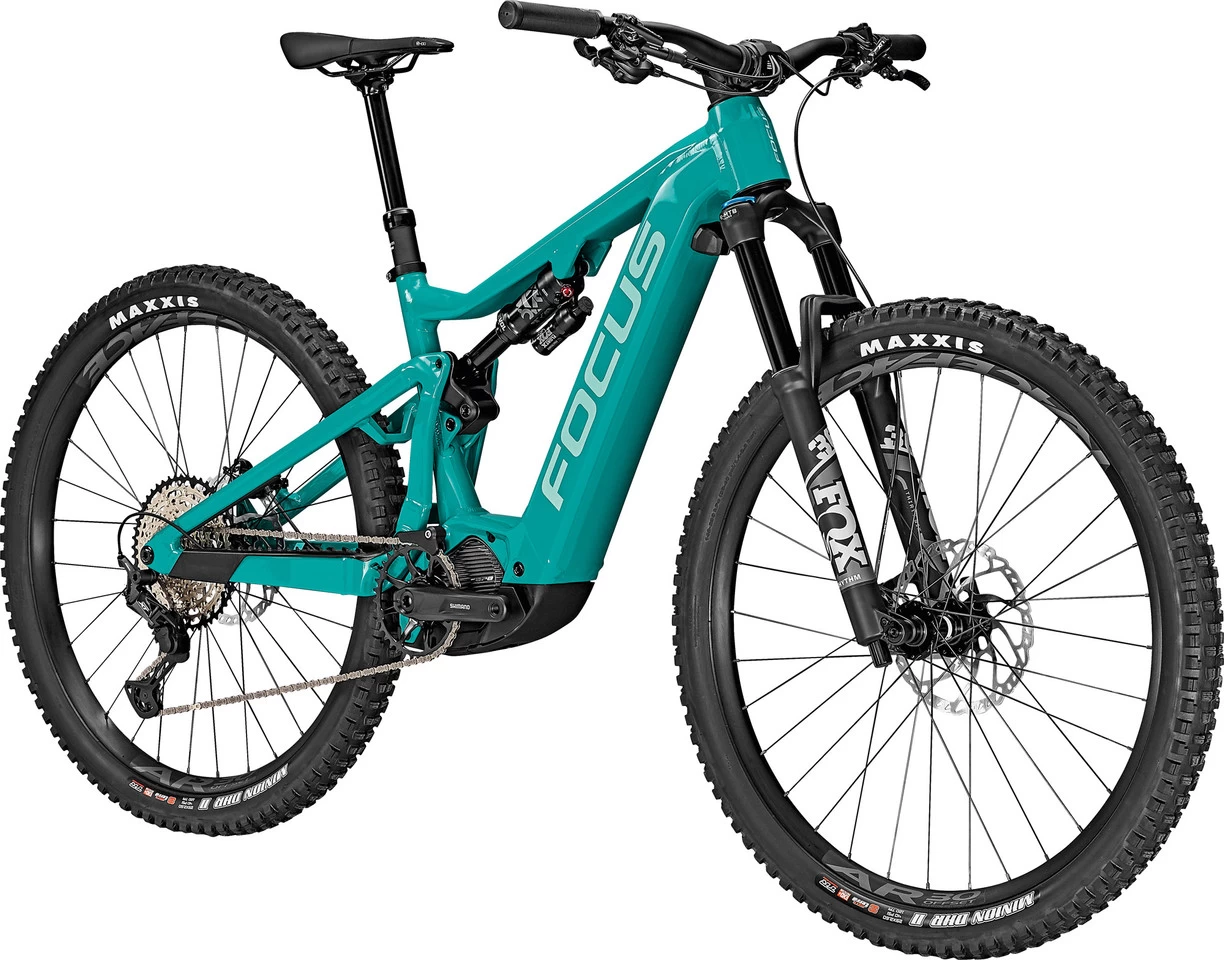

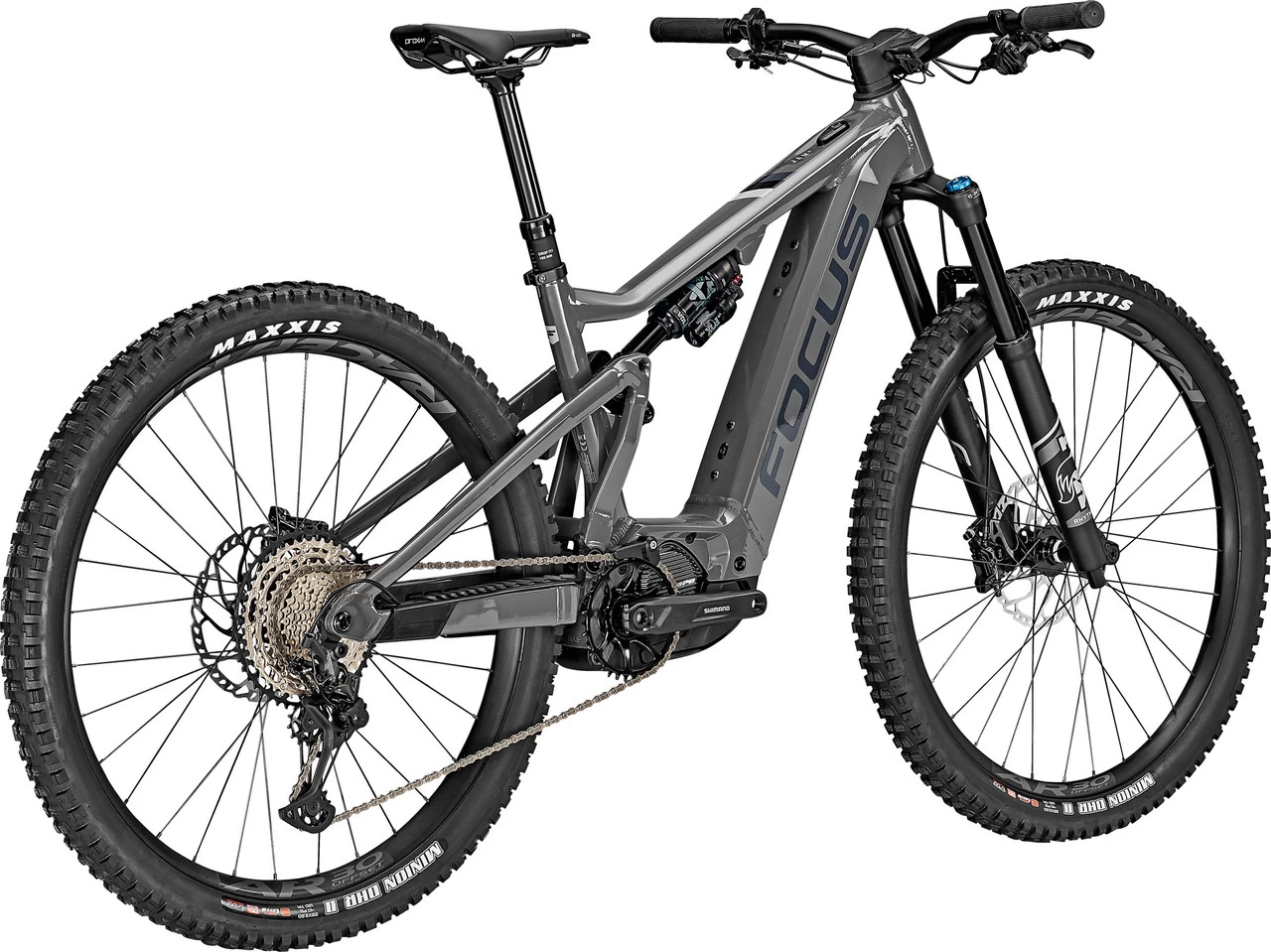

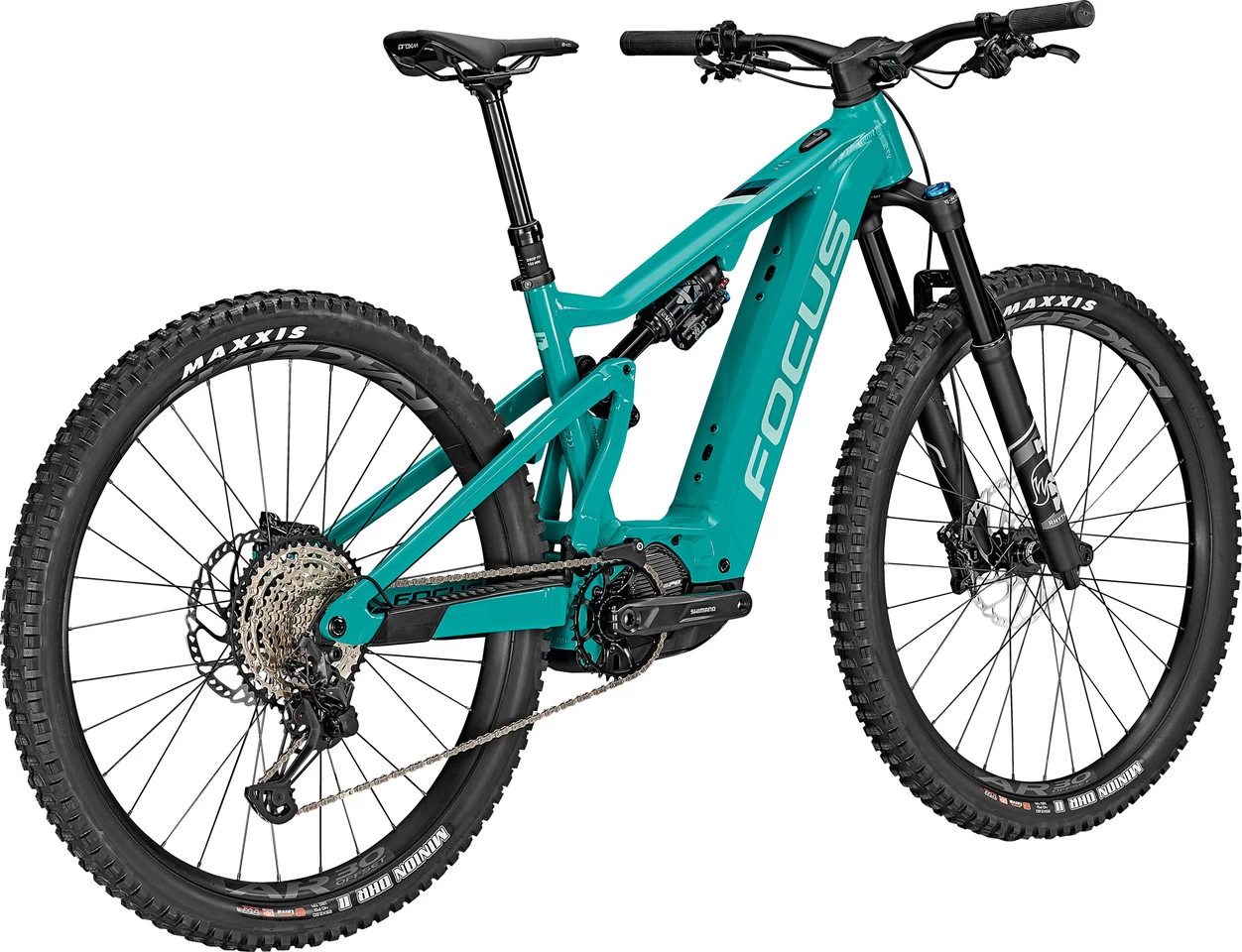

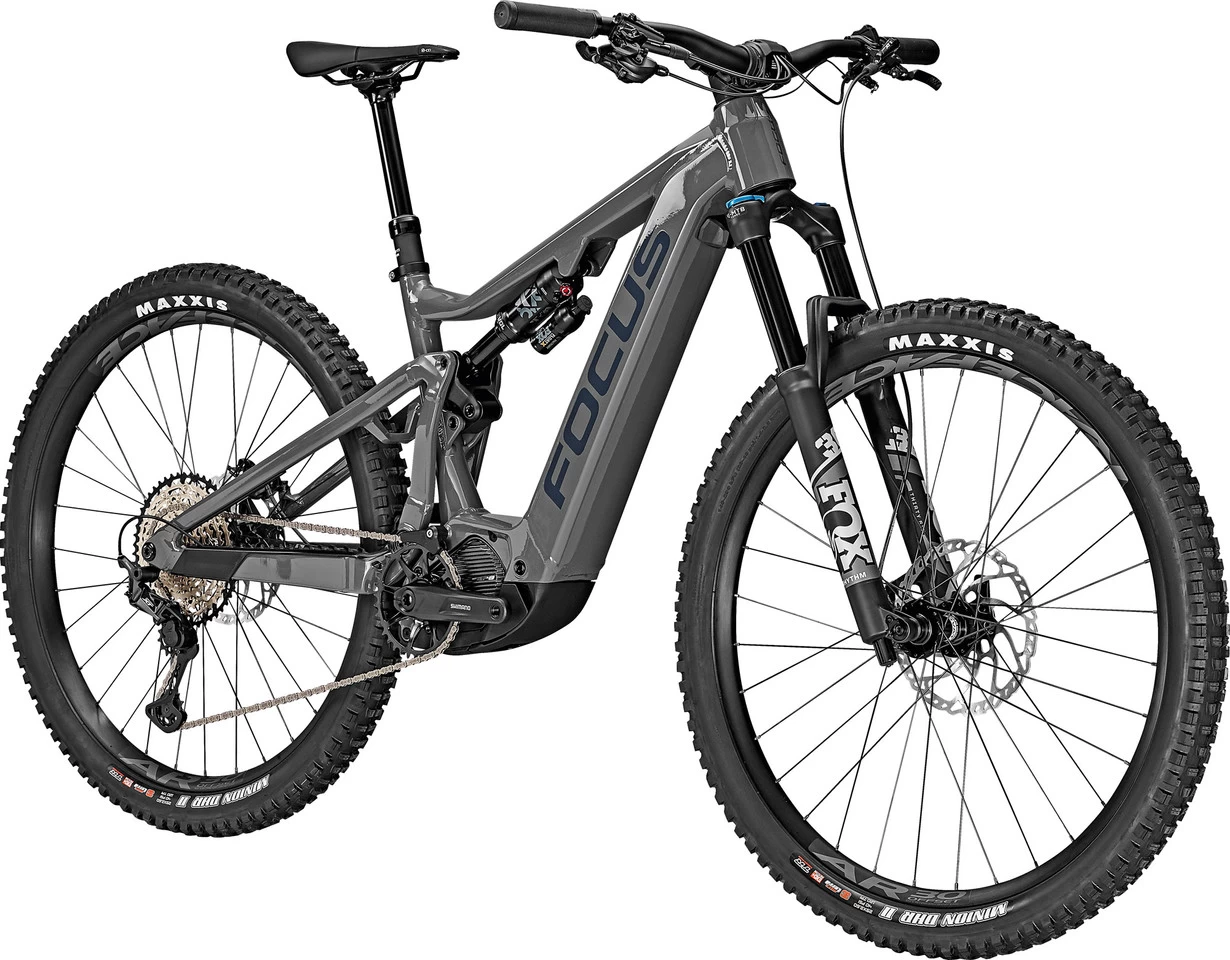

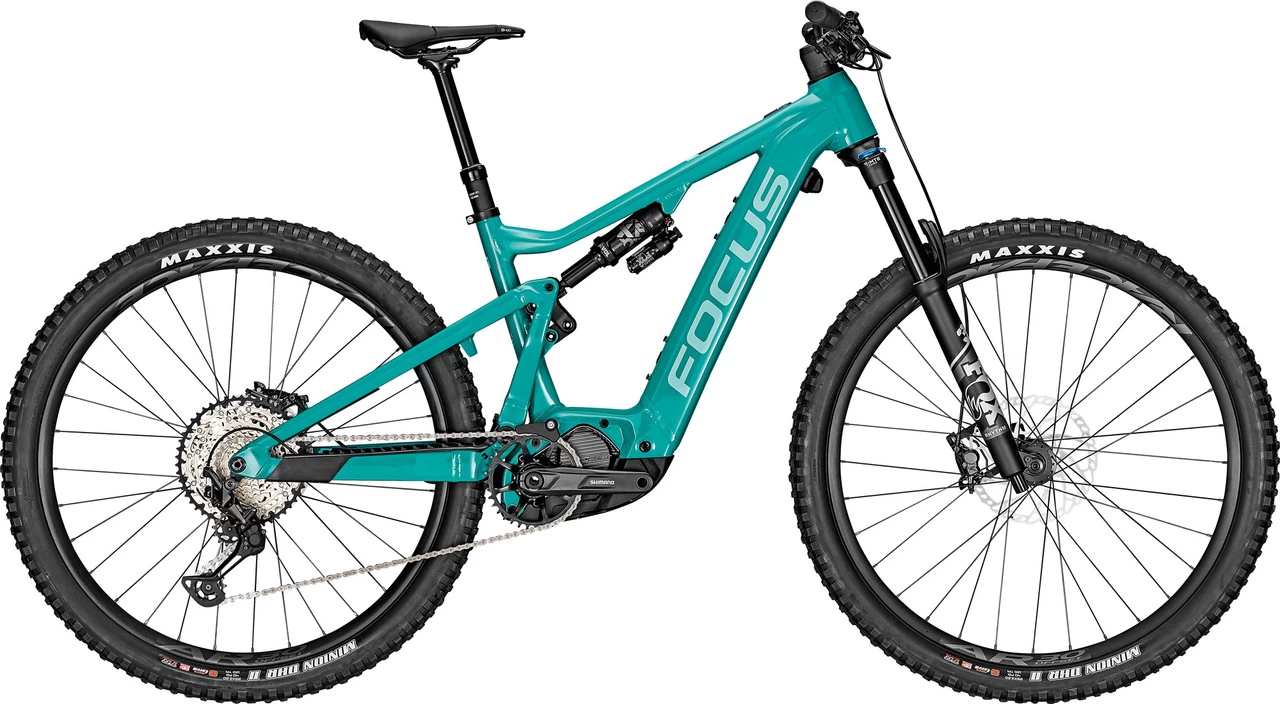

Focus JAM² 7.9 29″ E-Mountain Bike

The JAM² 7.9 e-mountain bike in 29″ by FOCUS with Shimano XT 1×12-speed groupset ensures unique riding fun on the trail. It has 150 mm travel at the front and rear and features very progressive linkage design. Thanks to flip-chip geometry, it offers you nimble or more stable handling, just as you like it. The Shimano EP8 motor and the 720 Wh battery support you up to 25 km/h when conquering mountains.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All Mountain, EnduroWheel Size:29″Front Travel:150 mmRear Travel:150 mmSizes:S, M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)E-Motor:Type:mid-drive motorMotor Type:Shimano EP8, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:FOCUS integrated, removable, 36 VCapacity:720 Wh (20.8 Ah)Display:Shimano STEPS EM800Components:Frame:FOCUS JAM², hydroformed aluminium, 3D-forged, F.O.L.D. GEN2 linkage design, internal cable routing, post mount 203 mm, 12 x 148 mm thru-axle (Boost)Fork:Fox Racing Shox 36 Float Rhythm 29, Grip Remote, 44 mm offset, 15 x 110 mm (Boost)Stem:FOCUS C.I.S. integrated, aluminium, 0°, 35 mm clampHandlebars:FOCUS, 35 mm rise, 9° backsweepGrips:FOCUS Locker SLRear Shock:Fox Racing Shox Float X Performance, 210 x 55 mm, hardware: 25.0 x 8.0 mmRemote System:Grip RemoteHeadset:Acros ZS56/ZS56, FOCUS C.I.S. integratedSeatpost:Post Modern Dropper Post PM-214, 34.9 mm, insertion depth min. 100 mmSaddle:Prologo Proxim W400Crank:Shimano SLX M7100, 12-speed, bottom bracket integrated in motor unit, 36 T chainringPedals:MTB, with reflectorsBrakes:Shimano XT M8120, 4 pistons, 200 mm/200 mmShift Lever:Shimano Deore XT M8100, 12-speedRear Derailleur:Shimano Deore XT M8100, 12-speedCassette:Shimano SLX M7100, 12-speed, 11-51 TChain:Shimano SLX CN-M7100Rims:Race Face AR30 OffsetSpokes:Niro, blackFront Hub:Novatec D041, 15 x 110 mmRear Hub:Novatec D462 Disc, 12 x 148 mmFront Tyre:Maxxis Minion DHF II 2.6″Rear Tyre:Maxxis Minion DHR 2.6″Approved For:Weight Limit:150 kgRotor Size (max.):220 mm (rear)Tyre Size (max.):29 x 2.6″ (rear wheel)Chainrings:1xChainring Size (max.):1x, 36 TFeatures:agile trail bike with Shimano EP8 E-drive and integrated, removable 720-Wh battery packvarious pre-set support profiles (e.g. harmonic or dynamic)150 mm suspension travel, very progressively tuned F.O.L.D. linkage design (F.O.L.D. Upgrade)adjustment of steering angle, seat angle, bottom bracket drop and chainstay length possible via flip chip: for nimbler handling or more stabilityintegrated cable routing with C.I.S.1.8″ bearings for higher durability and stiffness150 mm Fox 36 suspension fork and Float X rear shockShimano XT 12-speed shiftersUSB-C charging socket on the top tubeEN classification 4: Bicycle / pedelec for sport and competition rides with moderate technical demands of the paths, for jumps up to a maximum of 120 cm and/or descents on unpaved paths at speeds of less than 40 km/h, riding skills, practice and good riding control requiredTechnology:F.O.L.D. Upgrade / F.O.L.D. GEN2
The second generation FOCUS Optimised Linkage Design is more progressive than the previous F.O.L.D. linkage design, so that the puncture protection at the end of the suspension travel is even stronger – for more stability in demanding terrain. This is made possible by a change to the guide and Mainlink lever. However, you will still experience the chassis as sensitive. Another advantage is the lower standover height of the frame made possible by the F.O.L.D. upgrade.

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 561 mm)
S:
Frame Size:39 cmRecommended Height:160 – 170 cmStack:609 mmReach:425 mm (High), 420 mm (Low)Seat Tube Length:390 mmEffective Top Tube Length:572 mmHead Tube Length:105 mmChainstay Length:446.5 mm (High), 448 mm (Low)Wheelbase:1191 mmBB Drop:19.5 mm (High), 25 mm (Low)Seat Tube Angle:76.5° (High), 76° (Low)Head Tube Angle:65.5° (High), 65° (Low)Standover Height:796 mmStem Length:50 mmHandlebar Width:800 mmCrank Arm Length:165.0 mmSeatpost Insertion Depth (max.):240 mm
M:
Frame Size:42 cmRecommended Height:171 – 180 cmStack:613 mmReach:455 mm (High), 450 mm (Low)Seat Tube Length:420 mmEffective Top Tube Length:602 mmHead Tube Length:110 mmChainstay Length:446.5 mm (High), 448 mm (Low)Wheelbase:1223 mmBB Drop:19.5 mm (High), 25 mm (Low)Seat Tube Angle:76.5° (High), 76° (Low)Head
