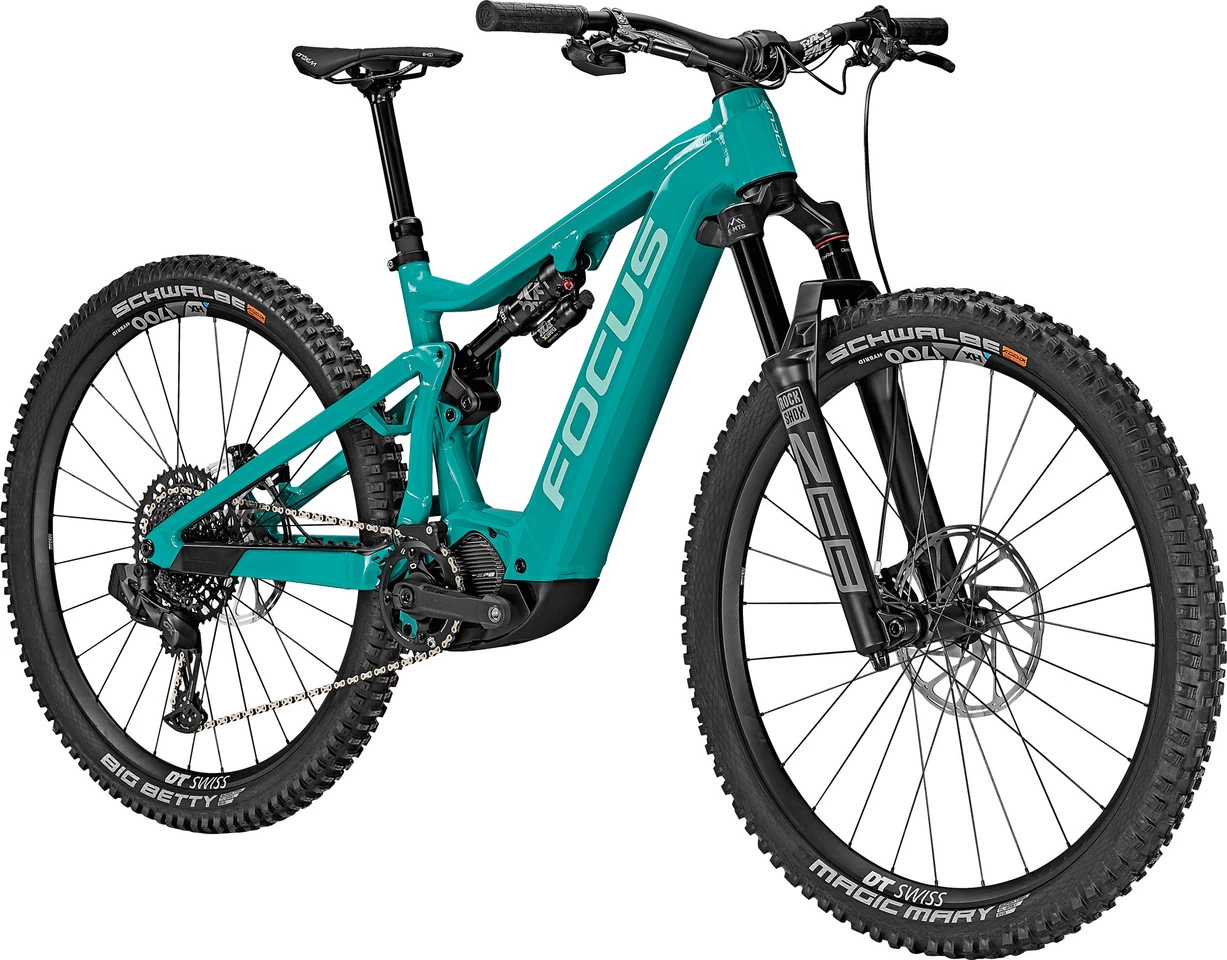

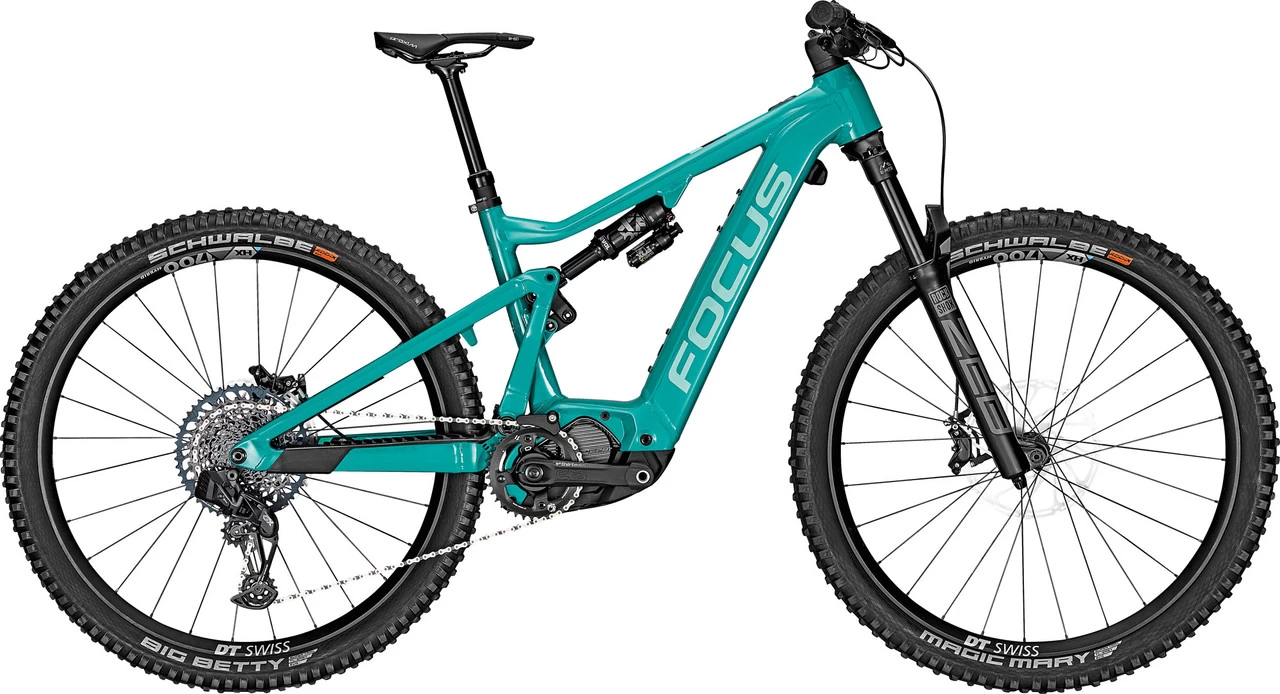

Focus JAM² 7.0 29″ E-Mountain Bike

The JAM² 7.0 e-mountain bike in a 29″ size by FOCUS with electronic SRAM GX Eagle 1×12-speed groupset ensures unique riding fun on the trail. It has 150 mm travel at the front and rear and features very progressive linkage design. Thanks to flip-chip geometry, it offers you nimble or more stable handling, just as you like it. The Shimano EP8 motor and the 720 Wh battery support you up to 25 km/h when conquering mountains.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Application:All Mountain, EnduroWheel Size:29″Front Travel:150 mmRear Travel:150 mmSizes:M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)E-Motor:Type:mid-drive motorMotor Type:Shimano EP8, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:FOCUS integrated, removable, 36 VCapacity:720 Wh (20.8 Ah)Display:Shimano STEPS EM800Components:Frame:FOCUS JAM², hydroformed aluminium, 3D-forged, F.O.L.D. GEN2 linkage design, internal cable routing, post mount 203 mm, 12 x 148 mm thru-axle (Boost)Fork:RockShox ZEB 29 Boost, Charger R, DebonAir, 44 mm headset, 15 x 110 mmStem:FOCUS C.I.S. integrated, aluminium, 0°, 35 mm clampHandlebars:Race Face Chester 35, aluminium, 35 mm rise, 8° backsweepGrips:Race Face Getta GripRear Shock:Fox Racing Shox Float X Performance, 210 x 55 mm, hardware: 25.0 x 8.0 mmRemote System:noneHeadset:Acros ZS56/ZS56, FOCUS C.I.S. integratedSeatpost:Post Modern Dropper Post PM-214, 34.9 mm, insertion depth min. 100 mmSaddle:Prologo Proxim W450Crank:e*thirteen, e*spec Plus, Shimano EP8, bottom bracket integrated in motor unit, 36 T chainringPedals:MTB, with reflectorsBrakes:SRAM Code RSC, 220 mm/220 mmShift Lever:SRAM GX Eagle AXS, 12-speedRear Derailleur:SRAM GX Eagle AXSCassette:SRAM XG-1275, 12-speed, 10-52 tChain:SRAM GX EagleRims:DT Swiss HX 1700, 30-622Spokes:DT SwissFront Hub:DT Swiss 350, 15 x 110 mmRear Hub:DT Swiss 350, 12 x 148 mmFront Tyre:Schwalbe Magic Mary 2.6″ , Super Trail SoftRear Tyre:Schwalbe Magic Mary 2.6″ , Gravity SoftApproved For:Weight Limit:150 kgRotor Size (max.):220 mmTyre Size (max.):29 x 2.6″ (rear wheel)Chainrings:1xChainring Size (max.):1x, 36 TFeatures:agile trail bike with Shimano EP8 E-drive and integrated, removable 720-Wh battery packvarious pre-set support profiles (e.g. harmonic or dynamic)150 mm suspension travel, very progressively tuned F.O.L.D. linkage design (F.O.L.D. Upgrade)adjustment of steering angle, seat angle, bottom bracket drop and chainstay length possible via flip chip: for nimbler handling or more stabilityintegrated cable routing with C.I.S.1.8″ bearings for higher durability and stiffness150 mm RockShox ZEB fork and Fox Float X rear shockSRAM GX Eagle AXS electronic shiftingUSB-C charging socket on the top tubeEN classification 4: Bicycle / pedelec for sport and competition rides with moderate technical demands of the paths, for jumps up to a maximum of 120 cm and/or descents on unpaved paths at speeds of less than 40 km/h, riding skills, practice and good riding control requiredTechnology:F.O.L.D. Upgrade / F.O.L.D. GEN2
The second generation FOCUS Optimised Linkage Design is more progressive than the previous F.O.L.D. linkage design, so that the puncture protection at the end of the suspension travel is even stronger – for more stability in demanding terrain. This is made possible by a change to the guide and Mainlink lever. However, you will still experience the chassis as sensitive. Another advantage is the lower standover height of the frame made possible by the F.O.L.D. upgrade.

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 561 mm)
M:
Frame Size:42 cmRecommended Height:171 – 180 cmStack:613 mmReach:455 mm (High), 450 mm (Low)Seat Tube Length:420 mmEffective Top Tube Length:602 mmHead Tube Length:110 mmChainstay Length:446.5 mm (High), 448 mm (Low)Wheelbase:1223 mmBB Drop:19.5 mm (High), 25 mm (Low)Seat Tube Angle:76.5° (High), 76° (Low)Head Tube Angle:65.5° (High), 65° (Low)Standover Height:796 mmStem Length:50 mmHandlebar Width:780 mmCrank Arm Length:165.0 mmSeatpost Insertion Depth (max.):270 mm
L:
Frame Size:45 cmRecommended Height:181 – 190 cmStack:637 mmReach:485 mm (High), 480 mm (Low)Seat Tube Length:450 mmEffective Top Tube Length:637 mmHead Tube Length:130 mmChainstay Length:446.5 mm (High), 448 mm (Low)Wheelbase:1261 mmBB Drop:19.5 mm (High), 25 mm (Low)Seat Tube Angle:76.5
