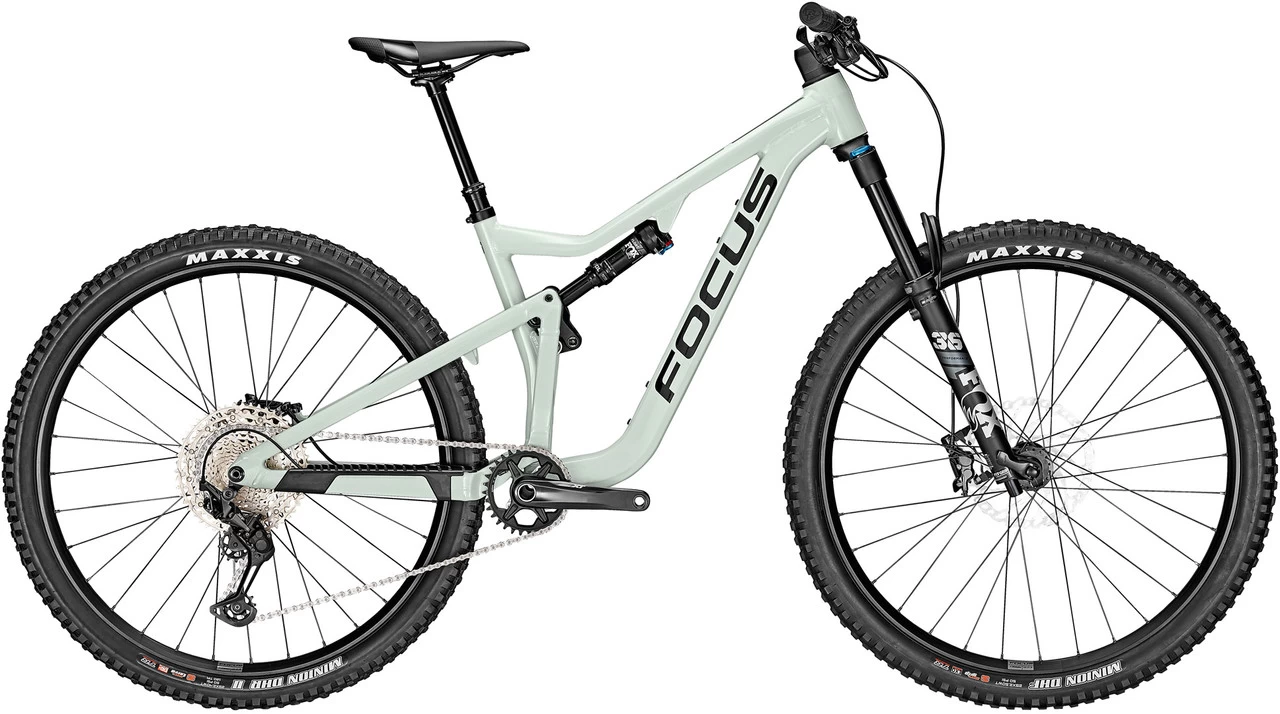

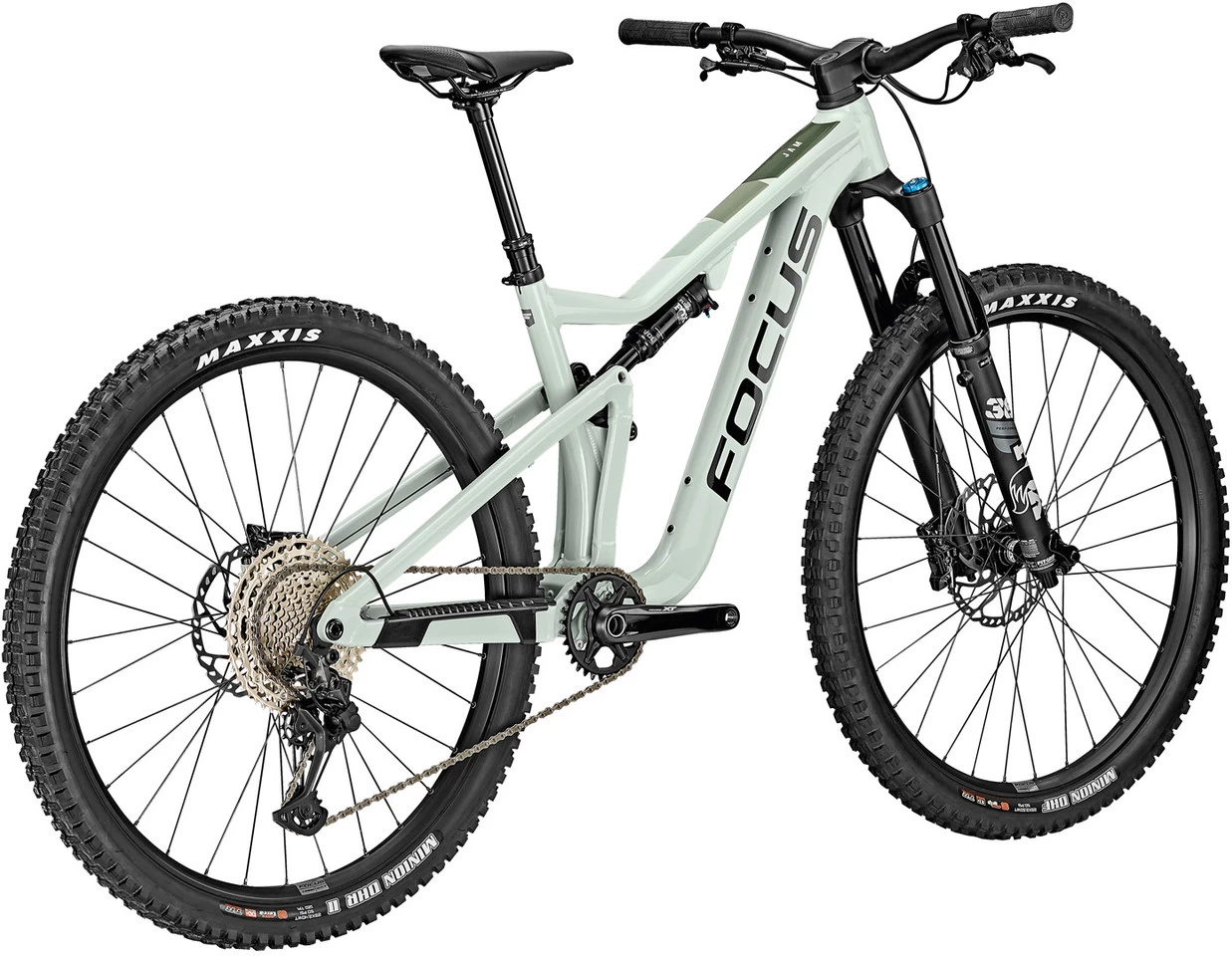

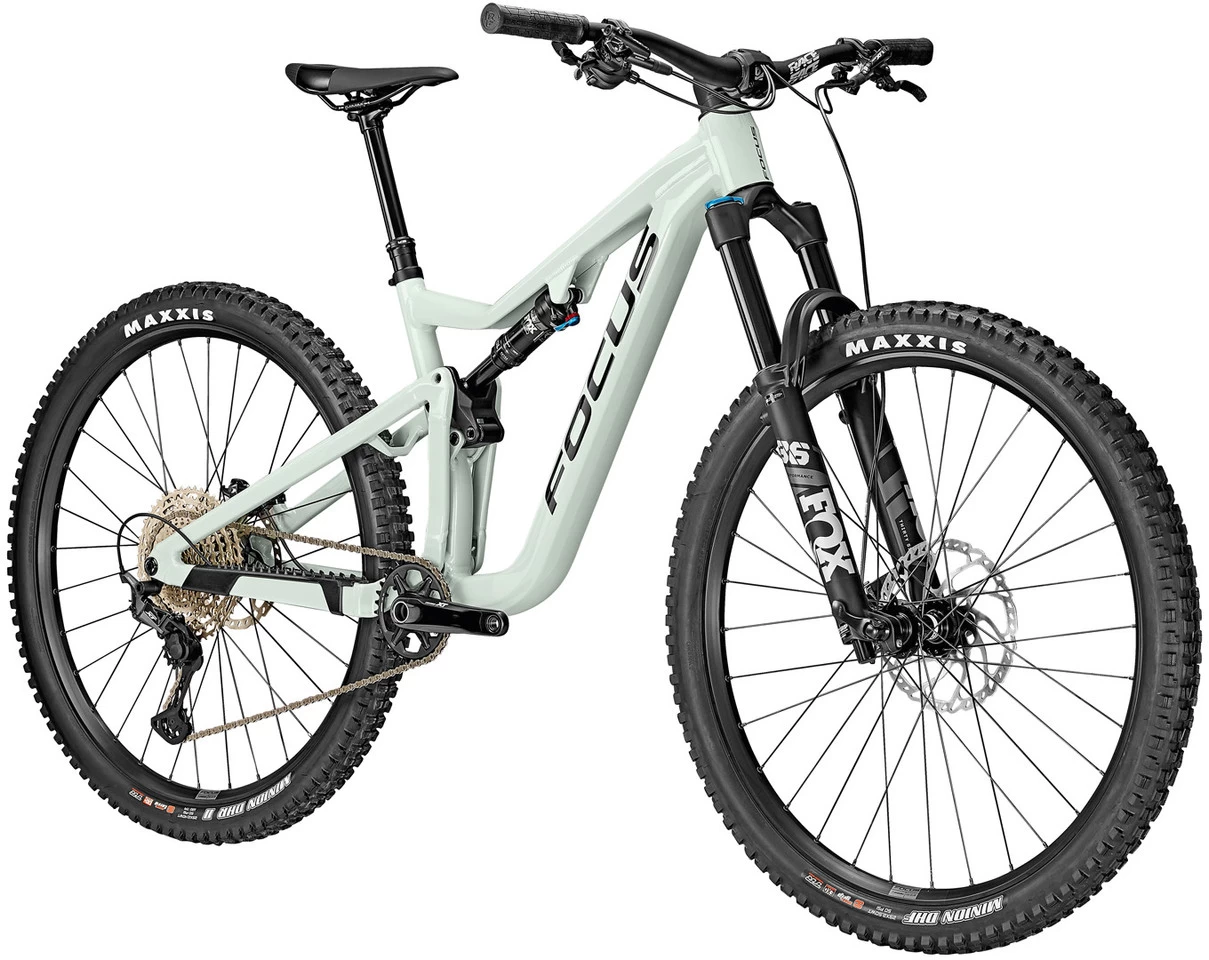

Focus JAM 6.9 29″ Mountain Bike

The JAM 6.9 29″ Mountain Bike by FOCUS – For playing in the mountains
The JAM 6.9 29″ trail bike with 150 mm travel was equipped by FOCUS with a 36 Performance suspension fork and a Float DPS shock from Fox, a reliable Shimano XT 1×12-speed shifting system and powerful XT 4-piston disc brakes. The hydroformed aluminium frame allows for completely internal cable routing and comes with an integrated tool pocket in the front triangle. A flip chip allows you to change the bottom bracket height, reach, steering angle and seat tube angle. Thanks to the sensitive, yet extremely progressive and stable F.O.L.D. linkage design with modified positioning, the JAM takes on all adventures, even in alpine terrain.
Specifications:Application:All Mountain, EnduroWheel Size:29″Front Travel:150 mmRear Travel:150 mmSizes:S, M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)Components:Frame:FOCUS JAM, hydroformed aluminium, 3D forged, F.O.L.D. linkage design, PM 180 mm, 12 x 148 mmFork:Fox Racing Shox 36 Float Performance 29″ , GRIP 3-position, 44 mm headset, 15 x 110 mmStem:FOCUS C.I.S. integrated, aluminium, 50 mm 0°, 35 mm clampHandlebars:FOCUS, aluminium, 780 mm, 28 mm rise, 35 mm clampGrips:Race Face Getta GripRear Shock:Fox Racing Shox Float DPS Performance, 3-position levers, 210 x 55 mm, hardware: 25.0 x 8 mm, Custom TuneRemote System:noneHeadset:Acros AZX-212 AH, 1.5″ – 1 1/8″ tapered, ZS44/28,6|ZS56/40Seatpost:Kind Shock RAGE I, 31.6 mmSaddle:FOCUS Trail SLCrank:Shimano Deore XT FC-M8100, Hollowtech II, 32 T, BSA bottom bracketPedals:noneBrakes:Shimano XT M8120, 4 pistons, 203 mm/180 mmShift Lever:Shimano Deore XT M8100, 12-speedRear Derailleur:Shimano Deore XT M8100, 12-speedCassette:Shimano Deore M6100, 12-speed, 10-51 TChain:Shimano Deore M6100, 12-speedRims:RODI TRYP30 FOCUS, eyeletedSpokes:RODIFront Hub:Novatec D041, 15 x 110 mmRear Hub:Novatec D462, 12 x 148 mmFront Tyre:Maxxis Minion DHF 2.5 WT 3C Grip EXO TRRear Tyre:Maxxis Minion DHR II 2.4 3C EXO TRApproved For:Weight Limit:110 kgChainrings:1xFeatures:hydroformed aluminium frame with fully integrated C.I.S. cable routingcleverly attached accessory bag, offers space for e.g. multi-tool, inner tube and small pump (contents not included)150 mm chassis with F.O.L.D. linkage design for strong progressionhigh-quality Fox 36 Performance suspension fork and perfectly balanced Fox DPS rear shockreliable and precise: Shimano XT 1×12-speed shifters and powerful Shimano XT 4-piston brakesgeometry adjustment possible thanks to Flip ChipASTM category 4: for technical terrain, medium-high obstacles and small jumpsTechnology:C.I.S.
The fully integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 561 mm)
S:
Frame Size:39 cmRecommended Height:160 – 170 cmStack:603 mmReach:420 mm (Low), 425 mm (High)Seat Tube Length:390 mmEffective Top Tube Length:570 mmHead Tube Length:90 mmChainstay Length:435 mmWheelbase:1166 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
M:
Frame Size:42 cmRecommended Height:171 – 180 cmStack:612 mmReach:450 mm (Low), 455 mm (High)Seat Tube Length:420 mmEffective Top Tube Length:603 mmHead Tube Length:100 mmChainstay Length:435 mmWheelbase:1200 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
L:
Frame Size:45 cmRecommended Height:181 – 190 cmStack:630 mmReach:480 mm (Low), 485 mm (High)Seat Tube Length:450 mmEffective Top Tube Length:637 mmHead Tube Length:120 mmChainstay Length:435 mmWheelbase:1239 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
XL:
Frame Size:47 cmRecommended Height:191 – 199 cmStack:648 mmReach:510 mm (Low), 515 mm (High)Seat Tube Length:470 mmEffective Top Tube Length:672 mmHead Tube Length:140 mmChainstay Length:435 mmWheelbase:1277 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mmManufacturer Numbers:sky grey / S:641013005sky grey / M:641013006sky grey / L:641013007sky grey / XL:641013008Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x FOCUS JAM 6.9 Mountain Bike1 x frame bag
