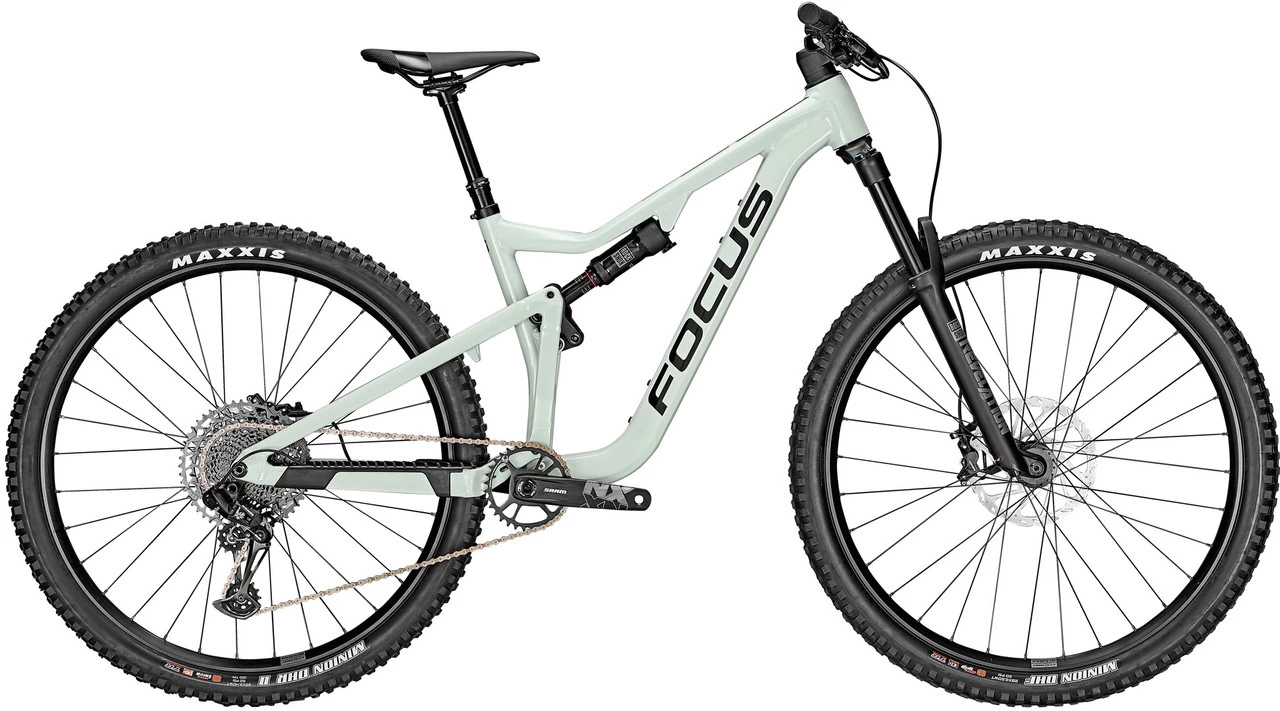

Focus JAM 6.8 29″ Mountain Bike

The JAM 6.8 29″ Mountain Bike by FOCUS – For playing in the mountains
The JAM 6.8 29″ trail bike with 150 mm travel was equipped by FOCUS with a Revelation suspension fork and a Deluxe Select shock from RockShox, user-friendly SRAM NX Eagle 1×12-speed shifters and powerful G2 R 4-piston disc brakes. The hydroformed aluminium frame allows for completely internal cable routing and comes with an integrated tool pocket in the front triangle. A flip chip allows you to change the bottom bracket height, reach, steering angle and seat tube angle. Thanks to the sensitive, yet extremely progressive and stable F.O.L.D. linkage design with modified positioning, the JAM takes on all adventures, even in alpine terrain.
Specifications:Application:All Mountain, EnduroWheel Size:29″Front Travel:150 mmRear Travel:150 mmSizes:S, M, L, XLFront Triangle Material:aluminium (7005)Rear Triangle Material:aluminium (7005)Components:Frame:FOCUS JAM, hydroformed aluminium, 3D forged, F.O.L.D. linkage design, PM 180 mm, 12 x 148 mmFork:RockShox Revelation RC 29″ Boost, DebonAir, 46 mm offset, 15 x 110 mmStem:JD ST280QHandlebars:FOCUS Trail, aluminium, 780 mm, 30 mm rise, 9° backsweepGrips:FOCUS Locker SLRear Shock:RockShox Deluxe Select, 210 x 55 mm, hardware: 25.0 x 8 mm, Custom TuneRemote System:noneHeadset:Acros AZX-212 AH, 1.5″ – 1 1/8″ tapered, ZS44/28,6|ZS56/40Seatpost:Kind Shock RAGE I, 31.6 mmSaddle:FOCUS Trail SLCrank:SRAM NX Eagle, 32 t, BSA bottom bracketPedals:noneBrakes:SRAM G2 R, 4 pistons, 200 mm/180 mmShift Lever:SRAM SX Eagle, 12-speedRear Derailleur:SRAM NX Eagle, 12-speedCassette:SRAM PG-1210 Eagle, 12-speed, 11-50 tChain:SRAM SX Eagle, 12-speedRims:RODI TRYP30 FOCUS, eyeletedSpokes:RODIFront Hub:Novatec D041, 15 x 110 mmRear Hub:Novatec D462, 12 x 148 mmFront Tyre:Maxxis Minion DHF 2.5 WT 3C Grip EXO TRRear Tyre:Maxxis Minion DHR II 2.4 3C EXO TRApproved For:Weight Limit:110 kgChainrings:1xFeatures:hydroformed aluminium frame with fully integrated C.I.S. cable routingcleverly attached accessory bag, offers space for e.g. multi-tool, inner tube and small pump (contents not included)150 mm chassis with F.O.L.D. linkage design for strong progressionRockShox Revelation suspension fork and Deluxe Select rear shockuncomplicated SRAM NX Eagle 1×12-speed shiftersgeometry adjustment possible thanks to Flip ChipASTM category 4: for technical terrain, medium-high obstacles and small jumpsTechnology:C.I.S.
The fully integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 561 mm)
S:
Frame Size:39 cmRecommended Height:160 – 170 cmStack:603 mmReach:420 mm (Low), 425 mm (High)Seat Tube Length:390 mmEffective Top Tube Length:570 mmHead Tube Length:90 mmChainstay Length:435 mmWheelbase:1166 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
M:
Frame Size:42 cmRecommended Height:171 – 180 cmStack:612 mmReach:450 mm (Low), 455 mm (High)Seat Tube Length:420 mmEffective Top Tube Length:603 mmHead Tube Length:100 mmChainstay Length:435 mmWheelbase:1200 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
L:
Frame Size:45 cmRecommended Height:181 – 190 cmStack:630 mmReach:480 mm (Low), 485 mm (High)Seat Tube Length:450 mmEffective Top Tube Length:637 mmHead Tube Length:120 mmChainstay Length:435 mmWheelbase:1239 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mm
XL:
Frame Size:47 cmRecommended Height:191 – 199 cmStack:648 mmReach:510 mm (Low), 515 mm (High)Seat Tube Length:470 mmEffective Top Tube Length:672 mmHead Tube Length:140 mmChainstay Length:435 mmWheelbase:1277 mmBB Drop:30 mm (Low), 24 mm (High)Seat Tube Angle:76° (Low), 76.5° (High)Head Tube Angle:65° (Low), 65.5° (High)Stem Length:50 mmHandlebar Width:780 mmCrank Arm Length:170.0 mmManufacturer Numbers:sky grey / S:641013010sky grey / M:641013011sky grey / L:641013012sky grey / XL:641013013Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x FOCUS JAM 6.8 Mountain Bike1 x frame bag
