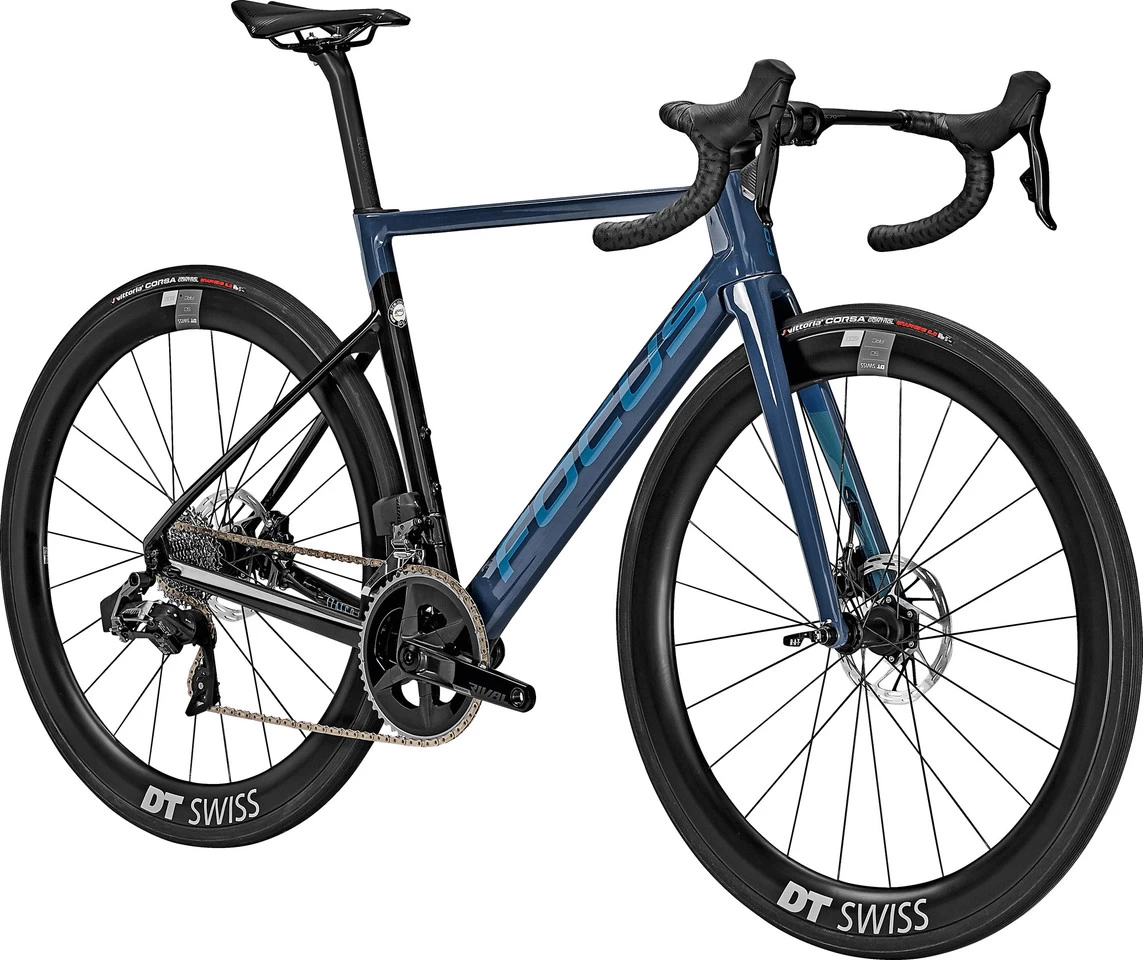

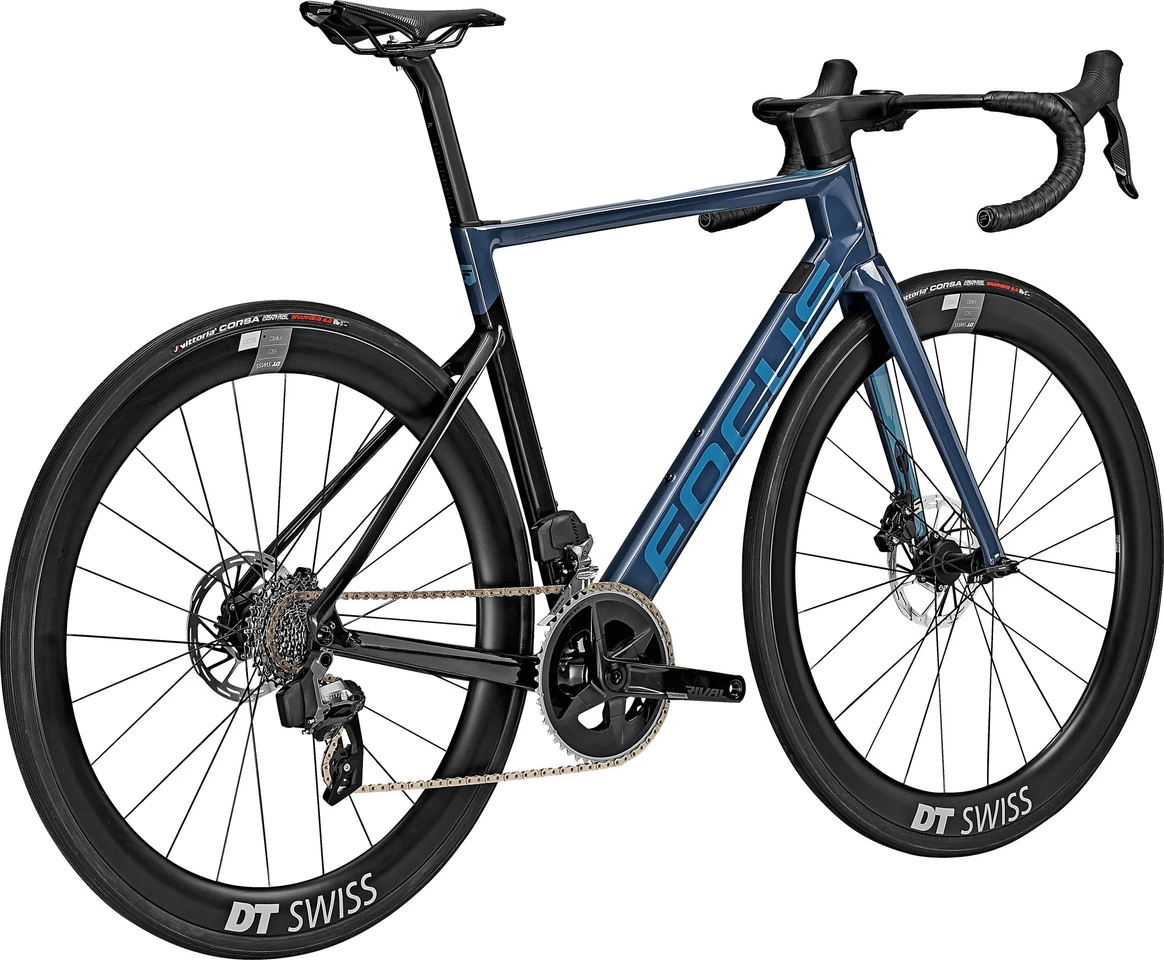

Focus Izalco Max 9.7 Disc Carbon 28″ Road Bike

The Izalco Max 9.7 is an aerodynamic road bike from FOCUS, based on a very lightweight carbon frame, equipped with SRAM Rival eTap AXS 2×12-speed electronic shifting and DT Swiss ARC 1600 wheels. Its Race geometry was optimised in the wind tunnel and designed to bring your power directly to the road. 28 mm wide tyres provide more comfort, while the disc brakes increase safety at top speeds and in bad weather.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Application:RoadWheel Size:28″Sizes:S, M, L, XL, XXLFrame Material:CarbonFork Material:CarbonComponents:Frame:FOCUS Izalco Max, MAX Technology Carbon, Disc Flat Mount, R.A.T. Evo Technology, 12 x 142 mm thru-axleFork:FOCUS Izalco Max, MAX Technology Carbon, integrated, Disc Flat Mount, R.A.T. Evo Technology, 392 mm installation length, 46 mm front travel, 12 x 100 mm thru axleStem:FOCUS C.I.S. integrated, aluminium, 31.8 mmHandlebars:Easton EC70 Aero, carbon, 125 mm drop, 80 mm reach, 31.8 mmHeadset:Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.Seatpost:FOCUS Aero Carbon, D-Shape, 360 mm, 15 mm setback, insertion depth min. 100 mmSaddle:Fizik Antares Versus EVO R5Crank:SRAM Rival AXS, 12-speed, Shimano Press Fit Road B86 bottom bracket, 35-48 TPedals:noneBrakes:SRAM Rival eTap AXS, 160 mm/160 mmShift/Brake lever:SRAM Rival eTap AXS, 12-speedRear Derailleur:SRAM Rival eTap AXS, 12-speedFront Derailleur:SRAM Rival eTap AXS, 2×12-speedCassette:SRAM XG-1250, 12-speed, 10-30 toothChain:SRAM Rival AXS, 12-speedWheels:DT Swiss ARC 1600, carbon, 20-622, 48 mm rim height, 12 x 100 mm / 12 x 142 mmTyres:Vittoria Corsa Control, Tubeless Ready, 700 x 28CApproved For:Weight Limit:110 kgRotor Size (max.):160 mmTyre Size (max.):28-622 (700 x 28c)Chainrings:2xChainring Size (max.):2-speed 42-55 T with chainline 43.5 mm (Shimano), 2-speed 37-50 T with chainline 45 mm (SRAM)Features:optimal blend of aerodynamics, light weight, comfort and styleaero carbon frame (890 g) with aero seatpostRace geometry, optimised in the wind tunnel, for high power efficiency and speedfully integrated cable routing, innovative C.I.S. aero stem with computer mountwide 28 mm tyres for comfort and more puncture protection on poor surfacesSRAM Rival eTap AXS 12-speed groupset and disc brake, only compatible with electronic shiftersDT Swiss ARC 1600 DICUT wheels with 48 mm high carbon rims, R.A.T. thru-axlesFOCUS SL handlebar tapesuitable for trainers with direct driveEN classification 6: bicycle for paved surfaces, for sport and competition riding with high effort, drops of no more than 15 cm, high average speeds of 30 – 55 km/h, riding skills and practice requiredTechnology:C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

S.S.P.S.
The Stable Stiffness per Size (S.S.P.S.) process means that each frame size receives a specially-tuned carbon lay-up and is individually constructed. This is the only way to ensure an optimal stiffness-to-weight ratio and equal riding characteristics for each size.

R.A.T.
FOCUS has developed its own patented Rapid Axle Technology (R.A.T.) for Mountain bikes, Road bikes and Cyclocross bikes. When developing the R.A.T. thru-axle, the focus was clearly on quick and easy operation when changing the wheel. As a result of the development, Rapid Axle Technology combines the stability and rigidity of a thru-axle with the advantages of quick releases.
Geometry:S:
Frame Size:52 cmRecommended Height:171 – 175 cmStack:528 mmReach:378 mmSeat Tube Length:490 mmEffective Top Tube Length:534 mmHead Tube Length:100 mmChainstay Length:410 mmWheelbase:985 mmBB Drop:78 mmSeat Tube Angle:73.5°Head Tube Angle:71.5°Standover Height:760 mmStem Length:100 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmSeatpost Insertion Depth (max.):220 mm
M:
Frame Size:54 cmRecommended Height:176 – 180 cmStack:544 mmReach:390 mmSeat Tube Length:510 mmEffective Top Tube Length:551 mmHead Tube Length:115 mmChainstay Length:410 mmWheelbase:997 mmBB Drop:78 mmSeat Tube Angle:73.5°Head Tube Angle:72°Standover Height:778 mmStem Length:100 mmHandlebar Width:42 cmCrank Arm Length:172.5 mmSeatpost Insertion Depth (max.):240 mm
L:
Frame Size:56 cmRecommended Height:181 – 185 cmStack:554 mmReach:400 mmSeat Tube Length:530 mmEffective Top Tube Length:564 mmHead Tube Length:125 mmChainstay Length:410 mmWheelbase:1010 mmBB Drop:78 mmSeat Tube Angle:73.5°Head Tube Angle:72°Standover Height:791 mmStem Length:110 mmHandlebar Width:42 cmCrank Arm Length:172.5 mmSeatpost Insertion Depth (max.):240 mm
XL:
Frame Size:58 cmRecommended Height:186 – 190 cmStack:579 mmReach:410 mmSeat Tube Length:550 mmEffective Top Tube Length:582 mmHead Tube Length:150 mmChainstay Length:410 mmWheelbase:1024 mmBB Drop:78 mmSeat Tube Angle:73.5°Head Tube An
