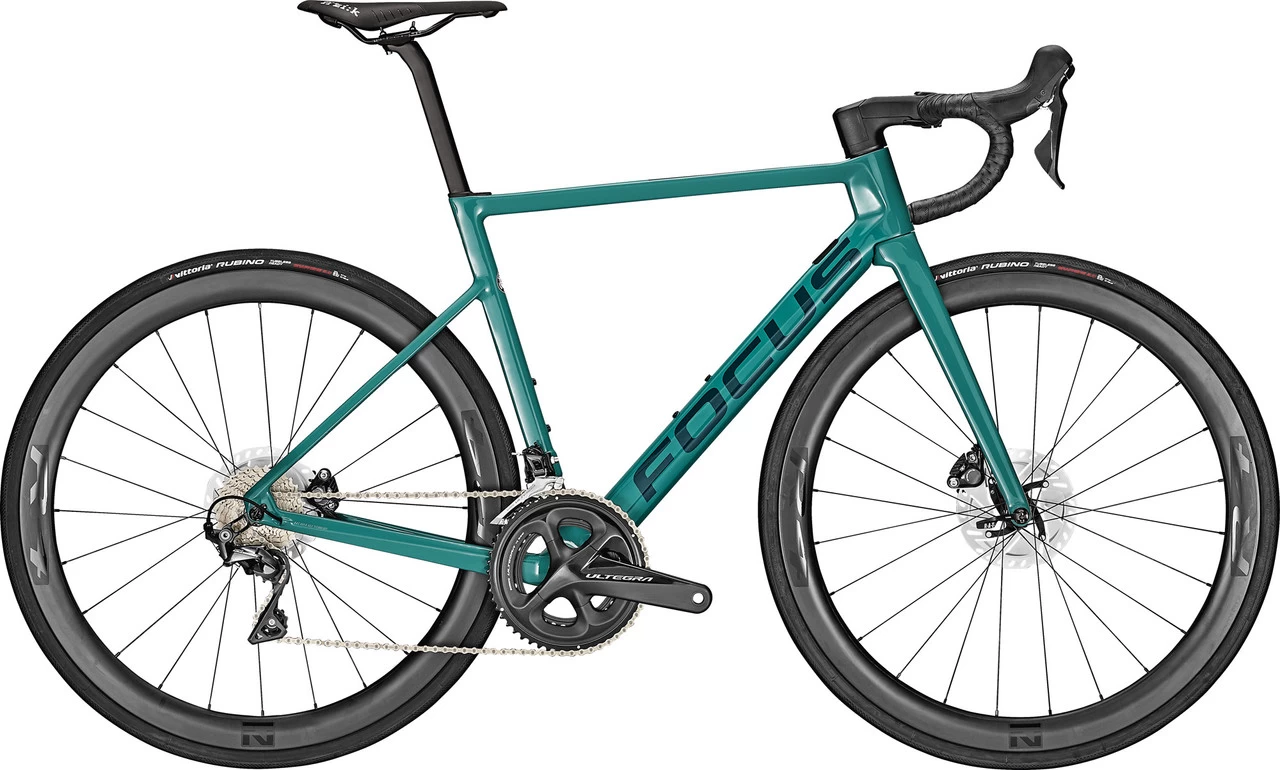

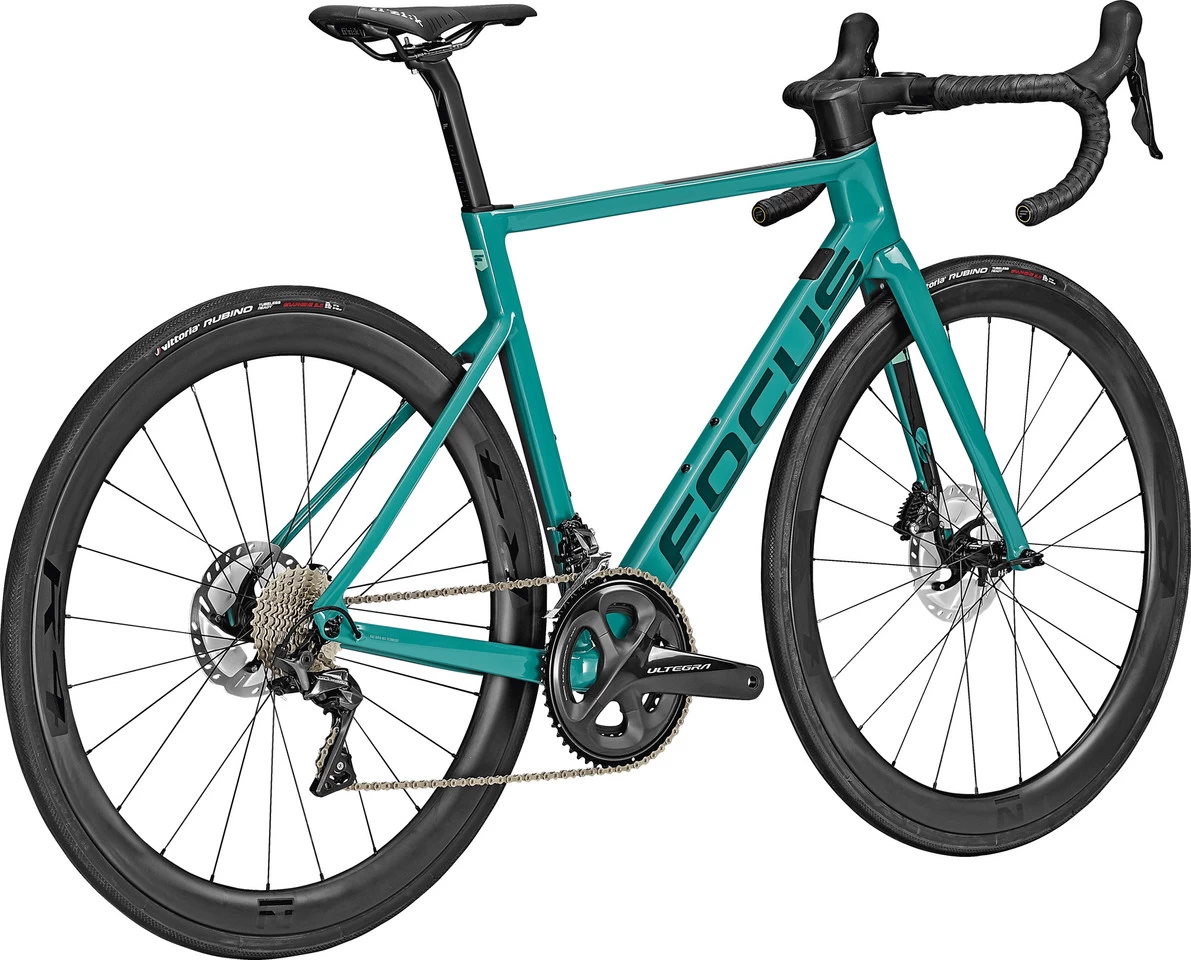

Focus Izalco Max 8.9 Disc Carbon 28″ Road Bike

The Izalco Max 8.9 is an aerodynamic road bike from FOCUS, based on a lightweight carbon frame, equipped with Shimano Ultegra 2×11-speed mechanical shifters and Novatec R4 wheels. Its Race geometry was optimised in the wind tunnel and designed to bring your power directly to the road. 28 mm wide tyres provide more comfort, while the disc brakes increase safety at top speeds and in bad weather.
Specifications:Application:RoadWheel Size:28″Sizes:XXS, XS, S, M, L, XL, XXLFrame Material:CarbonFork Material:CarbonComponents:Frame:FOCUS Izalco Max, MAX Technology Carbon, Disc Flat Mount, R.A.T. Evo Technology, 12 x 142 mm thru-axleFork:FOCUS Izalco Max, MAX Technology Carbon, integrated, Disc Flat Mount, R.A.T. Evo Technology, 392 mm installation length, 46 mm front travel, 12 x 100 mm thru axleStem:FOCUS C.I.S. integrated, aluminium, 31.8 mmHandlebars:BBB Basic, aluminium, 125 mm drop, 70 mm reachHeadset:Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.Seatpost:FOCUS Aero Carbon, D-Shape, 360 mm, 15 mm setback, insertion depth min. 100 mmSaddle:Fizik Antares R7Crank:Shimano Ultegra R8000, Shimano Press Fit Road BB86 bottom bracket, 36-52 tPedals:noneBrakes:Shimano Ultegra R8020Shift/Brake lever:Shimano Ultegra R8000Rear Derailleur:Shimano Ultegra R8000Front Derailleur:Shimano Ultegra R8000Cassette:Shimano Ultegra R8000, 11-30 toothChain:Shimano CN-HG701Wheels:Novatec R4, carbon, 21-622, 45 mm rim height, 12 x 100 mm / 12 x 142 mmTyres:Vittoria Rubino TLR, 700 x 28C, folding tyreApproved For:Weight Limit:110 kgRotor Size (max.):160 mmTyre Size (max.):28-622 (700 x 28c)Chainrings:2xChainring Size (max.):2-speed 42-55 T with chainline 43.5 mm (Shimano), 2-speed 37-50 T with chainline 45 mm (SRAM)Features:optimal blend of aerodynamics, light weight, comfort and styleAero carbon frame (1040 g) with aero seatpostRace geometry, optimised in the wind tunnel, for high power efficiency and speedfully integrated cable routing, innovative C.I.S. aero stem with computer mountwide 28 mm tyres for comfort and more puncture protection on poor surfacesShimano Ultegra groupset (mechanical) and disc brake, also compatible with Di2Novatec R4 wheels with 45 mm high carbon rims, R.A.T. thru-axlesFOCUS SL handlebar tapesuitable for trainers with direct driveEN classification 6: bicycle for paved surfaces, for sport and competition riding with high effort, drops of no more than 15 cm, high average speeds of 30 – 55 km/h, riding skills and practice requiredTechnology:C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

S.S.P.S.
The Stable Stiffness per Size (S.S.P.S.) process means that each frame size receives a specially-tuned carbon lay-up and is individually constructed. This is the only way to ensure an optimal stiffness-to-weight ratio and equal riding characteristics for each size.

R.A.T.
FOCUS has developed its own patented Rapid Axle Technology (R.A.T.) for Mountain bikes, Road bikes and Cyclocross bikes. When developing the R.A.T. thru-axle, the focus was clearly on quick and easy operation when changing the wheel. As a result of the development, Rapid Axle Technology combines the stability and rigidity of a thru-axle with the advantages of quick releases.
Geometry:XXS:
Frame Size:47 cmRecommended Height:160 – 165 cmStack:502 mmReach:360 mmSeat Tube Length:430 mmEffective Top Tube Length:504 mmHead Tube Length:80 mmChainstay Length:410 mmWheelbase:975 mmBB Drop:78 mmSeat Tube Angle:74°Head Tube Angle:69.5°Standover Height:720 mmStem Length:80 mmHandlebar Width:40 cmCrank Arm Length:165.0 mmSeatpost Insertion Depth (max.):180 mm
XS:
Frame Size:50 cmRecommended Height:166 – 170 cmStack:505 mmReach:368 mmSeat Tube Length:470 mmEffective Top Tube Length:517 mmHead Tube Length:80 mmChainstay Length:410 mmWheelbase:975 mmBB Drop:78 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:739 mmStem Length:90 mmHandlebar Width:40 cmCrank Arm Length:165.0 mmSeatpost Insertion Depth (max.):220 mm
S:
Frame Size:52 cmRecommended Height:171 – 175 cmStack:528 mmReach:378 mmSeat Tube Length:490 mmEffective Top Tube Length:534 mmHead Tube Length:100 mmChainstay Length:410 mmWheelbase:985 mmBB Drop:78 mmSeat Tube Angle:73.5°Head Tube Angle:71.5°Standover Height:760 mmStem Length:100 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmSeatpost Insertion Depth (max.):220 mm
M:
Frame Size:54 cmRecommended Height:176 – 180 cmStack:544 mmReach:390 mmSeat Tube Length:510 mmEffective Top Tube Length:551 mmHead Tube Length:115 mmChainstay Length:410 mmWheelbase:997 mmBB Drop:78 mmSeat Tube Angle:73.5°Head Tube Angle:72°Standover Height:778 mmStem Length:100 mmHandlebar Width:42 cmCrank Arm Length:172.5 mmSeatpost Insertion Depth (max.):240 mm
L:
Frame Size:56 cmRecommended Height:181 – 185 cmStack:554 mmReach:400 mmSeat Tube Length:530 mmEffective Top Tube Length:564 mmHead Tube Length:125 mmChainstay
