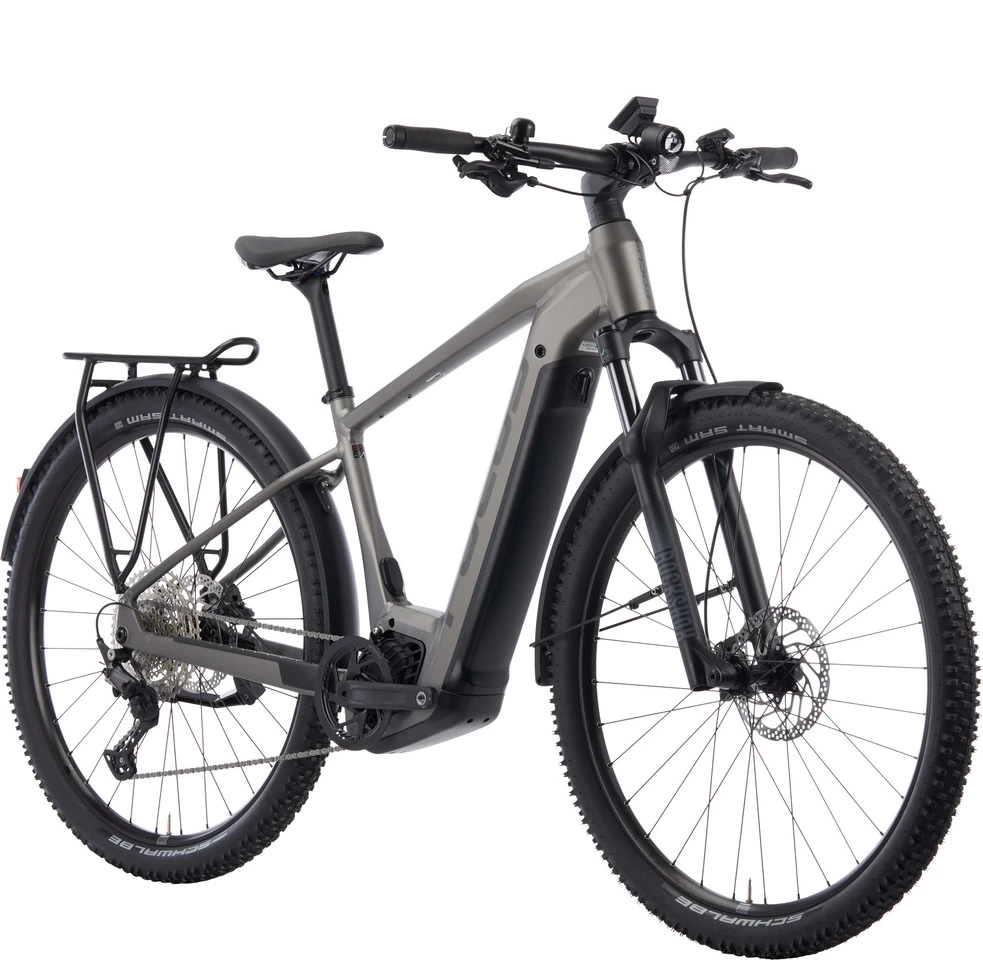

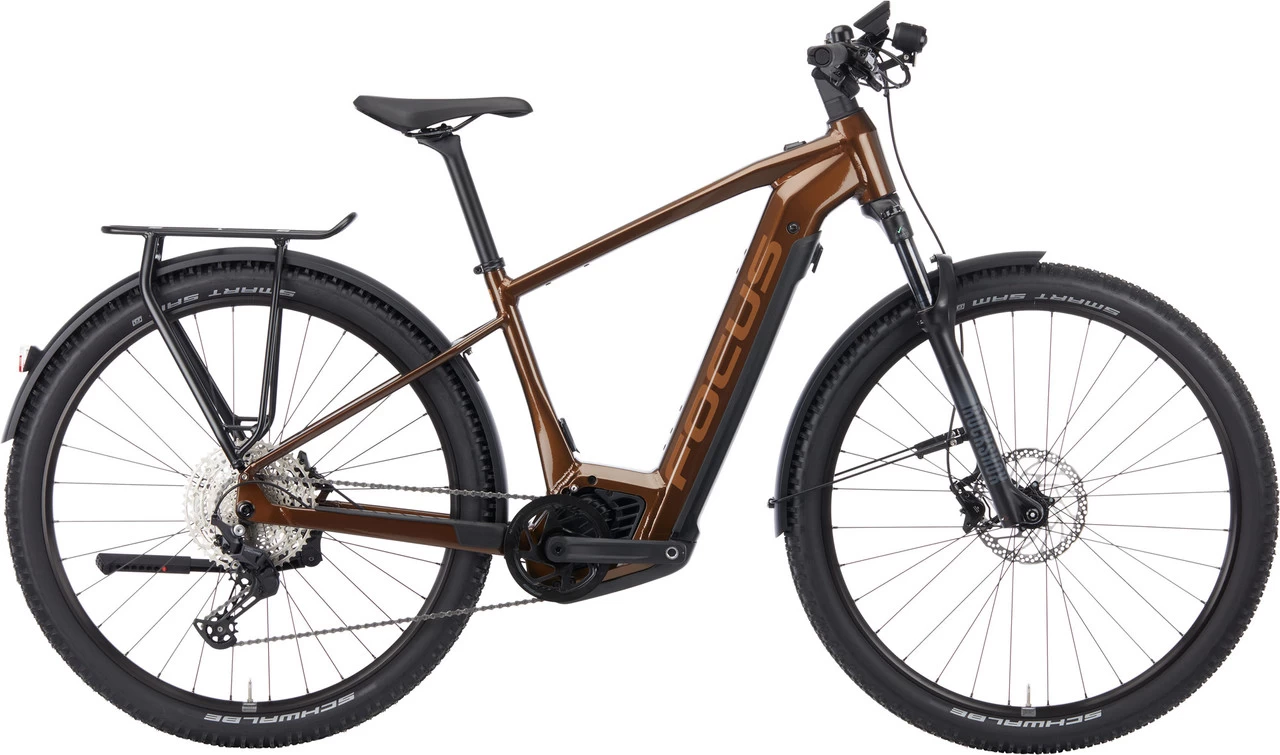

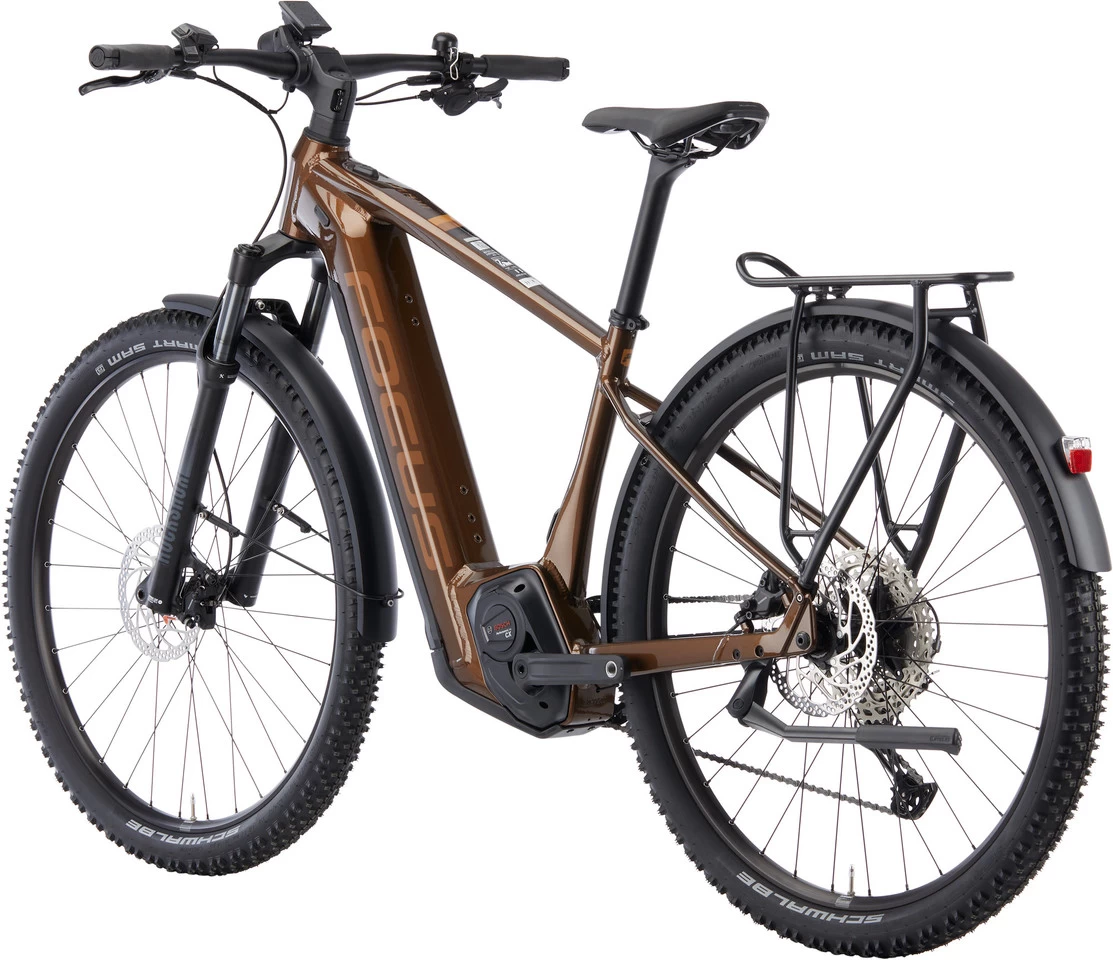

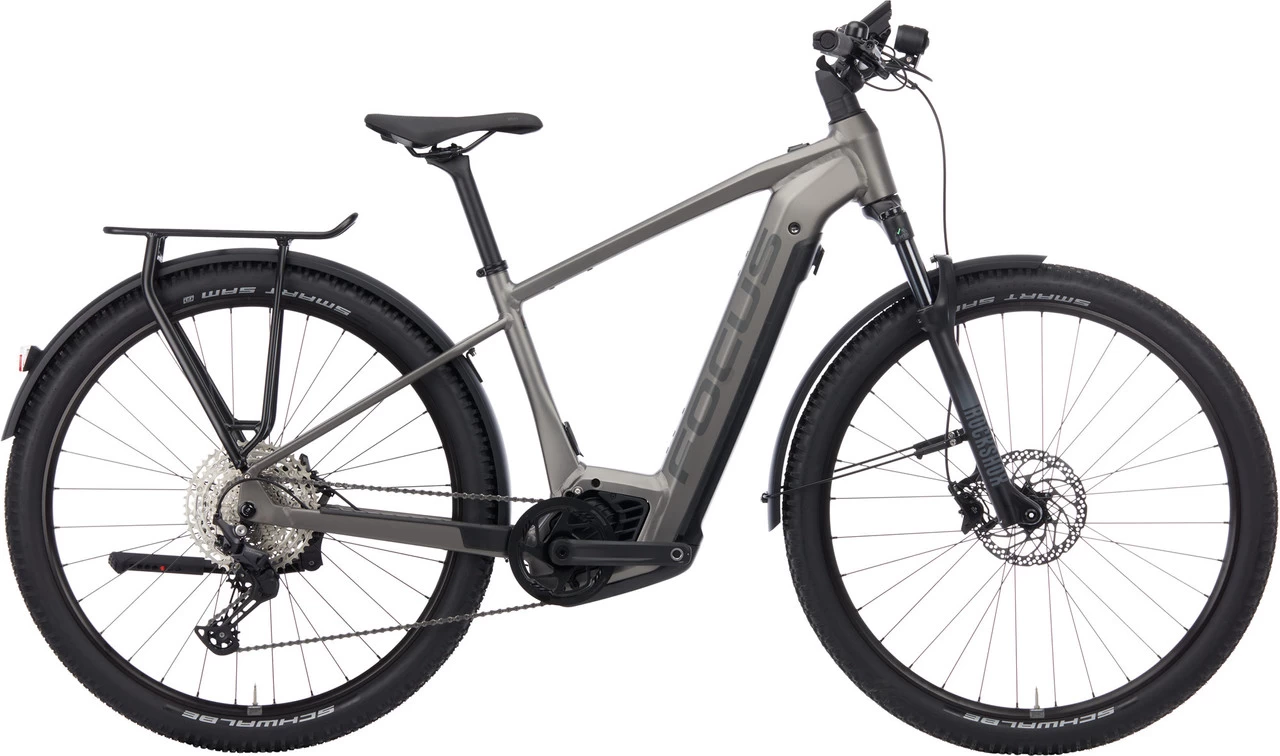

Focus AVENTURA² 6.8 29″ E-Touring Bike – 2023 Model

FOCUS AVENTURA² 6.8 E-Touring Bike – The right bike for daily and leisure use

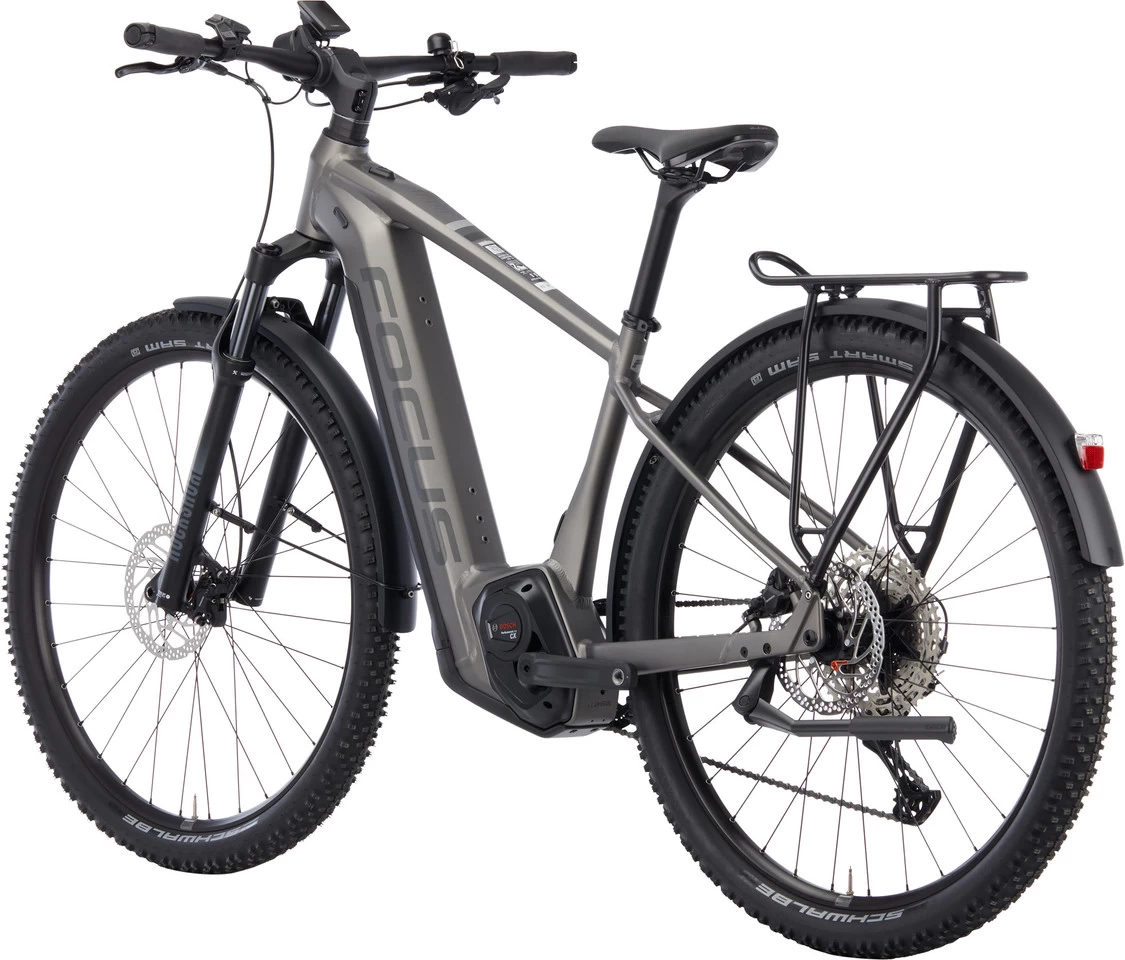

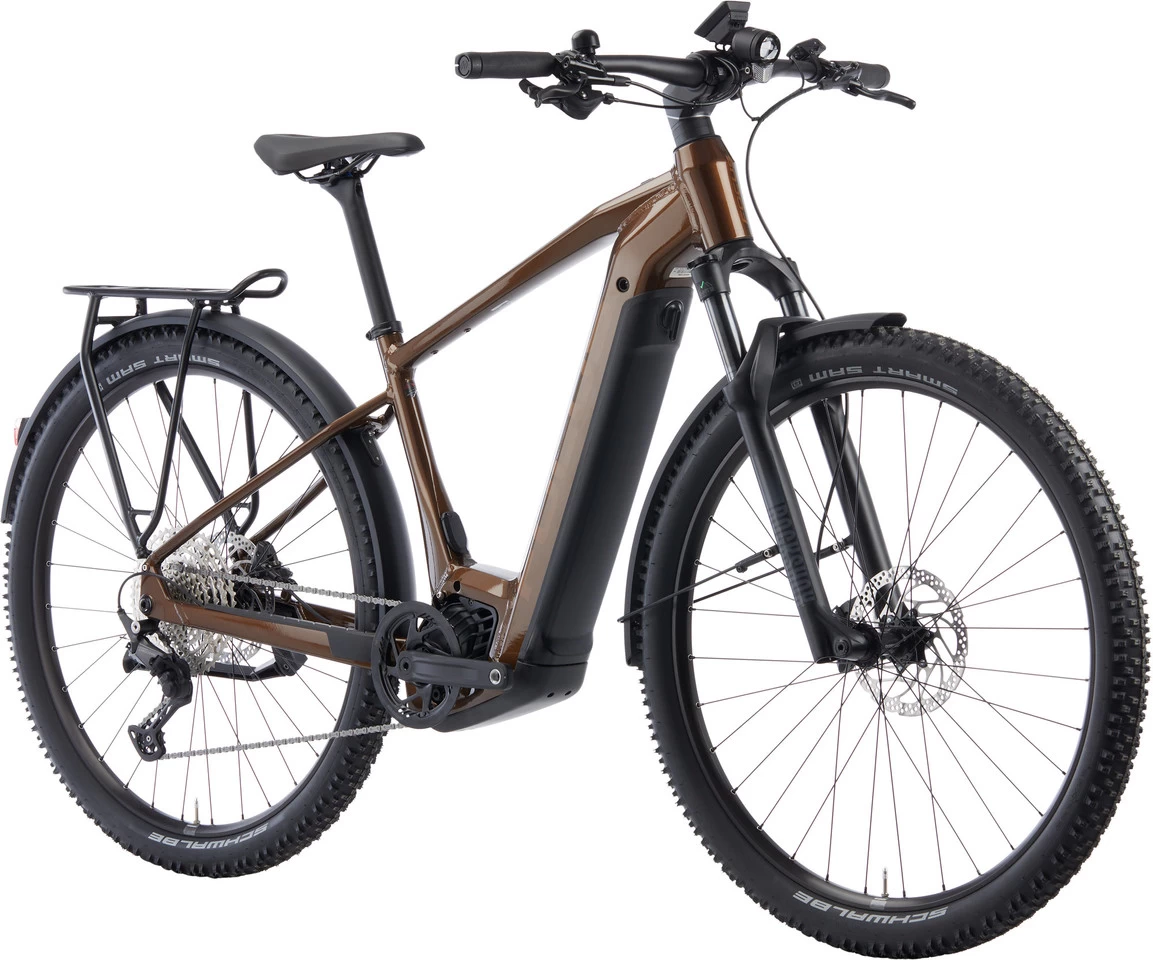

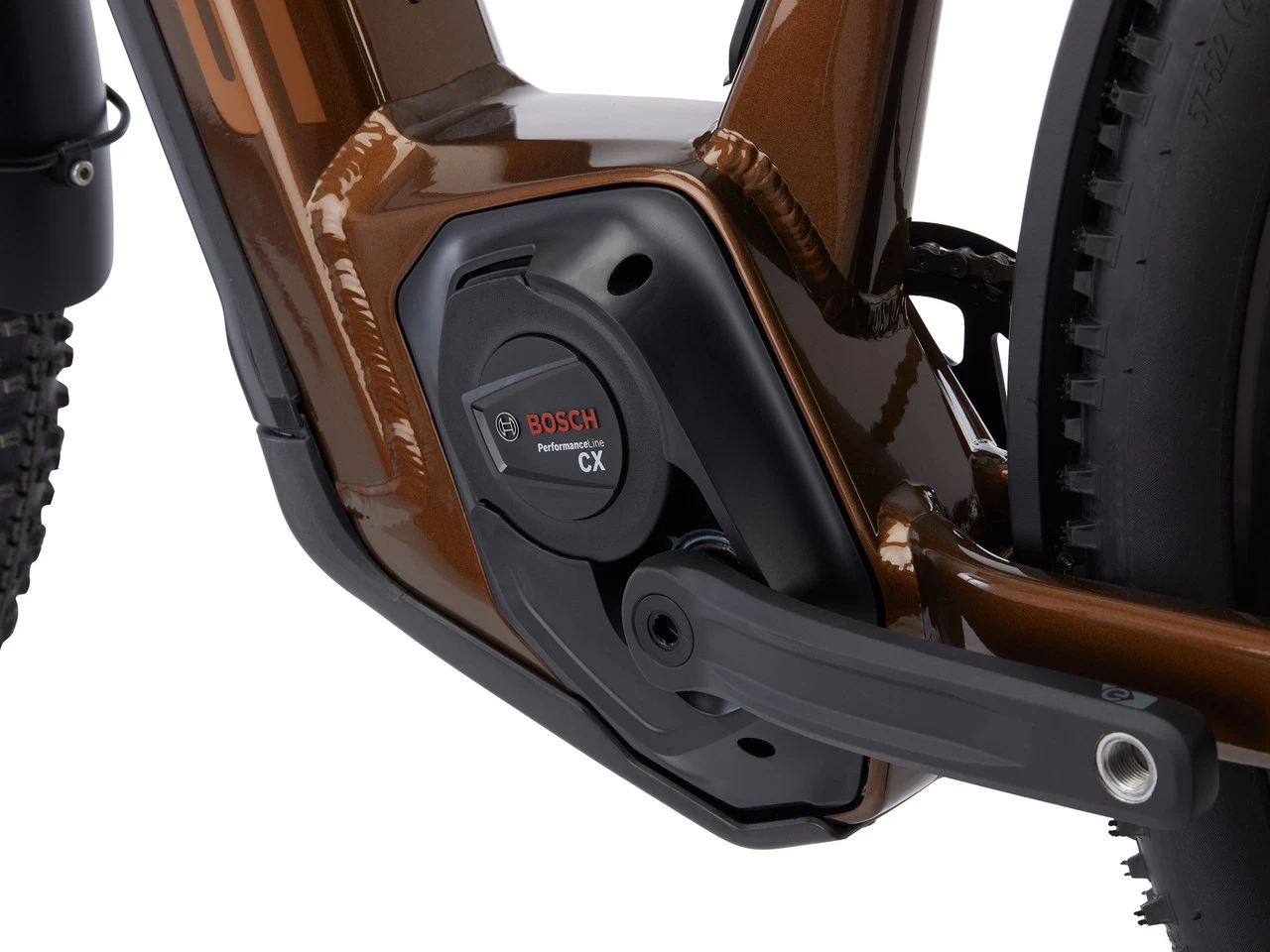

The FOCUS AVENTURA² 6.8 is a 29″ e-bike for everyday use and comes with Shimano Deore M5100 11-speed gears, Shimano MT410 2-piston disc brake and 100 mm suspension fork from RockShox. Its Bosch Performance CX Smart motor with 750 Wh battery (625 Wh for size S) supports you on rides in the city as well as in the countryside. Thanks to a lighting system with 110-lux front lamp, rear pannier rack and fenders, the AVENTURA² 6.8 is equipped for shopping trips, excursions and commuting, even in bad weather. Charge your smartphone or navigation device while riding via the integrated USB-C port.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

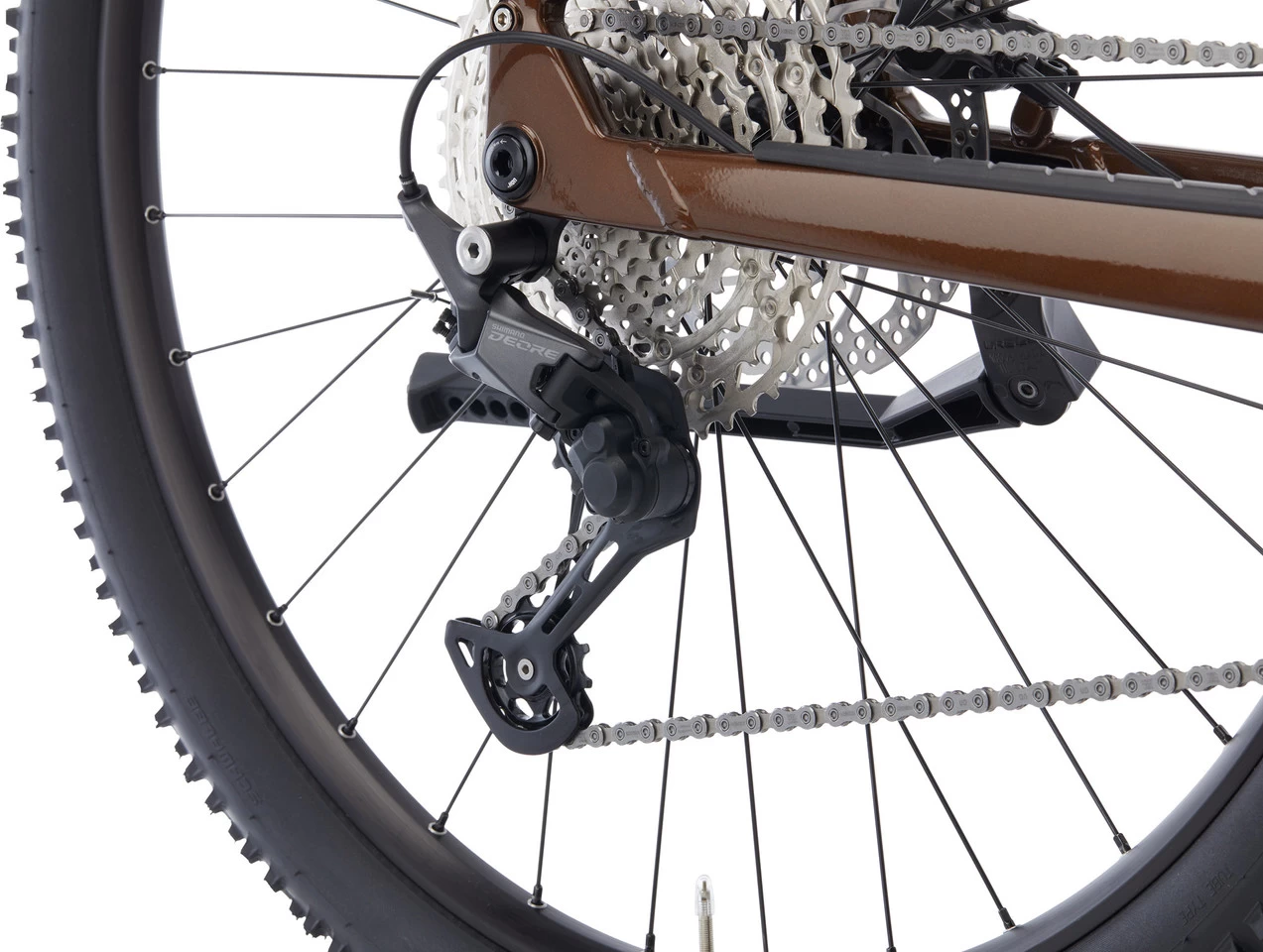

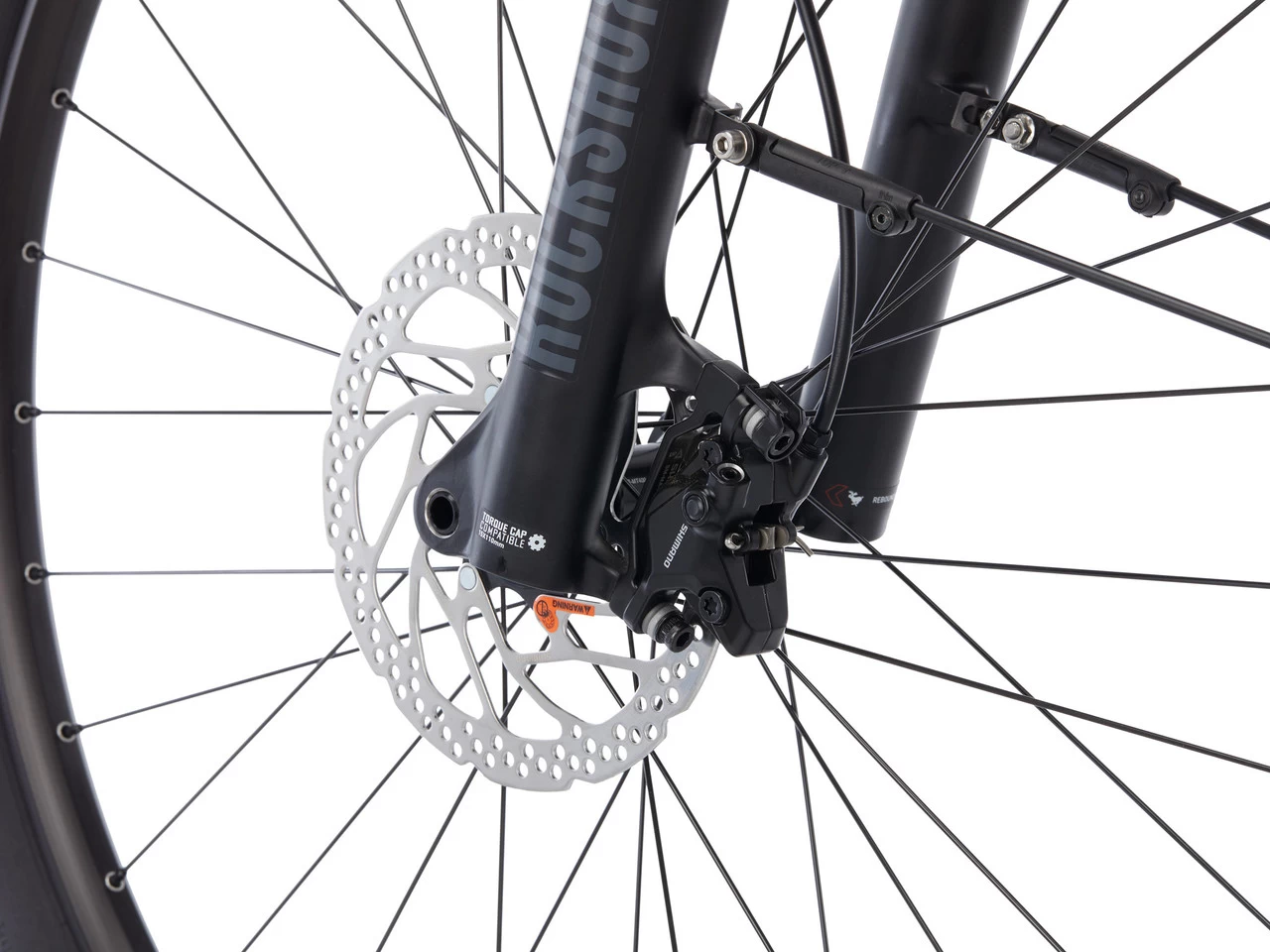

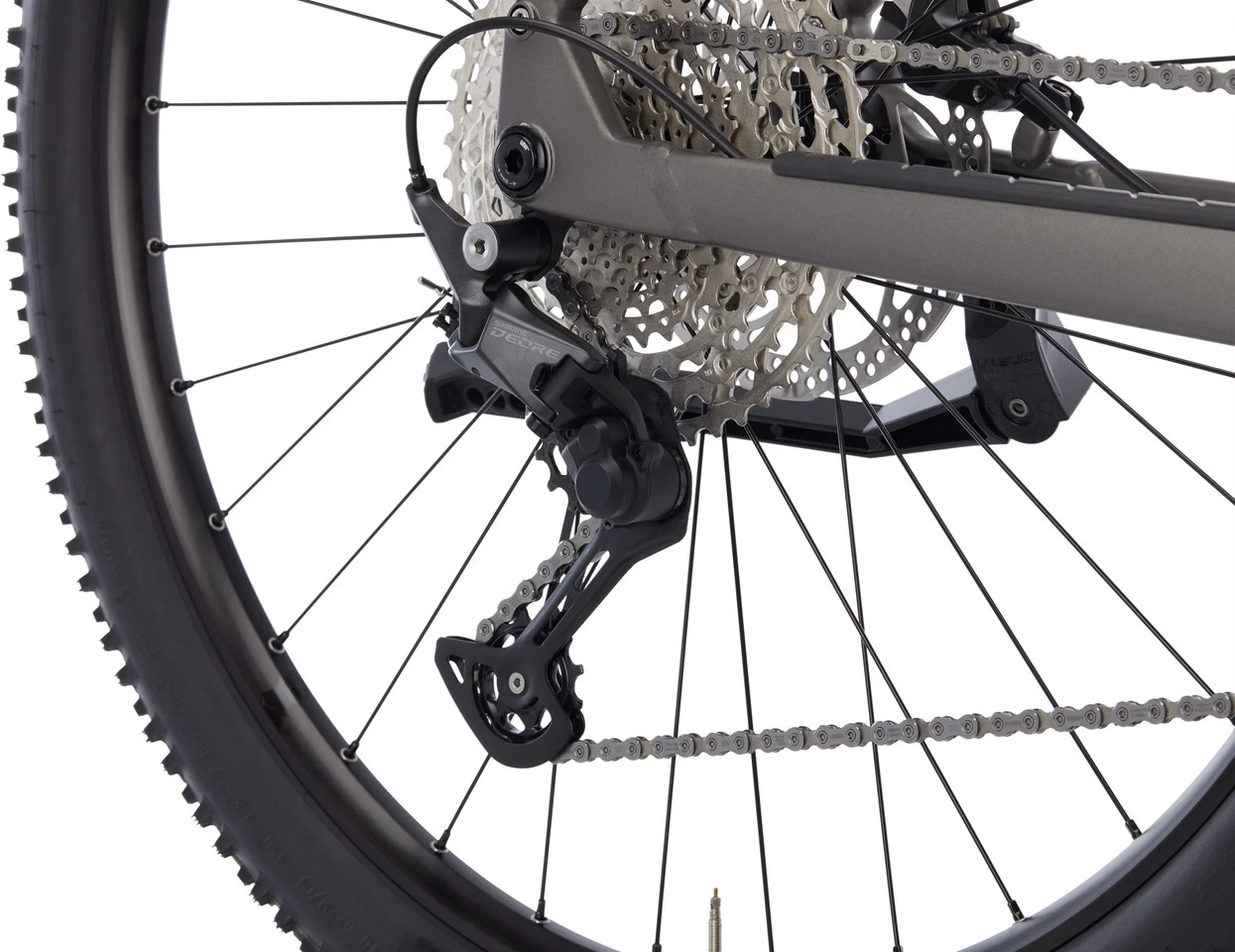

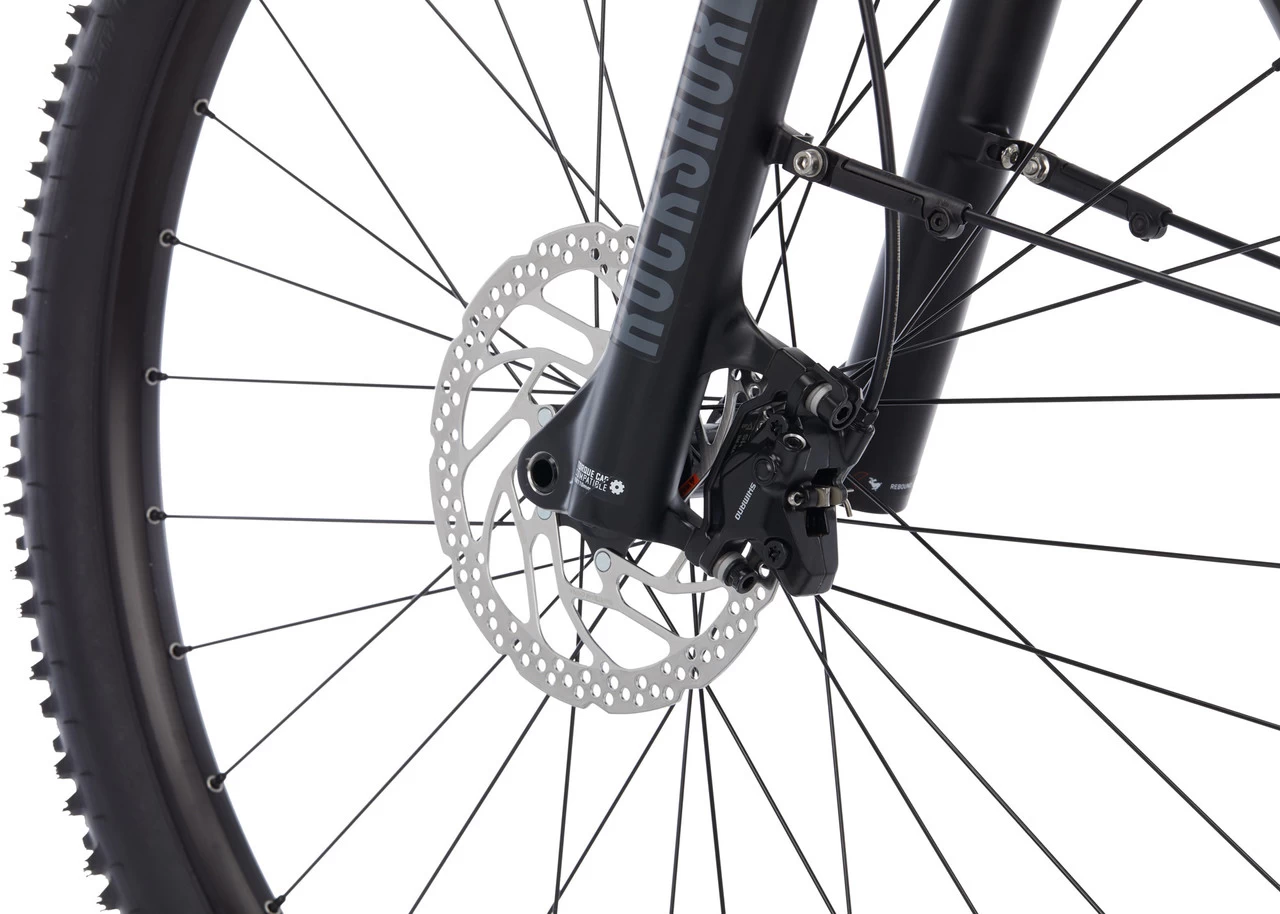

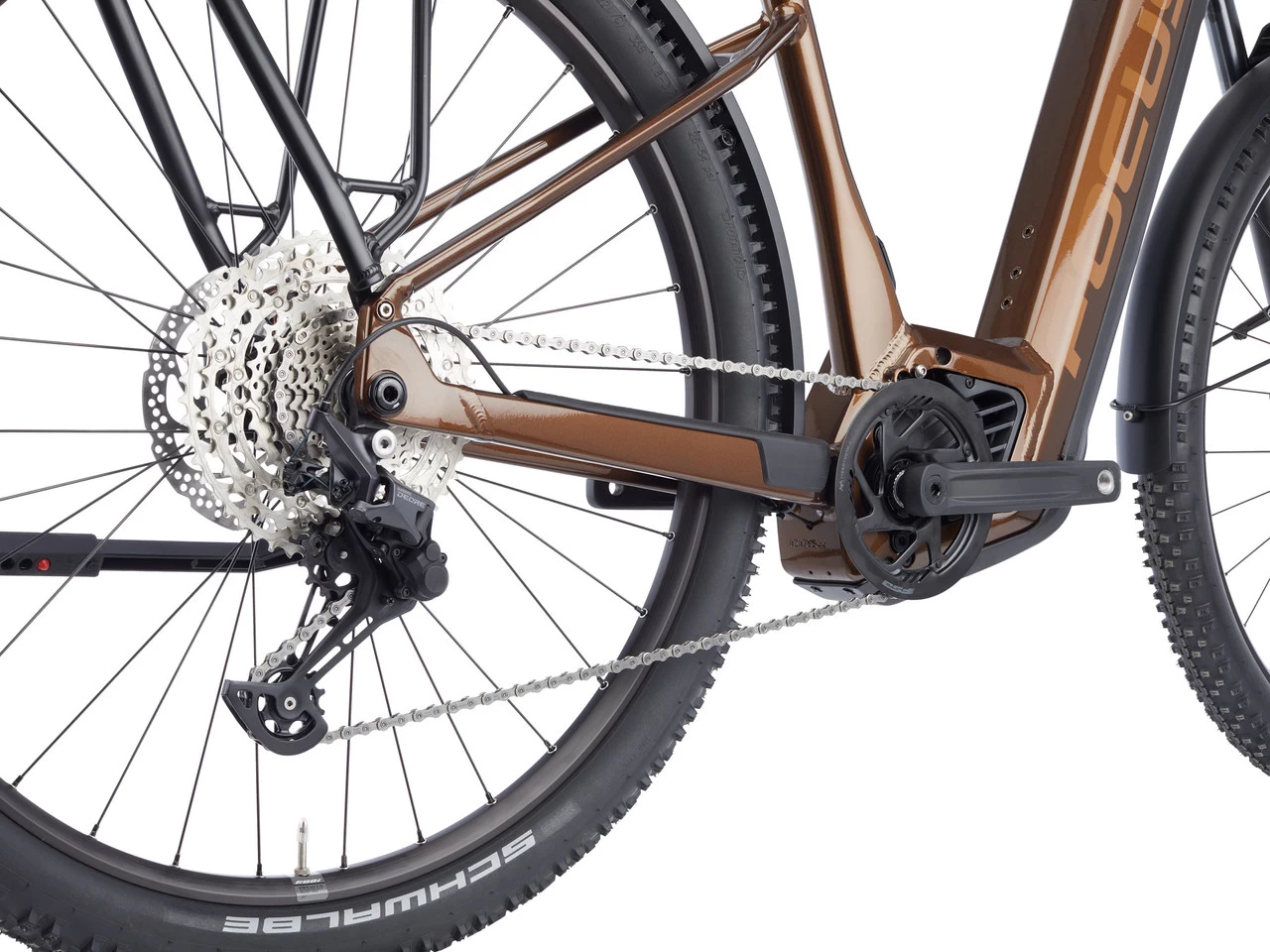

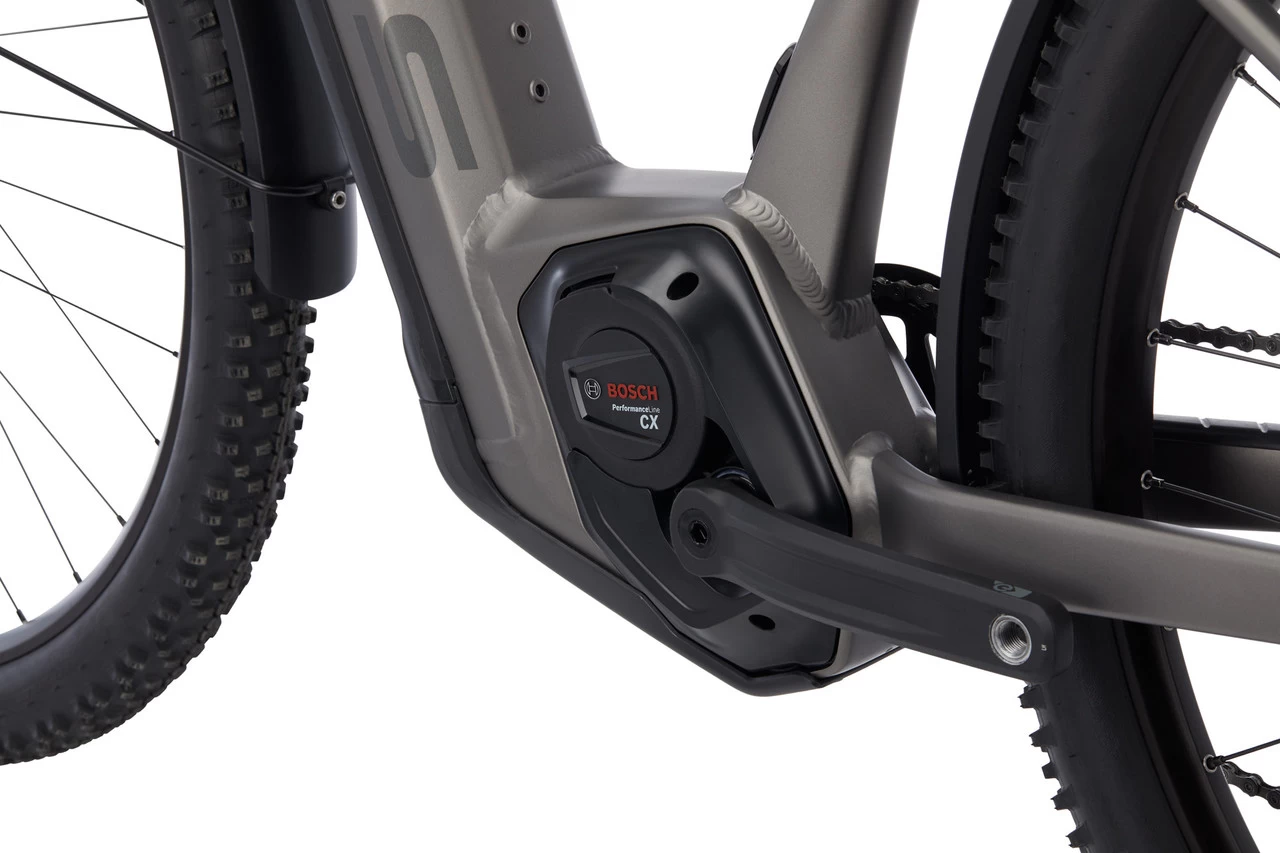

Specifications:Application:City & TouringWheel Size:29″Sizes:S, M, L, XLFrame Material:aluminium (7005)Fork Material:aluminium, magnesiumE-Motor:Type:mid-drive motorMotor Type:Bosch Performance CX Smart, 85 NmPedal Assist (max.):25 km/hPower:250 WBattery Type:Bosch Powertube, 36 V, removable, lockableCapacity:750 Wh (13.4 Ah / M, L, XL), 625 Wh (17.4 Ah / S)Display:Bosch LED Remote + Kiox 300Components:Frame:FOCUS AVENTURA², Diamond Frame Type, hydroformed aluminium, 3D forged, USB-C port, post mount 180 mm, 12 x 148 mm thru-axle (Boost)Fork:RockShox Recon, 100 mm travel, 515 mm length, 51 mm offset, 15 x 110 mm (Boost)Stem:FOCUS C.I.S. integrated, 60 mm 30°, 35 mm handlebar clamp, aluminiumHandlebars:FOCUS, aluminium, 760 mm, flat bar, 9° backsweep, 35 mmHeadset:Acros ZS56/ZS56 (ICR), FOCUS C.I.S. integratedSeatpost:FOCUS, aluminium, 31.6 mm, 350 mmSaddle:Selle Royal VivoCrank:FSA CK-320, aluminium, 170.0 mm, 36 T, bottom bracket integrated in motor unitPedals:MTB, with reflectorsBrakes/Brake Levers:Shimano MT410, 2 piston, hydraulic disc brake, 180 mm/180 mmShift Lever:Shimano Deore M5100, 11-speedRear Derailleur:Shimano Deore RD-M5100, 11-speedCassette:Shimano Deore CS-M5100, 11-speed, 11-51 TChain:Shimano CN-HG601, 11-speedFenders:Büchel, aluminium, 60 mm, powder-coatedFront Light:Litemove SE110 LED, 110 LuxRear Light:Herrmans H-Trace MiniKickstand:Rear kickstand, adjustable, 40 mm direct mountRims:RODI TRYP25, 25-622Spokes:Steel, galvanised, blackFront Hub:Shimano Alivio MT400, 15 x 110 mmRear Hub:Shimano Alivio MT400, 12 x 148 mmTyres:Schwalbe Smart Sam 29 x 2.25″ , 57-622Approved For:Weight Limit:150 kg (system weight)Rotor Size (max.):203 mm (rear)Tyre Size (max.):57-622 (with fenders)Chainrings:1xChainring Size (max.):1x, 36 TFeatures:fully equipped e-bike for everyday, urban and leisure useBosch Smart System with Performance CX drivetrain, Kiox 300 display and 750 Wh battery (size S: 625 Wh)battery elegantly integrated in the down tube, removable for chargingsuspension fork with 100 mm travel and 57 mm wide MTB tyres for more comfortsturdy metal fenders, rear stand and lighting systemRacktime Snap-It pannier rack, 2-legged, with 25 kg maximum payloadcomfortable cockpit with C.I.S. stem with integrated cable routingreliable Shimano Deore 11-speed gearsUSB-C port for charging the smartphone or navigation systemEN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/hTechnology:C.I.S.

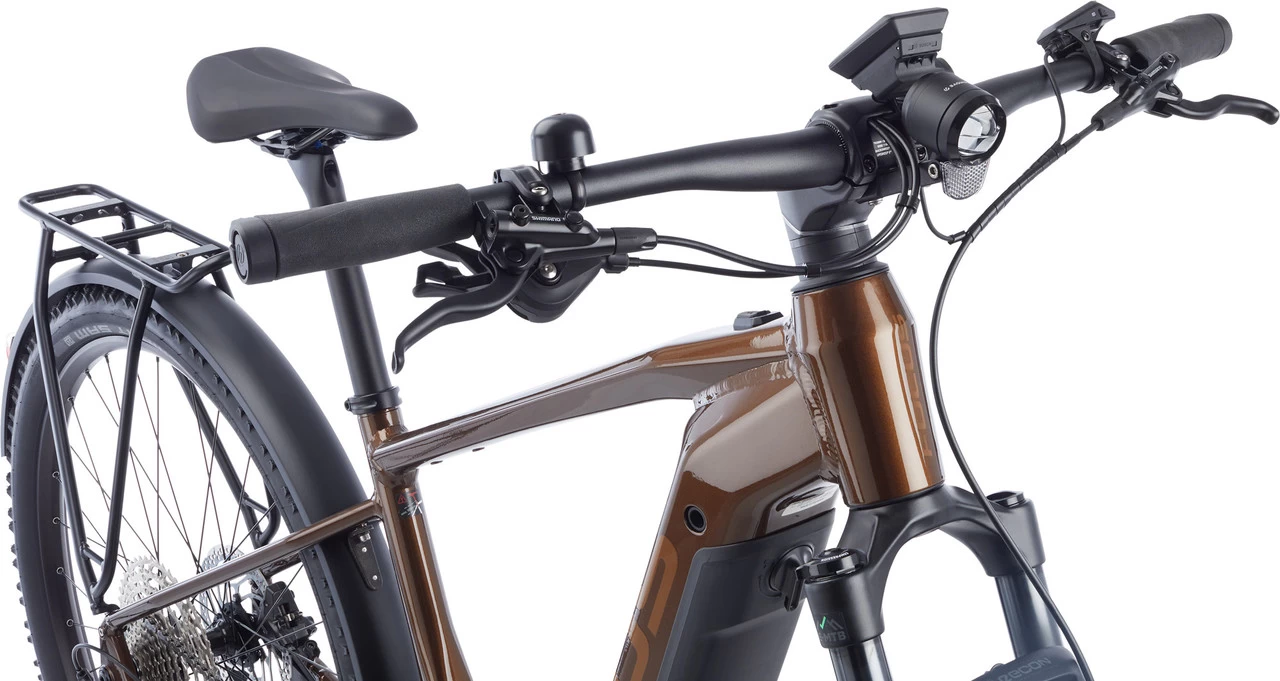

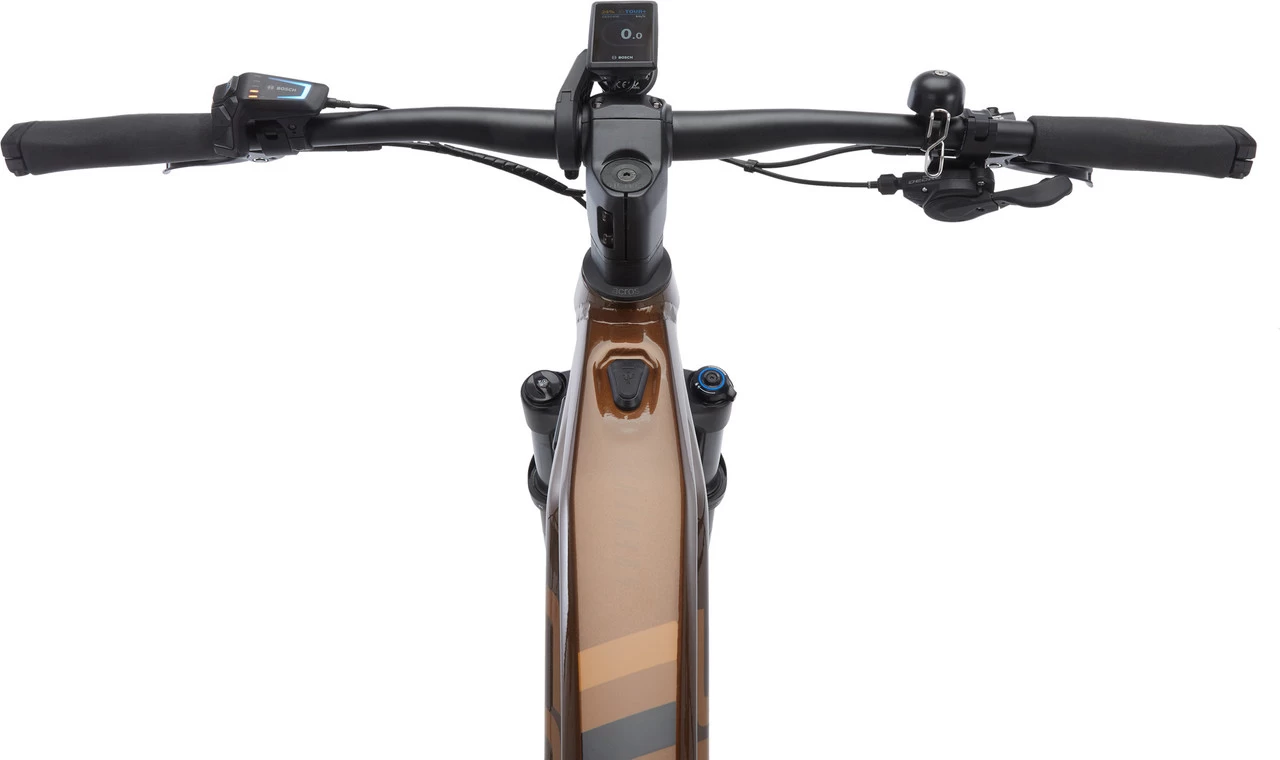

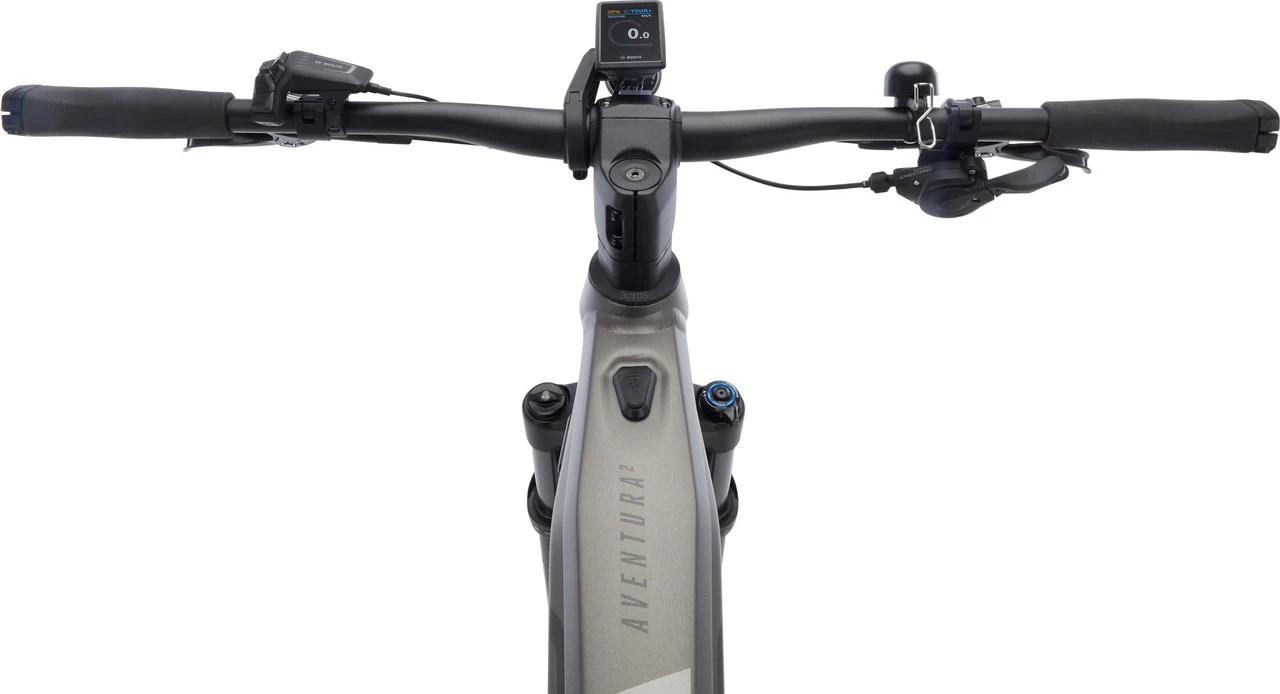

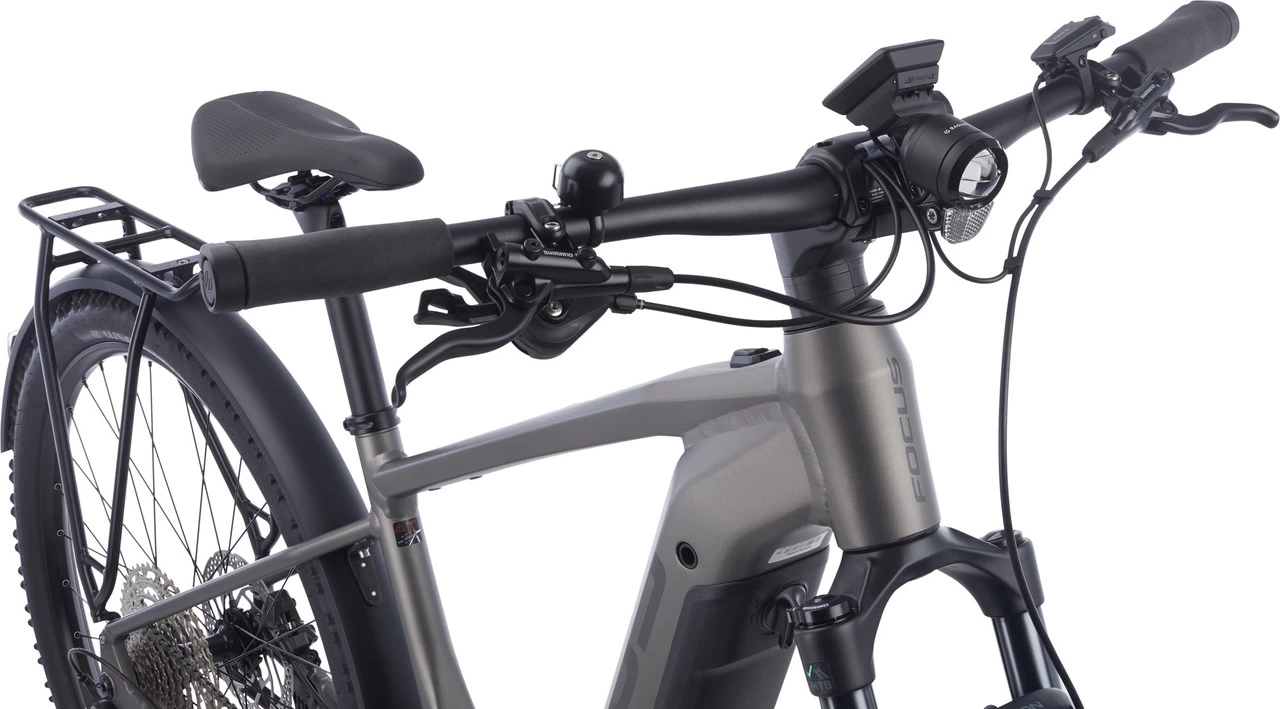

Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.
Geometry:(based on a fork axle to crown length of 515 mm)
S:
Frame Size:40 cmStack:642 mmReach:410 mmSeat Tube Length:400 mmEffective Top Tube Length:594 mmHead Tube Length:130 mmChainstay Length:470 mmWheelbase:1175 mmBB Drop:65 mmSeat Tube Angle:74°Head Tube Angle:67°Standover Height:808 mm
M:
Frame Size:44 cmStack:644 mmReach:430 mmSeat Tube Length:440 mmEffective Top Tube Length:615 mmHead Tube Length:130 mmChainstay Length:470 mmWheelbase:1180 mmBB Drop:65 mmSeat Tube Angle:74°Head Tube Angle:68°Standover Height:820 mm
L:
Frame Size:48 cmStack:653 mmReach:450 mmSeat Tube Length:480 mmEffective Top Tube Length:638 mmHead Tube Length:140 mmChainstay Length:470 mmWheelbase:1209 mmBB Drop:65 mmSeat Tube Angle:74°Head Tube Angle:68°Standover Height:838 mm
XL:
Frame Size:52 cmStack:672 mmReach:470 mmSeat Tube Length:520 mmEffective Top Tube Length:662 mmHead Tube Length:160 mmChainstay Length:470 mmWheelbase:1211 mmBB Drop:65 mmSeat Tube Angle:74°Head Tube Angle:68°Standover Height:860 mmManufacturer Numbers:toronto grey / S:663512410toronto grey / M:644
