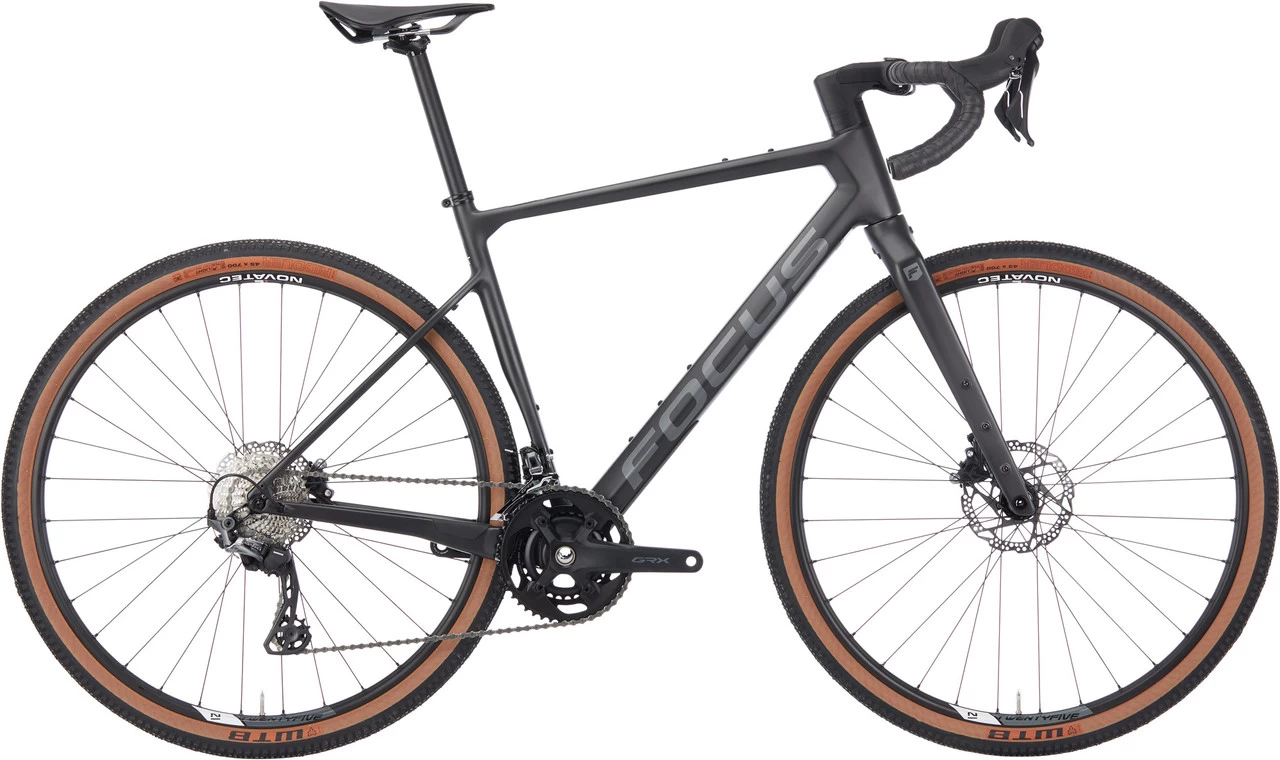

Focus ATLAS 8.7 Carbon 28″ Gravel Bike

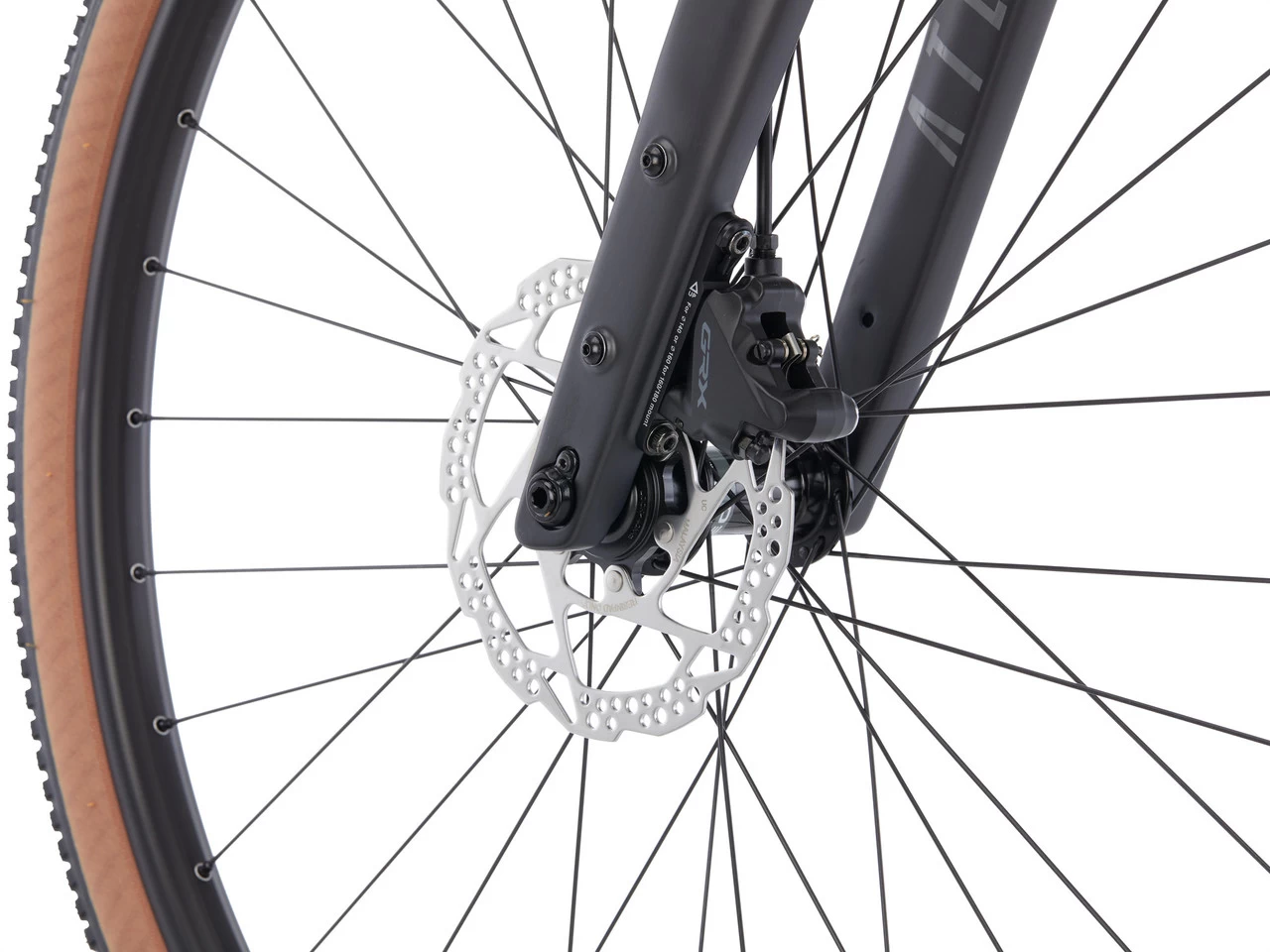

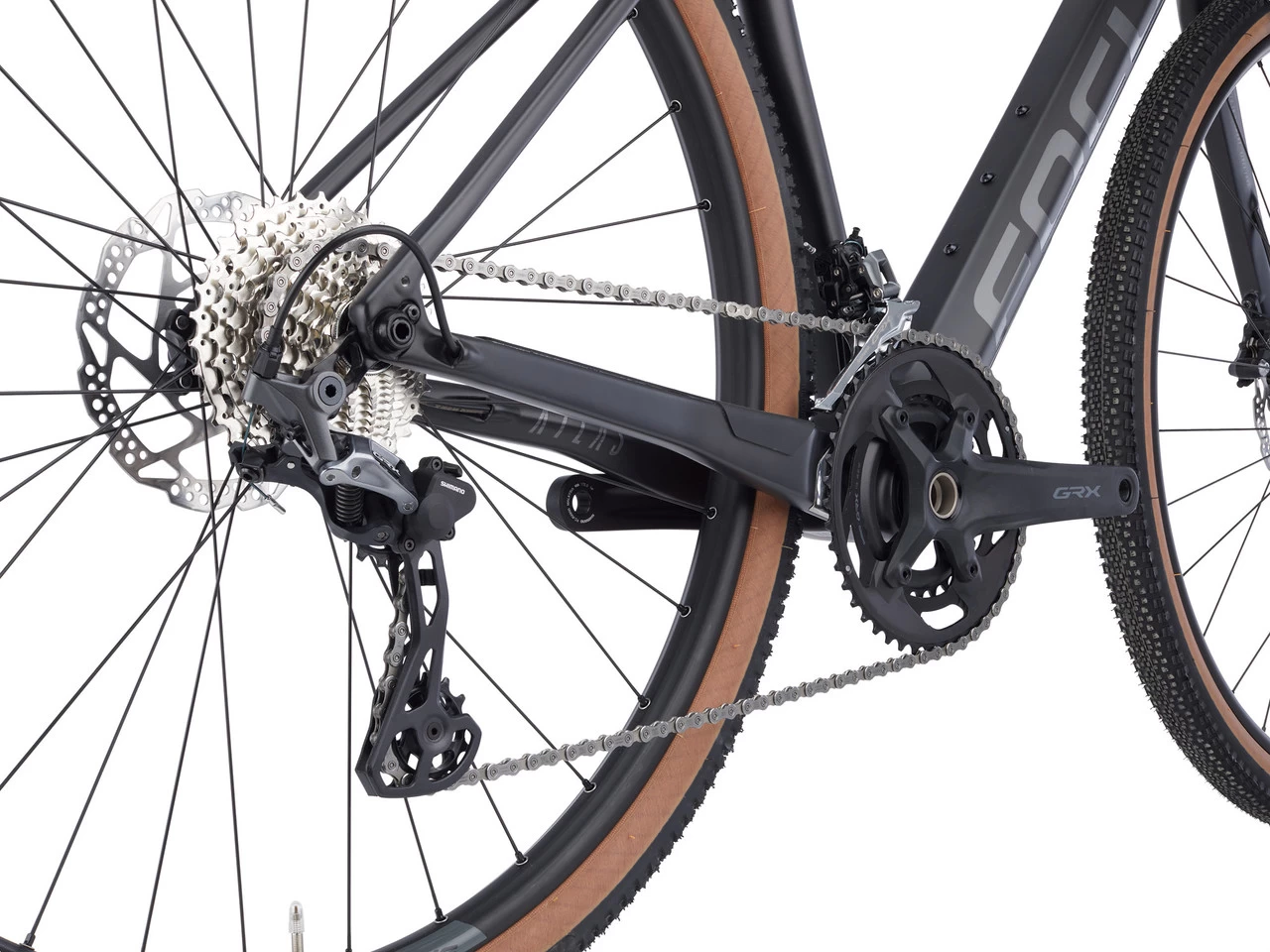

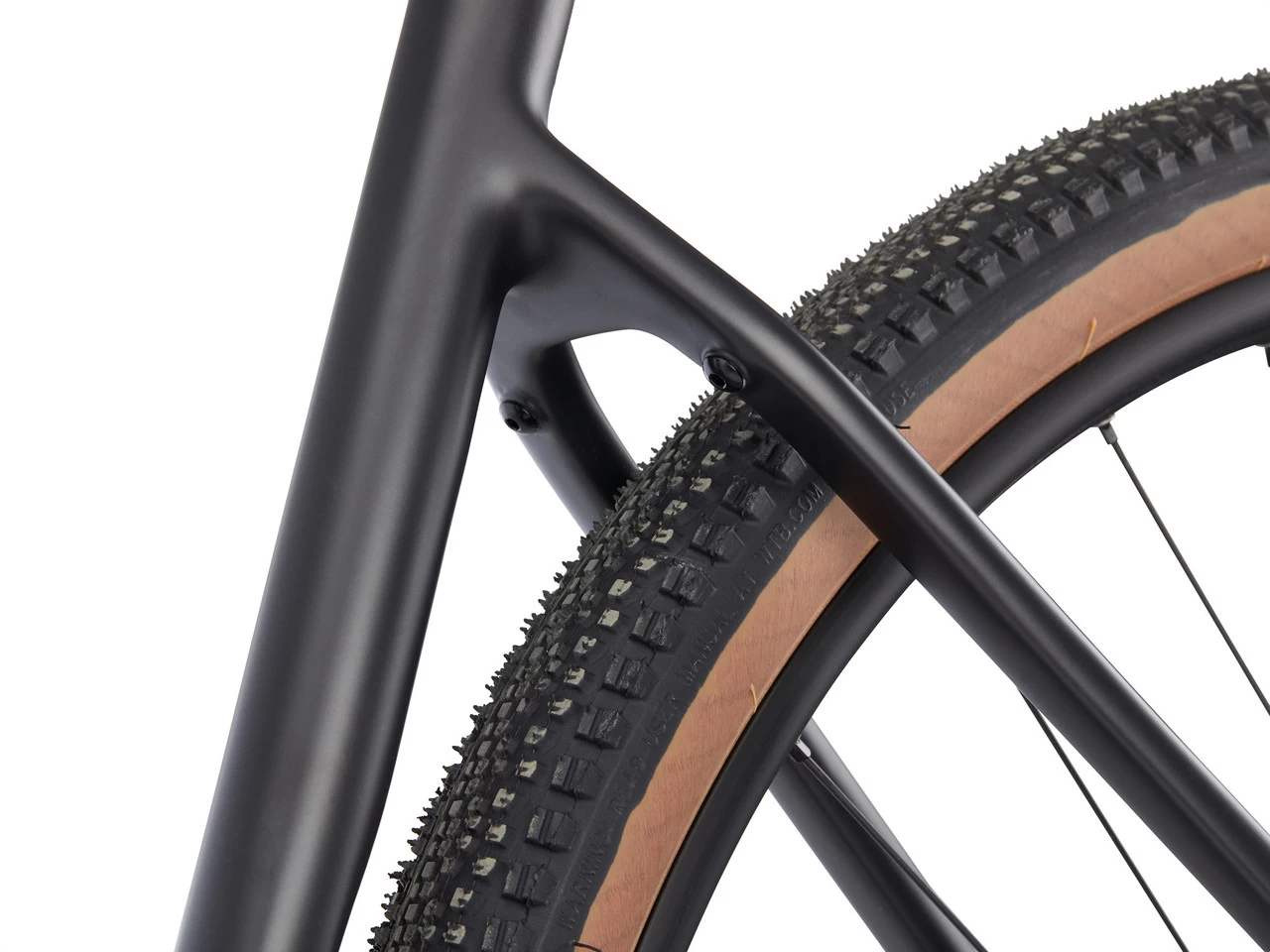

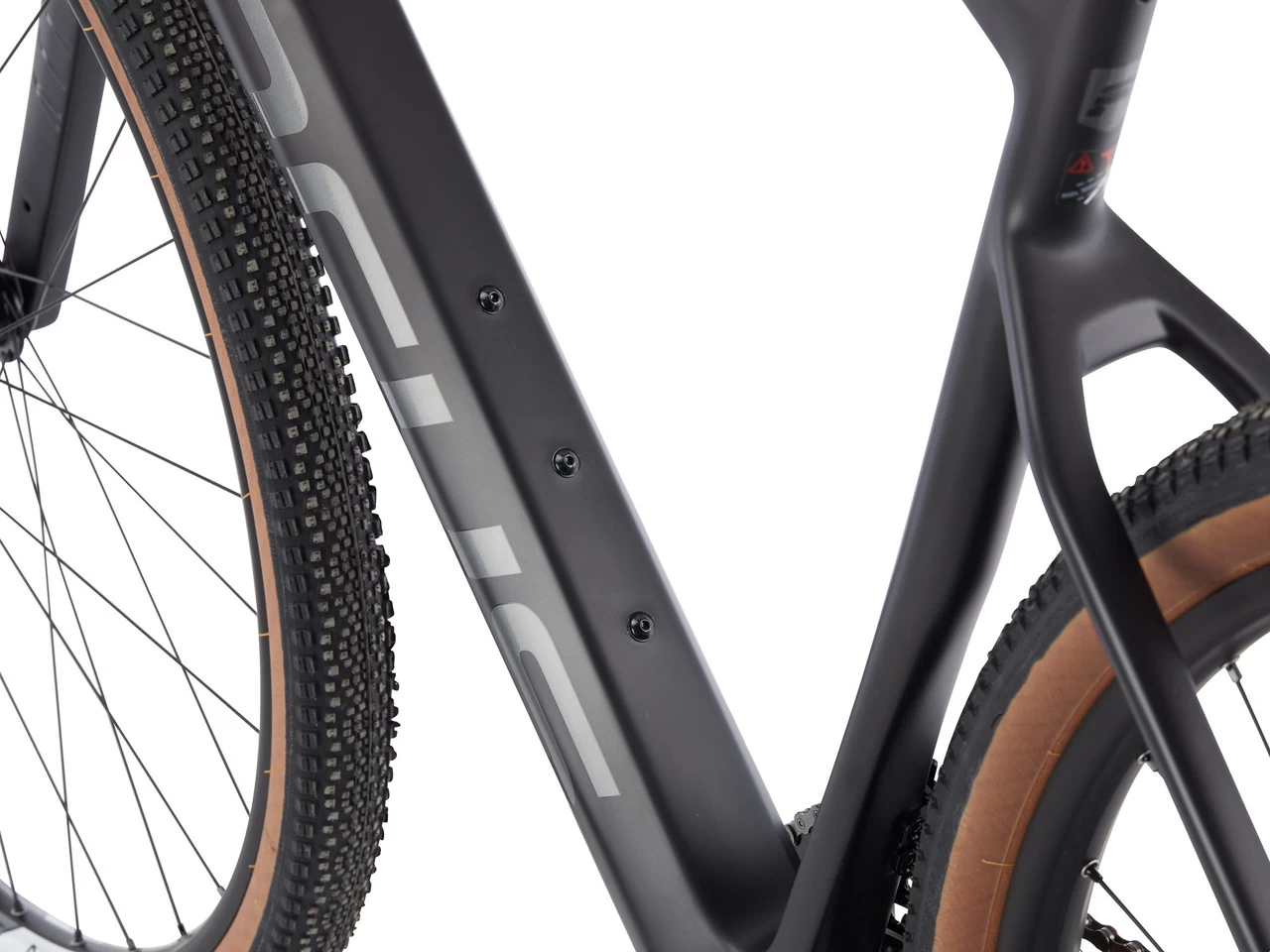

The ATLAS 8.7 is a lightweight gravel bike with a carbon frame and carbon fork, equipped by FOCUS with a Shimano GRX 600 2×11-speed shift/brake groupset and Novatec Elite 28″ wheels. Because it weighs less than ATLAS 6-series models and has a more agile endurance geometry, it is ideally suited for competition use. The disc brakes, the 45 mm wide tyres and the handlebars with 10° flare ensure full control on gravel road adventures. The extensive mounting options also make the ATLAS great for bikepacking.
Specifications:Application:GravelWheel Size:28″Sizes:XS, S, M, L, XLFrame Material:CarbonFork Material:CarbonComponents:Frame:FOCUS ATLAS, Carbon, C.I.S. Integration, Flat Mount Disc, 12 x 148 mm thru-axle (Boost)Fork:FOCUS ATLAS, Carbon, Disc Flat Mount, 425 mm axle to crown length, 50 mm offset, 12 x 110 mm thru-axle (Boost)Stem:FOCUS C.I.S. integrated, aluminium, 31.8 mmHandlebars:FOCUS JD RA85, 116 mm drop, 74 mm reach, 10° flare, 31.8 mmHeadset:Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.Seatpost:FOCUS, aluminium, 27.2 mm, insertion depth min. 100 mmSaddle:Fizik TaigaCrank:Shimano GRX FC-RX600, 11-speed, Shimano Pressfit Road BB86 bottom bracket, 30-46 TPedals:noneBrakes:Shimano GRX BR-RX400, 160 mm/160 mmShift/Brake lever:Shimano GRX ST-RX600Rear Derailleur:Shimano GRX RD-RX810, 11-speedFront Derailleur:Shimano GRX FD-RX810Cassette:Shimano 105 R7000, 11-34 TChain:Shimano CN-HG601, 11-speedWheels:Novatec 25 Elite, 25-622, Center Lock Disc, 12 x 110 mm / 12 x 148 mmTyres:WTB Riddler, 700 x 45C, folding tyreApproved For:Weight Limit:120 kgRotor Size (max.):180 mmTyre Size (max.):27.5″ x 2.0″ , 47-622 (700 x 47C), with fenders: 40-622 (700 x 40C)Chainrings:1-speed, 2-speedChainring Size (max.):1-speed 42 T w/ 49.7 mm (Shimano) and 45 mm (SRAM) chainline, 2-speed 30-46 T w/ 47 mm (Shimano) chainline, 2-speed 30-43 T w/ 47.5 mm (SRAM) chainlineFeatures:lightweight gravel bike with carbon frame (only 1050 g) for adventure and bikepackingcompared to the 6-series, more agile endurance geometry for fast rides and for competitive usecomfort and control on changing surfaces and in all weather conditionsextremely large tyre clearance up to 47 mm, 650B compatibleShimano GRX 600 / 810 2×11-speed groupset and GRX disc brakesNovatec Elite wheels with 25 mm wide rimswide handlebars with flareinternal cable routing, innovative C.I.S. aero stemnumerous mounting optionsincludes top tube bagEN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/hTechnology:C.I.S.

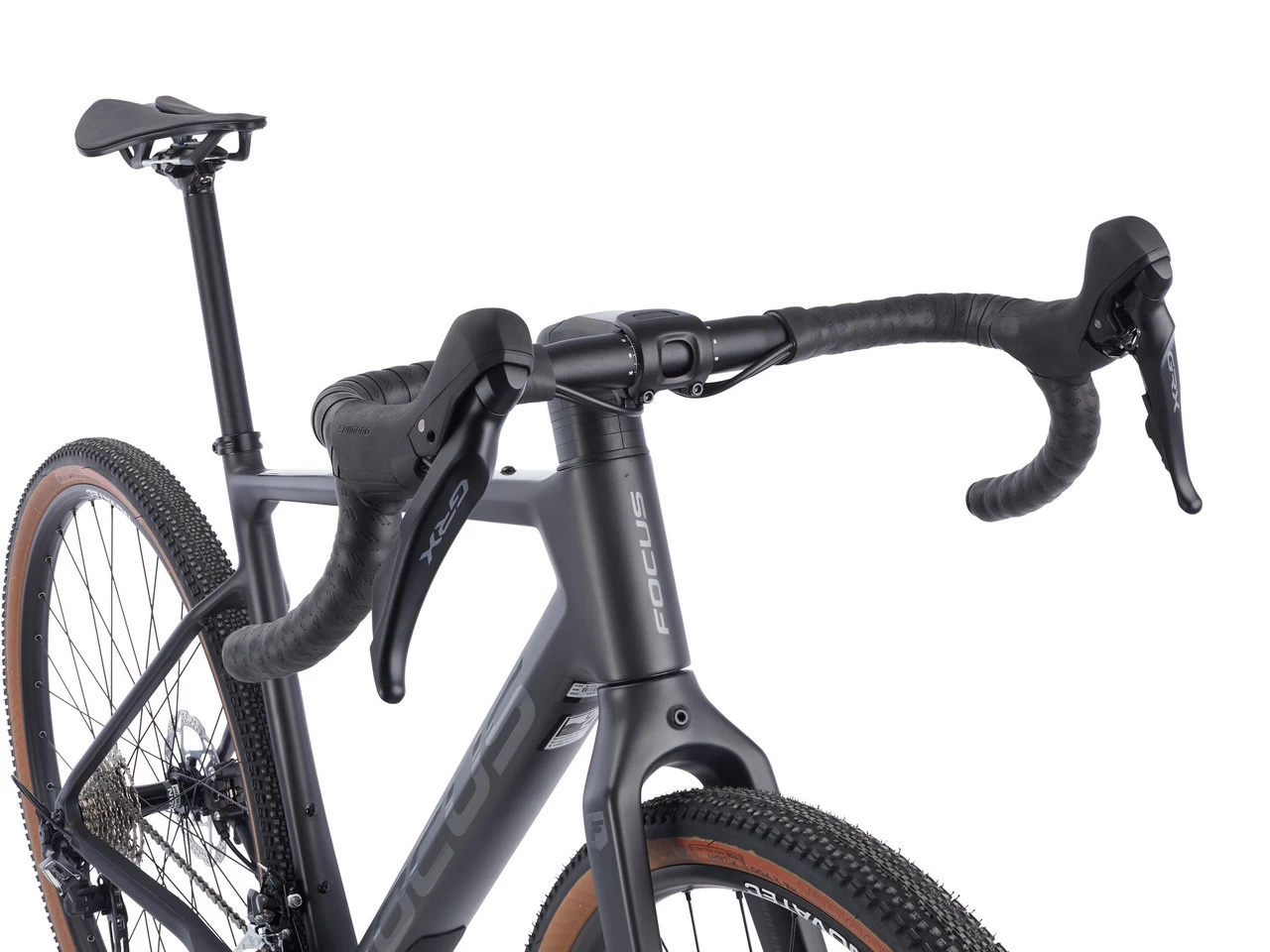

Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.
Geometry:XS:
Recommended Height:160 – 170 cmStack:569 mmReach:370 mmSeat Tube Length:445 mmEffective Top Tube Length:532 mmHead Tube Length:115 mmChainstay Length:425 mmWheelbase:1016 mmBB Drop:75 mmSeat Tube Angle:74°Head Tube Angle:70.5°Standover Height:774 mmStem Length:80 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmSeatpost Insertion Depth (max.):200 mm
S:
Recommended Height:171 – 175 cmStack:574 mmReach:380 mmSeat Tube Length:485 mmEffective Top Tube Length:549 mmHead Tube Length:120 mmChainstay Length:425 mmWheelbase:1028 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:795 mmStem Length:90 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmSeatpost Insertion Depth (max.):200 mm
M:
Recommended Height:176 – 185 cmStack:583 mmReach:395 mmSeat Tube Length:515 mmEffective Top Tube Length:567 mmHead Tube Length:130 mmChainstay Length:425 mmWheelbase:1046 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:811 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:172.5 mmSeatpost Insertion Depth (max.):230 mm
L:
Recommended Height:186 – 190 cmStack:611 mmReach:410 mmSeat Tube Length:545 mmEffective Top Tube Length:591 mmHead Tube Length:150 mmChainstay Length:425 mmWheelbase:1068 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:832 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:172.5 mmSeatpost Insertion Depth (max.):260 mm
XL:
Recommended Height:191 – 199 cmStack:630 mmReach:420 mmSeat Tube Length:585 mmEffective Top Tube Length:606 mmHead Tube Length:180 mmChainstay Length:425 mmWheelbase:1088 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:865 mmStem Length:100 mmHandlebar Width:44 cmCrank Arm Length:175.0 mmSeatpost Insertion Depth (max.):300 mmManufacturer Numbers:XS:644012520S:644012521M:644012522L:644012523XL:6440
