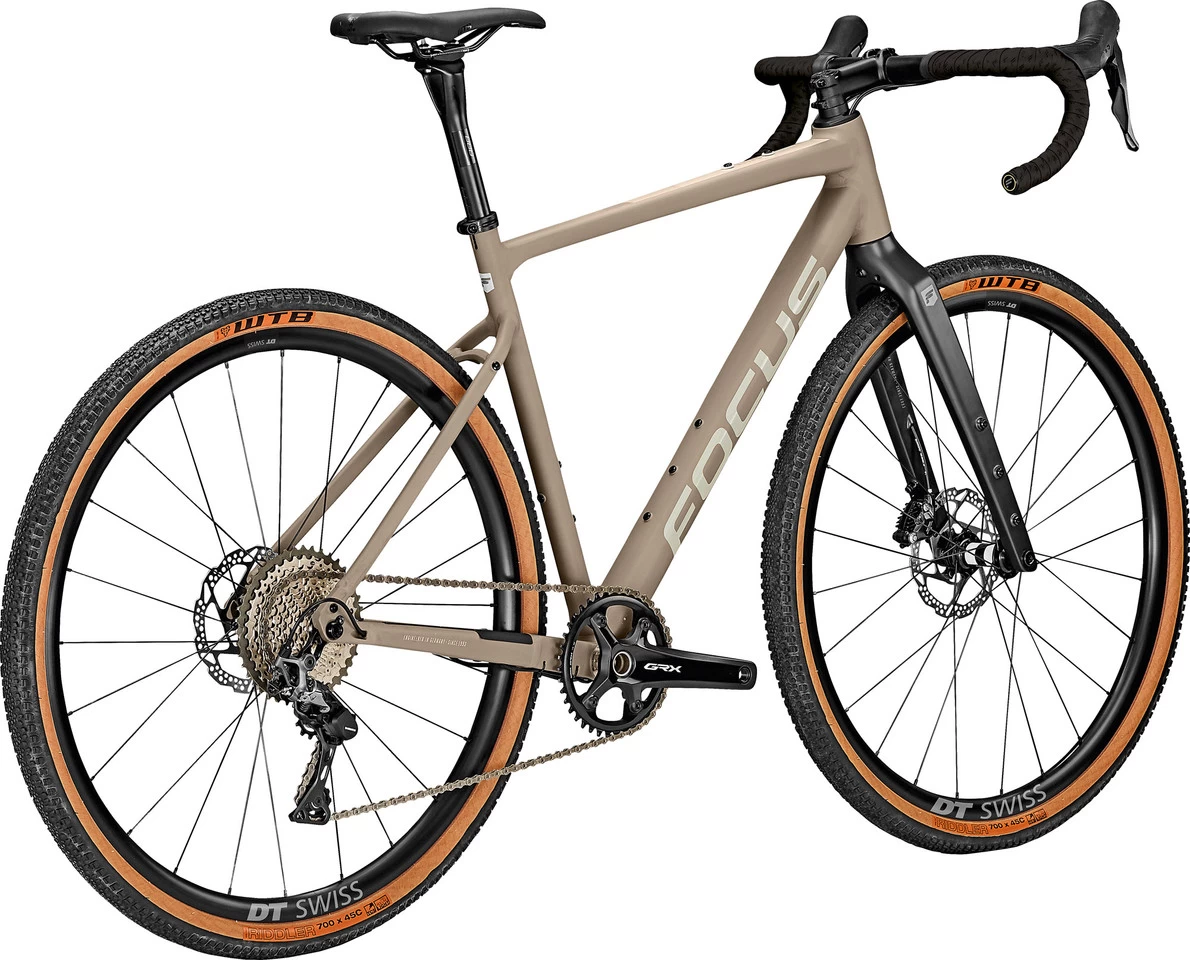

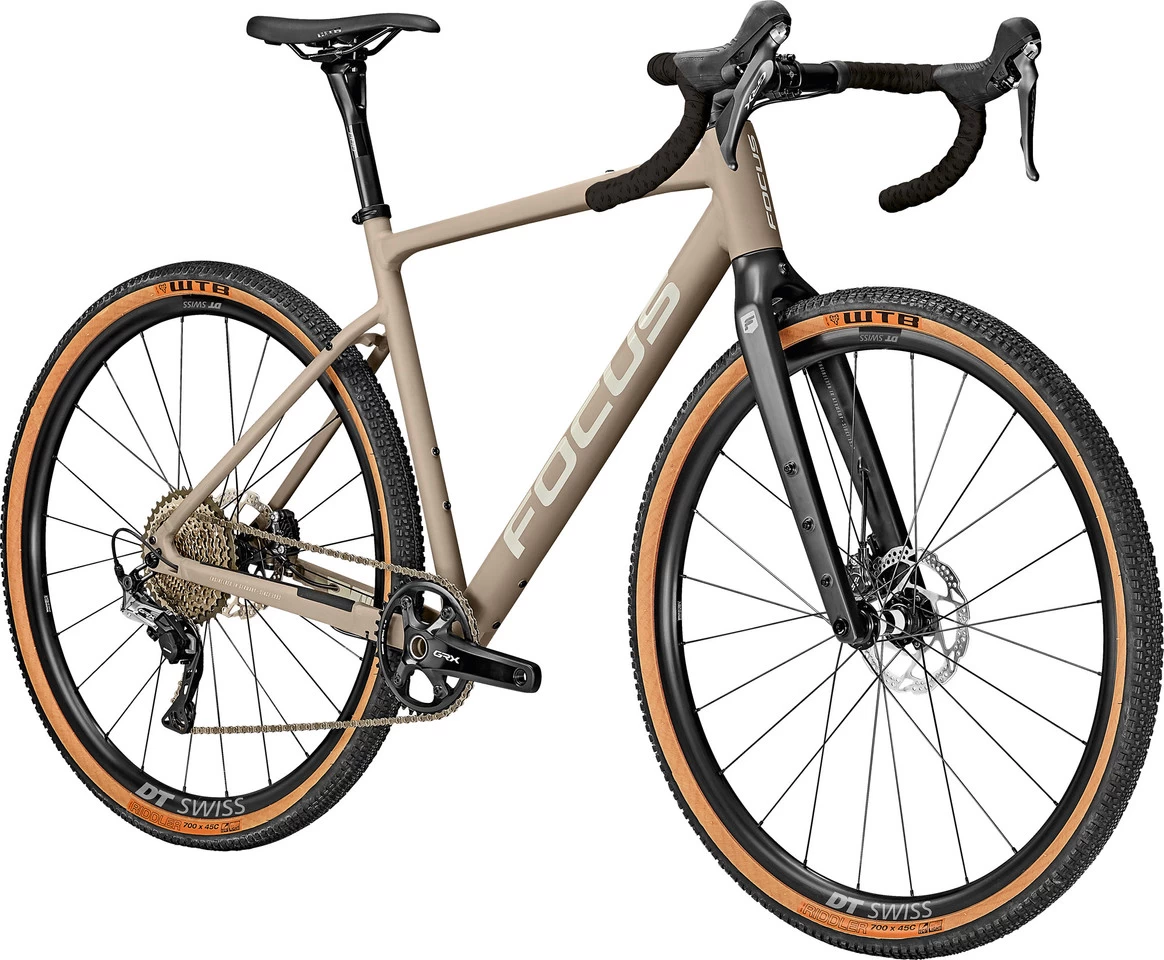

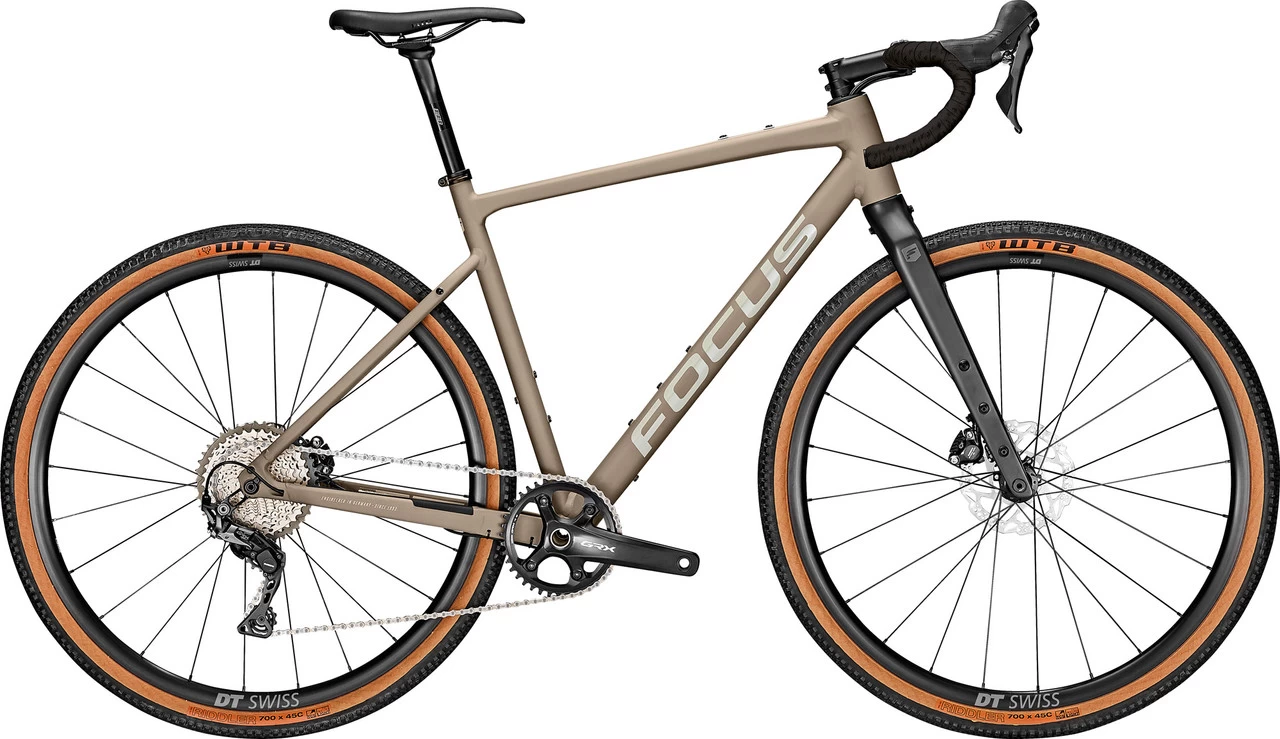

Focus ATLAS 6.9 28″ Gravel Bike

The ATLAS 6.9 is a versatile gravel bike with an aluminium frame and carbon fork, equipped by FOCUS with a Shimano GRX 1×11-speed groupset including MTB cassette and DT Swiss Gravel LN 28″ wheels. Its Endurance geometry, disc brakes, 45 mm wide tyres and 10° flare handlebars ensure full control on gravel road adventures. The extensive mounting options also make the ATLAS great for bikepacking.
Specifications:Application:GravelWheel Size:28″Sizes:XS, S, MFrame Material:aluminiumFork Material:CarbonComponents:Frame:FOCUS ATLAS, aluminium, flat mount disc, 12 x 148 mm thru-axle (Boost)Fork:FOCUS ATLAS, Carbon, Disc Flat Mount, 425 mm axle to crown length, 50 mm offset, 12 x 110 mm thru-axle (Boost)Stem:FOCUS, aluminium, 6°, 31.8 mmHandlebars:FOCUS JD RA85, 116 mm drop, 74 mm reach, 10° flare, 31.8 mmHeadset:Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.Seatpost:BBB FlyPost SP-135, carbon, 27.2 mm, 350 mm, 0 mm setback, insertion depth min. 100 mmSaddle:WTB SL8Crank:Shimano GRX 810, BSA bottom bracket, 40 T chainringPedals:noneBrakes:Shimano GRX 810, 160 mm/160 mmShift/Brake lever:Shimano GRX 800Rear Derailleur:Shimano GRX 812Cassette:Shimano SLX, 11-42 TChain:Shimano CN-HG601Wheels:DT Swiss LN Gravel, 24-622, Center Lock Disc, 12 x 110 mm / 12 x 148 mmTyres:WTB Riddler, 700 x 45C, folding tyreApproved For:Weight Limit:120 kgRotor Size (max.):180 mmTyre Size (max.):27.5 x 2.0″ , 47-622 (700 x 47C), with fenders: 40-622 (700 x 40C)Chainrings:1-speed, 2-speedChainring Size (max.):1-speed 42 T with chainline 49.7 mm (Shimano), 1-speed 40 T with chainline 45 mm (SRAM), 2-speed 30-46 T with chainline 47 mm (Shimano), 2-speed 30-43 T with chainline 47.5 mm (SRAM)Features:fast gravel bike with aluminium frame for adventures and bikepackingEndurance geometry for comfort and control on changing surfaces and in all weather conditionsextremely large tyre clearance up to 47 mm, 650B compatibleShimano GRX 810 1×11-speed groupset and disc brakesDT Swiss Gravel LN wheels with 24 mm wide rimswide handlebars with flareinternal cable routingnumerous mounting optionsincludes top tube bagEN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/hTechnology:C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.
Geometry:XS:
Frame Size:48 cmRecommended Height:160 – 170 cmStack:568 mmReach:370 mmSeat Tube Length:450 mmEffective Top Tube Length:532 mmHead Tube Length:114 mmChainstay Length:425 mmWheelbase:1015 mmBB Drop:75 mmSeat Tube Angle:74°Head Tube Angle:70.5°Standover Height:765 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmSeatpost Insertion Depth (max.):220 mm
S:
Frame Size:51 cmRecommended Height:171 – 175 cmStack:582 mmReach:380 mmSeat Tube Length:490 mmEffective Top Tube Length:552 mmHead Tube Length:129 mmChainstay Length:425 mmWheelbase:1030 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:789 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmSeatpost Insertion Depth (max.):250 mm
M:
Frame Size:54 cmRecommended Height:176 – 185 cmStack:596 mmReach:395 mmSeat Tube Length:520 mmEffective Top Tube Length:571 mmHead Tube Length:144 mmChainstay Length:425 mmWheelbase:1051 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:809 mmStem Length:80 mmHandlebar Width:44 cmCrank Arm Length:172.5 mmSeatpost Insertion Depth (max.):285 mmManufacturer Numbers:XS:641019440S:641019441M:641019442Shipping Notice:The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.
Contents:1 x FOCUS ATLAS 6.9 28″ Gravel Bike1 x FOCUS top tube bag
