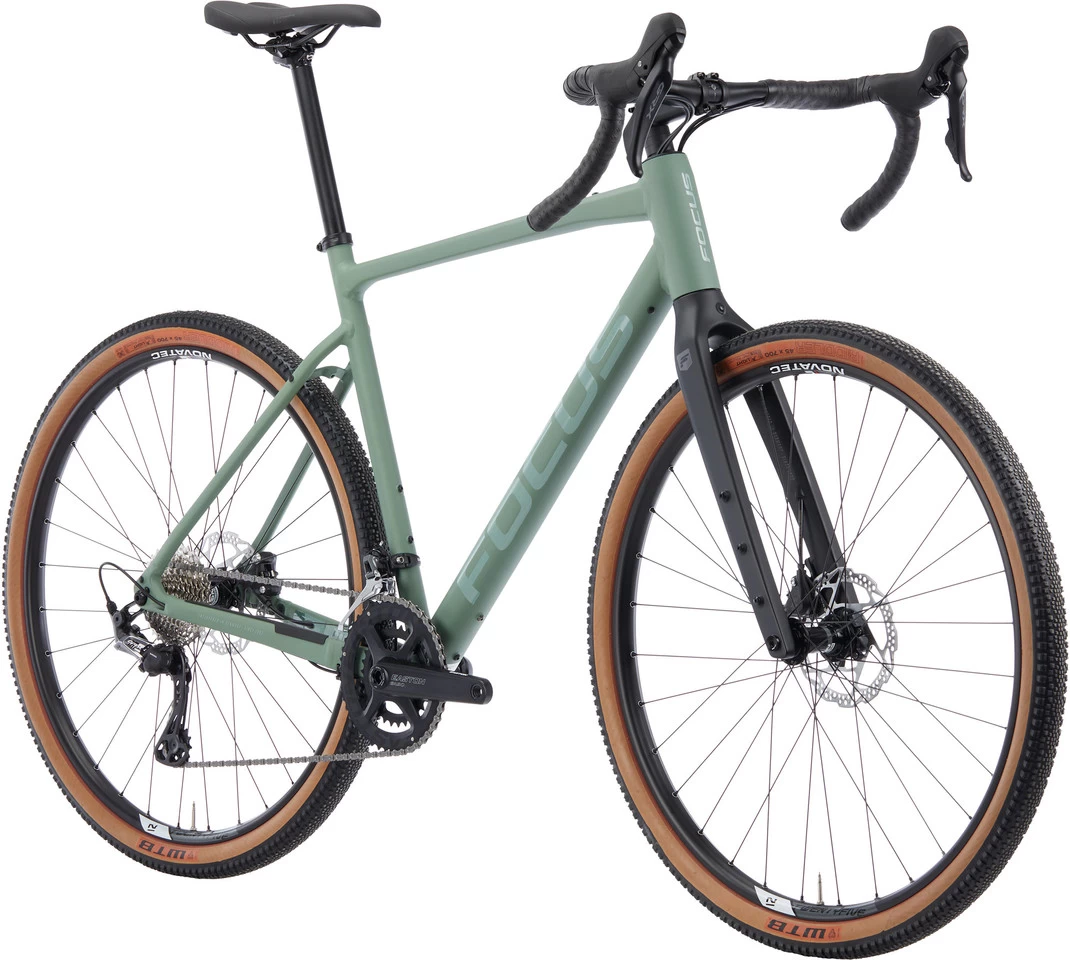

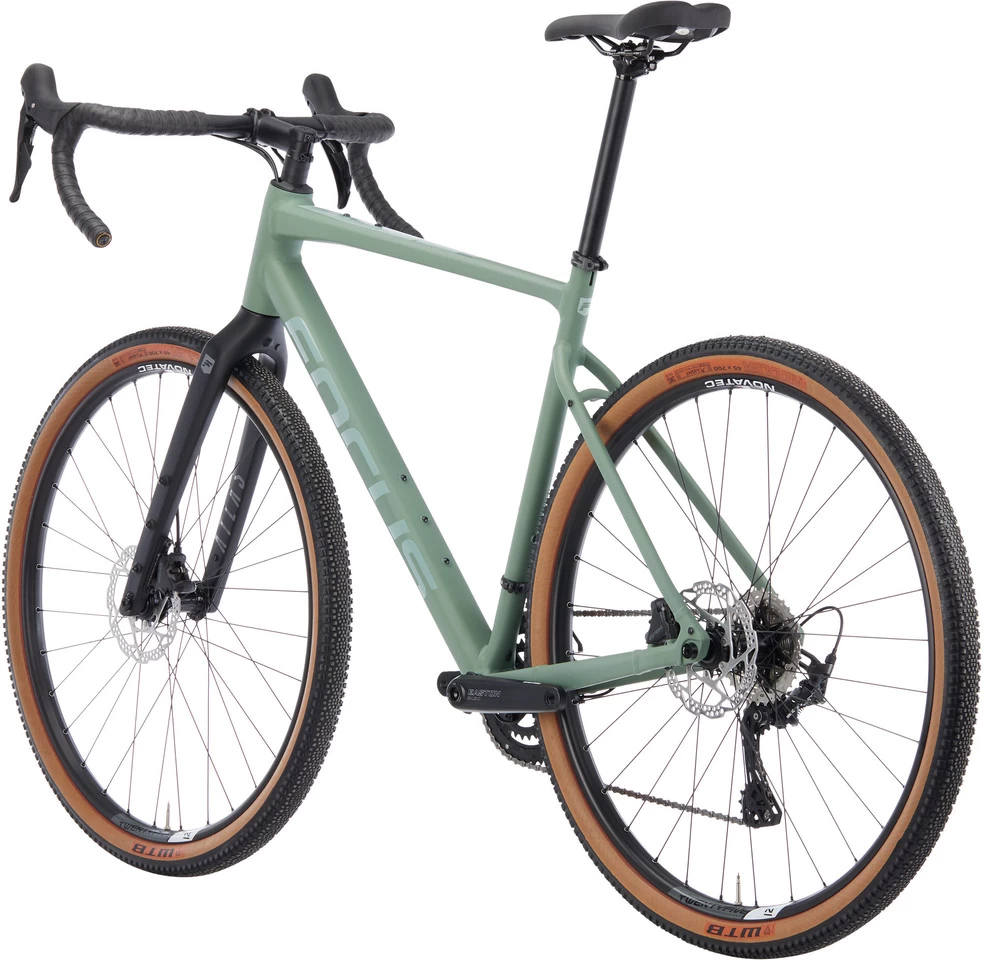

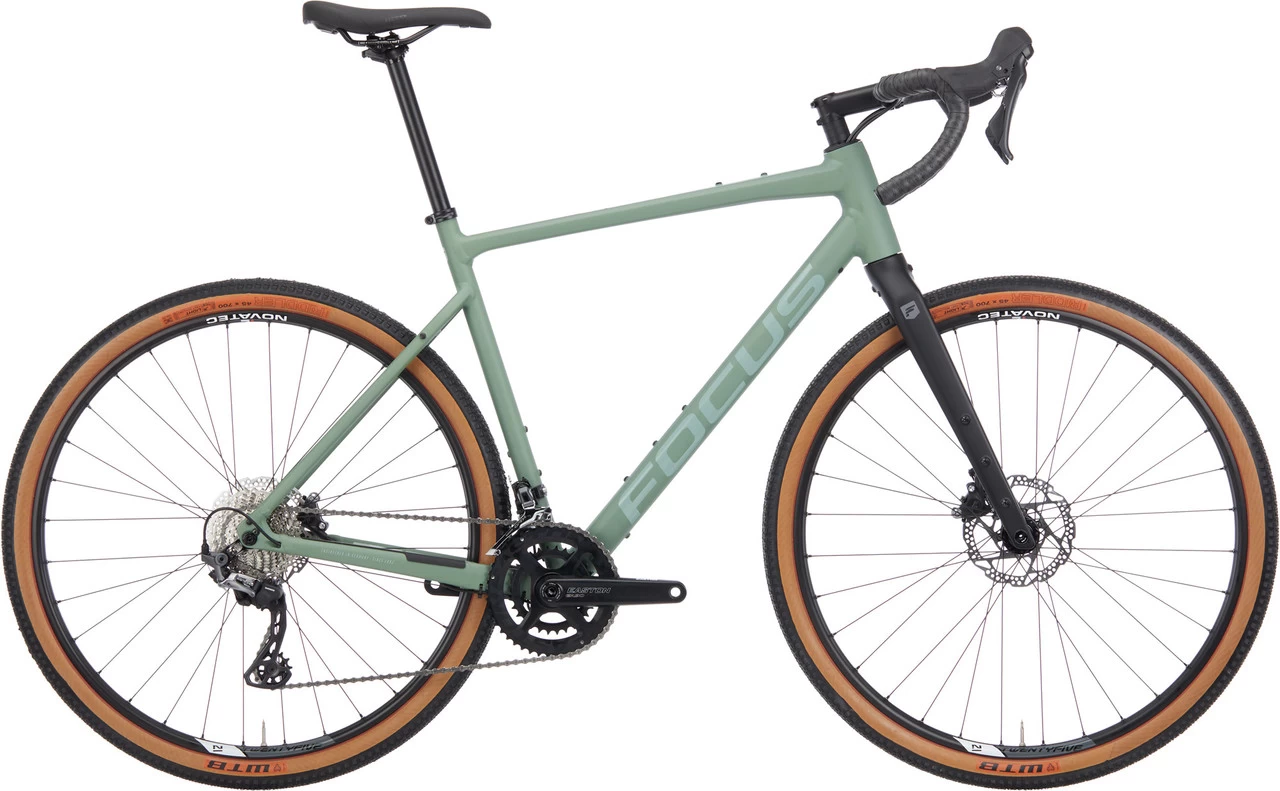

Focus ATLAS 6.8 28″ Gravel Bike

The ATLAS 6.8 Gravel Bike by FOCUS takes you to the end of the world

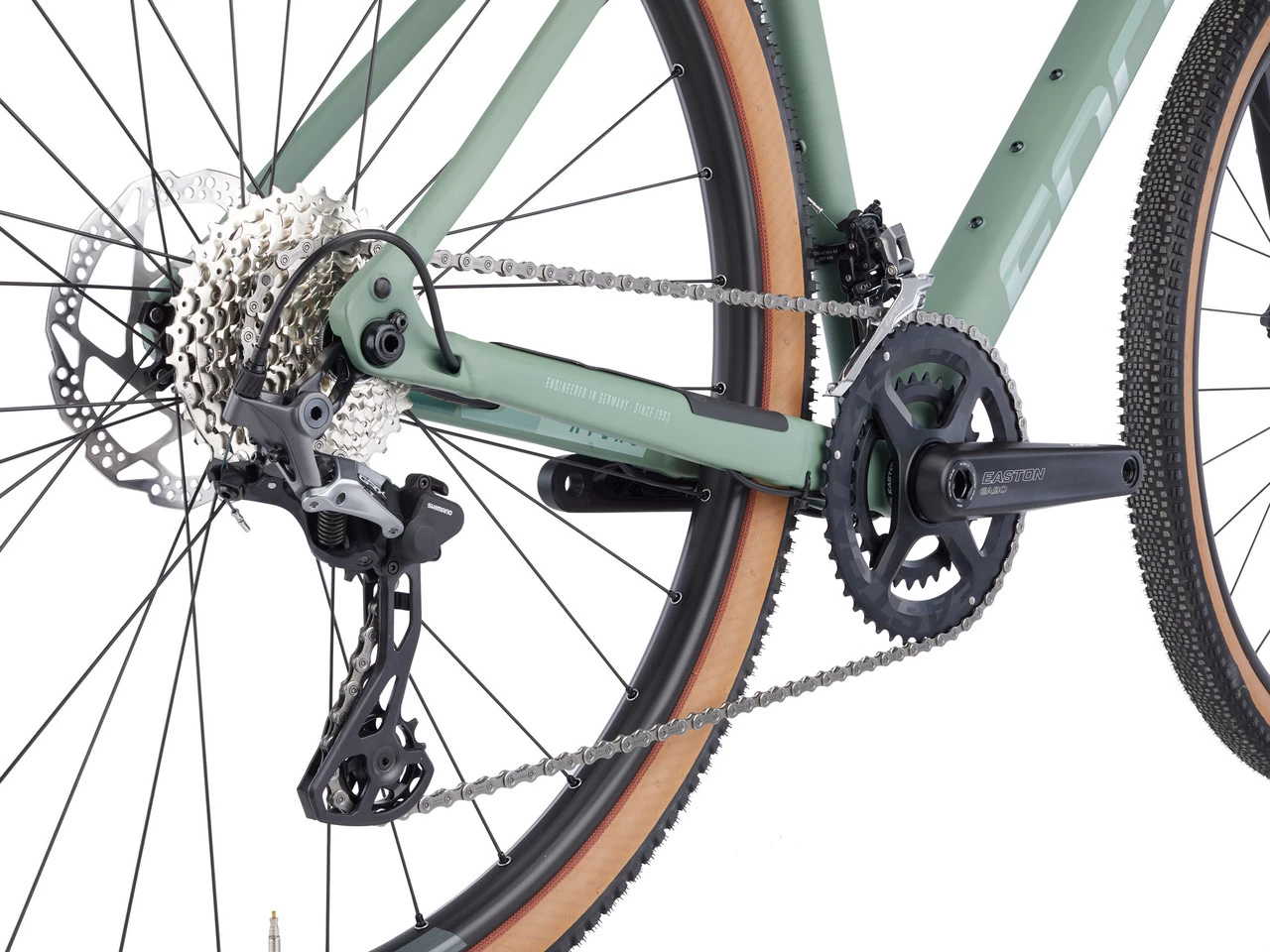

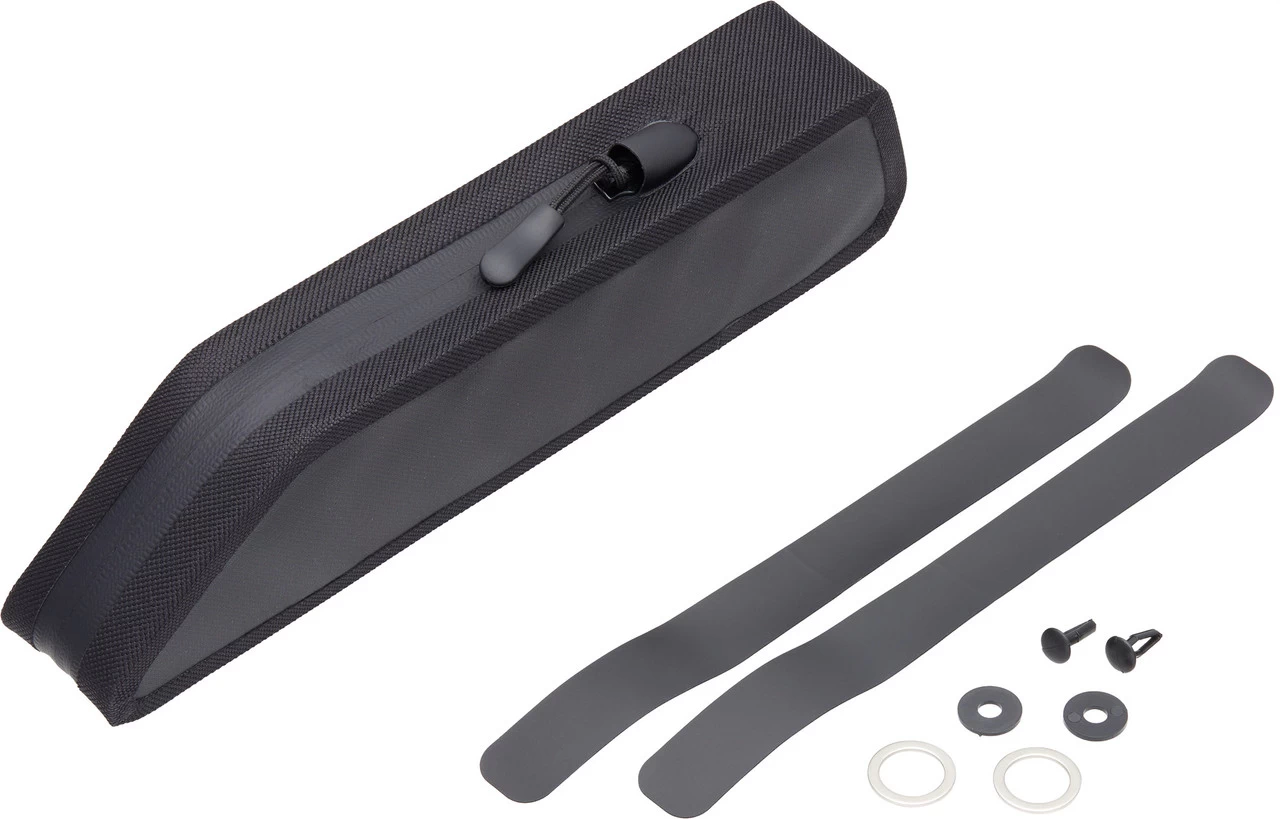

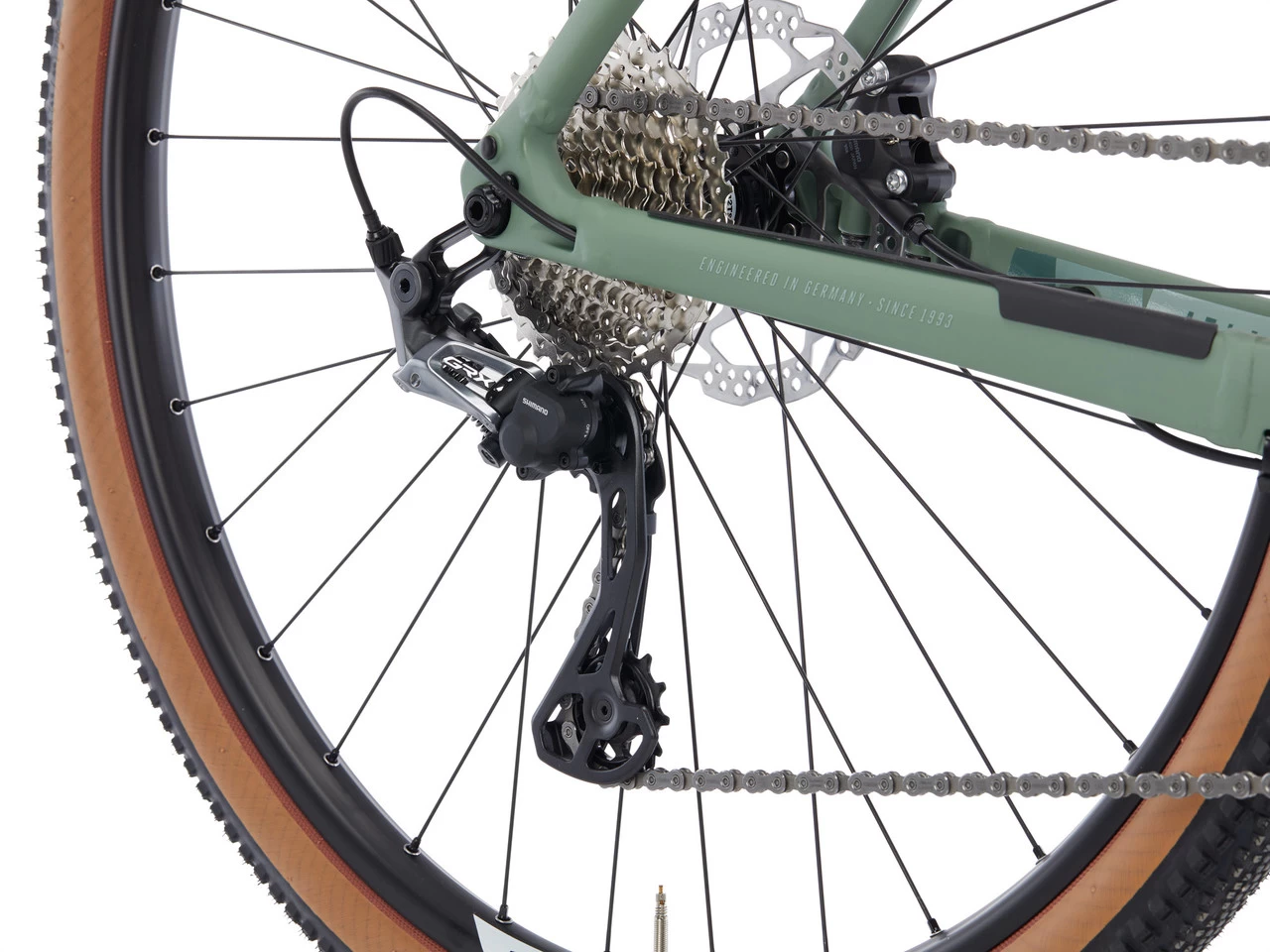

The FOCUS ATLAS 6.8 gravel bike with 2×11-speed Shimano GRX gears and sturdy Novatec wheels with Boost hubs masters every adventure. Based on an aluminium frame and a carbon fork, it offers generous tyre clearance and mounting options for bikepacking. A matching top tube bag is also included in the scope of delivery. Thanks to disc brakes and handlebar flare, the ATLAS 6.8 steers safely and comfortably on all surfaces and even in adverse weather conditions.
Specifications:Application:GravelWheel Size:28″Sizes:XS, S, M, L, XLFrame Material:aluminiumFork Material:CarbonComponents:Frame:FOCUS ATLAS, Flat Mount Disc, 12 x 148 mm thru-axleFork:FOCUS ATLAS Carbon, Flat Mount Disc, 12 x 110 mm thru-axle, 425 mm axle to crown length, 50 mm offsetStem:aluminium, 31.8 mm, 6°Handlebars:Aluminium, 31.8 mm, 116 mm drop, 74 mm reach, 10° flareHeadset:Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.Seatpost:Aluminium, 27.2 mm, 350 mm, 0 mm setbackSaddle:WTB SL8Crank:Easton EA90, 11-speed, 30-46 T, BSA bottom bracketPedals:noneBrakes:Shimano GRX 600, 160 mm/160 mmShift/Brake lever:Shimano GRX 600Rear Derailleur:Shimano GRX 810Front Derailleur:Shimano GRX 810Cassette:Shimano 105, 11-speed, 11-34 tChain:Shimano CN-HG601Wheels:Novatec 25 Elite, 25-622, Center Lock Disc, front wheel 12 x 110 mm, rear wheel 12 x 148 mmTyres:WTB Riddler folding tyres, 700 x 45CApproved For:Weight Limit:120 kgRotor Size (max.):180 mmTyre Size (max.):27.5″ x 2.0″ , 47-622 (700 x 47C), with fenders: 40-622 (700 x 40C)Features:light, robust aluminium bike with carbon fork (475 g)all-rounder, range of application between Road Endurance and Cyclocrosswide flared handlebars and disc brakes offer a high degree of safety and comfortpleasant shifting thanks to Shimano gravel derailleurRoad Boost for high stability through better spoke tensionhigh tyre clearance with simultaneously short chainstaysstreamlined cockpit with cable routing from the handlebars directly into the headset; space for handlebar bagcan be ridden with 650B wheelsmounts for 3 bottle cages (seat tube, top of down tube, bottom of down tube)various mounting options for equipment (3 kg payload at the fork)matching top tube bag included in delivery, integrates perfectly with two screwsFOCUS SL handlebar tapedouble-sealed bearingsASTM Category 2Technology:C.I.S.

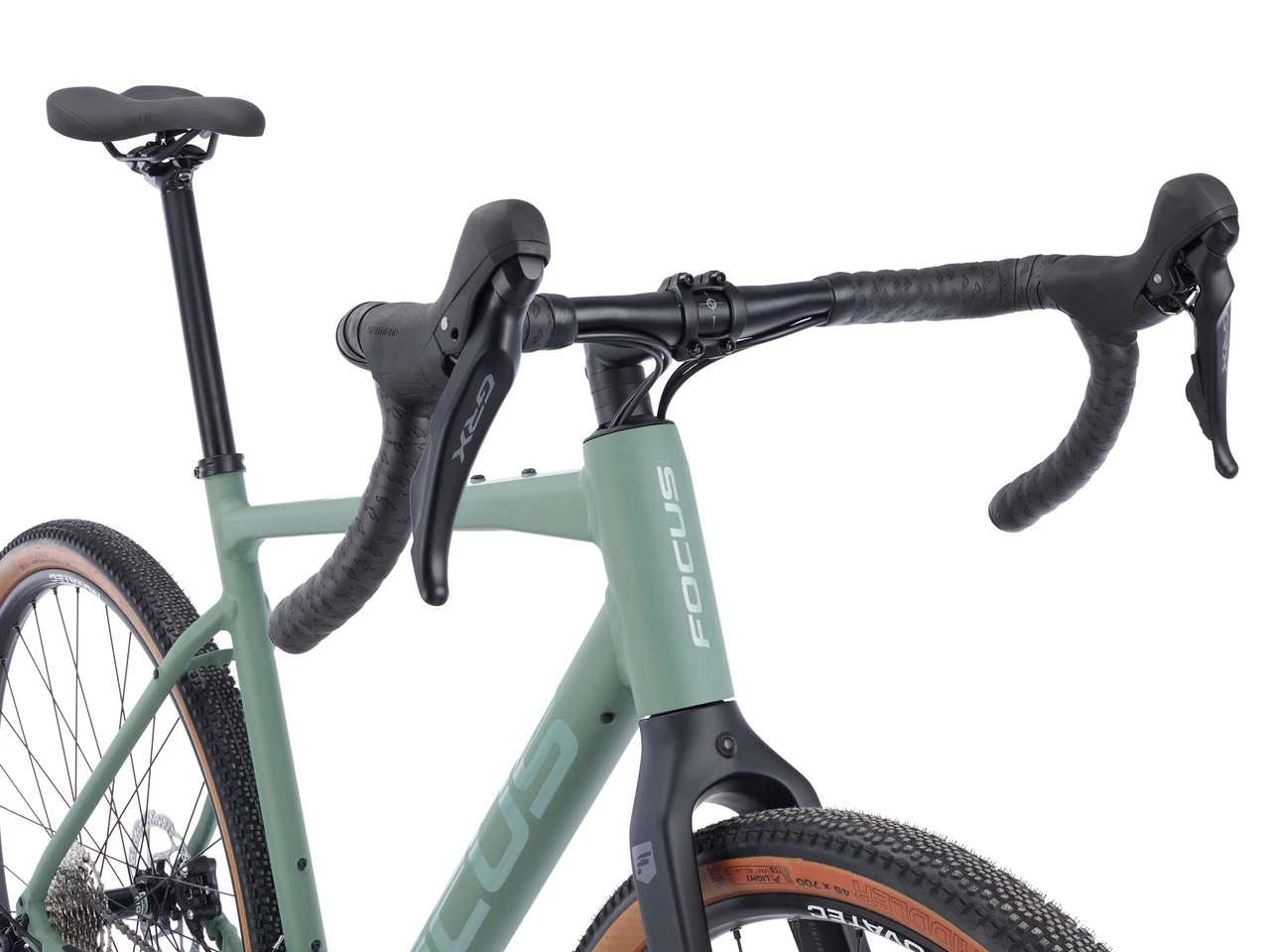

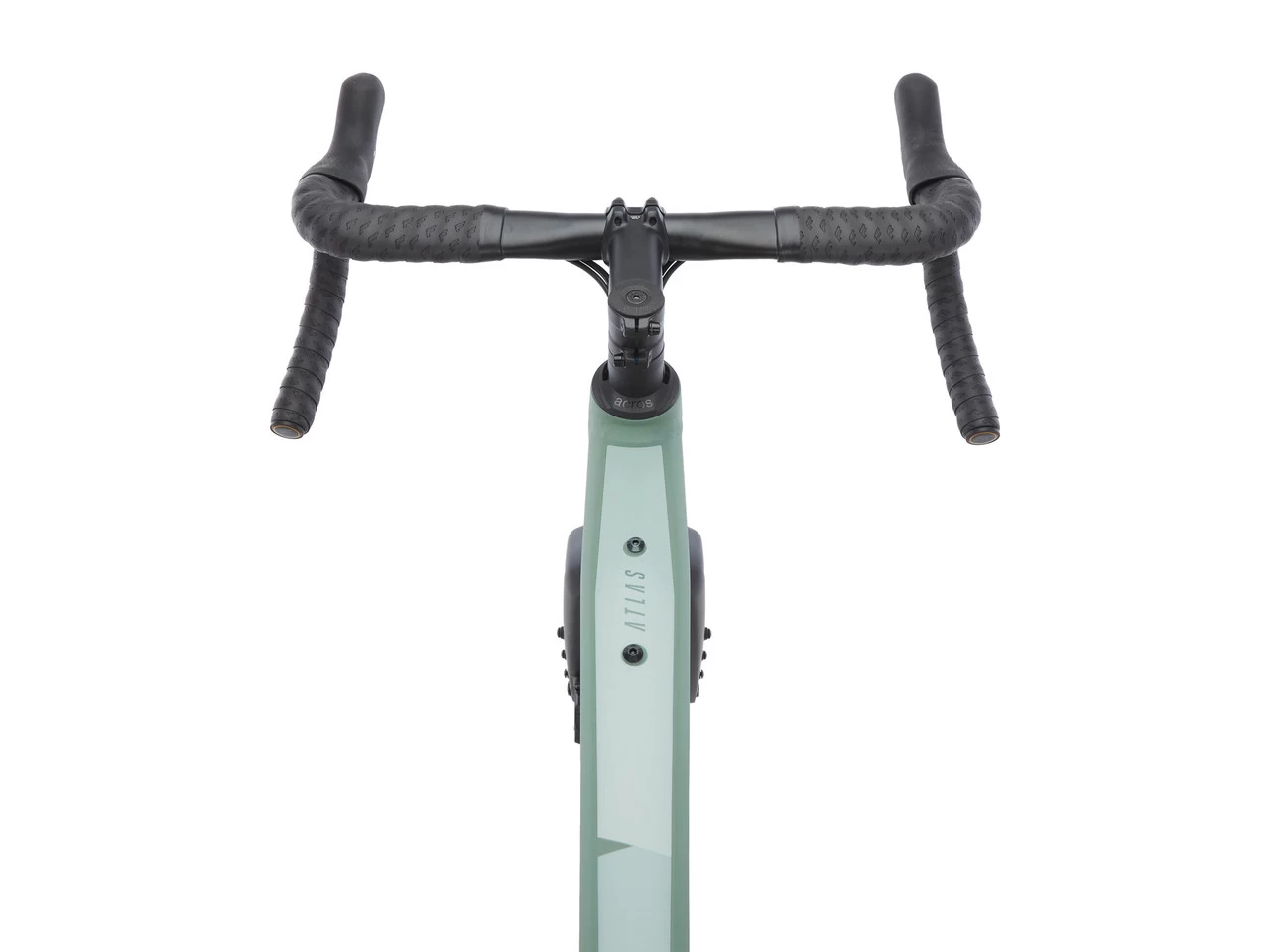

The fully integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

S.S.P.S.
The Stable Stiffness per Size (S.S.P.S.) process means that each frame size receives a specially-tuned carbon lay-up and is individually constructed. This is the only way to ensure an optimal stiffness-to-weight ratio and equal riding characteristics for each size.

Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.
Geometry:XS:
Recommended Height:160 – 170 cmFrame Size:48 cmStack:568 mmReach:370 mmSeat Tube Length:450 mmEffective Top Tube Length:532 mmHead Tube Length:114 mmChainstay Length:425 mmWheelbase:1015 mmBB Drop:75 mmSeat Tube Angle:74°Head Tube Angle:70.5°Standover Height:765 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmWheel Size:28″
S:
Recommended Height:171 – 175 cmFrame Size:51 cmStack:582 mmReach:380 mmSeat Tube Length:490 mmEffective Top Tube Length:552 mmHead Tube Length:129 mmChainstay Length:425 mmWheelbase:1030 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:789 mmStem Length:70 mmHandlebar Width:42 cmCrank Arm Length:170.0 mmWheel Size:28″
M:
Recommended Height:176 – 185 cmFrame Size:54 cmStack:596 mmReach:395 mmSeat Tube Length:520 mmEffective Top Tube Length:571 mmHead Tube Length:144 mmChainstay Length:425 mmWheelbase:1051 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:809 mmStem Length:80 mmHandlebar Width:44 cmCrank Arm Length:172.5 mmWheel Size:28″
L:
Recommended Height:186 – 190 cmFrame Size:57 cmStack:615 mmReach:410 mmSeat Tube Length:550 mmEffective Top Tube Length:592 mmHead Tube Length:164 mmChainstay Length:425 mmWheelbase:1072 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:830 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:172.5 mmWheel Size:28″
XL:
Recommended Height:191 – 199 cmFrame Size:60 cmStack:643 mmReach:420 mmSeat Tube Length:577 mmEffective Top Tube Length:610 mmHead Tube Length:194 mmChainstay Length:425 mmWheelbase:1092 mmBB Drop:75 mmSeat Tube Angle:73.5°Head Tube Angle:70.5°Standover Height:862 mmStem Length:90 mmHandlebar Width:44 cmCrank Arm Length:175.0 mmWheel Size:28″Manufacturer Number:mineral green:64101941Shipping Notice:The shipment is sent pre-assembled
